Summary

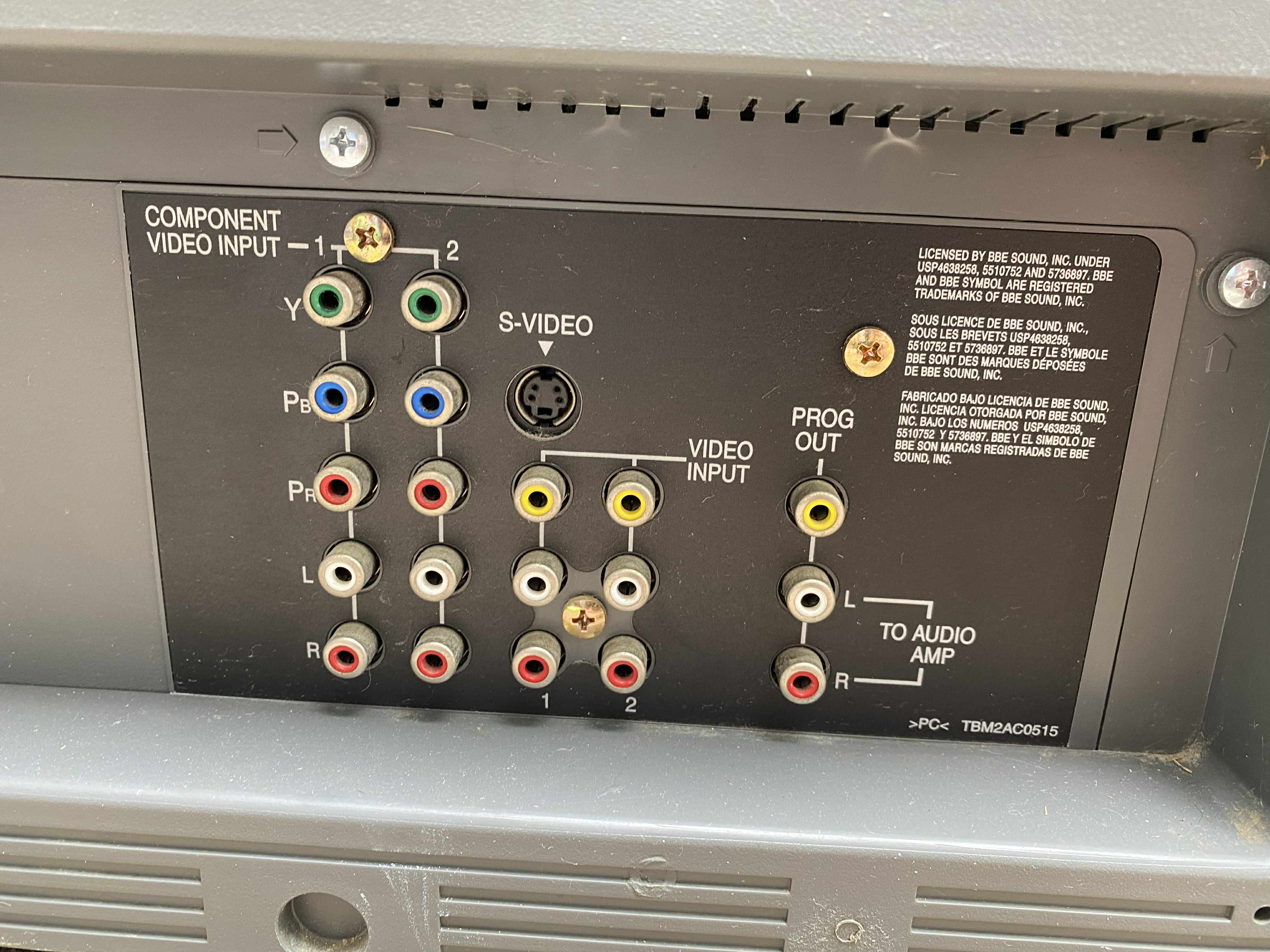

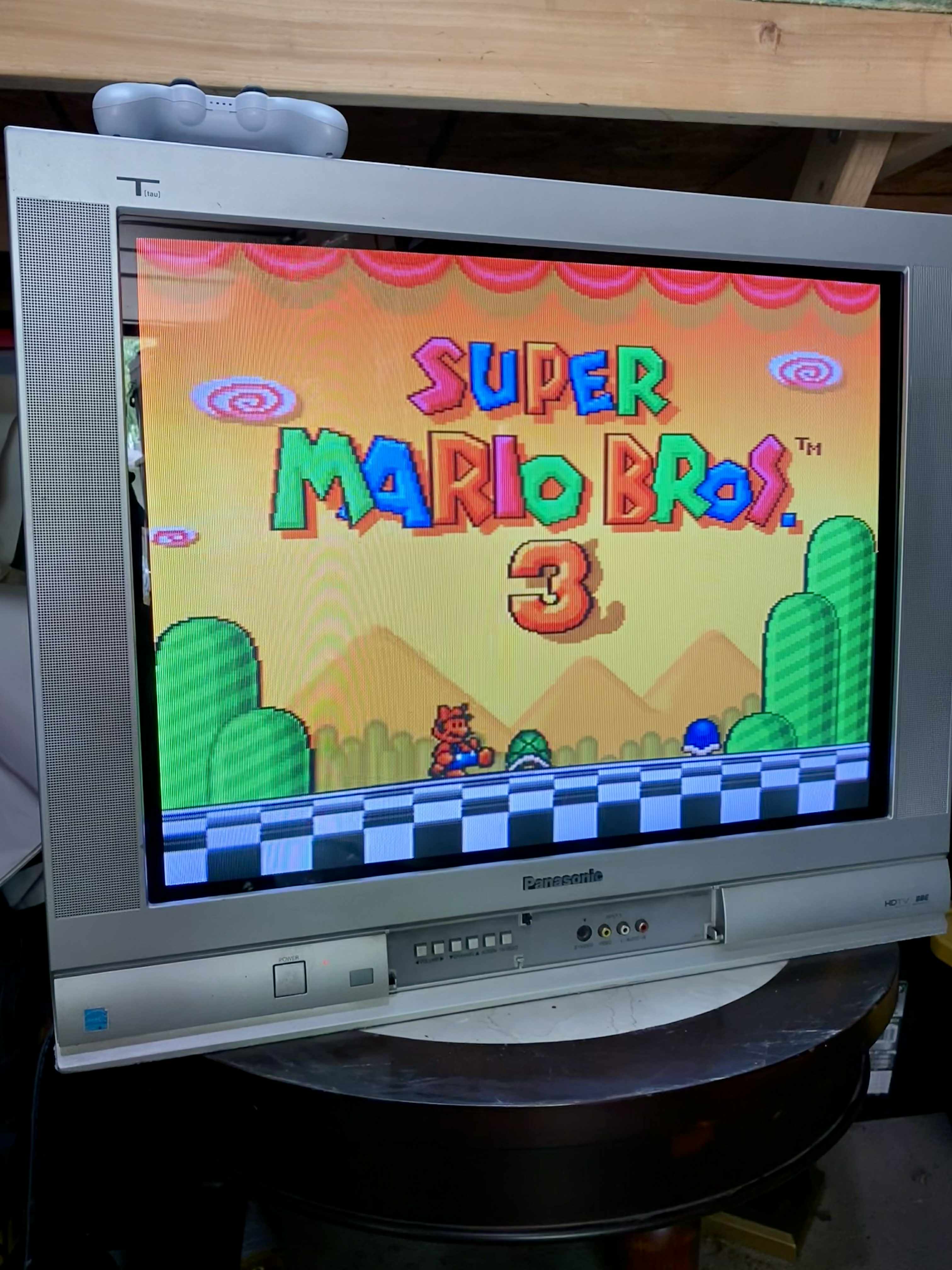

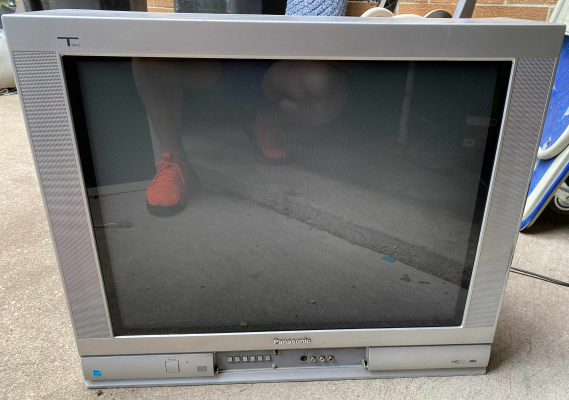

27" flat HD CRT by Panasonic, one of the very last sets they would produce at their Mexico plant. Has RF, composite, s-video, and component; strangely, no DVI. Originally manufactured in 2005.
(Special thanks to Levi G. for the pics!)
Manuals
Notes
480p and 1080i are processed as separate scanning rages, so they have no latency.
Velocity Modulation can be disabled in the standard menu.

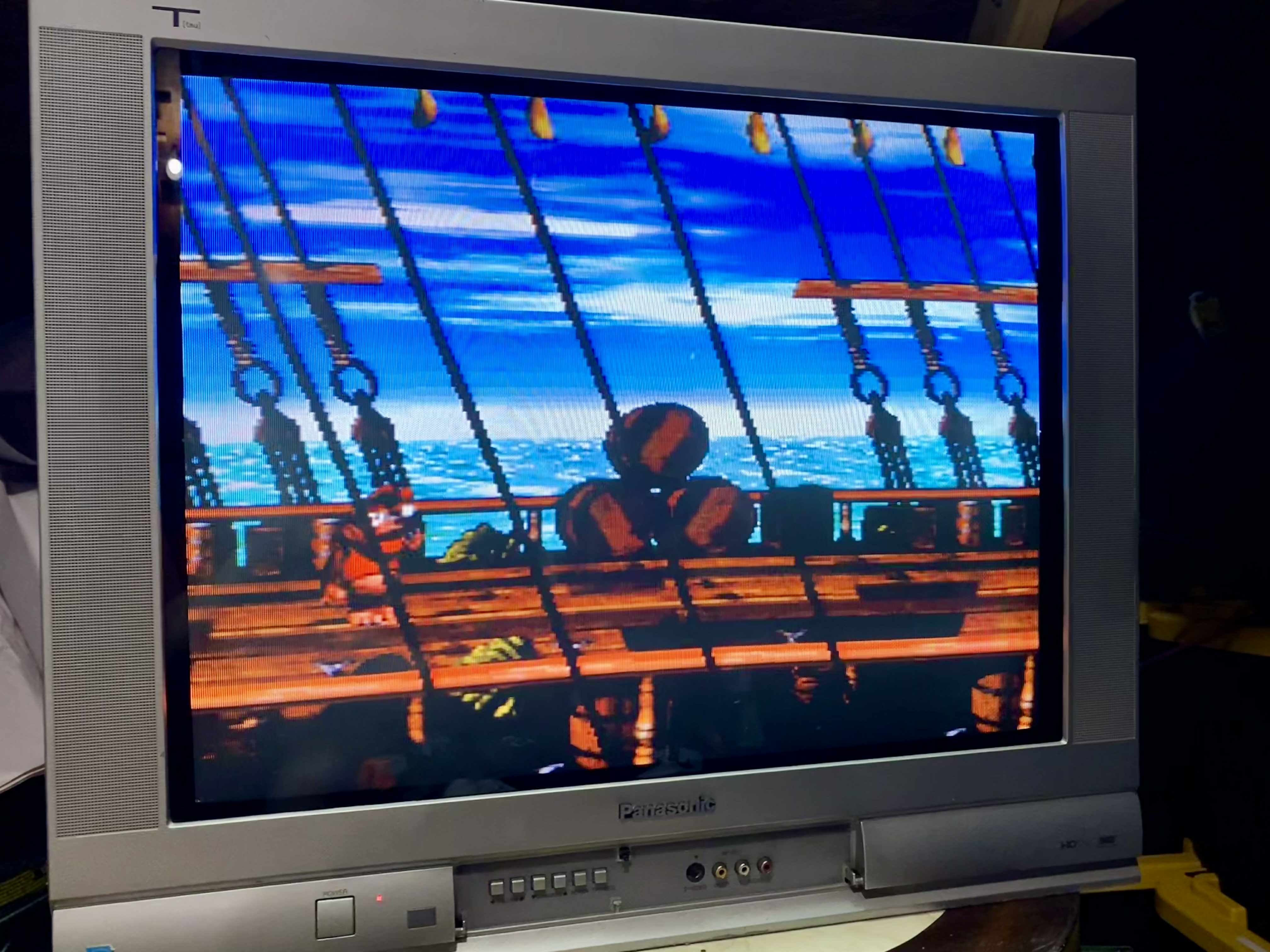

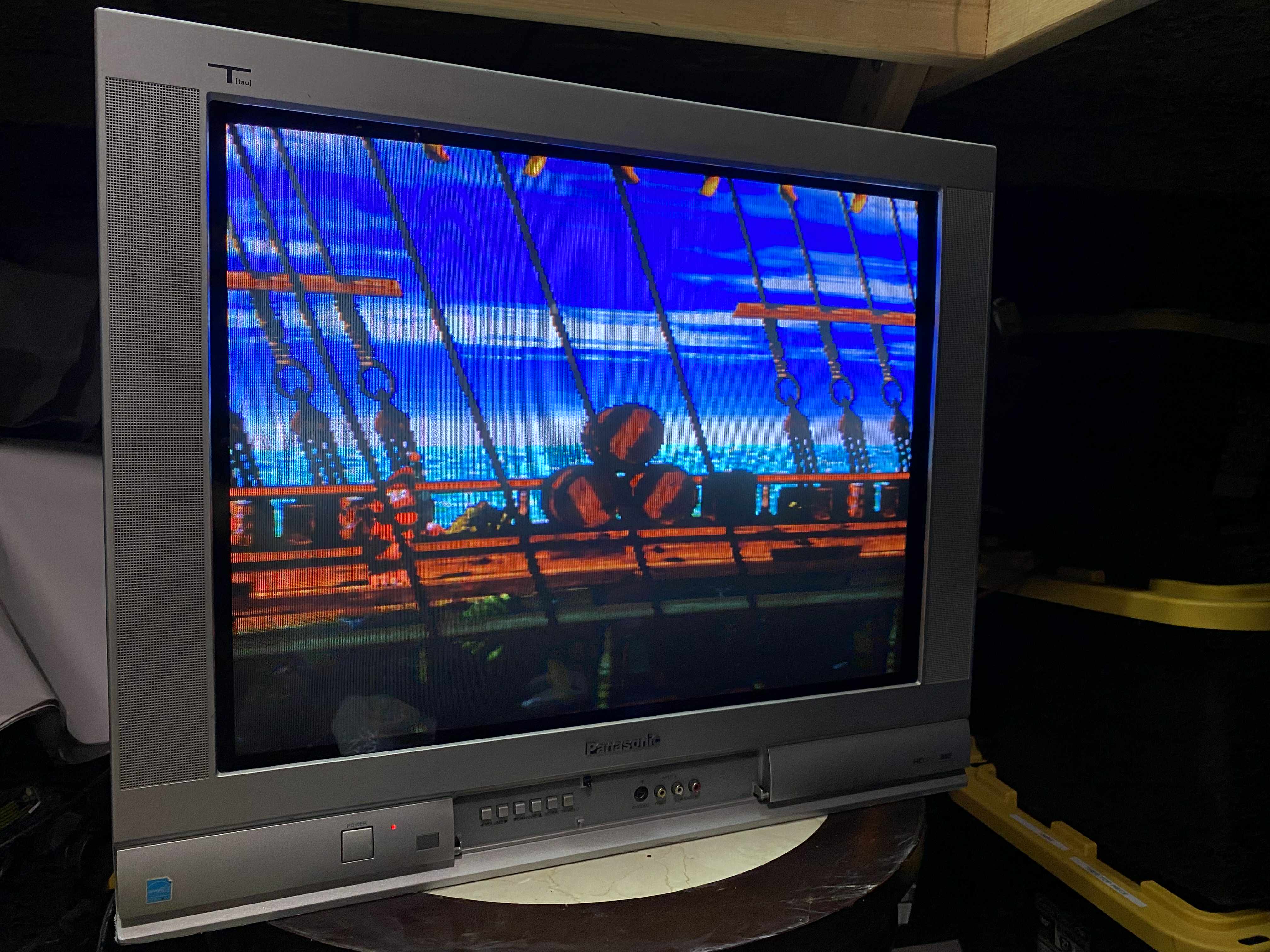

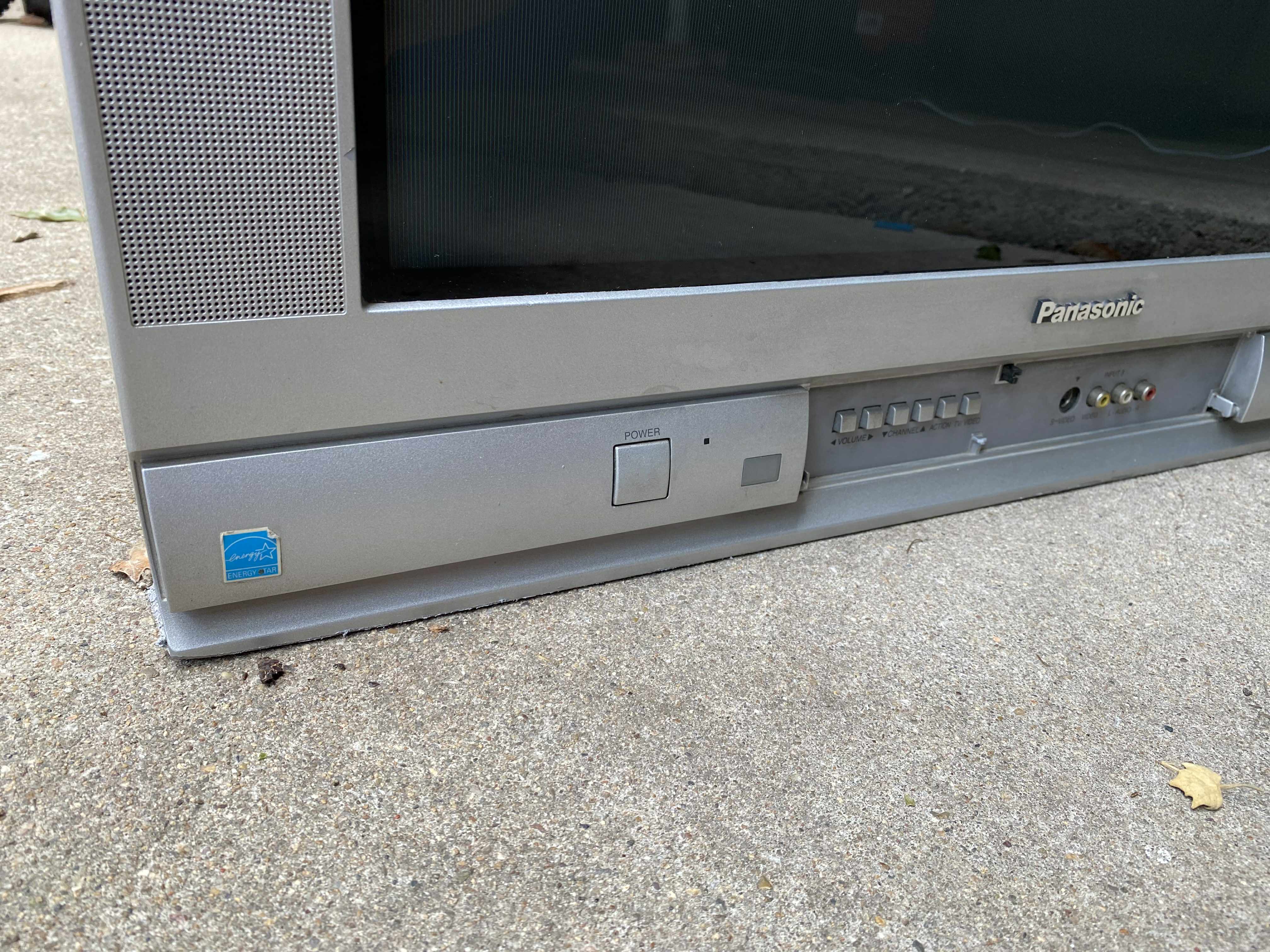

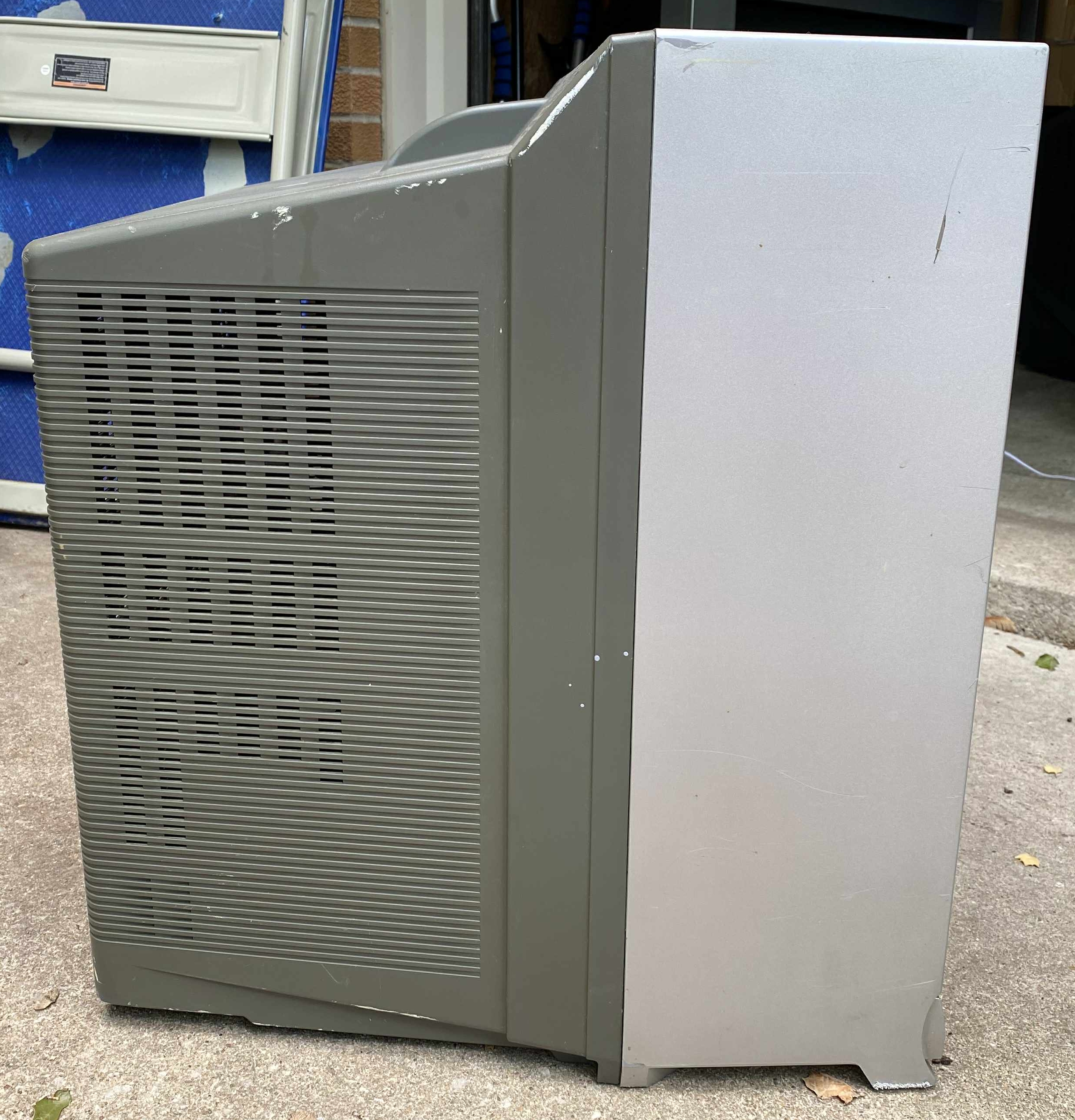

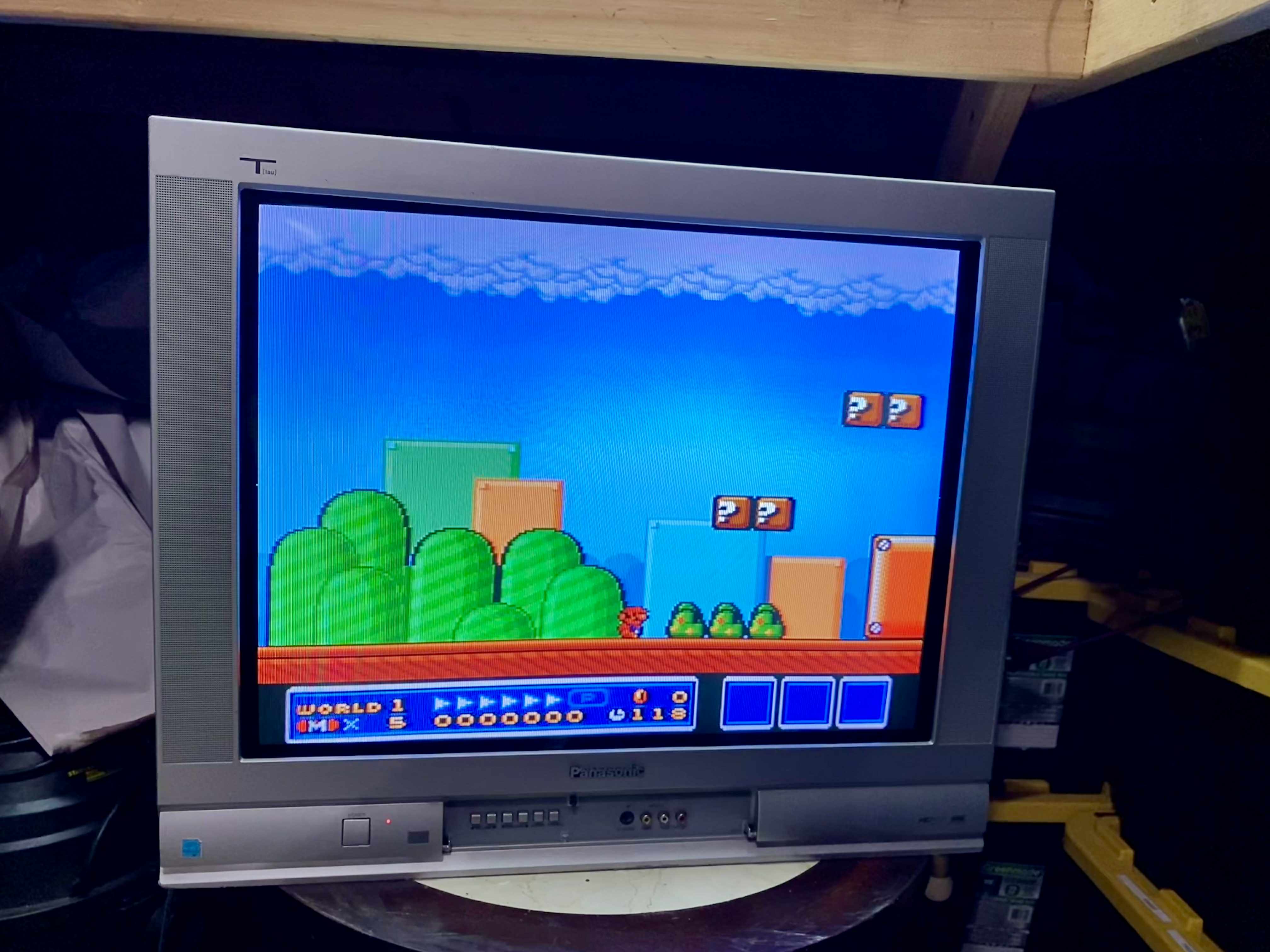

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |

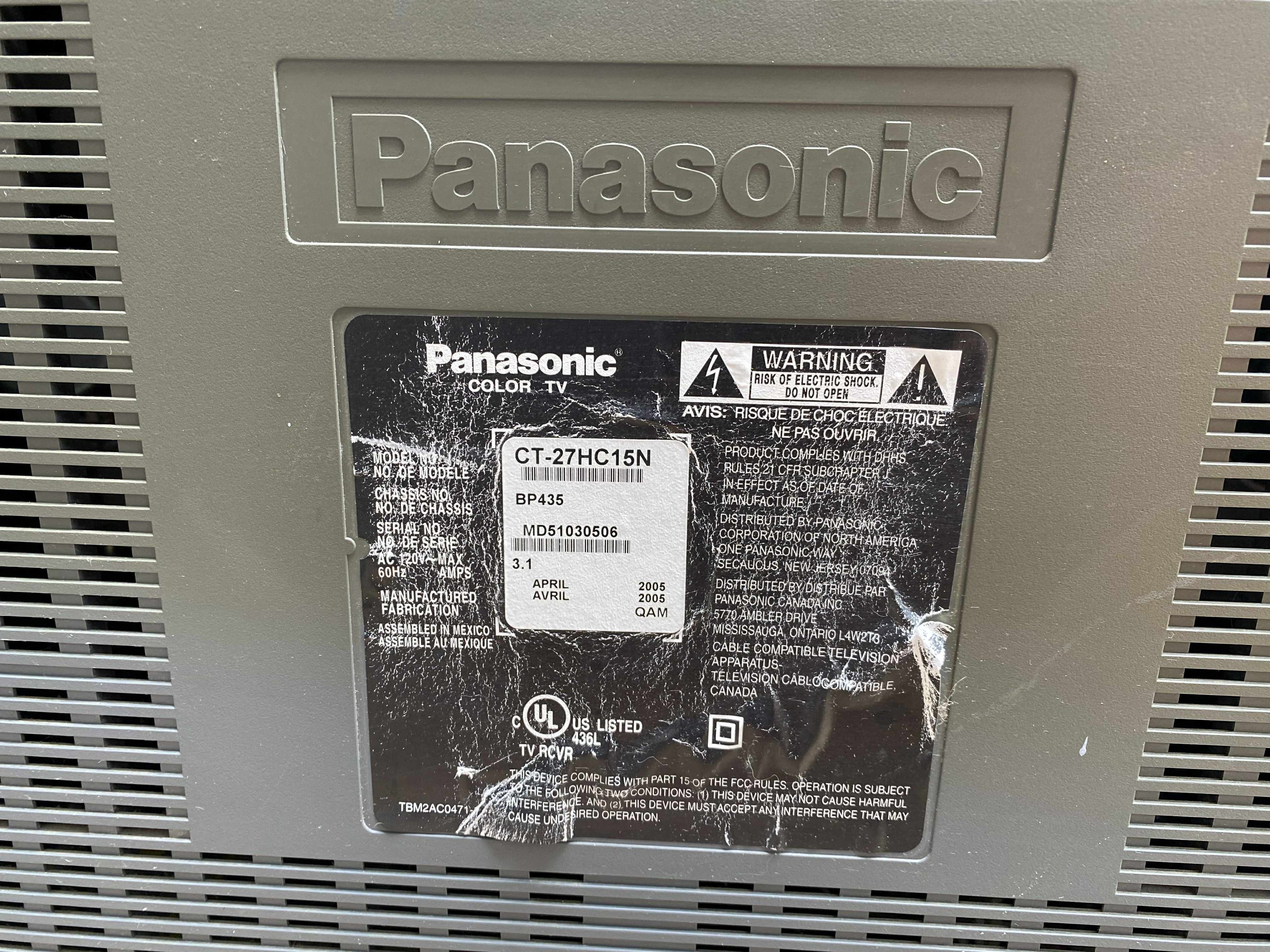

| Model: | CT-27HC15 |

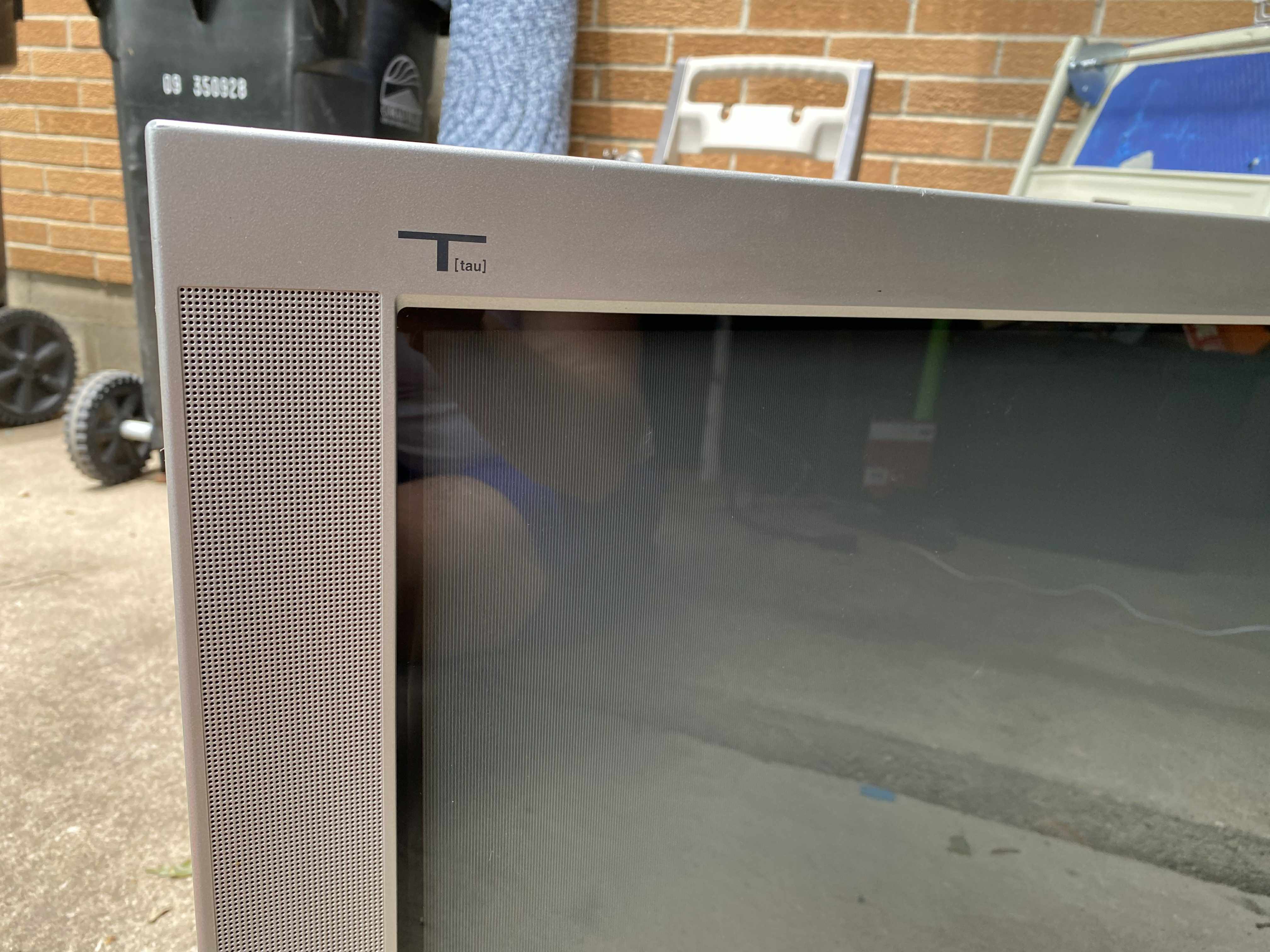

| Series: | Tau (HD) |
| Viewable Size: | 27" |

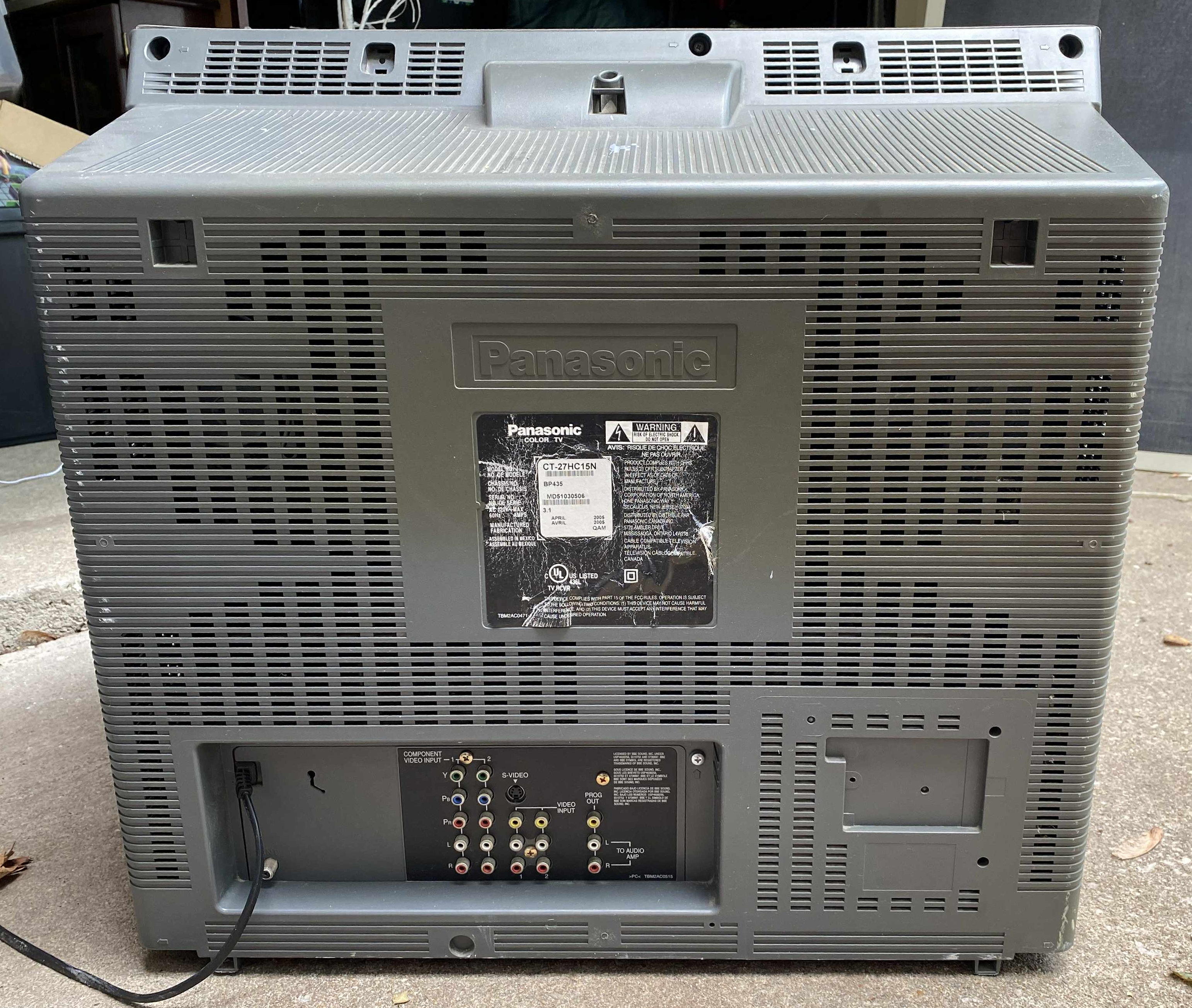

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 1080i, 480p |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Panasonic, MN102H75KND |
| Comb Filtering: | 3D Digital |
| Flyback: | ZTFN95005A |
| Focus Type: | Single |
| Tube: | Samsung , A68QCP693X |
| Heater Voltage: | 6.3v |

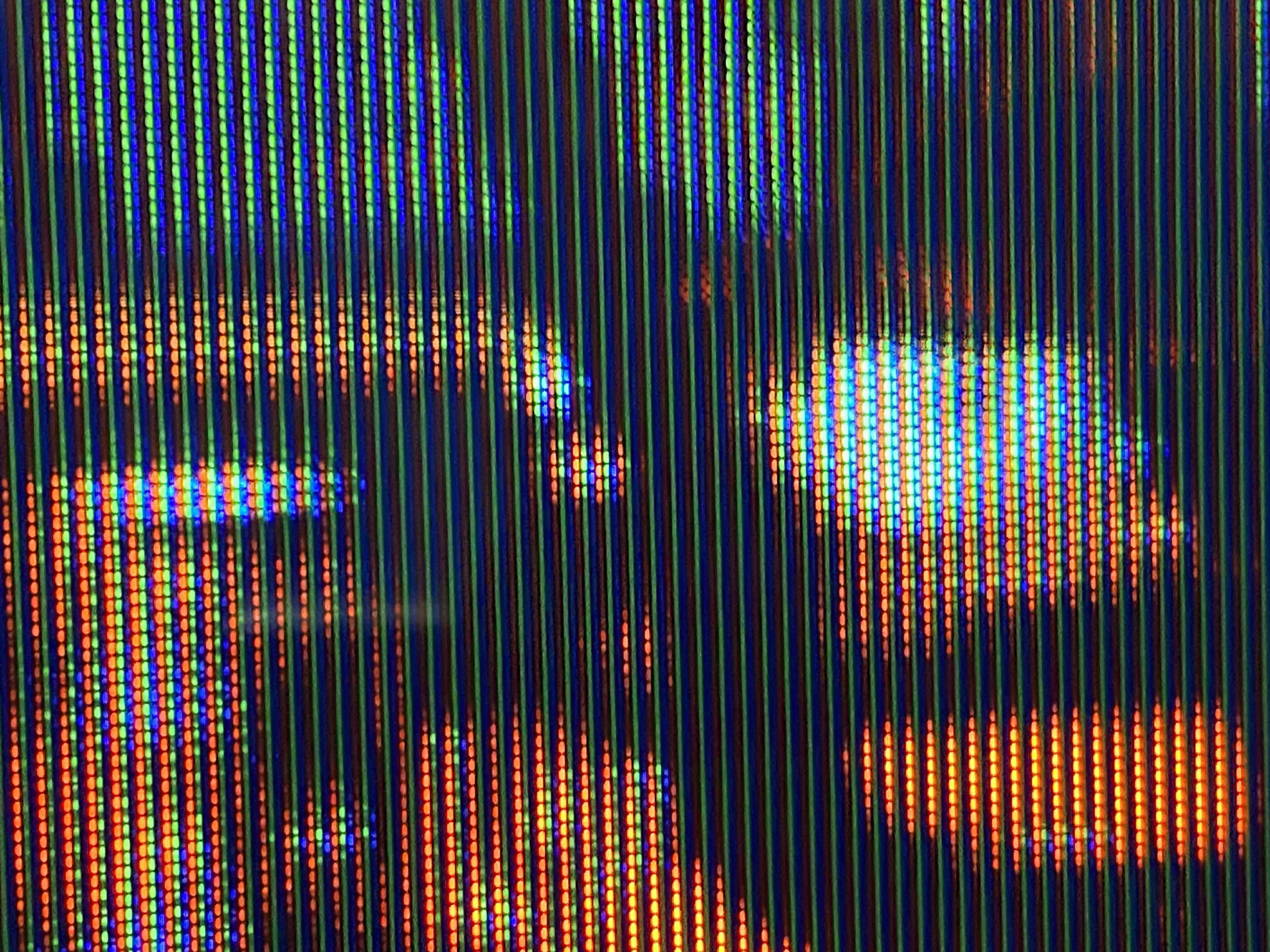

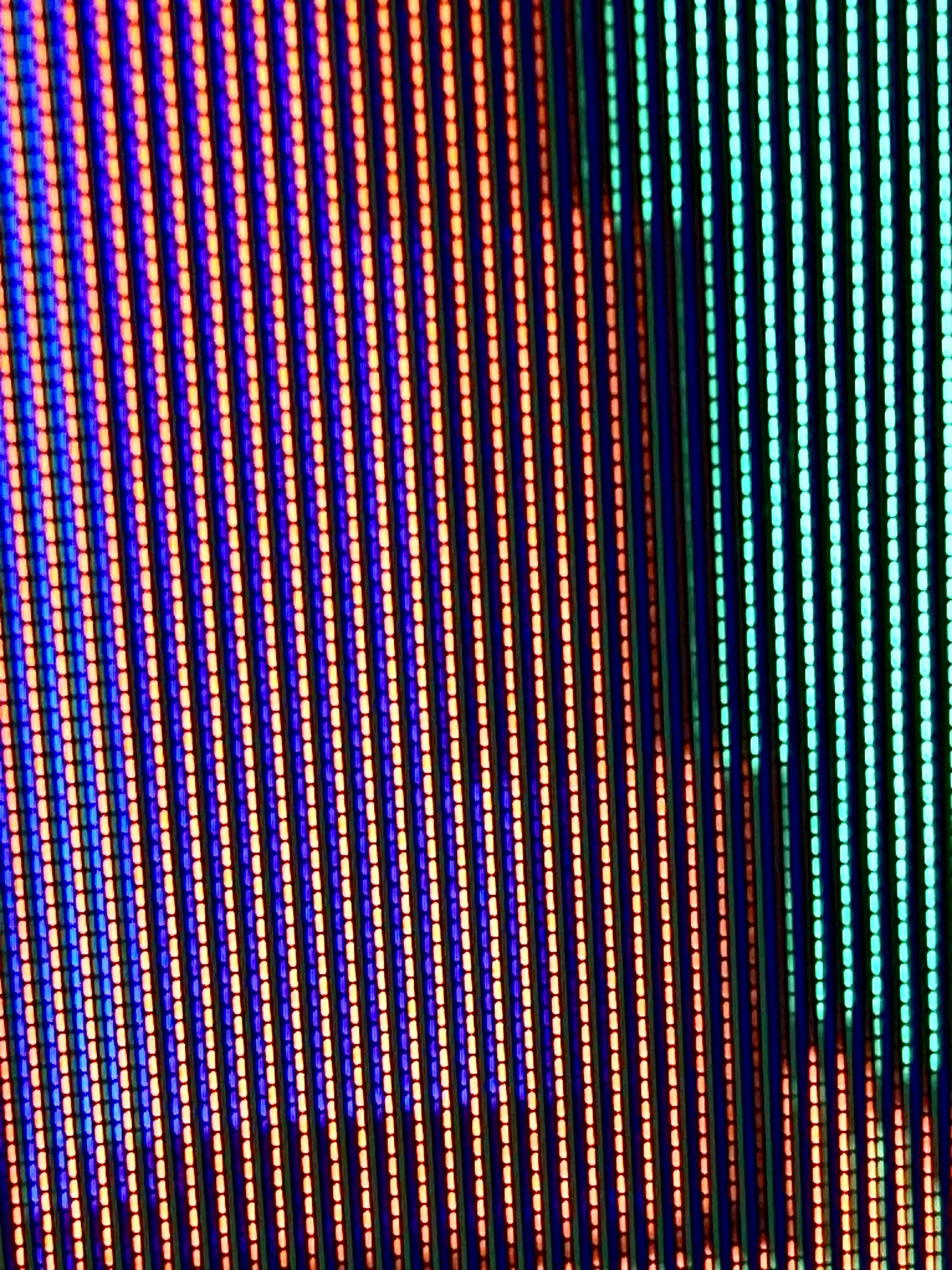

| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY2AA046 |
| Speakers: | Stereo, 10W x 2 |
| Remote: | EUR7613ZC0 |
| Chassis: | BP435 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
