Summary

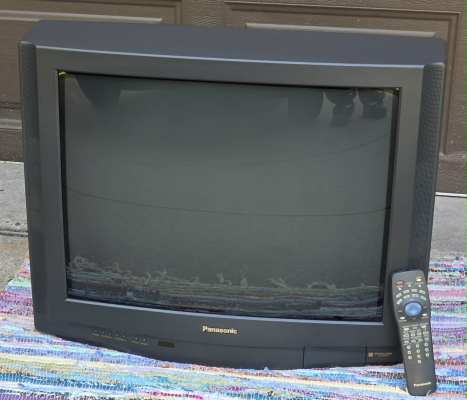

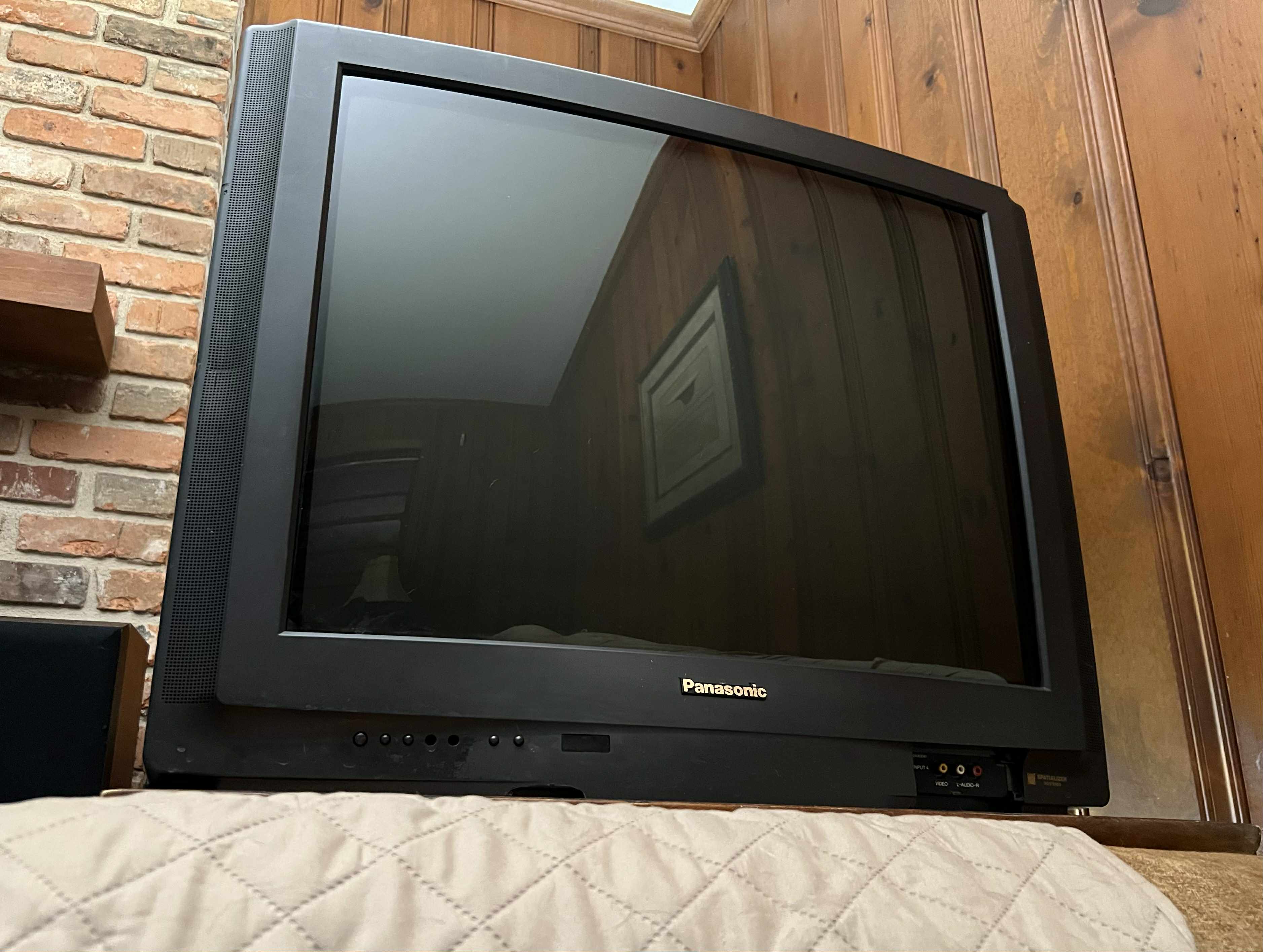

27" curved-screen CRT by Panasonic. Has RF, composite, and s-video inputs. Originally manufactured in Mexico in 1998.
(Special thanks to Austin G. and Shane Torvik for the pics!)
Manuals
Notes

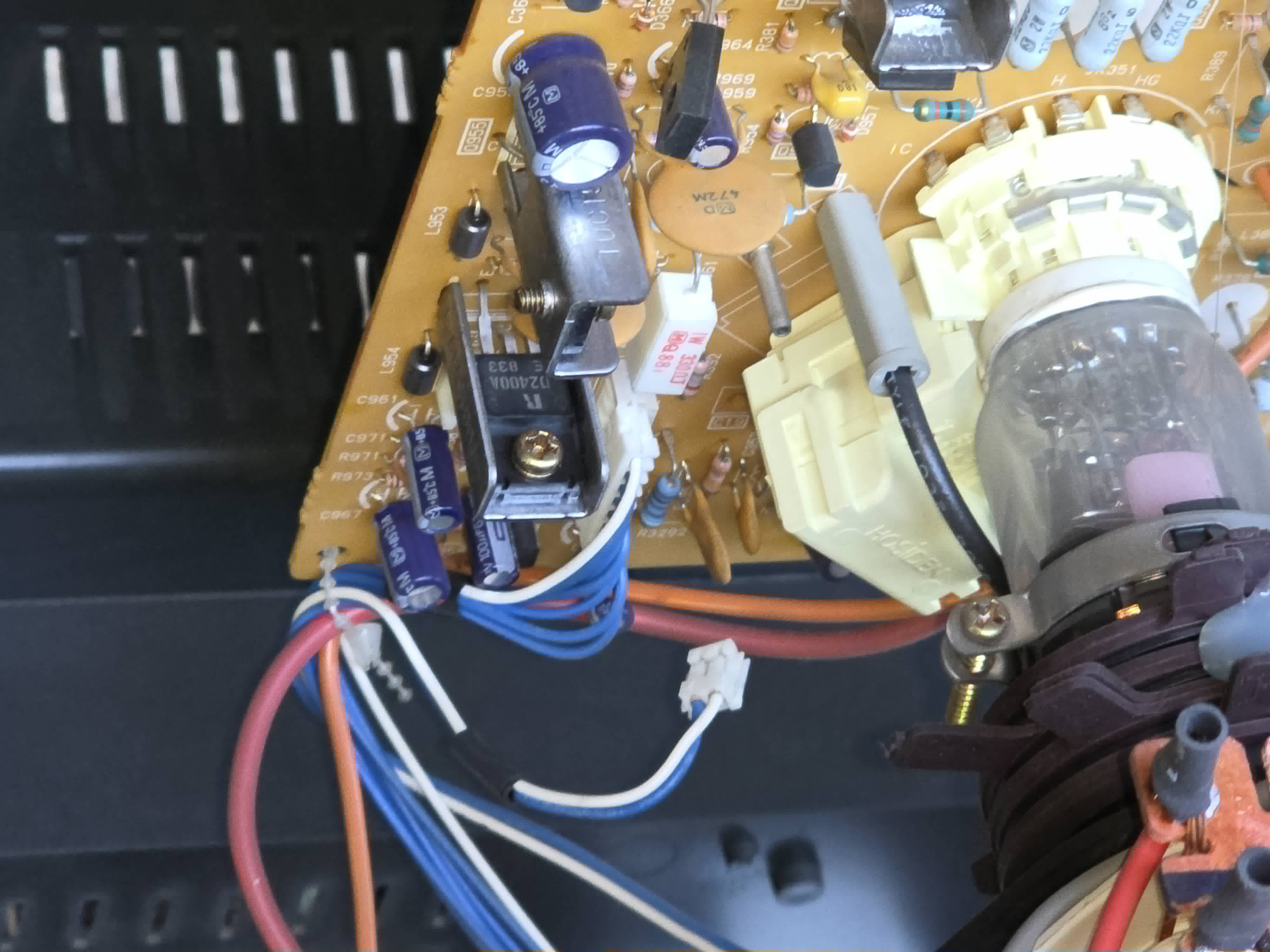

This set has velocity modulation (VM) enabled. The only way to turn it off is to unplug or cut the jumper connecting the yoke to the neckoard:

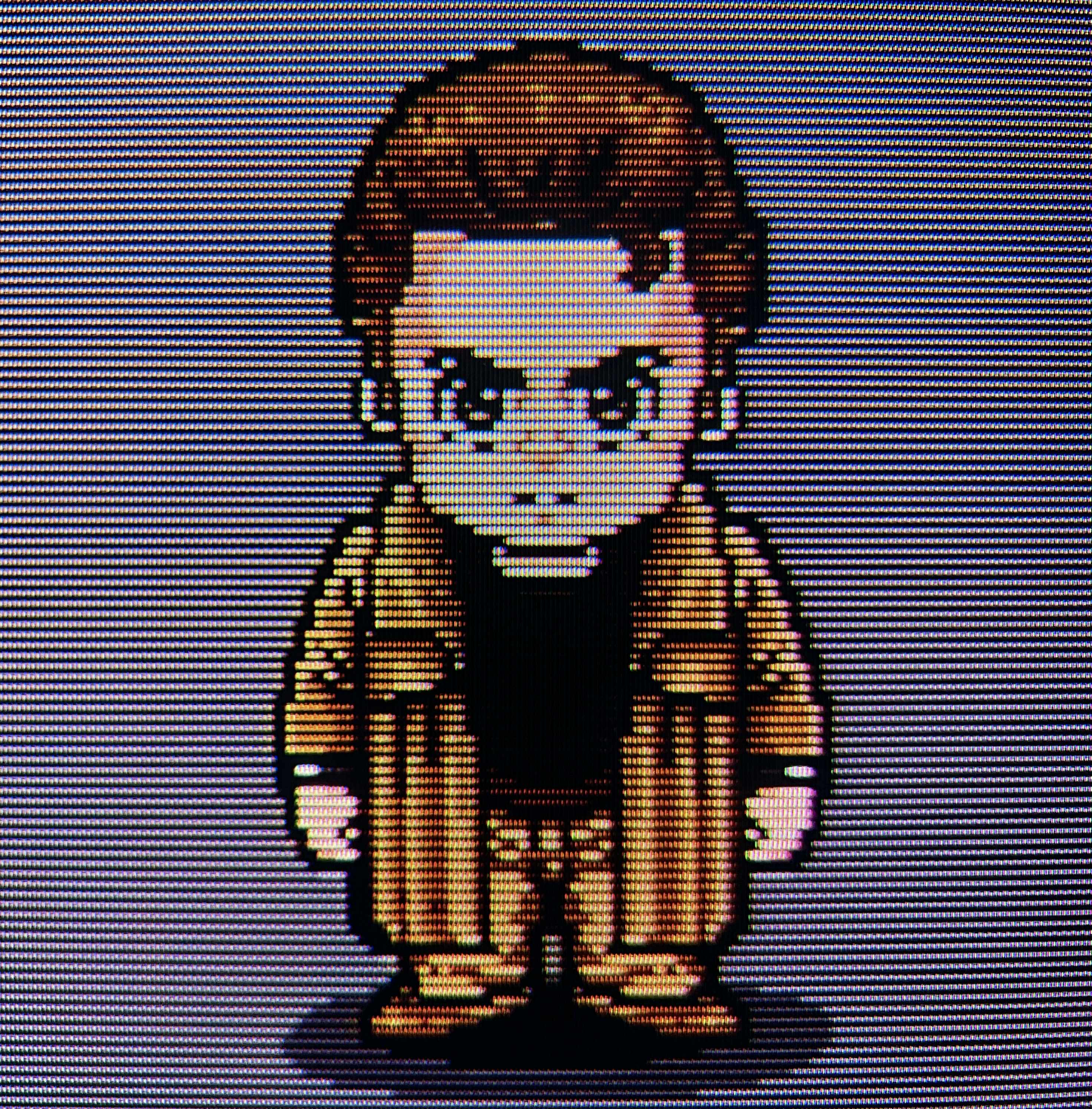

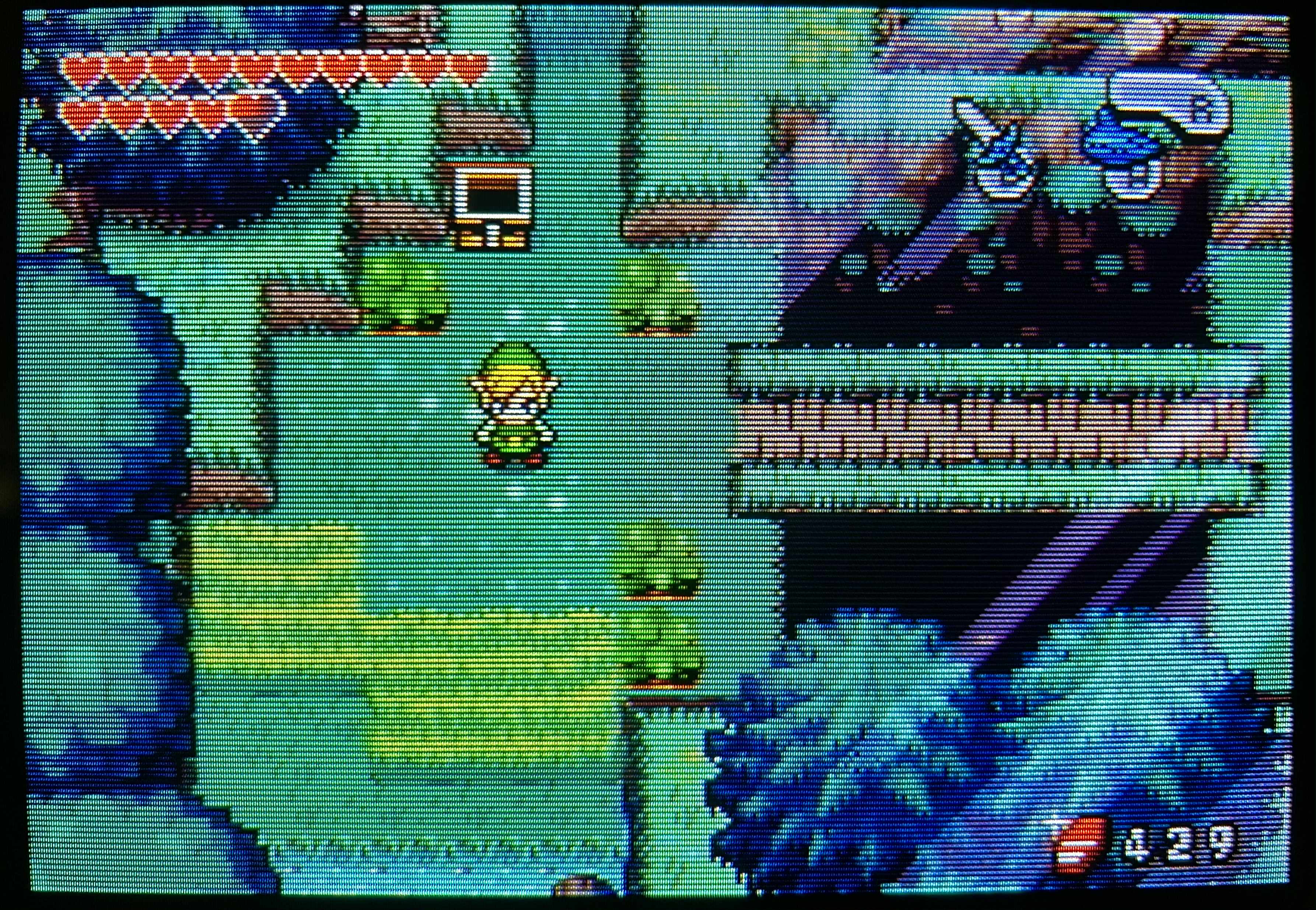

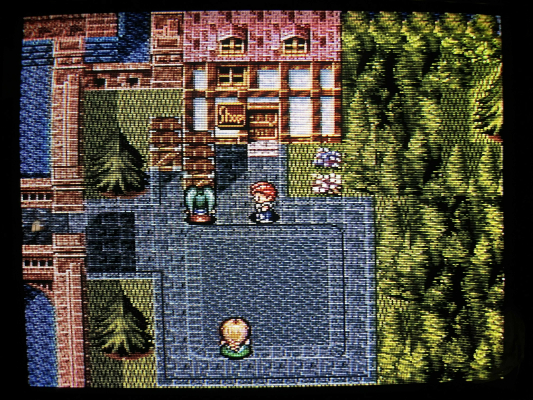

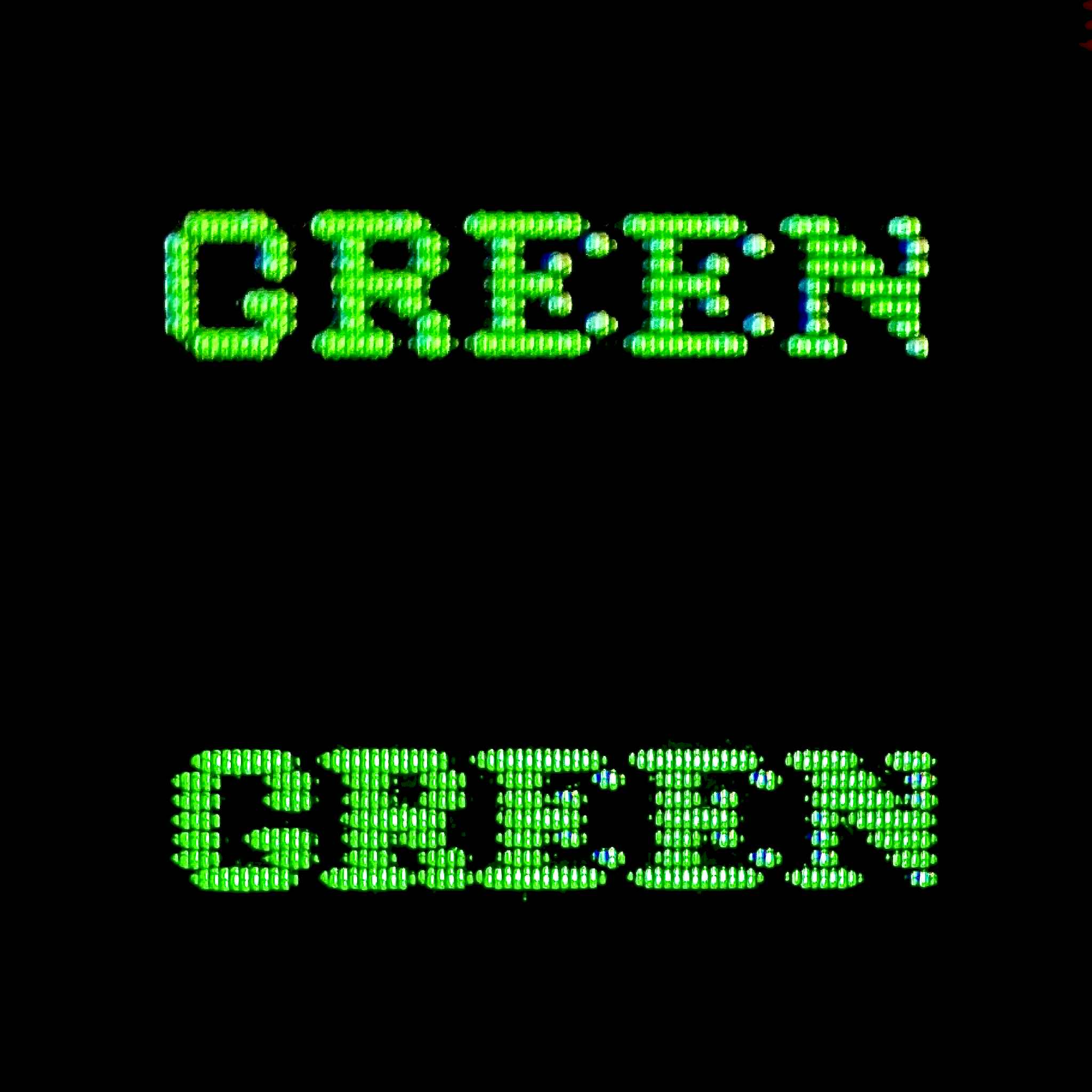

Before and after:
This set can also be modded for analog RGB.

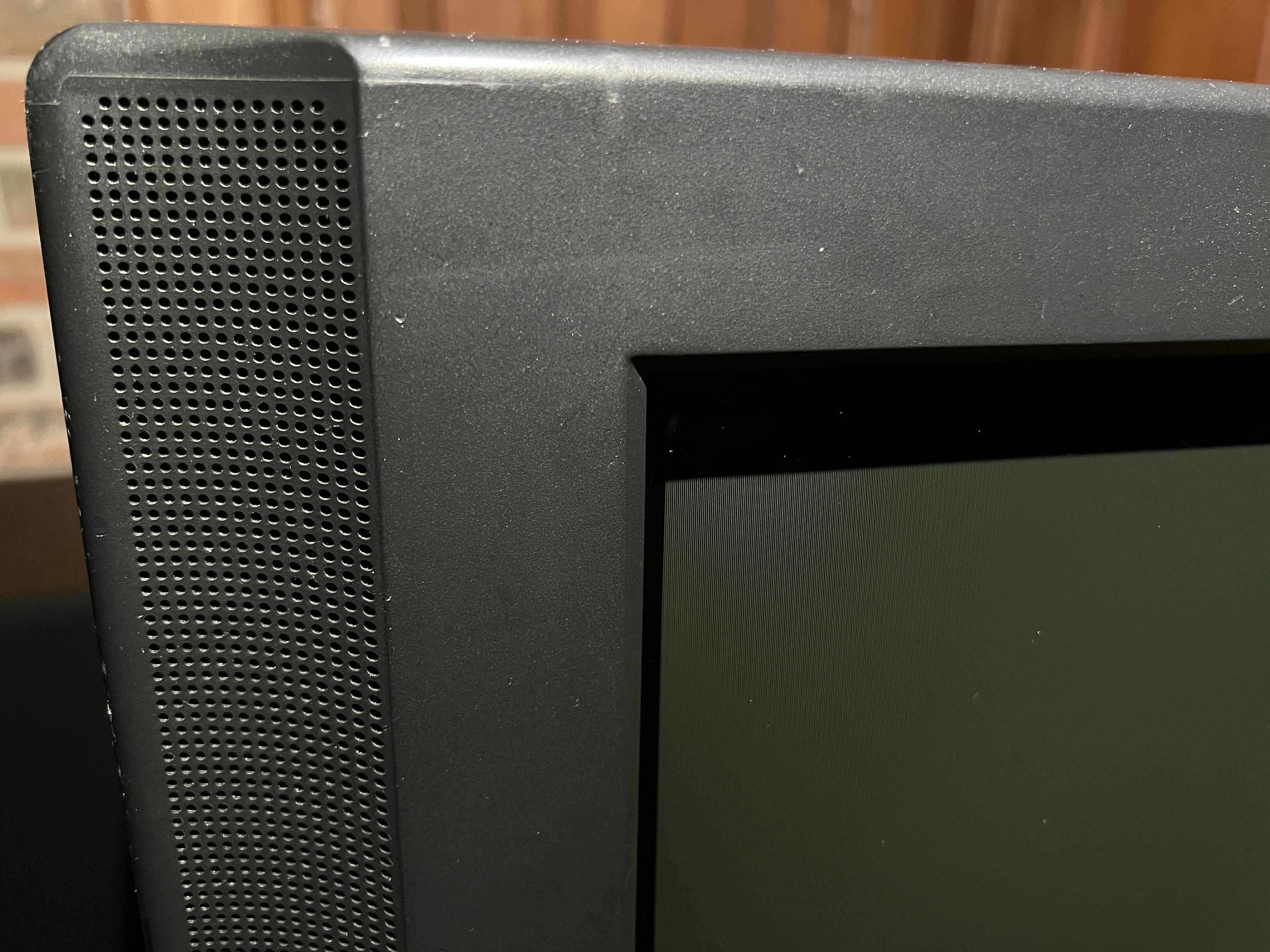

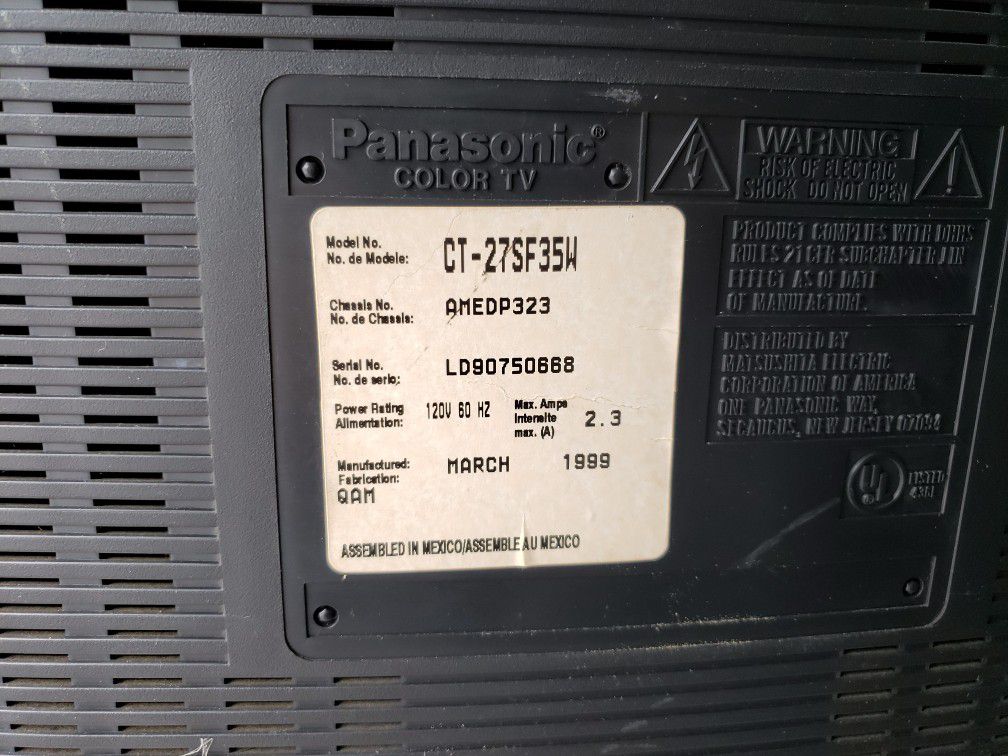

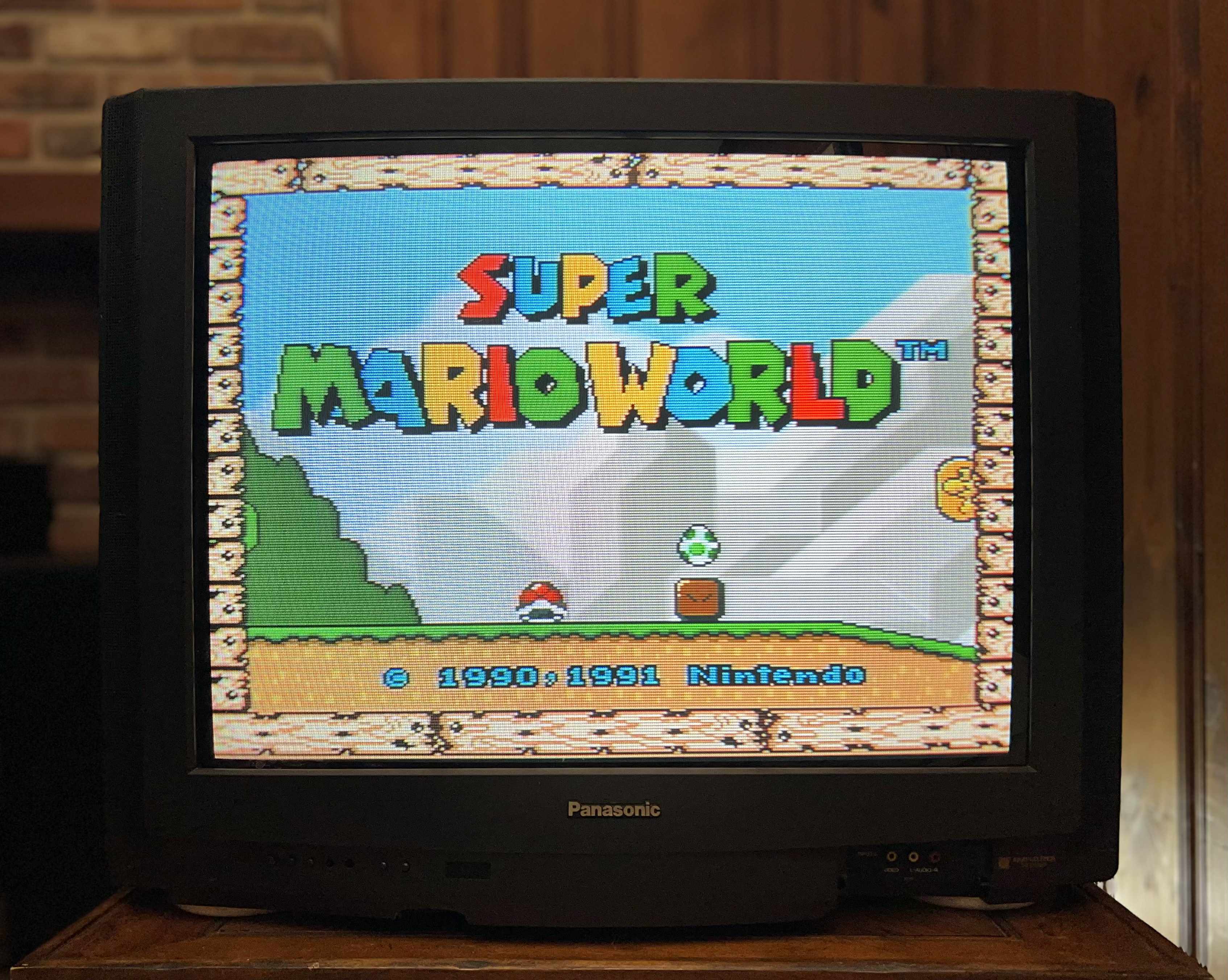

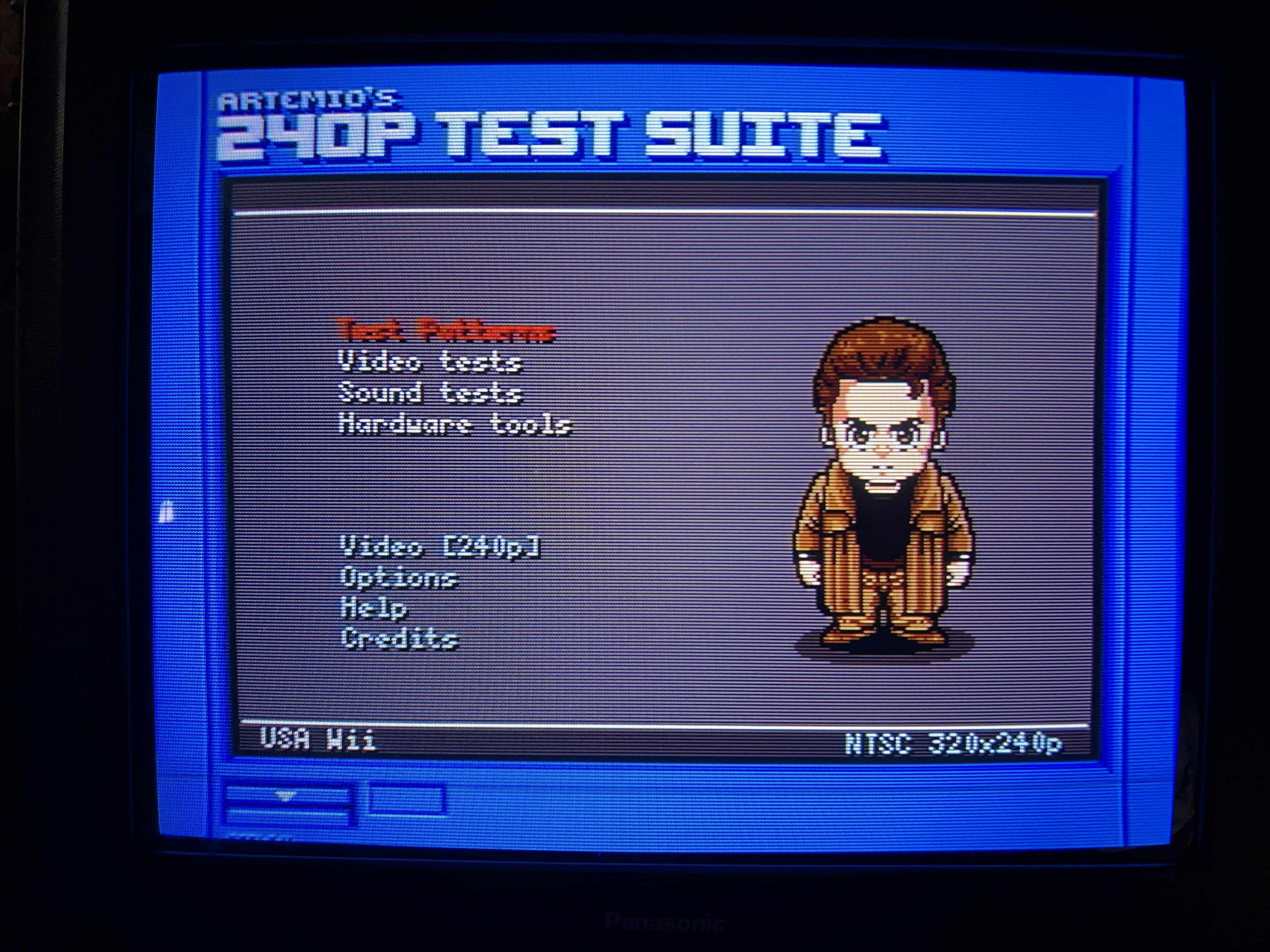

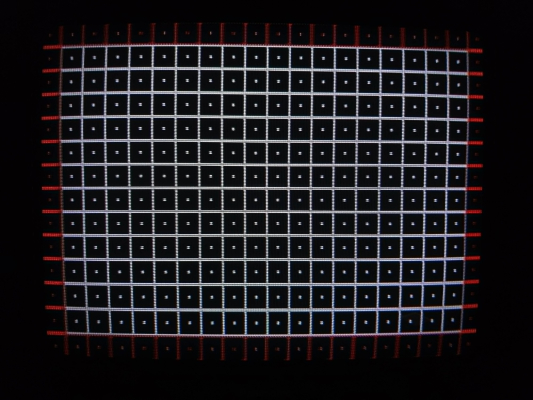

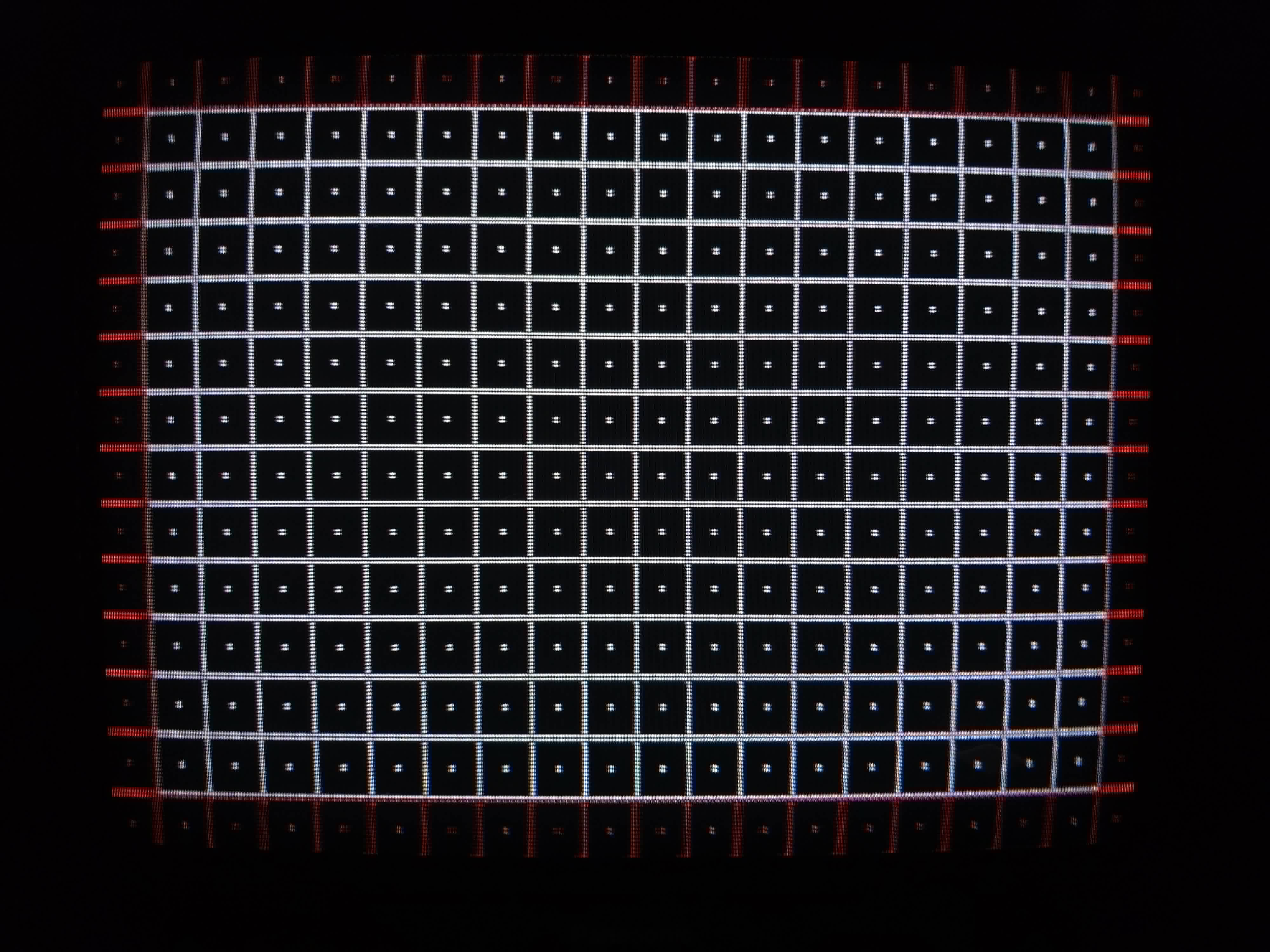

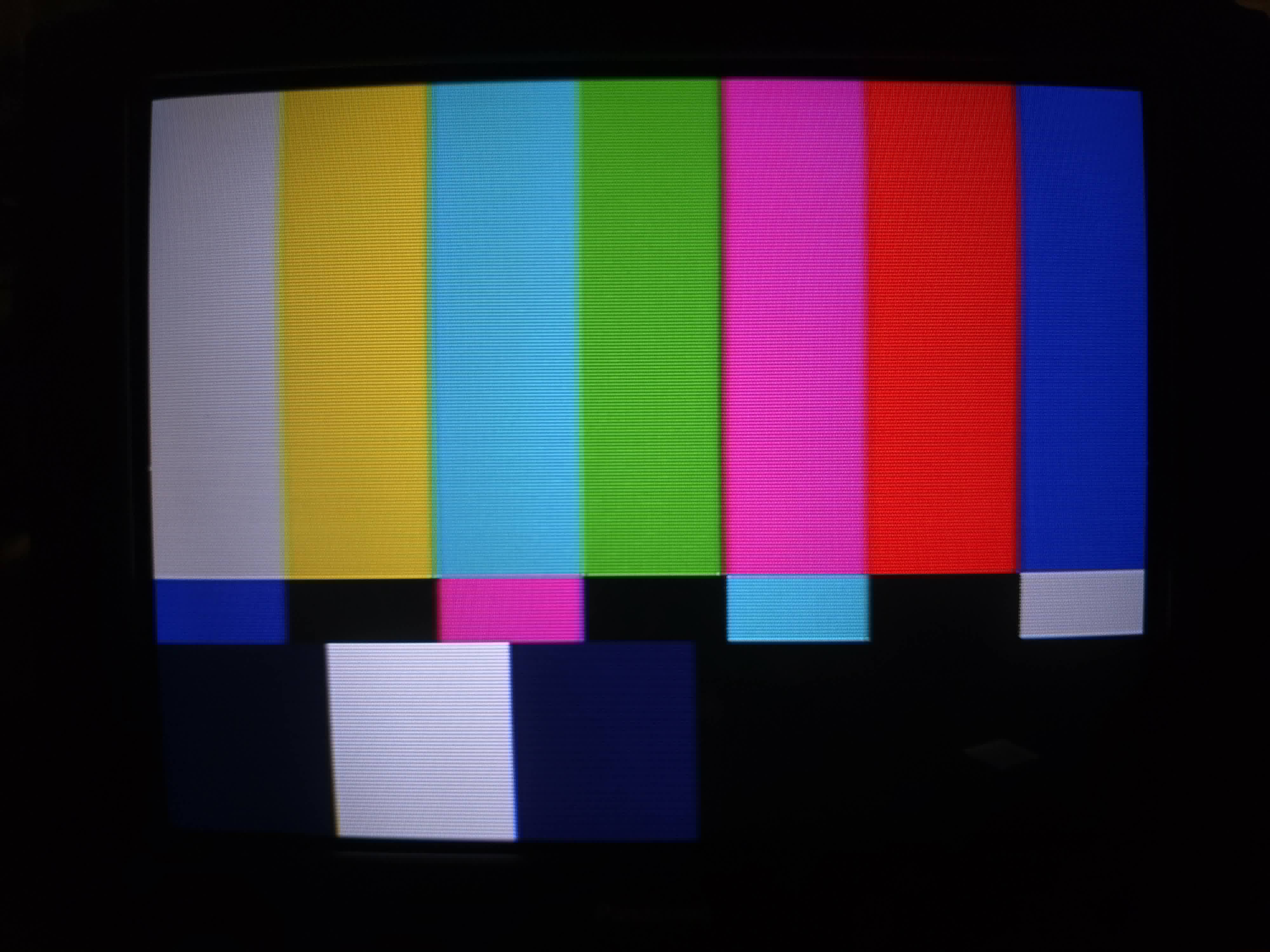

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-27SF35 |
| Series: | CT |
| Viewable Size: | 27" |

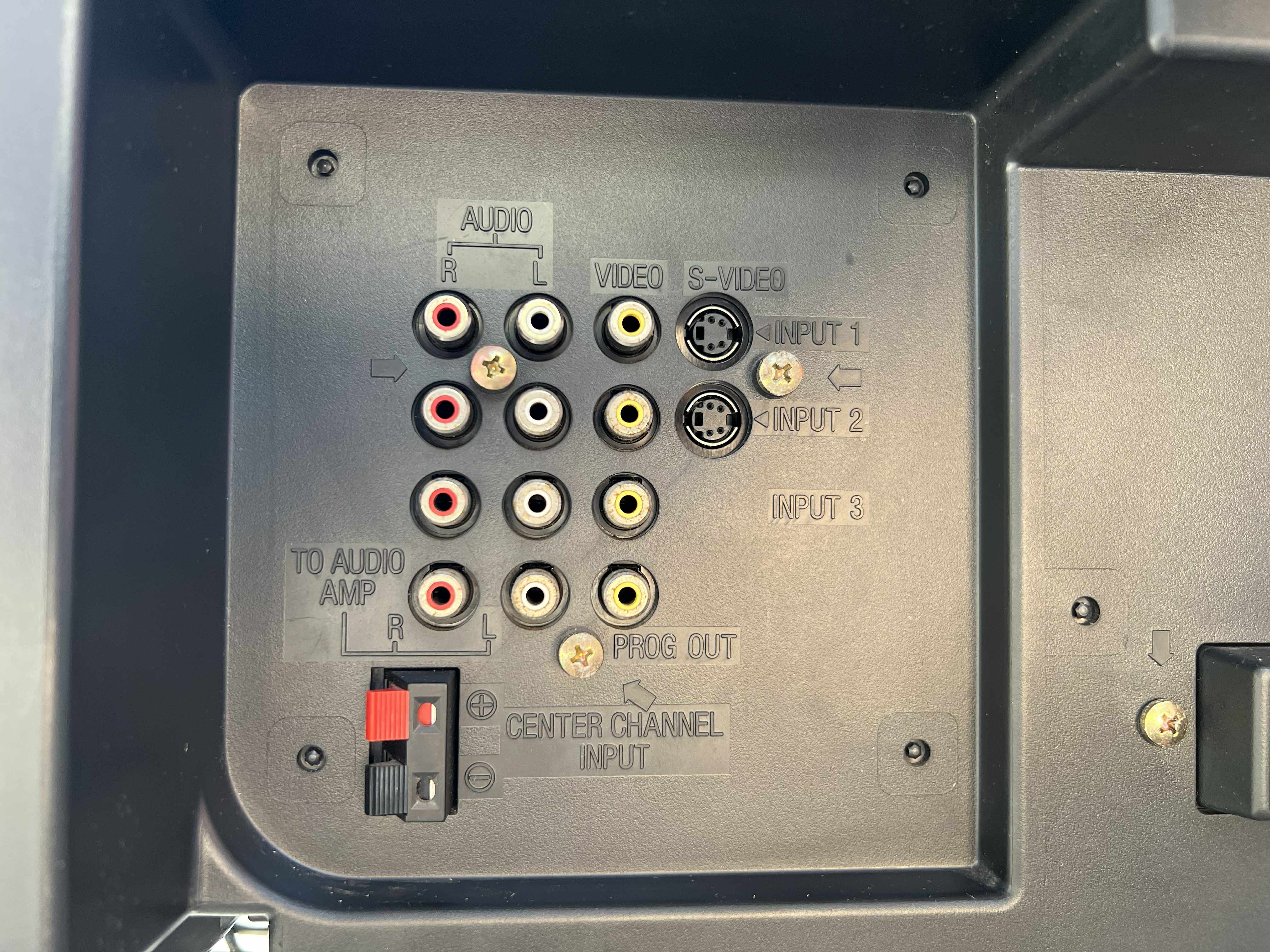

| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7845N |
| Jungle IC: | Panasonic, AN5308NK |

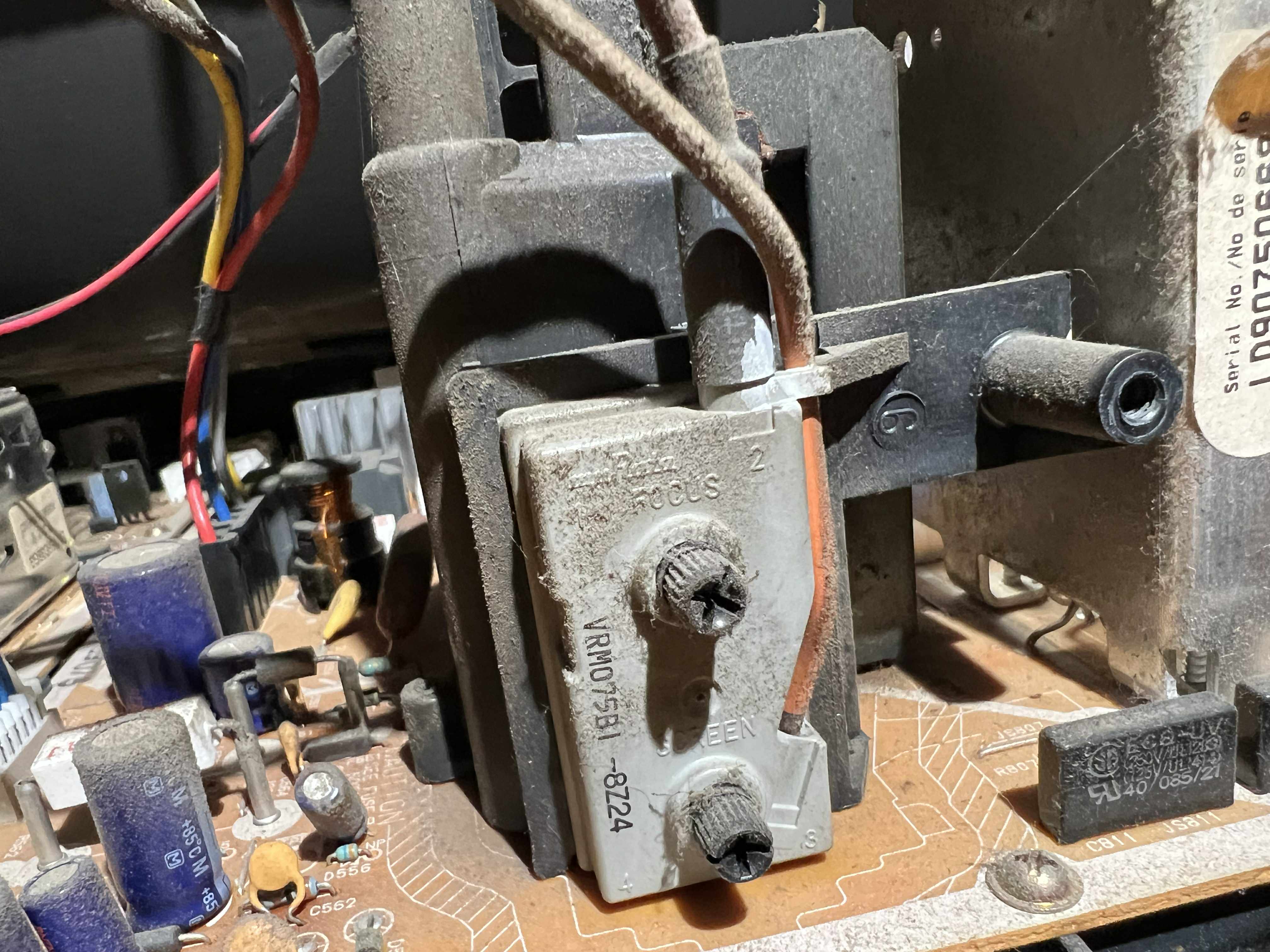

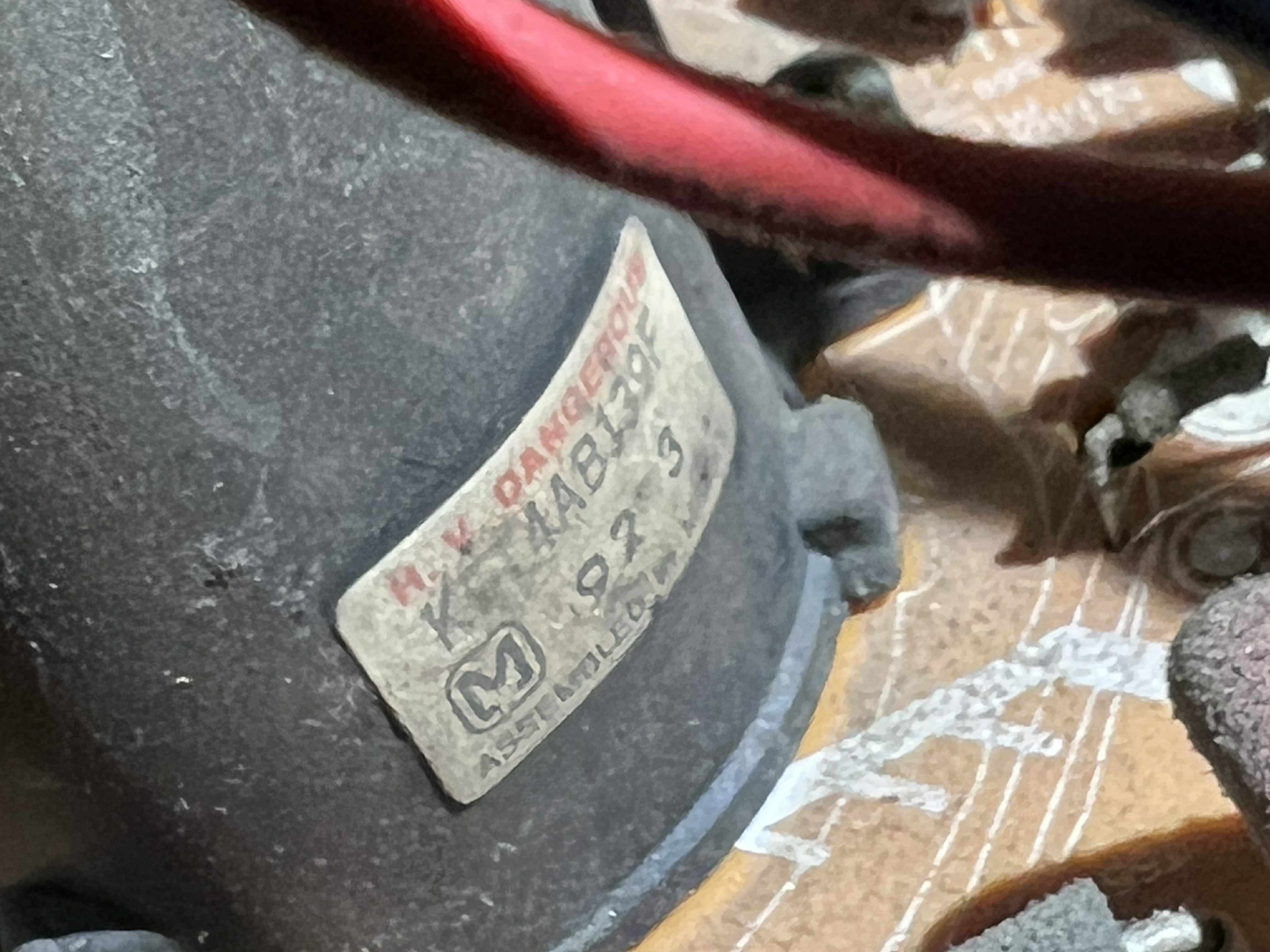

| Flyback: | KFT4AB139F |
| Focus Type: | Single |

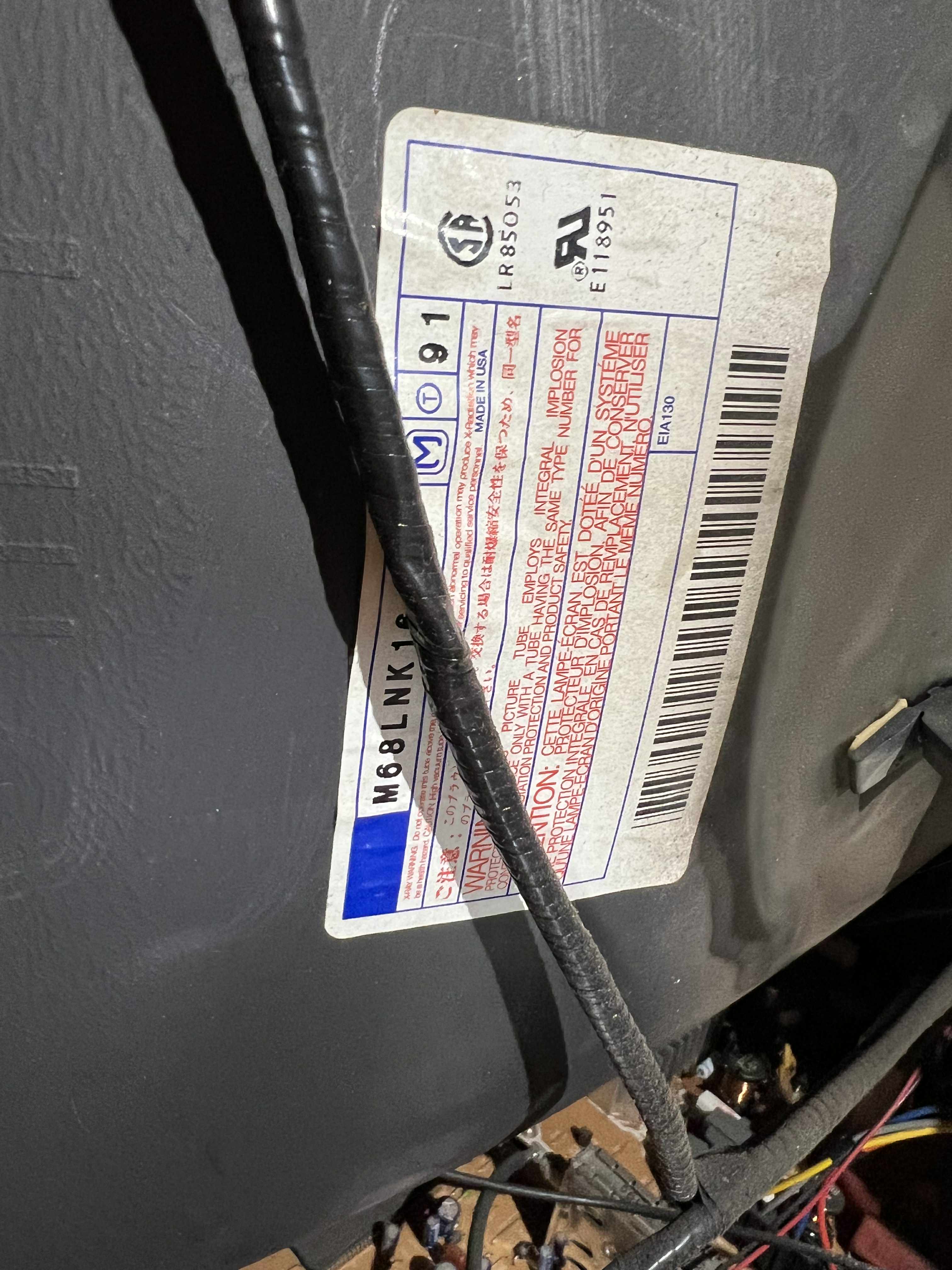

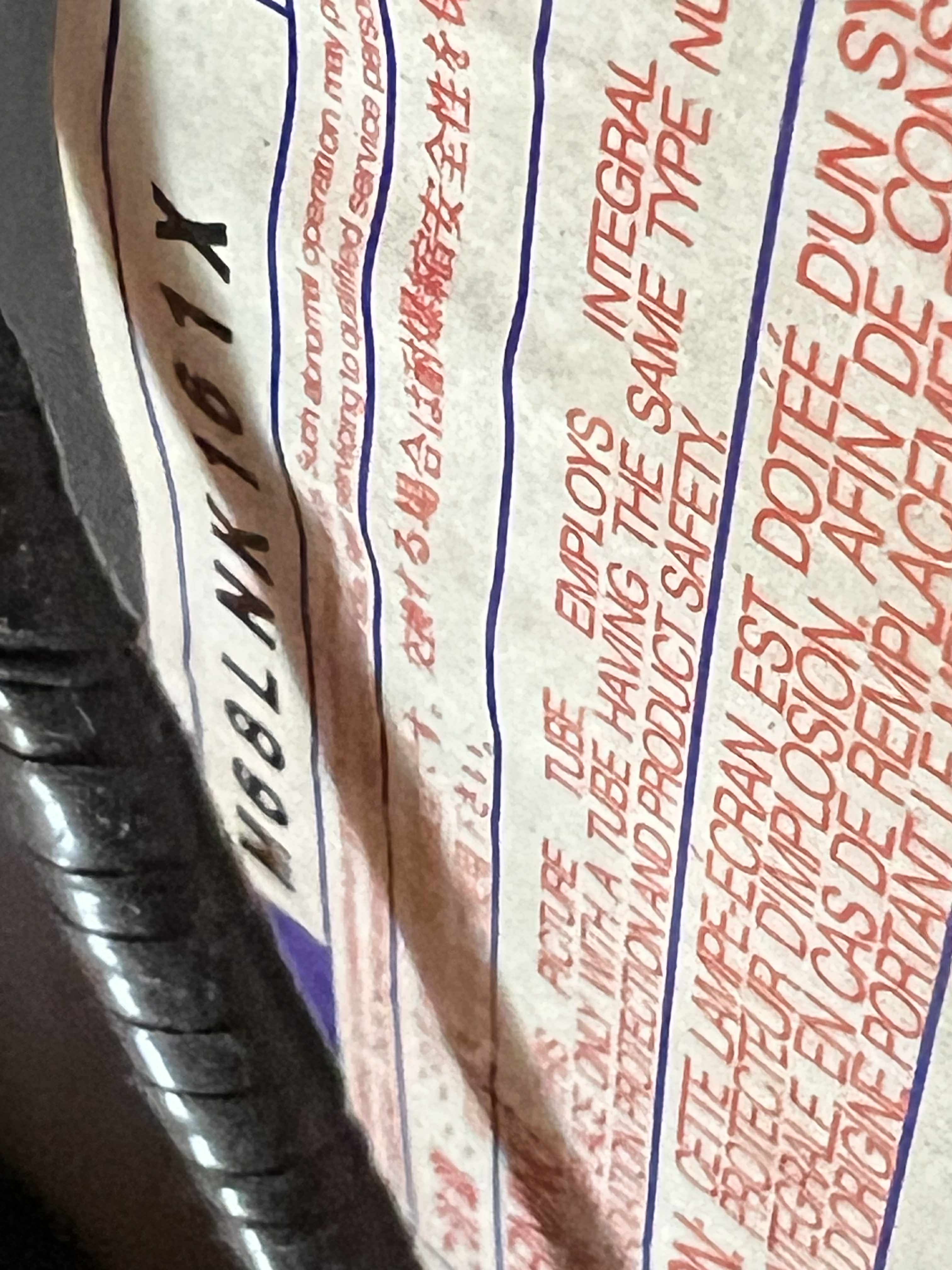

| Tube: | Panasonic , M68LNK161X , M68LNK161X91 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

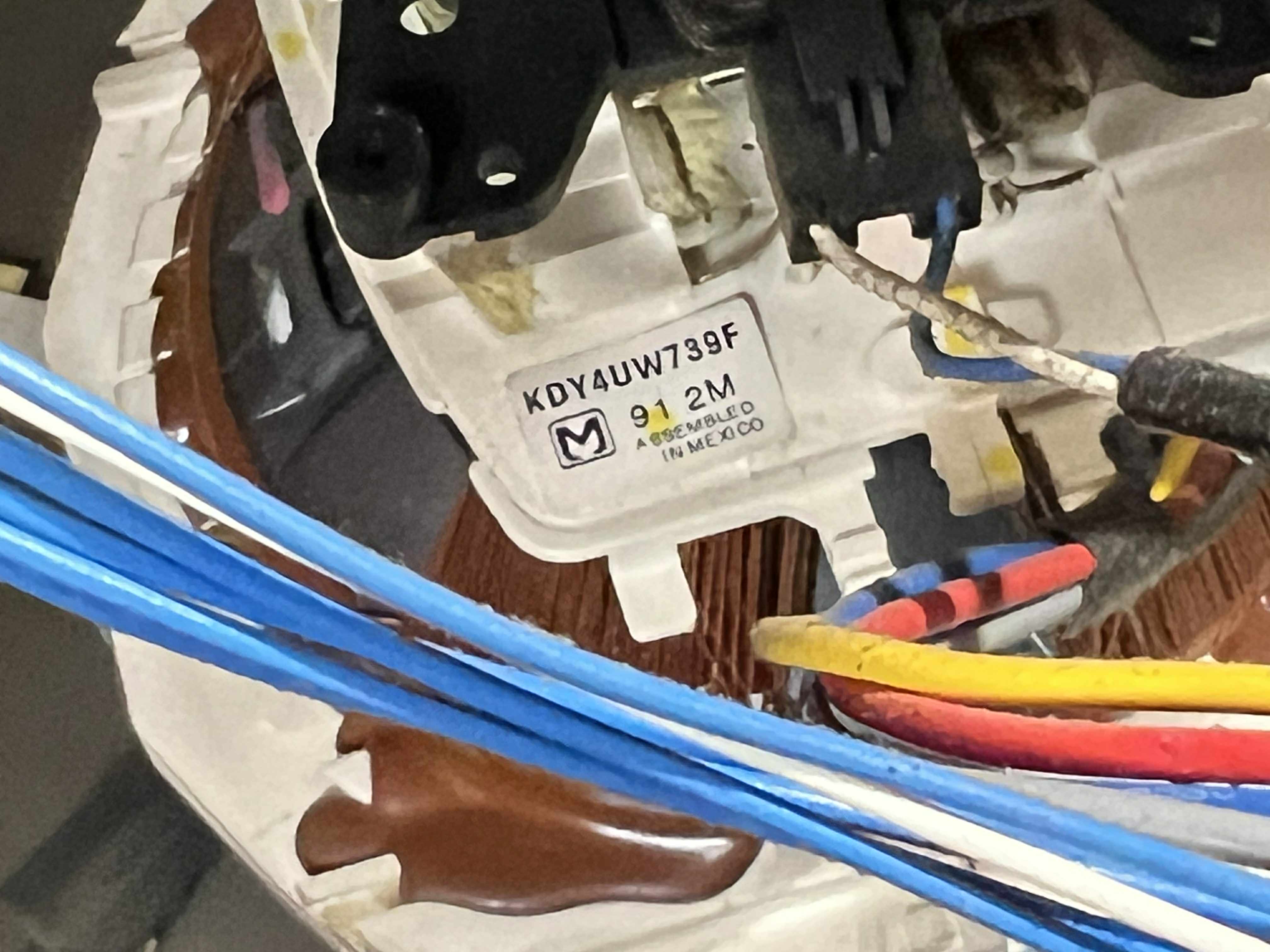

| Yoke: | KDY4UW739F |

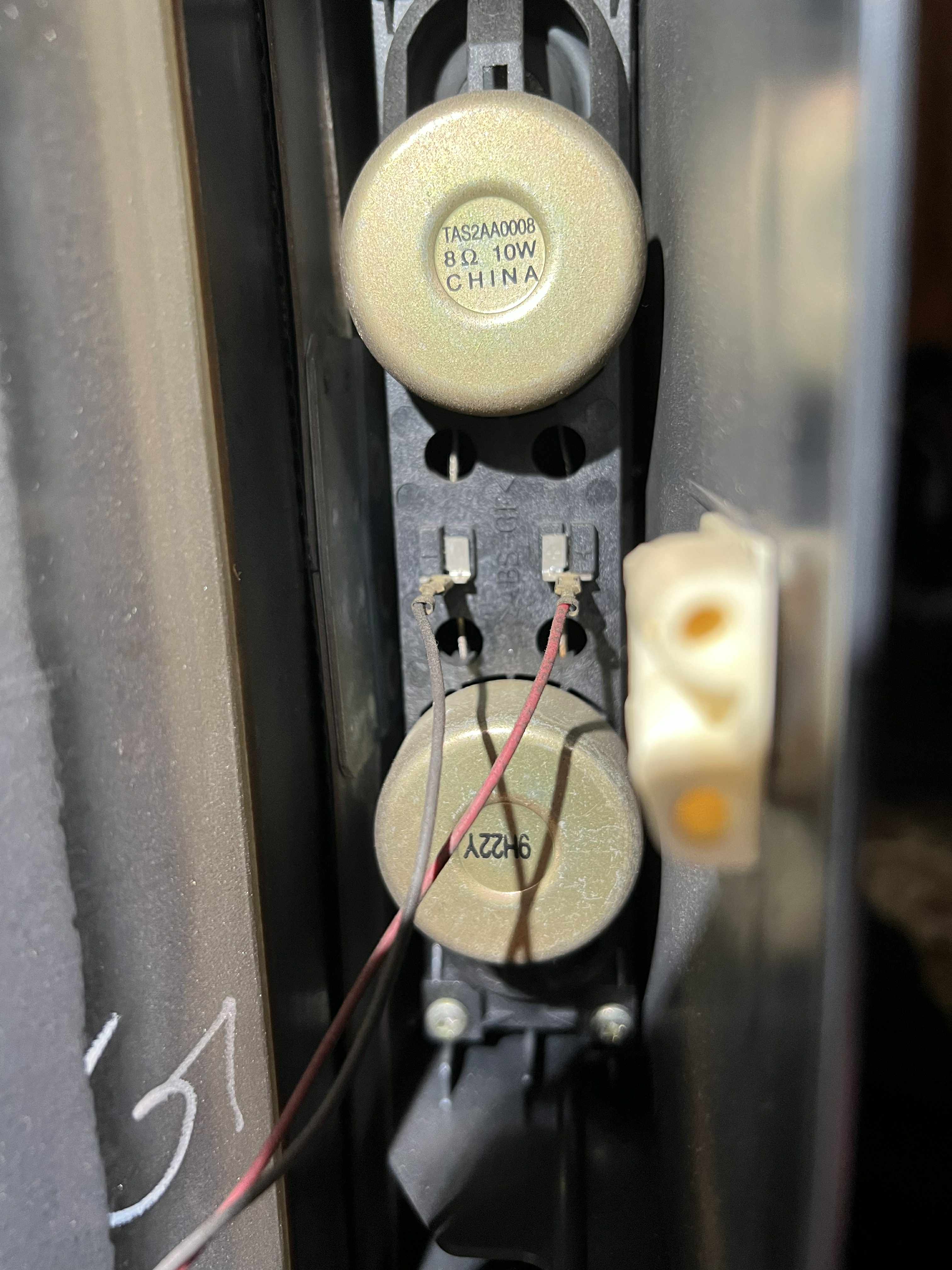

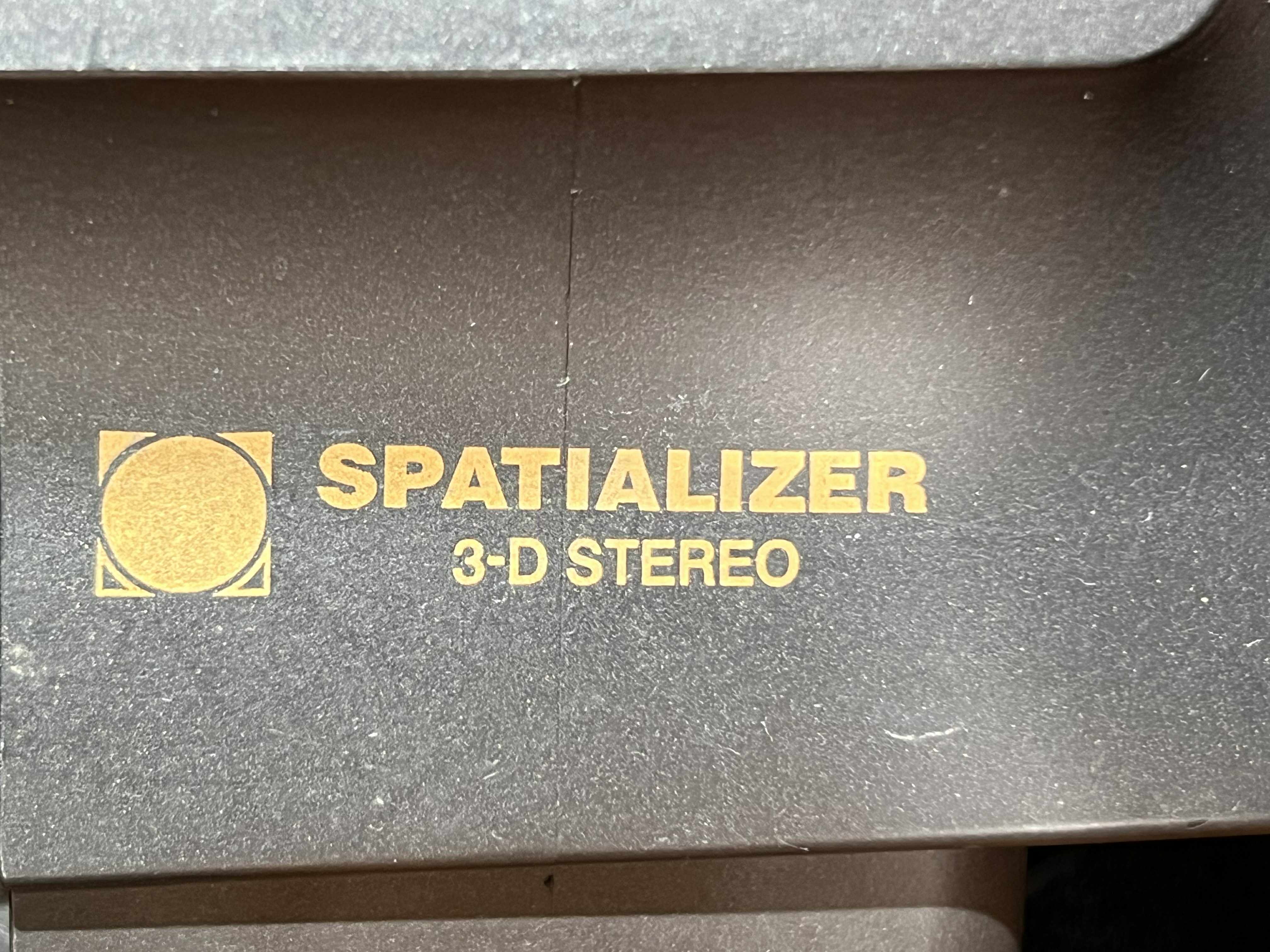

| Speakers: | Stereo, 10W x 4 |

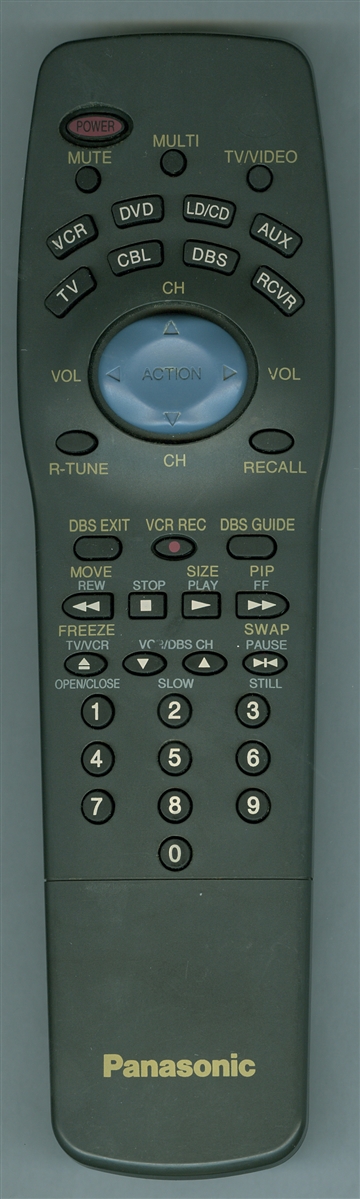

| Remote: | EUR511170 |
| Chassis: | AMEDP323 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| MSRP: | 699 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
