Panasonic CT-3053
Trixter192, Douglie007
January 28, 2025, 2:32 am
February 3, 2025, 2:36 am
January 28, 2025, 2:32 am
February 3, 2025, 2:36 am
Gallery




Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | CT-3053 |
Series: | CT |
Viewable Size: | 13" |

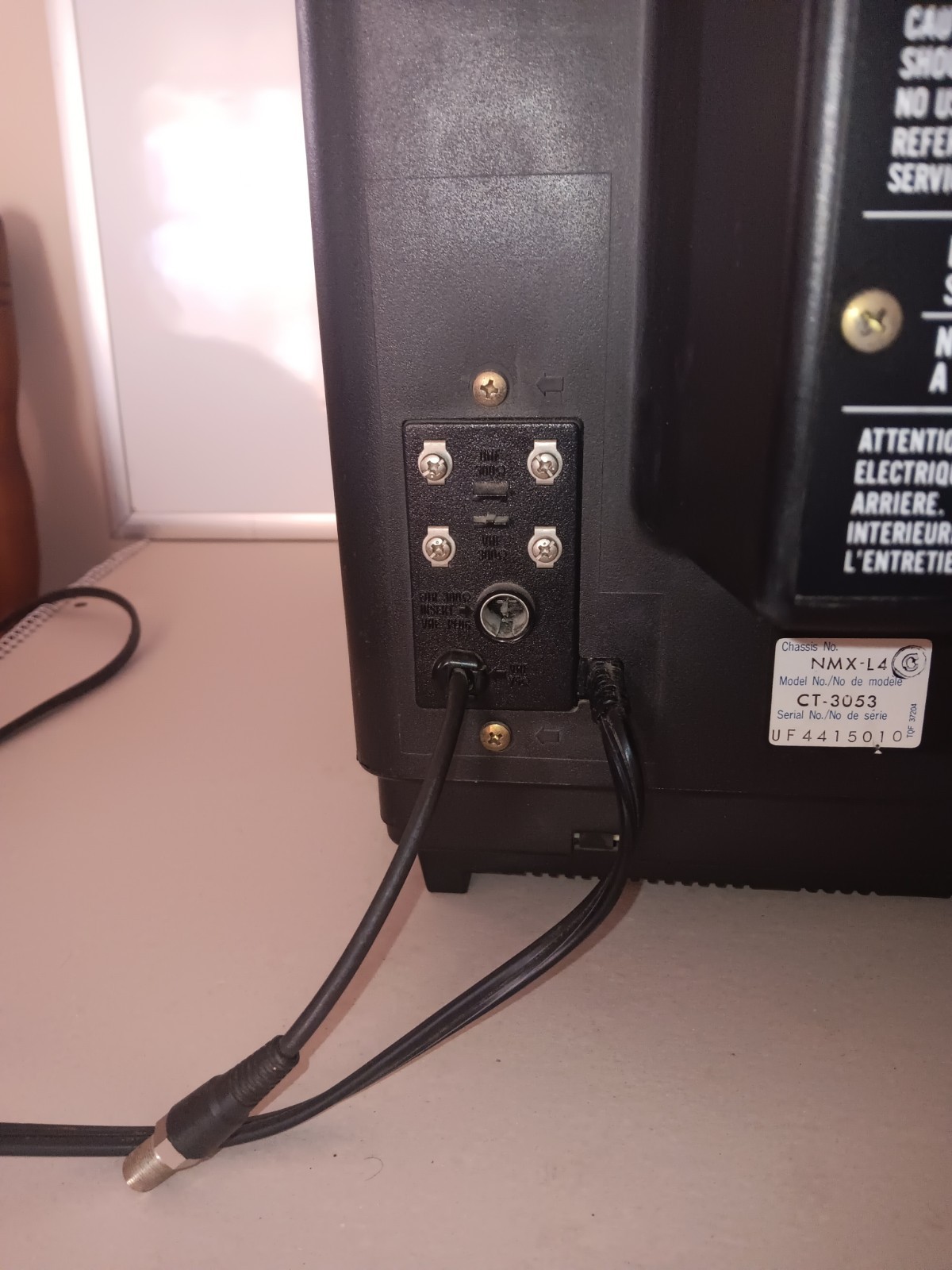

Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |

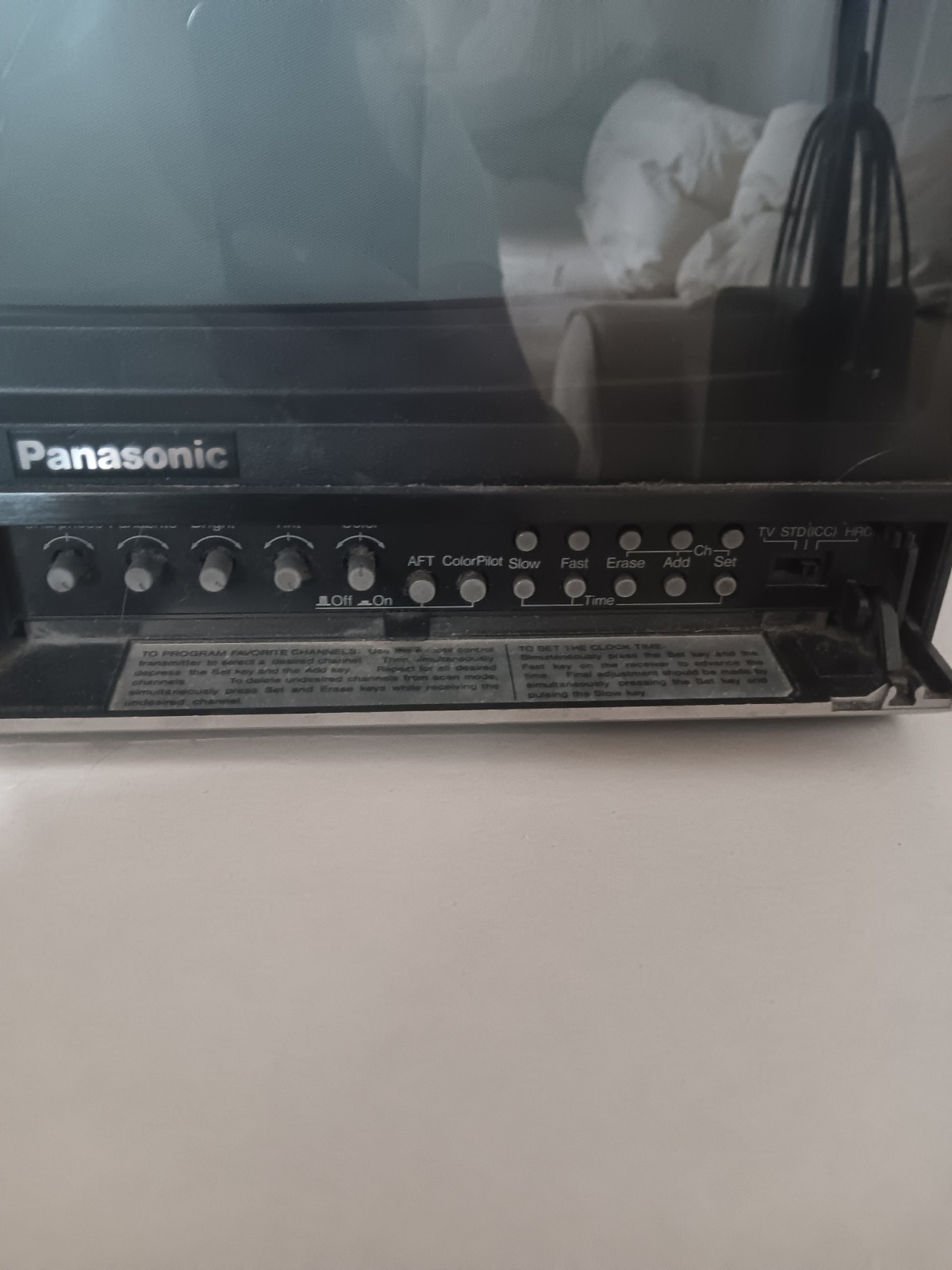

Adjustments: | Internal Potentiometers, External Potentiometers |
Horz. Output Transistor: | 2SD1439RL |
Vertical Output IC: | AN5512 |
Jungle: | AN5318A |

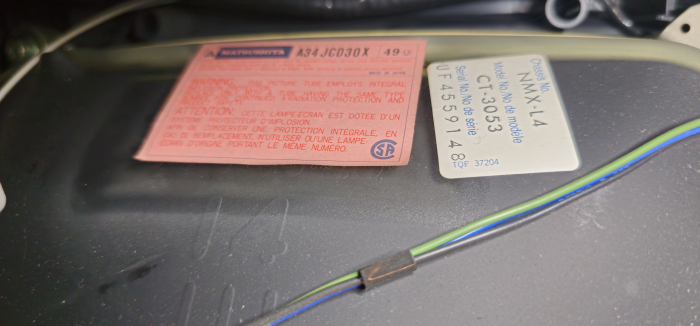

Tube: | Matsushita (MTC) , A34JCD30X |
Heater Voltage: | 6.3v |
Mask: |
Slot
![]() |
Yoke: | TLY15399F |
Yoke Horz. Resistance: | 6.3 ohm |
Yoke Vert. Resistance: | 12.6 ohm |
Speakers: | Mono |

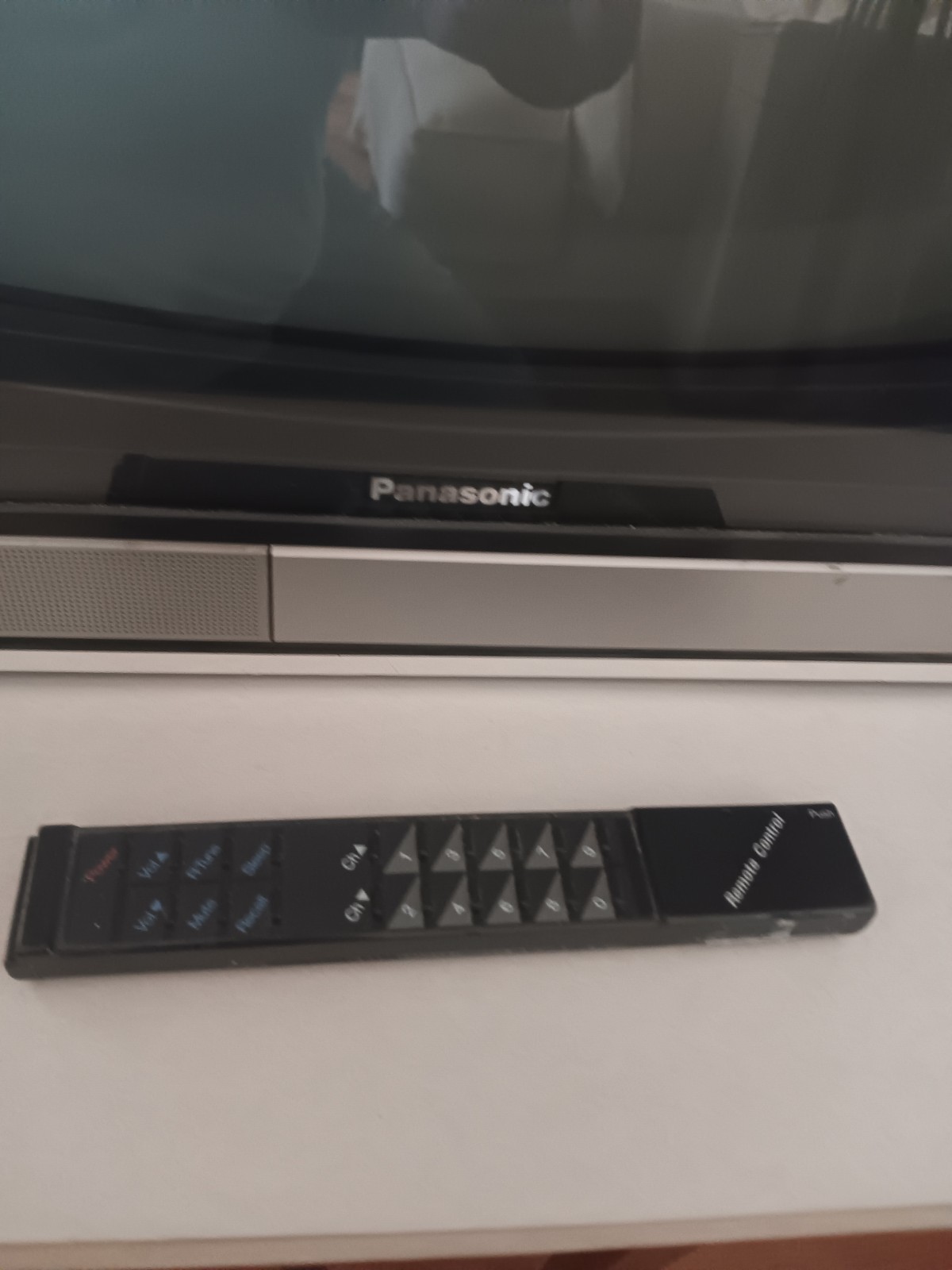

Remote: | TNQ1436-2 |
Chassis: | NMX-L4 |
Application: | Consumer |

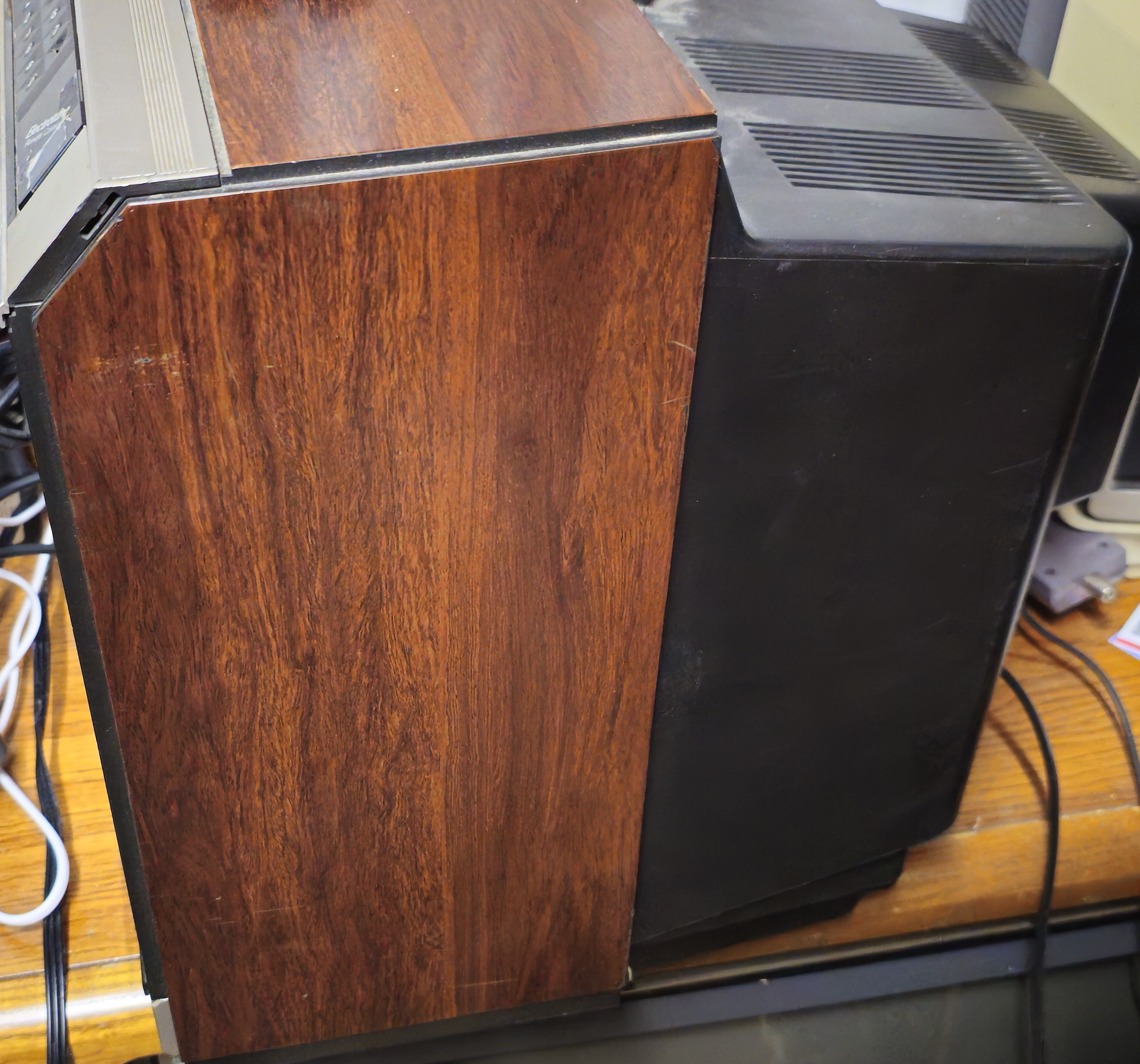

Cabinet Material: | Simulated Woodgrain |
Launched: | 1984 |
Country of Manufacture: | Japan |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard) |
Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Community Submission |
