Panasonic CT-32E13-1
SegaSaturn94
August 19, 2026, 12:46 pm
August 19, 2026, 4:56 pm
August 19, 2026, 12:46 pm
August 19, 2026, 4:56 pm
Summary

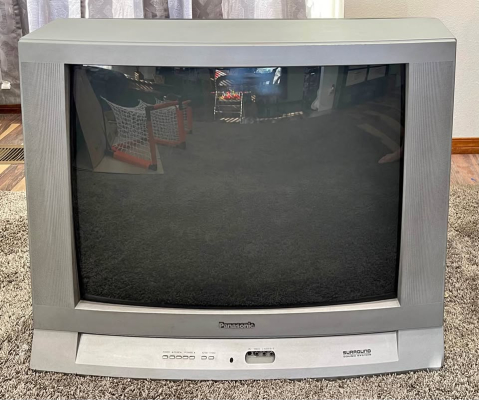

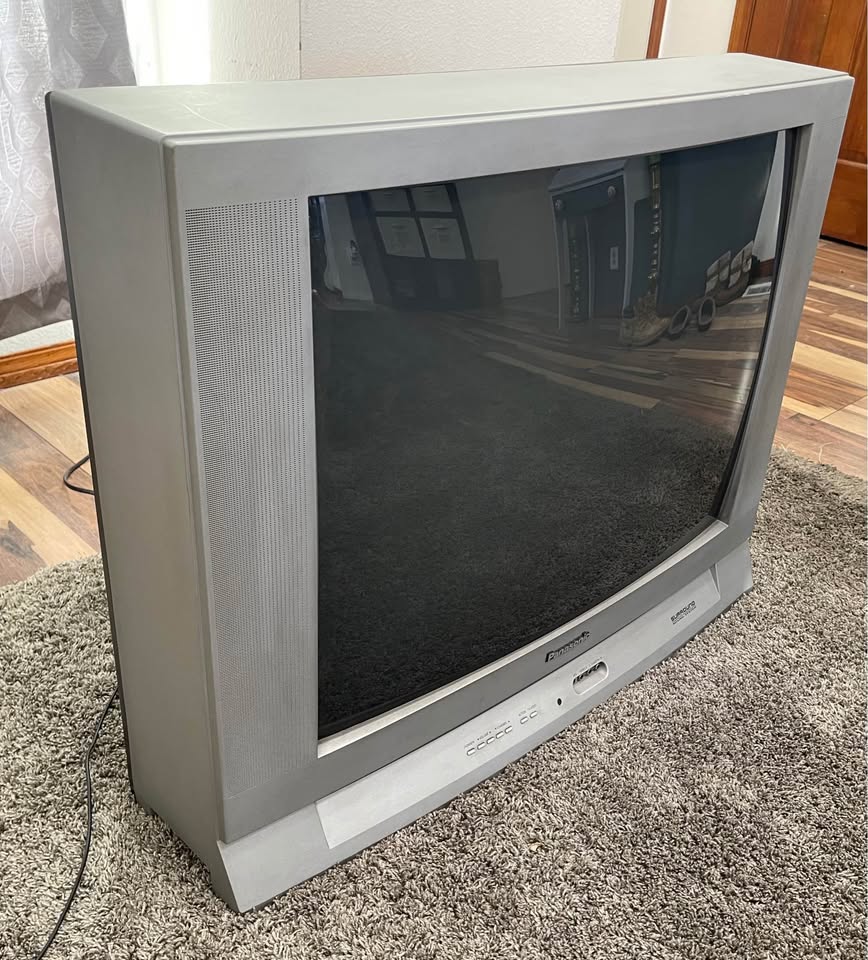

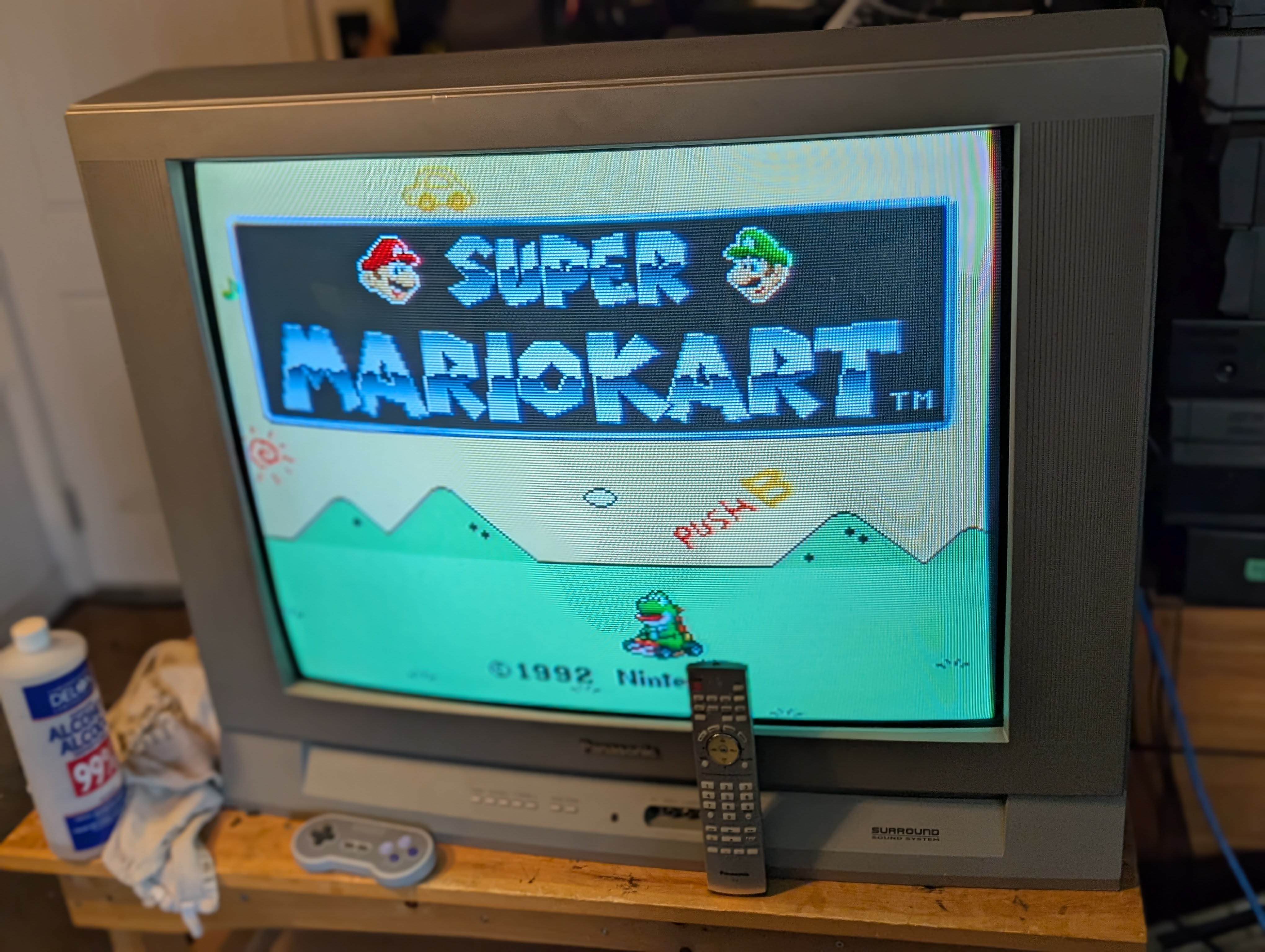

32" curved-screen TV by Panasonic, made in Mexico in 2003. A revised chassis variant of the CT-32E13. Has RF, composite, s-video and component inputs with stereo sound.
(Special thanks to Graeme Pass for the pics!)
Manuals
Promo Materials
Notes
Despite looking identical, this set is an improved variant of the CT-32E13 in that it uses a superior Toshiba jungle chip with much better picture processing. No more awful vertical haloing or noise, a huge improvement! The chassis is the same one used for the previous year's Panasonic curved CRT models.

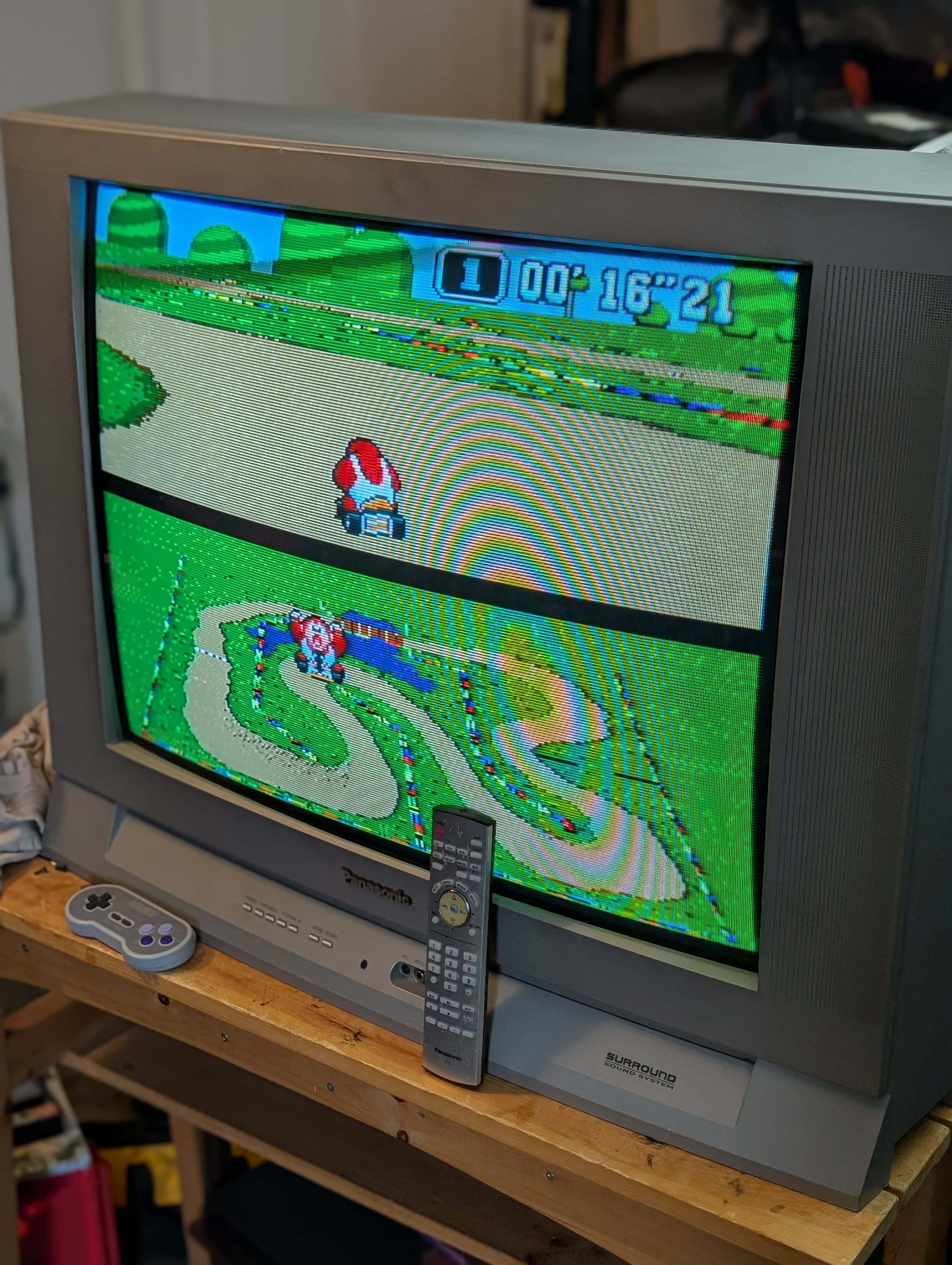

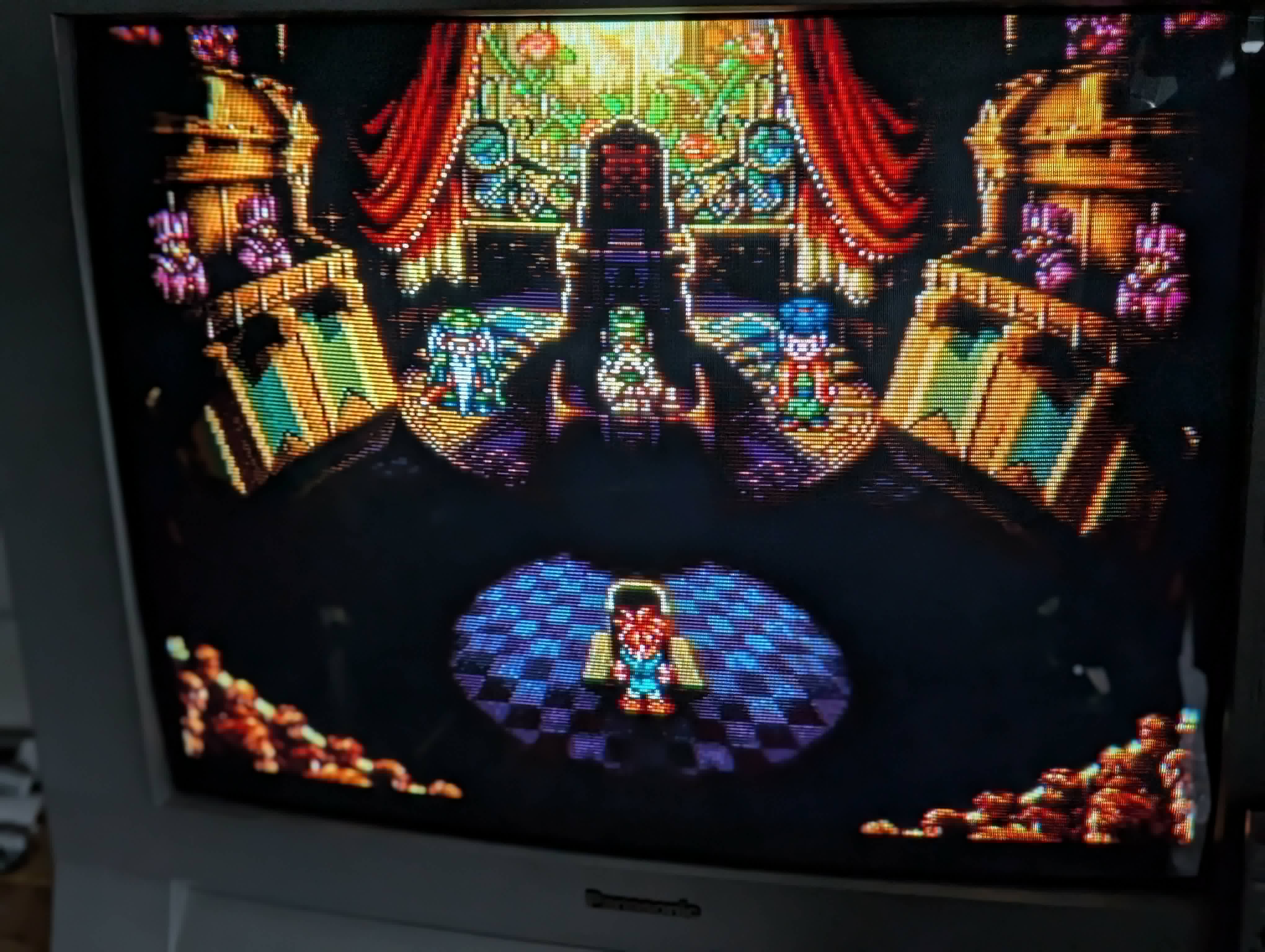

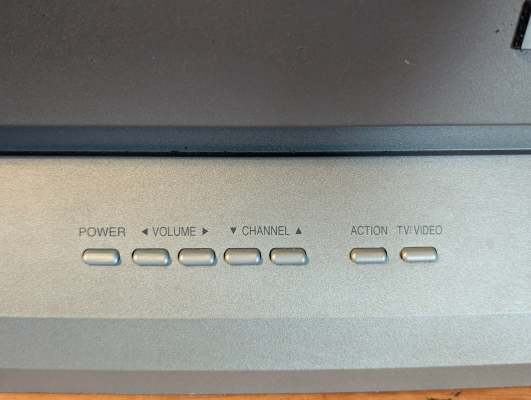

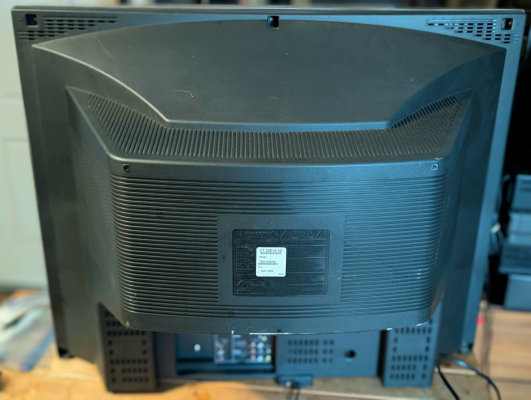

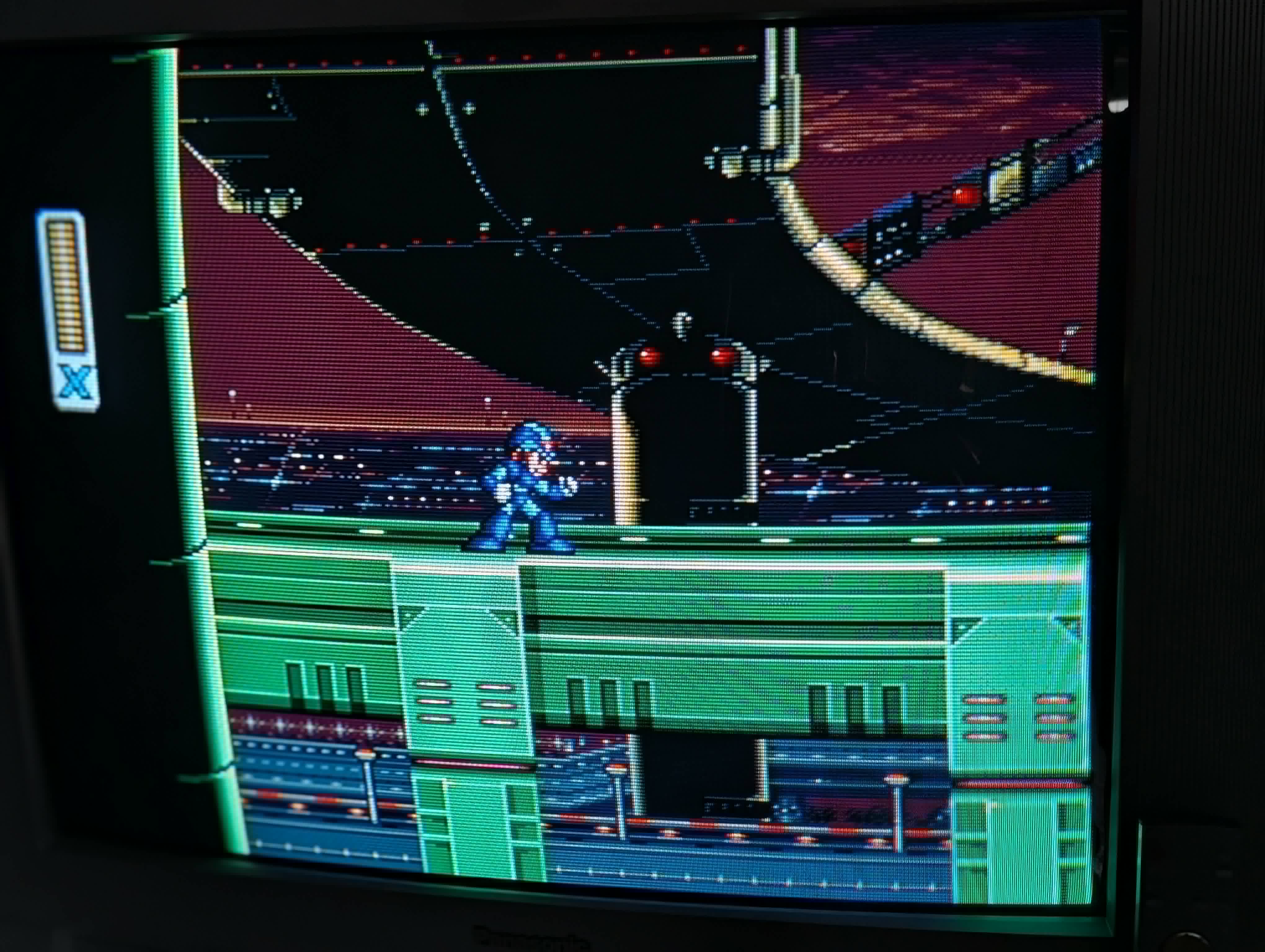

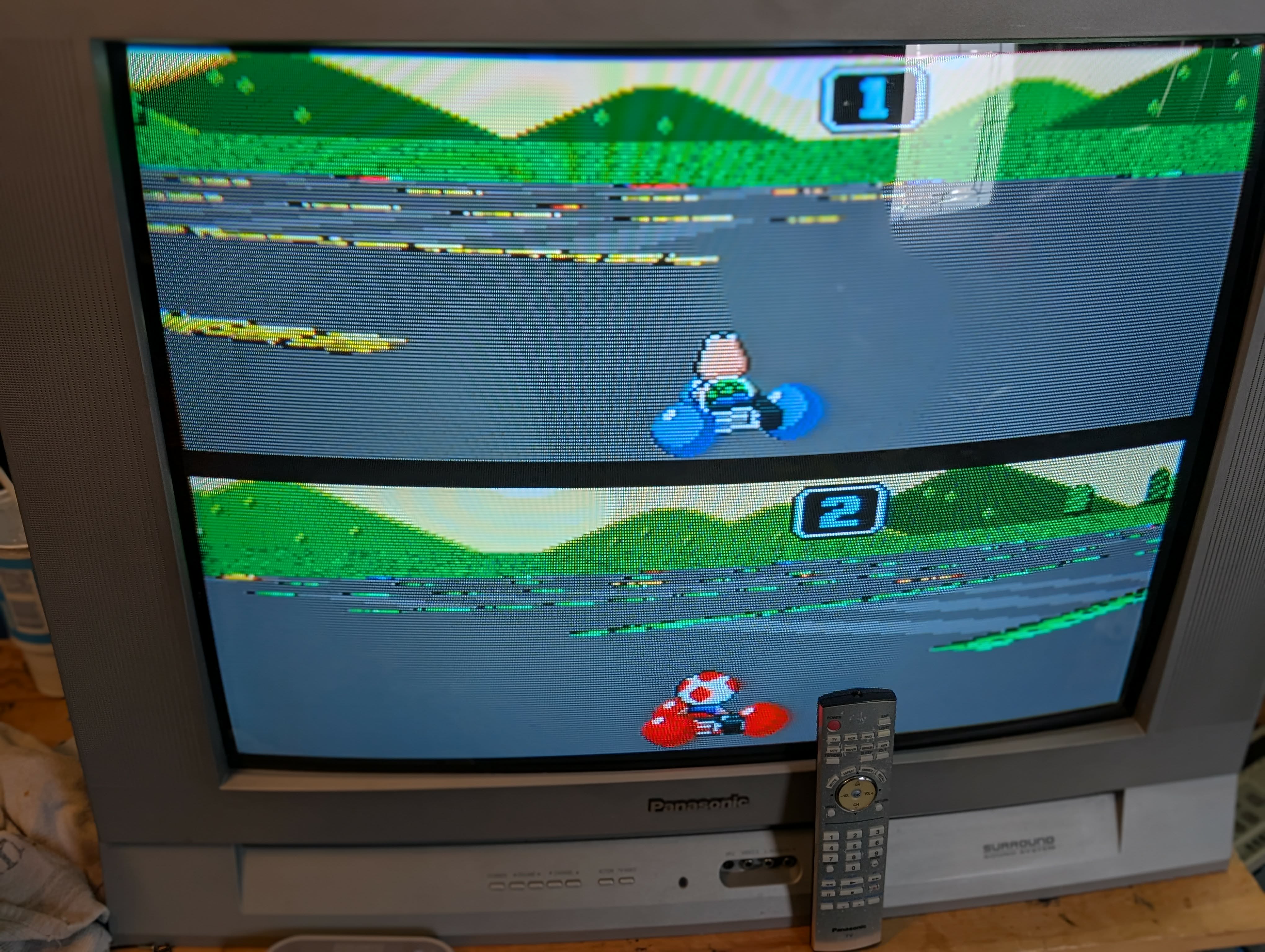

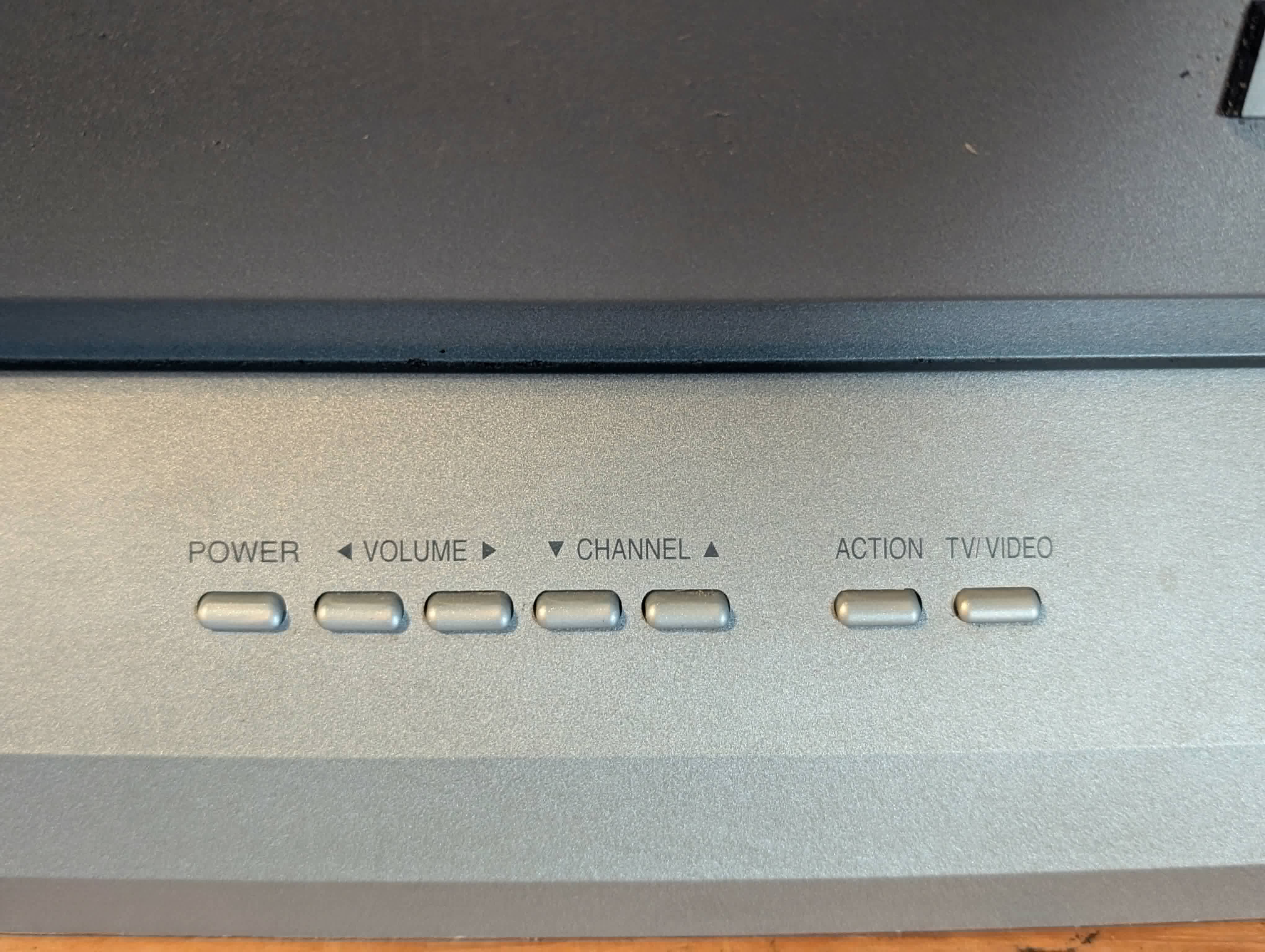

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-32E13-1 |
| Series: | CT |
| Viewable Size: | 32" |

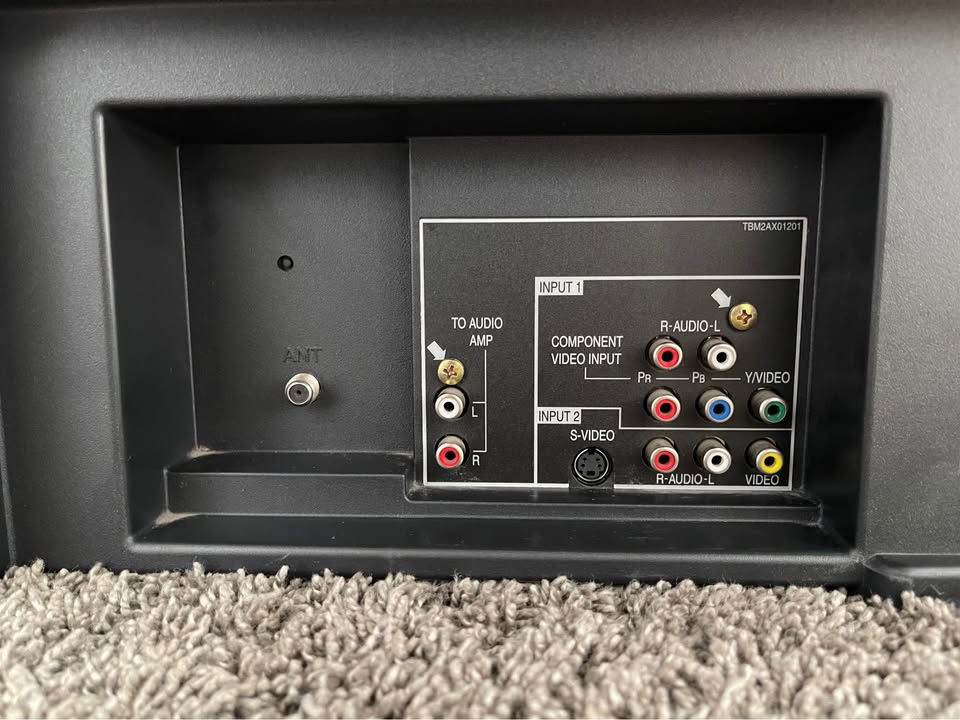

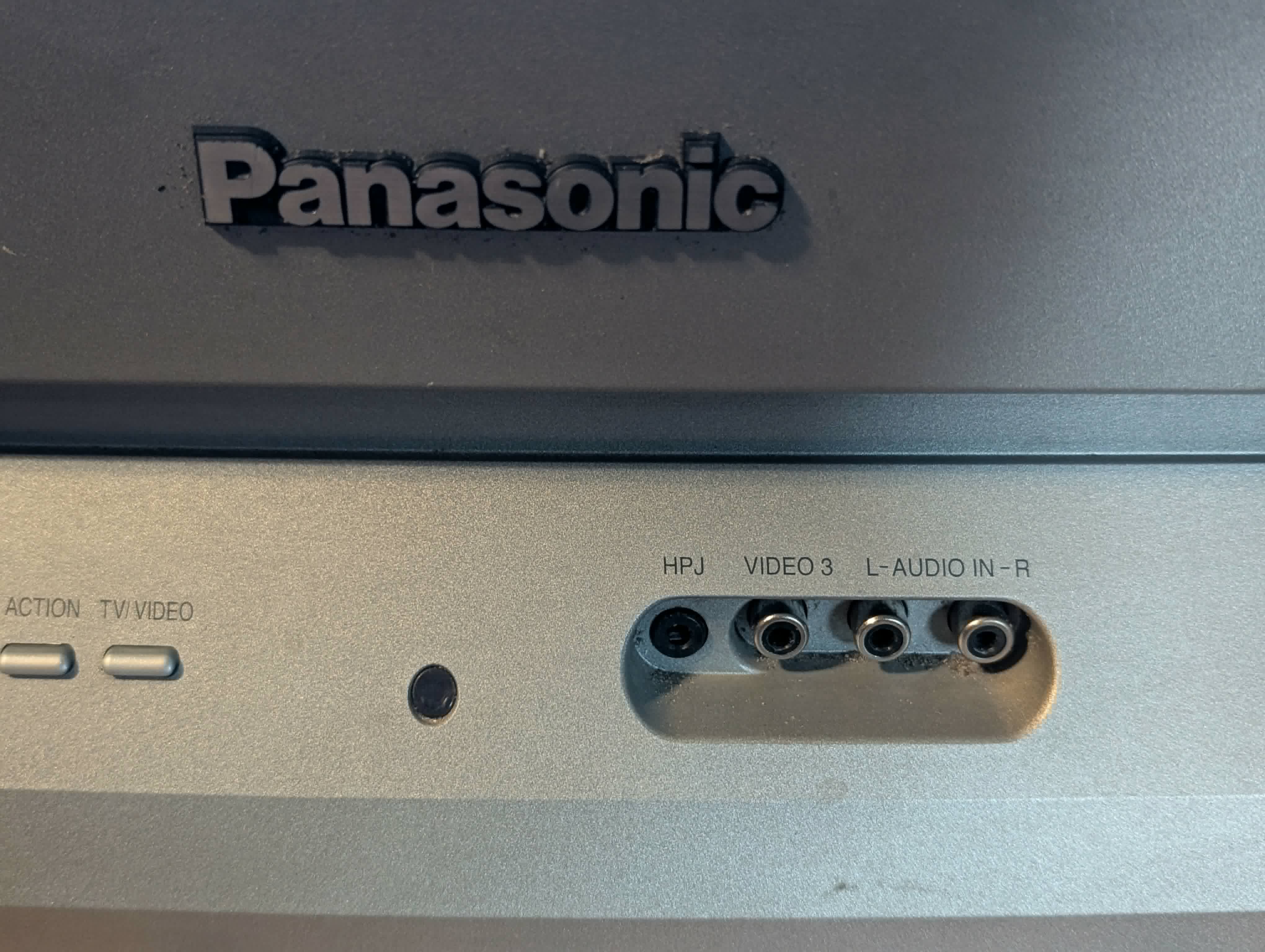

| Input Signals: | Composite, RF, S-Video, Component YPbPr |

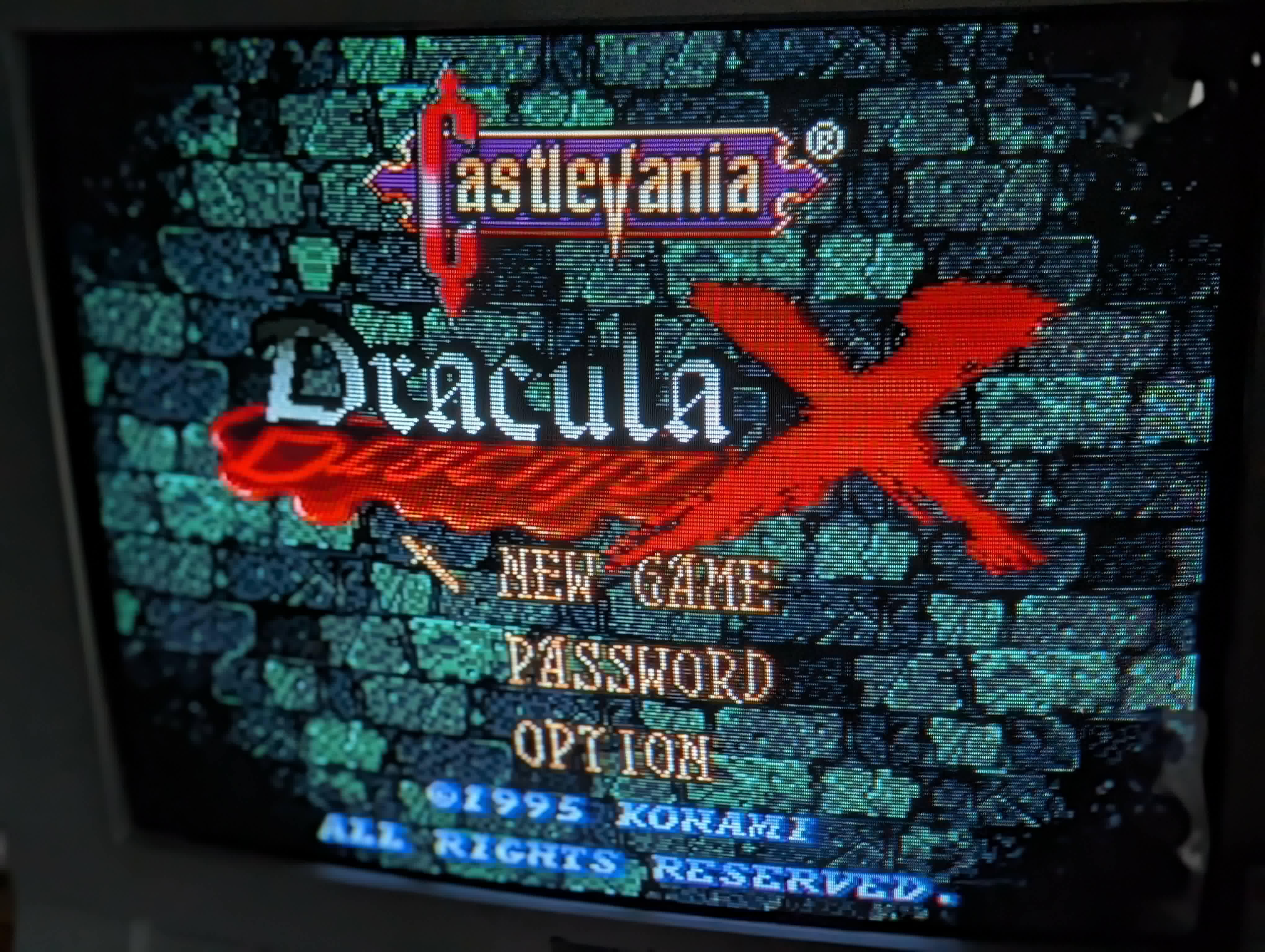

| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7845N |
| Jungle IC: | Toshiba, TA1310, TA1310N |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | Panasonic, MN82840 |
| Flyback: | TLF2AA003 |
| Focus Type: | Single |
| Tube: | Panasonic , M80JUA061X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY2AA008 |
| Speakers: | Stereo, 5W x 2 |
| Remote: | EUR7613Z60 |

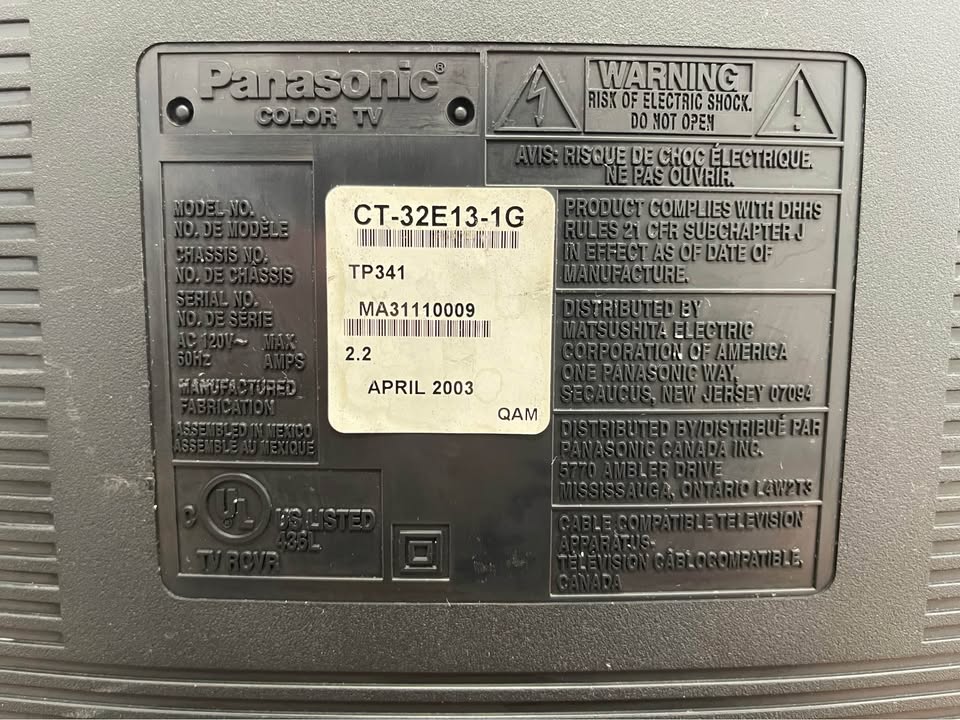

| Chassis: | NA8, TP341 |
| Weight: | 109 lbs (49.4 kg) |
| Dimensions (W/H/D): |
865 x 544 x 690 mm
(34 x 21.4 x 27.1") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| MSRP: | 449 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, TY-32E33T |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
