Summary

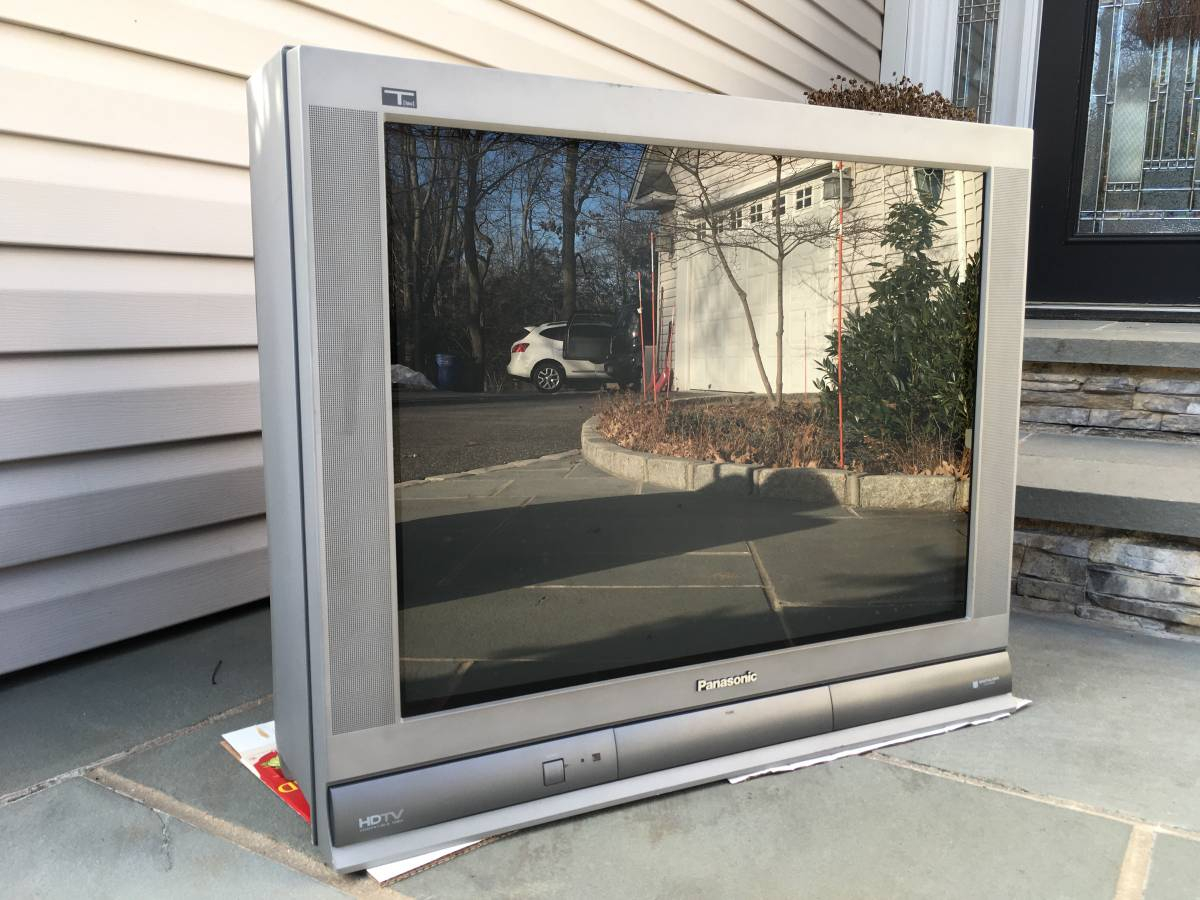

32" Panasonic HD CRT from 2000. Made by Matsushita at their Mexico facility.
Literature
- User Manual
- [Service Manual](COMING SOON)
Notes
All Panasonic HD CRTs are lag-free 480p and 1080i. Component looks magnificent.

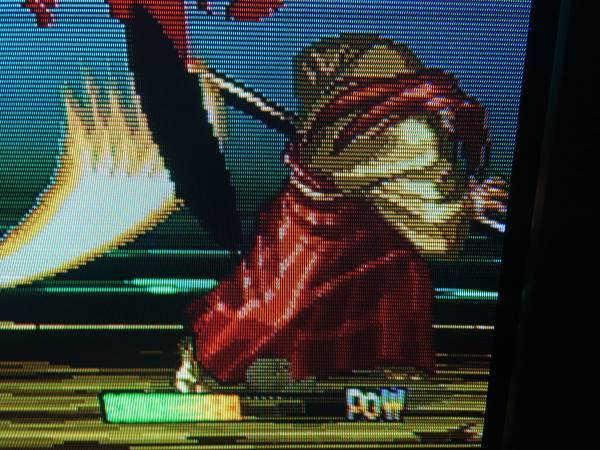

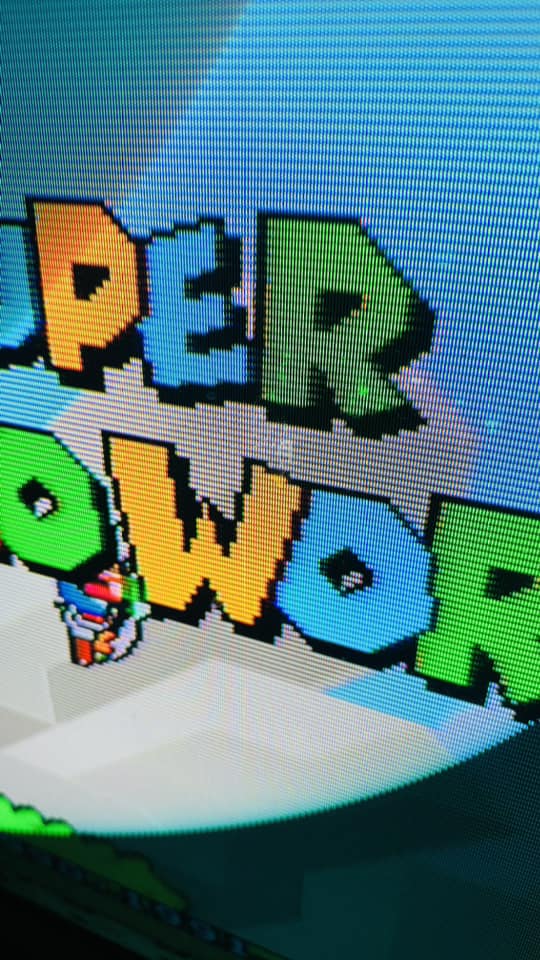

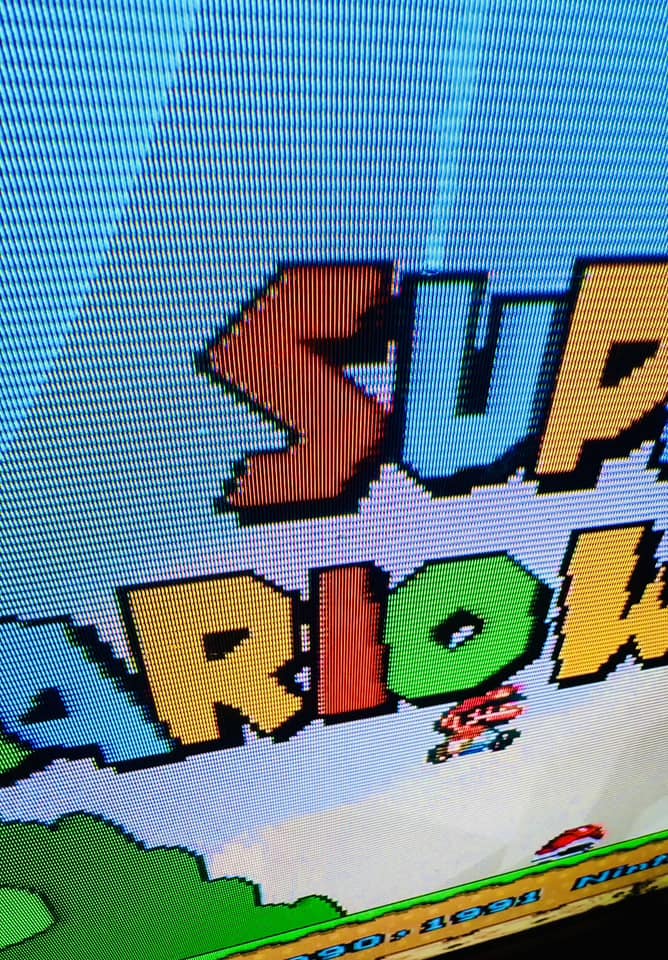

Like the other Tau HD CRT models for that year, this model has the option to toggle between processing modes for 15khz signals. In TV MODE 240p/480i is linedoubled to 480p and has a blocky appearance. However, in GAME MODE those signals have artificial black scanlines overlaid giving it the appearance of true 240p/480i! This option can only be enabled for composite and s-video. This process is not lagless, mind you, as it does add a few milliseconds of latency.

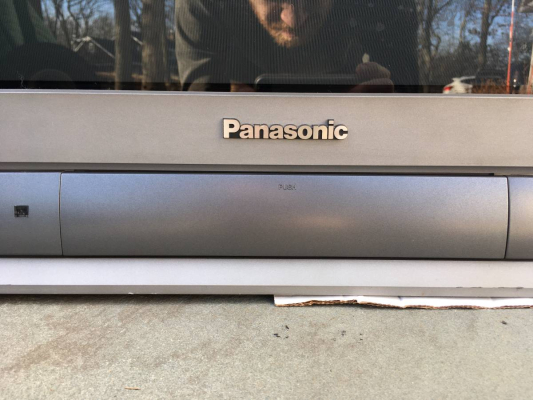

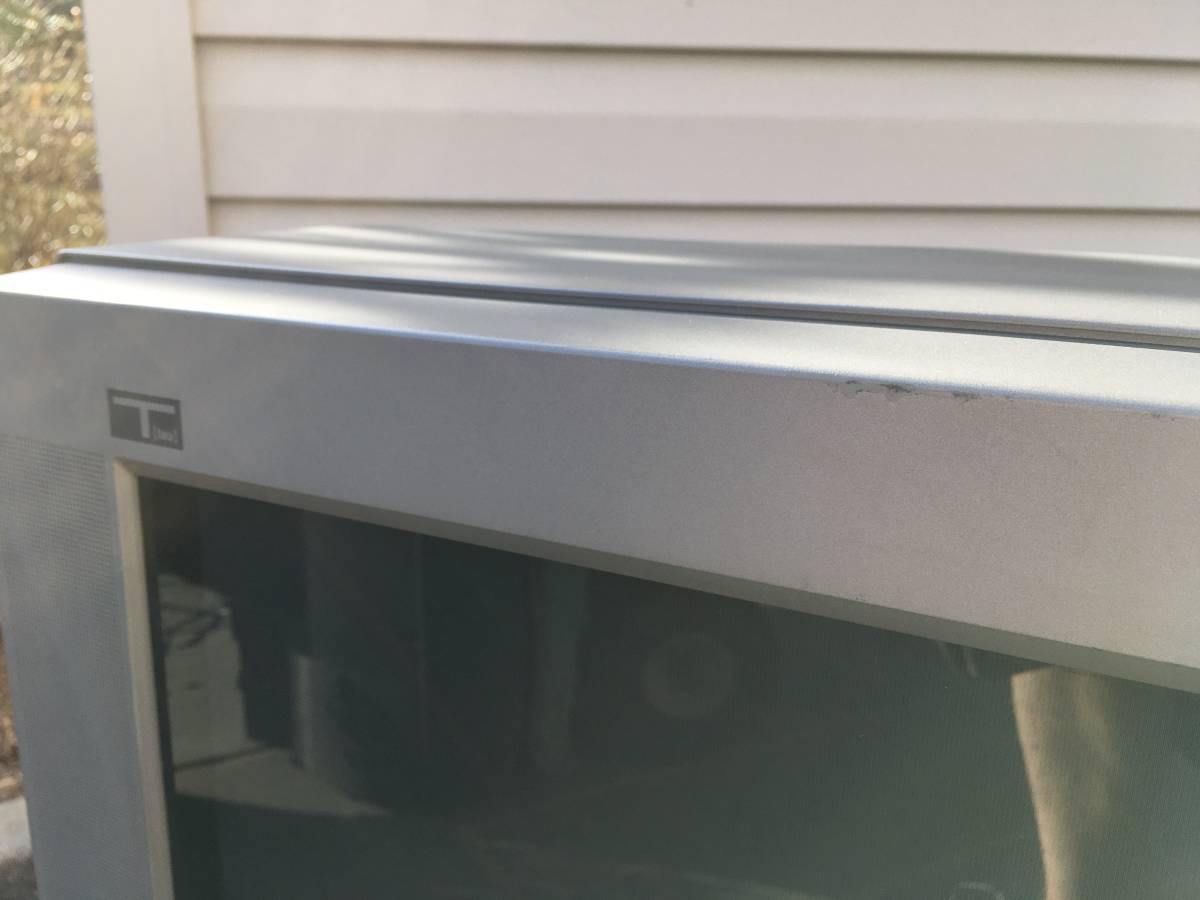

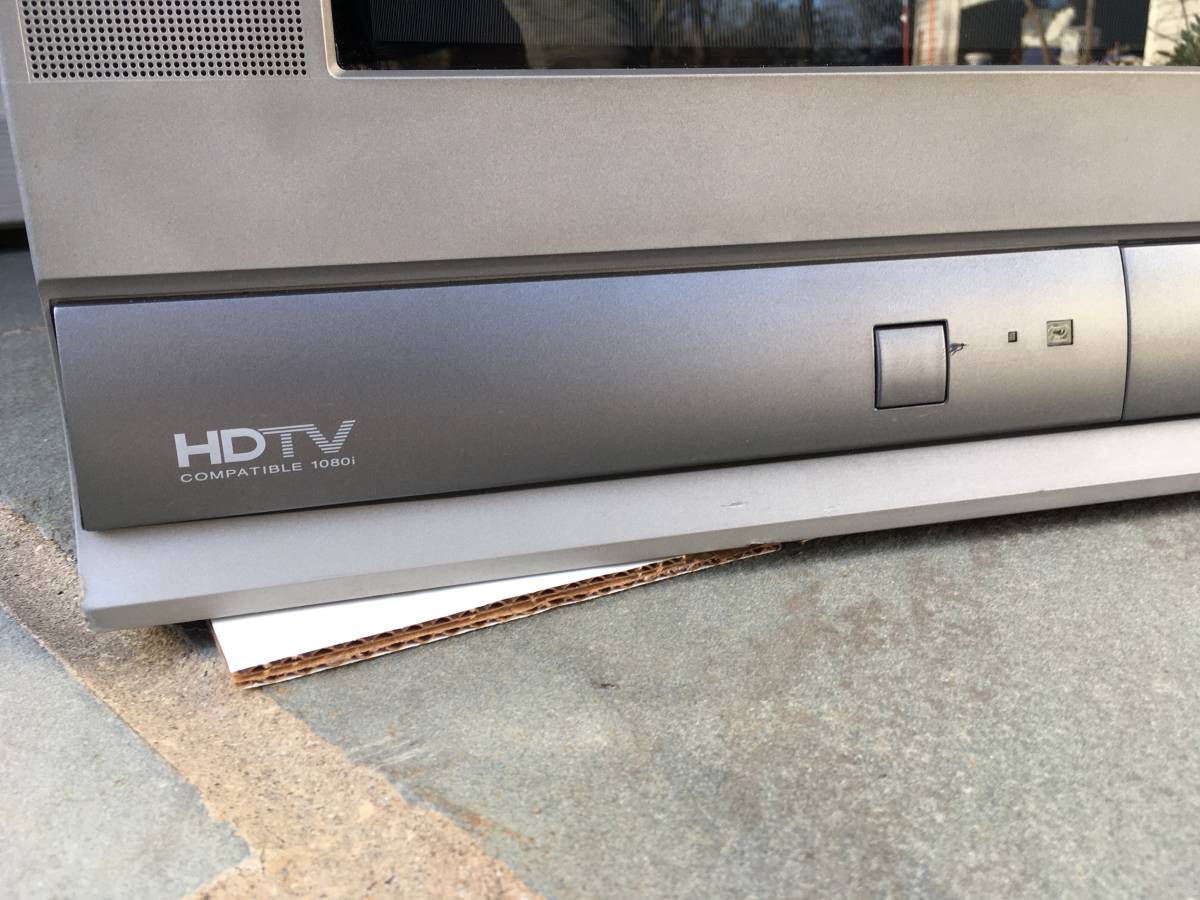

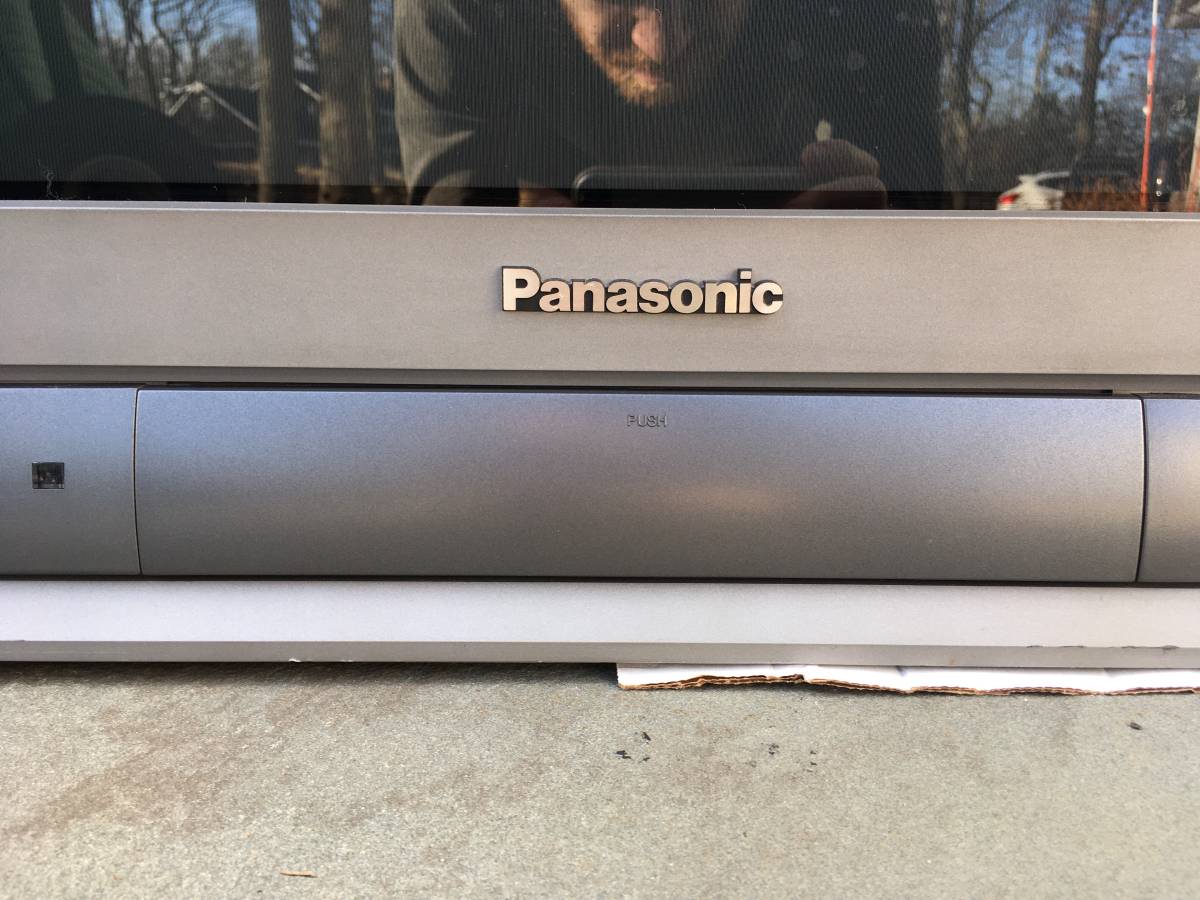

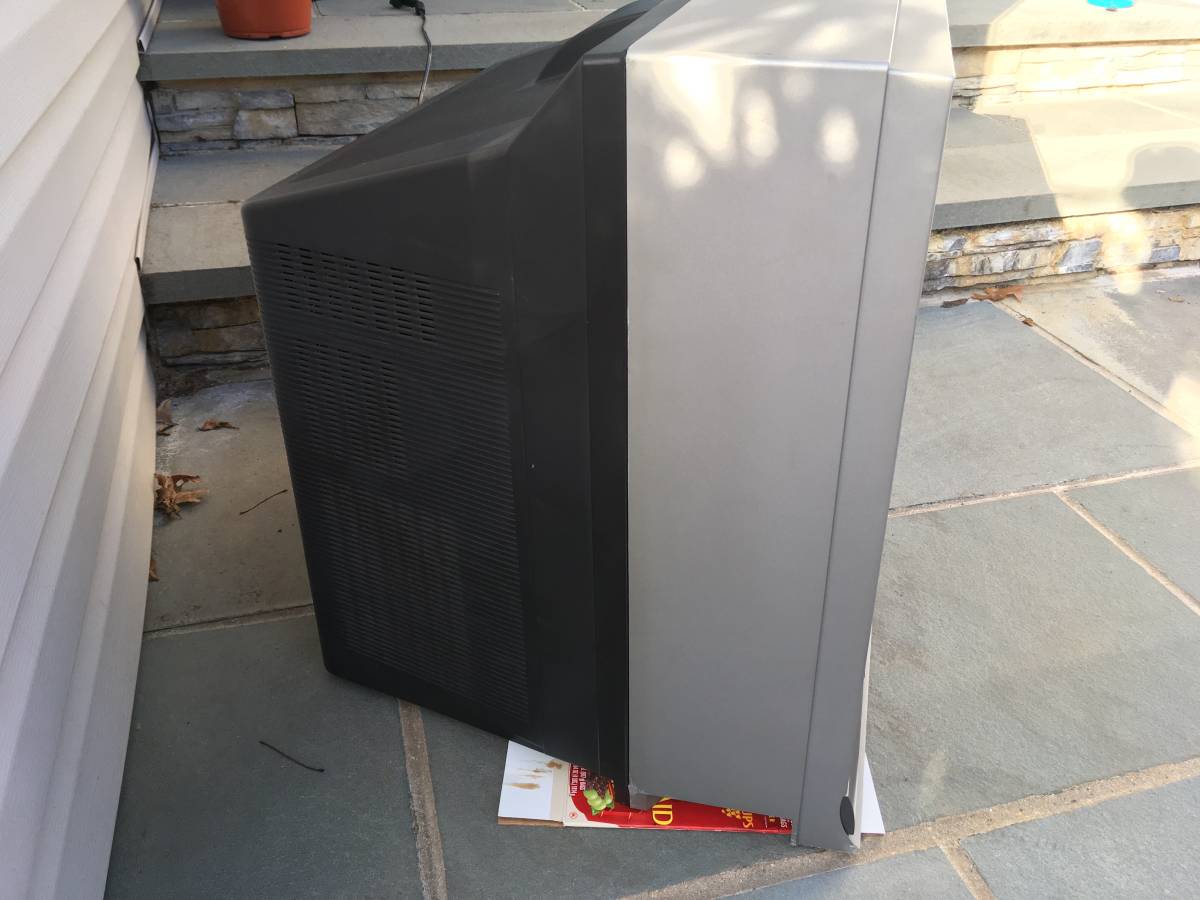

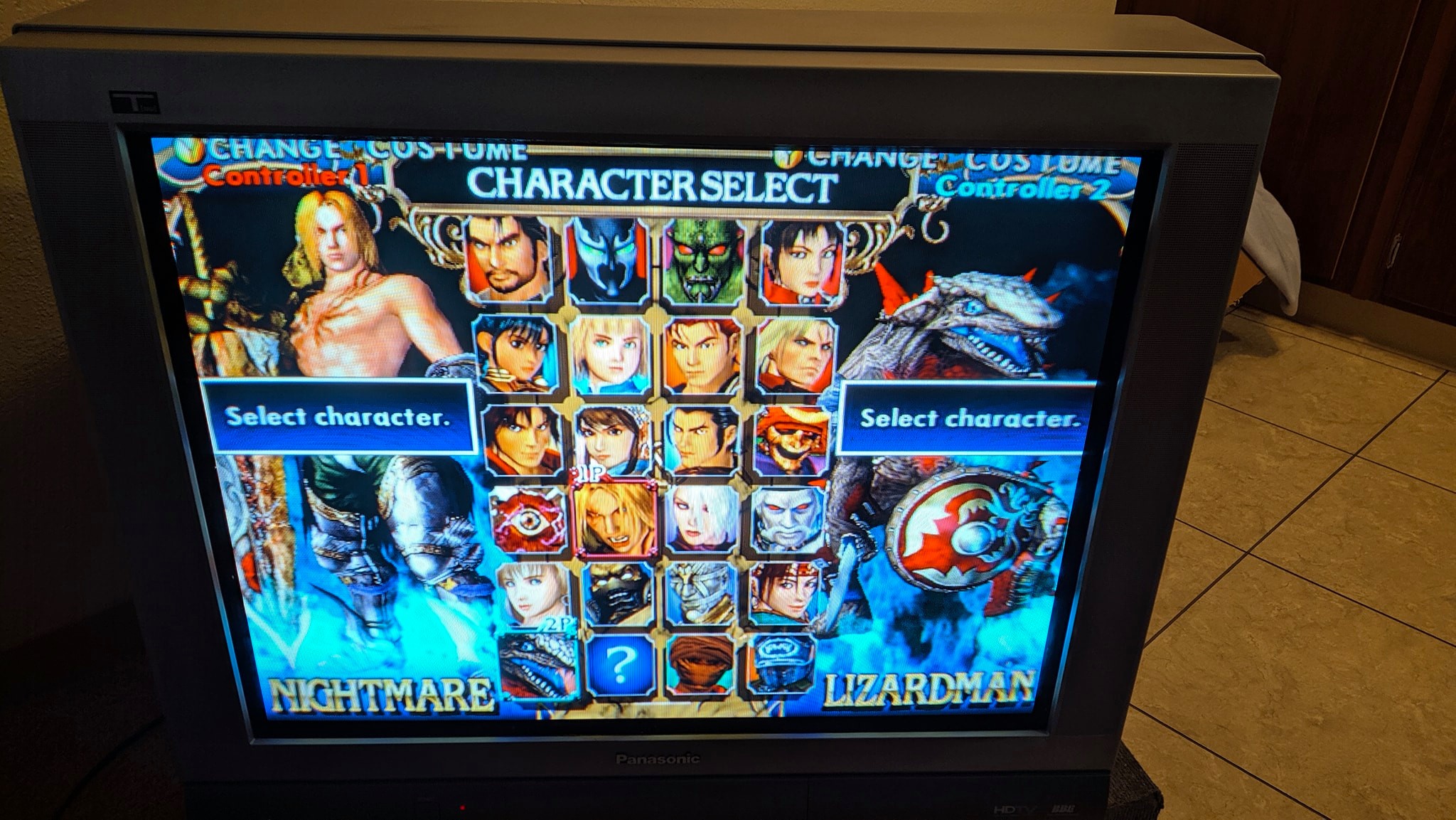

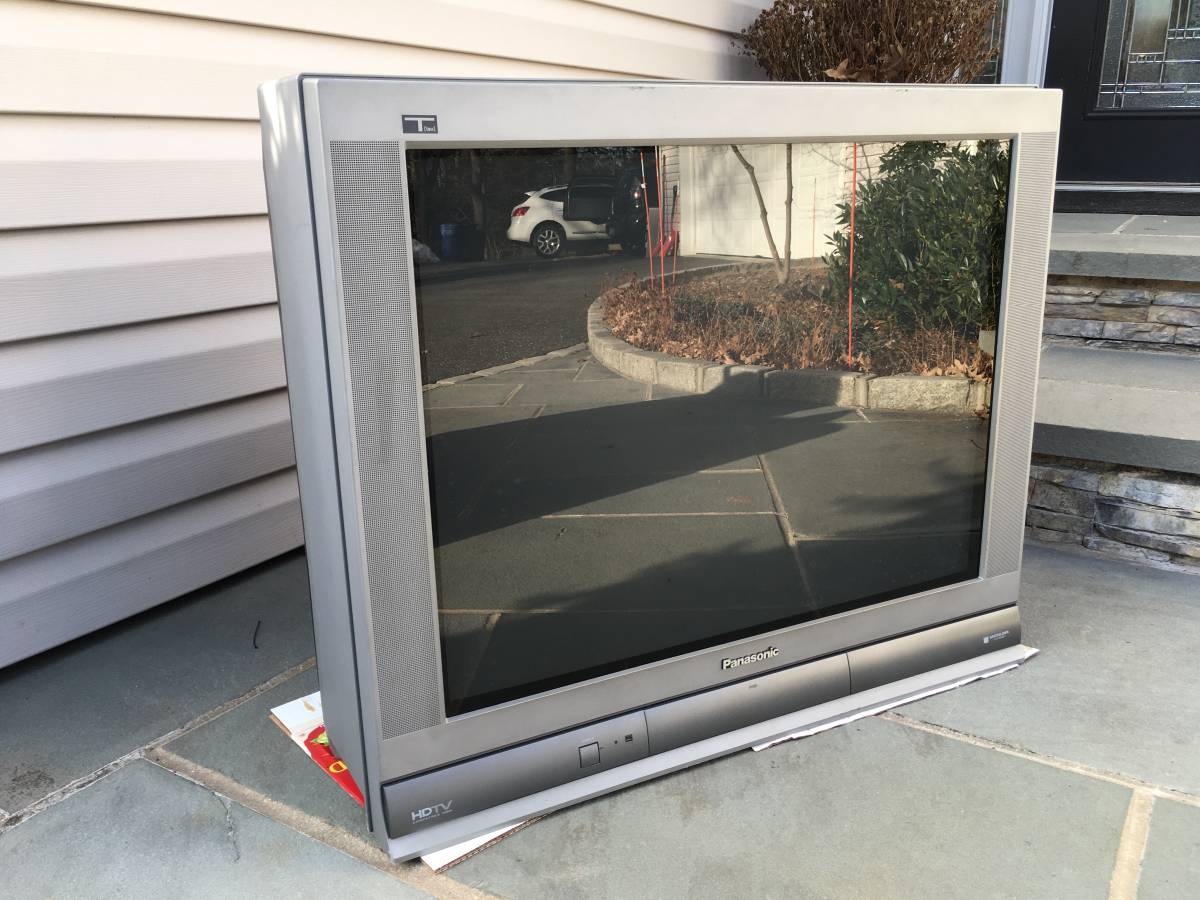

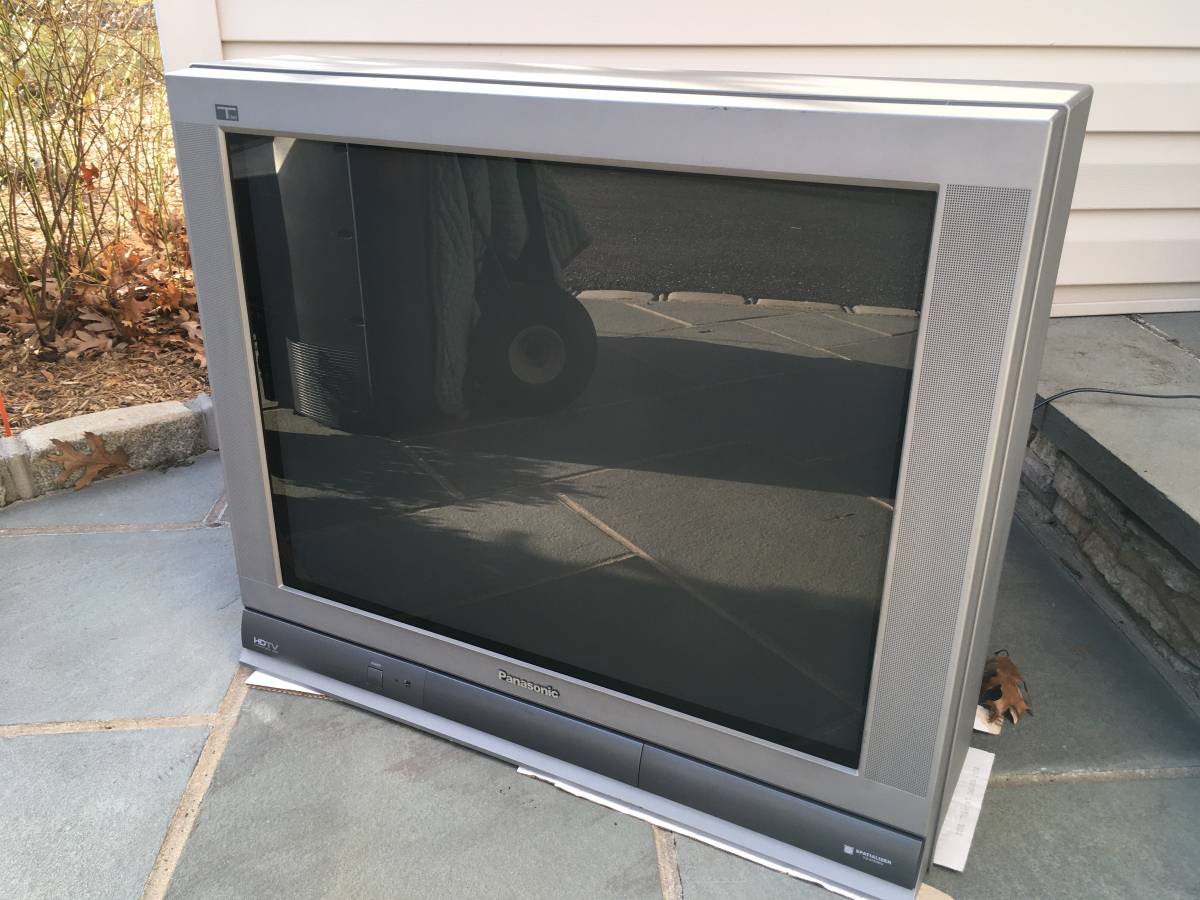

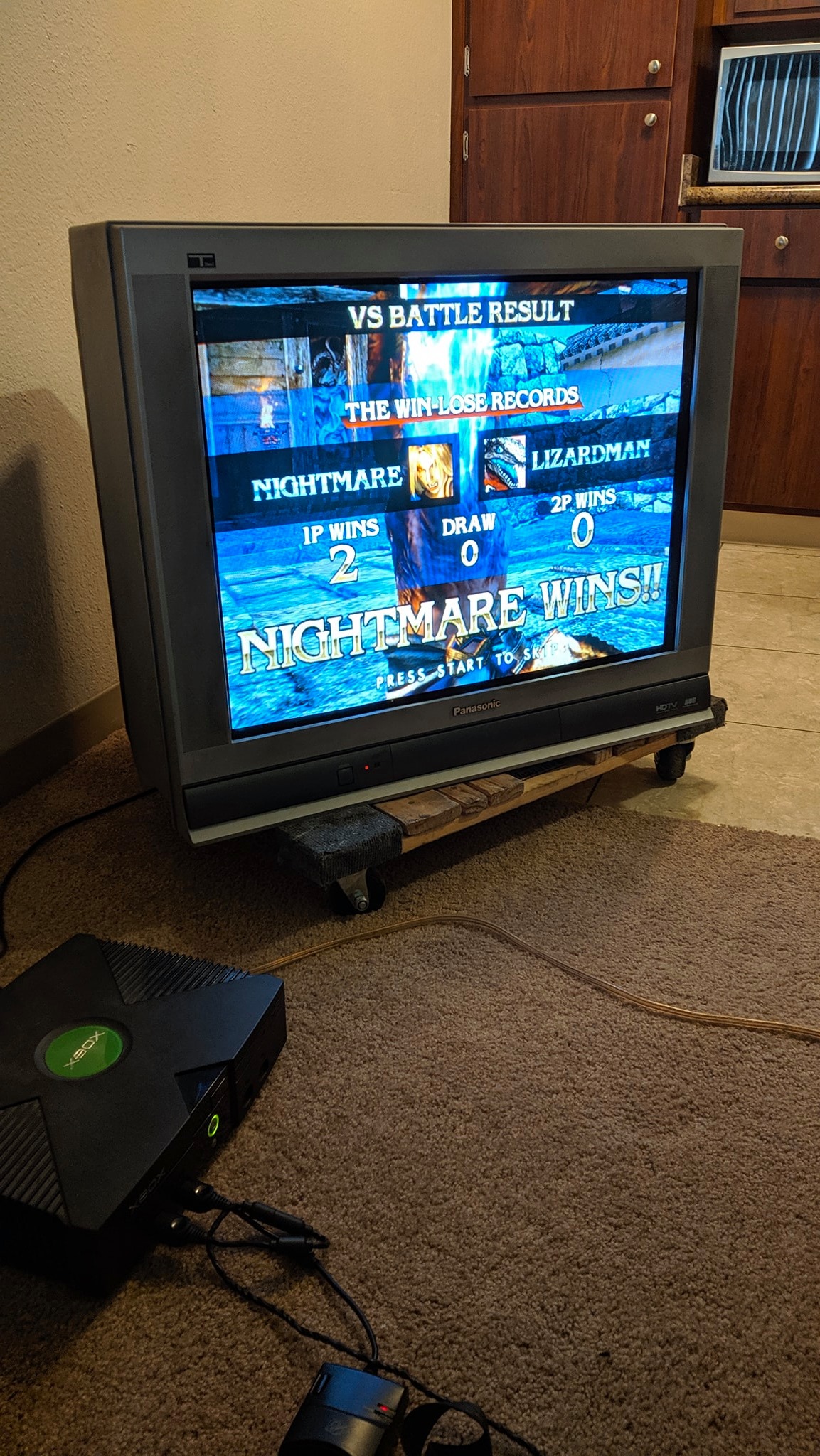

Gallery
Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | CT-32HX40 |
Series: | HX |
Viewable Size: | 32" |

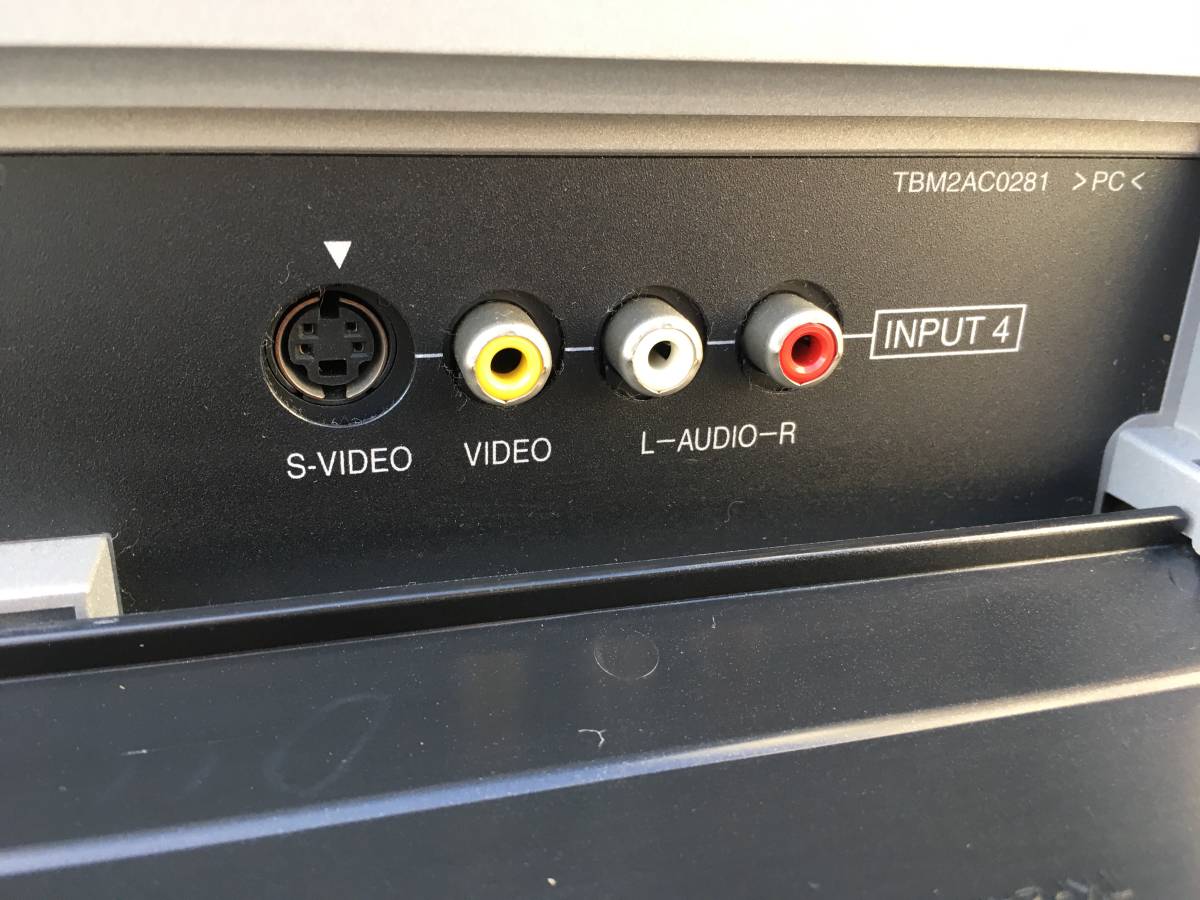

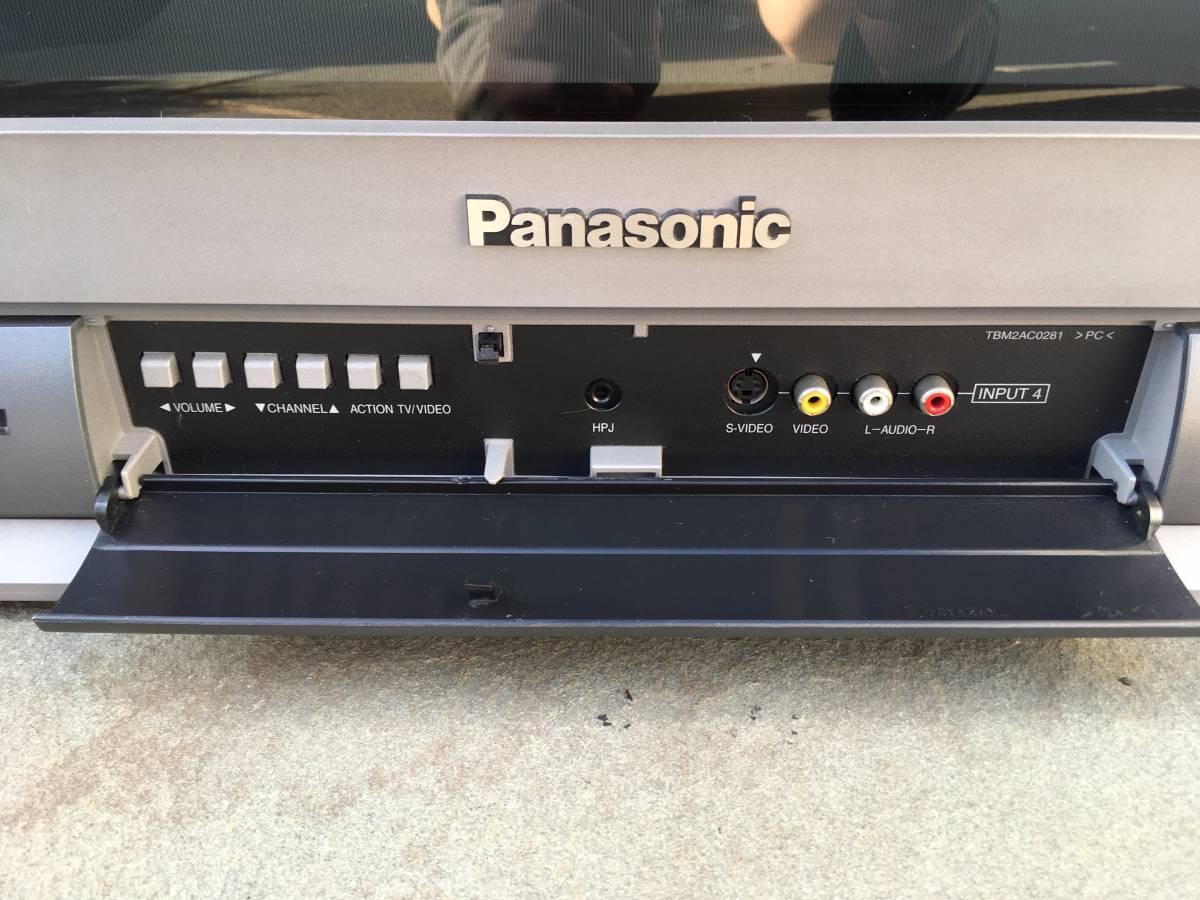

Inputs: | Composite, S-Video, RF, Component YPbPr |
Native Resolutions: | 480p, 1080i |
Horizontal Scan Range: | 33 kHz, 31 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Jungle: | Sony, CXA2019AQ |
Tube: | Panasonic , M80LSW195X |
Mask: | Slot |
Tint: | Dark |
Removable Glare Film: | No |

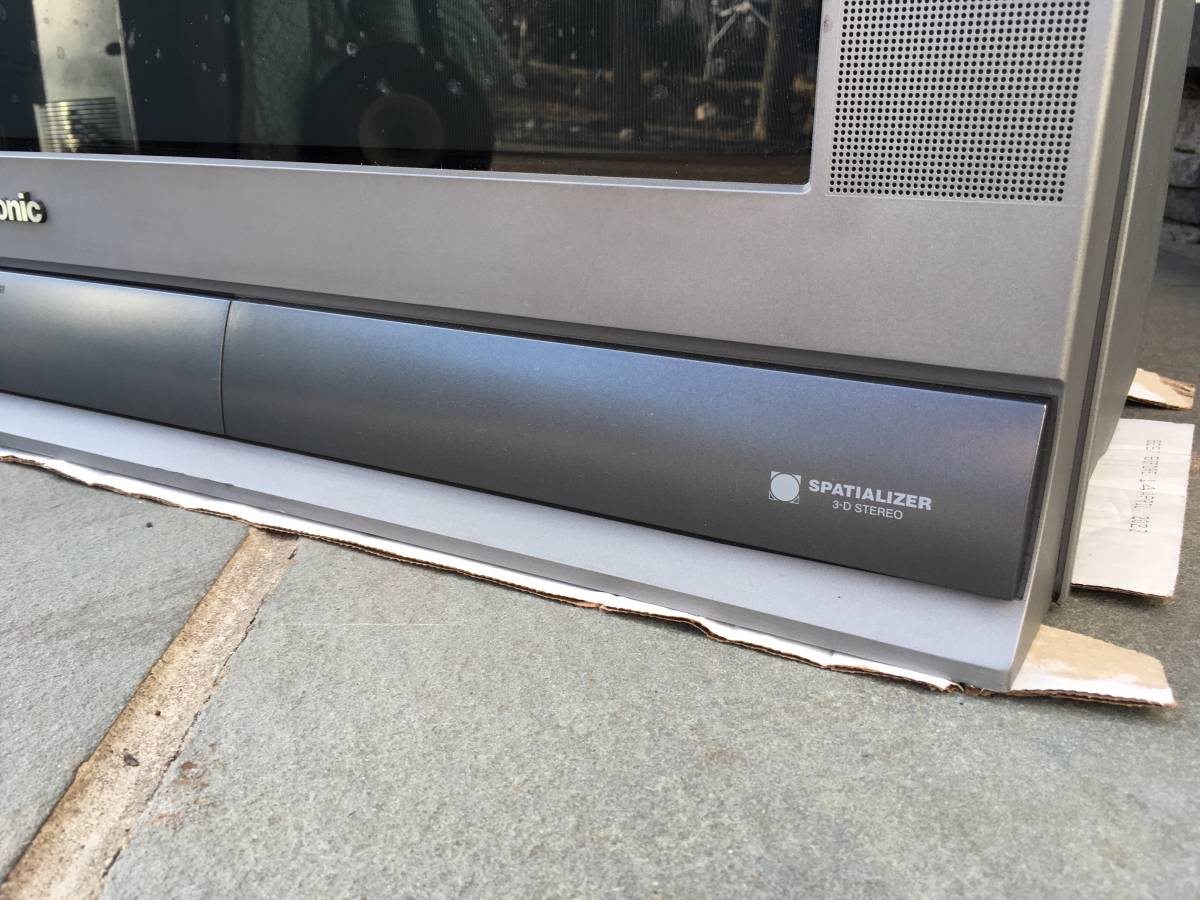

Speakers: | Stereo |
Remote: | EUR511158 |
Chassis: | AP346, DX2P |
Application: | Consumer |
Launched: | 2000 |
Country of Manufacture: | Mexico |
Degaussing: | Automatic on Power-on |
