Summary

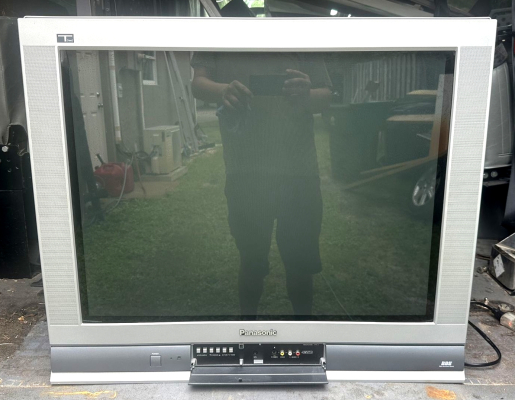

32" flat CRT by Panasonic. Has a full set of inputs. Made in Mexico in 2003.
Manuals
Notes
Even though this set was released in 2003, it doesn't seem to suffer from the harsh picture quality issues the other models of that year had. It seems the jungle chip/CPU is a slightly different model than the smaller sets.
This set can have velocity modulation turned off in the standard menu.

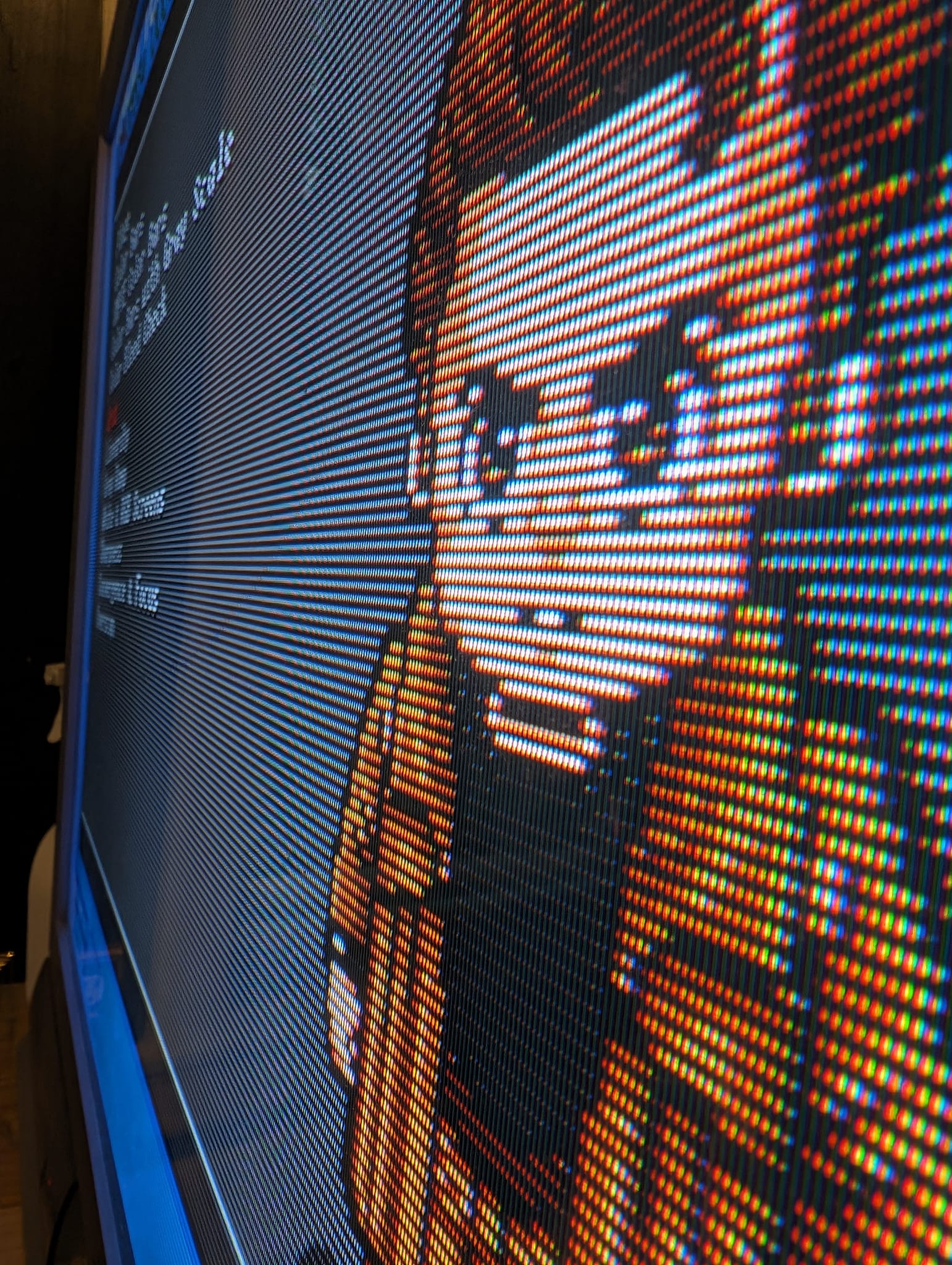

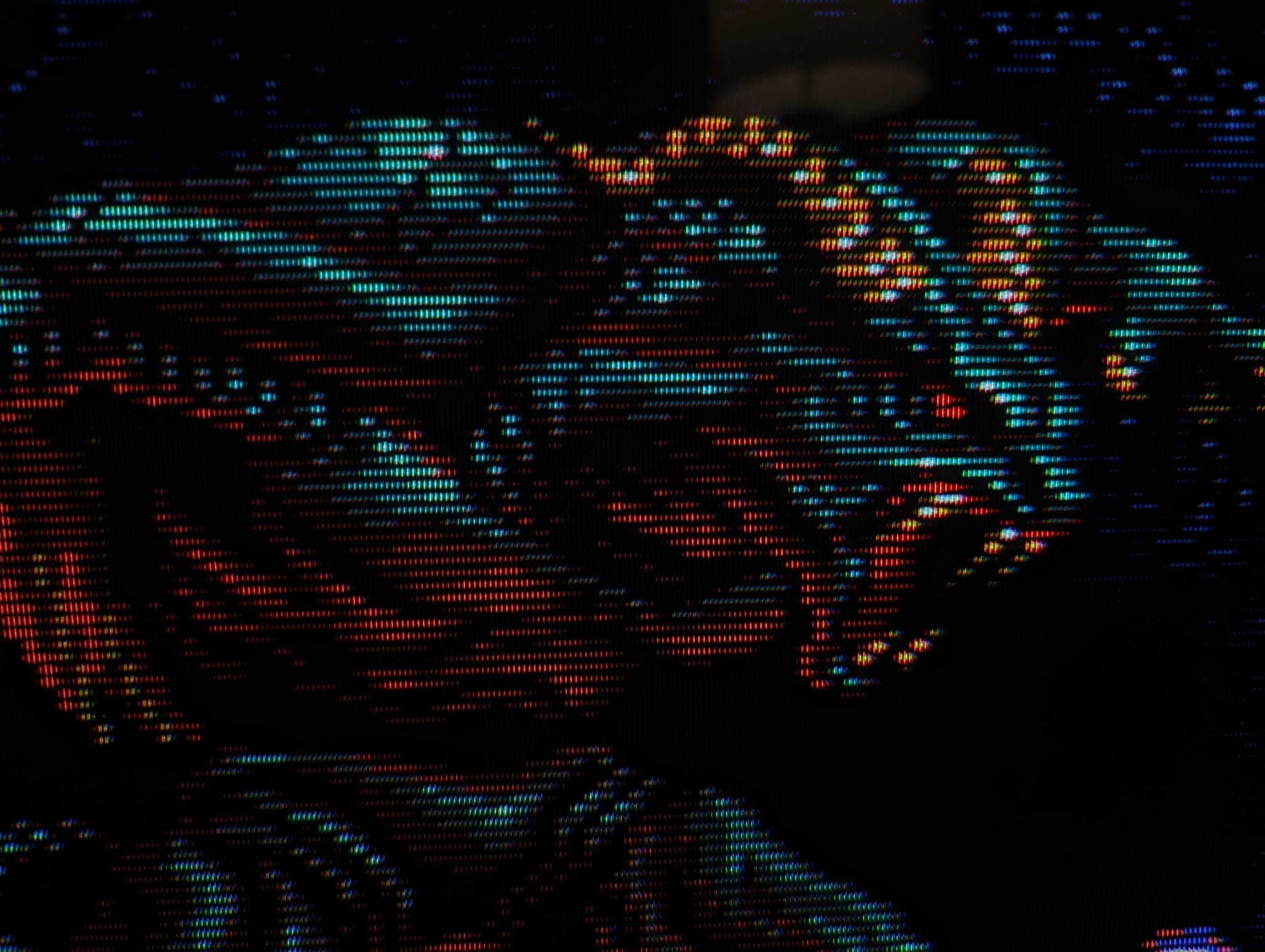

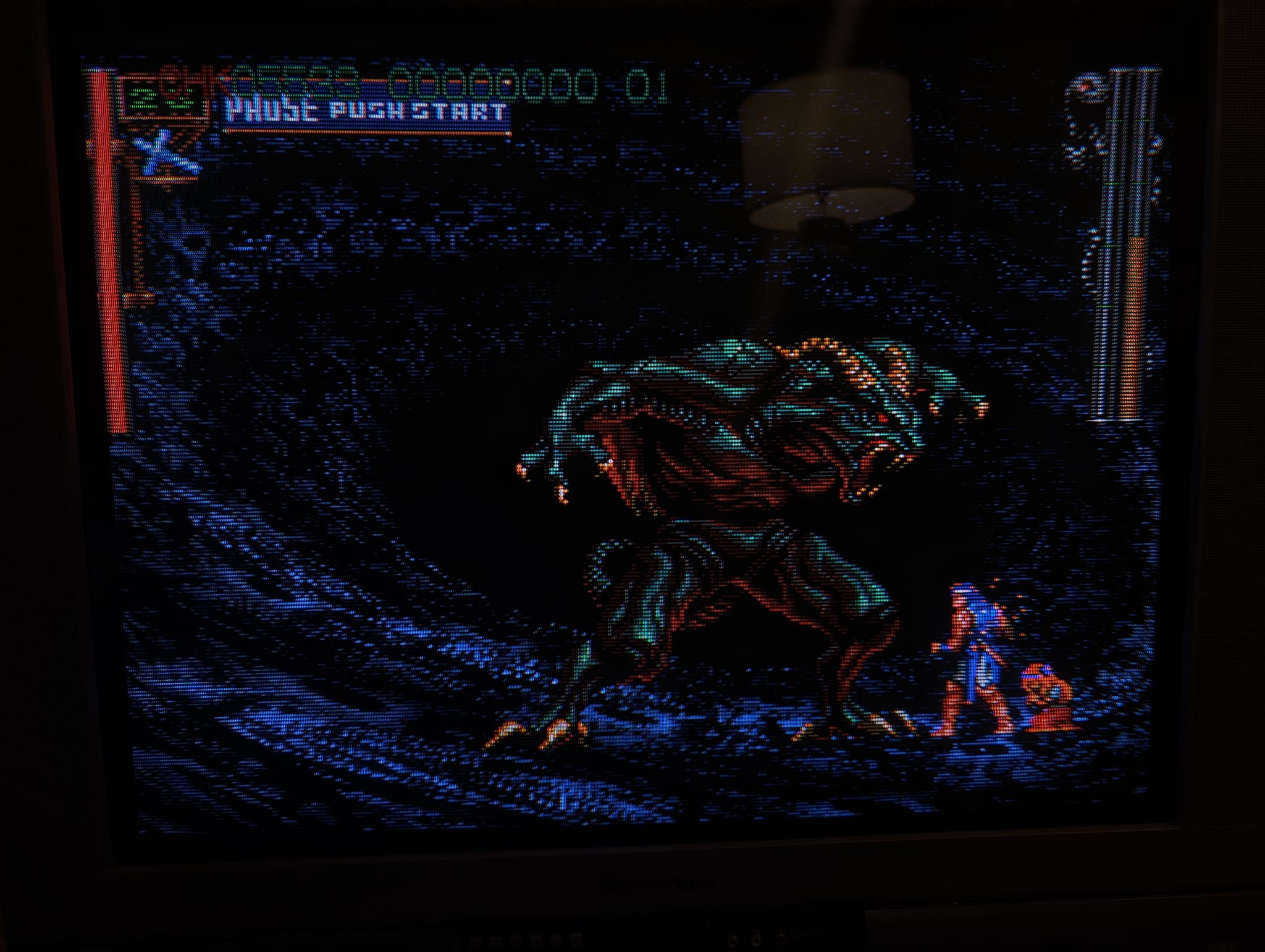

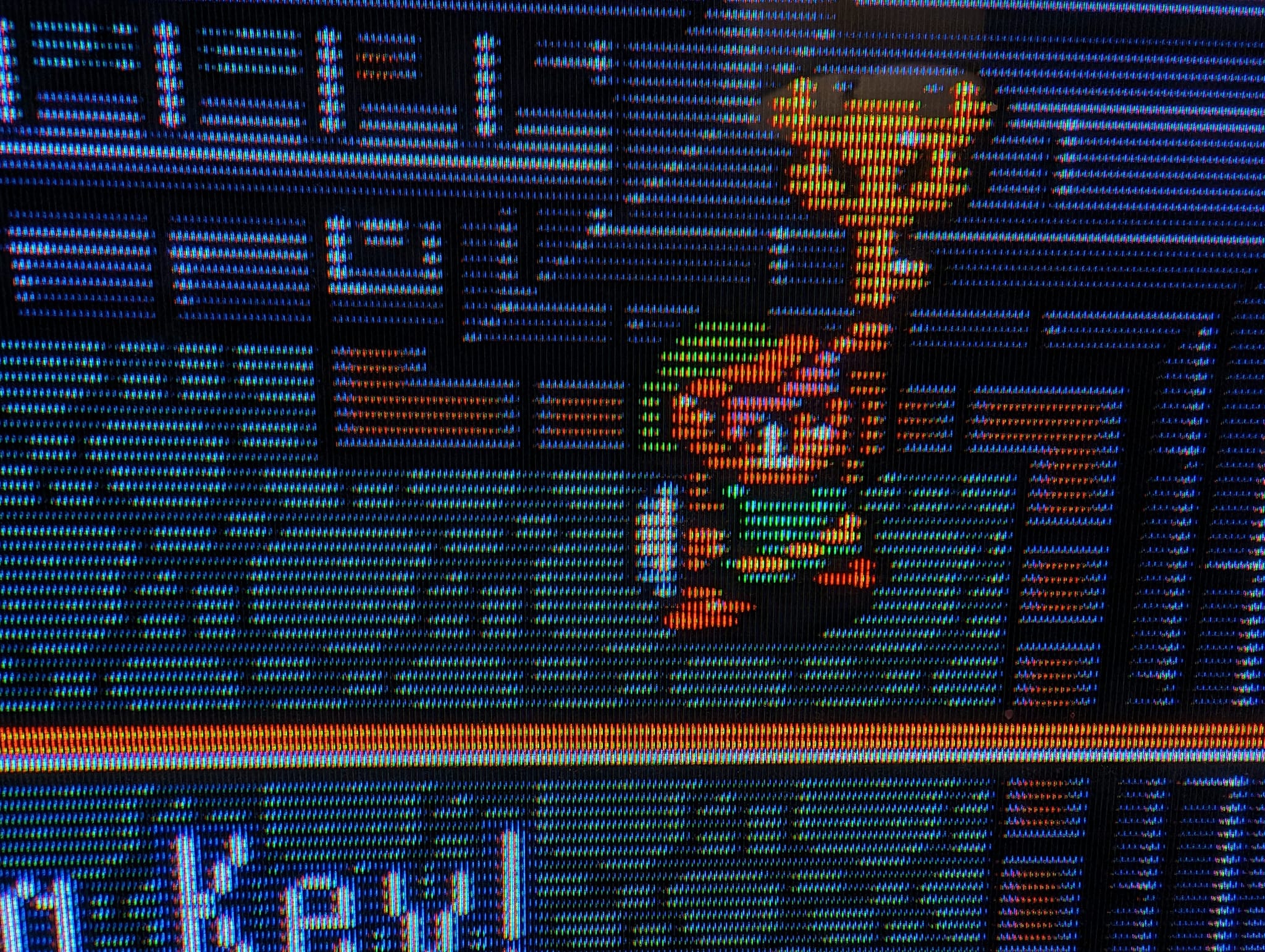

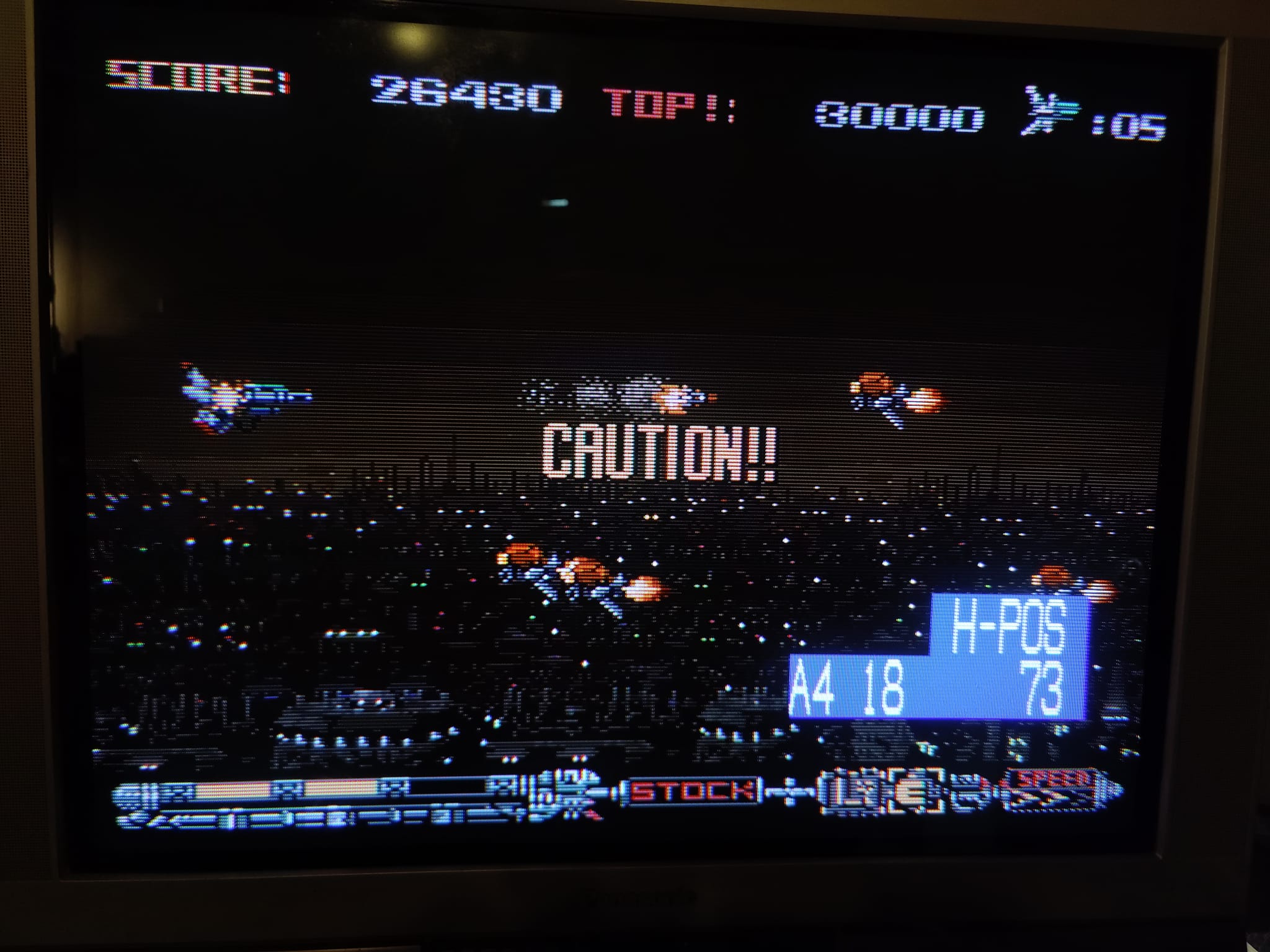

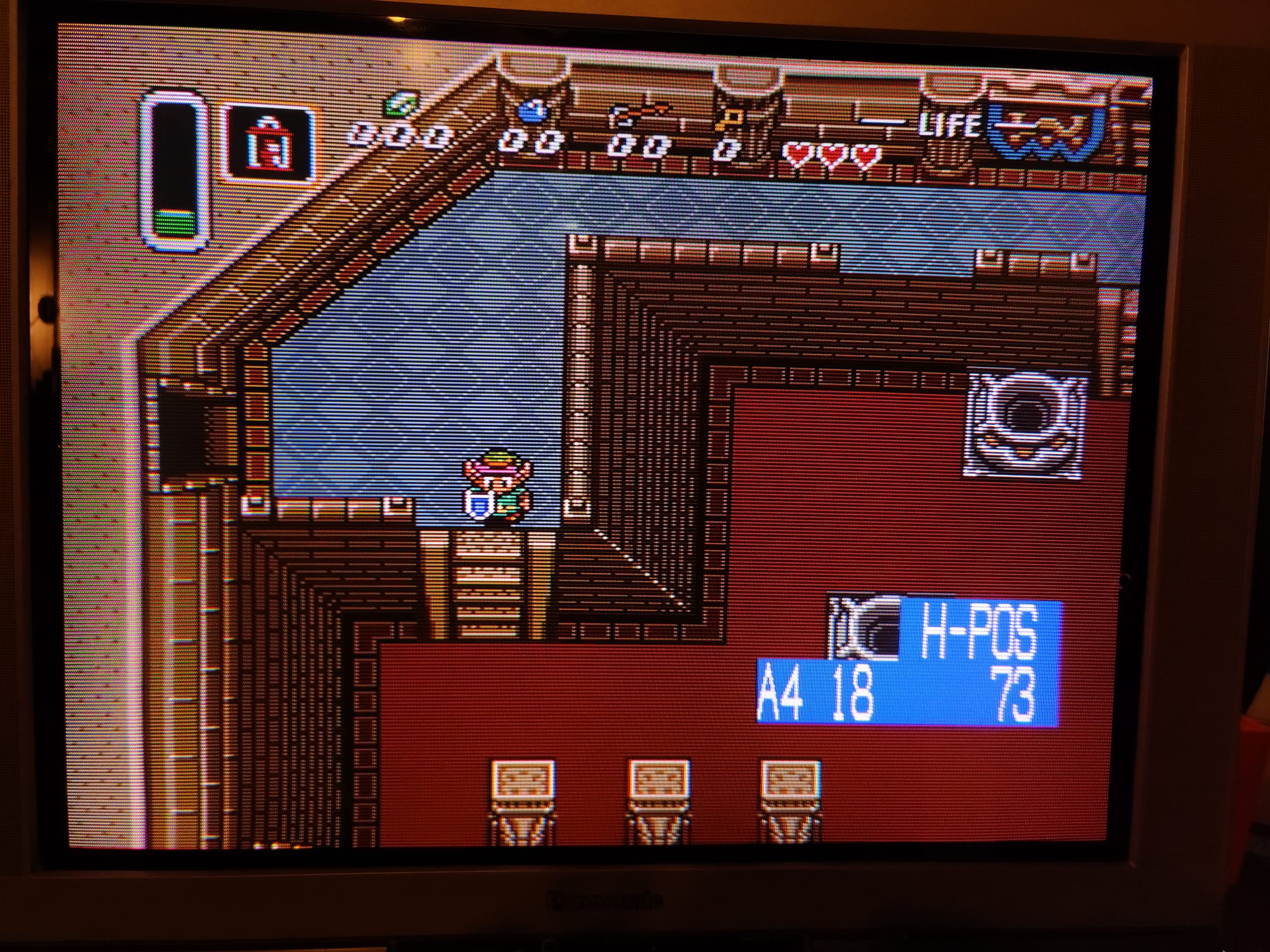

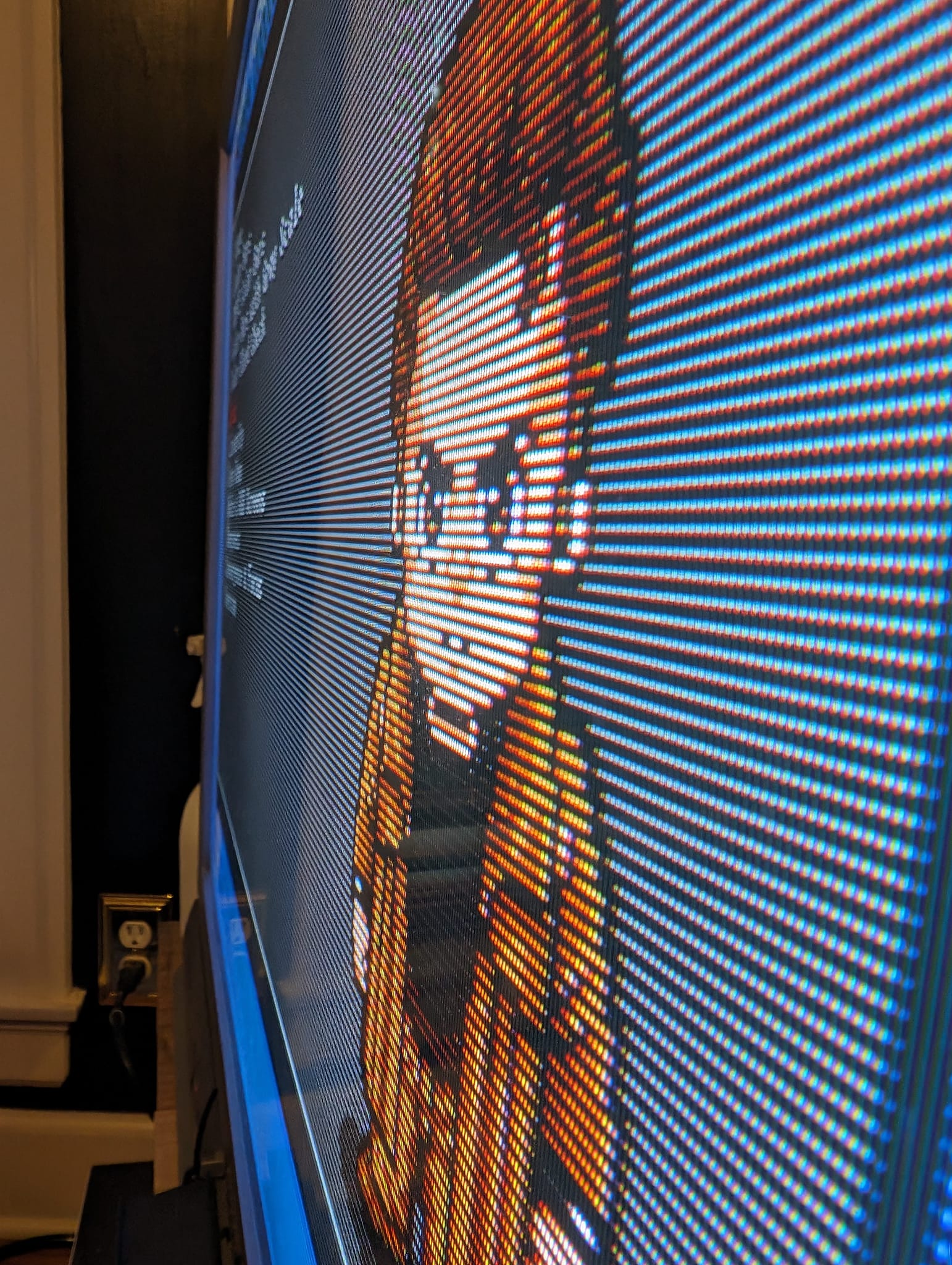

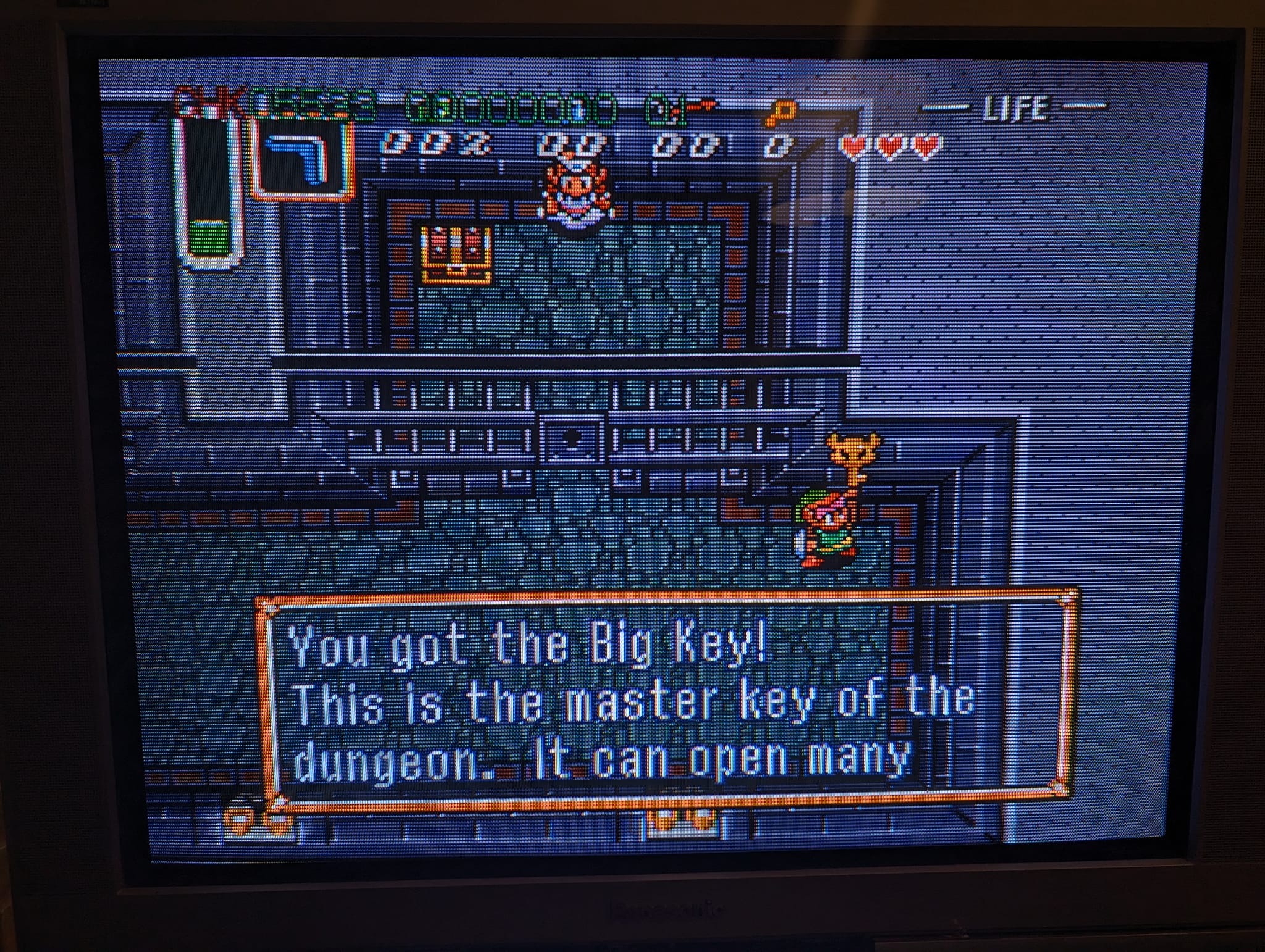

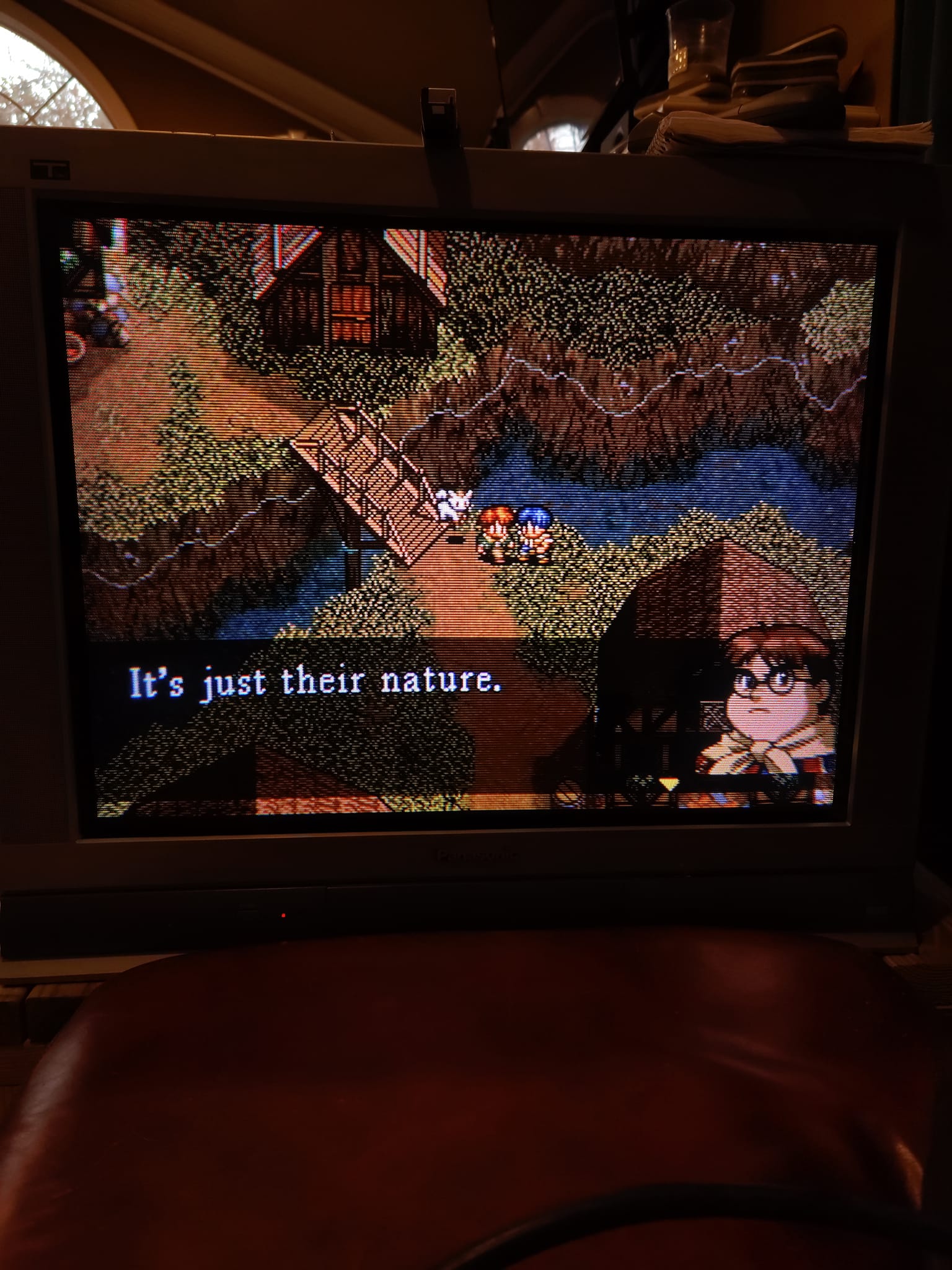

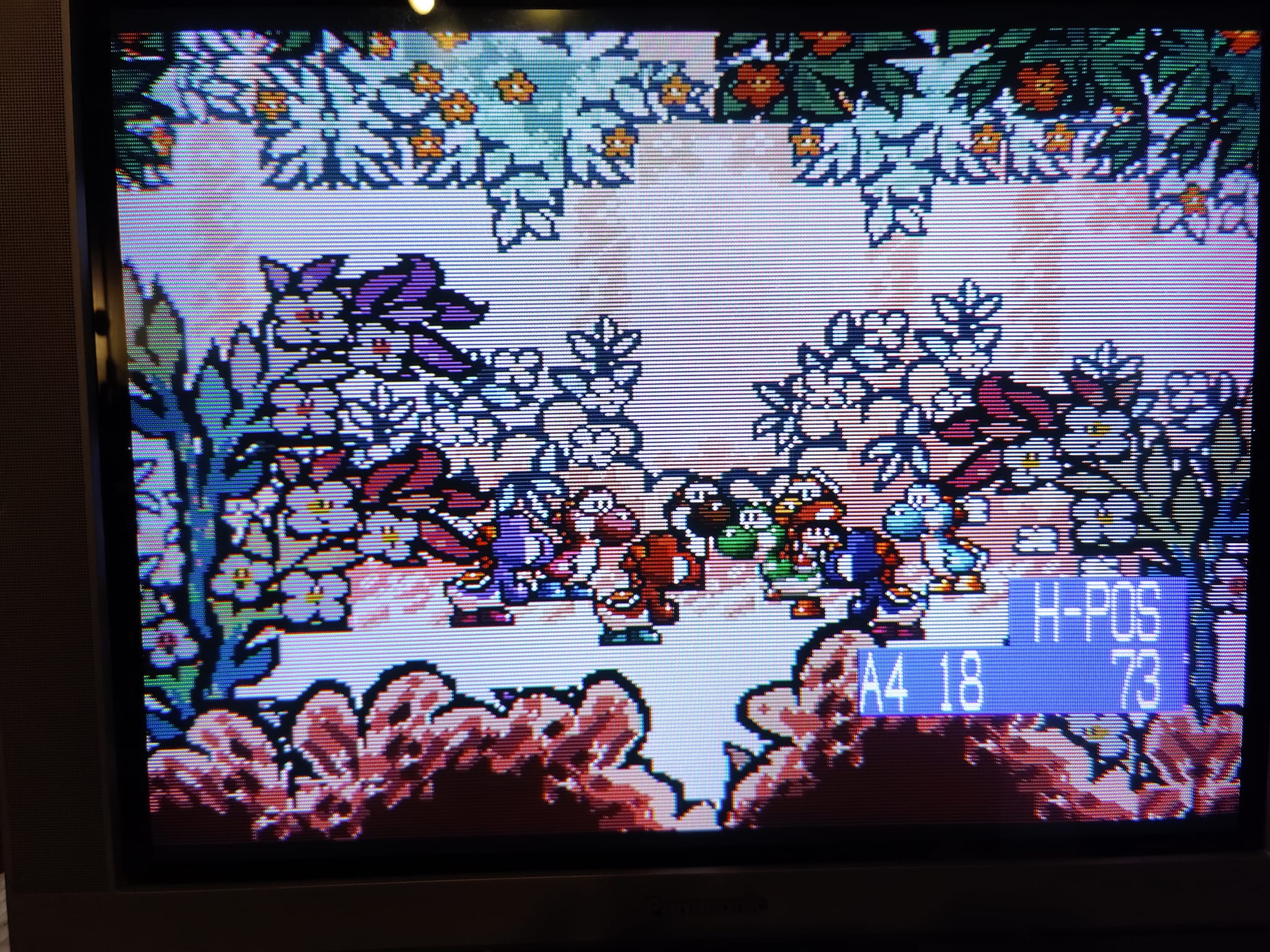

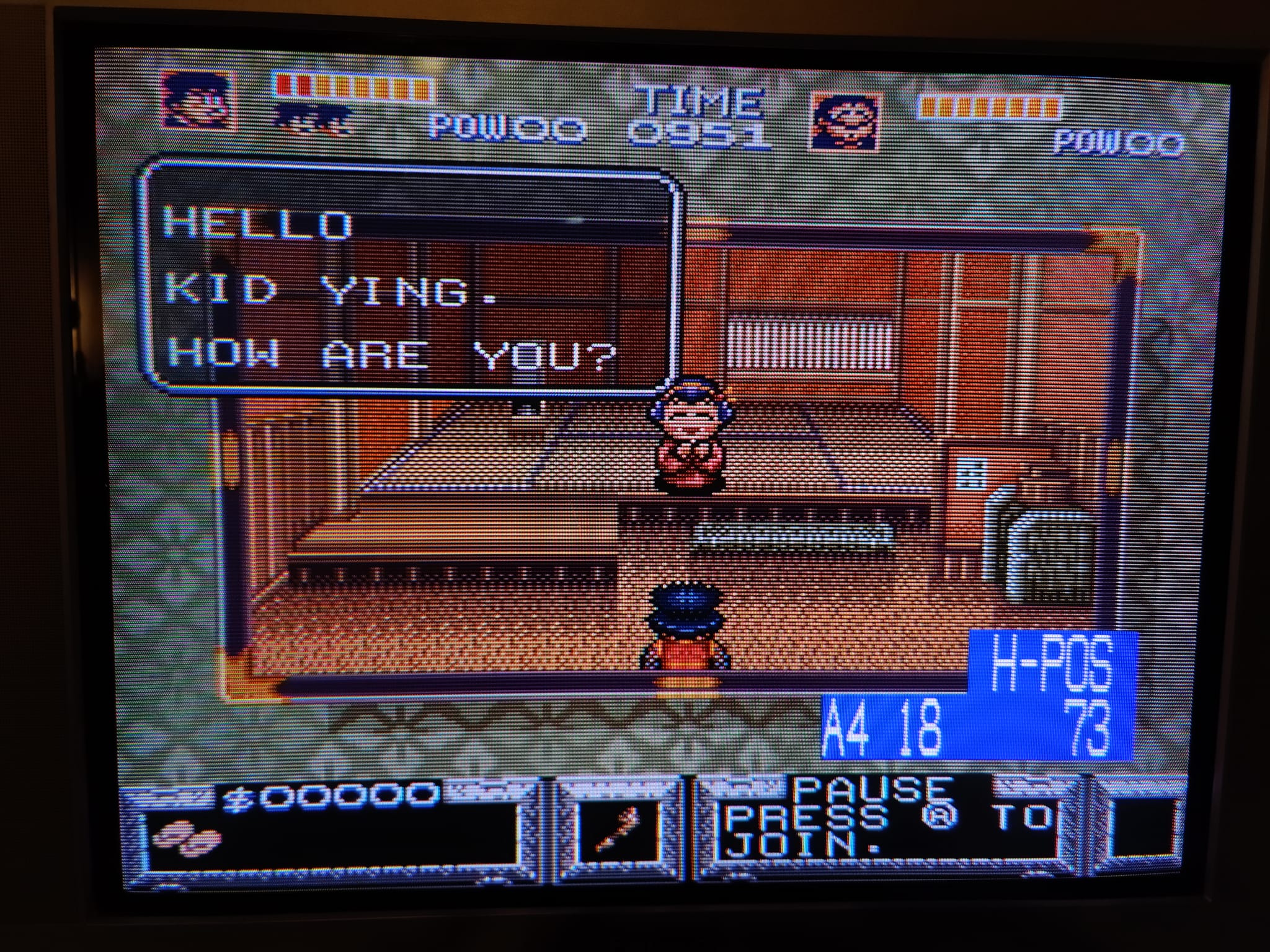

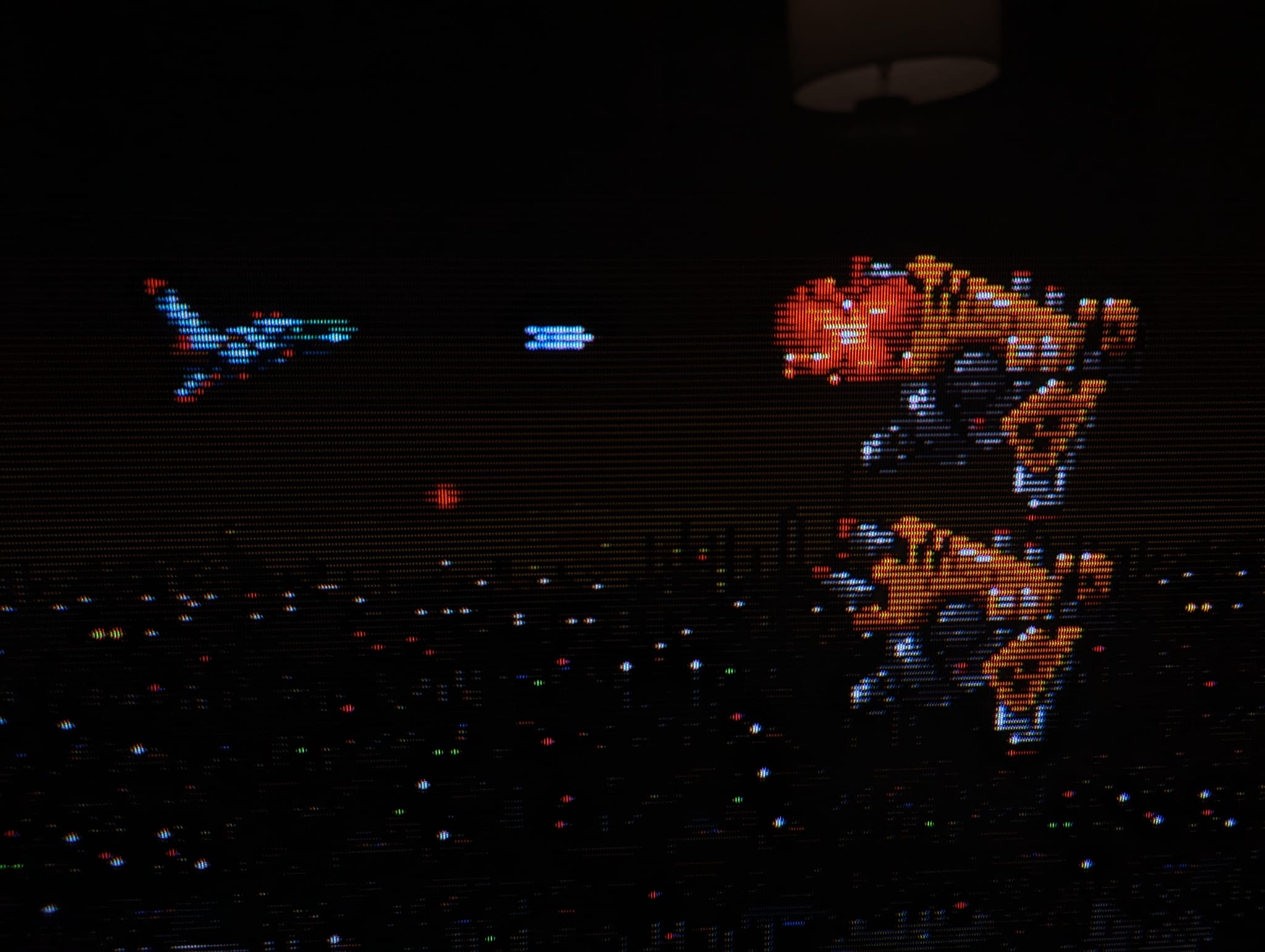

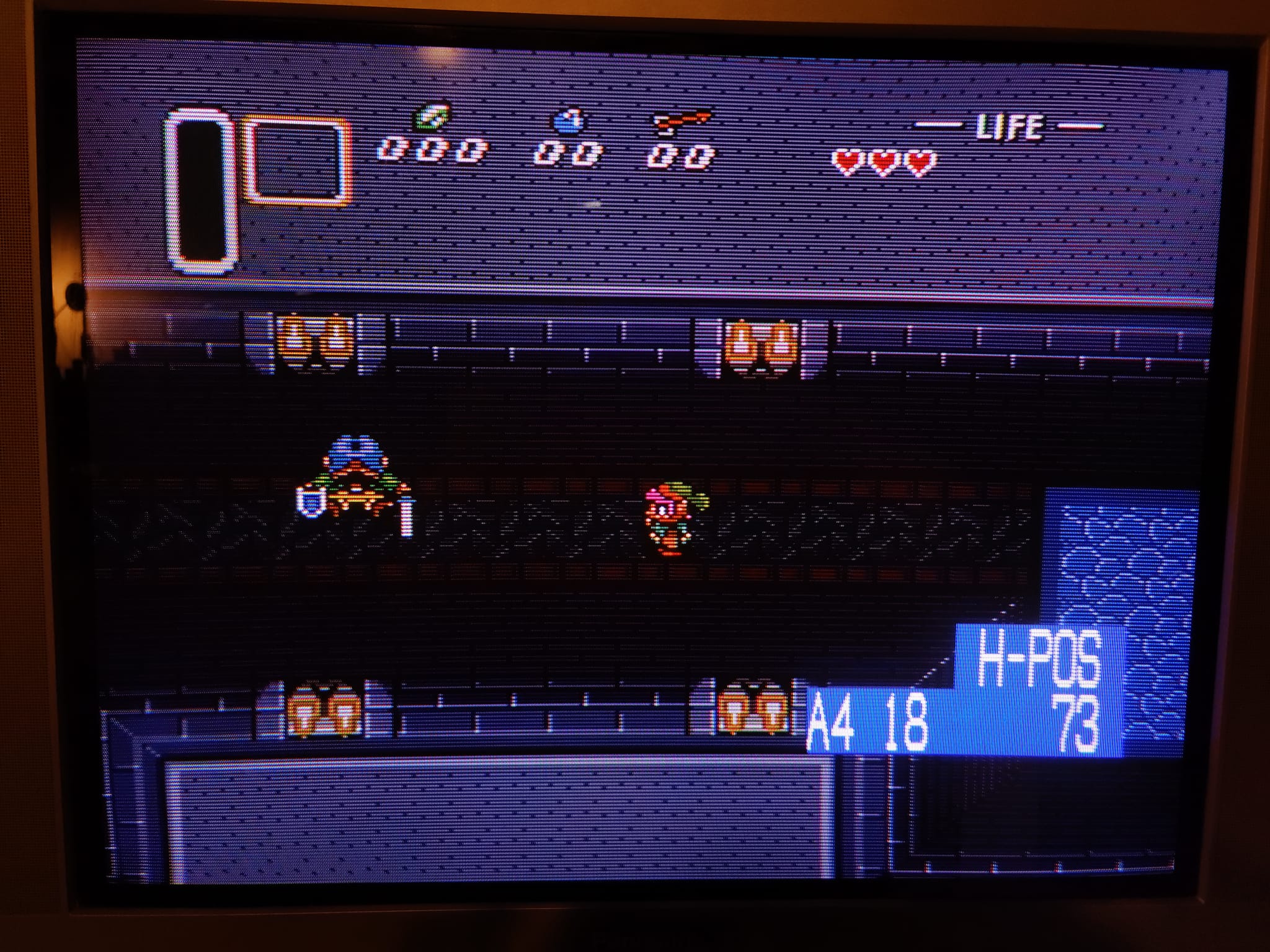

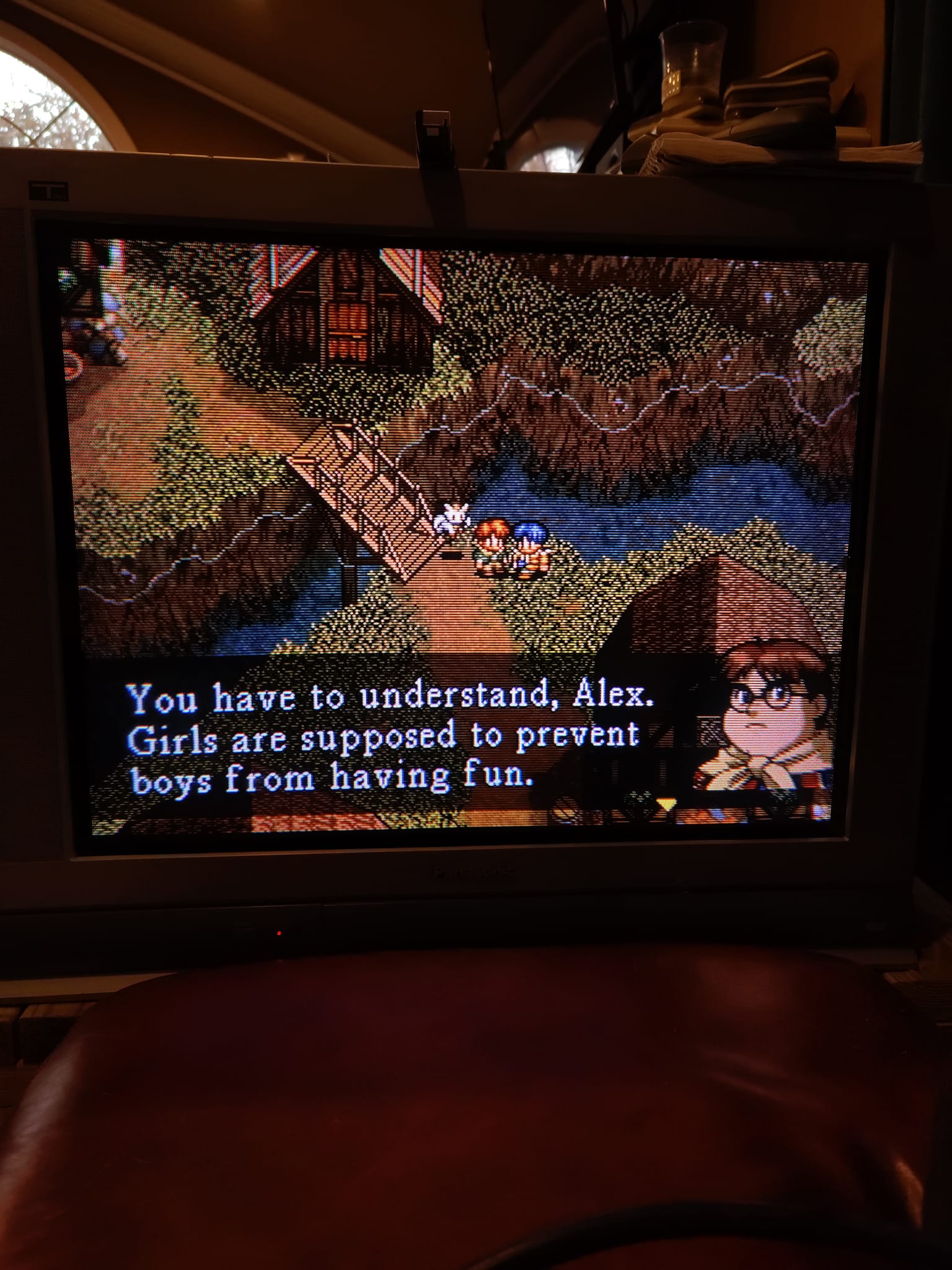

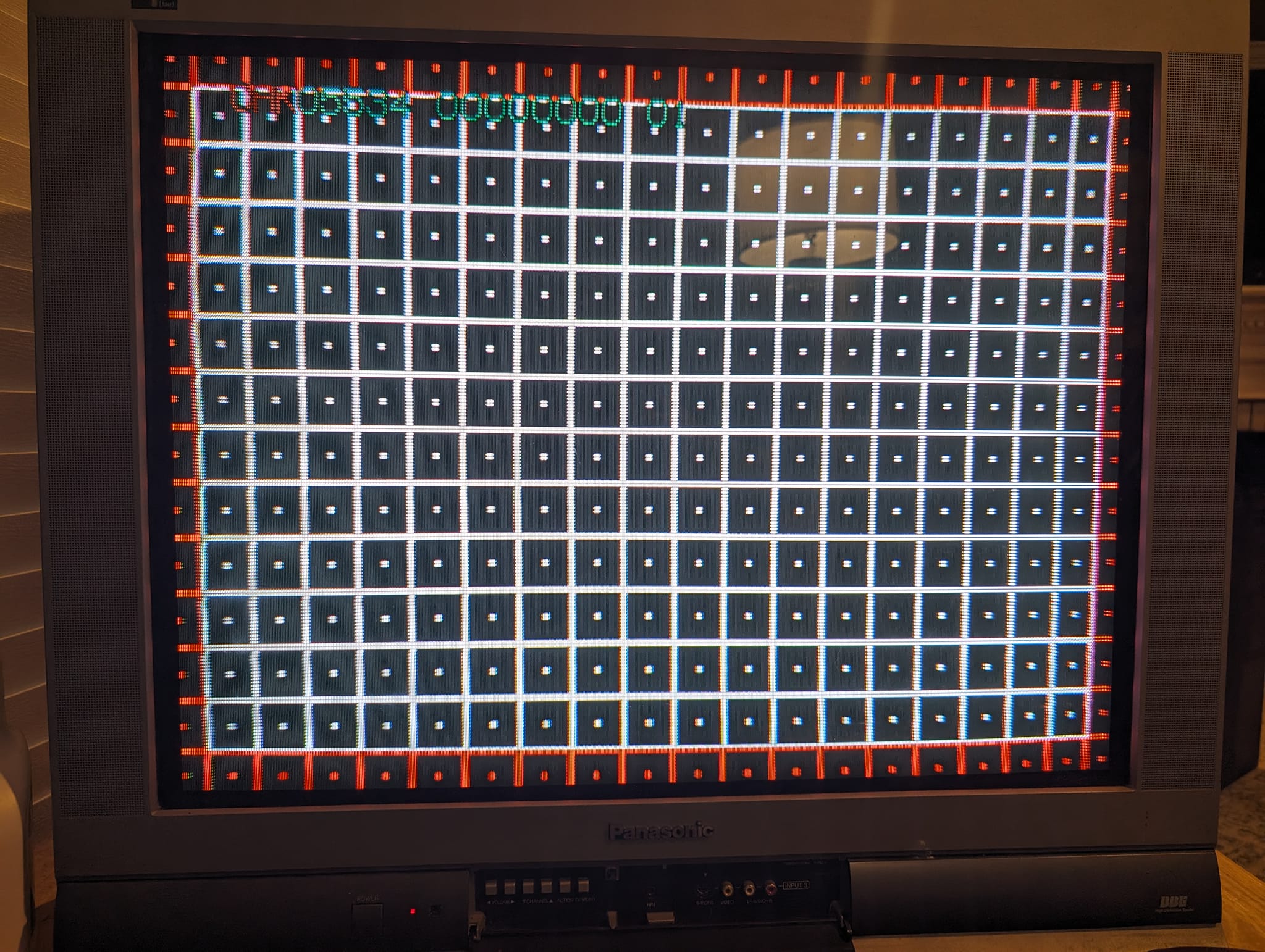

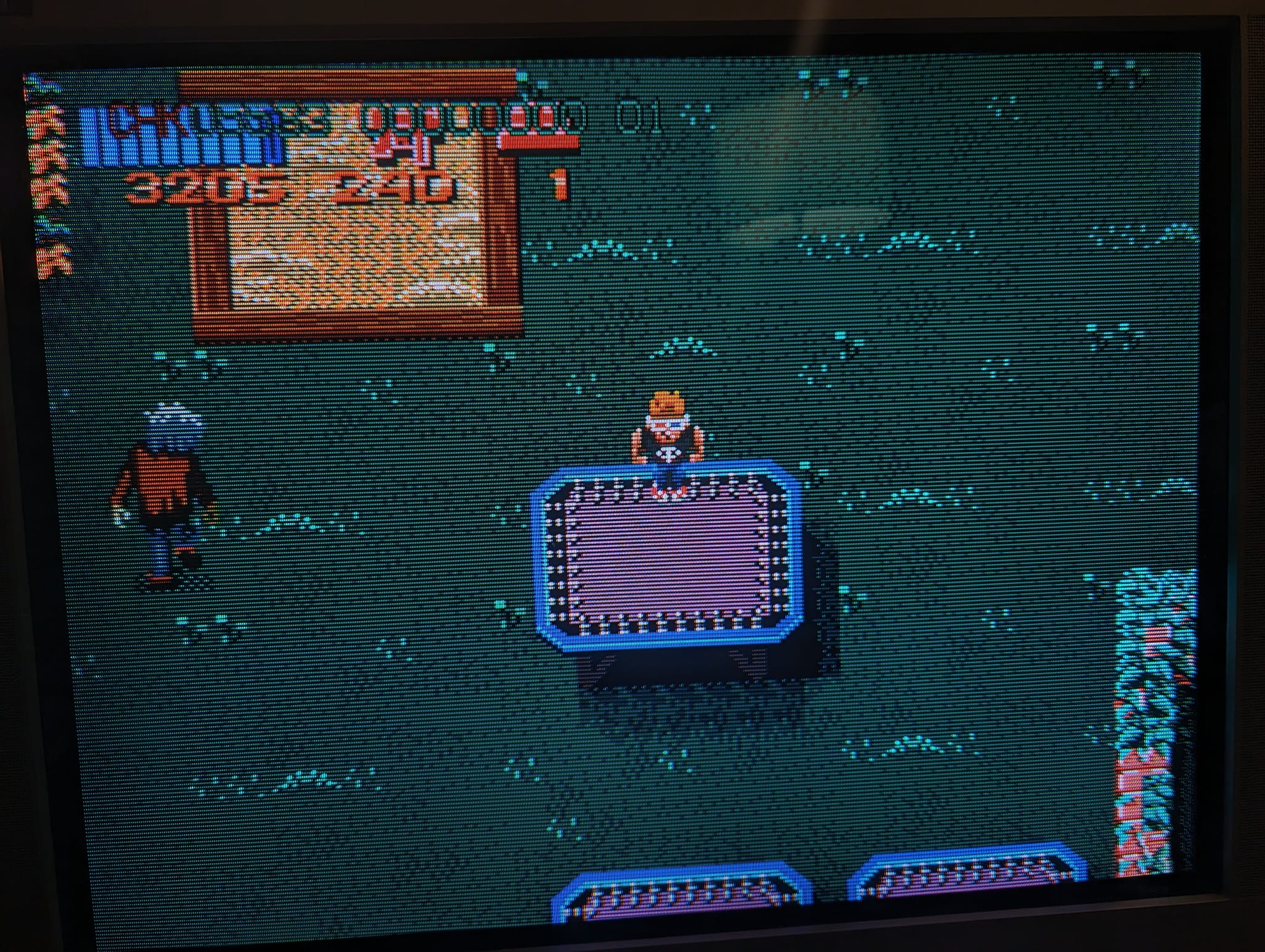

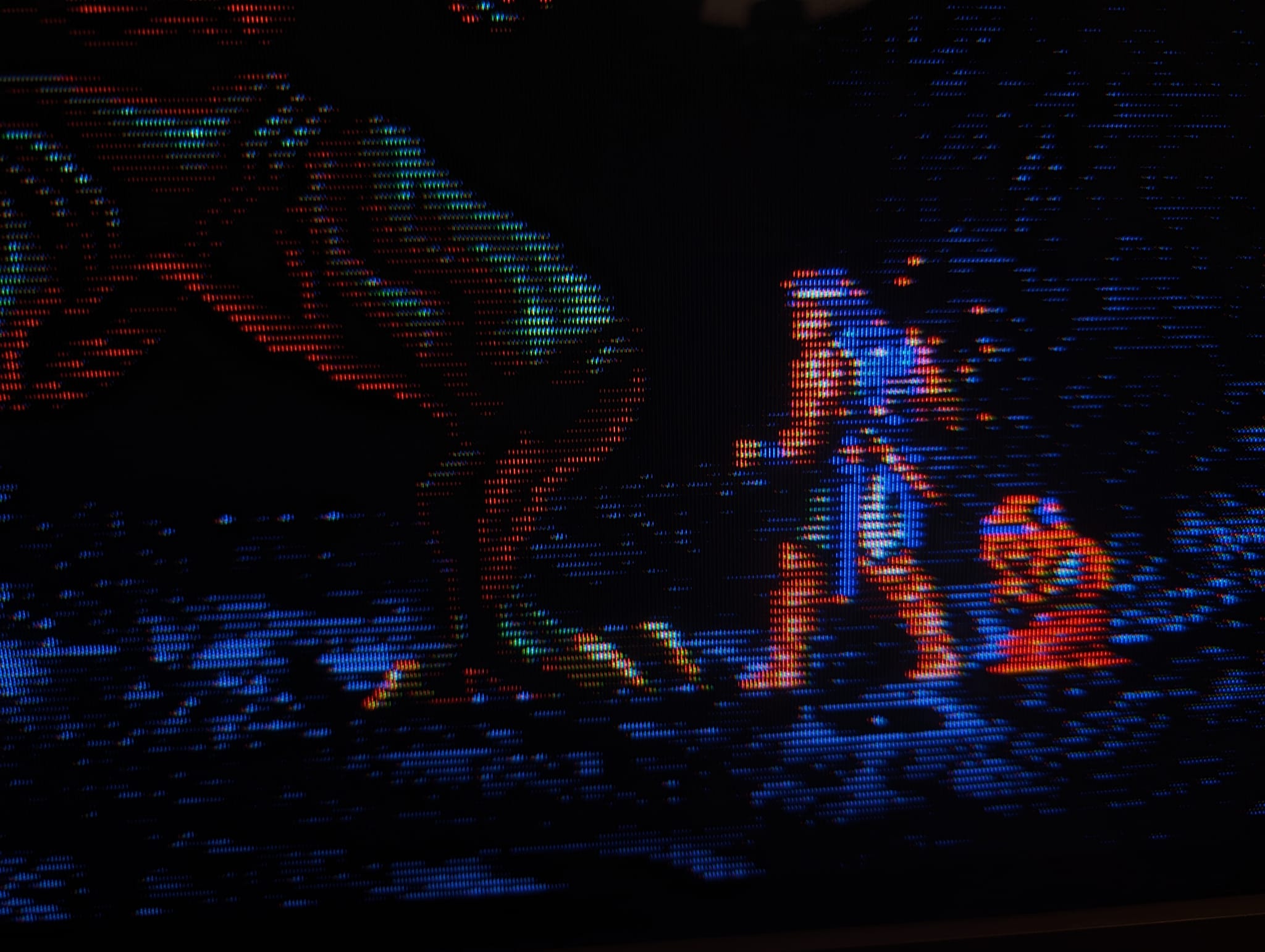

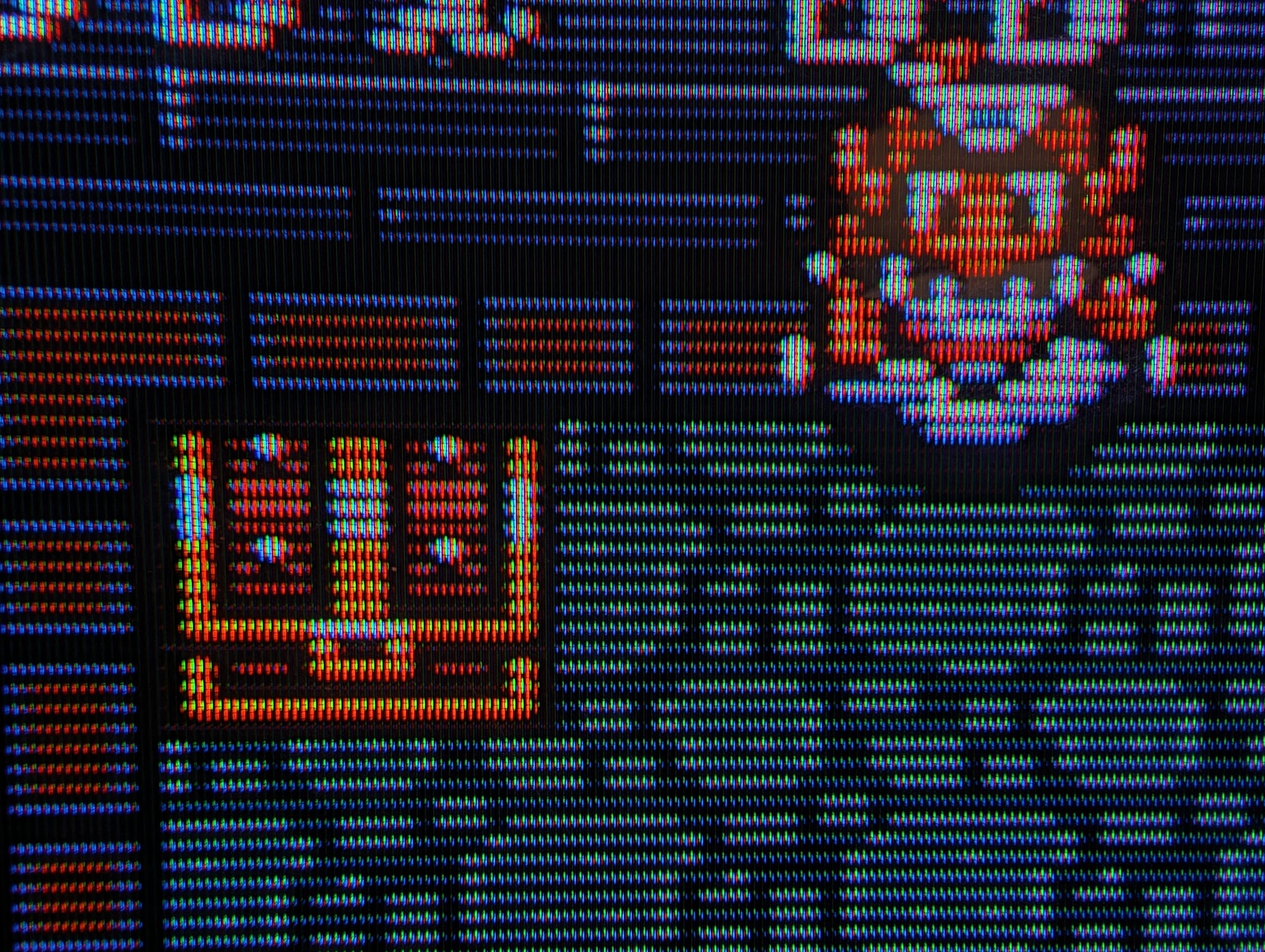

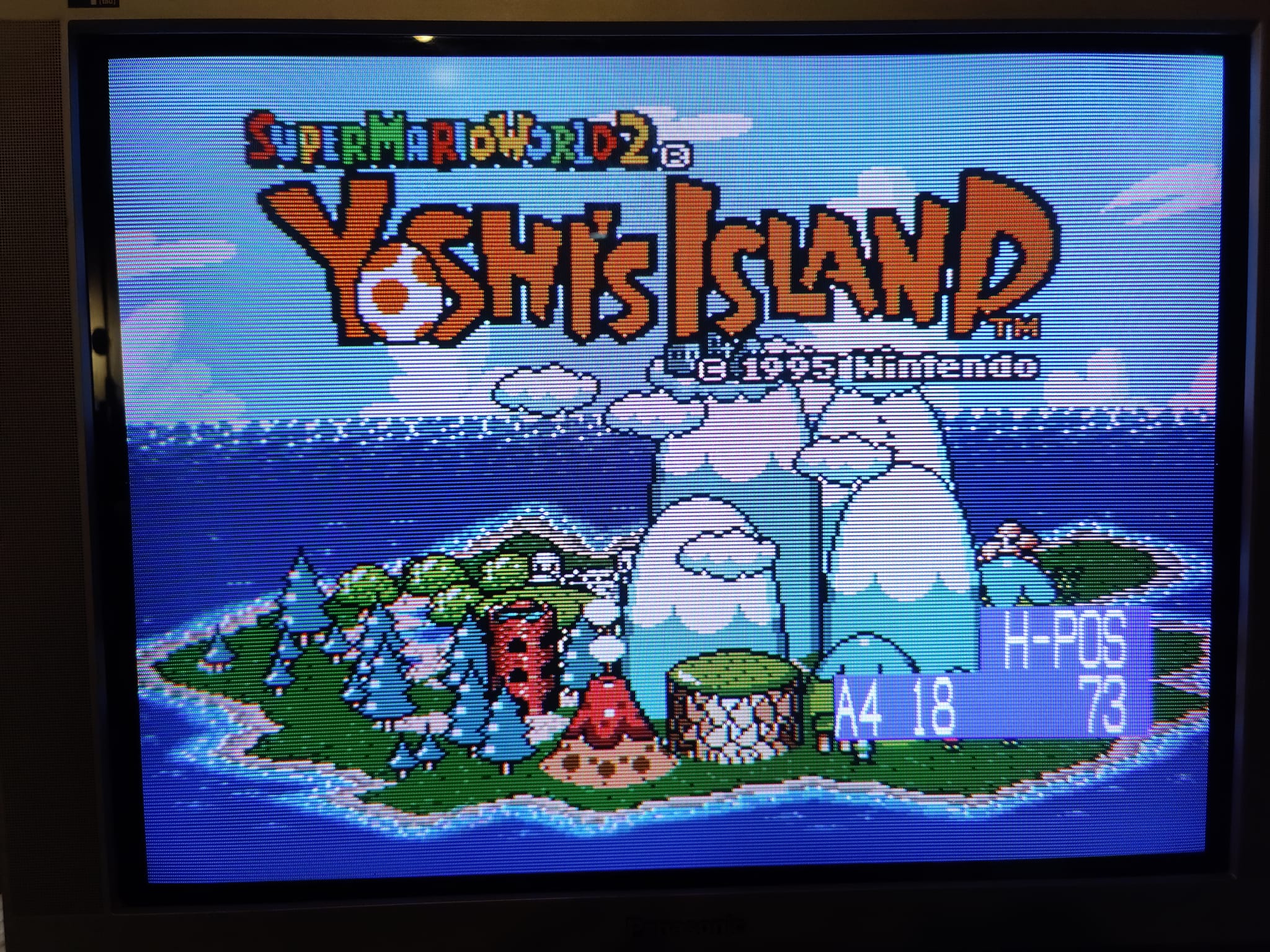

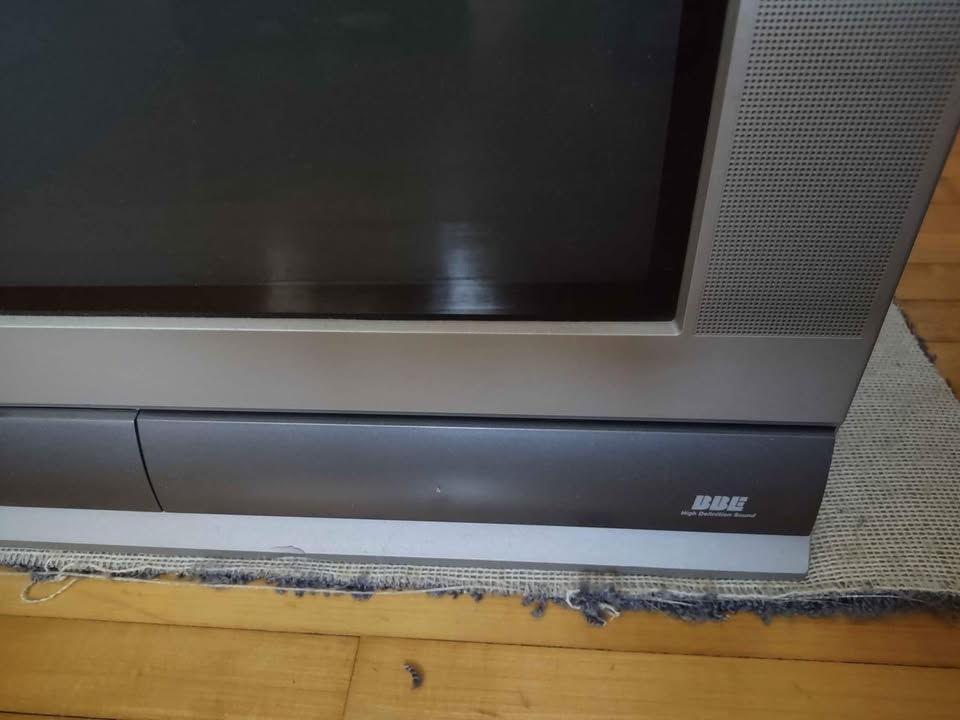

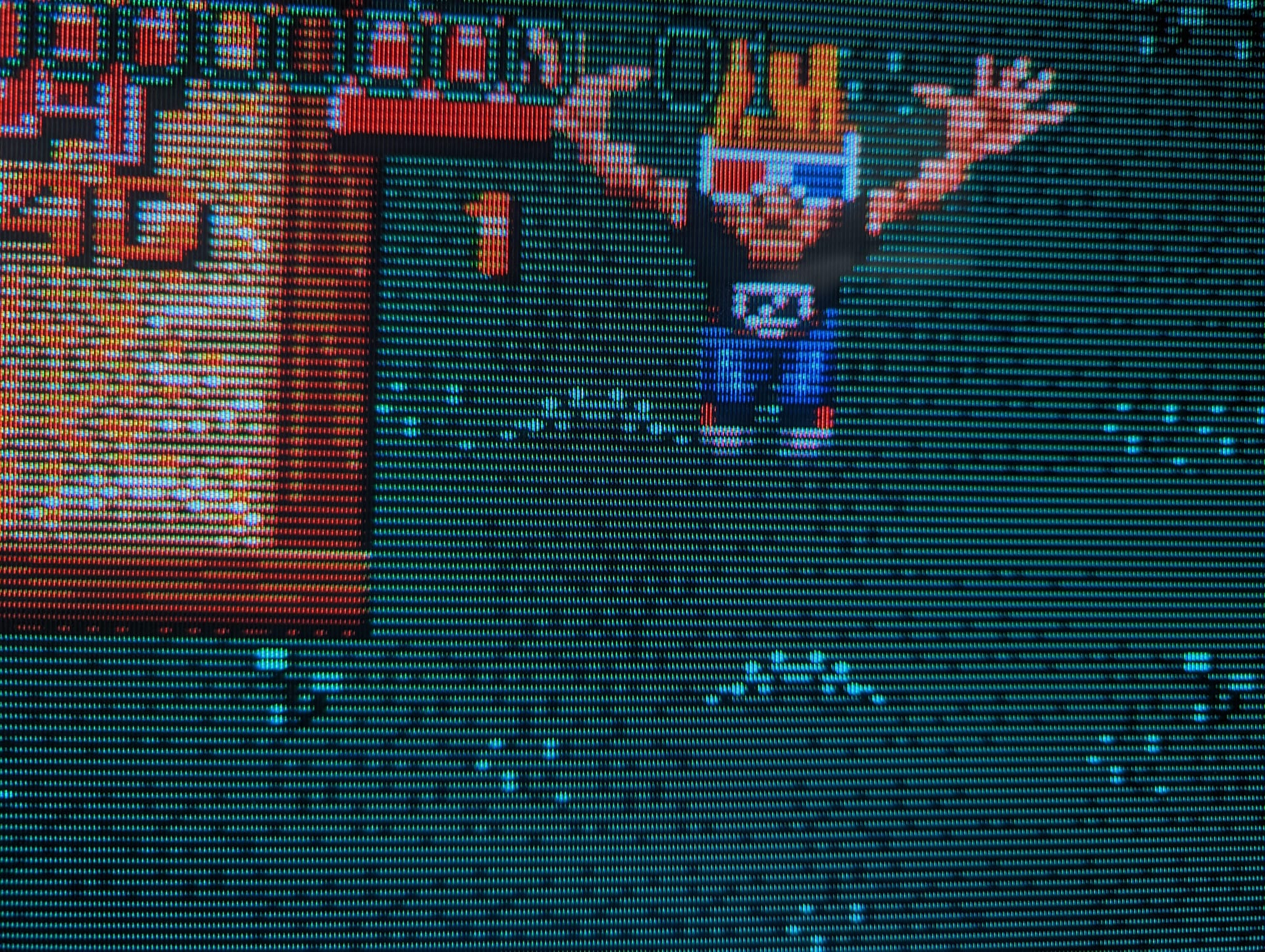

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-32SC13 |

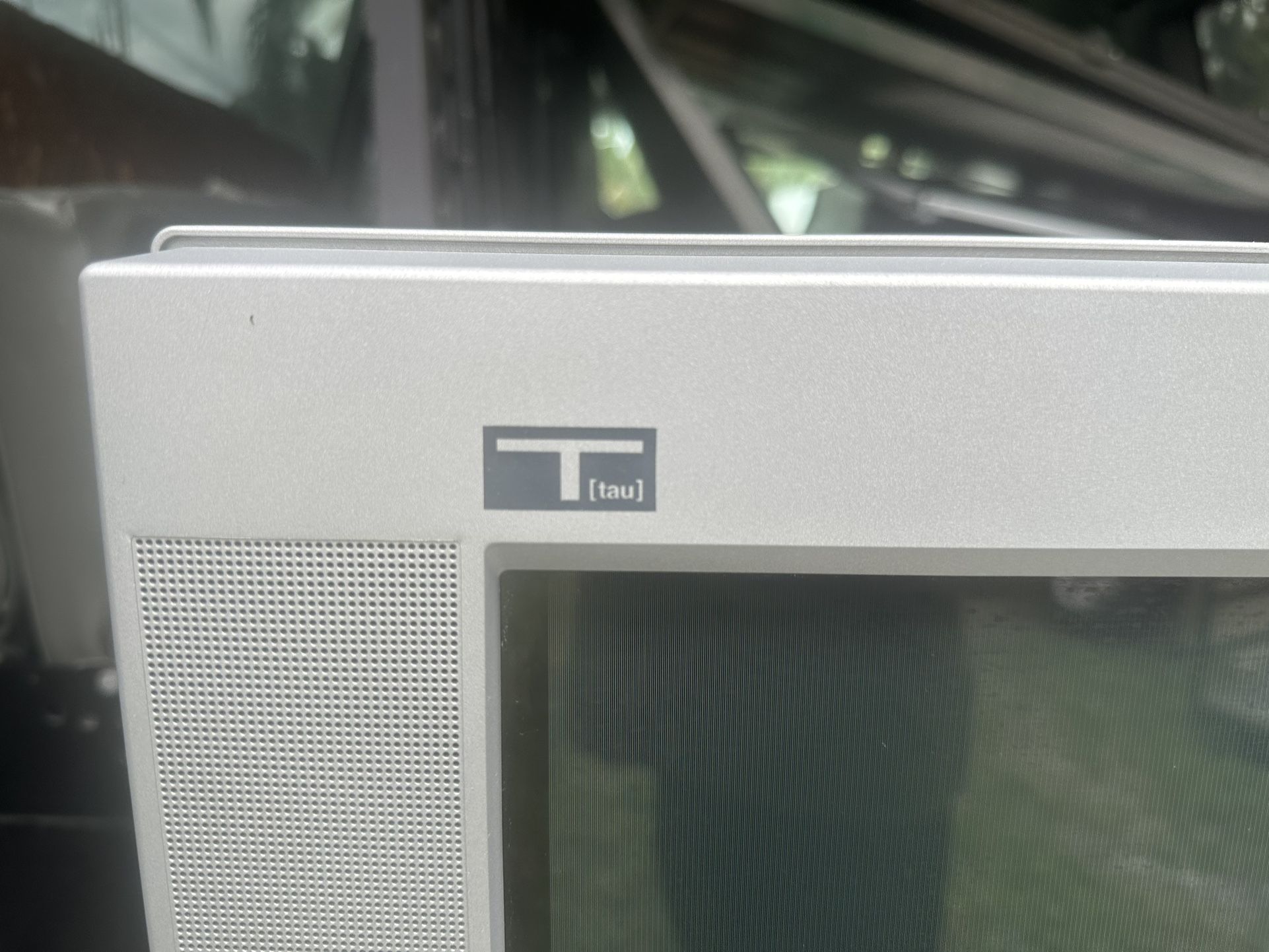

| Series: | Tau |
| Viewable Size: | 32" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Panasonic, MN102H81GTG3 |
| Comb Filtering: | 3-Line Digital |
| Flyback: | TXFFT05GSER |
| Focus Type: | Single |
| Tube: | Panasonic , M80LSW095X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY2AA025 |
| Speakers: | Stereo, 5W x 2 |
| Remote: | EUR7613Z60 |
| Chassis: | BP411 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2003 |
| MSRP: | 1299 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
