Summary

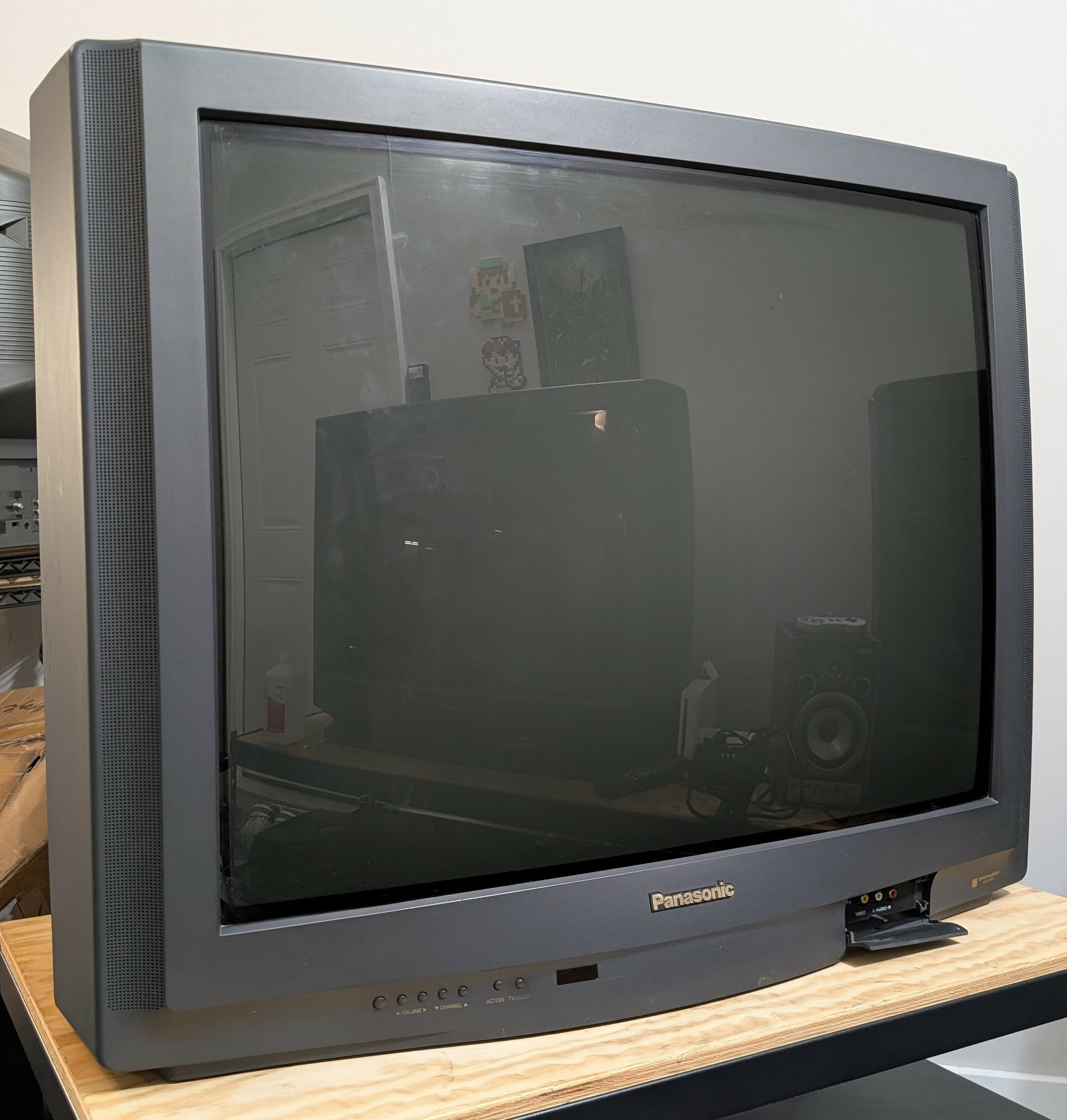

32" curved-screen CRT by Panasonic, one of their very first SD models with component inputs. Manufactured in Mexico in 2000.
(Special thanks to Michael Lopez for the pics!)
Manuals
Notes
This set has velocity modulation you cannot turn off in the standard menu. The only way to disable it is to unplug the jumper connecting the yoke to the neckboard.
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-32SF37 |
| Series: | SF |
| Viewable Size: | 32" |

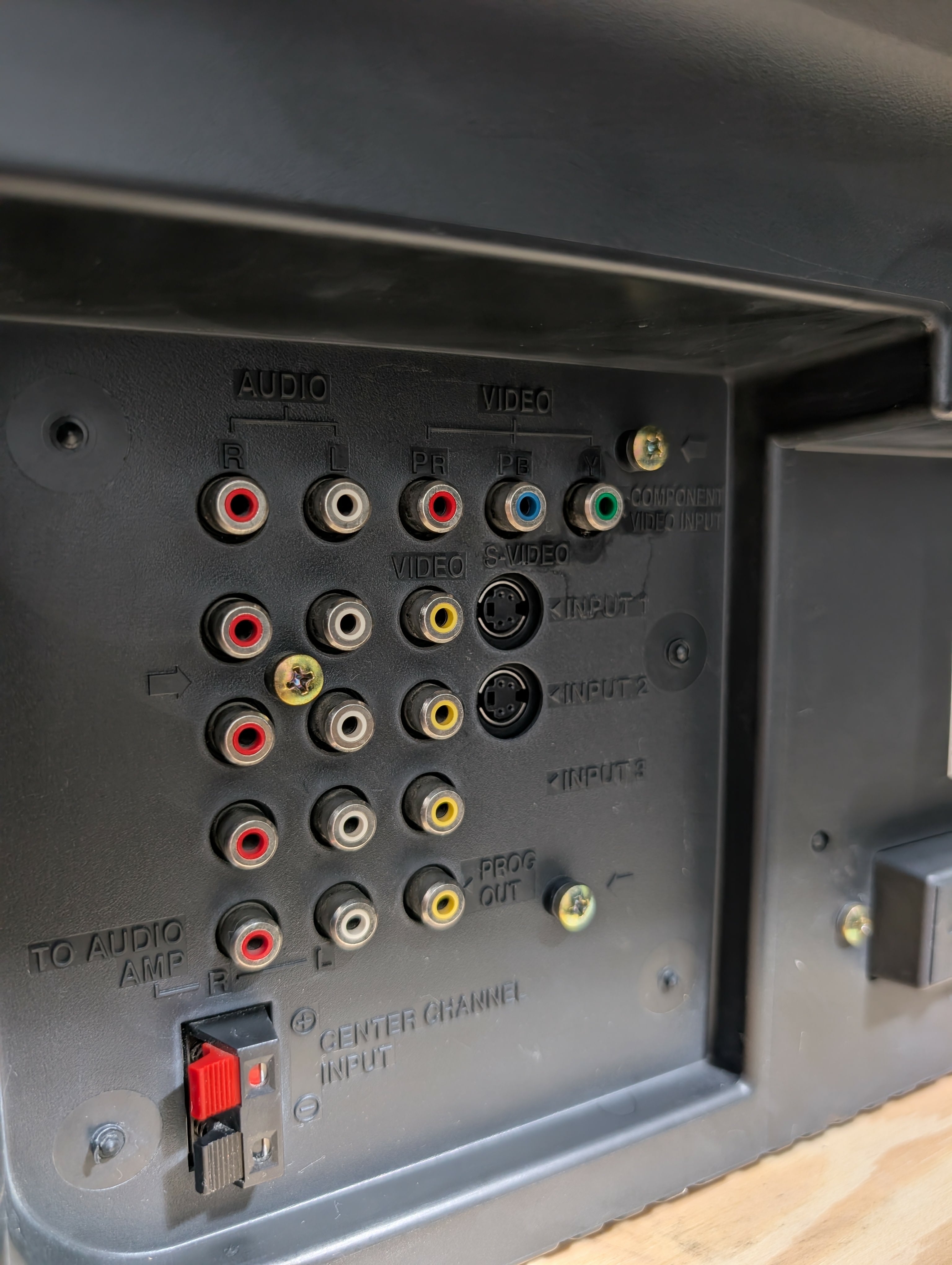

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Panasonic, AN5308NK |
| Comb Filtering: | 3D Digital |
| Flyback: | KFT6AB140F2 |
| Focus Type: | Single |
| Tube: | Panasonic , M80LNK161X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | KDY4VH740F, ETC35C65NA |
| Speakers: | Stereo |
| Remote: | EUR511500 |
| Chassis: | AP350 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 999 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Measurements |
