Summary

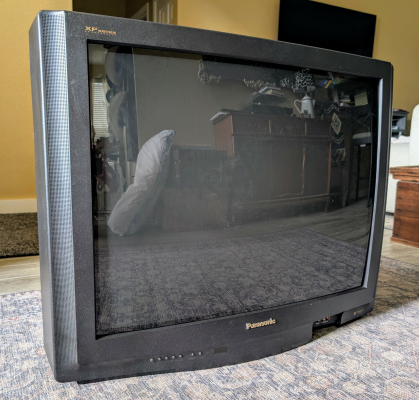

High-end 32" EDTV by Panasonic, launched in 1999. Has RF, composite, s-video, and component video inputs. Made for the then-new DVD and digital broadcasting standards, this set linedoubles 240p/480i and natively displays 480p content. HD signals are not supported, and it was originally intended to have the higher resolutions from digital broadcasting be downscaled via the official DTV receivers.

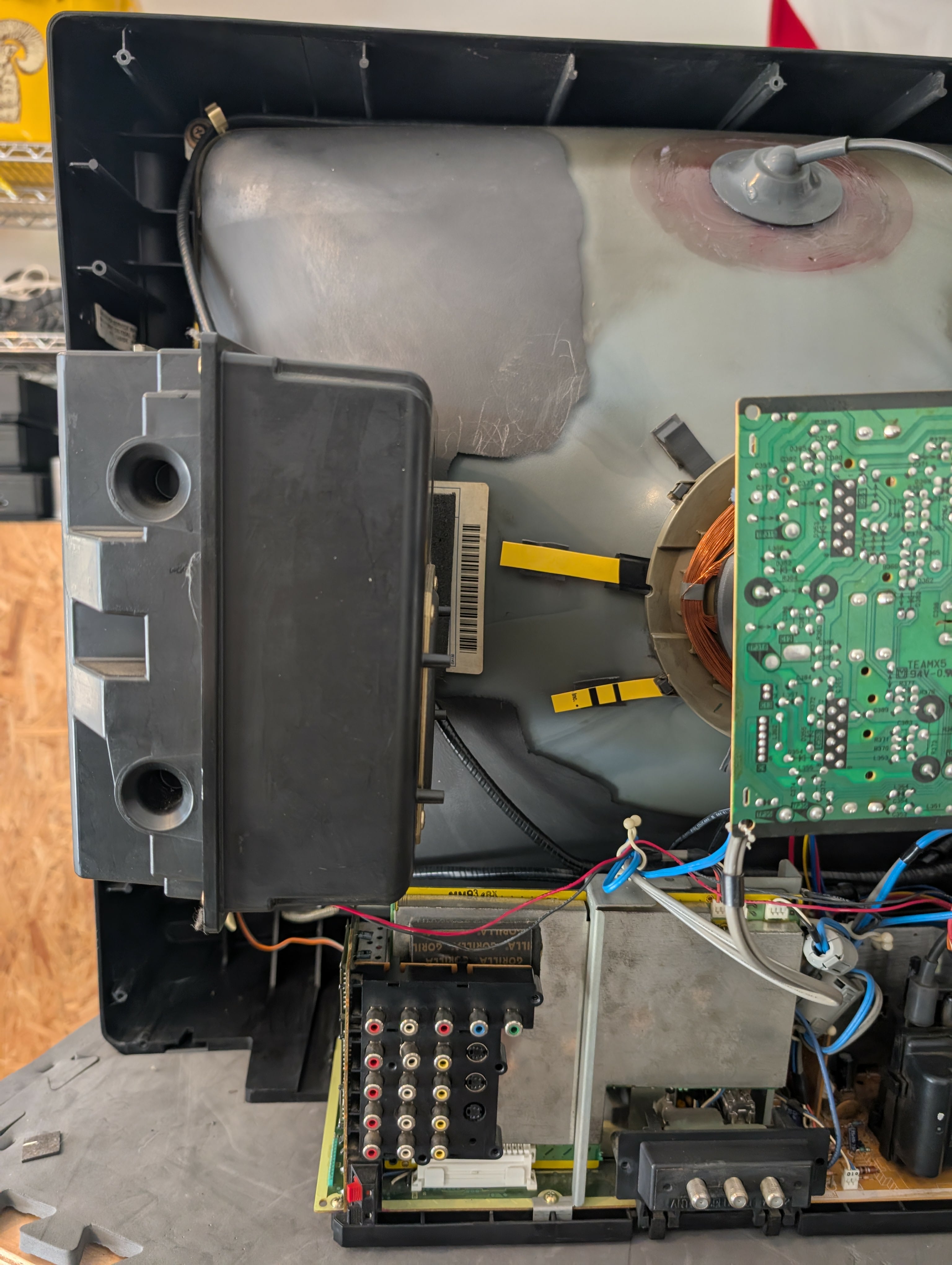

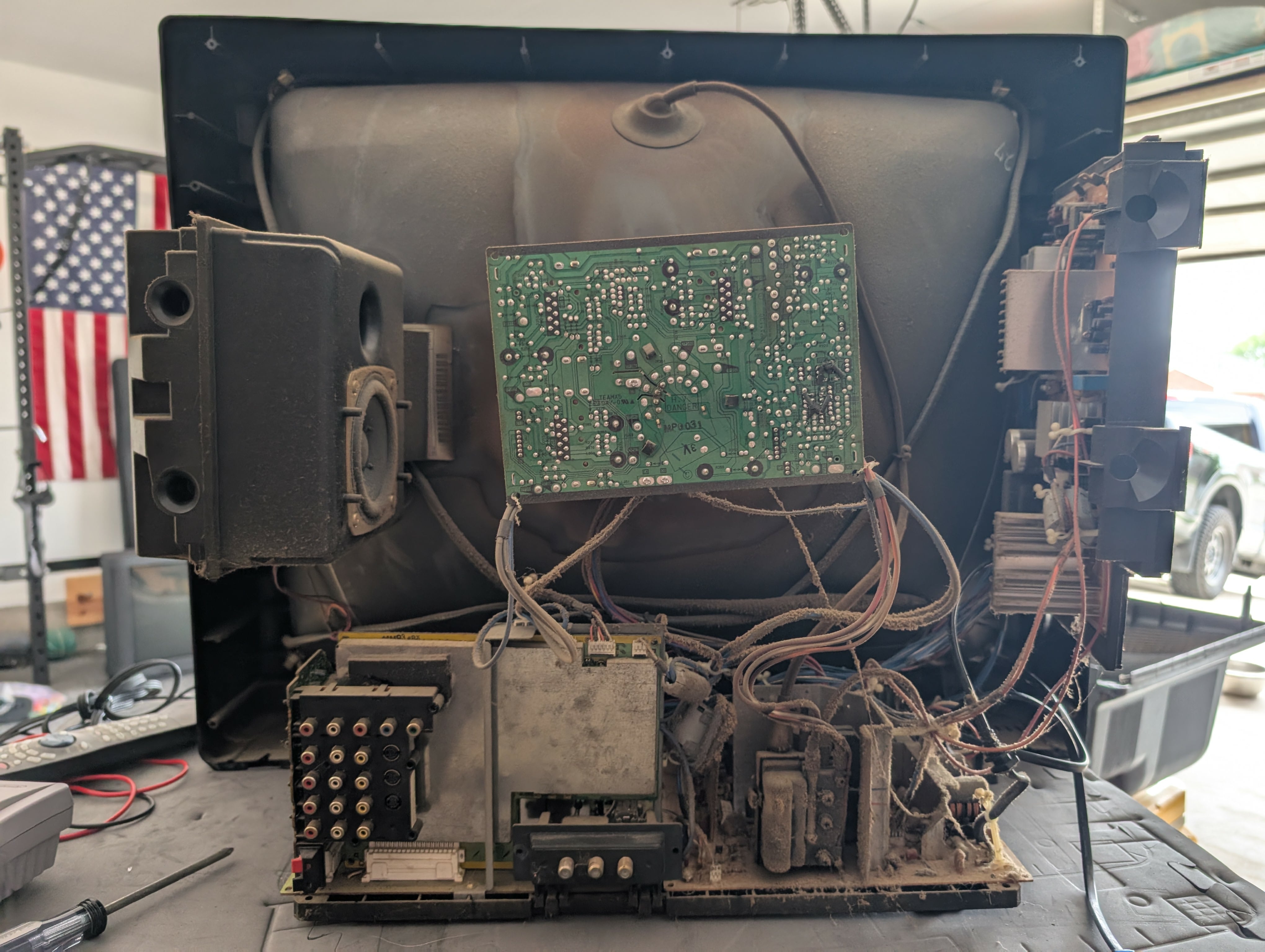

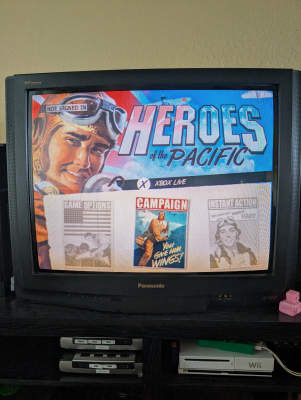

(Special thanks to Matthew Jensen for the pics!)
Manuals
Notes
This set is the successor to the previous year's CT-32XF55.
Originally paired with DTV receiver models TU-DST50 and TU-DST51.
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-32XF56 |

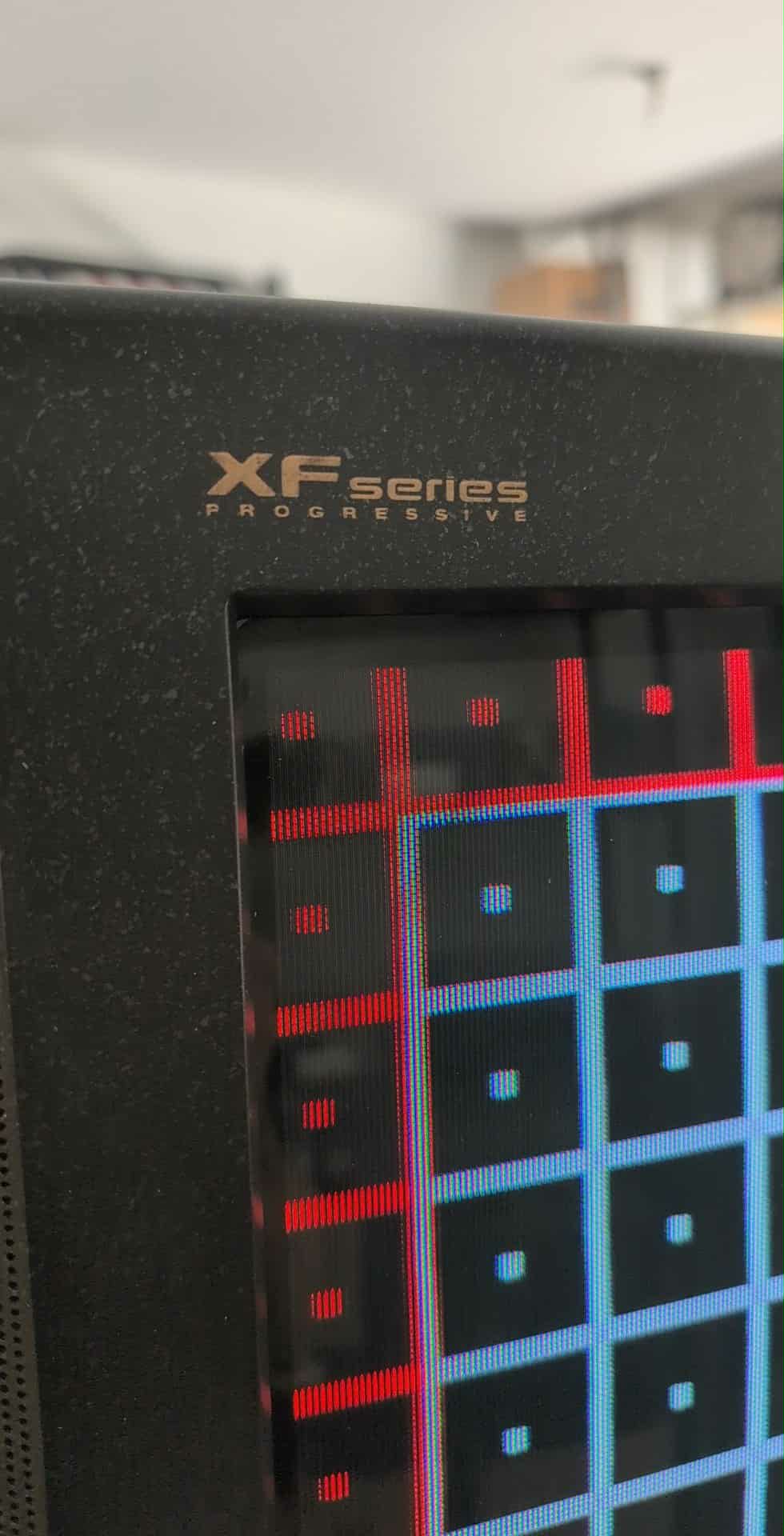

| Series: | XF Series Progressive |
| Viewable Size: | 32" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |

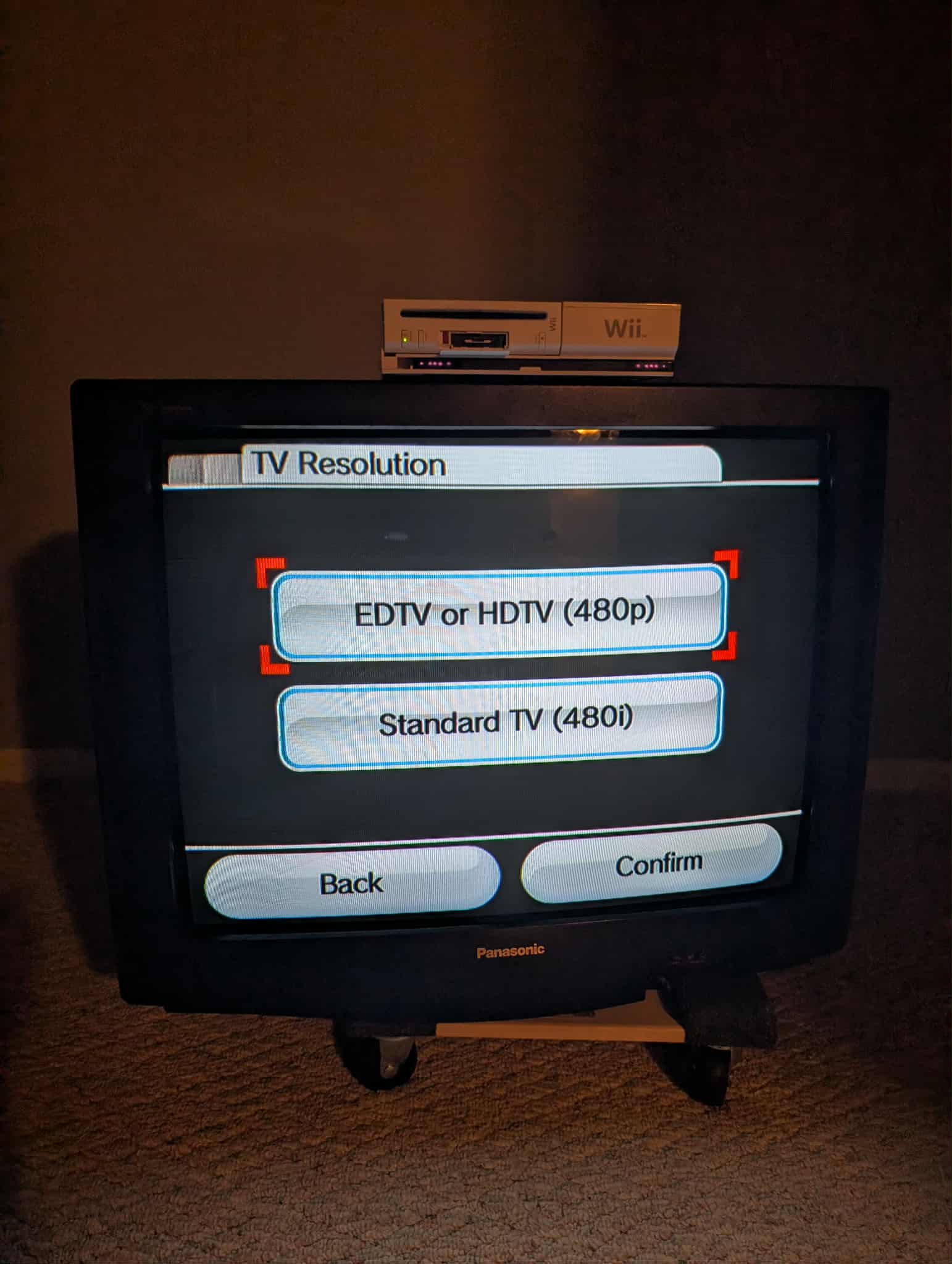

| Native Resolutions: | 480p |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz, 31 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Panasonic, MN102L35GTH1 |
| Comb Filtering: | 3D Digital |
| Flyback: | KFT5AA163F |
| Focus Type: | Dual |

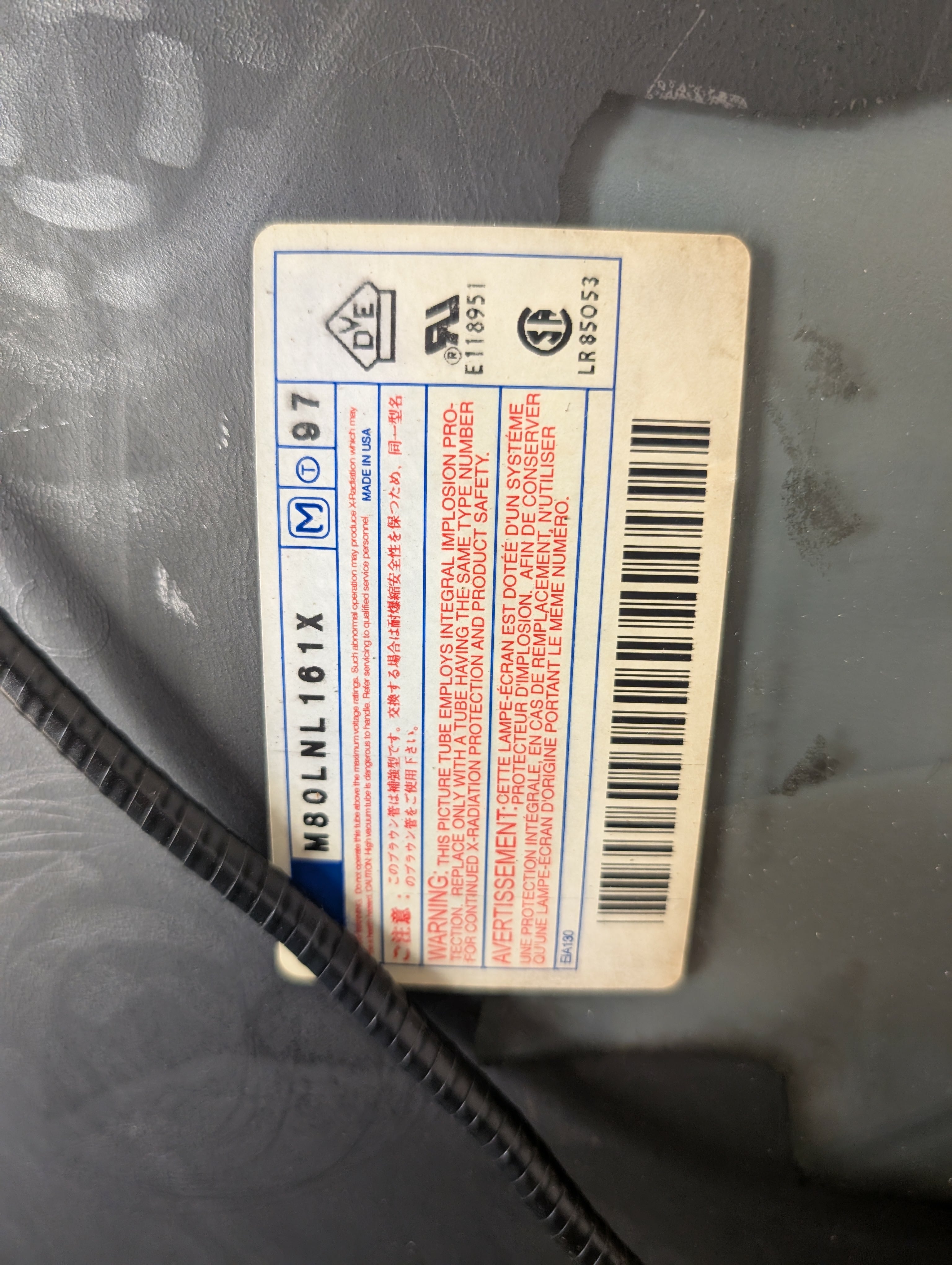

| Tube: | Panasonic , M80LNL161X , M80LNL161X97 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

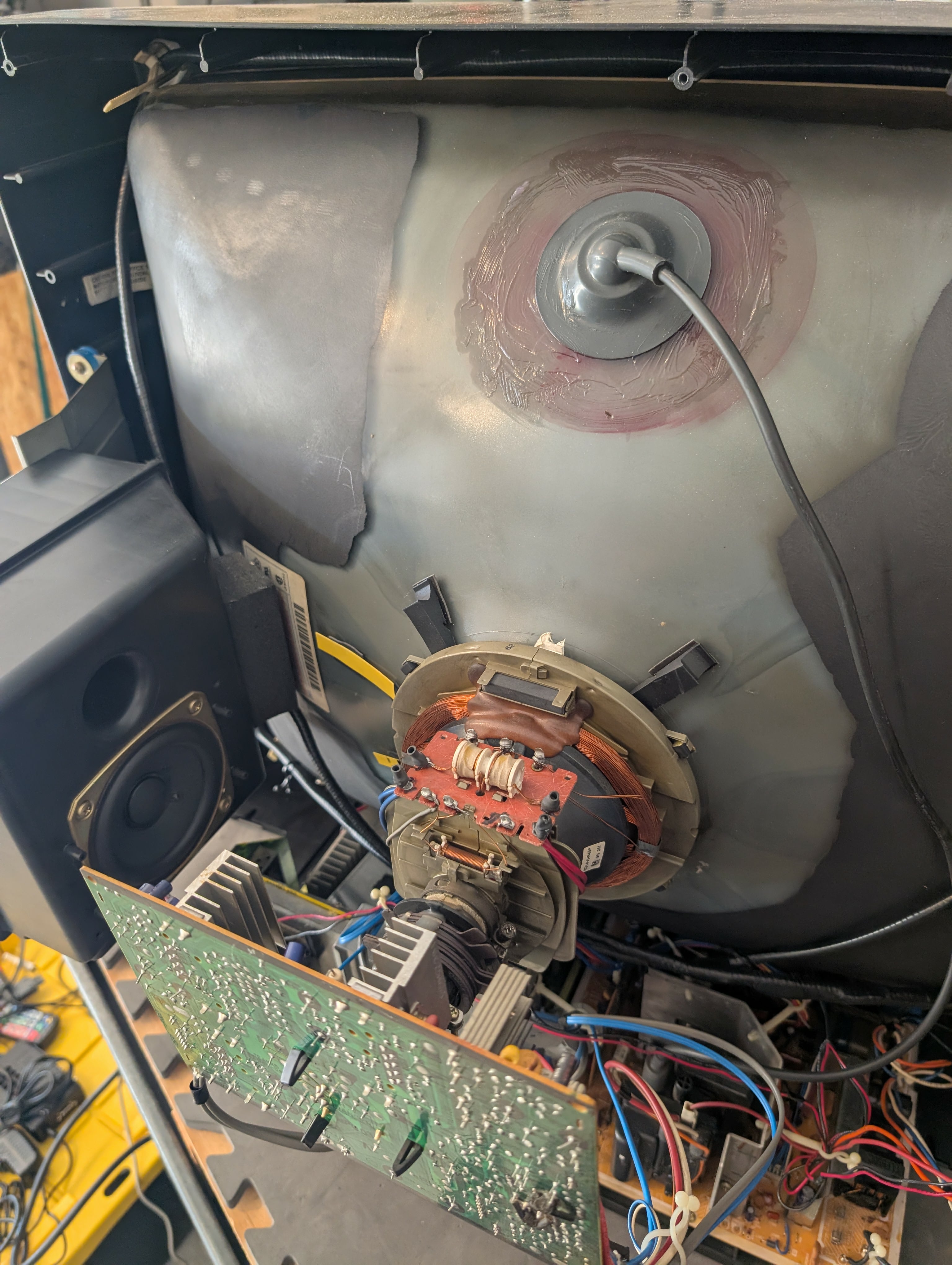

| Yoke: | ETC35C65NJ, KDY4VH845F |

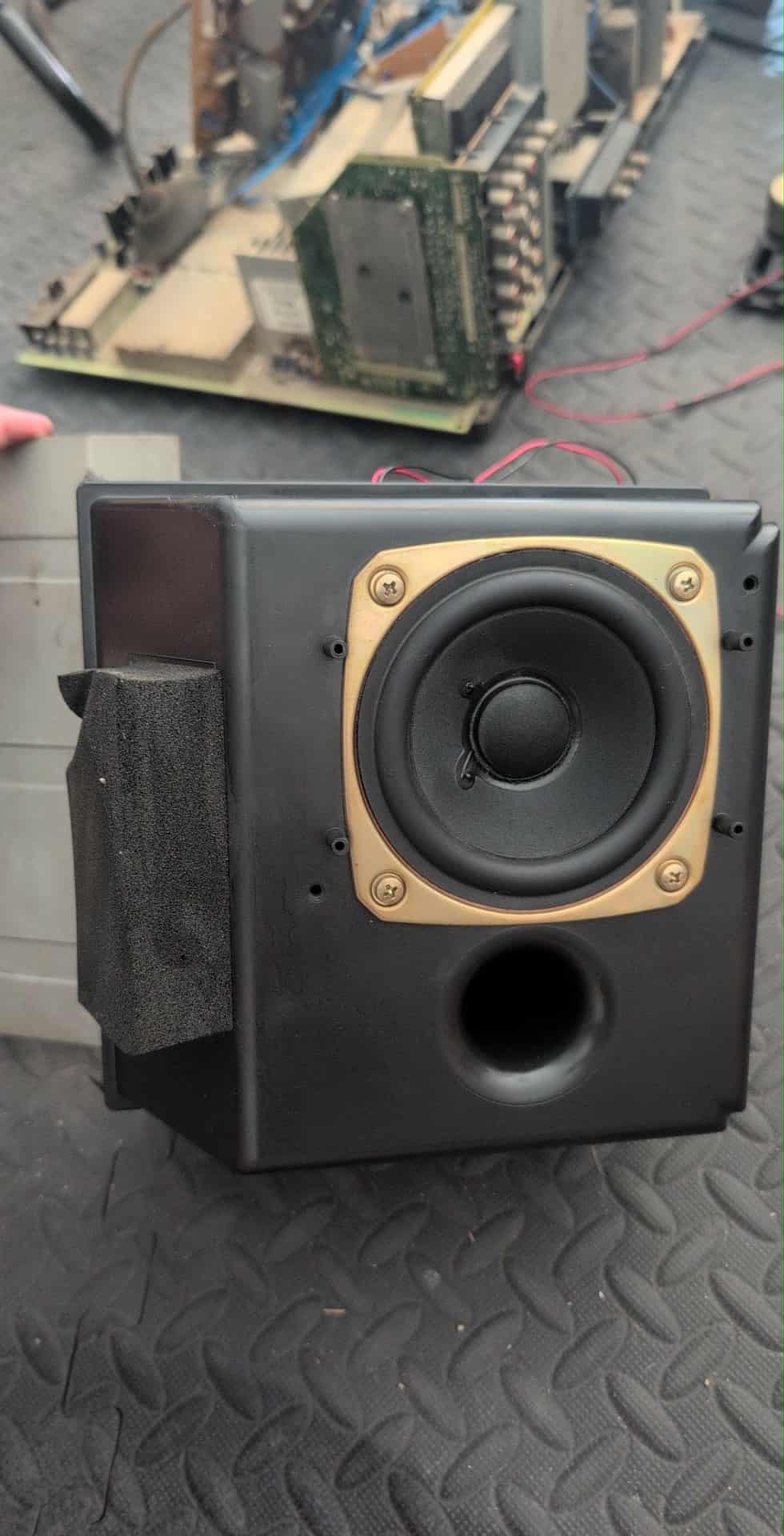

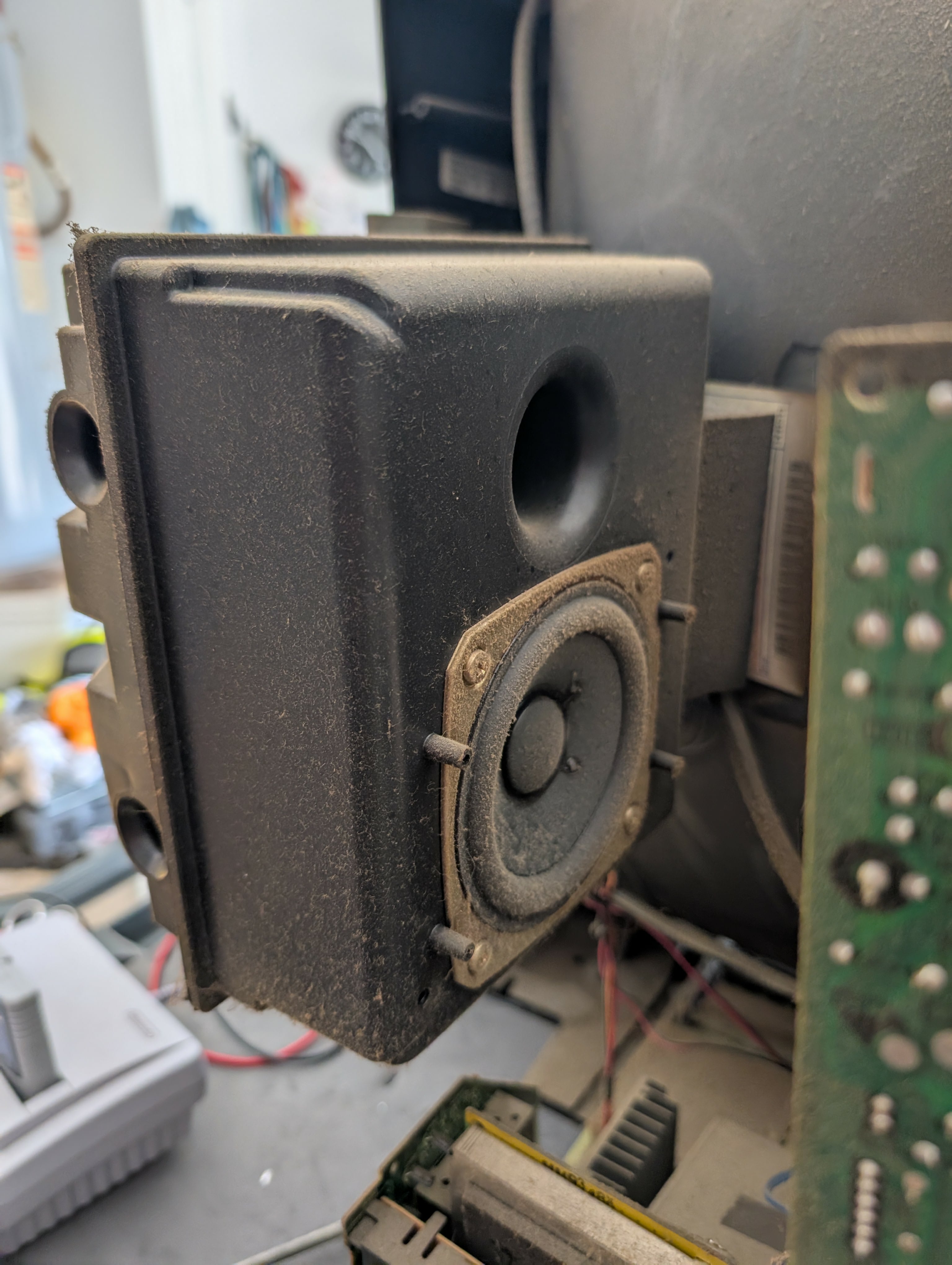

| Speakers: | Stereo |

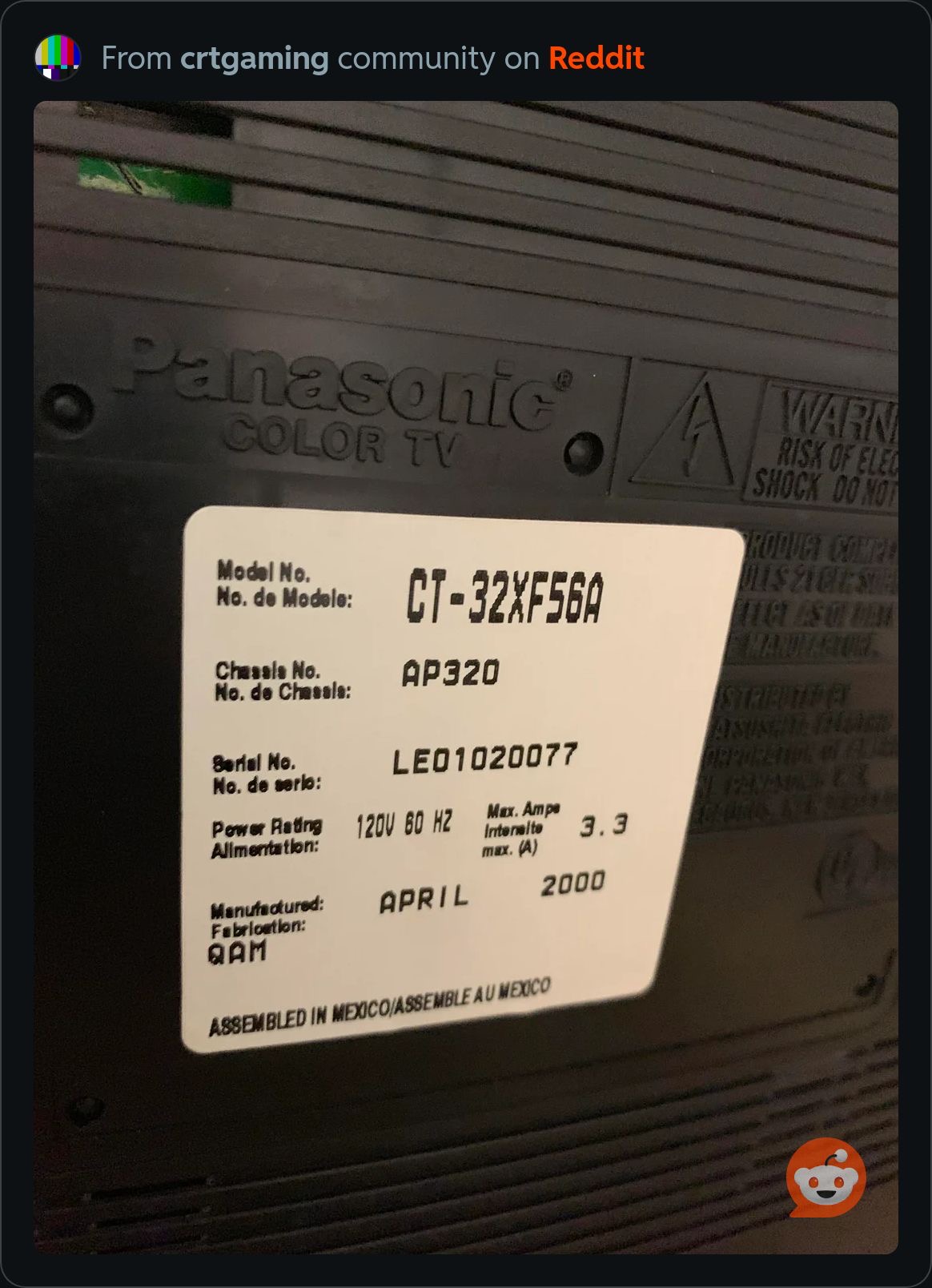

| Chassis: | AP320 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 1799 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
