Summary

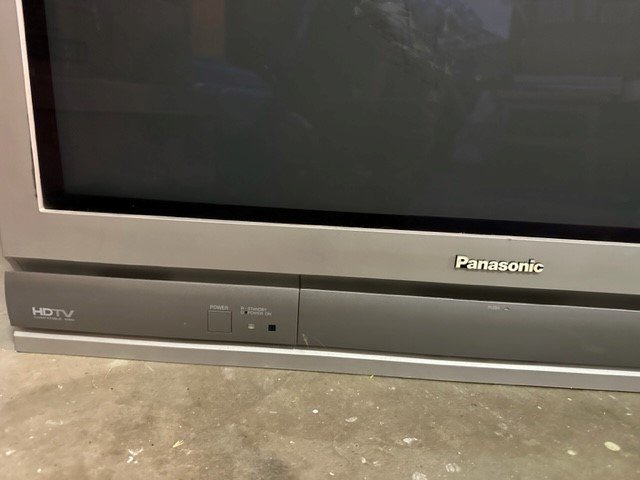

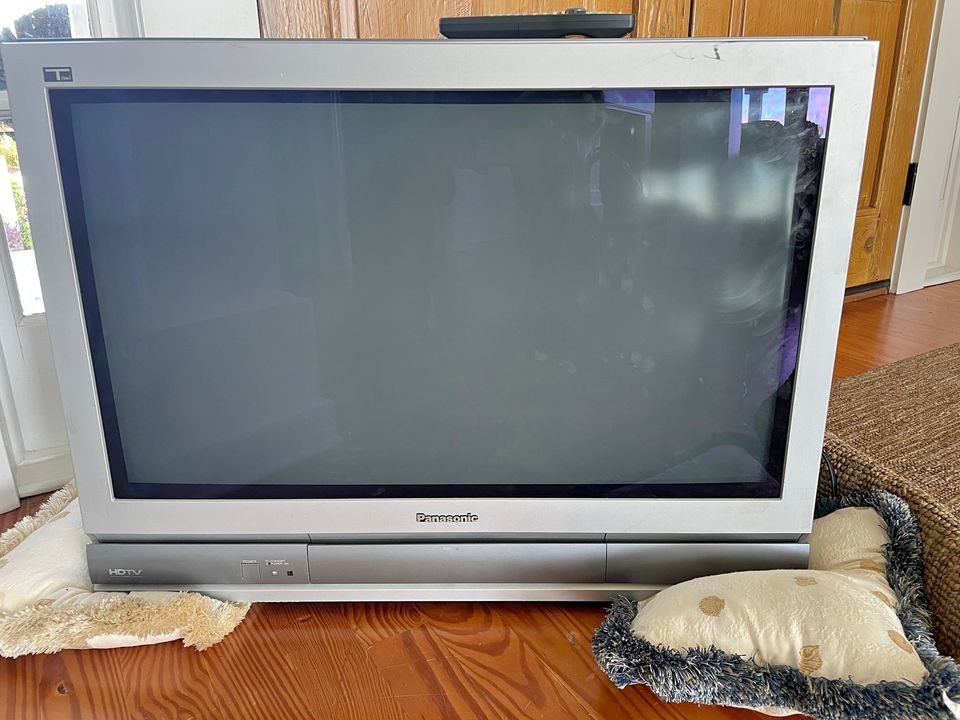

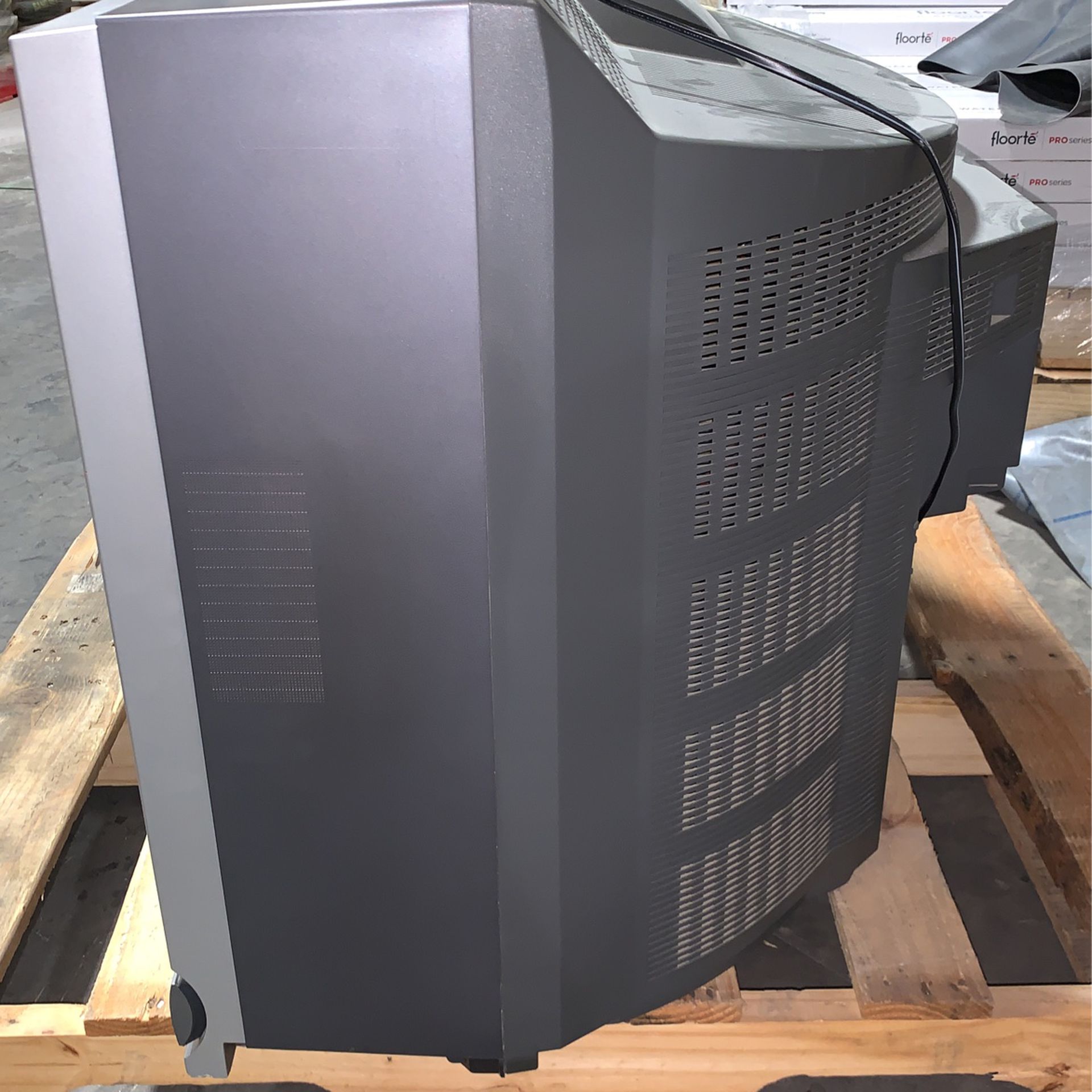

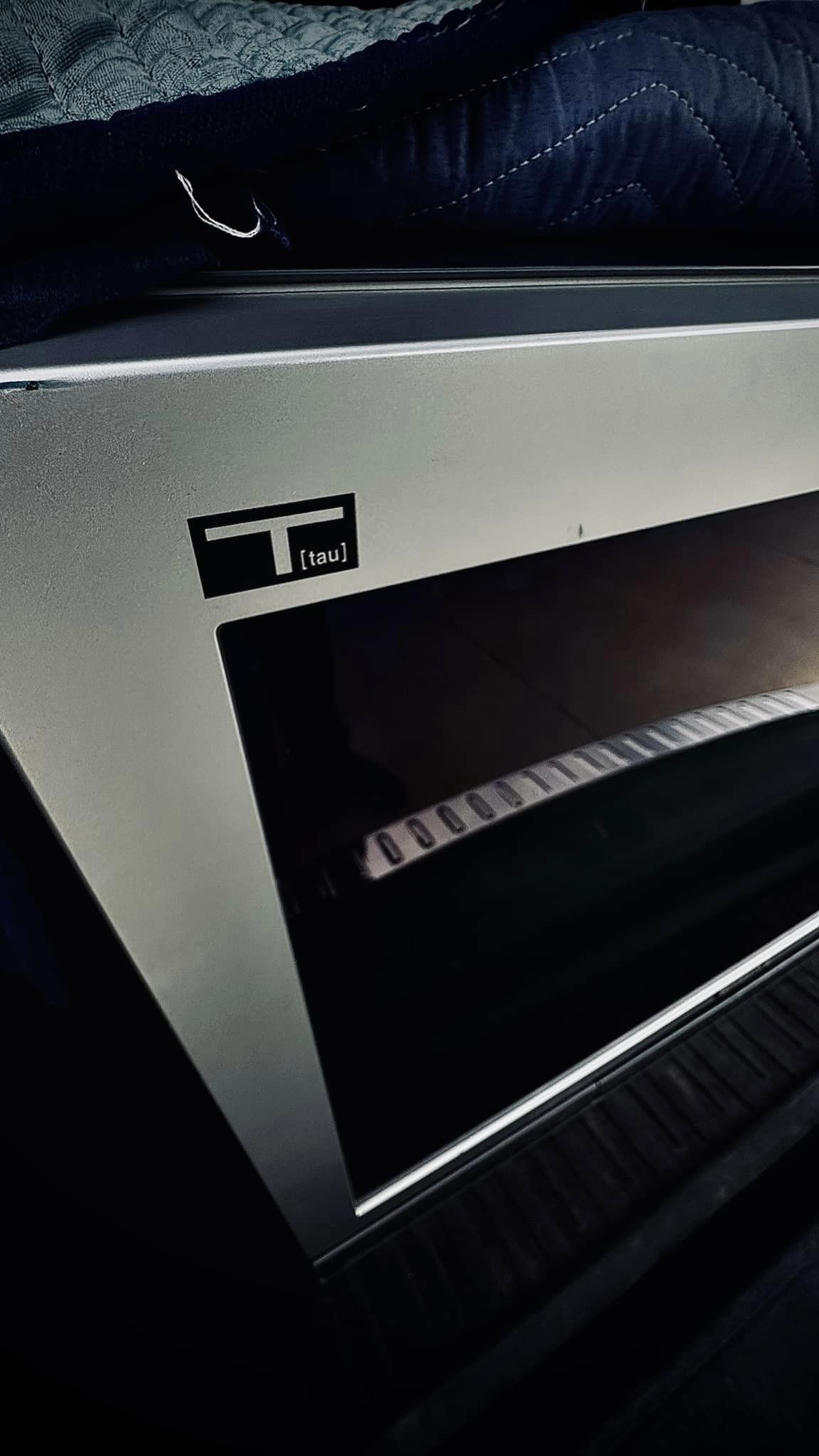

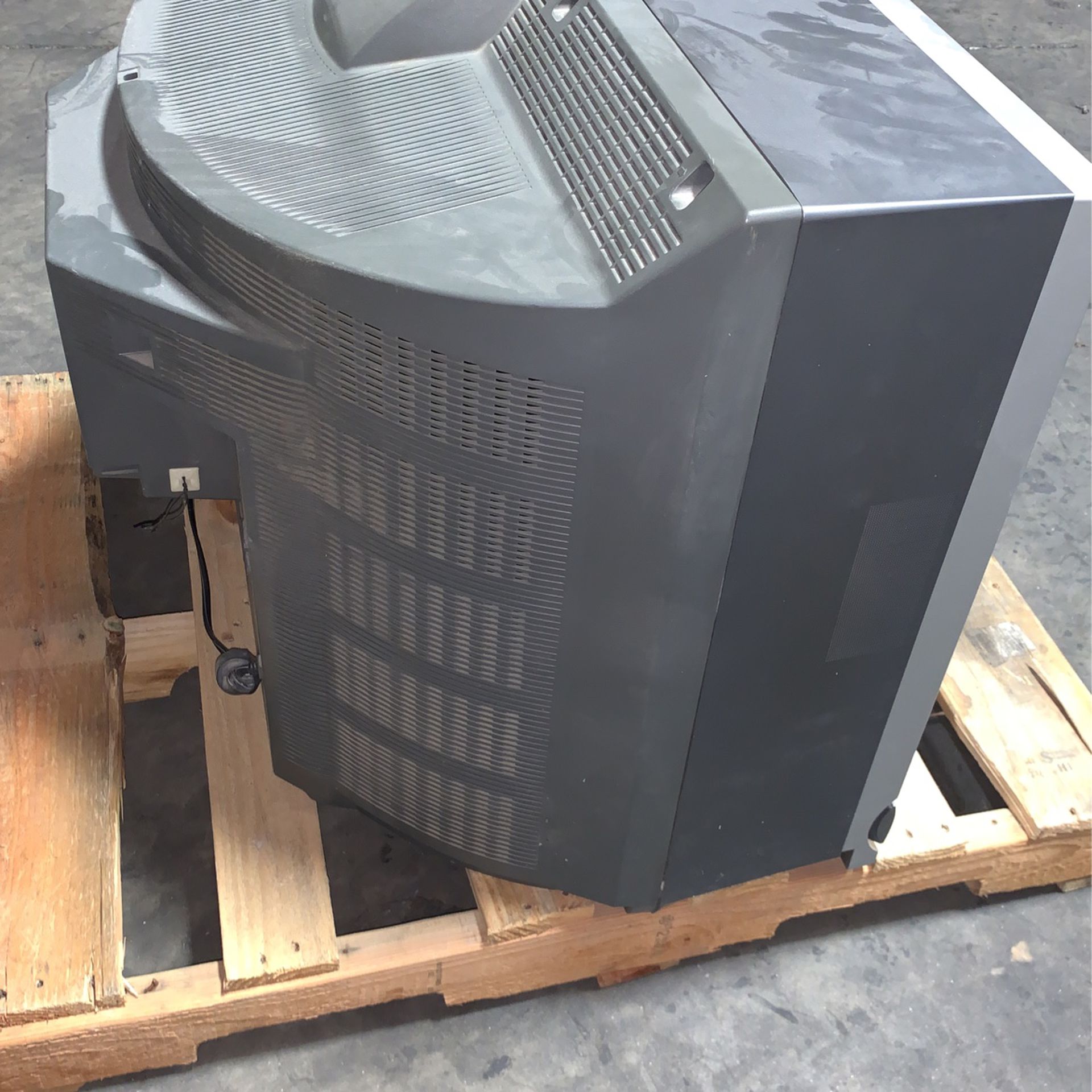

34" Panasonic Tau HD CRT from 2000. Made by Matsushita in Japan.
Manuals
Notes
All Panasonic HD CRTs are lag-free 480p and 1080i. Component looks very clean.

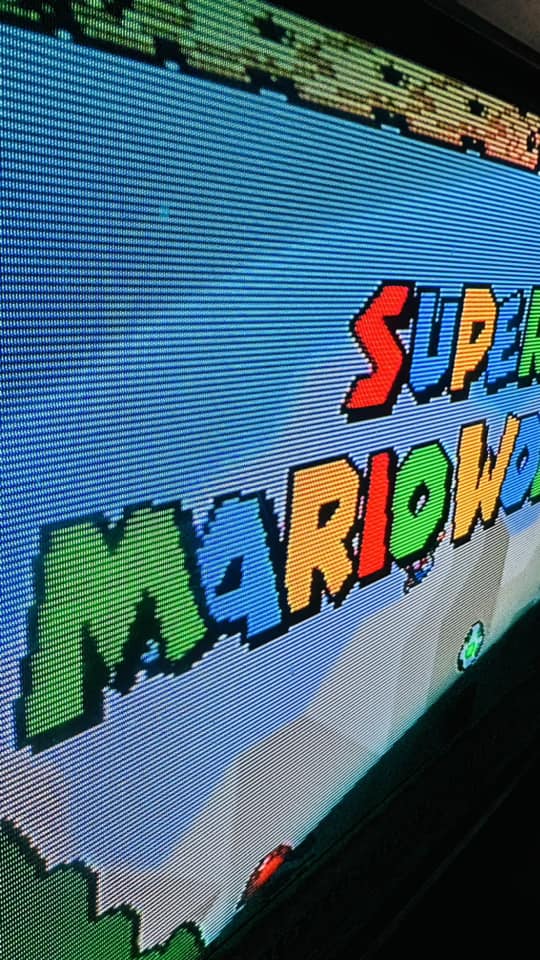

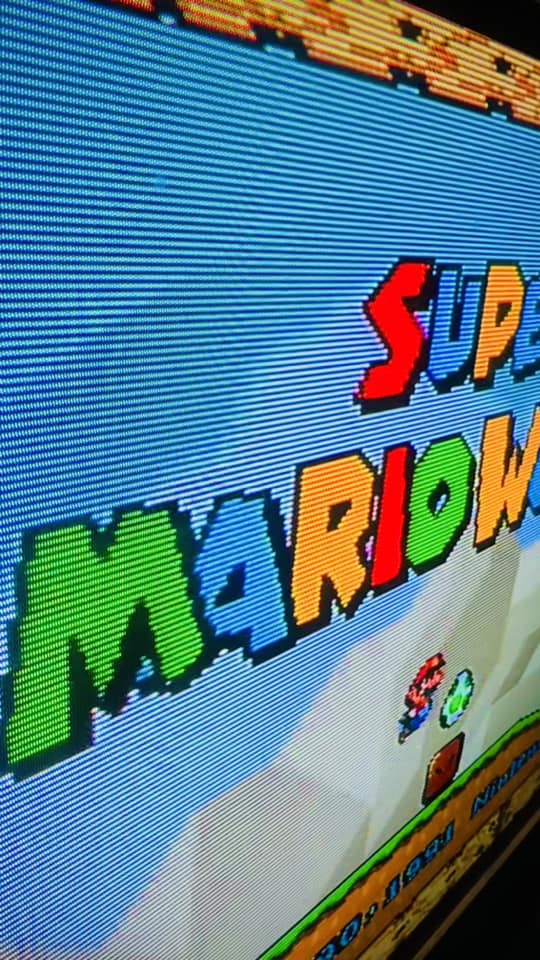

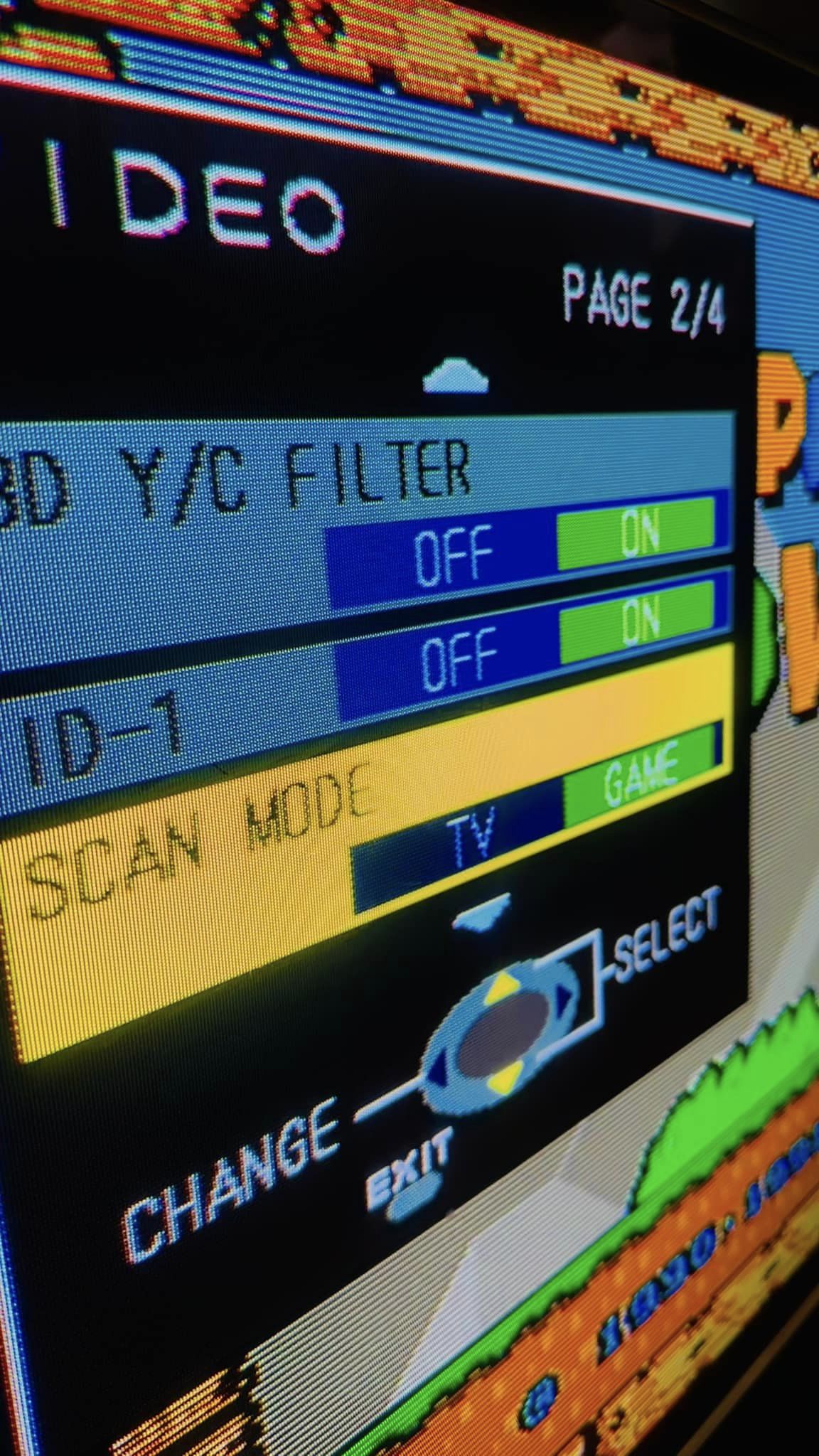

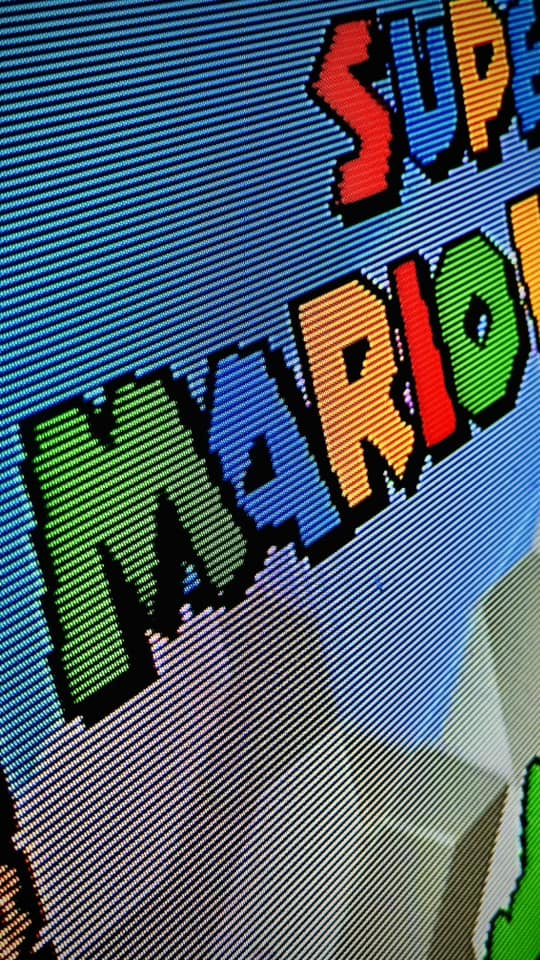

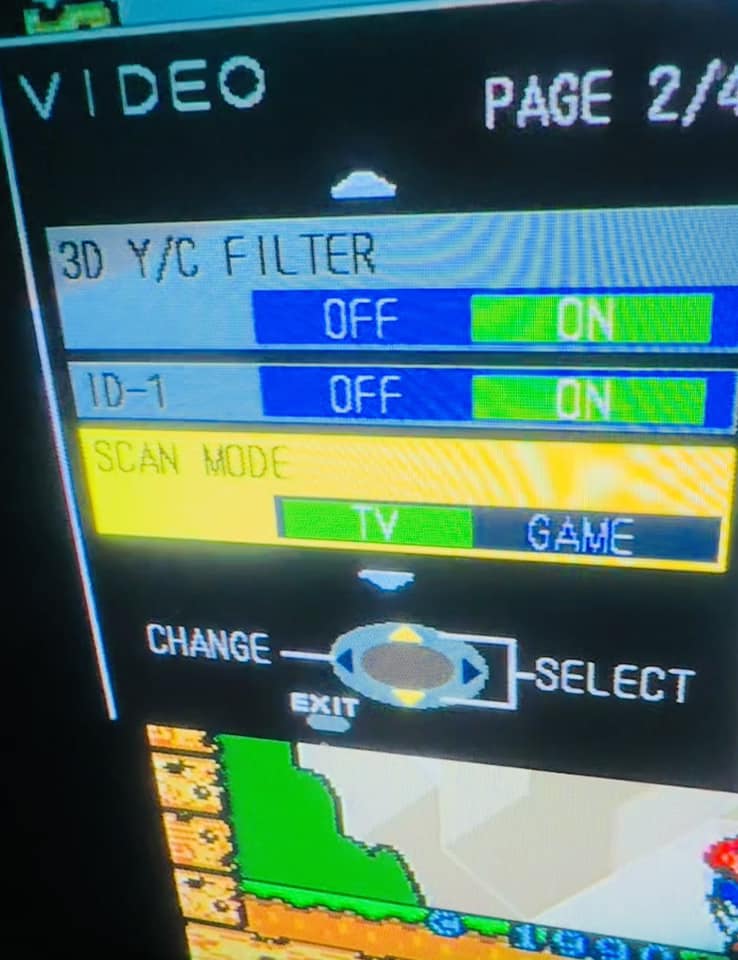

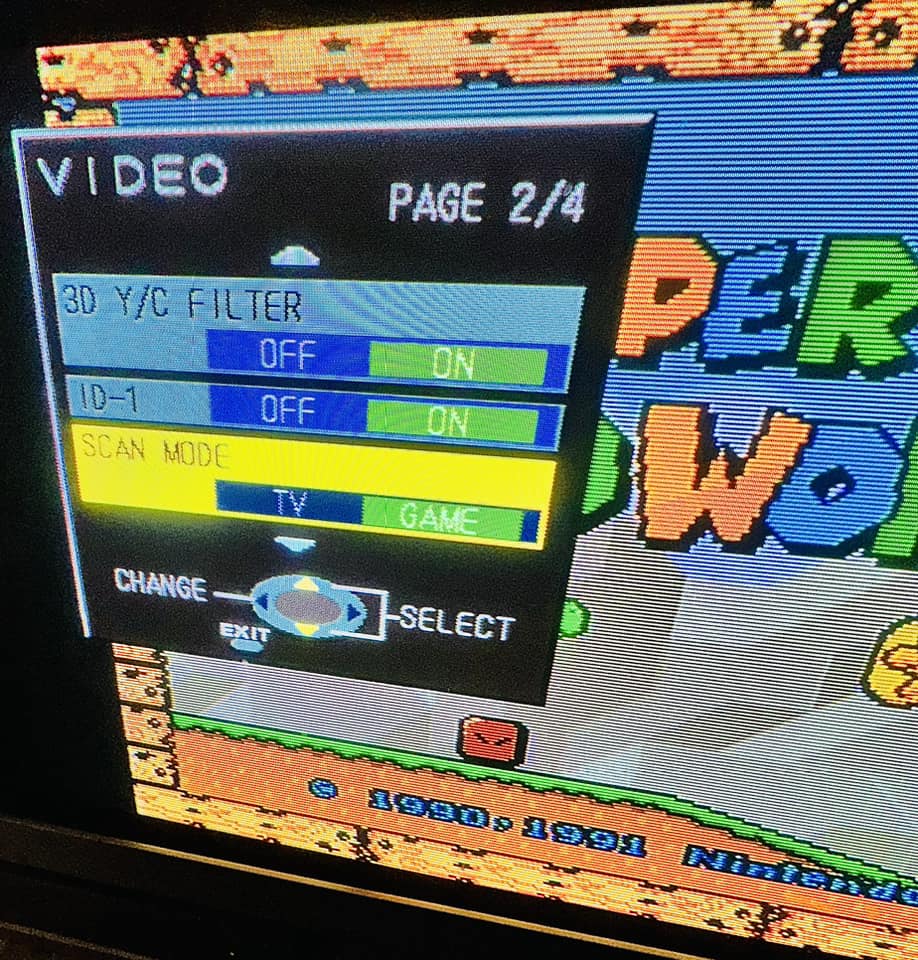

Like the other Tau HD CRT models for that year, this model has the option to toggle between processing modes for 15khz signals. In TV MODE 240p and 480i are linedoubled to 480p and have a blocky appearance. However, in GAME MODE those signals have artificial black scanlines overlaid giving it the appearance of true 240p/480i. This option can only be enabled for composite and s-video.
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |

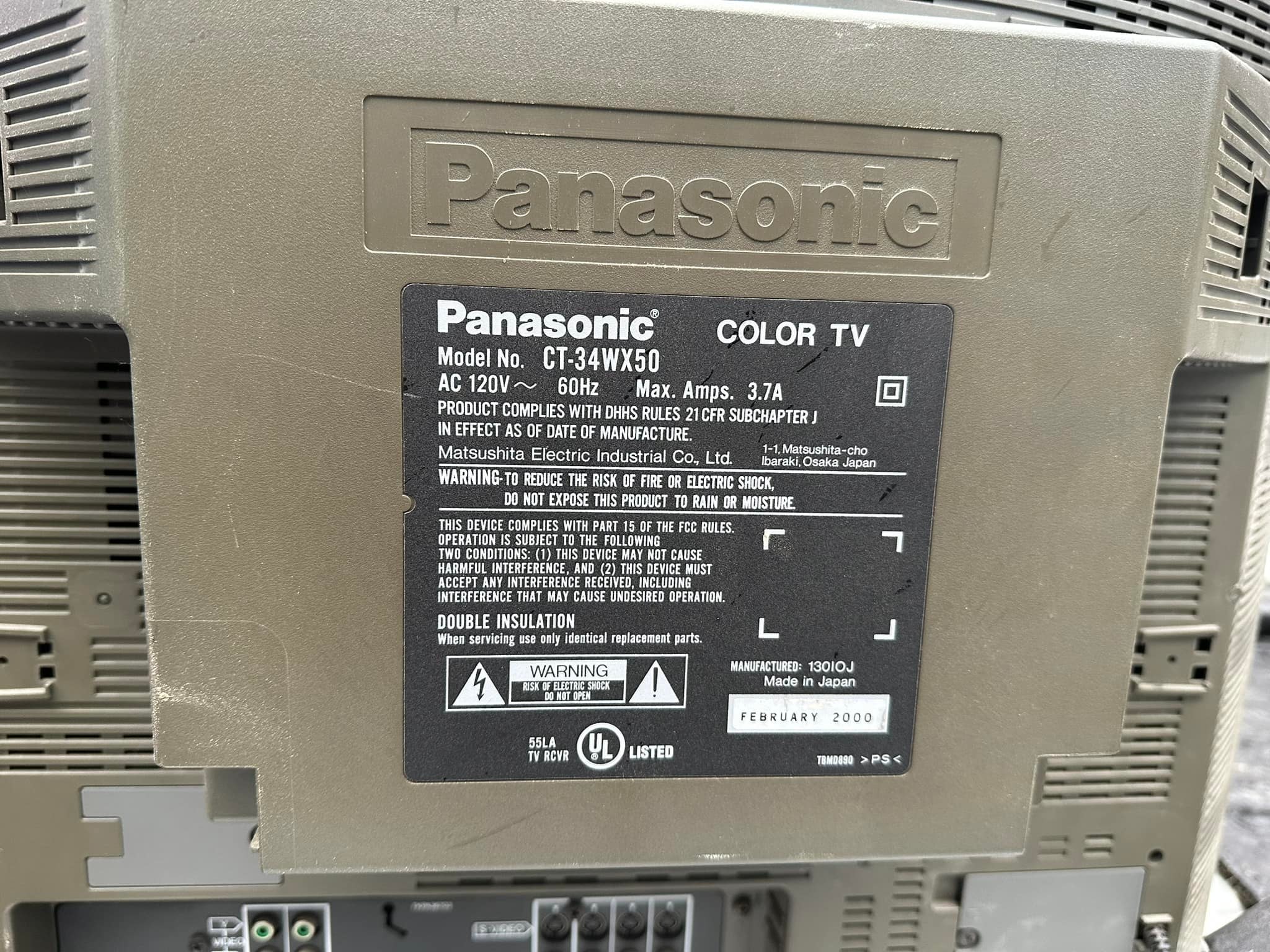

| Model: | CT-34WX50 |
| Series: | WX |
| Viewable Size: | 34" |

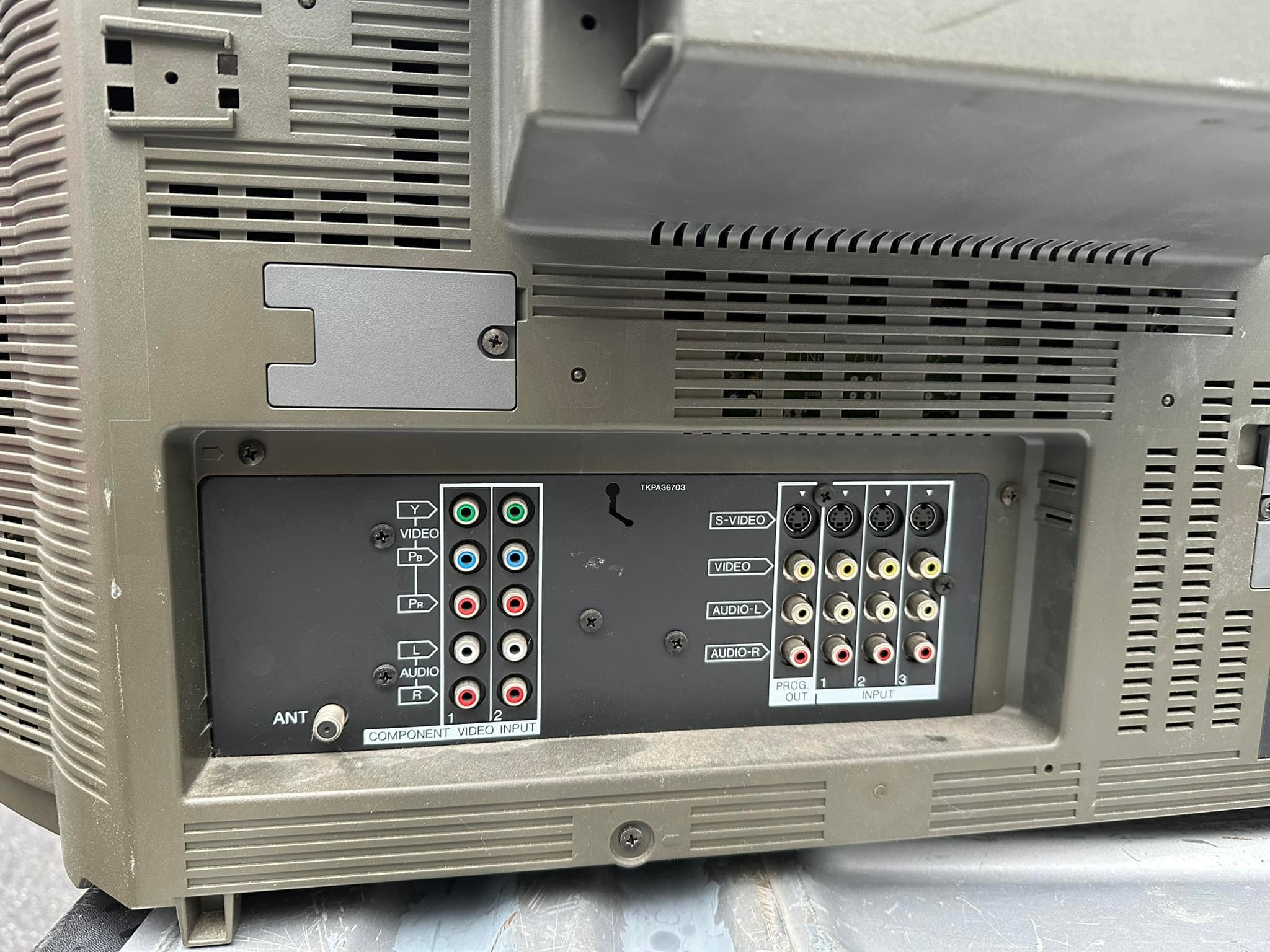

| Inputs: | Composite, S-Video, Component YPbPr |
| Native Resolutions: | 1080i, 480p |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 33.75 kHz, 31 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 16:9 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Tube: | Panasonic , W86LPX955X |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Chassis: | PXIT |
| Application: | Consumer |
| Launched: | 2000 |
| Country of Manufacture: | Japan |
| Degaussing: | Automatic on Power-on |
