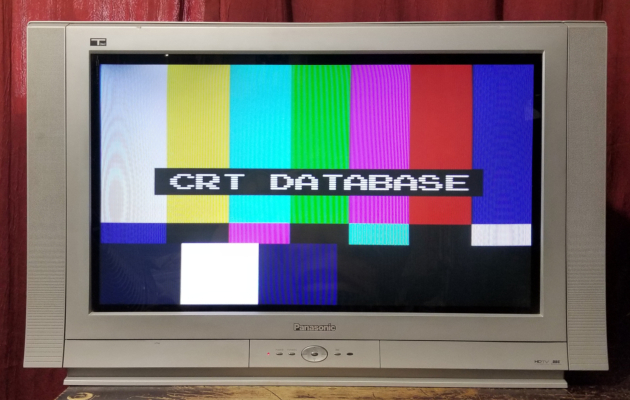

Panasonic CT-34WX54J
October 29, 2024, 3:29 pm
May 10, 2026, 1:28 pm
Summary
Enjoy all that high-definition television has to offer with Panasonic's CT-34WX54 34-inch HD-ready TV. It comes packed with features, including a 16:9 widescreen aspect ratio, to create the ultimate home entertainment experience.
34" Panasonic flat HD CRT from 2004. Originally manufactured in Mexico.
Manuals
- User Manual
- Service Manual for the 30" model

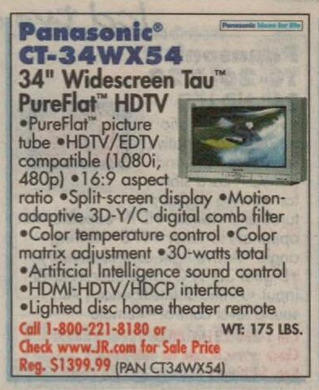

Media & Promo Materials
- Panasonic HD PureFlat product list
- HD PureFlat Feature List
- Amazon Product Page

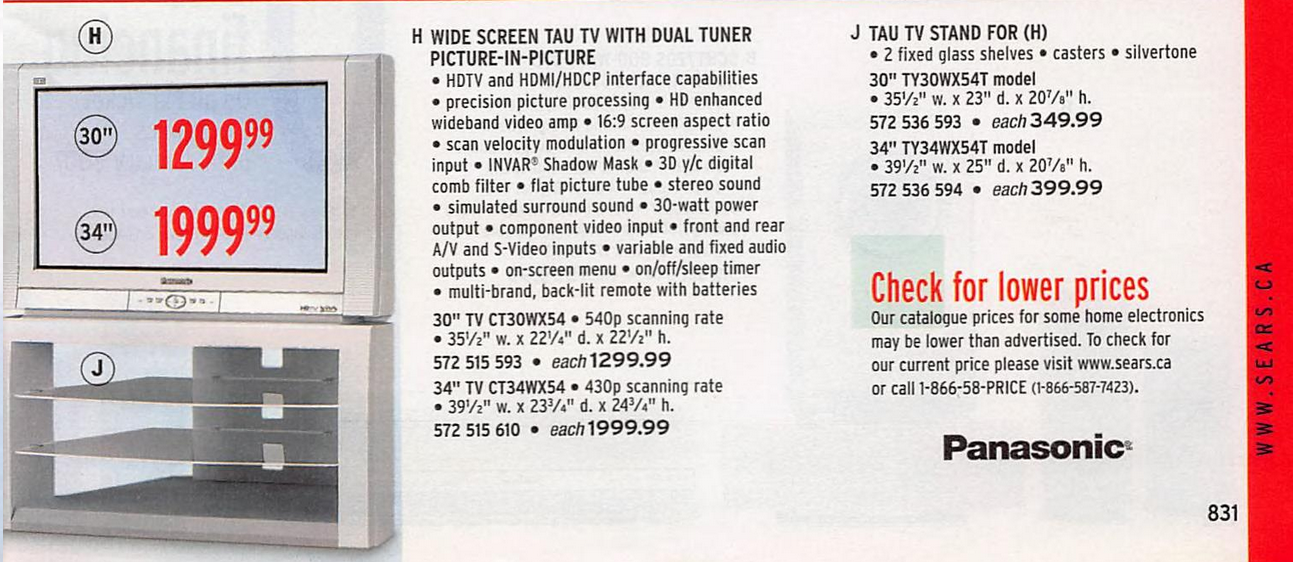

- Consumer Reports November 2004
- Consumer Reports Electronics Buying Guide 2006
Notes
Every Panasonic HD CRT has lagless 480p and 1080i, and this model is no exception. 240p/480i are linedoubled and reportedly (according to Shankmods) have no latency!
This set is a bit odd in it's processing. I have been told that HDMI has better picture quality than component. HDMI seems to go through more picture processing stages and picks up noise as a result.

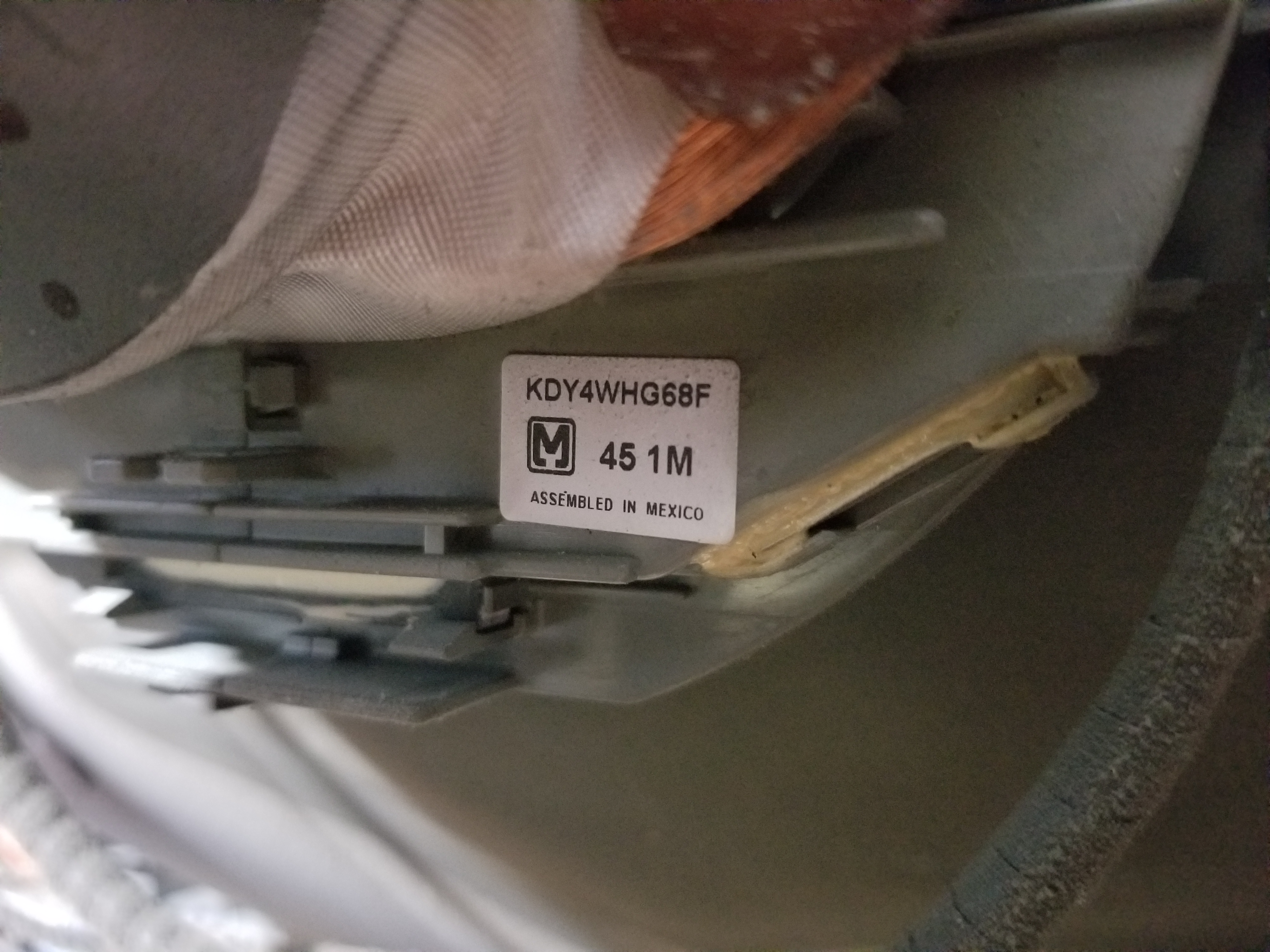

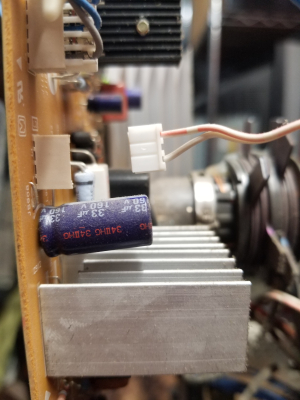

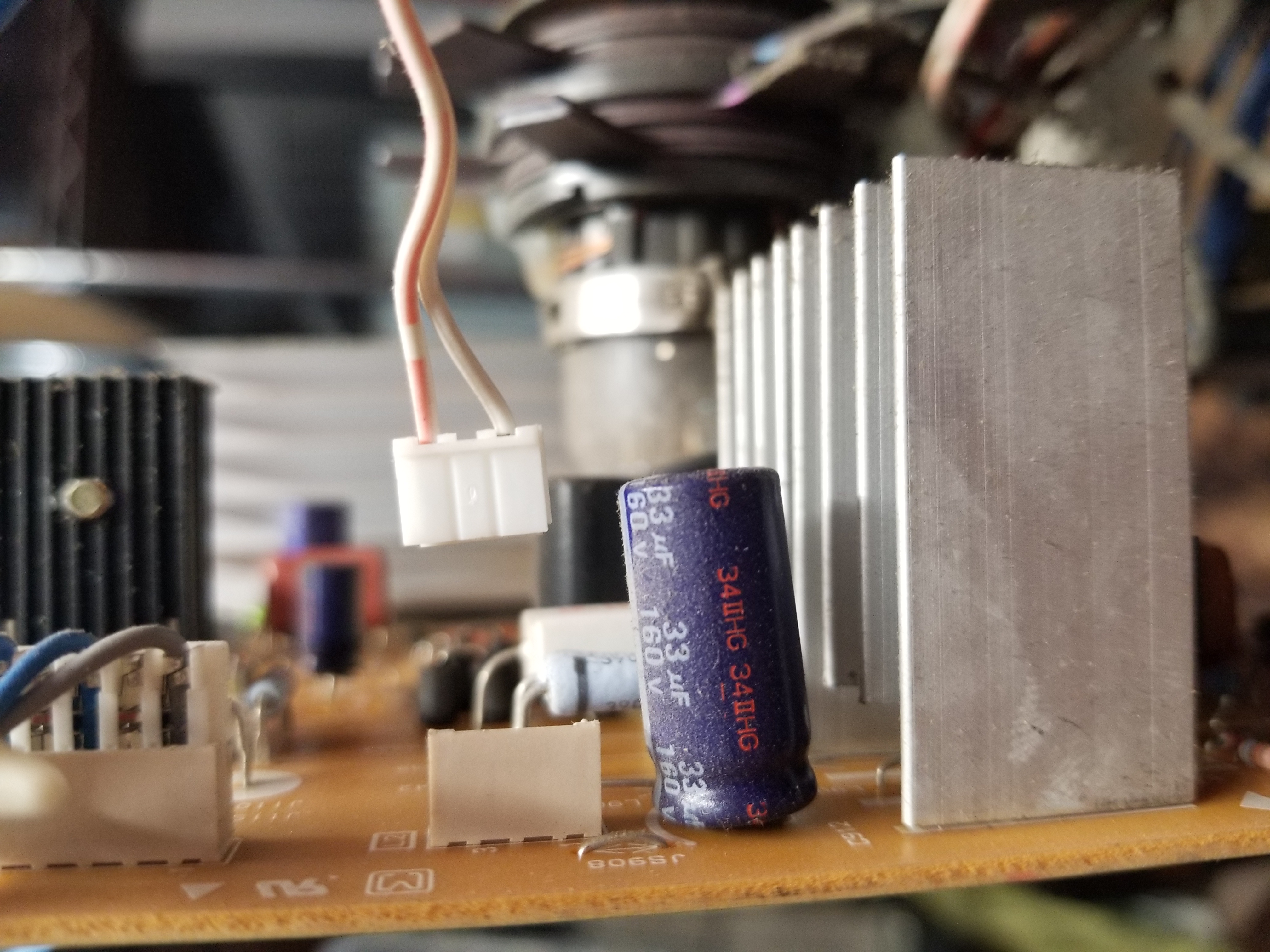

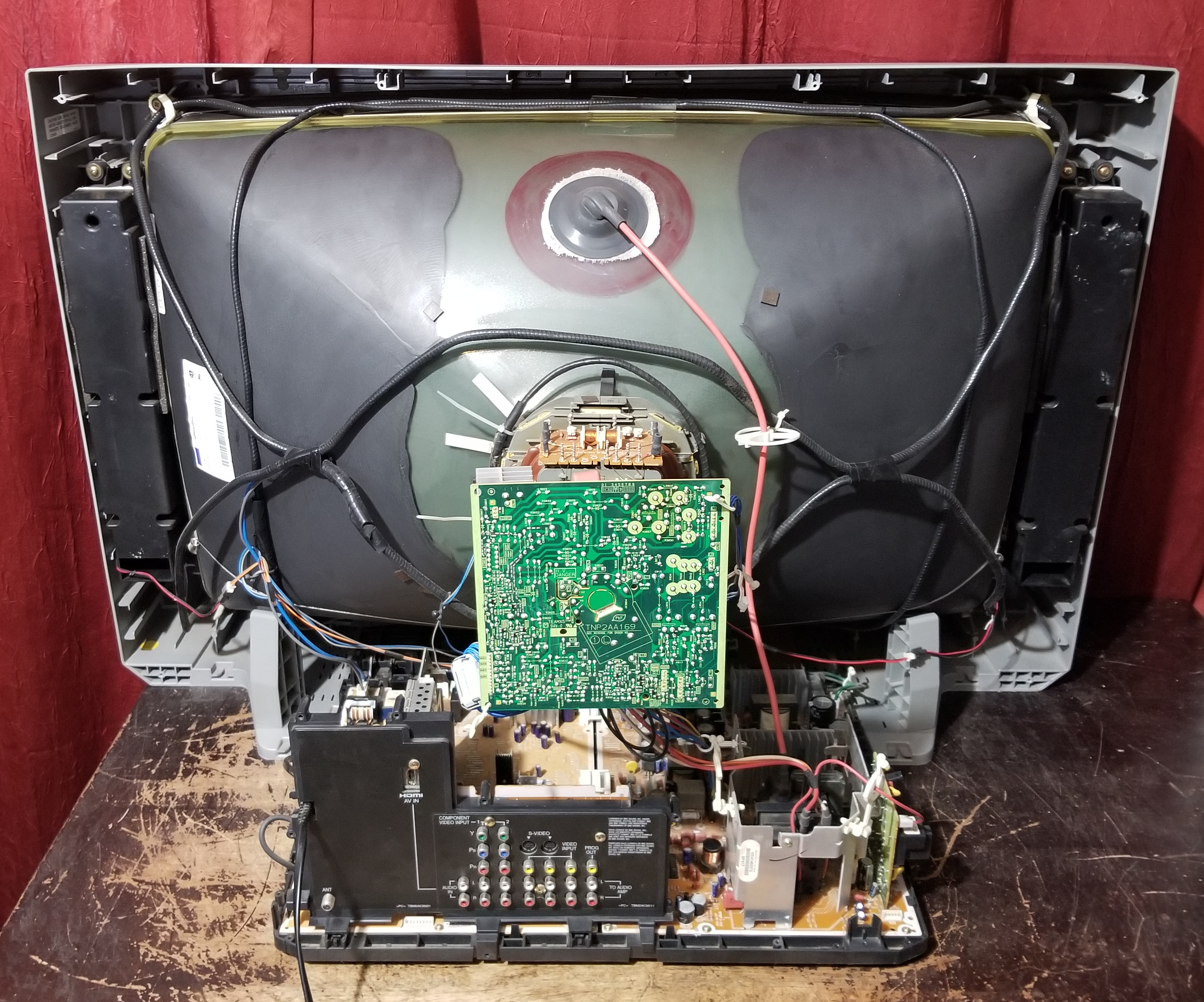

If you wish to unplug the VM coil, the connector to unplug from the neck board is pictured at the end of the gallery.
Repair Notes
One unit had it's internal support struts broken, the electrical tape holding the degaussing coil in position had come completely undone in parts, and the tabs on one side of the tilt coil were broken and so it was also out of position. There were no cracks in the cabinet so there was no outward indication that some bits had broken and gotten out of place internally.

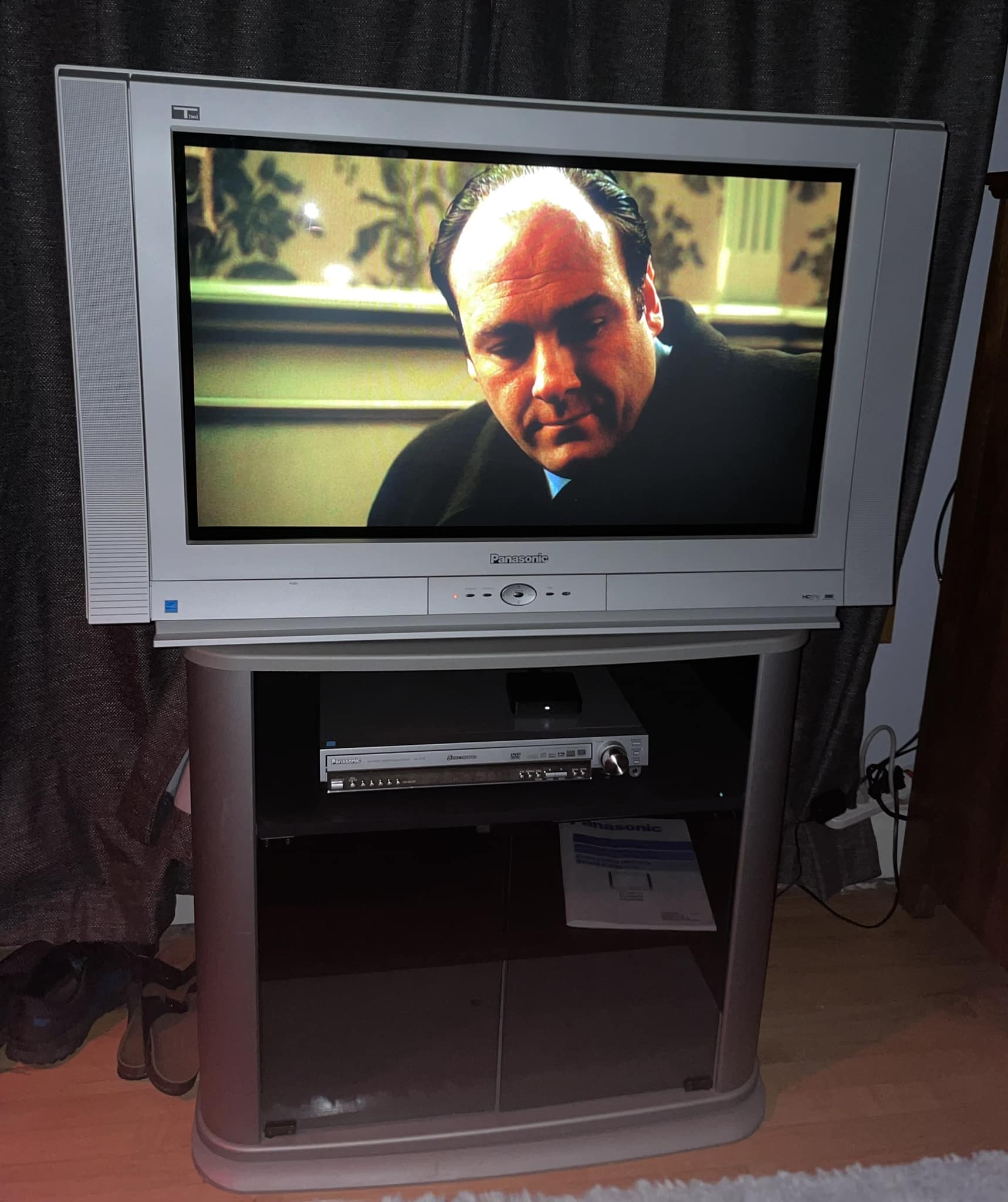

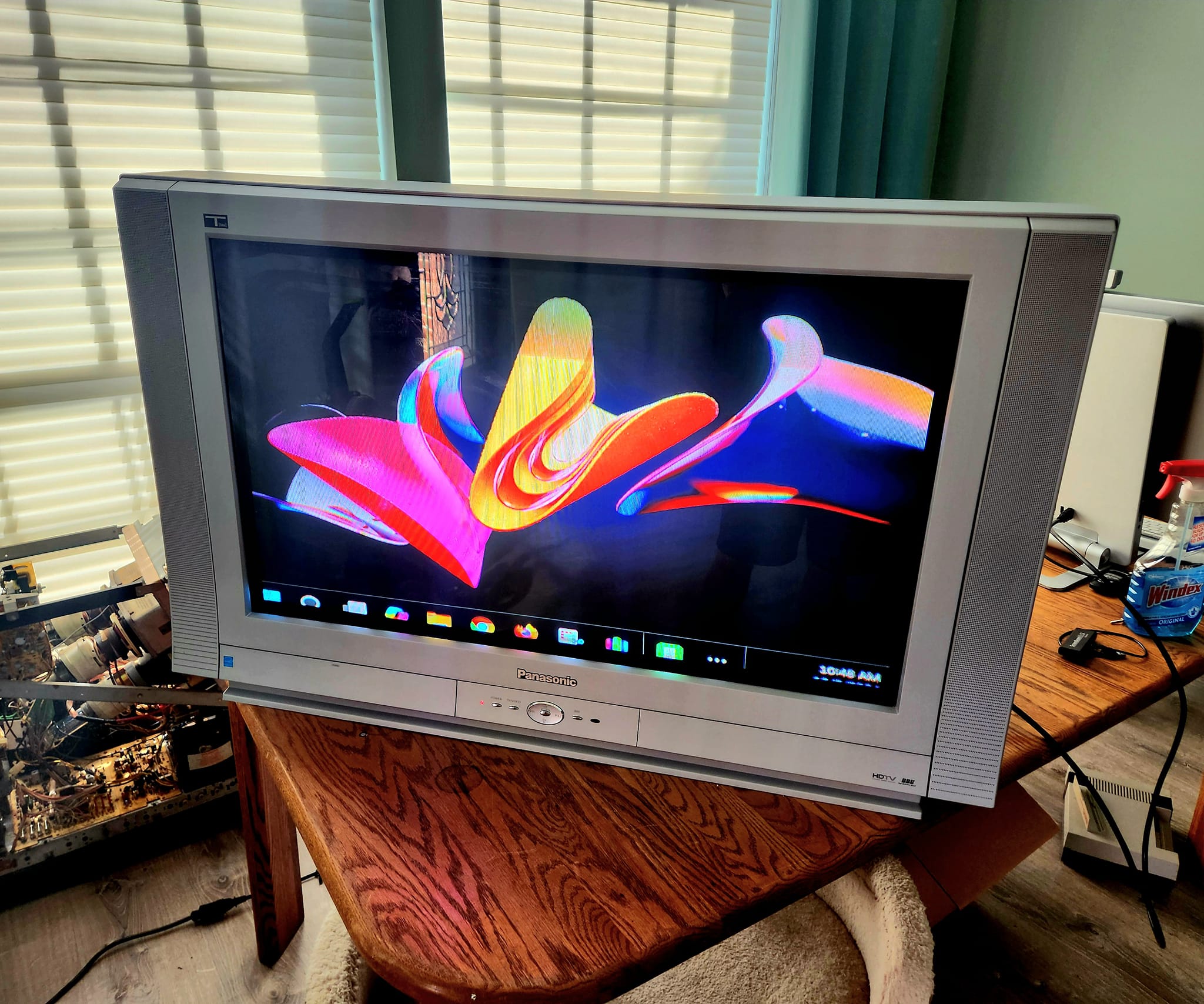

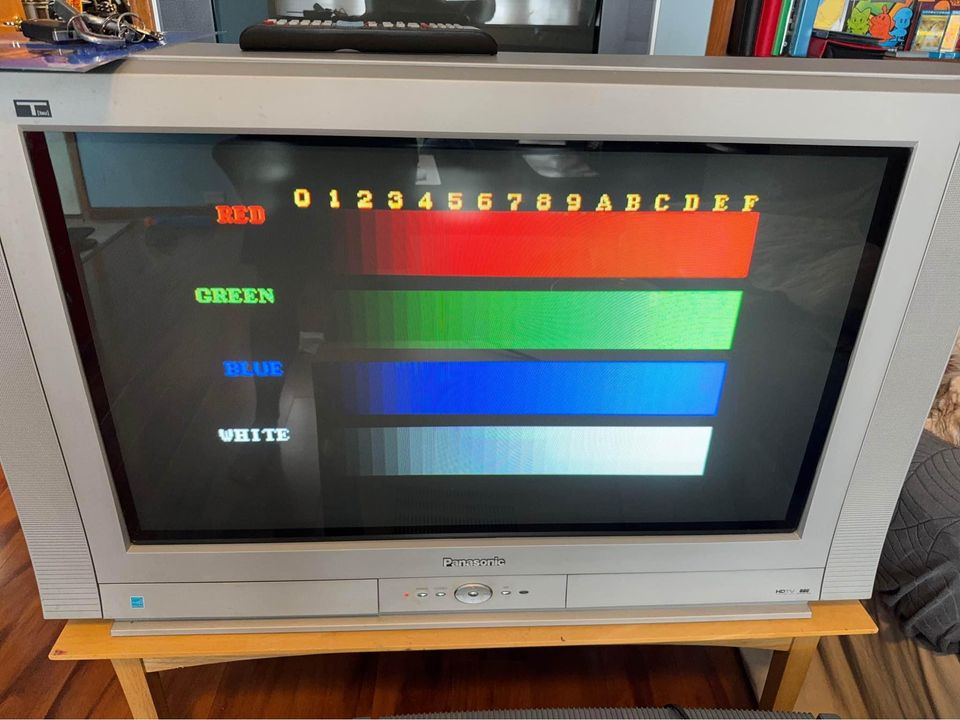

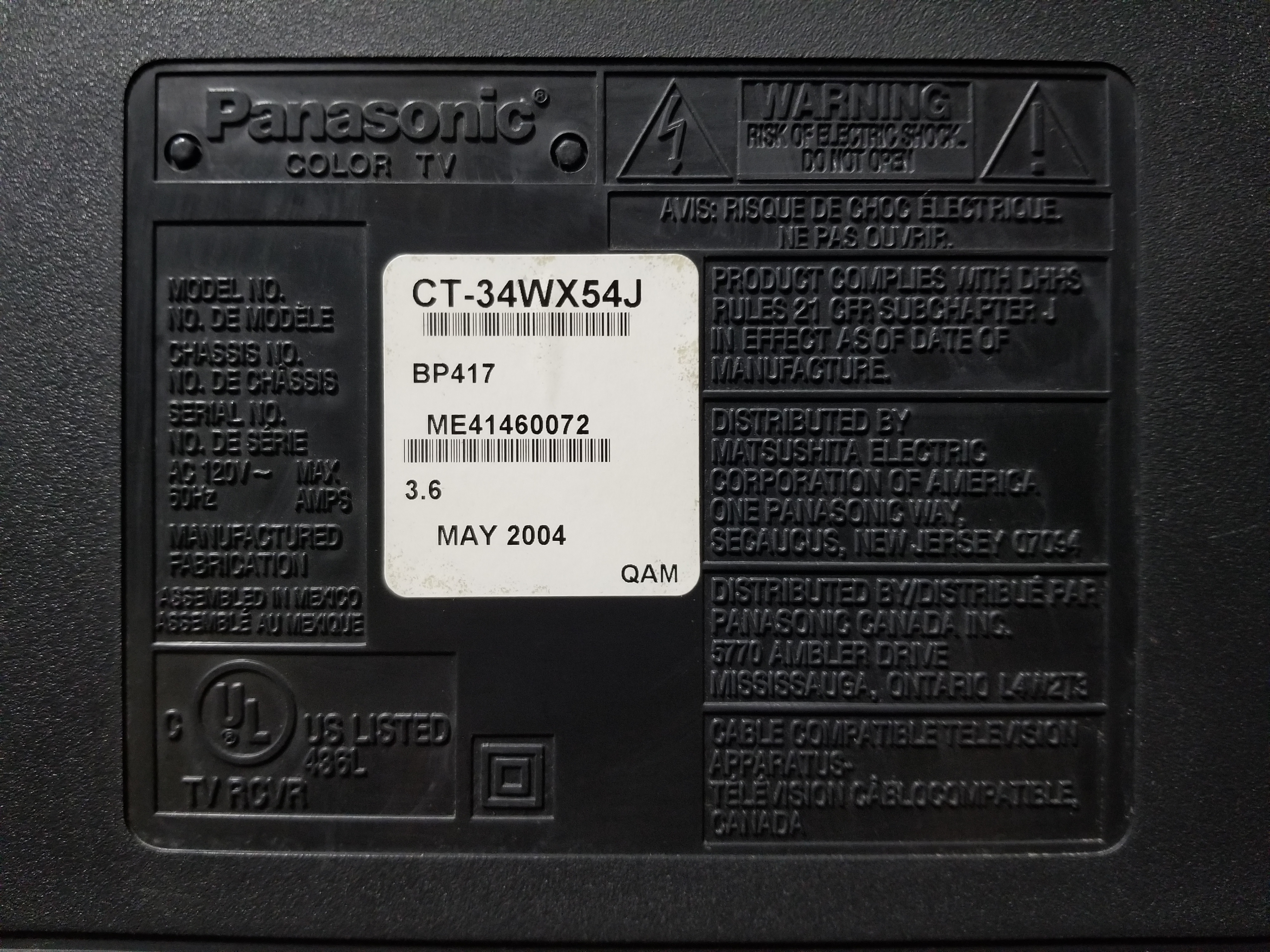

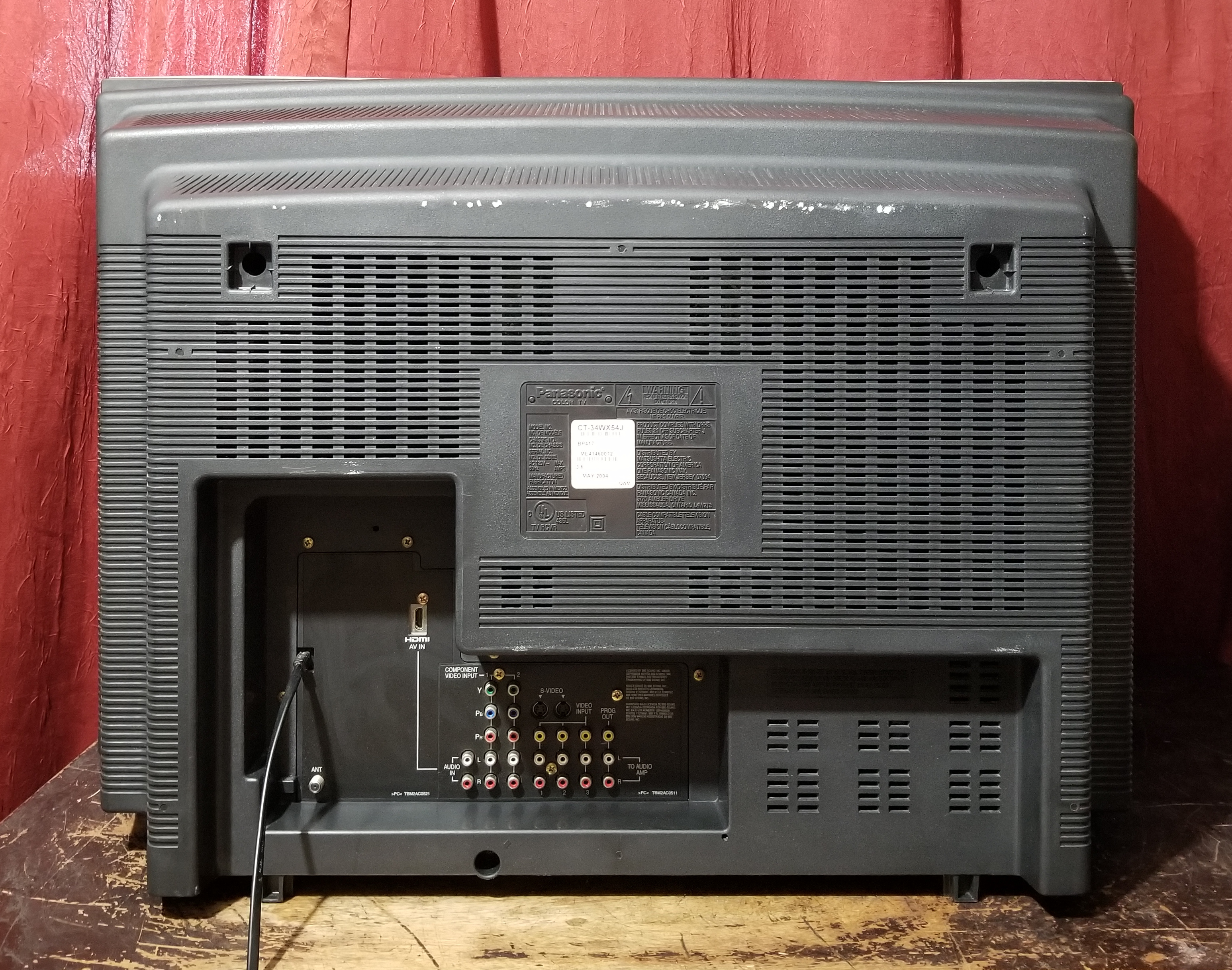

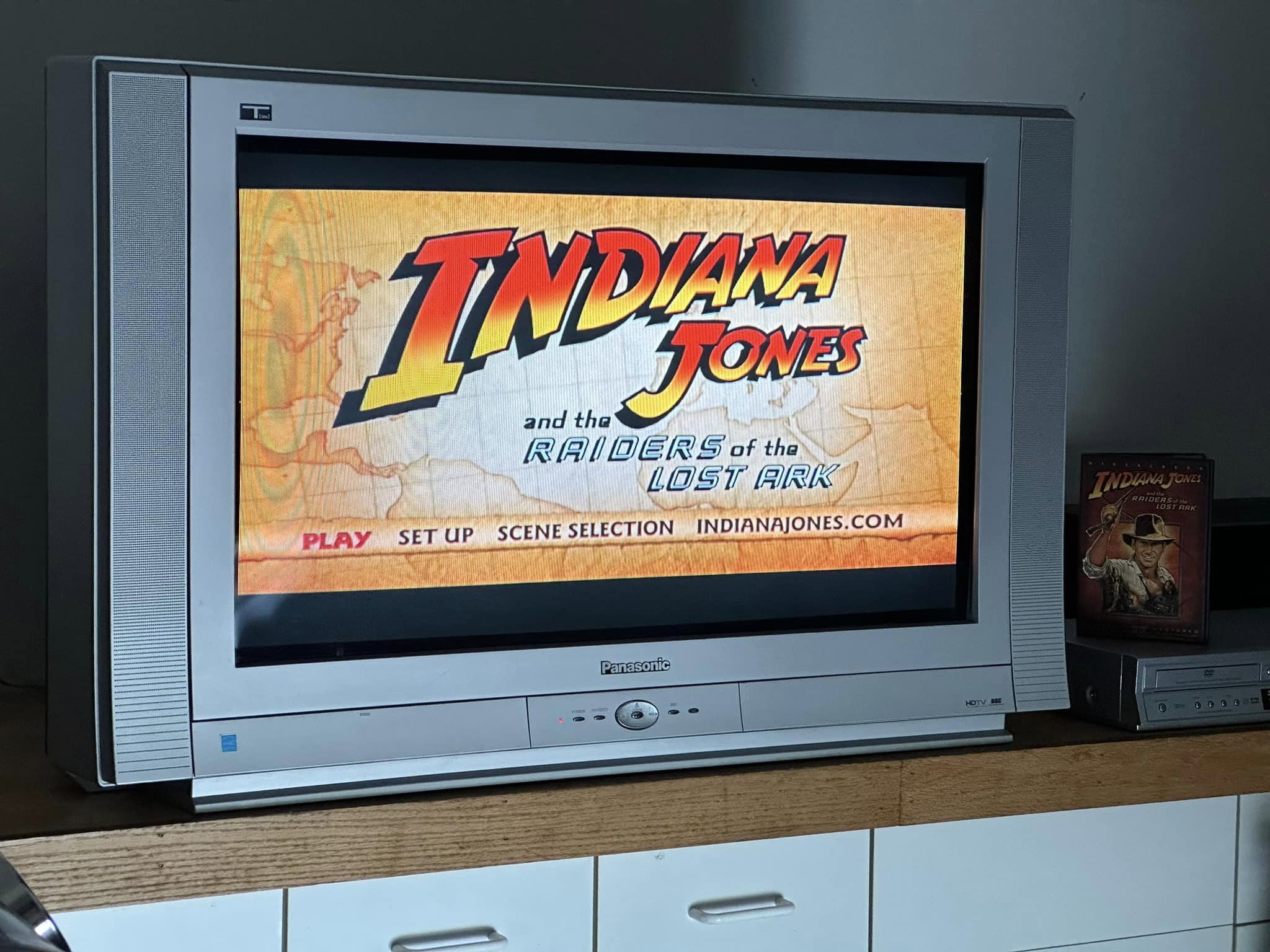

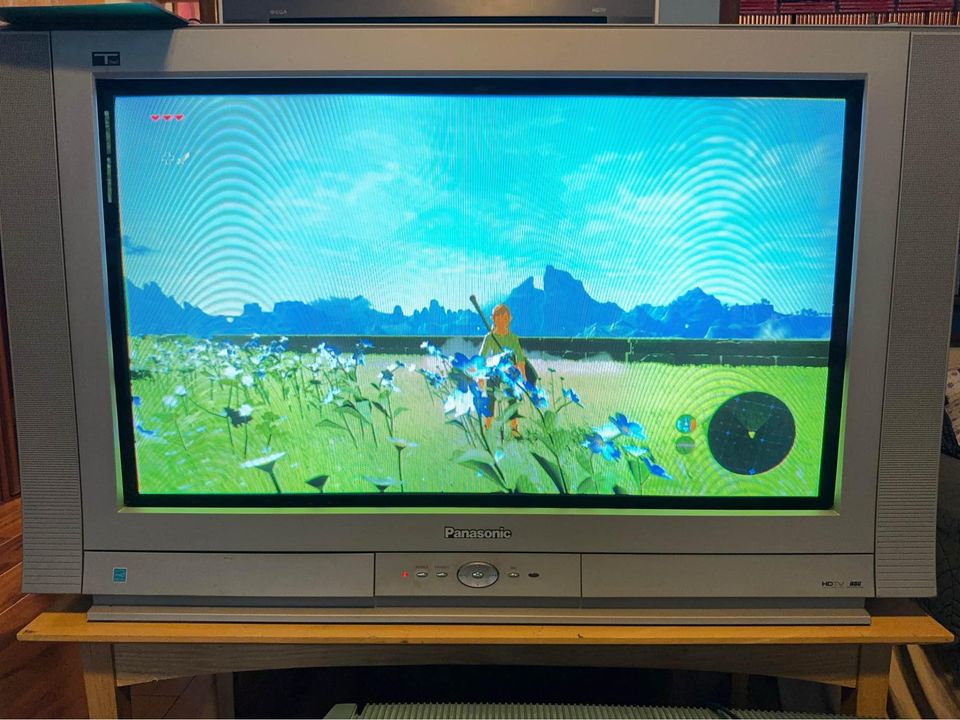

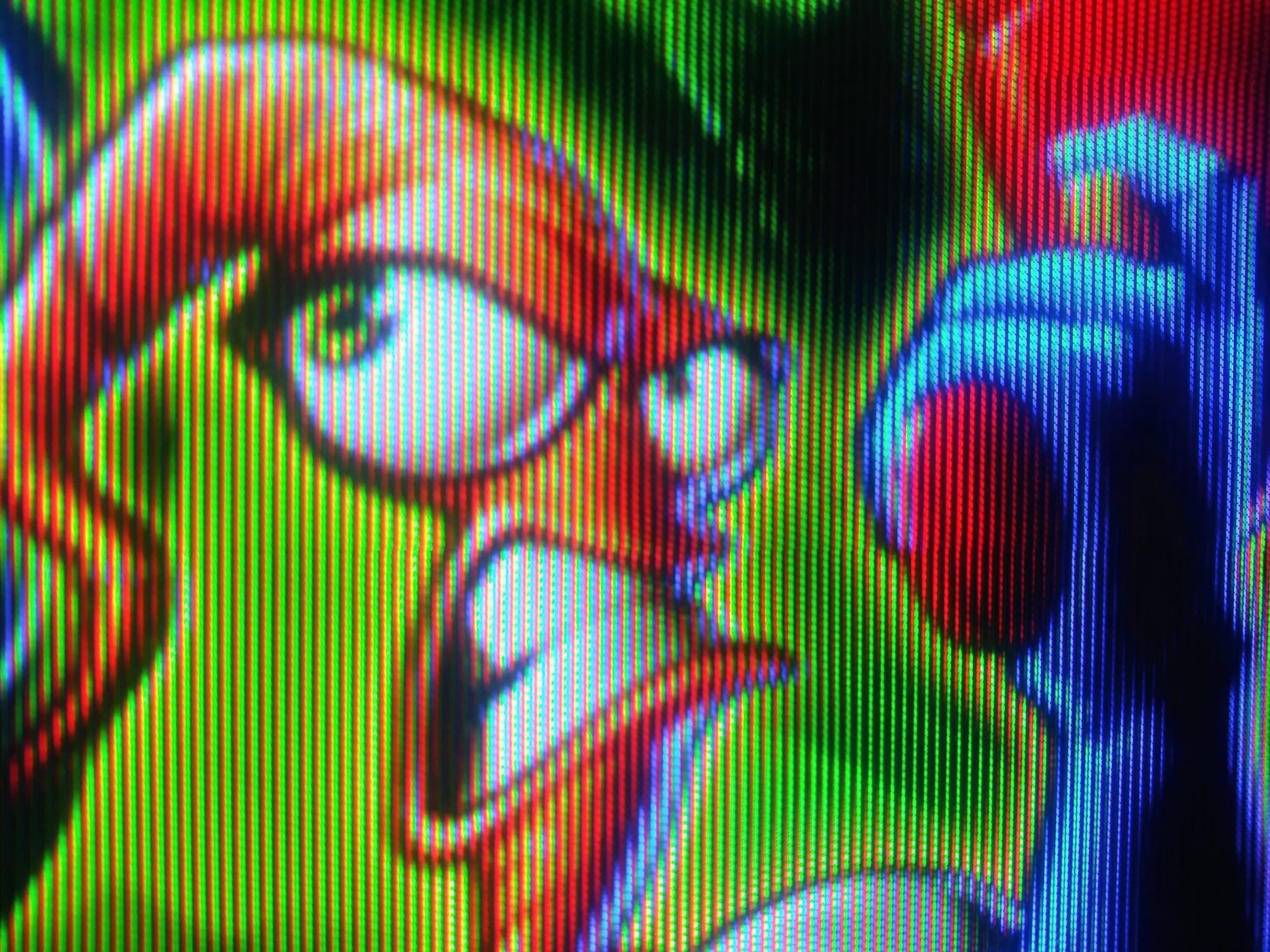

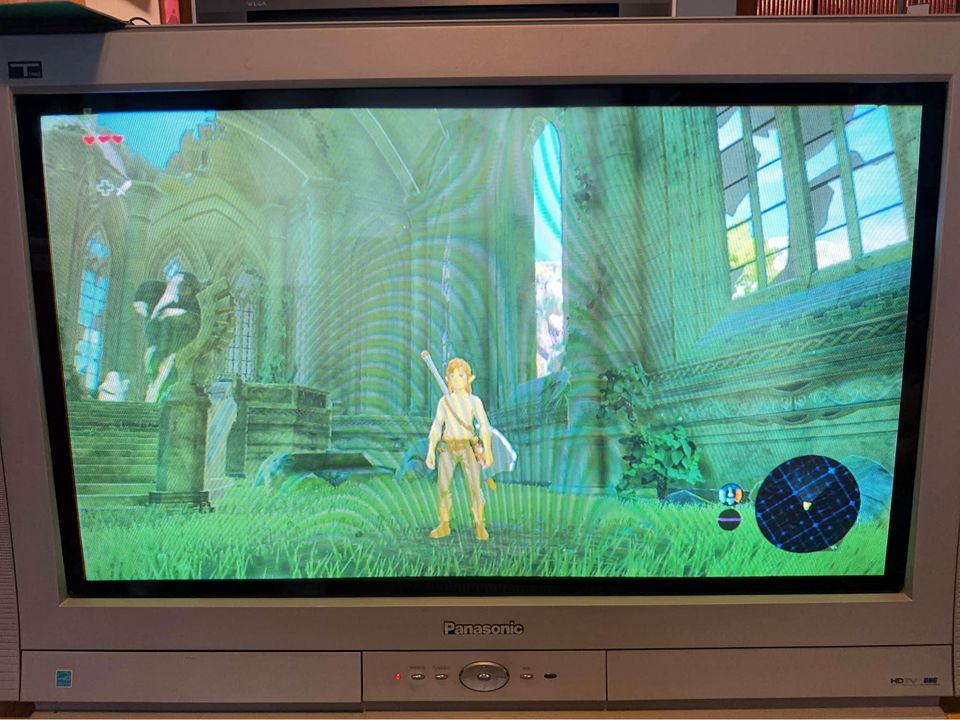

Gallery

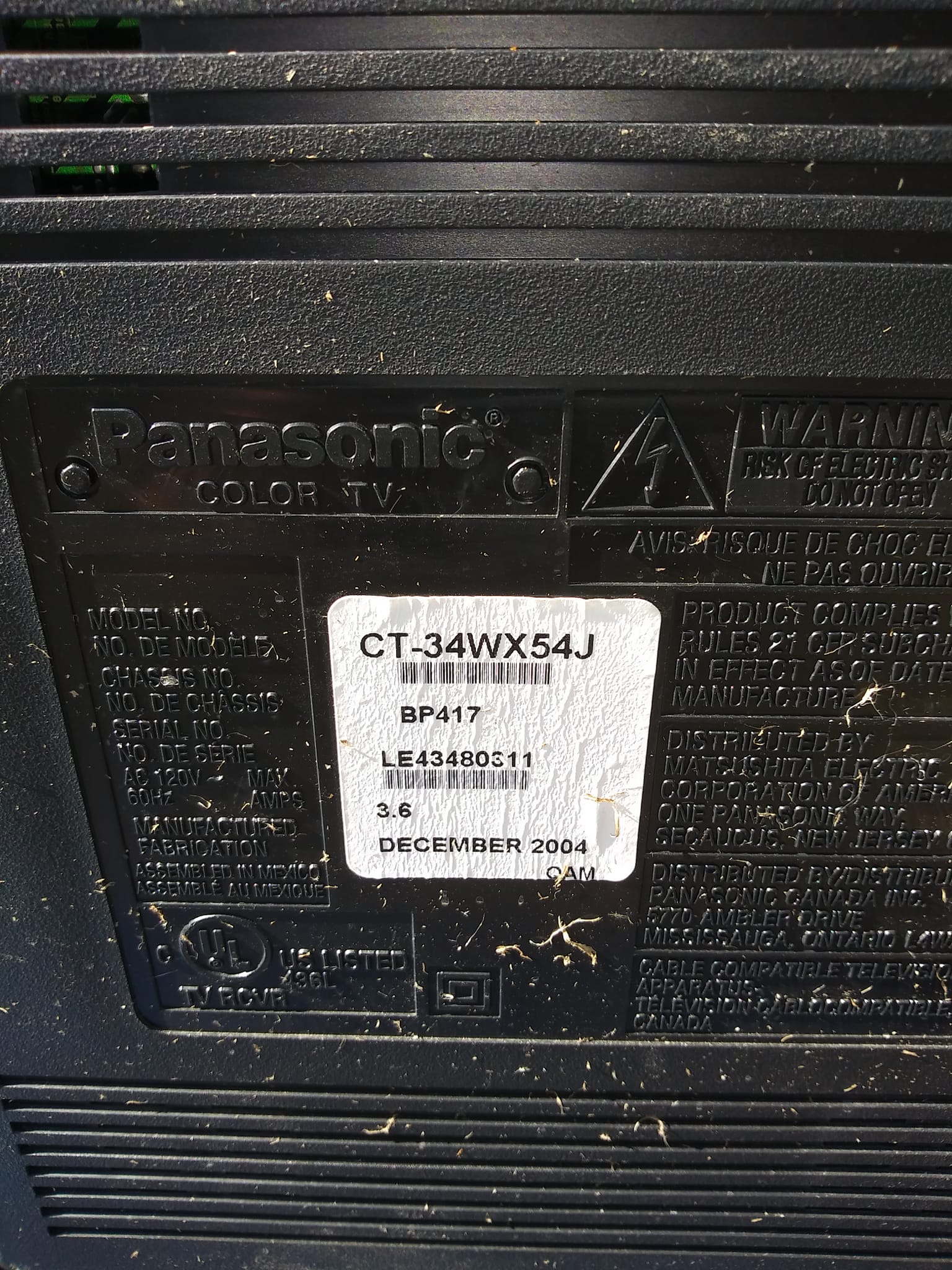

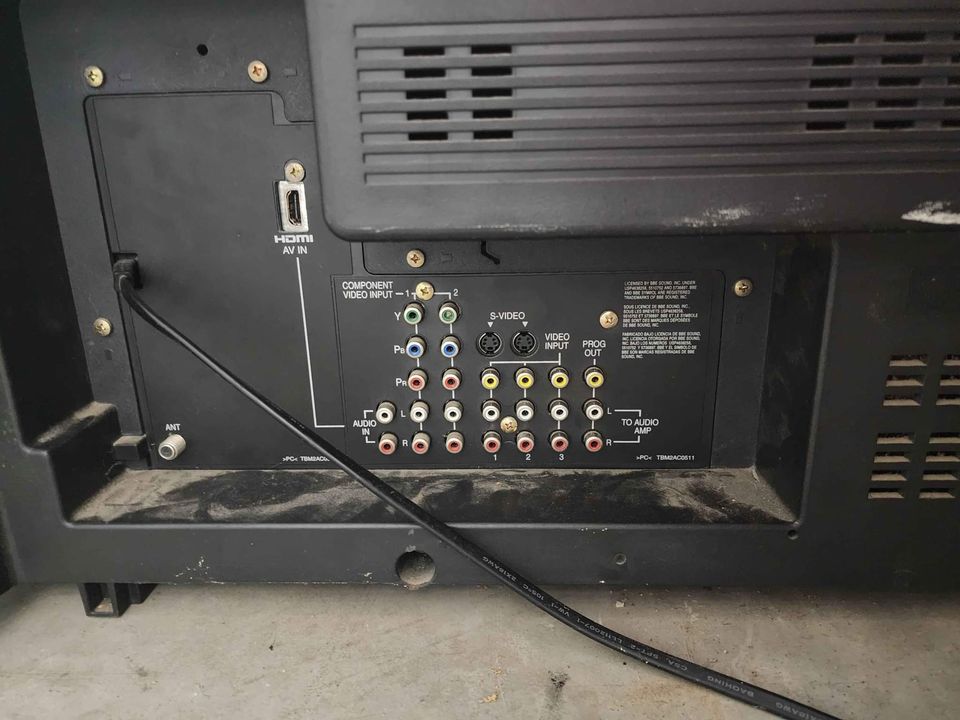

| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-34WX54J |
| Series: | Tau (HD) |
| Viewable Size: | 34" |
| Input Signals: | Composite, S-Video, RF, Component YPbPr, HDMI |
| Native Resolutions: | 1080i, 480p, 540p |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 33.75 kHz, 31 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 16:9 |
| Comb Filtering: | 3D Digital |
| Focus Type: | Dual |

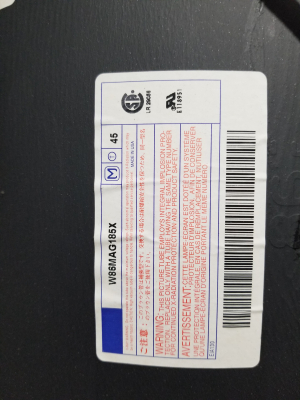

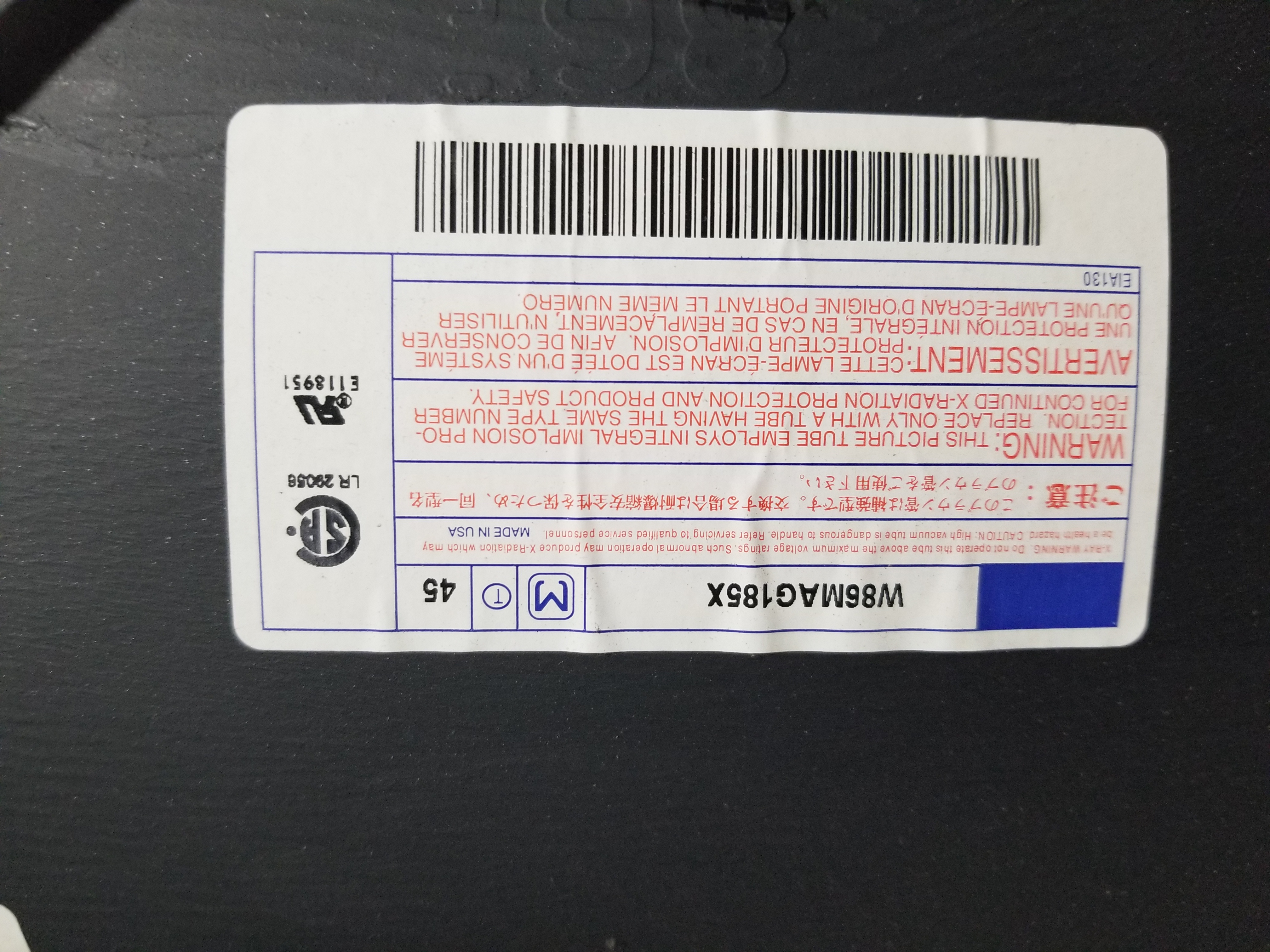

| Tube: | Matsushita-Toshiba , W86MAG185X |
| Mask: |
Slot, Invar
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | KDY4WHG68F |
| Yoke Horz. Inductance: | .2647 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 8.766 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | .7832 ohm |
| Yoke Vert. Resistance: | 13.22 ohm |
| Speakers: | Stereo, Dual Driver, Acoustic Chamber |
| Remote: | EUR7603ZF0 |
| Chassis: | BP417 |
| Weight: | 160 lbs (72.6 kg) |
| Dimensions (W/H/D): |
927 x 650 x 584 mm
(36.4 x 25.5 x 23") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 1399 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | OEM Stand, TY-34WX54T |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Repair Log, Needs IC Info |
