Summary

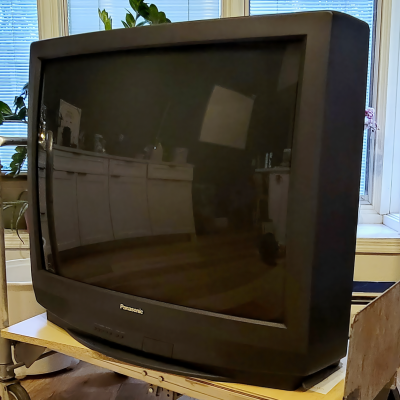

36" curved-screen CRT by Panasonic, made in Mexico in 2001. Has RF, composite, s-video and component inputs with stereo sound.
(Special thanks to Hugh Kollector for the pics!)
Manuals
Promo Materials
Notes
Picture quality is great thanks to the Toshiba jungle chip. It also supports RGB modification.

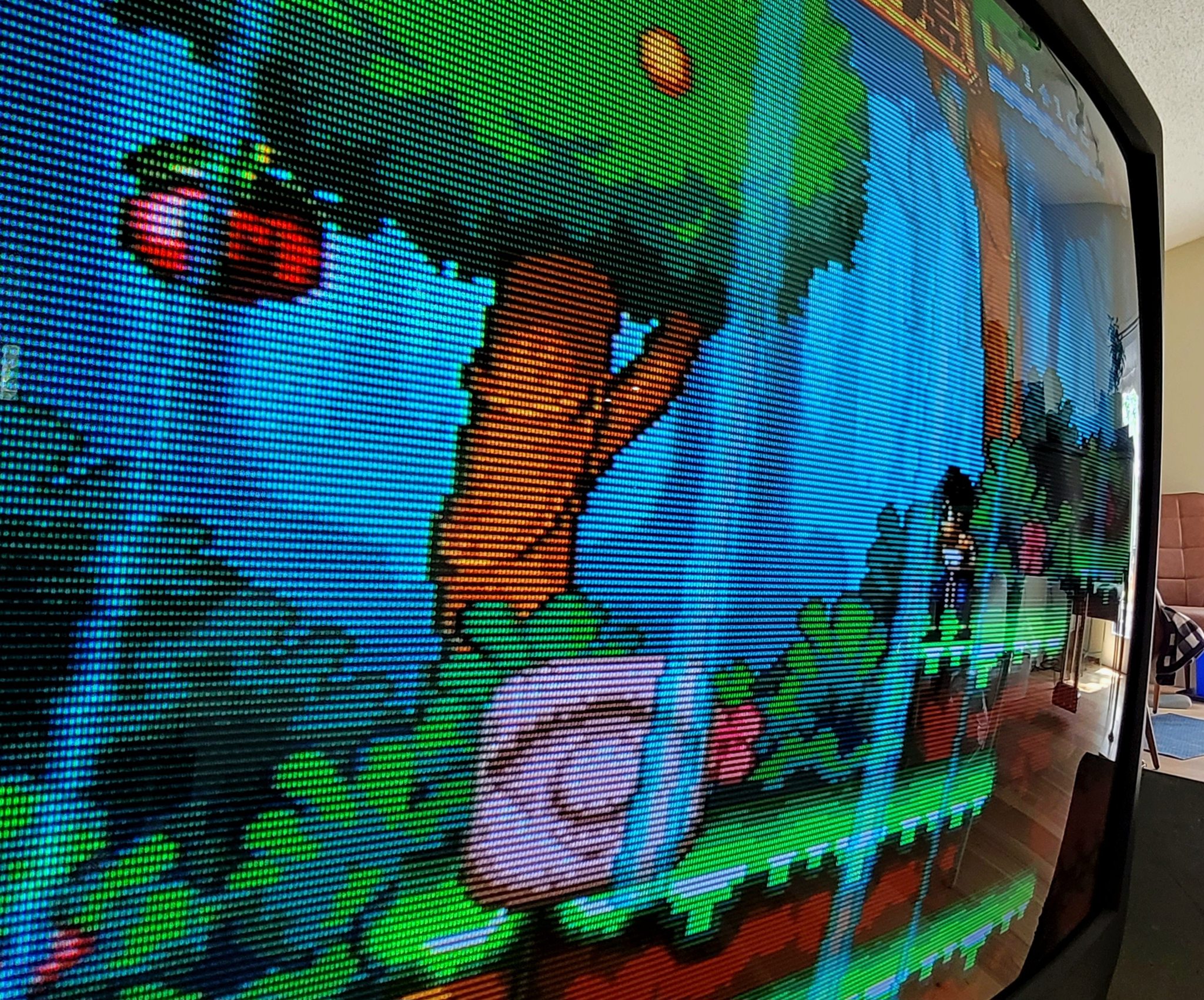

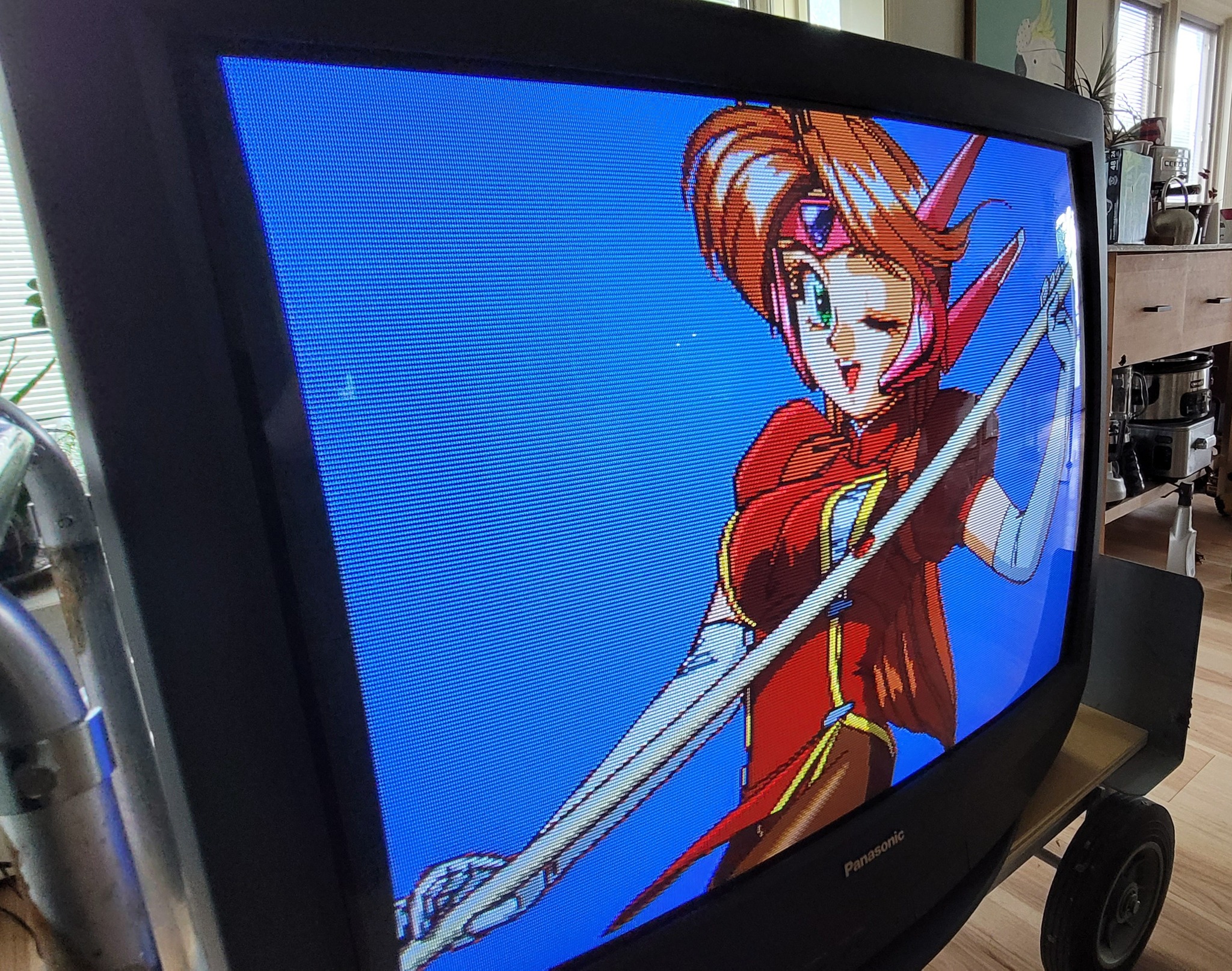

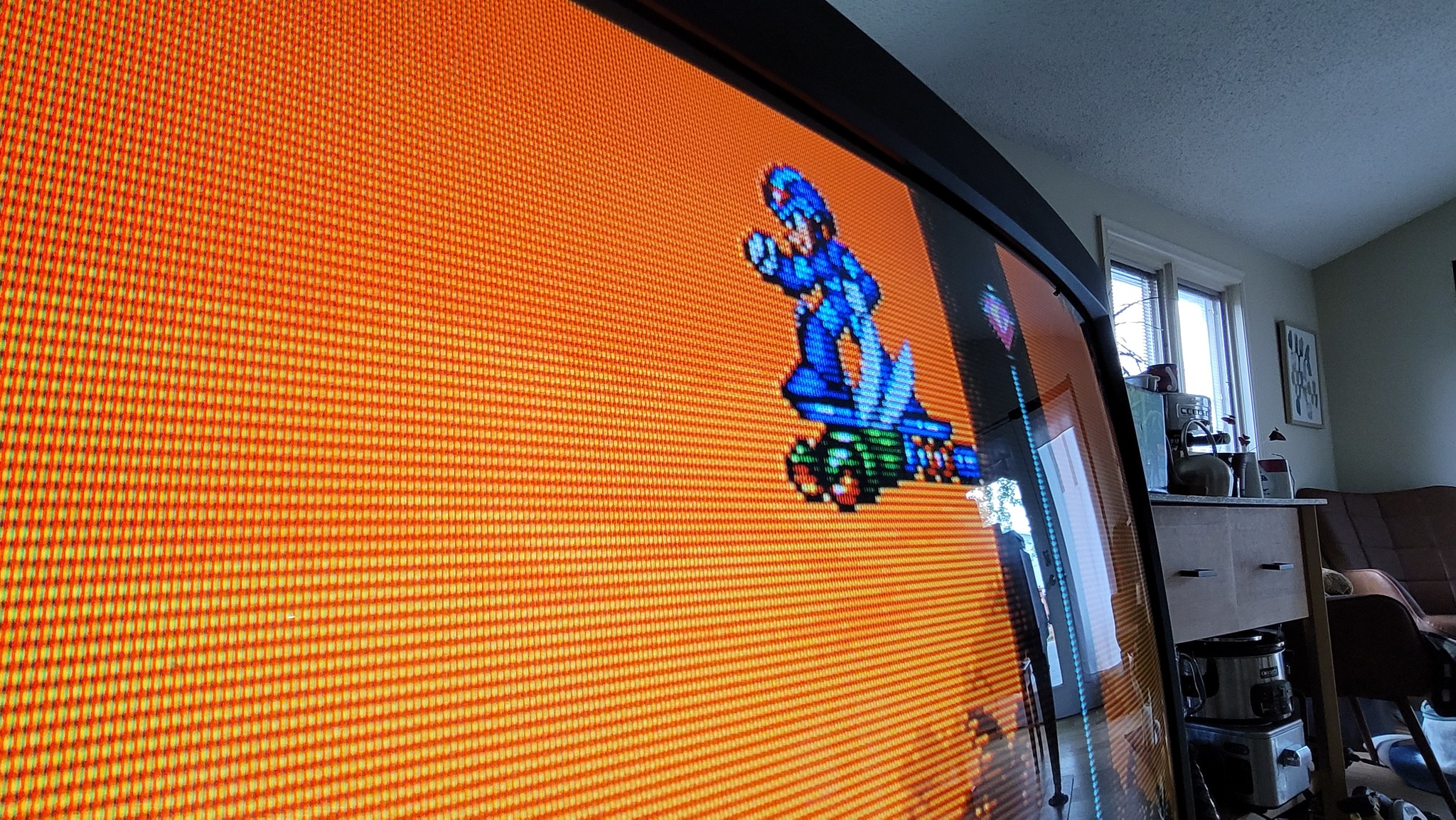

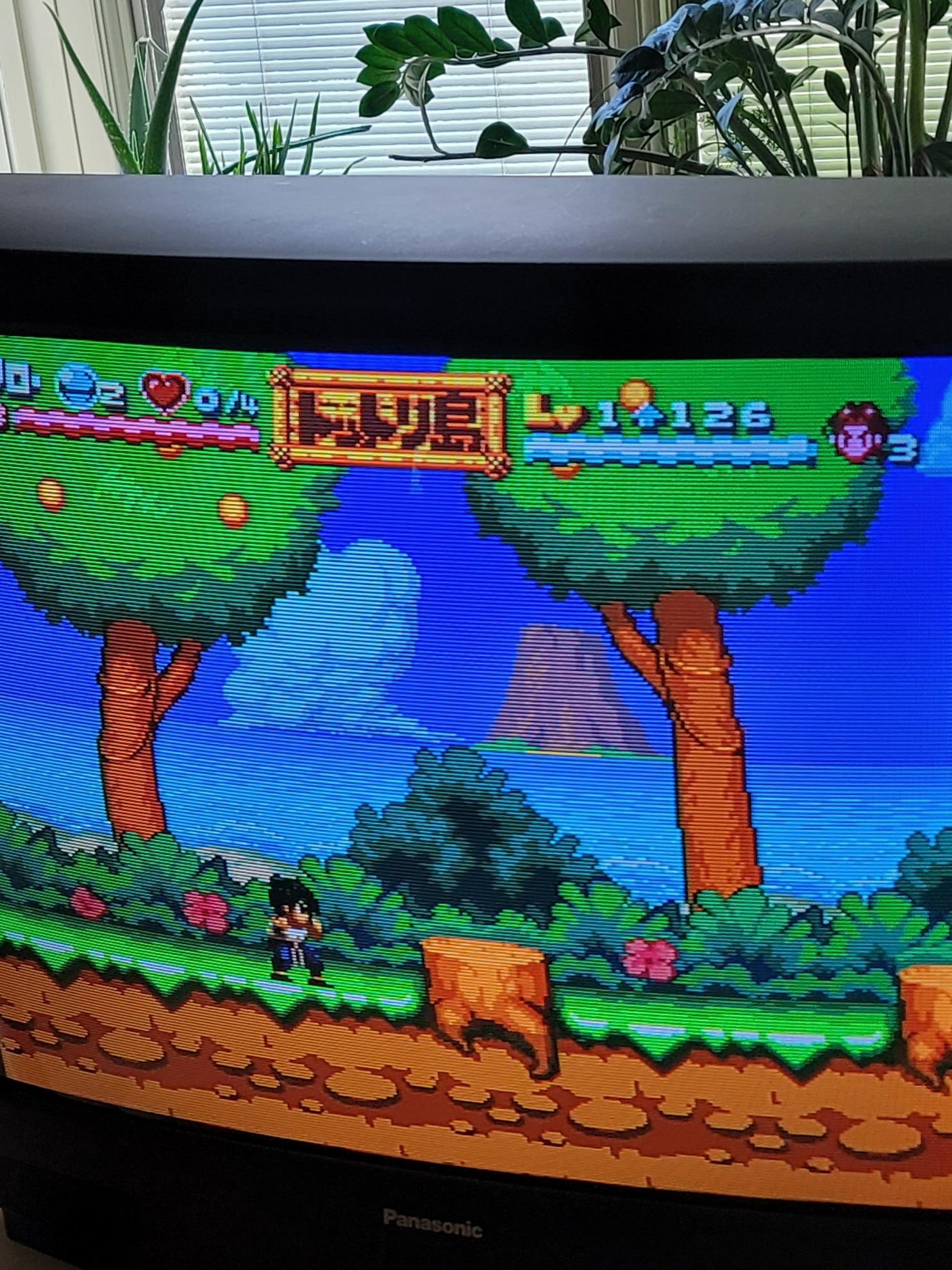

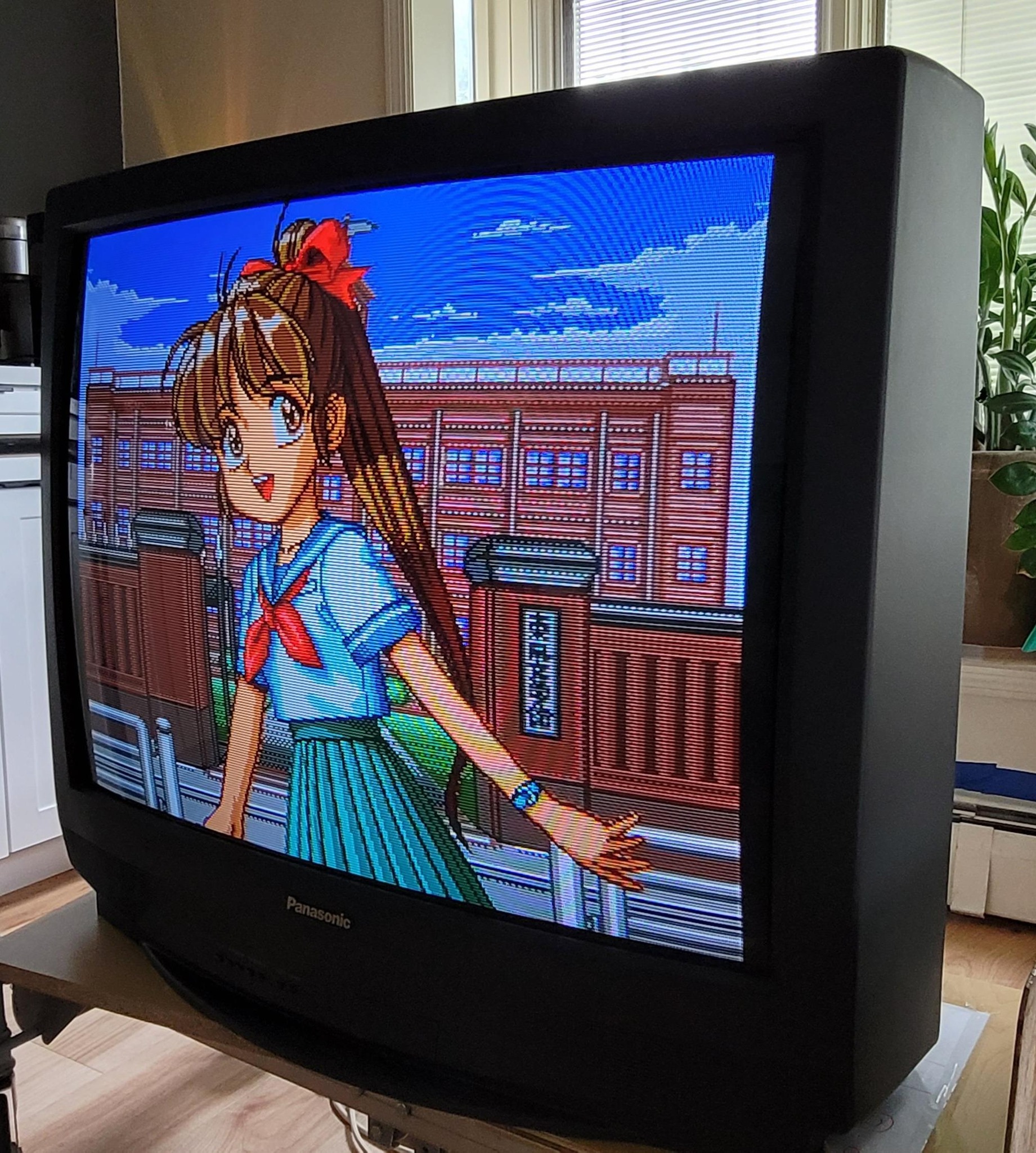

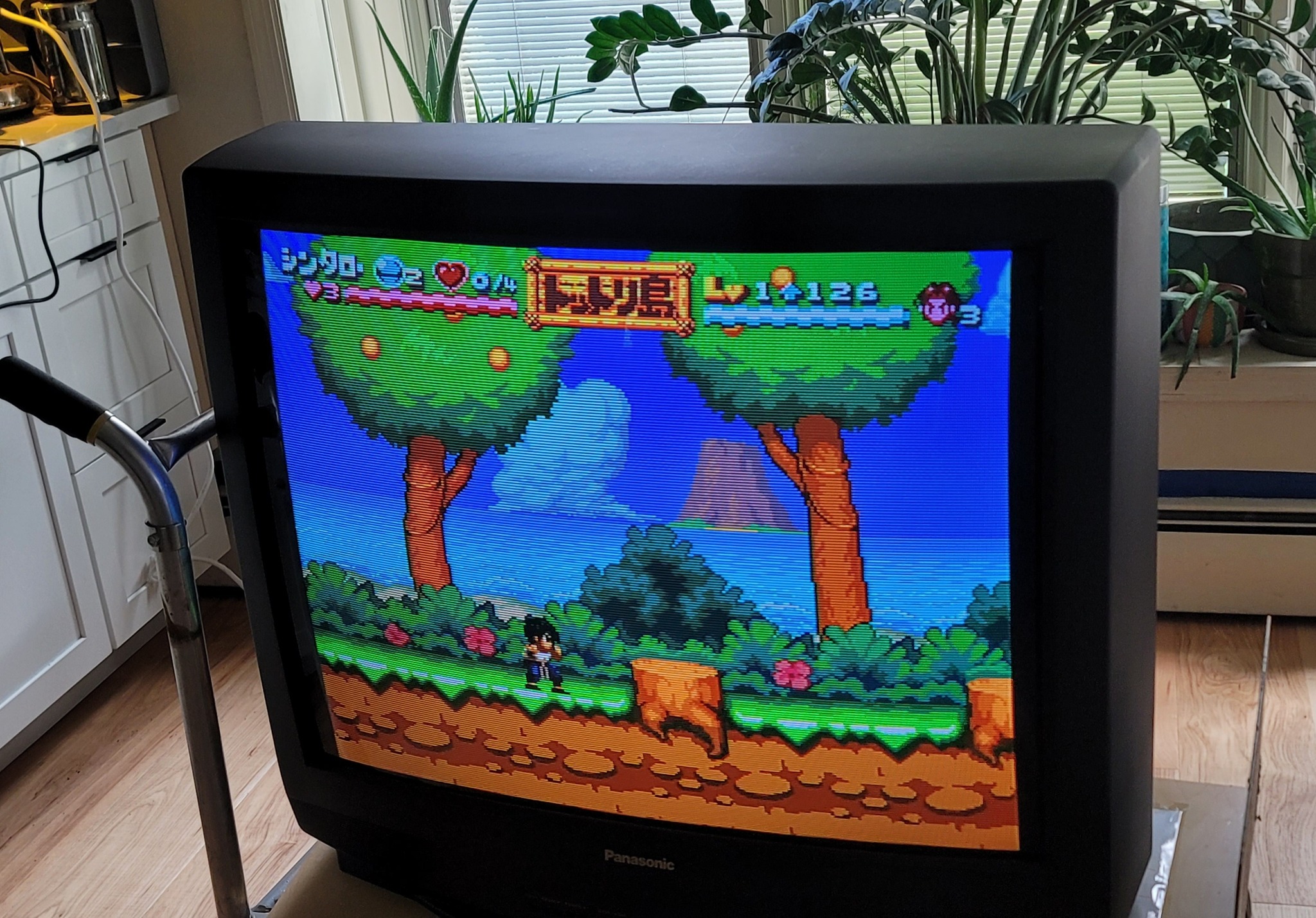

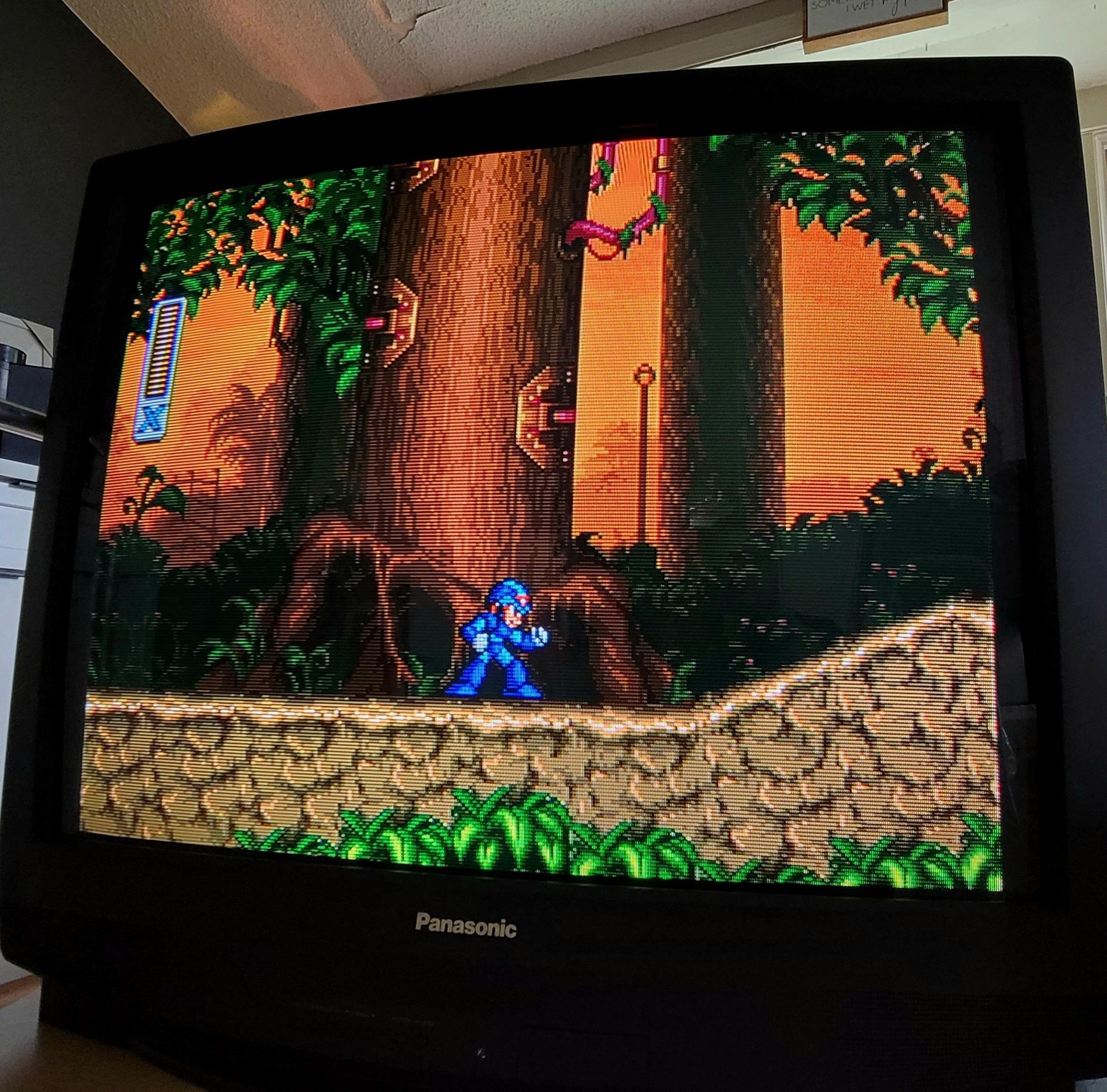

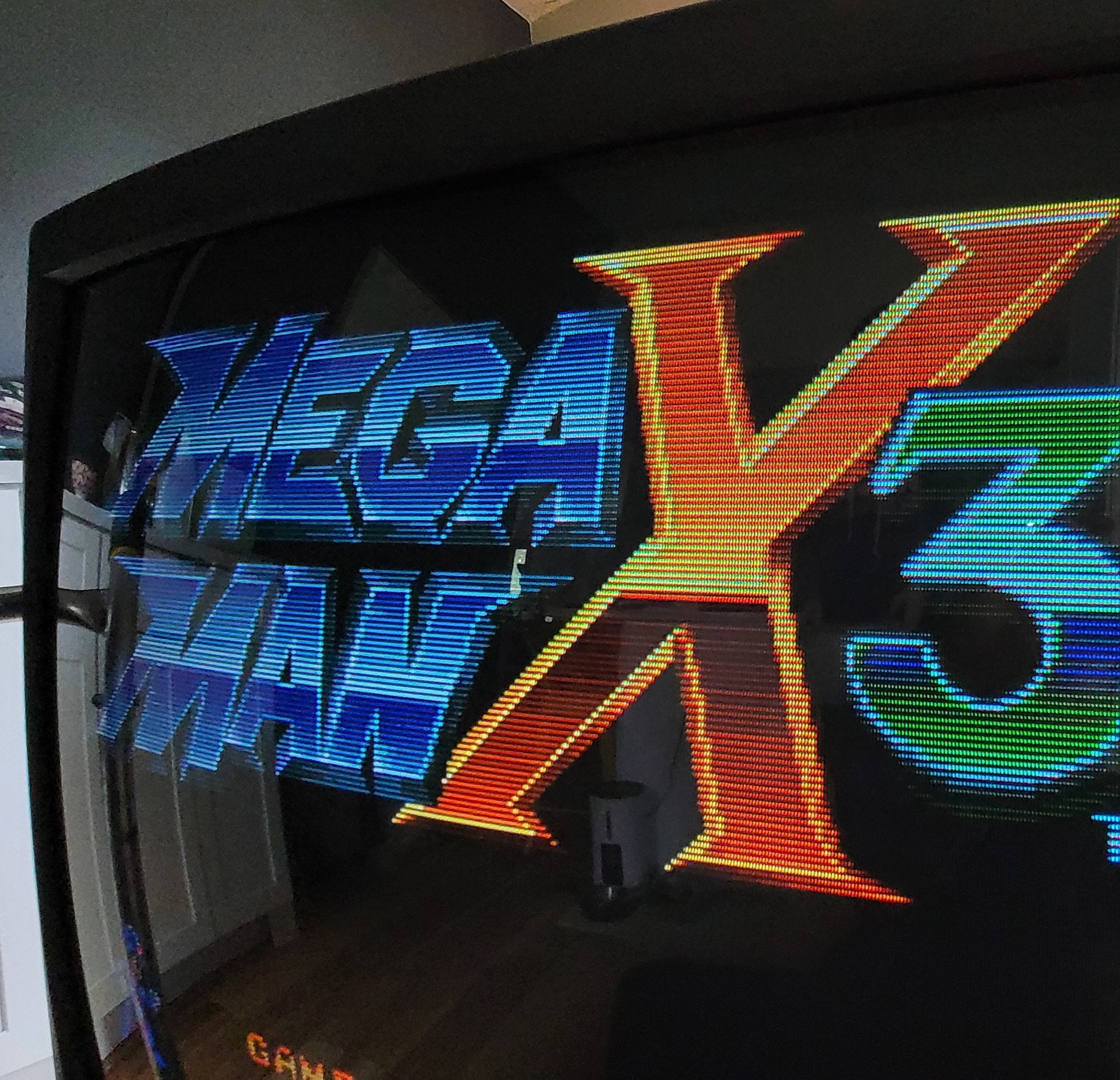

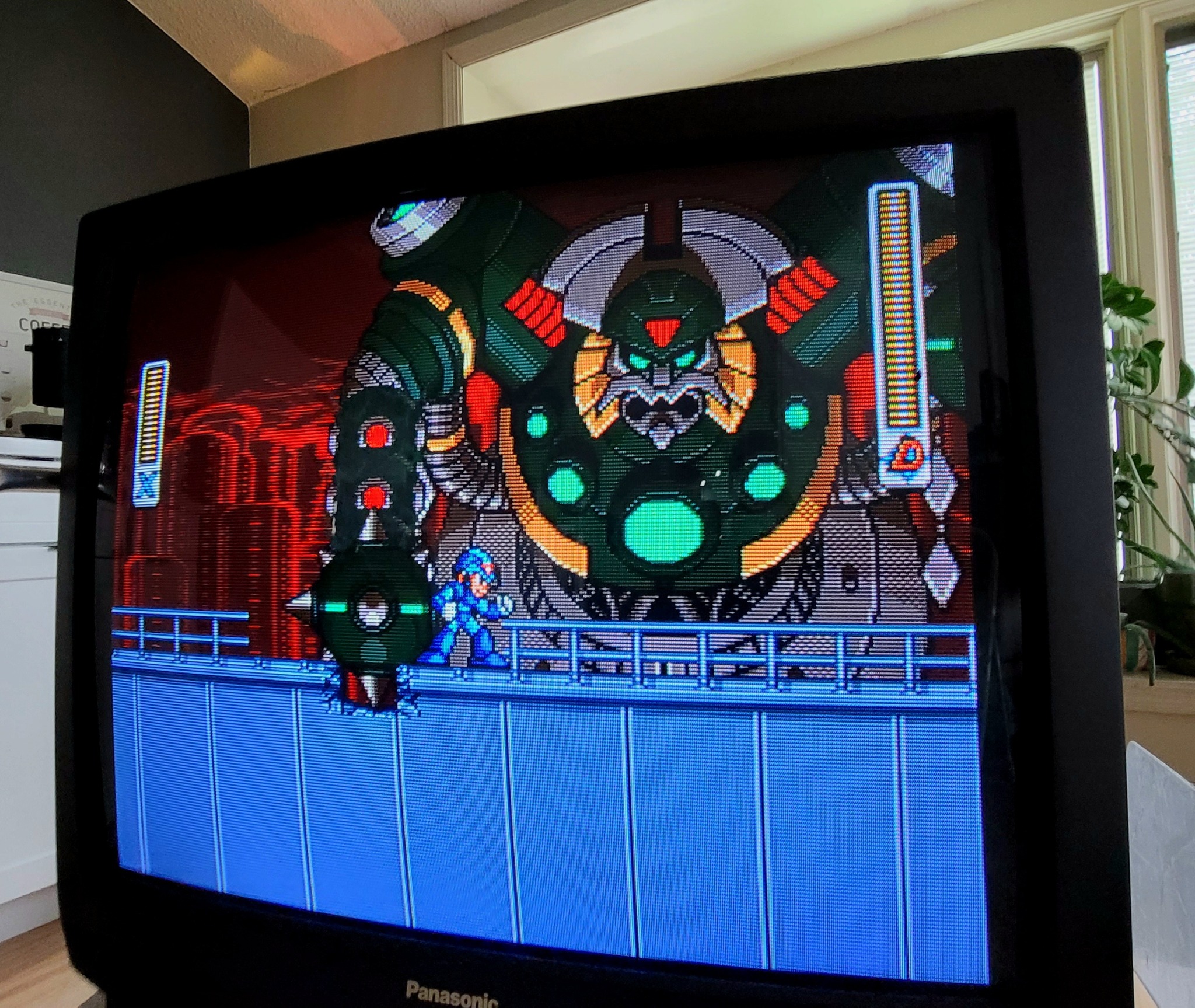

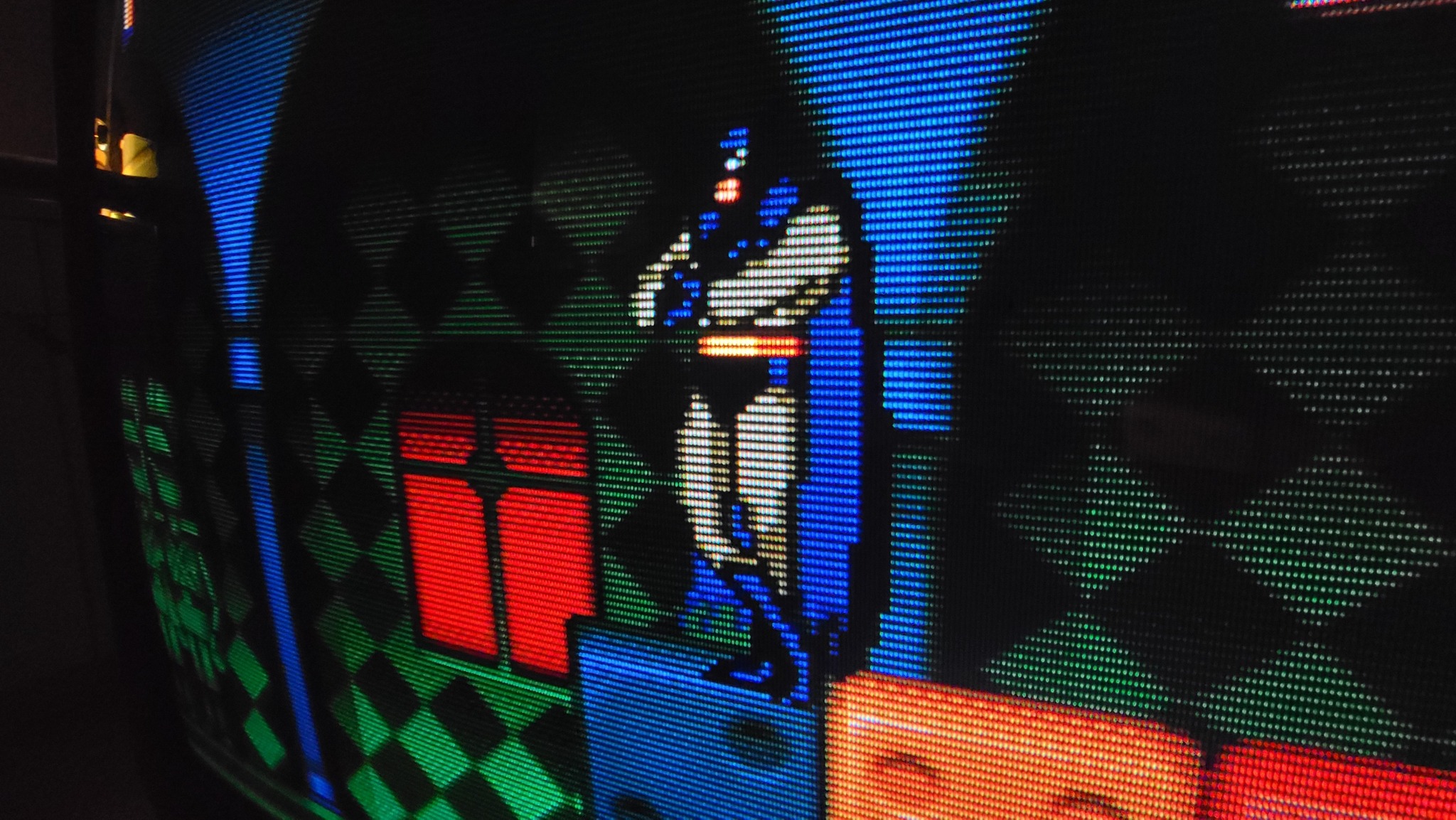

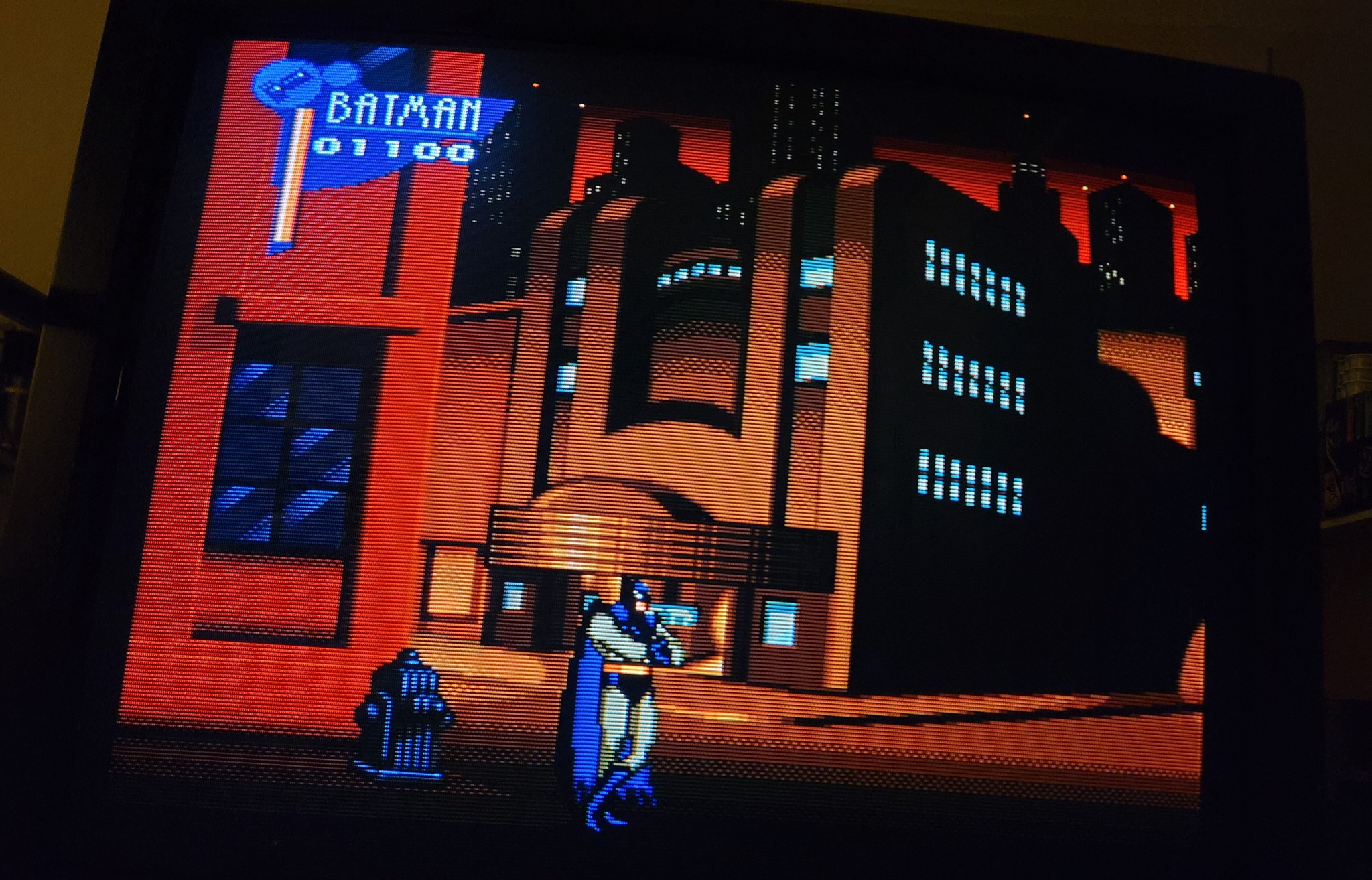

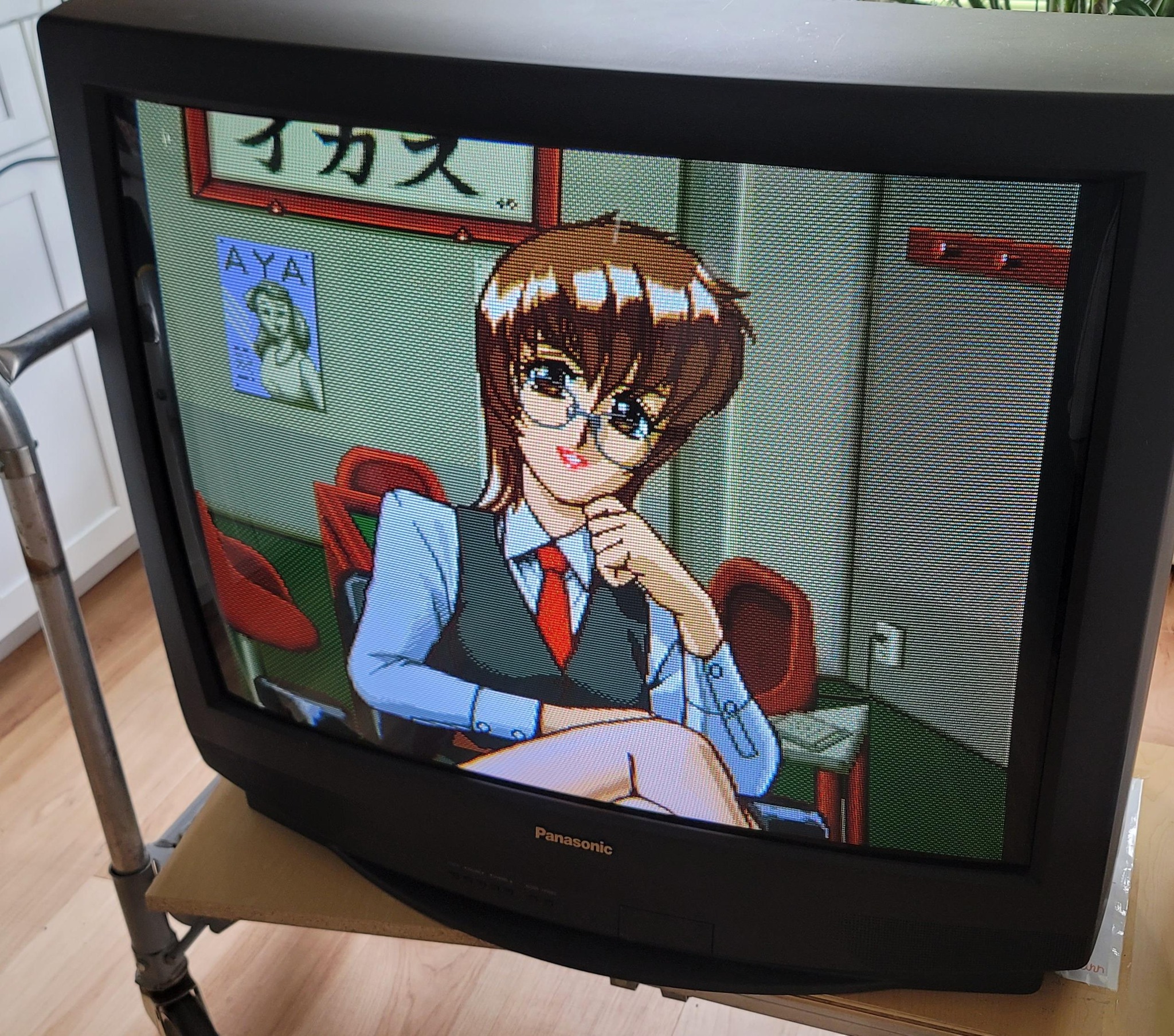

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-36D11 |
| Series: | CT |
| Viewable Size: | 36" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Sanyo, LA7845N |
| Jungle IC: | Toshiba, TA1310, TA1310BN |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | MN82840 |
| Flyback: | KFT6AB056F |
| Focus Type: | Single |
| Tube: | Panasonic , A68KRQ80X , A90LLD361X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | KDY42L632F |
| Speakers: | Stereo, 5W x 2 |
| Remote: | EUR511502 |
| Chassis: | GP342 |
| Weight: | 148.5 lbs (67.4 kg) |
| Dimensions (W/H/D): |
878 x 642 x 764 mm
(34.5 x 25.2 x 30") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 899 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Mods: | RGB via Mux |
| Degaussing: | Automatic on Power-on |
