Summary

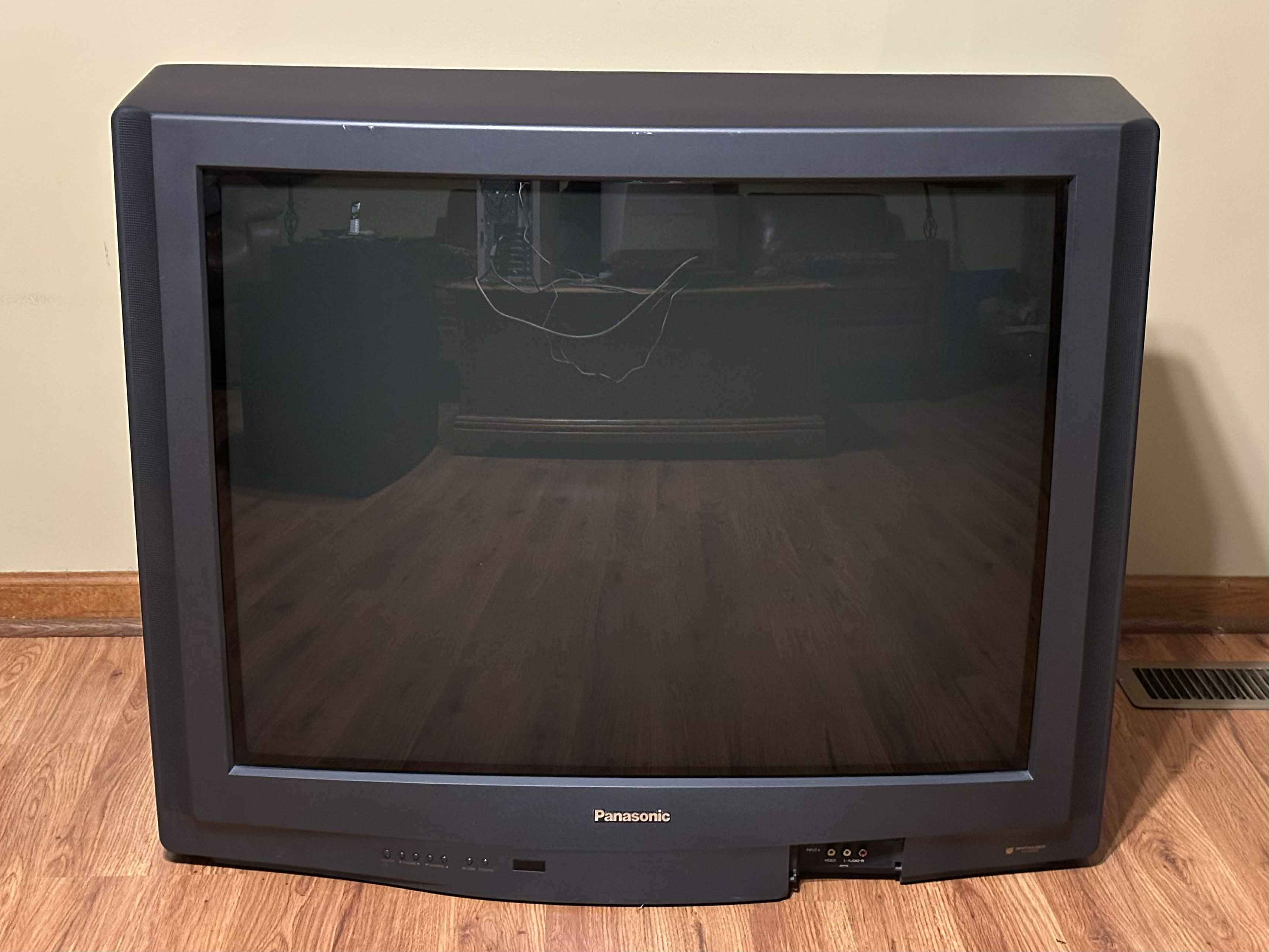

36" curved screen CRT by Panasonic. Has a full set of inputs: RF, composite, s-video, and component. This was among the first standard-definition CRT models Panasonic made with component inputs, as prior to this, the sets they made with that input were either HD CRTs or multi-media CRTs. Originally manufactured in Mexico in 2000.
(Special thanks to Nick C. for the pics!)
Manuals
Notes

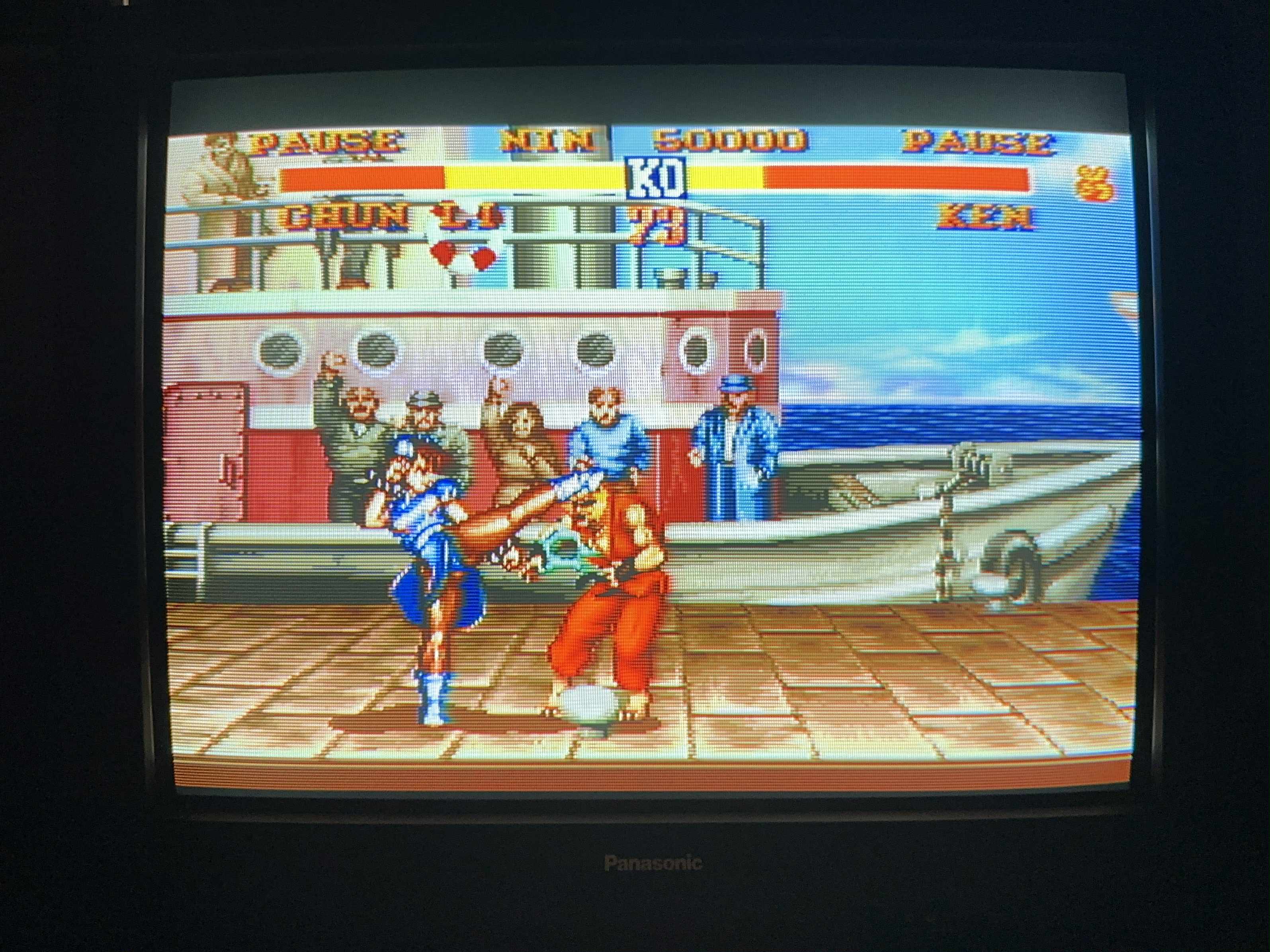

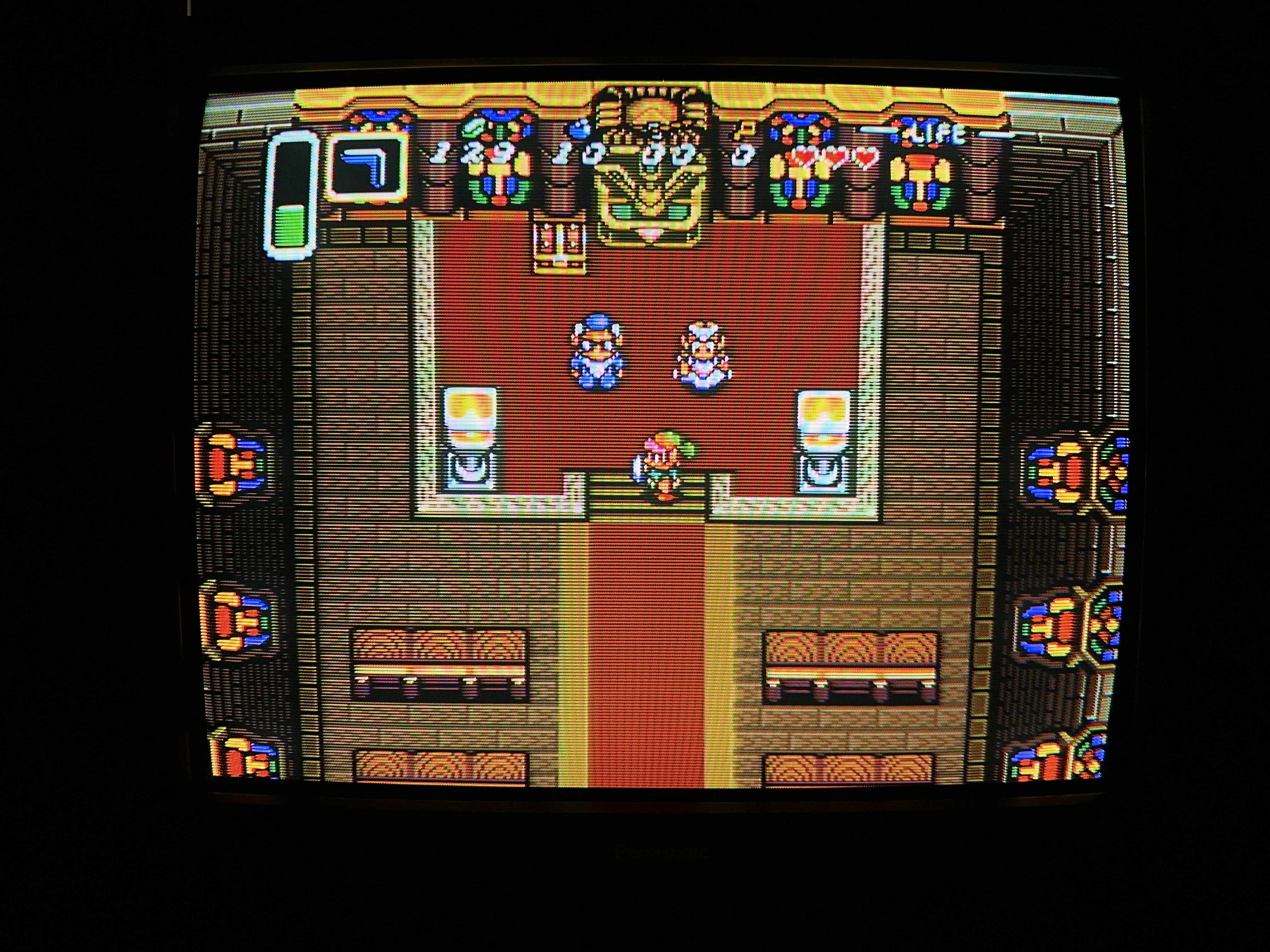

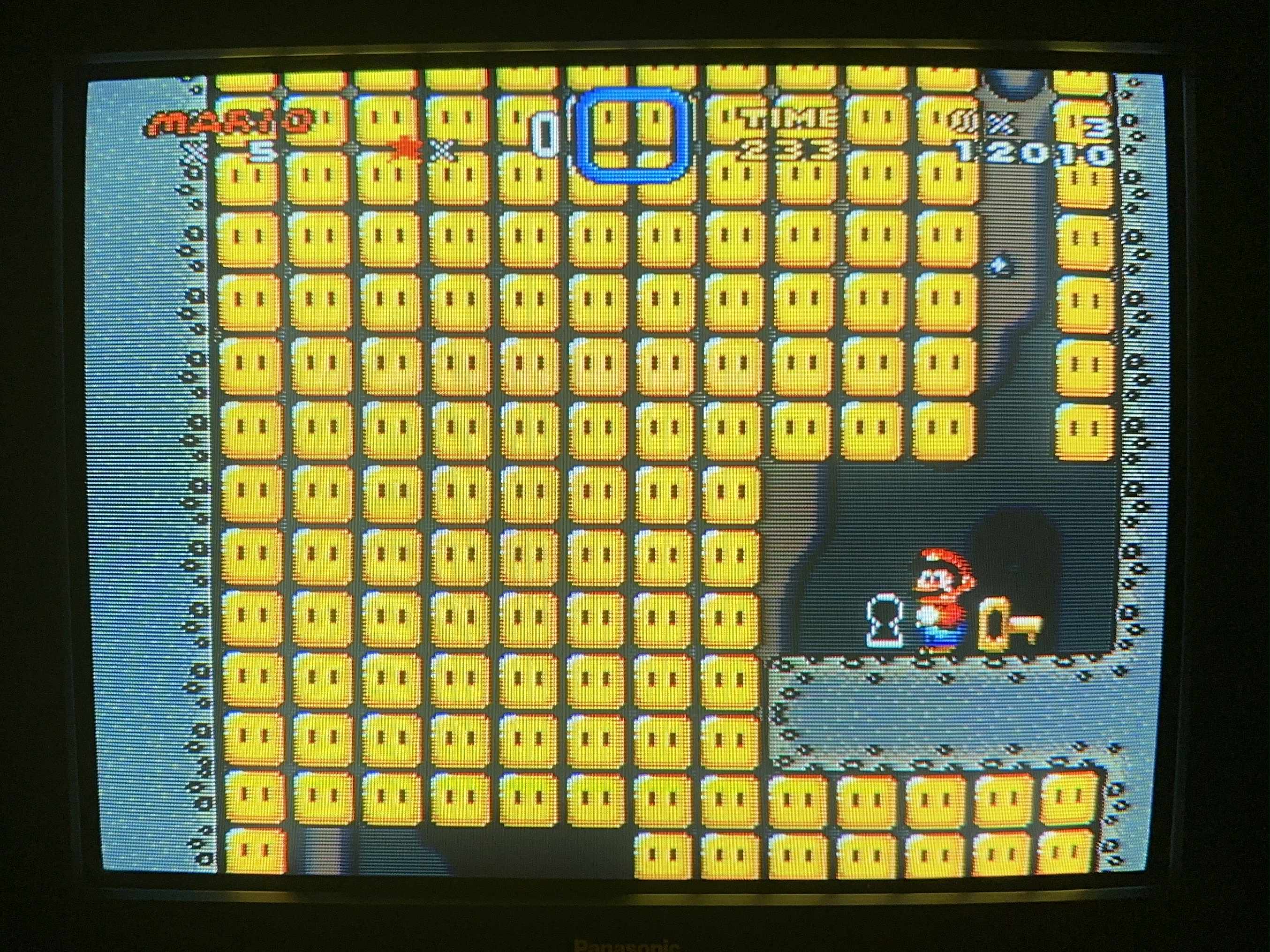

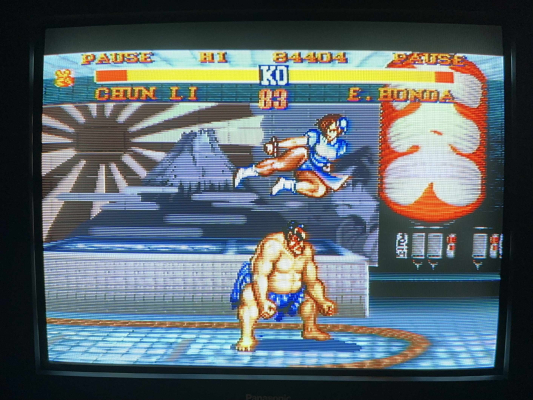

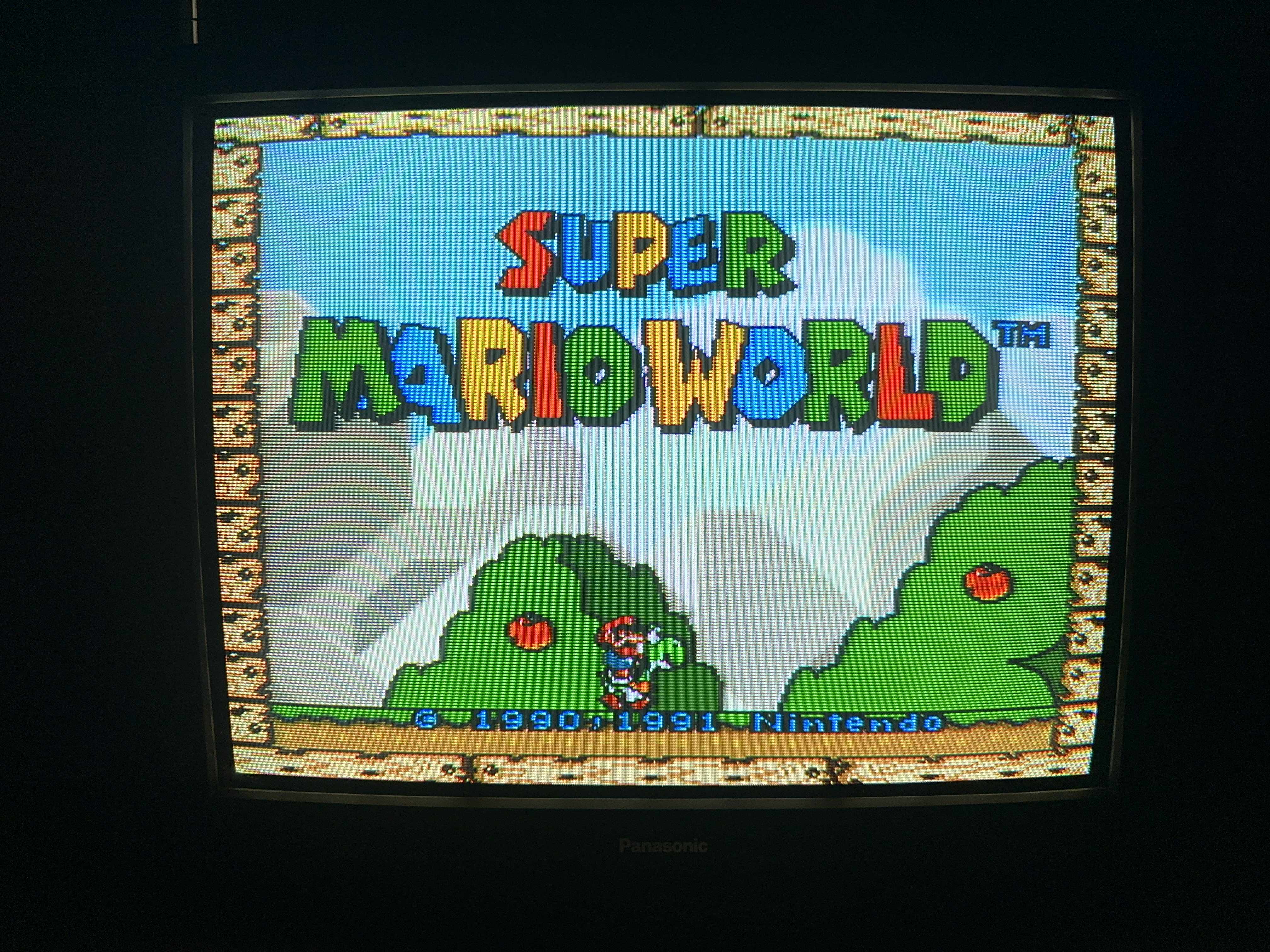

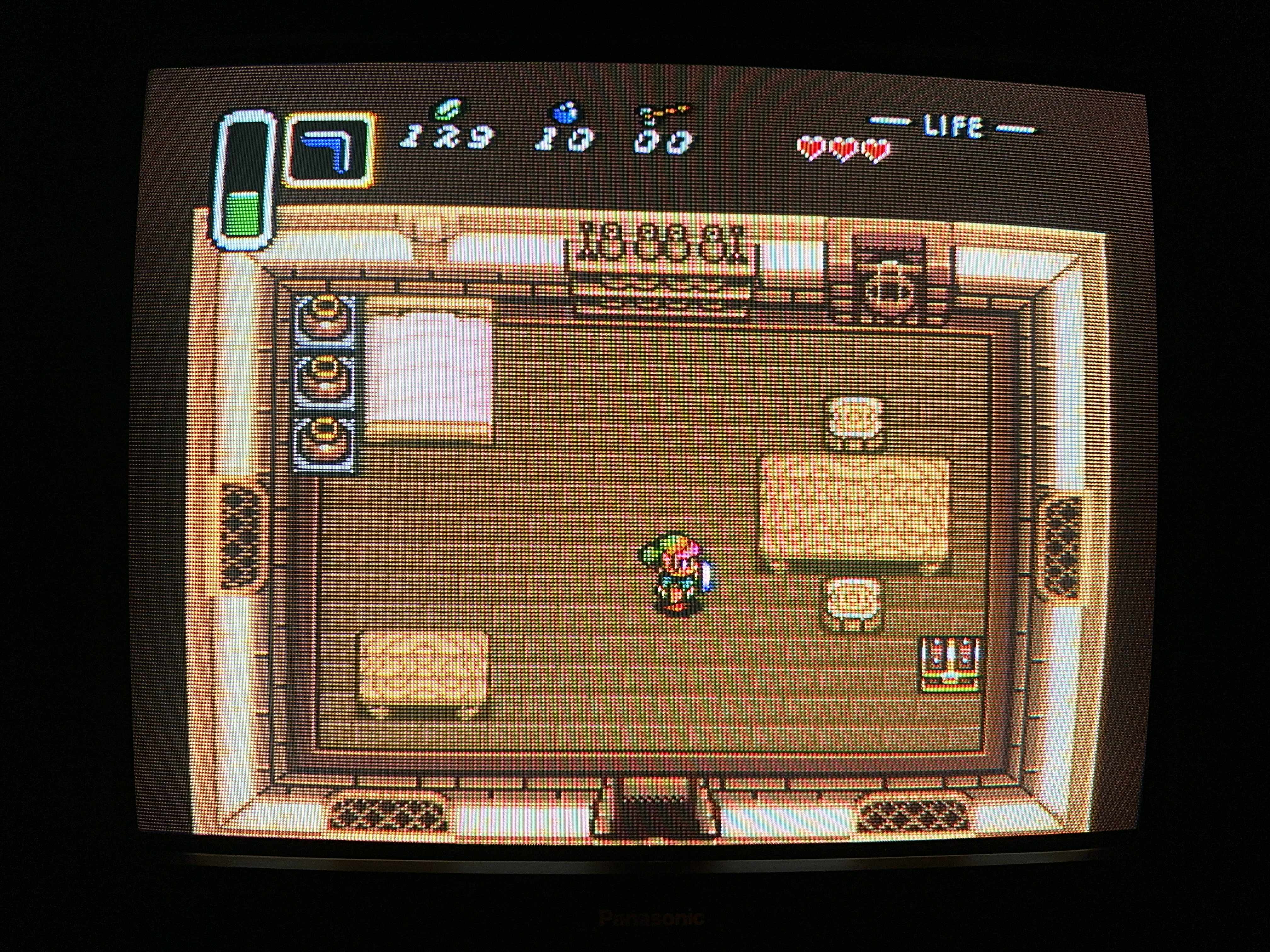

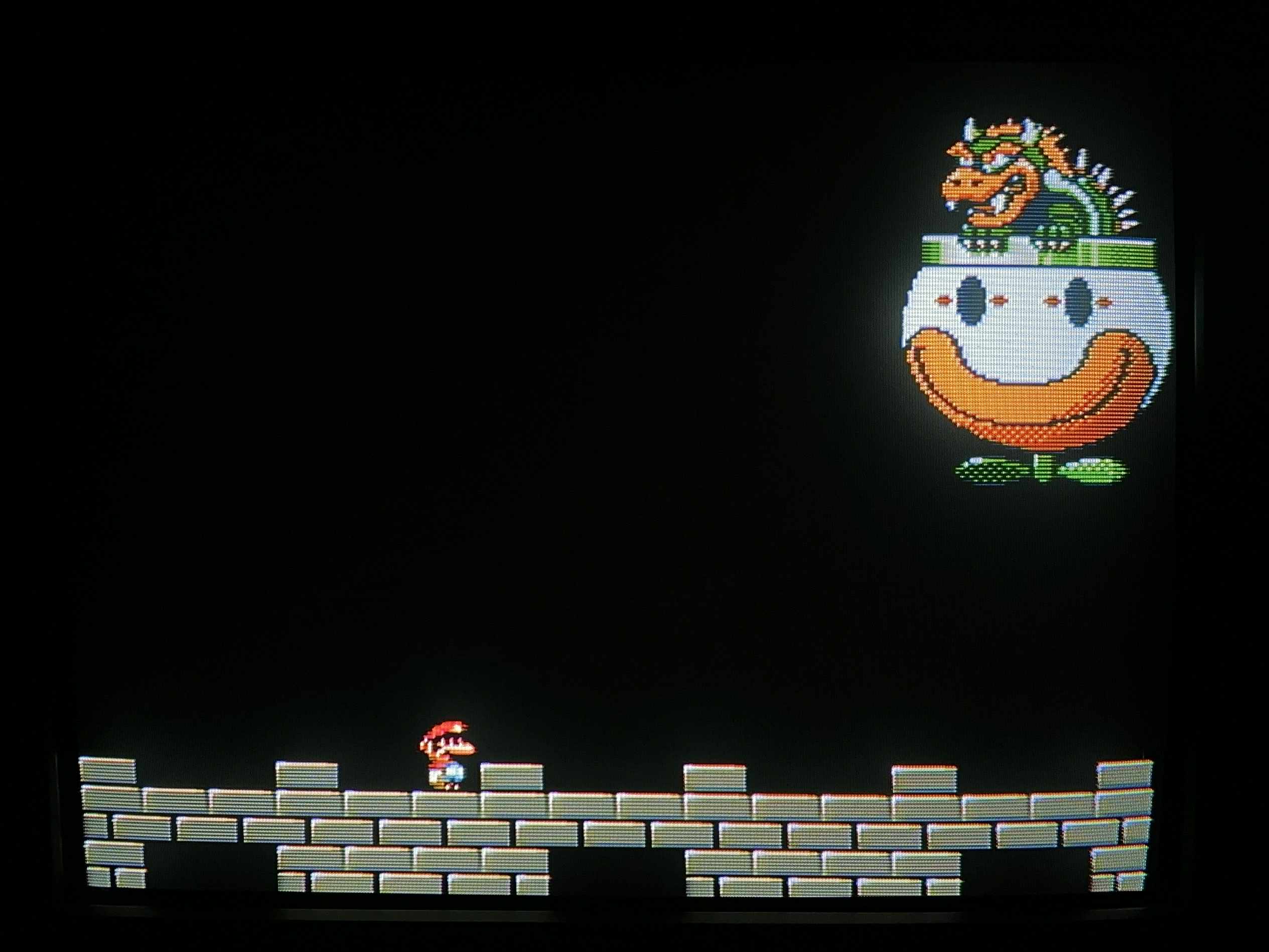

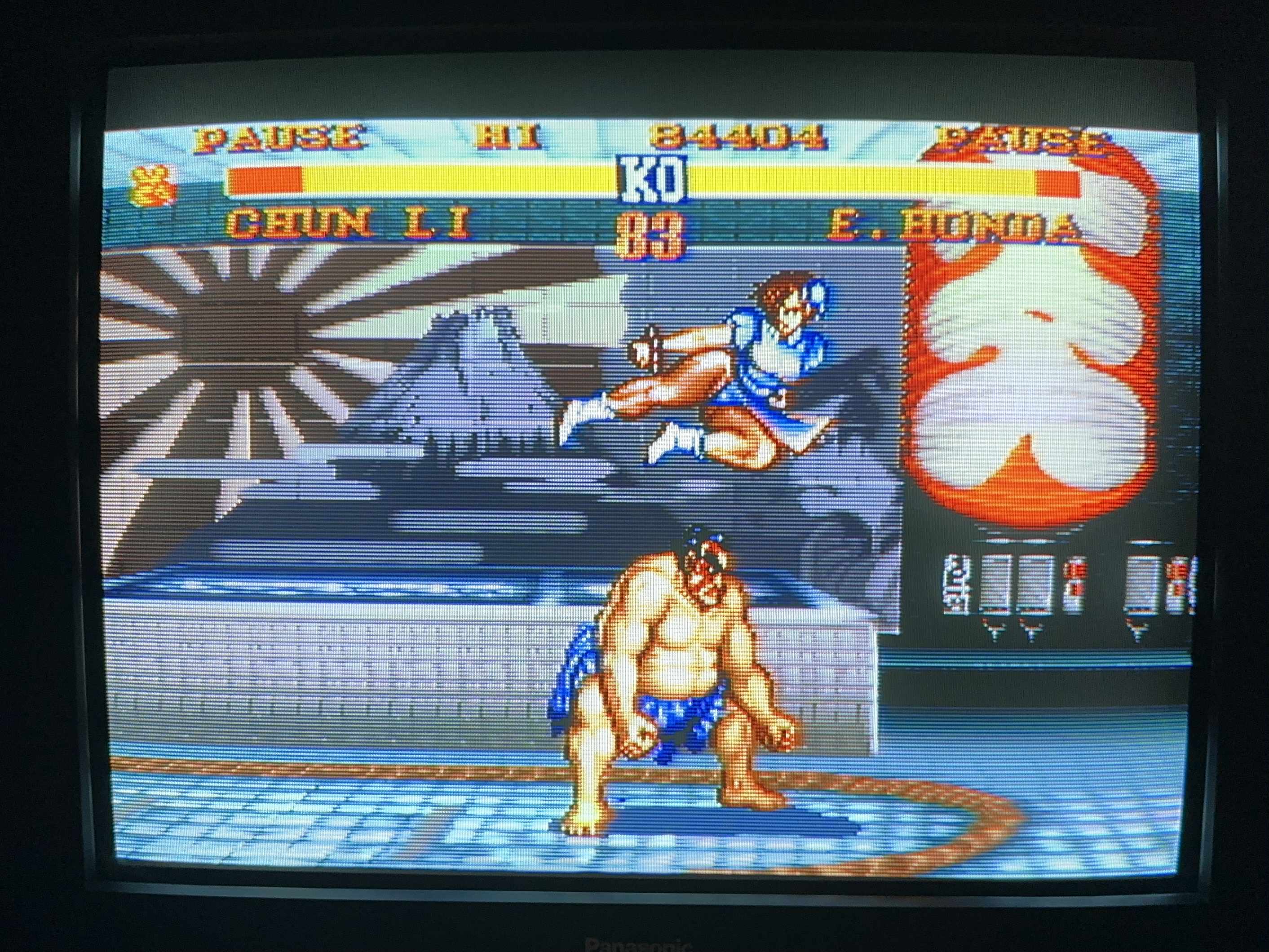

Picture quality via the Panasonic jungle is pretty good once you disable VM. Simply unplug the jumper connecting the yoke to the neckboard and VM is no more. (The included pics are with VM enabled.)
Can toggle a 3D comb filter in the standard menu.
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CT-36SF37 |
| Series: | CT |
| Viewable Size: | 36" |

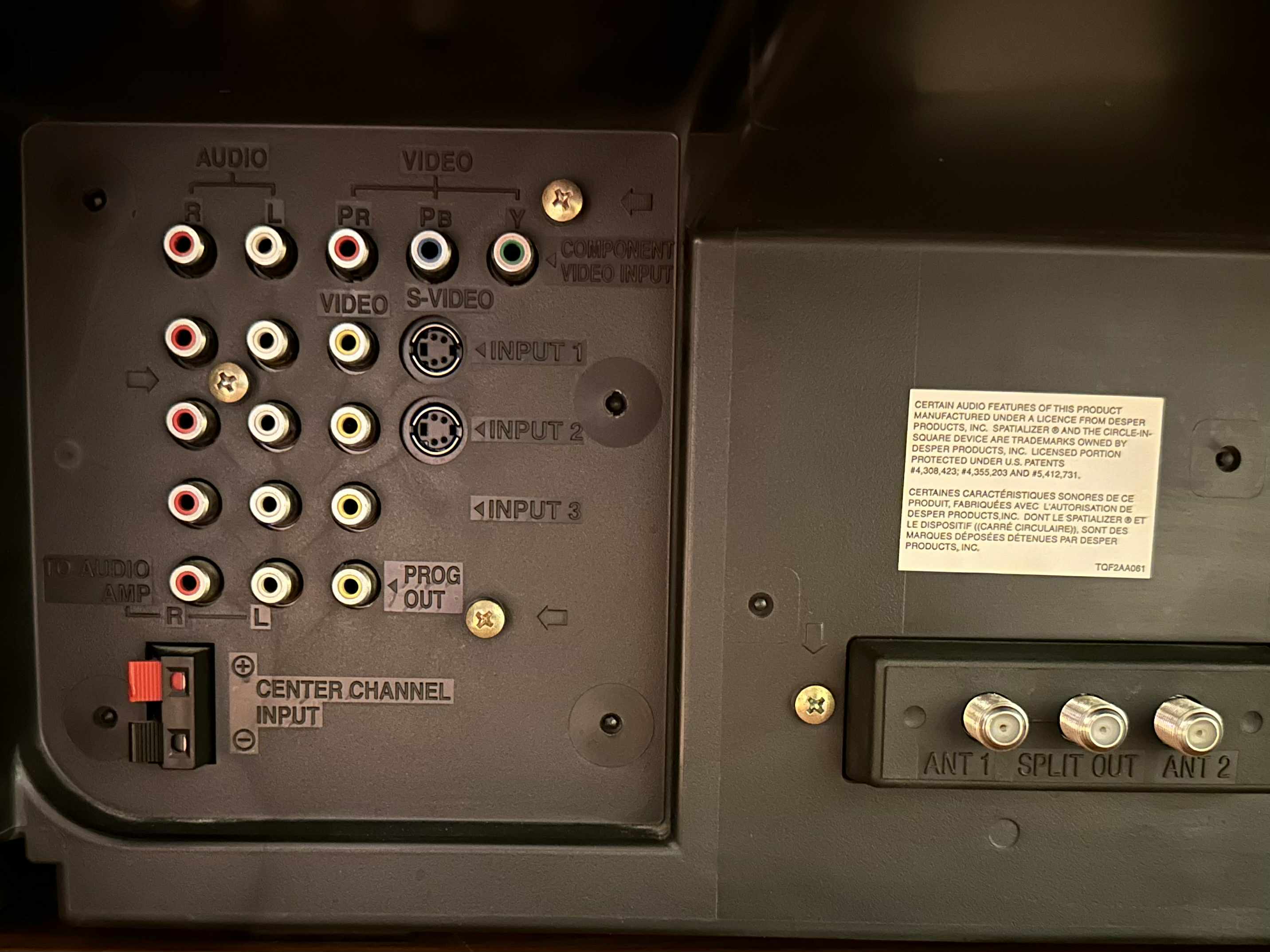

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Panasonic, MN101C46FTA3 |
| Comb Filtering: | 3D Digital |
| Focus Type: | Single |
| Tube: | Panasonic , A90LLD361X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2000 |
| MSRP: | 1799 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual |
