Summary

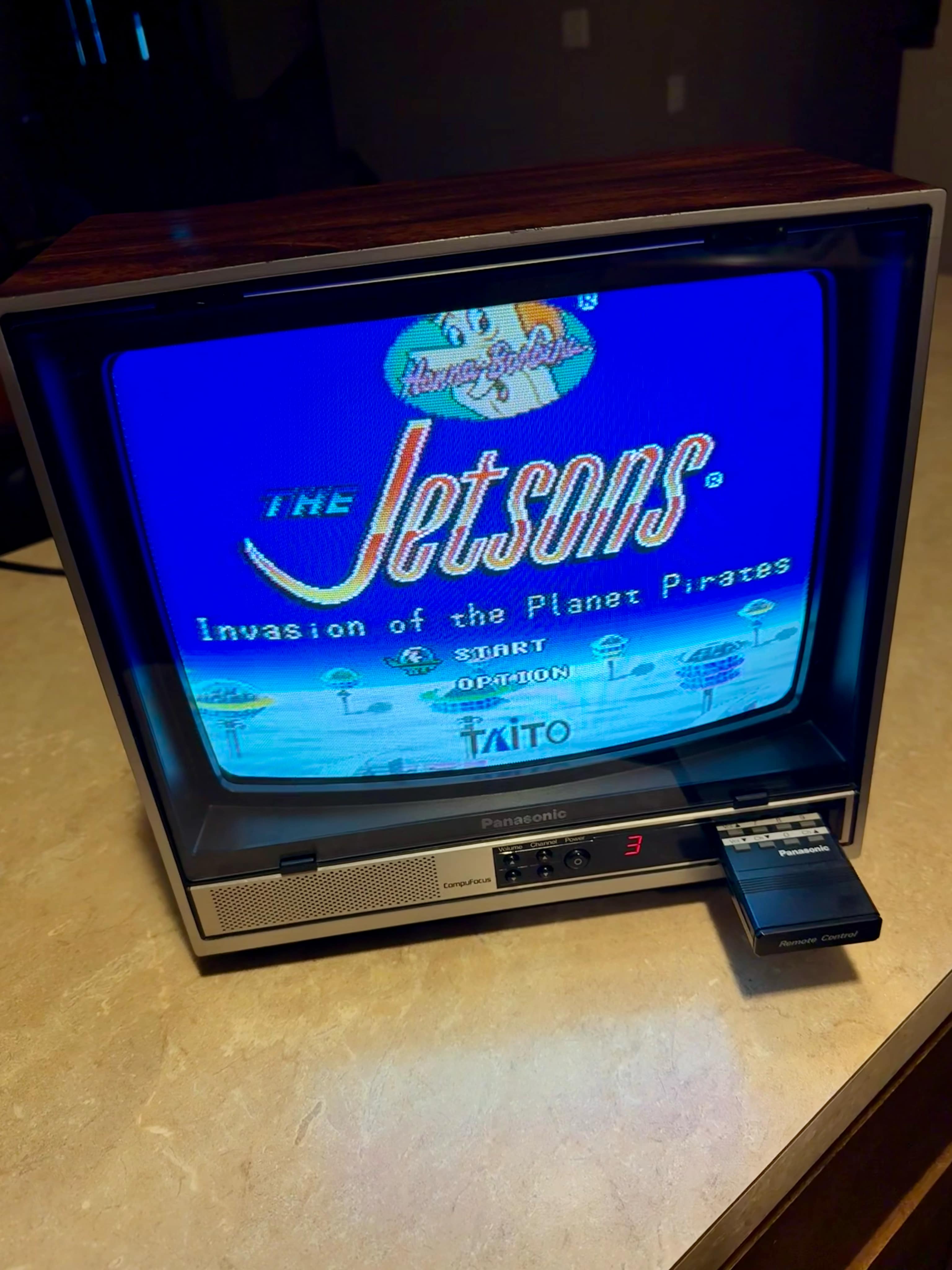

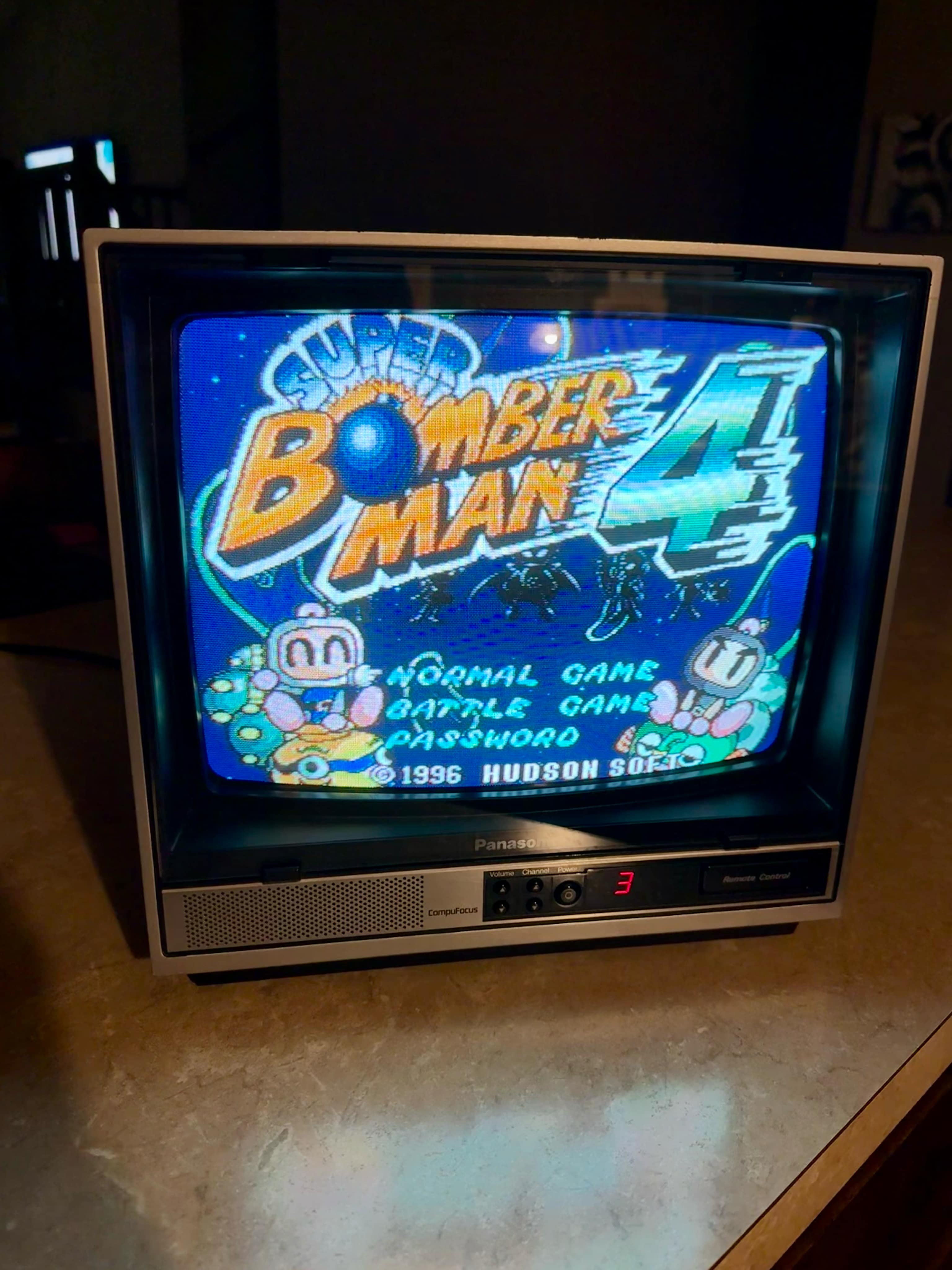

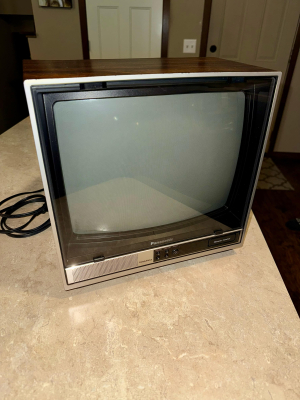

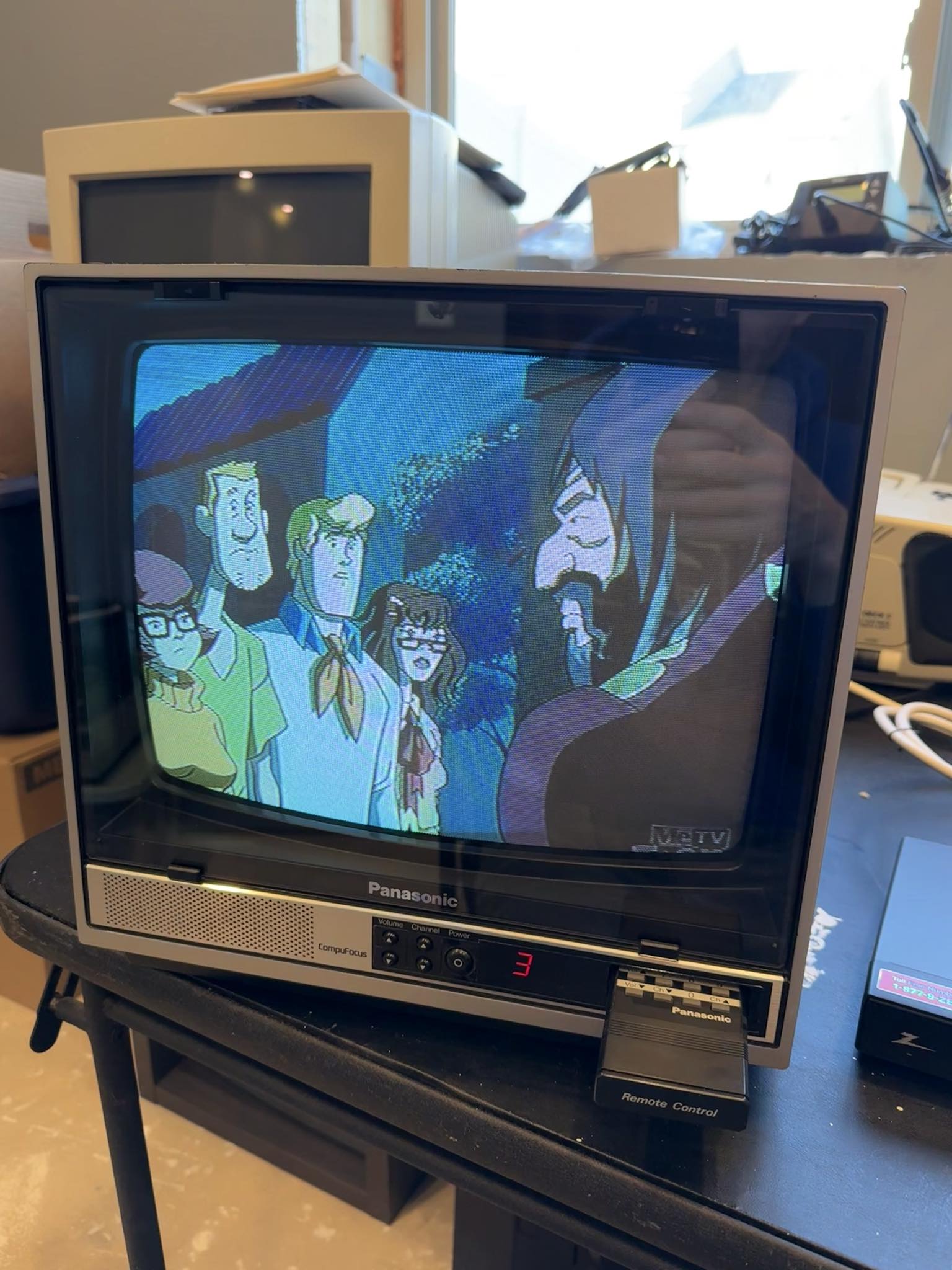

Basic 13" Panasonic set from 1985. Made by Matsushita Electric in Japan and assembled in the USA.

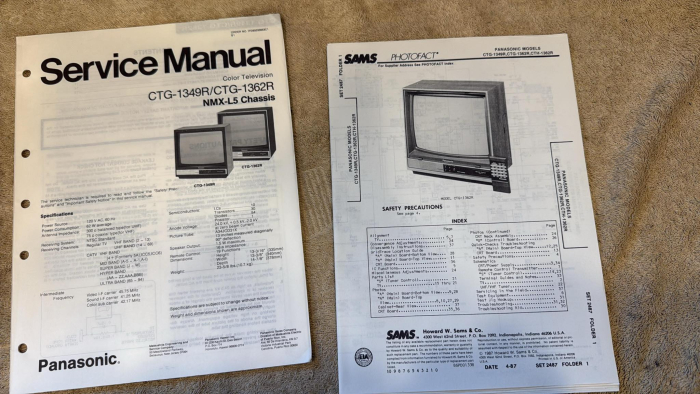

Manuals
Notes
This CRT is a non-isolated live chassis and RGB/S-Video/Composite mods should not be done to it.
There was a special limited edition variant of this model made exclusively for Loy's department stores in France. Link to article HERE

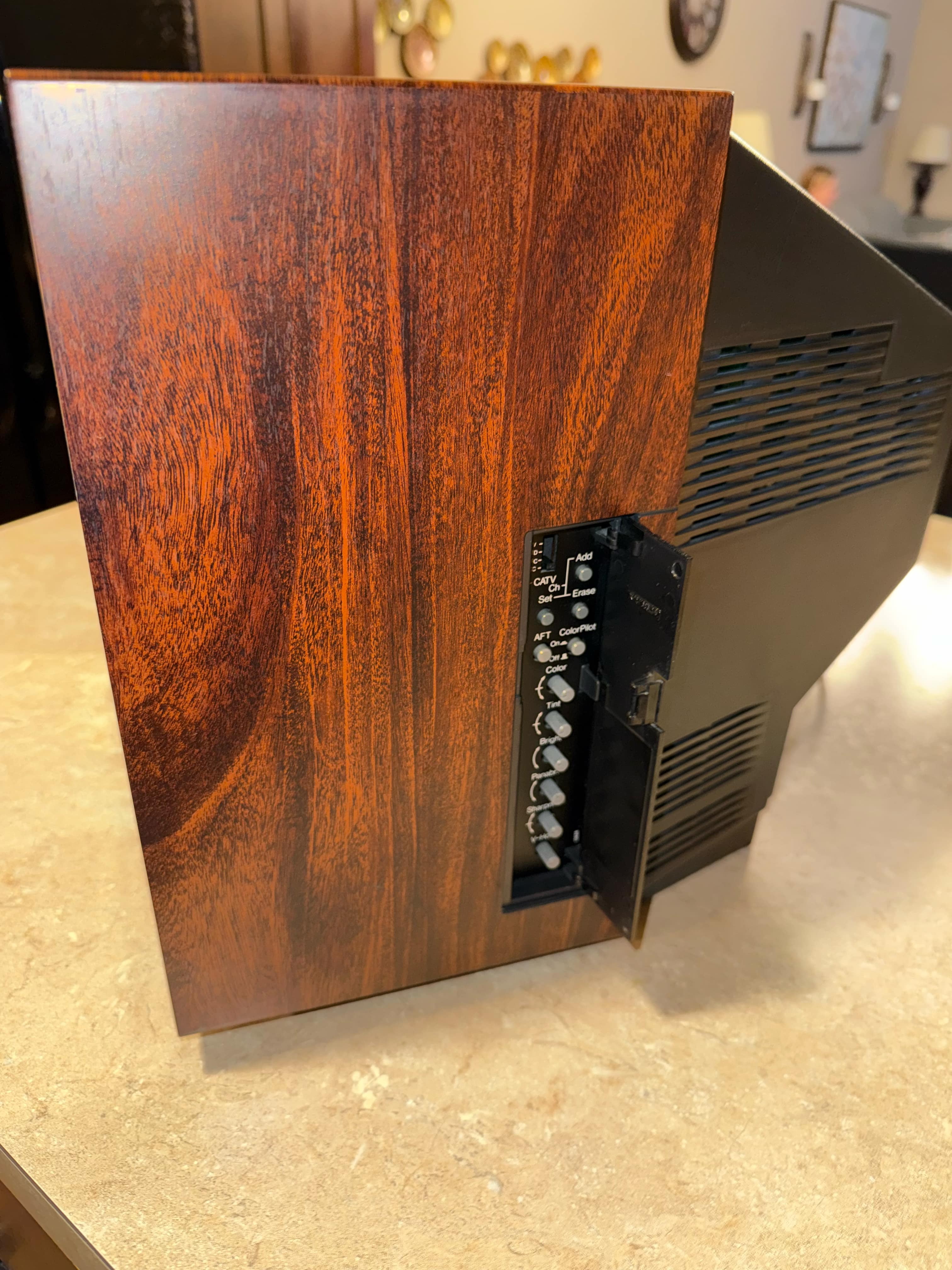

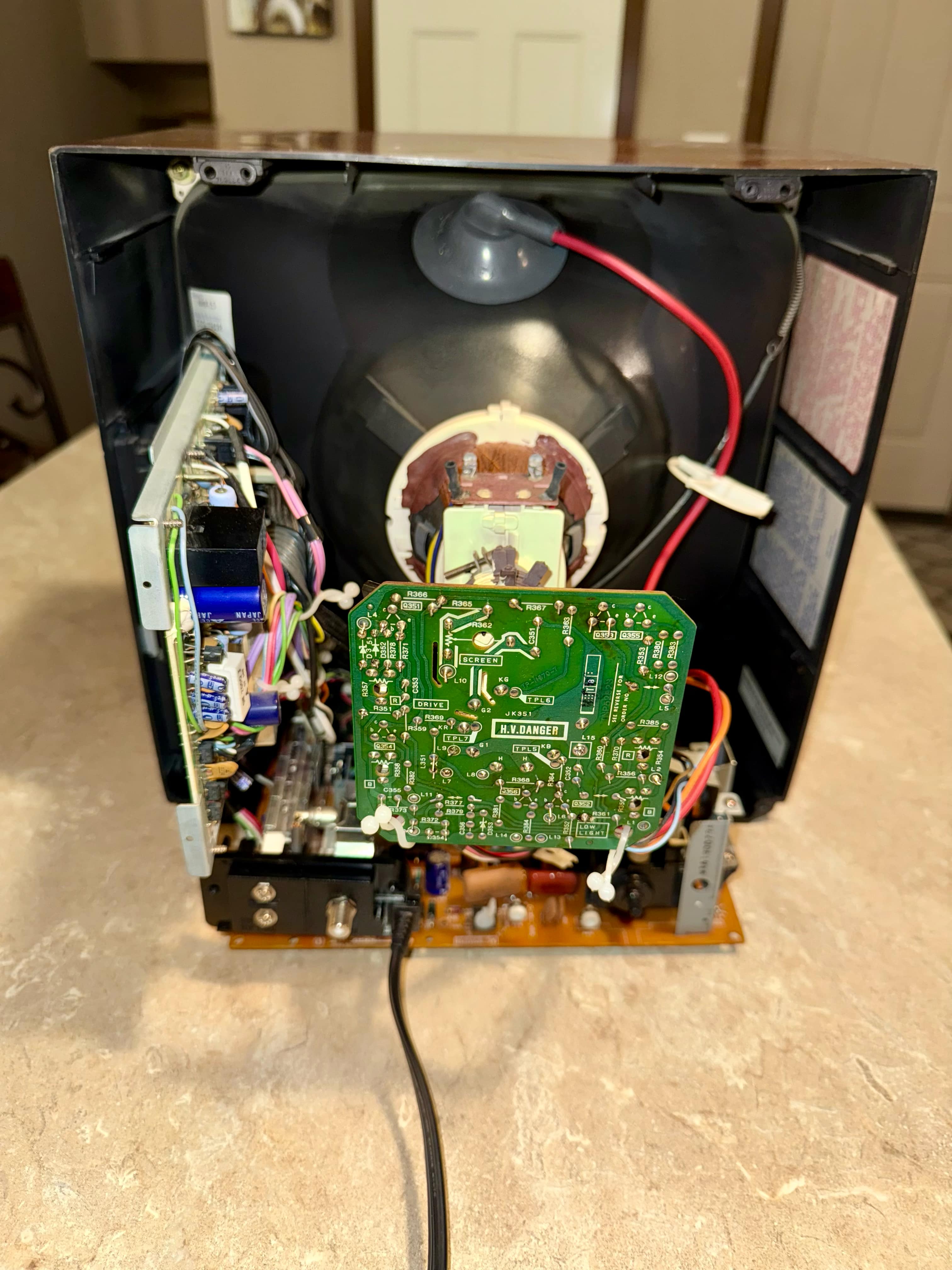

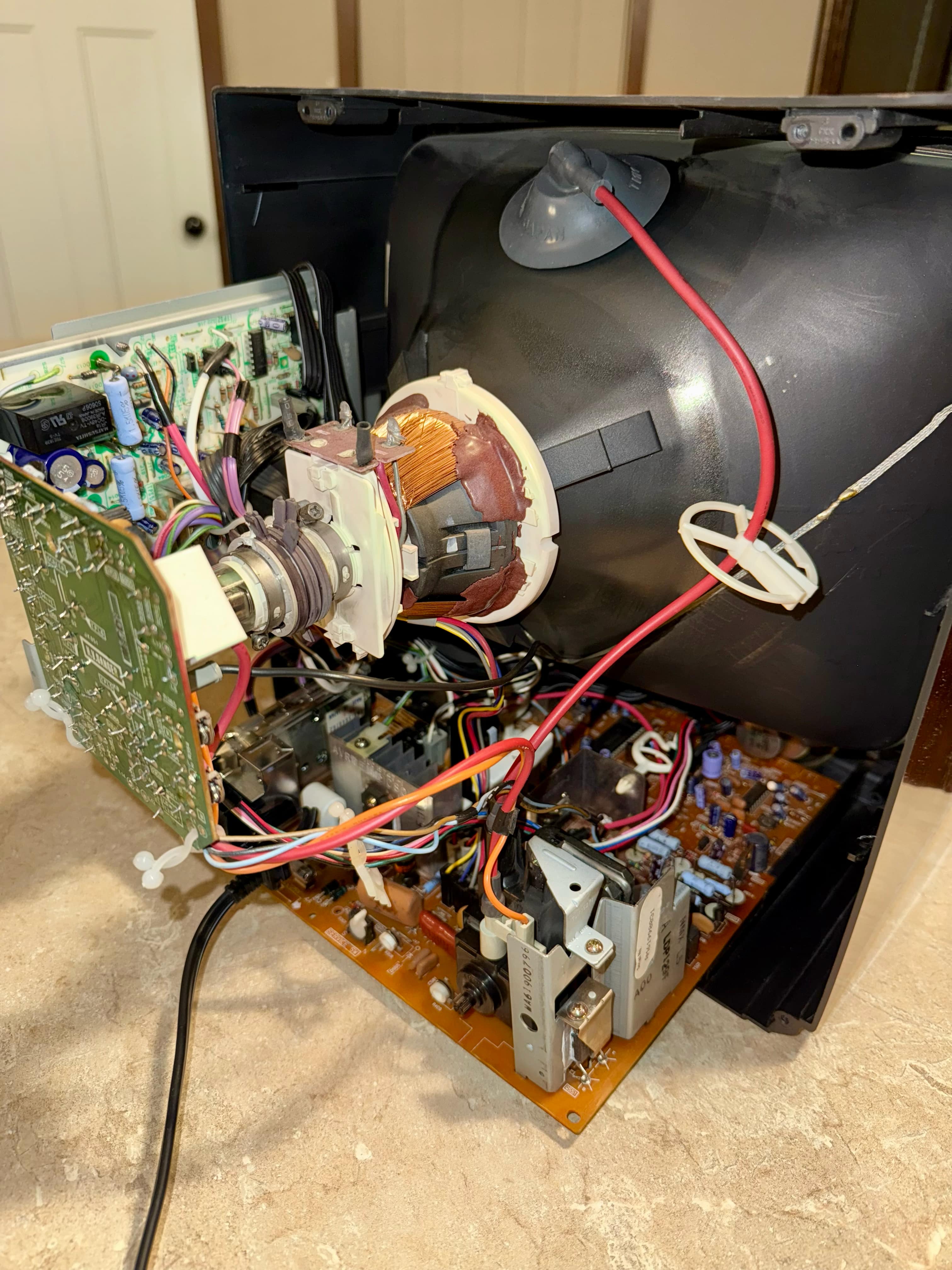

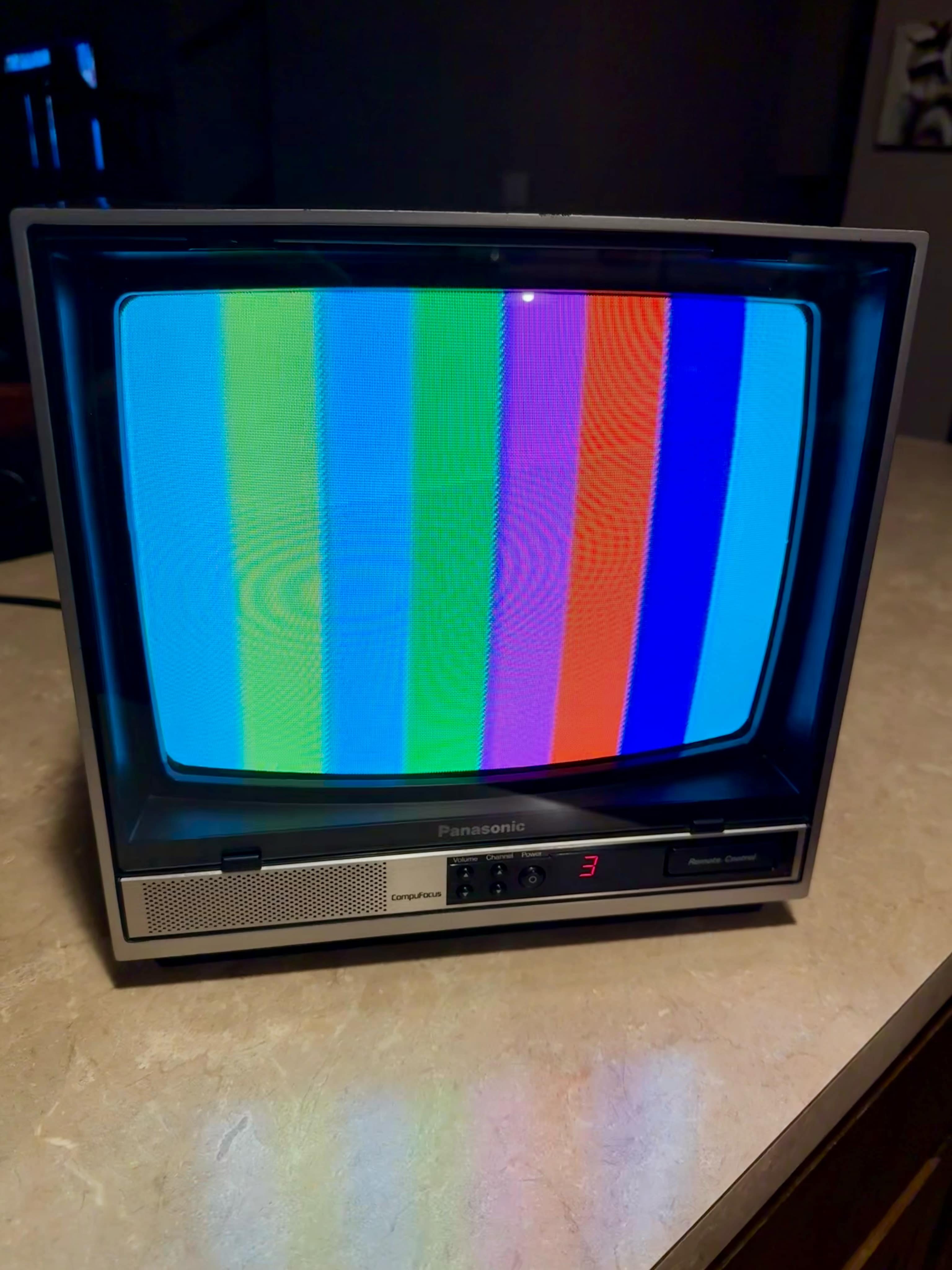

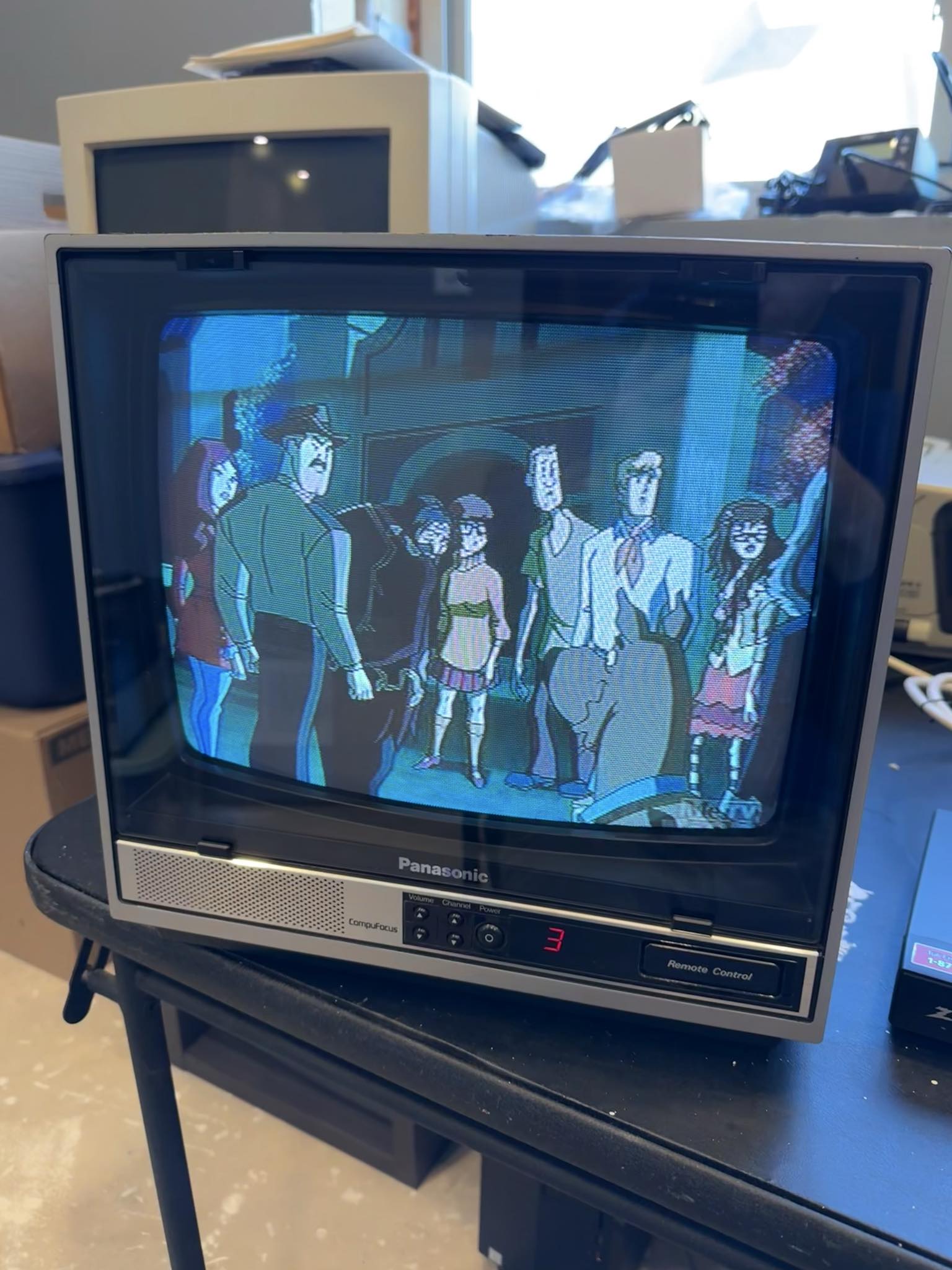

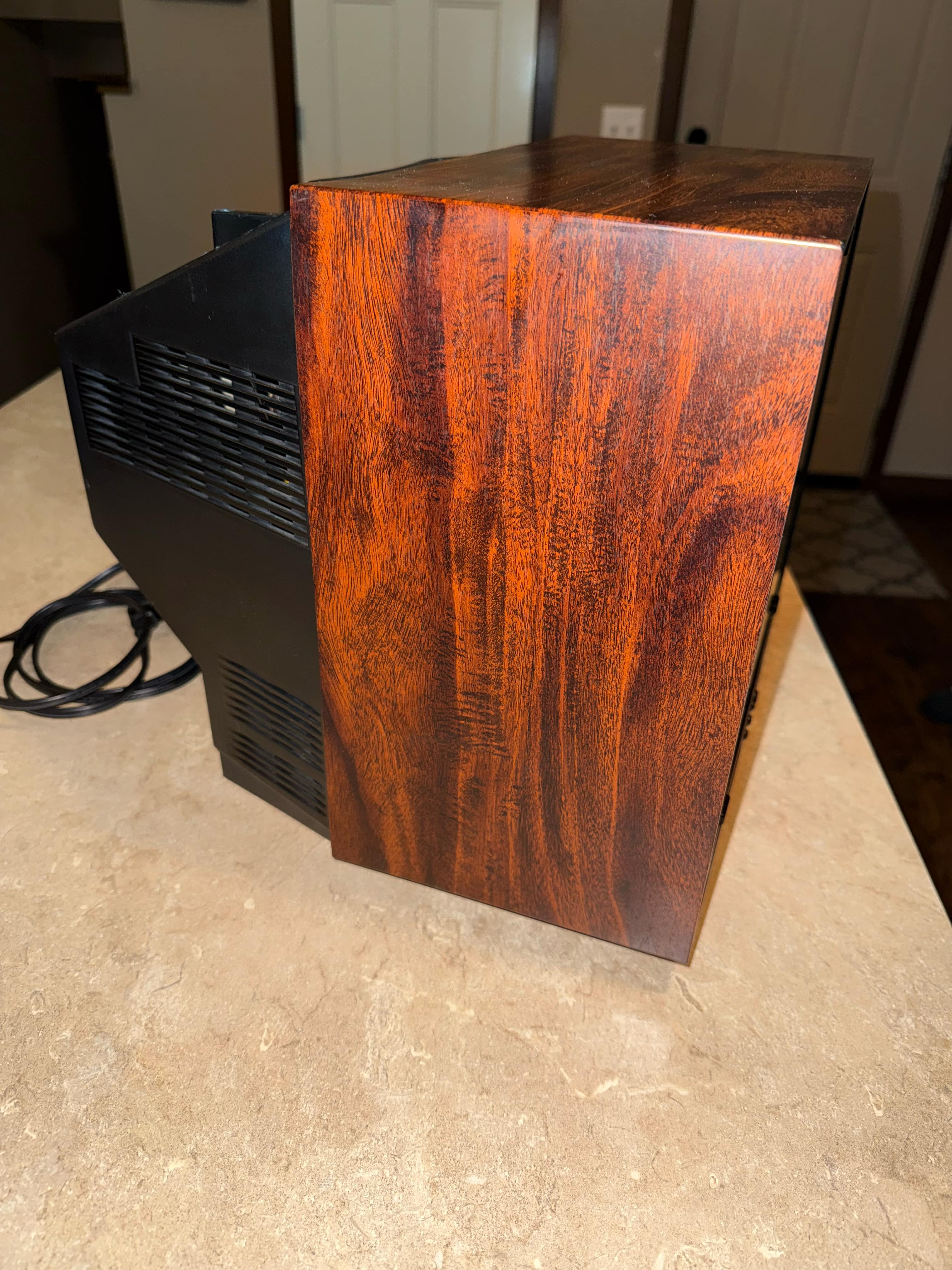

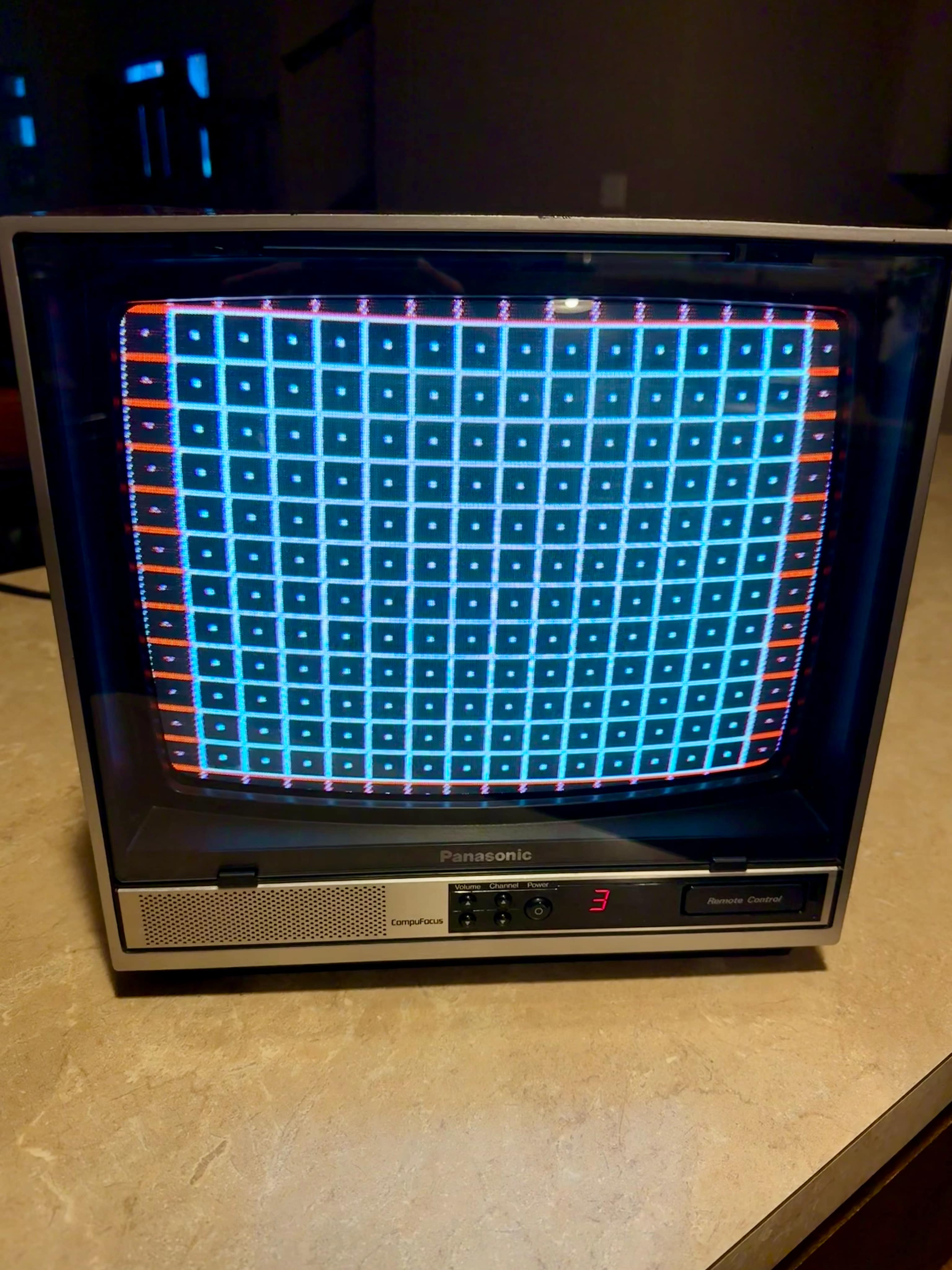

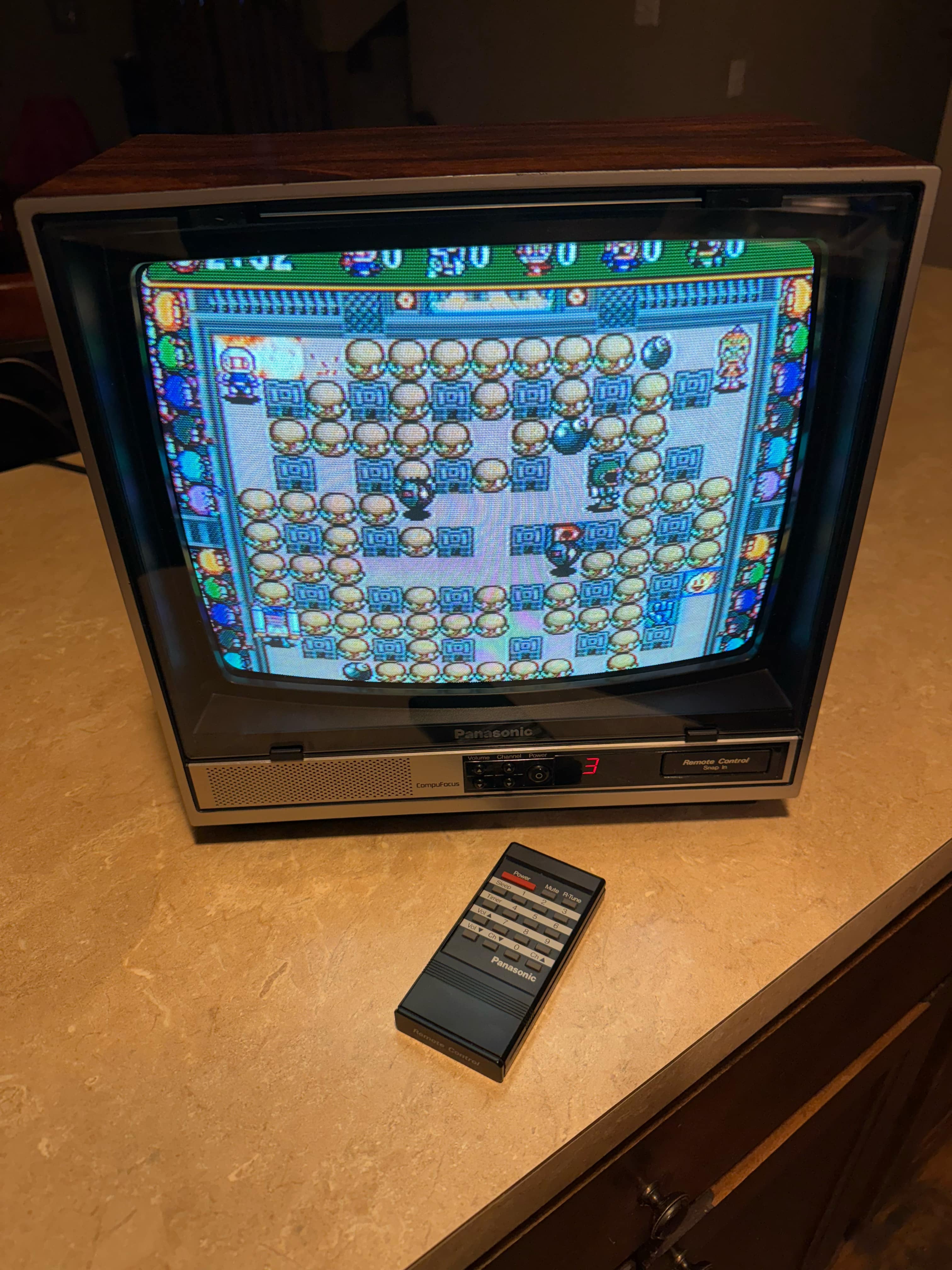

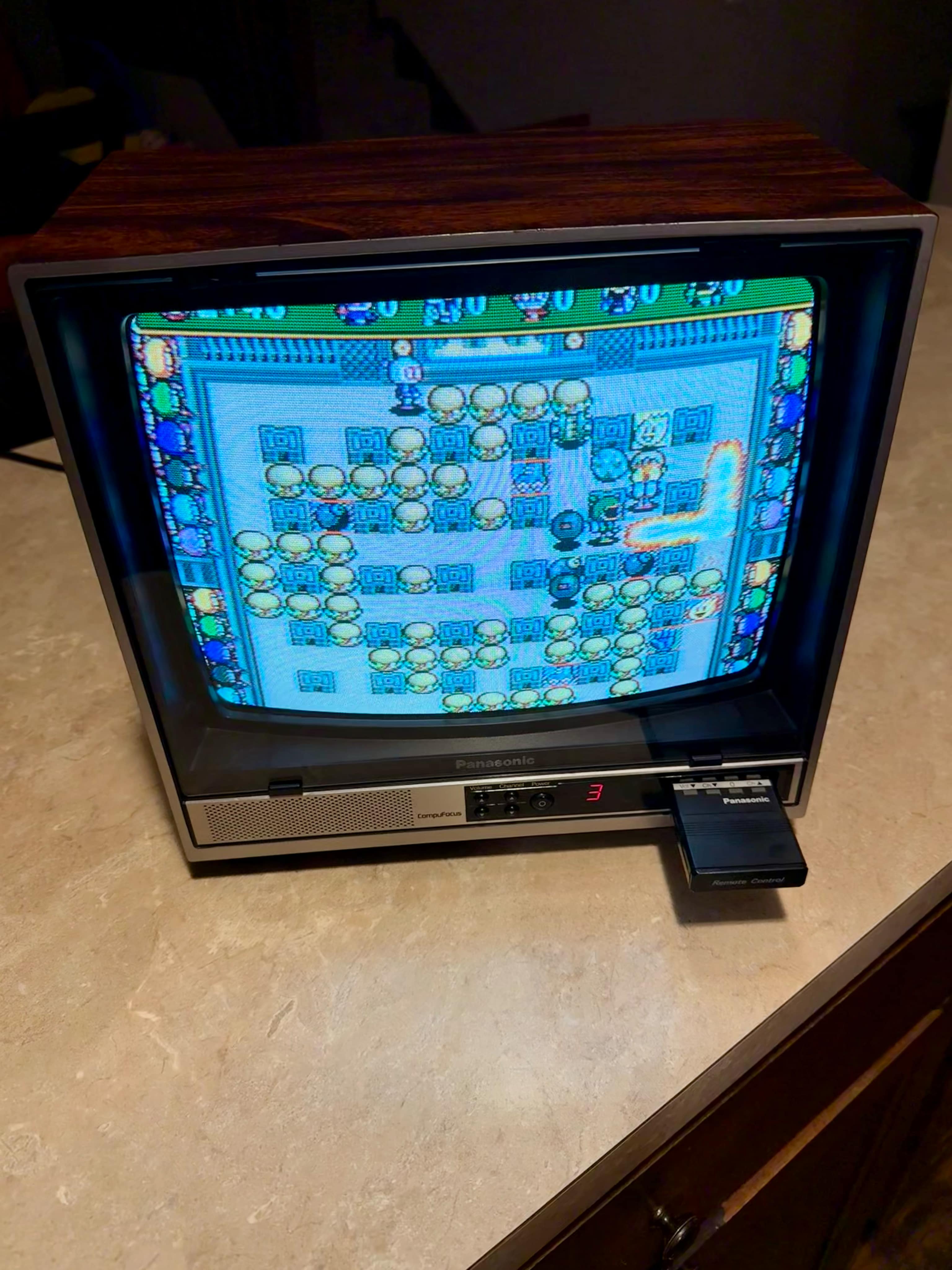

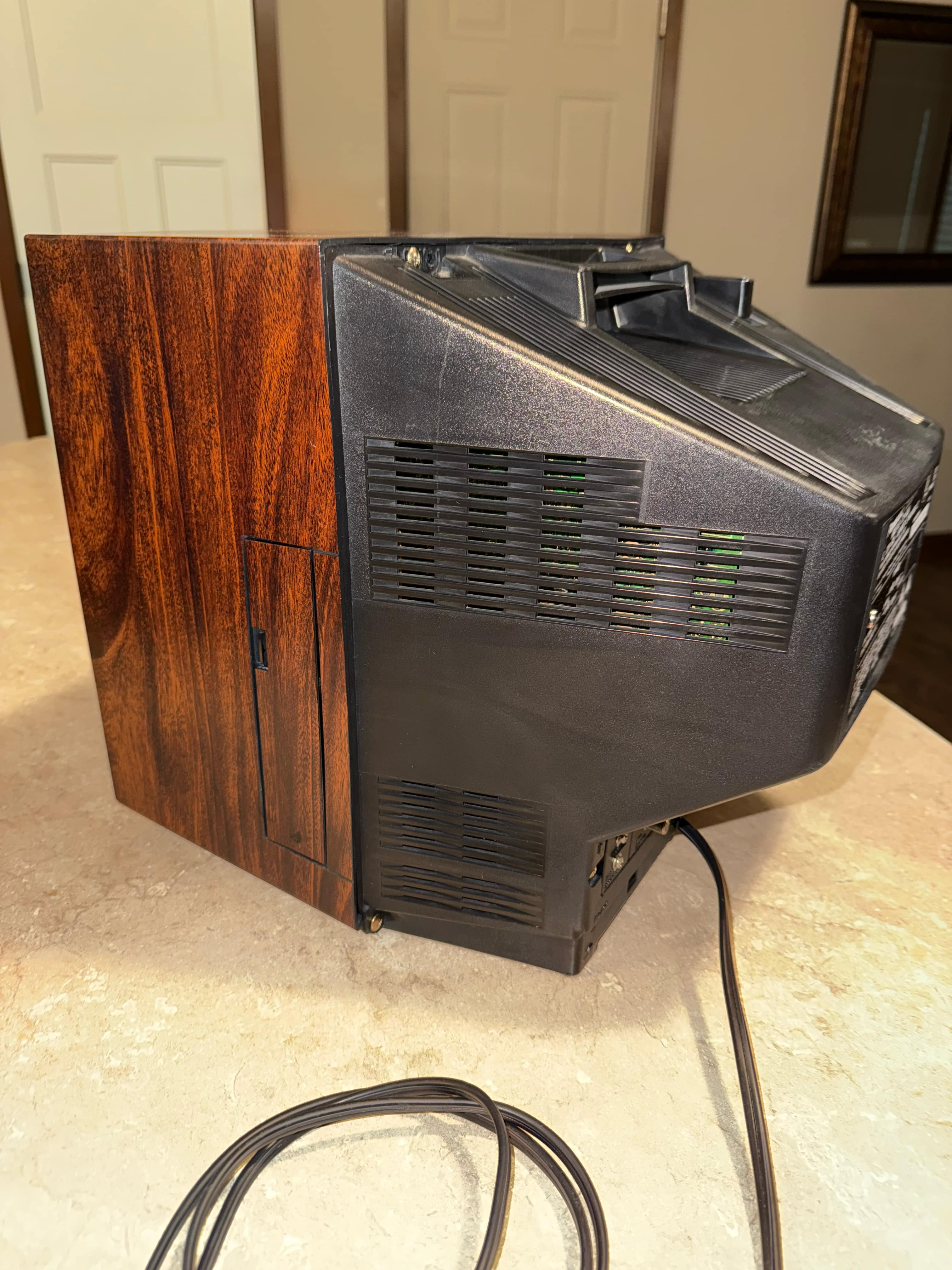

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |

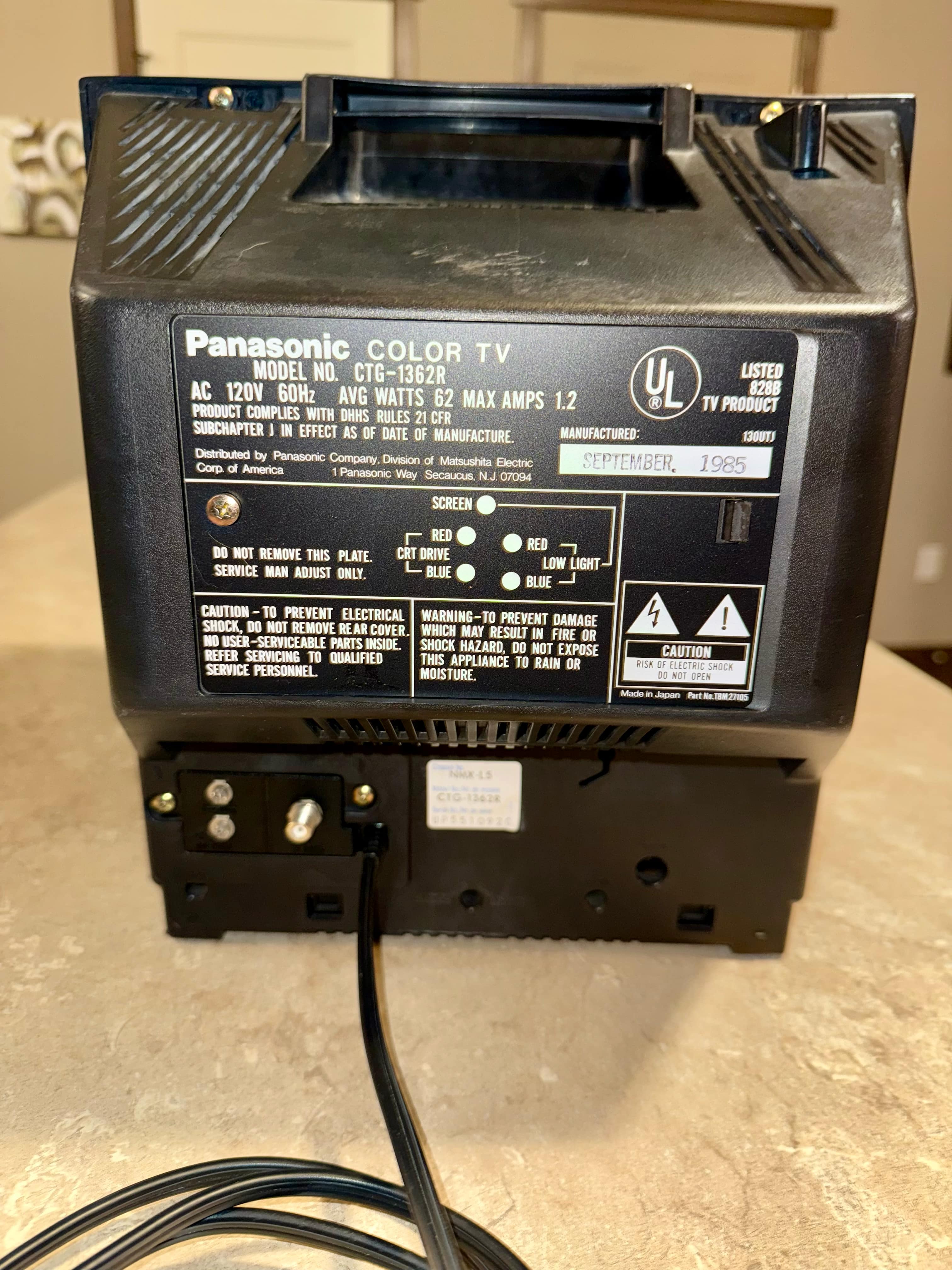

| Model: | CTG-1362R |
| Series: | CTG |
| Viewable Size: | 13" |
| Inputs: | RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle IC: | AN5318A |

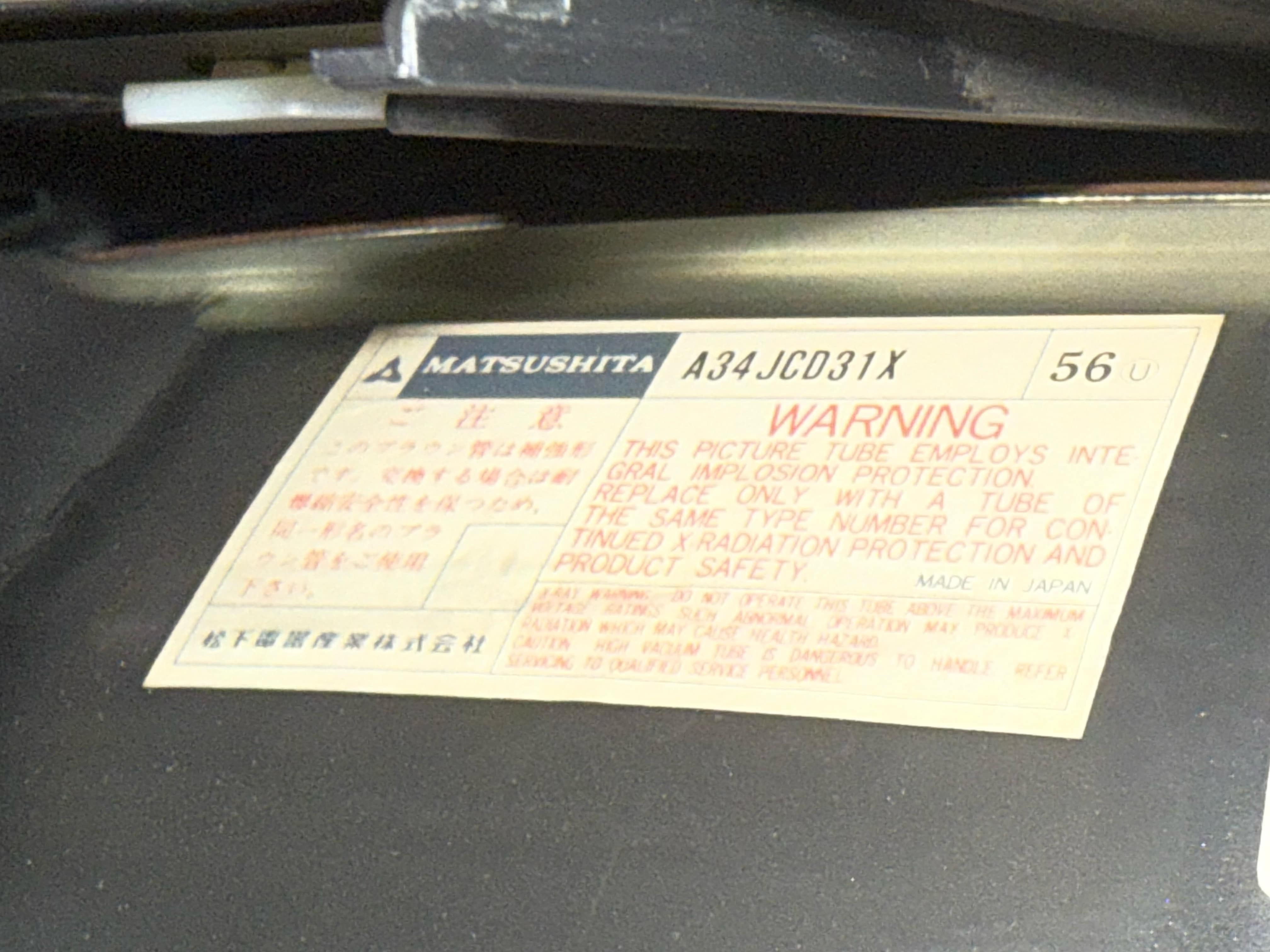

| Tube: | Matsushita (MTC) , A34JCD31X |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Light, Detachable Sunshade |
| Removable Glare Film: | No |
| Yoke: | TLY25307F |
| Speakers: | Mono, 1.5W |

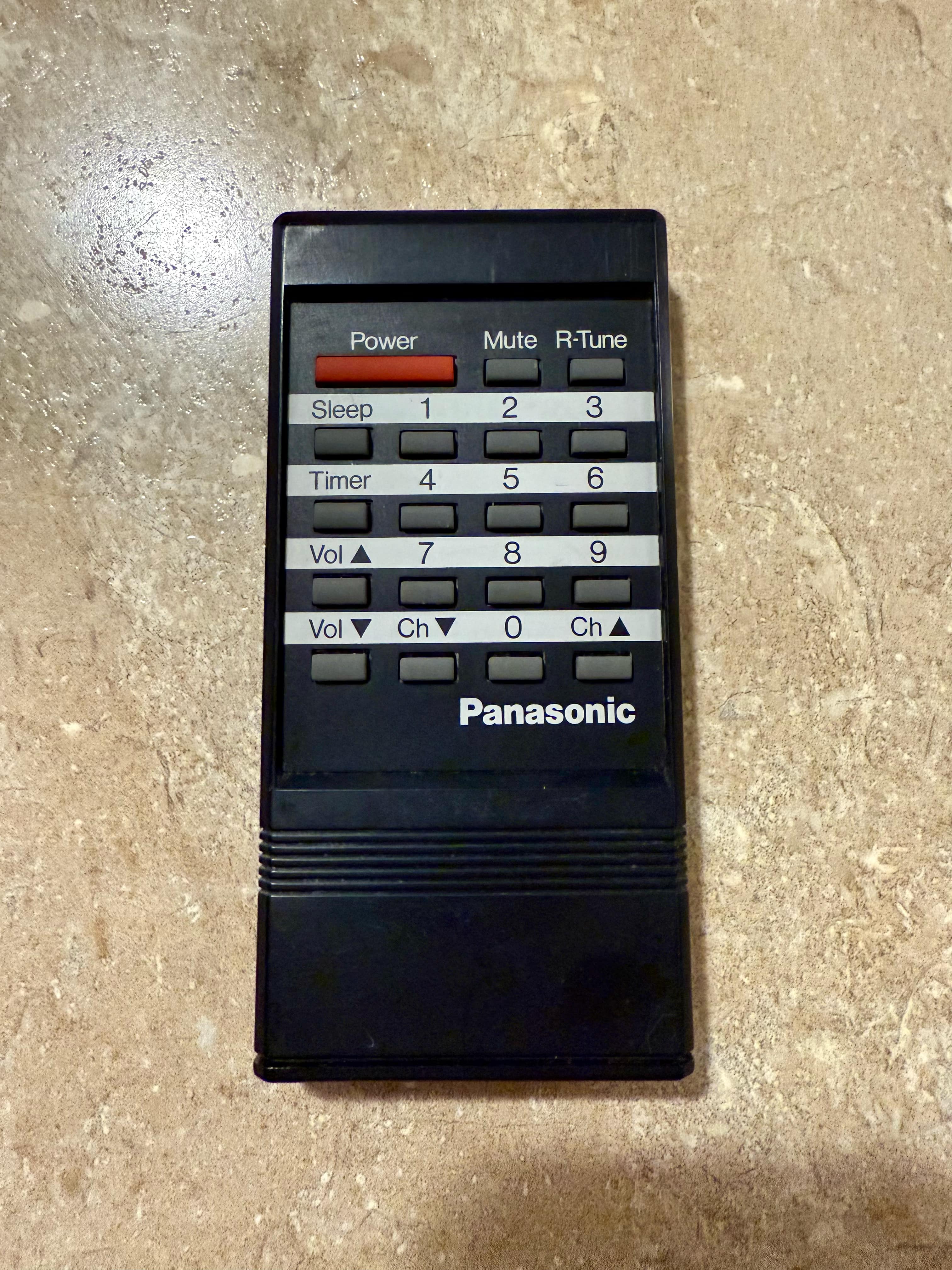

| Remote: | EUR50174 |

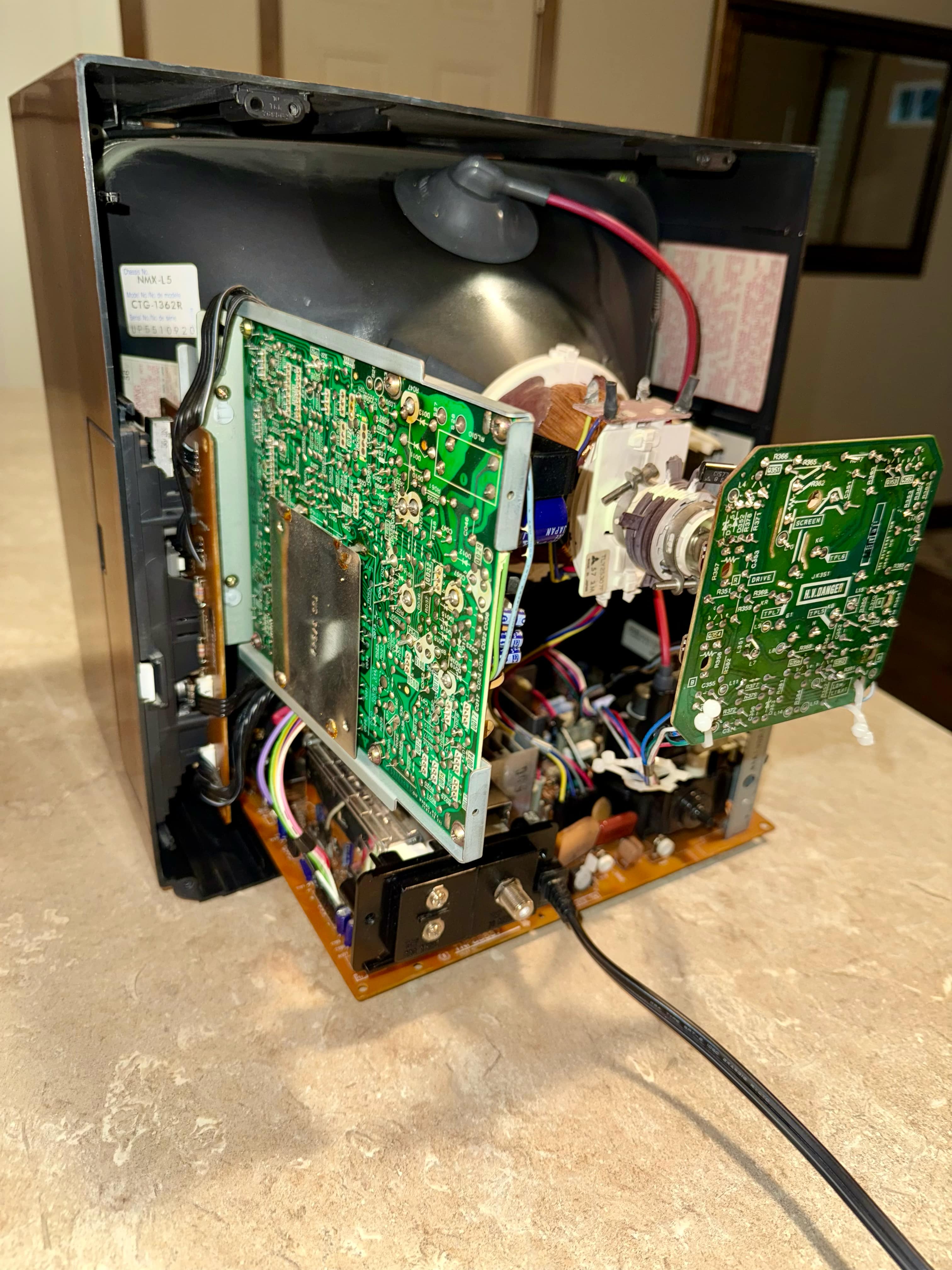

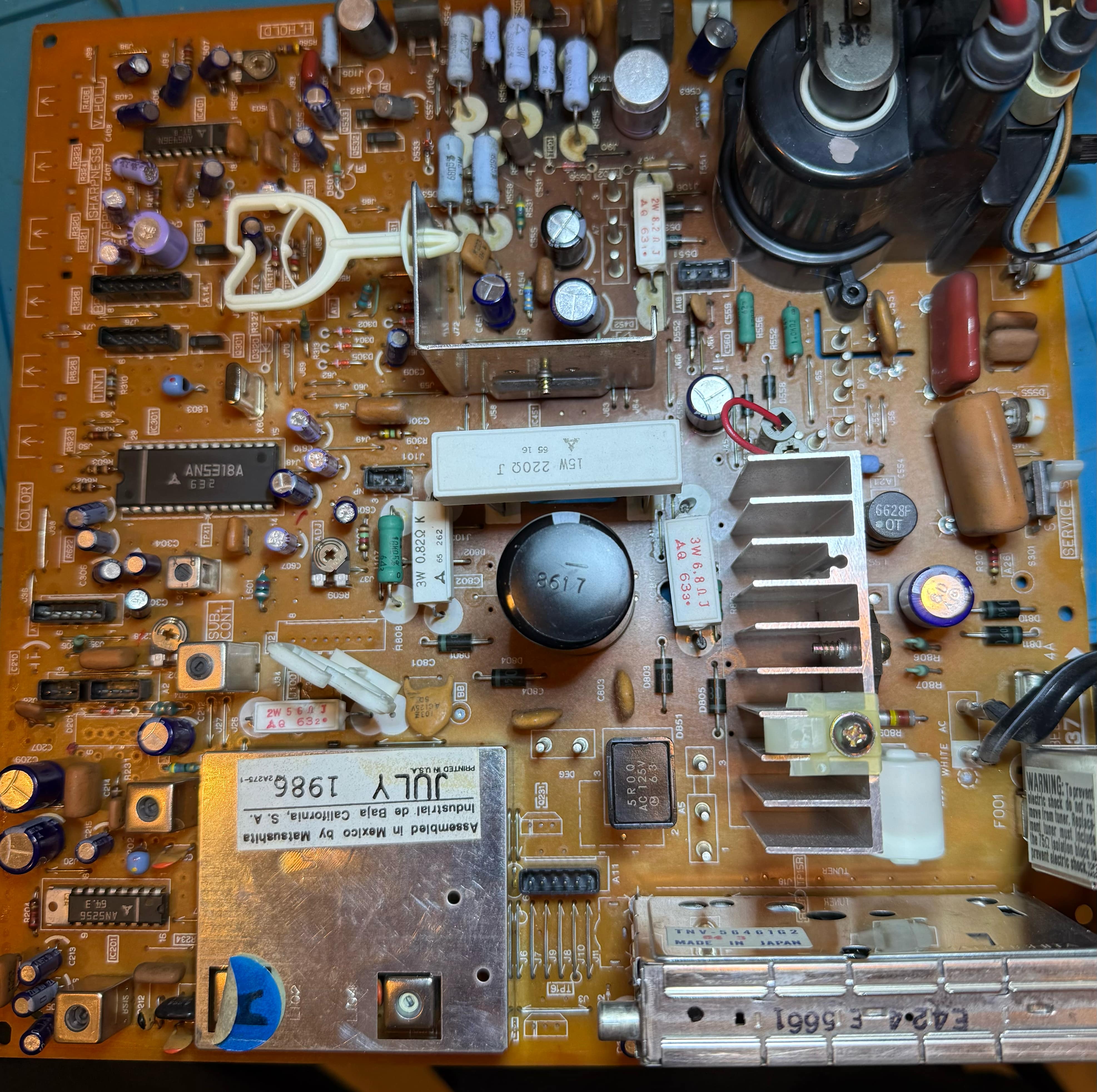

| Chassis: | NMX-L5 |
| Weight: | 23 lbs (10.4 kg) |
| Dimensions (W/H/D): |
340 x 335 x 378 mm
(13.4 x 13.2 x 14.9") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1985 |
| MSRP: | 299 USD |
| Country of Manufacture: | Japan |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
