Summary

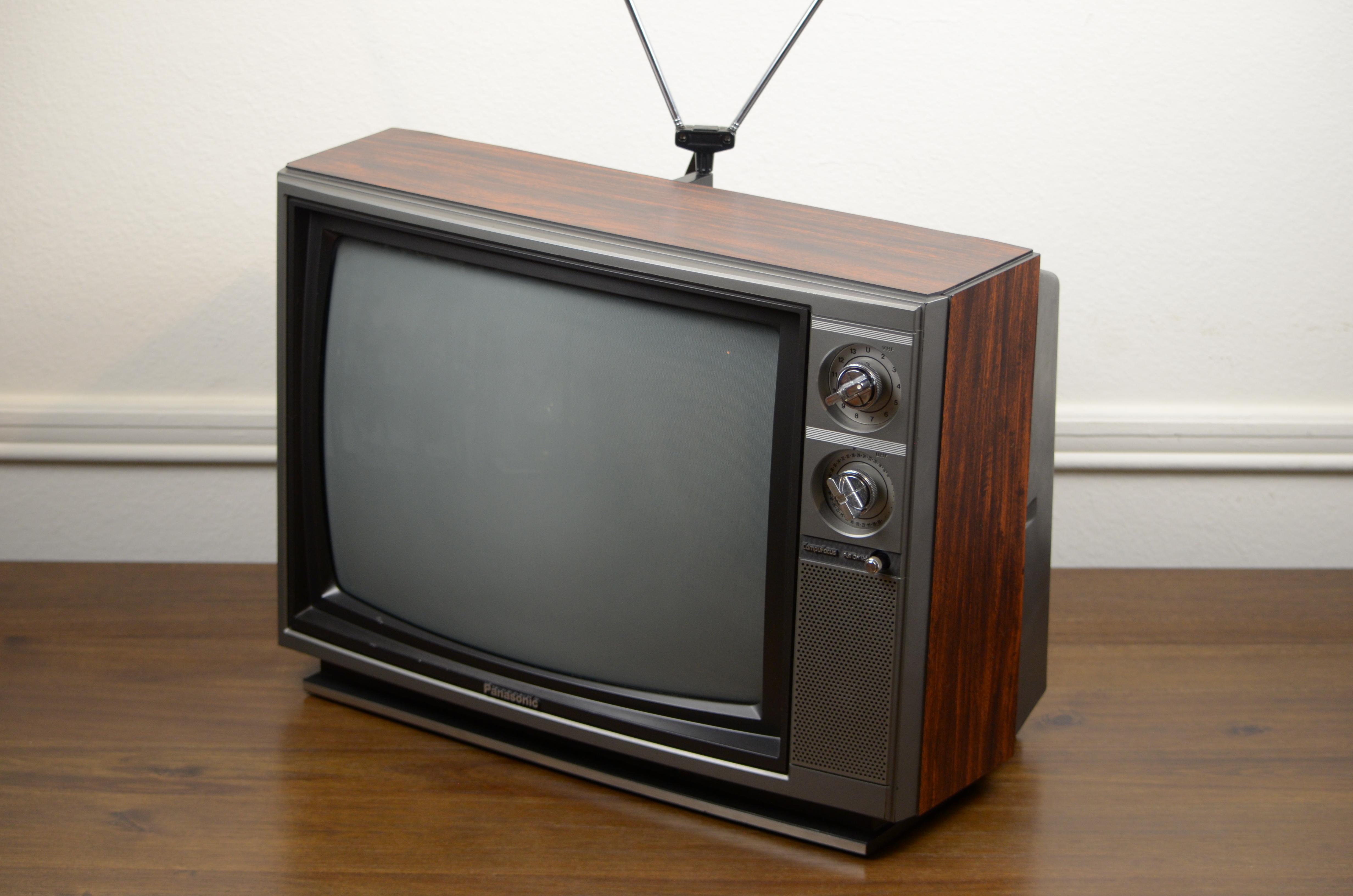

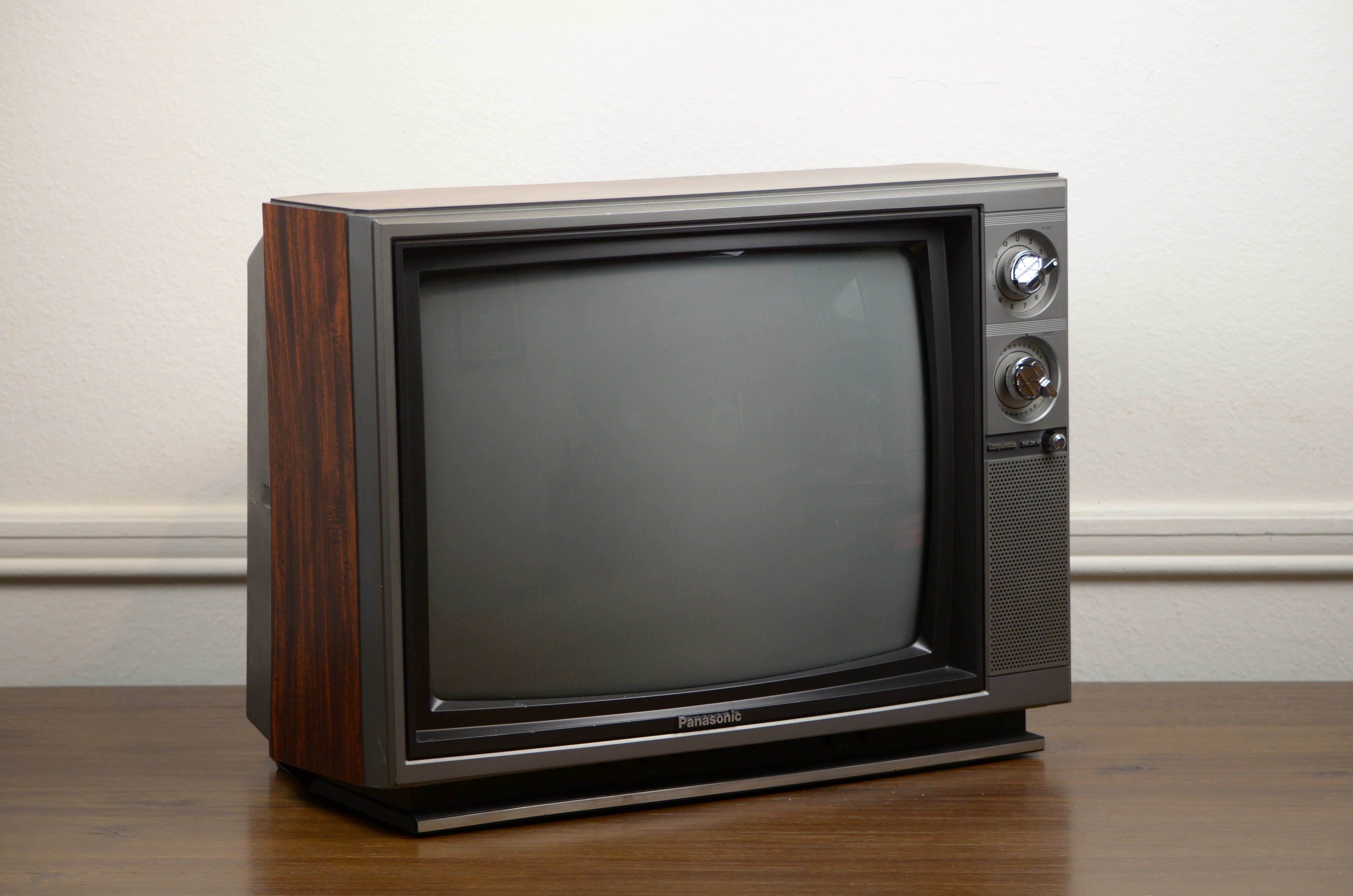

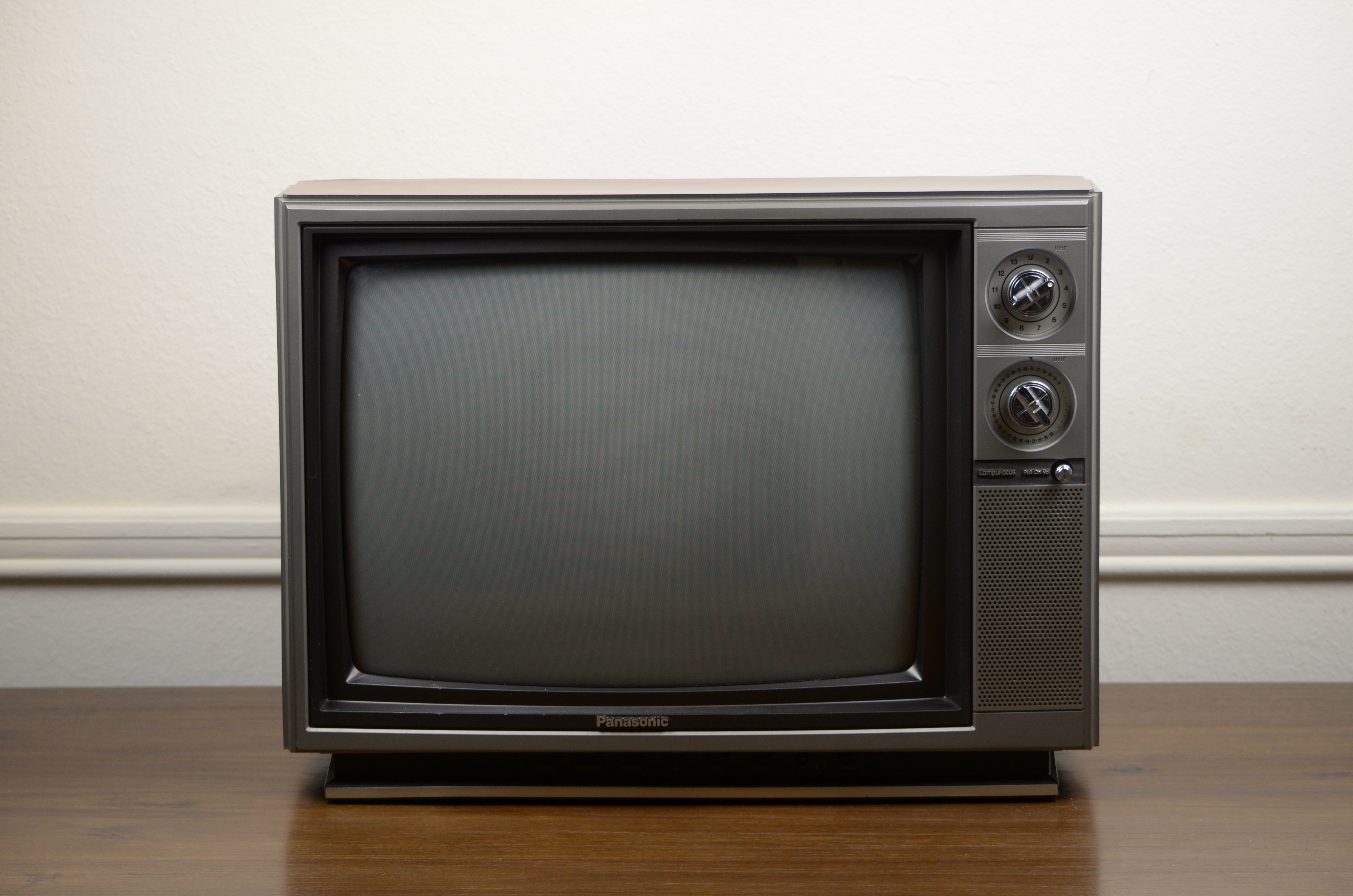

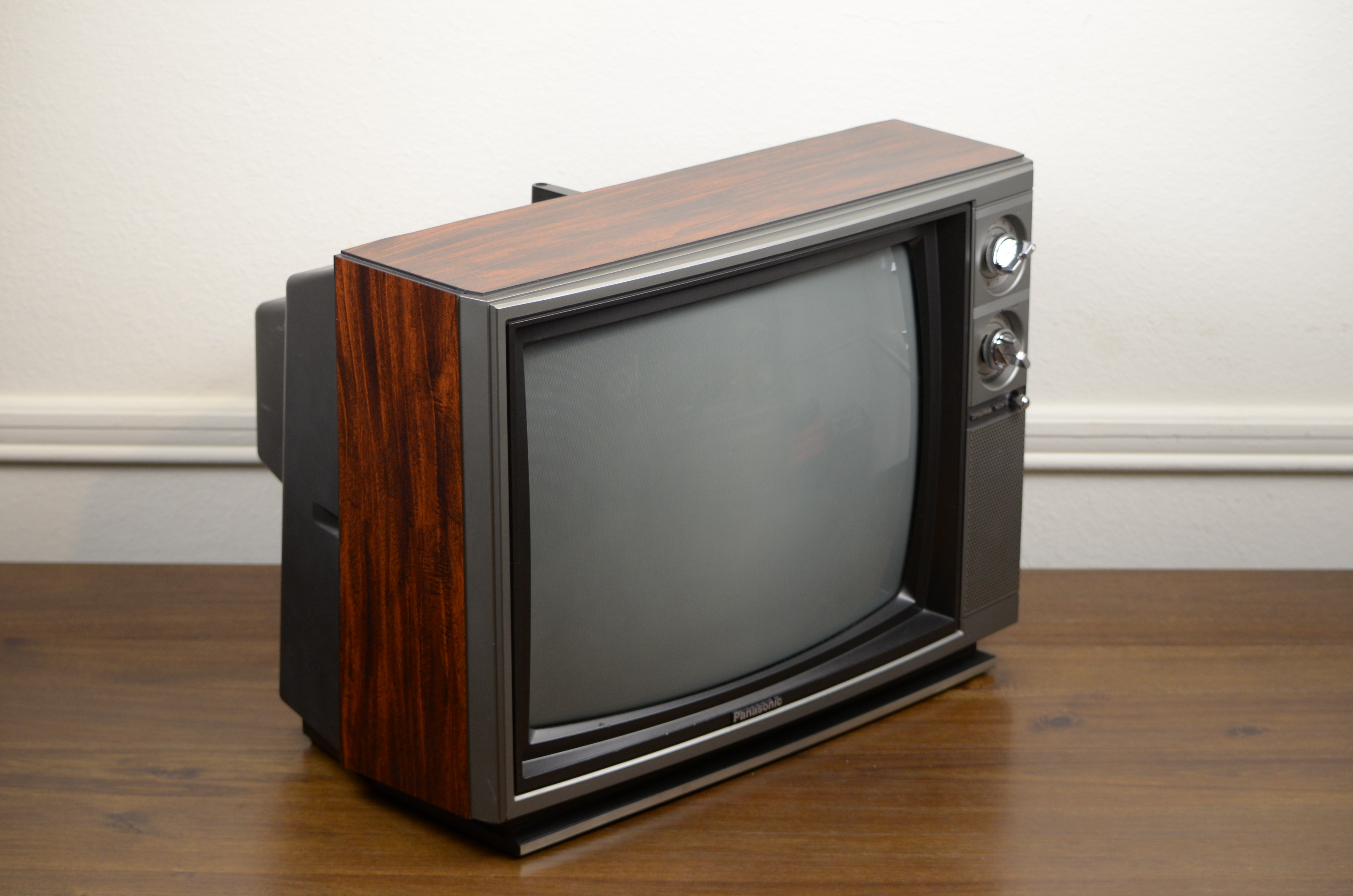

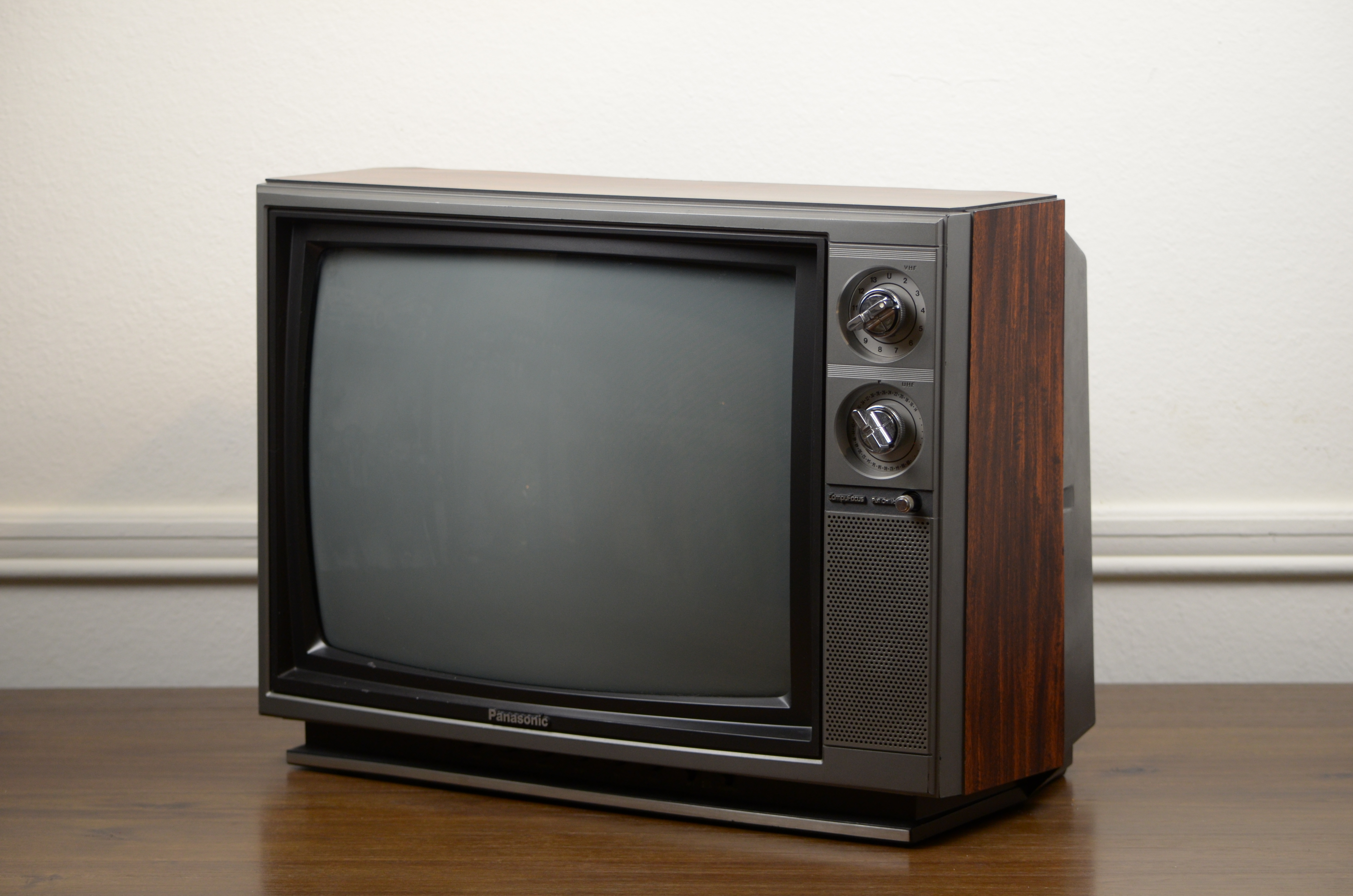

19" CRT by Panasonic with analog VHF/UHF tuning dials and a faux woodgrain plastic cabinet. Basic RF-only model made in the USA in 1986.

Notes

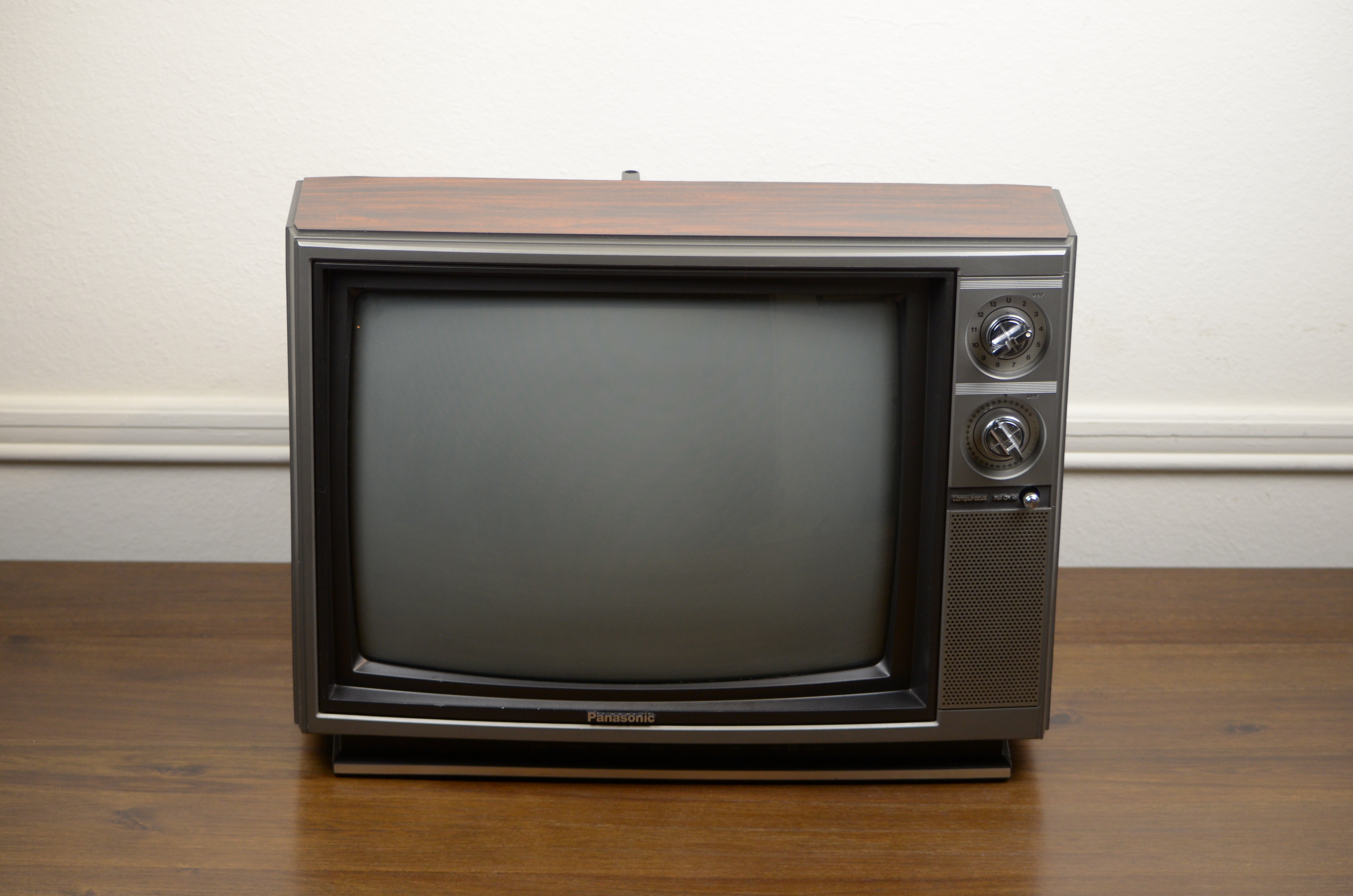

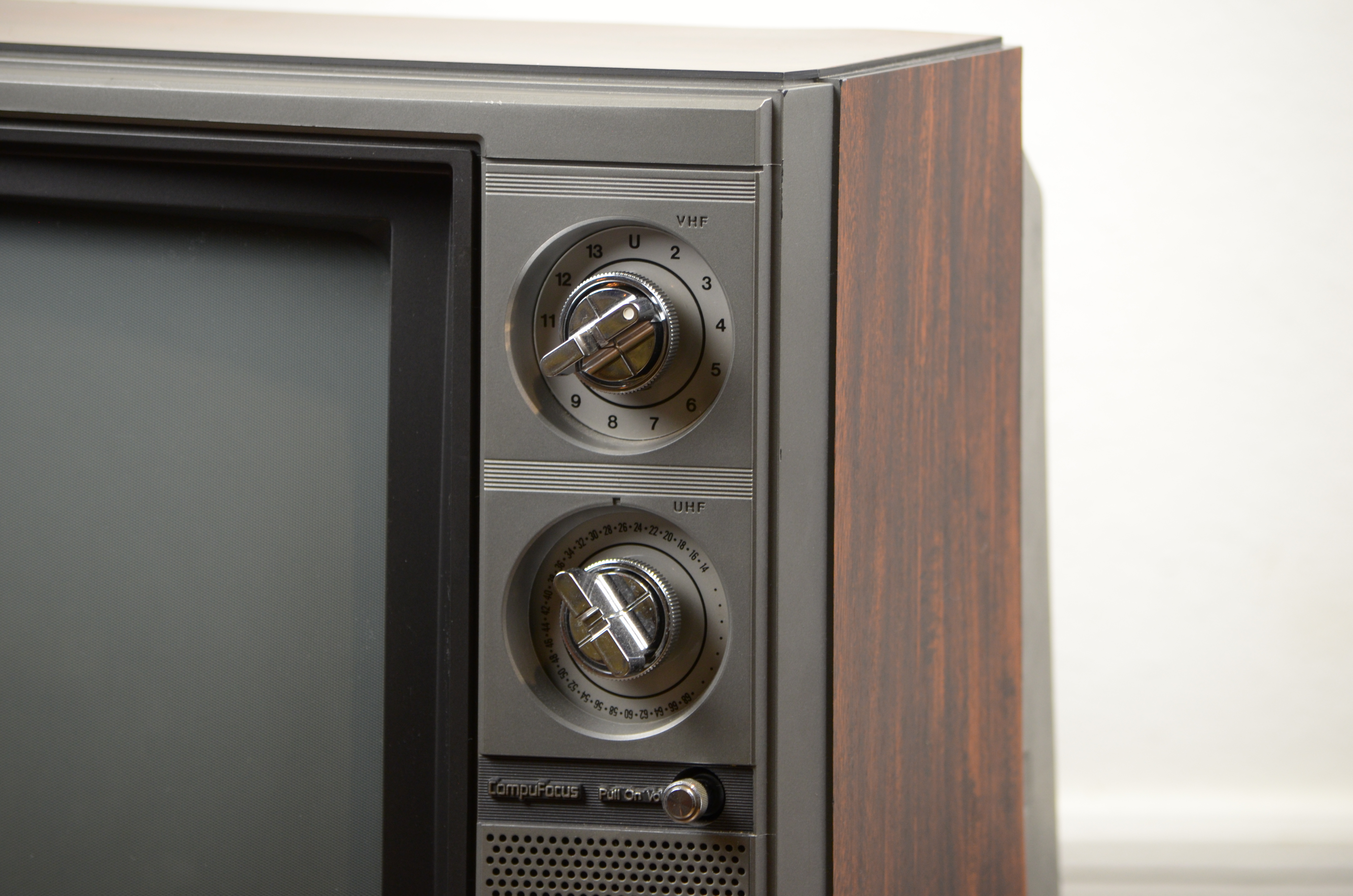

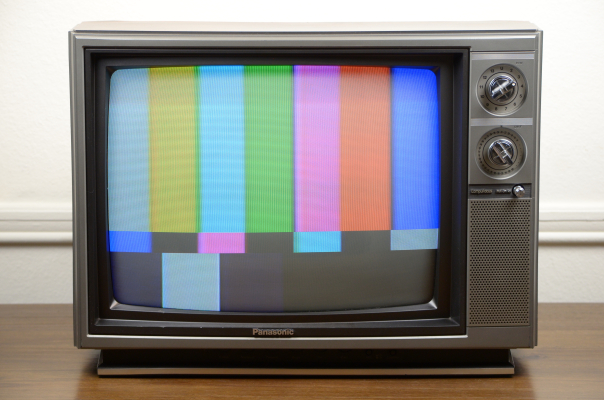

The CTH-1900 has analog tuning controls in the form of two silver dials located to the right of the screen. Fine tuning adjustment is available by pressing inwards on the collar positioned underneath each dial and rotating either clockwise or anticlockwise, this feature is disabled when the AFT toggle button located under the tube is pressed in. The power switch is a typical push/pull style knob that is also rotated for volume control.

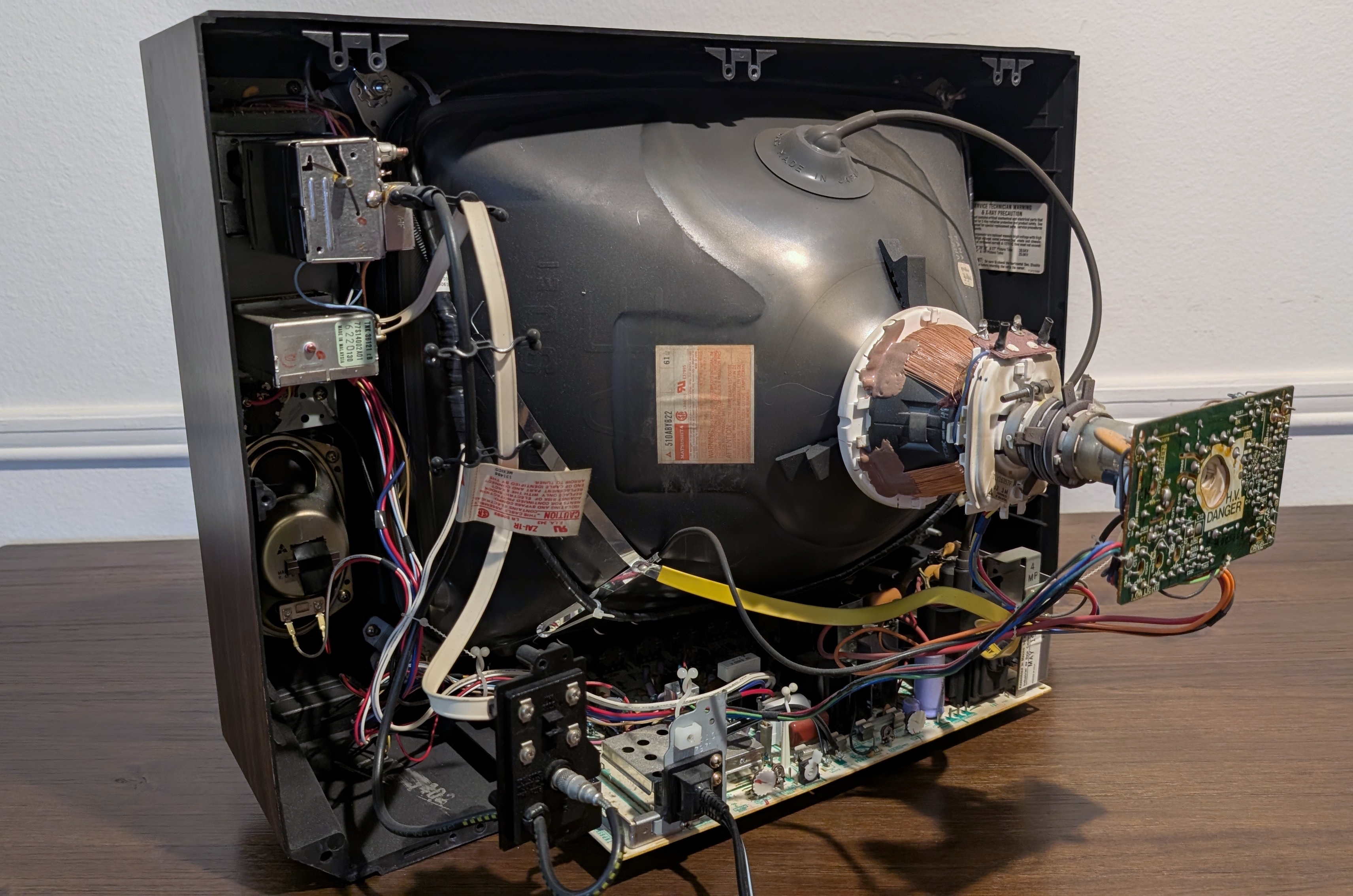

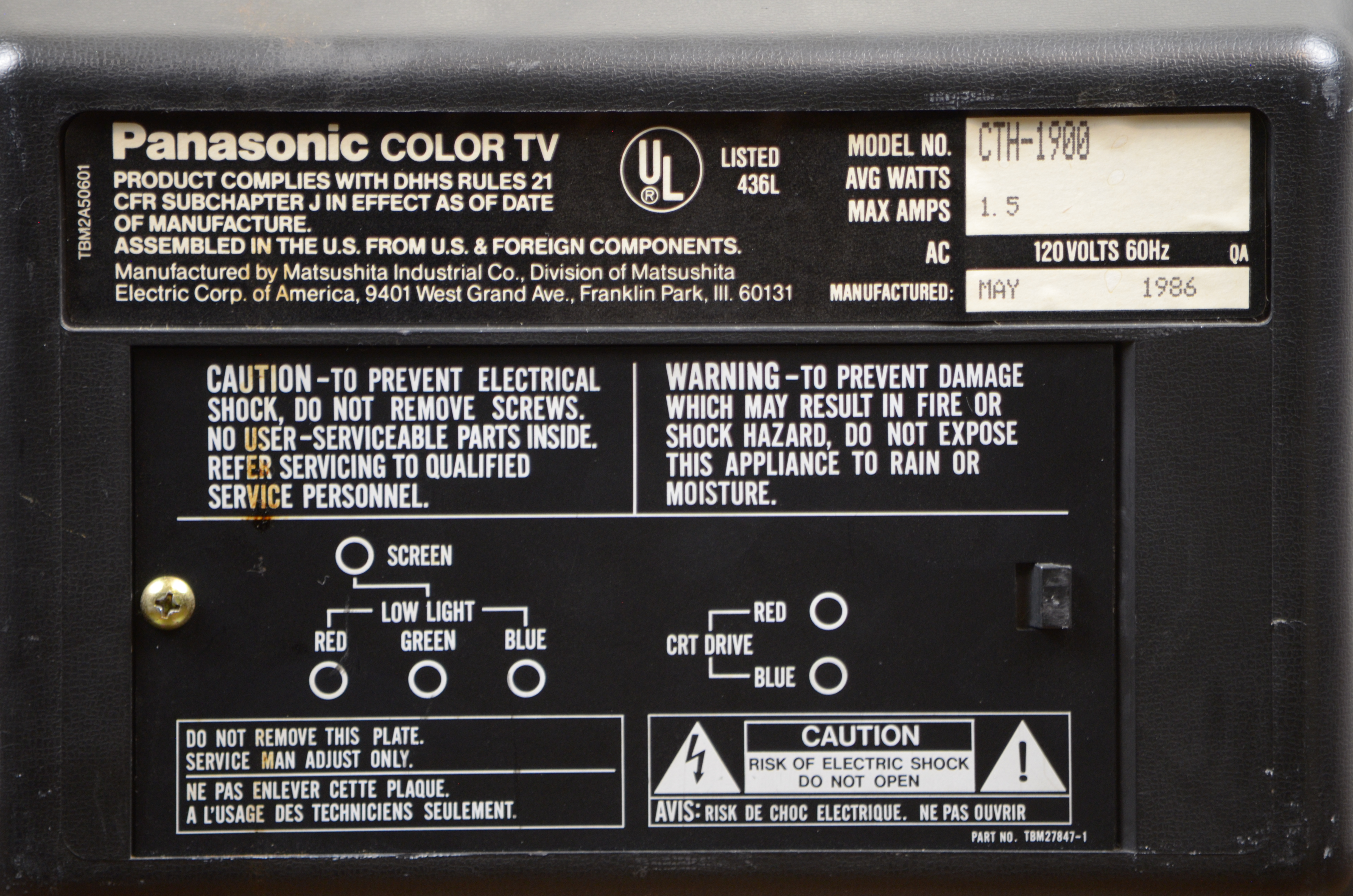

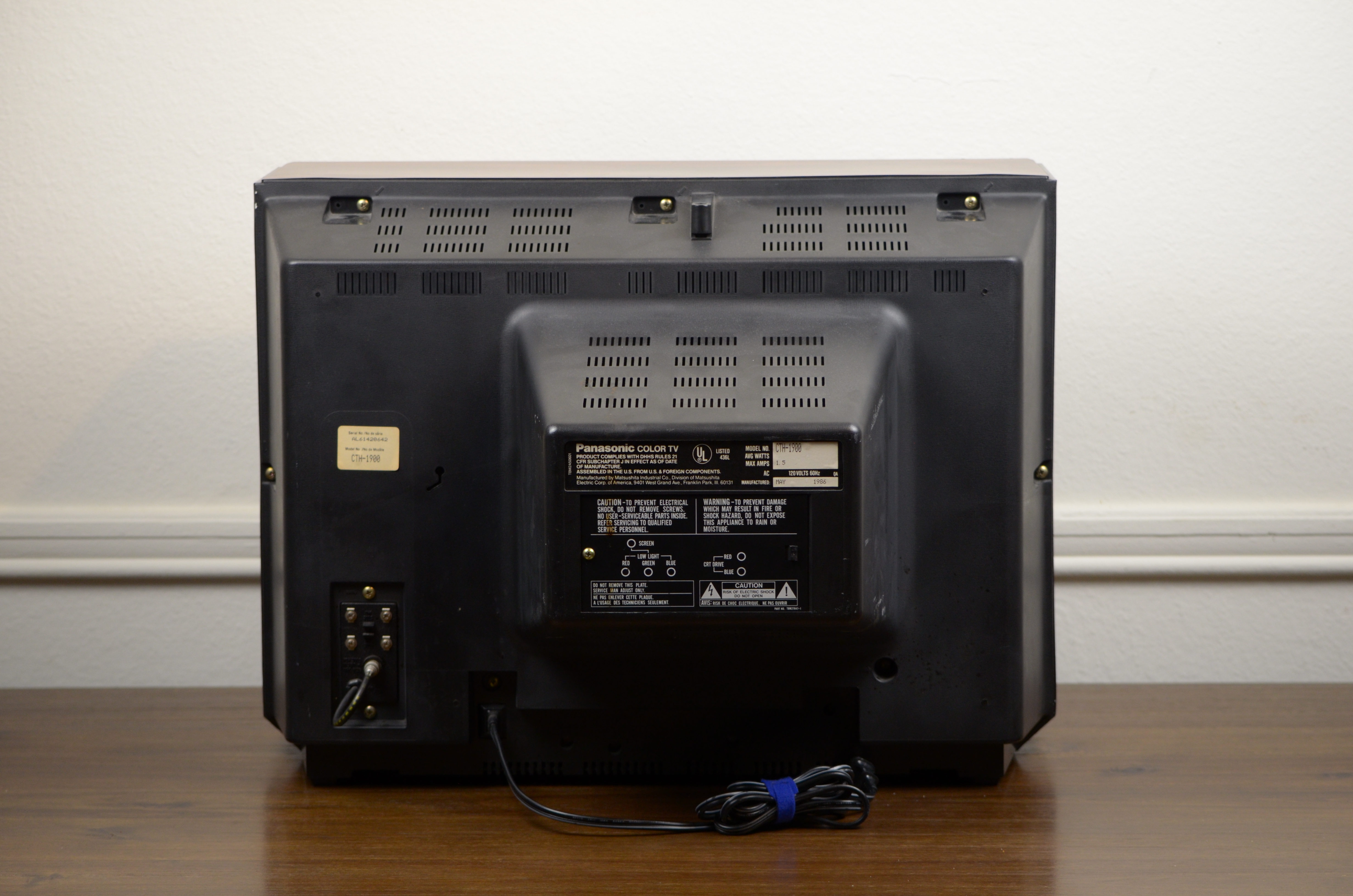

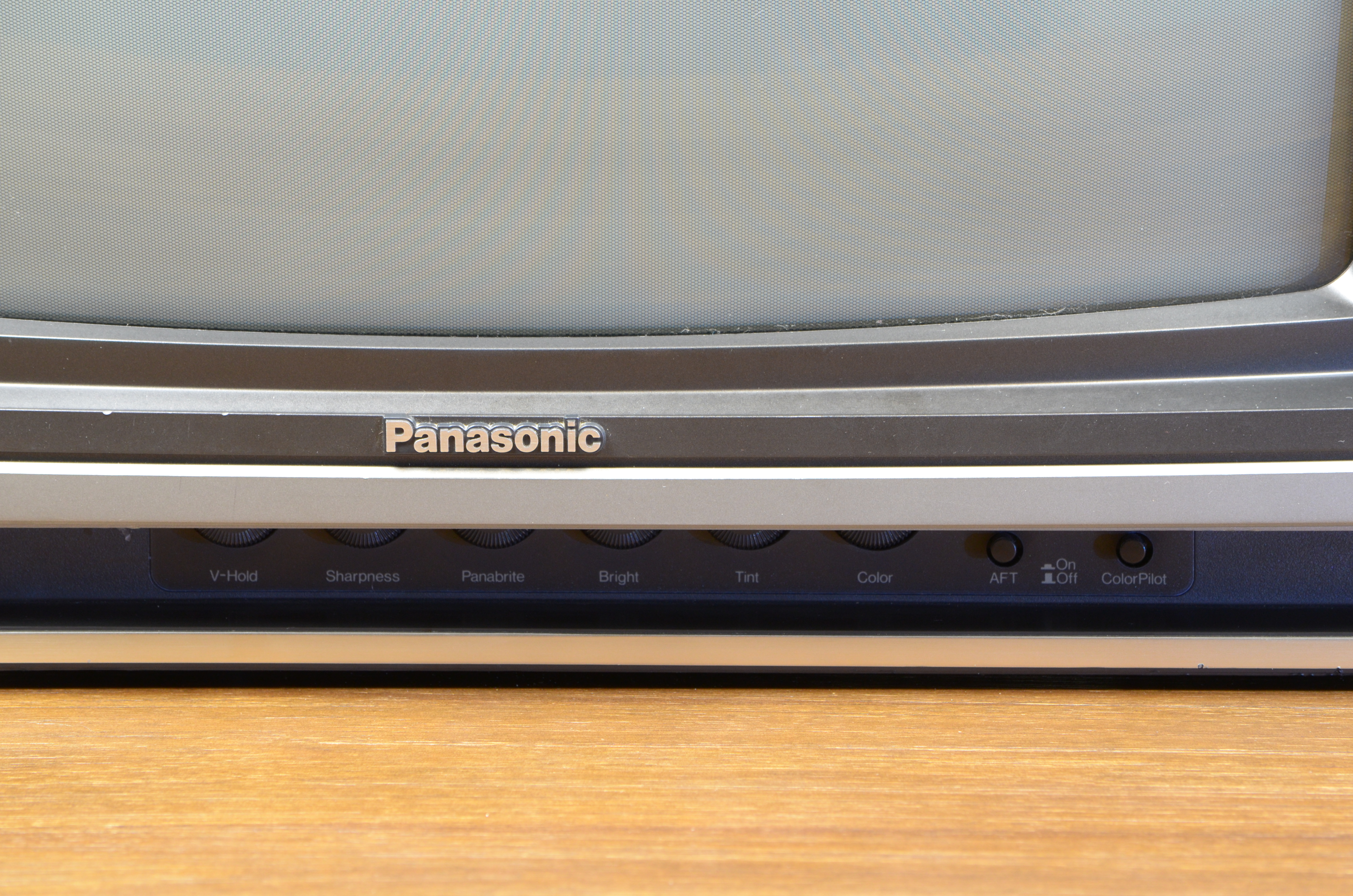

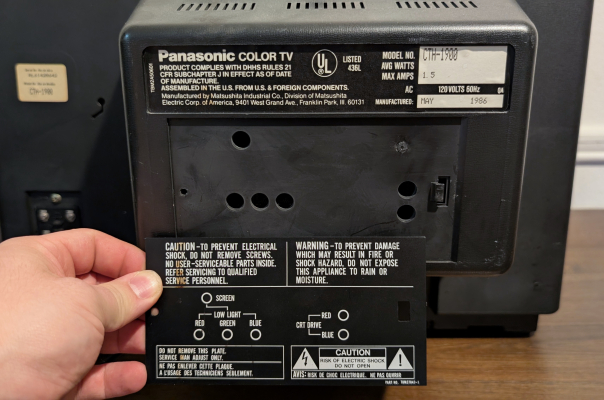

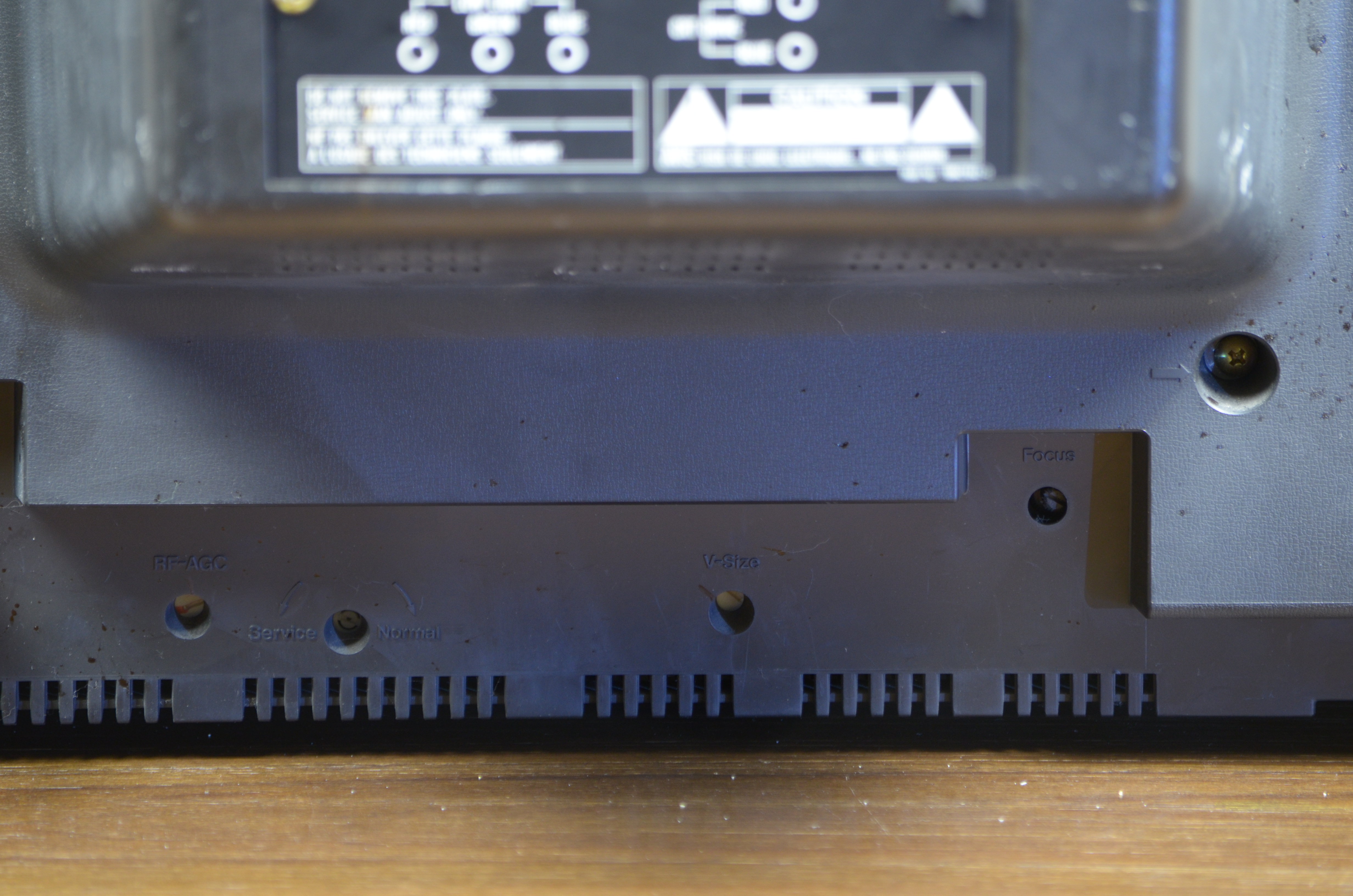

The usual picture adjustment potentiometers are located under the tube: V-Hold, Sharpness, Panabrite (Contrast), Brightness, Tint, and Color. There are also two toggle buttons for AFT and ColorPilot. Adjustments on the rear of the set include Focus, V-Size, RF-AGC, and a Normal/Service setting toggle switch.

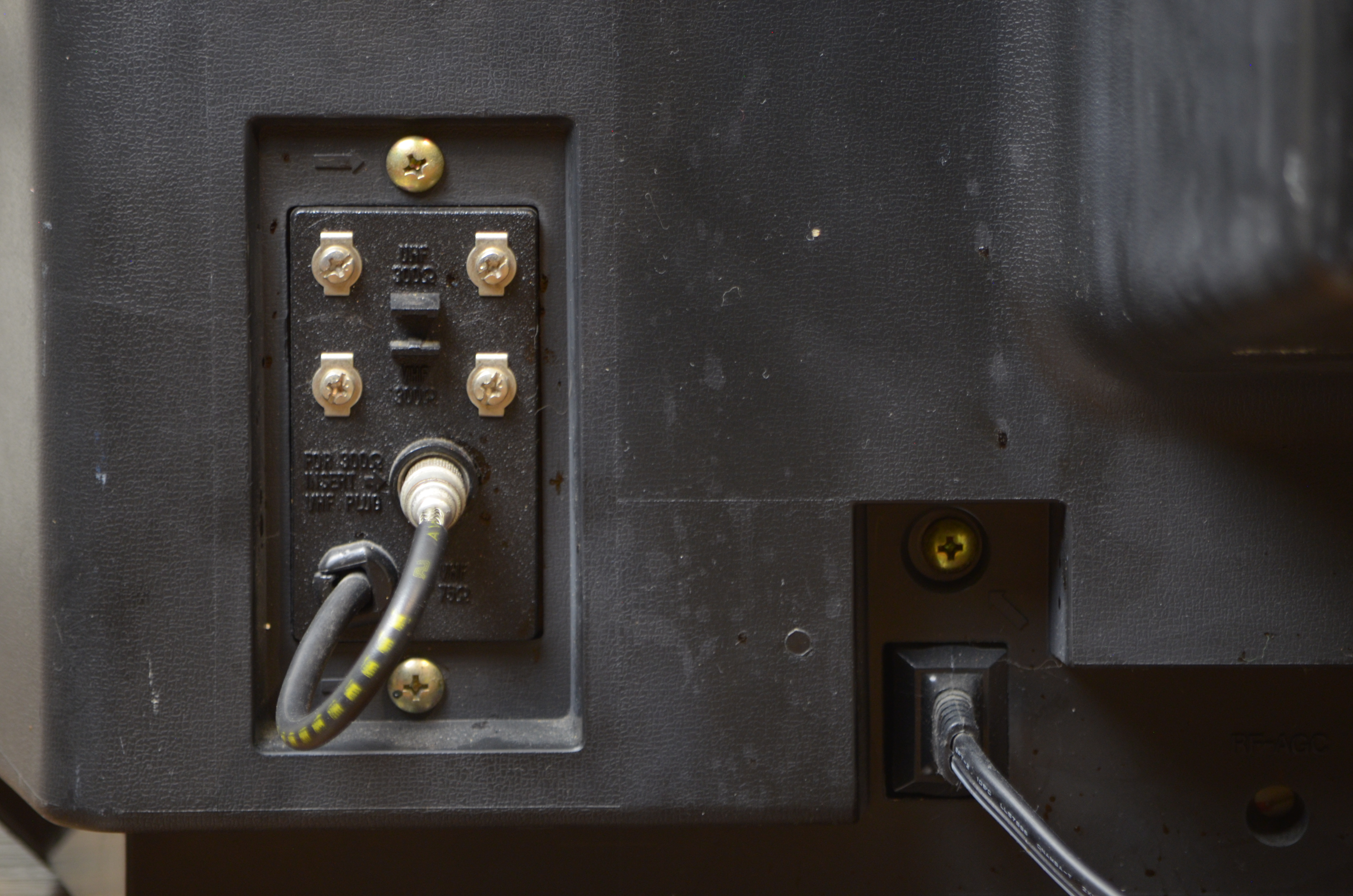

RF connections include terminals for both UHF and VHF antennas, and a standard F-type RF connection is also available in the form of a small removable coaxial jumper located on the terminal block.
