Summary

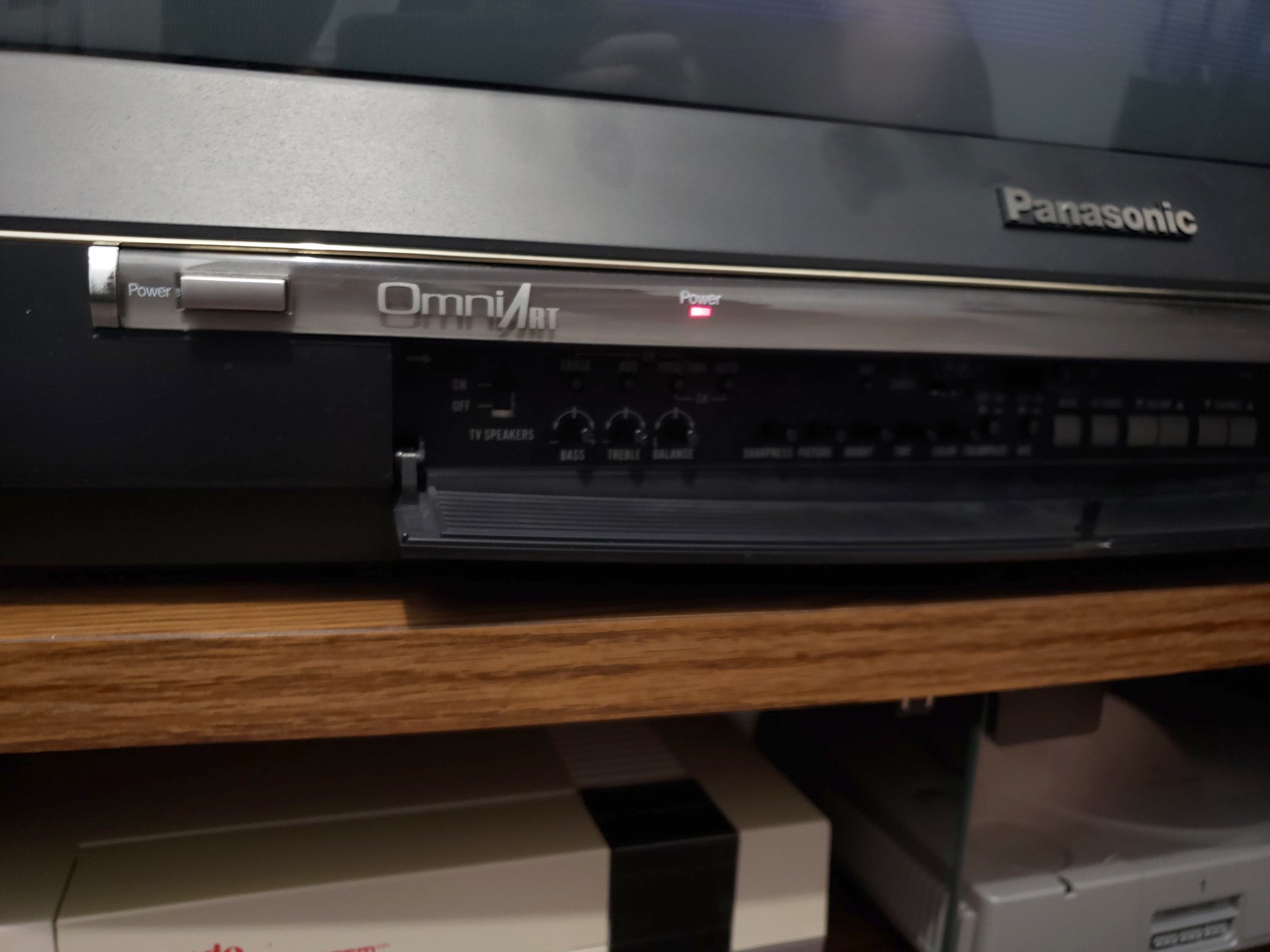

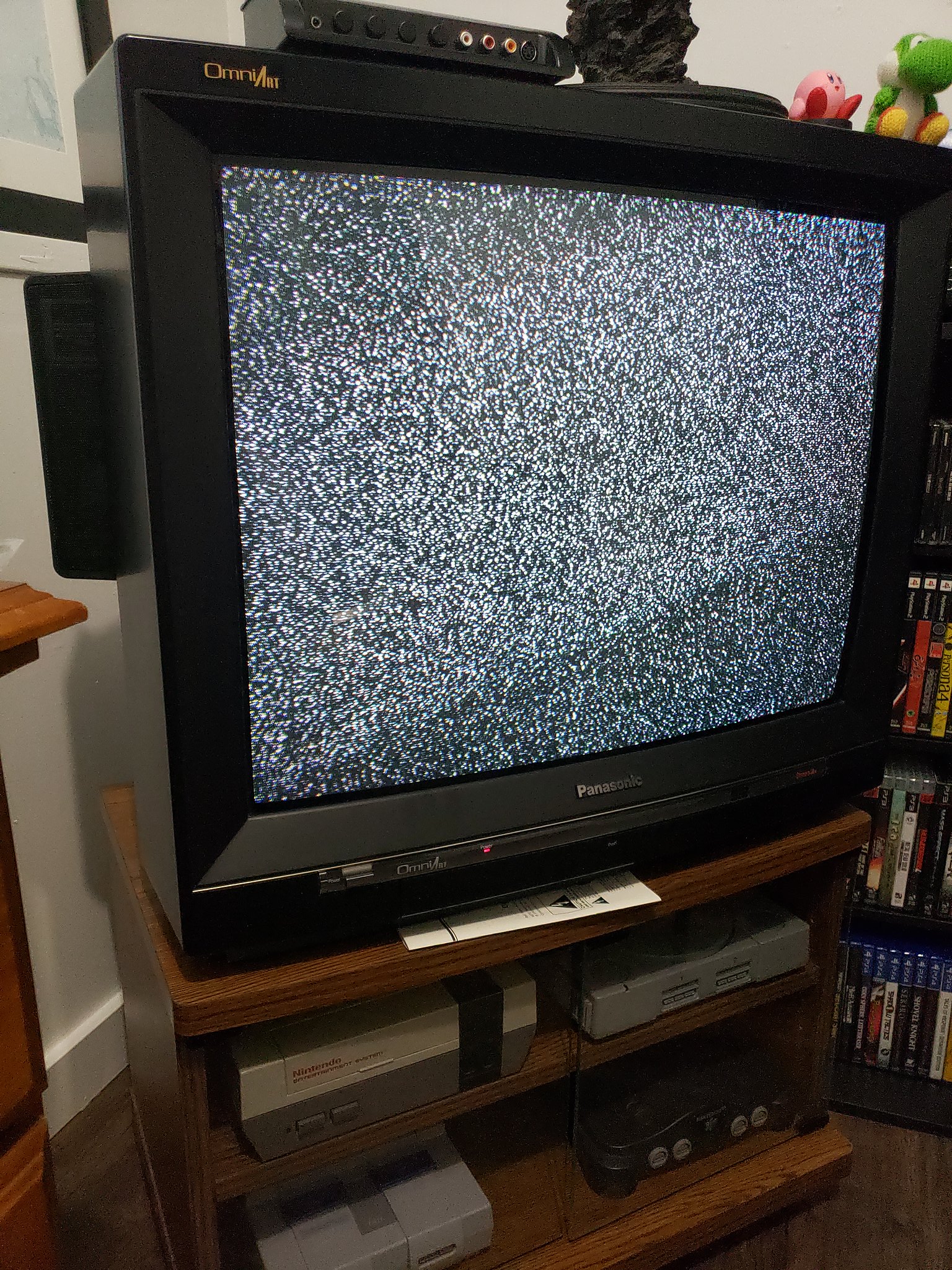

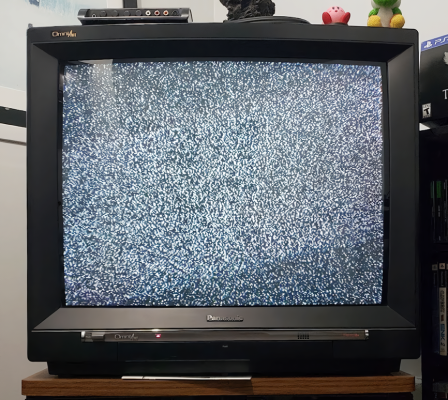

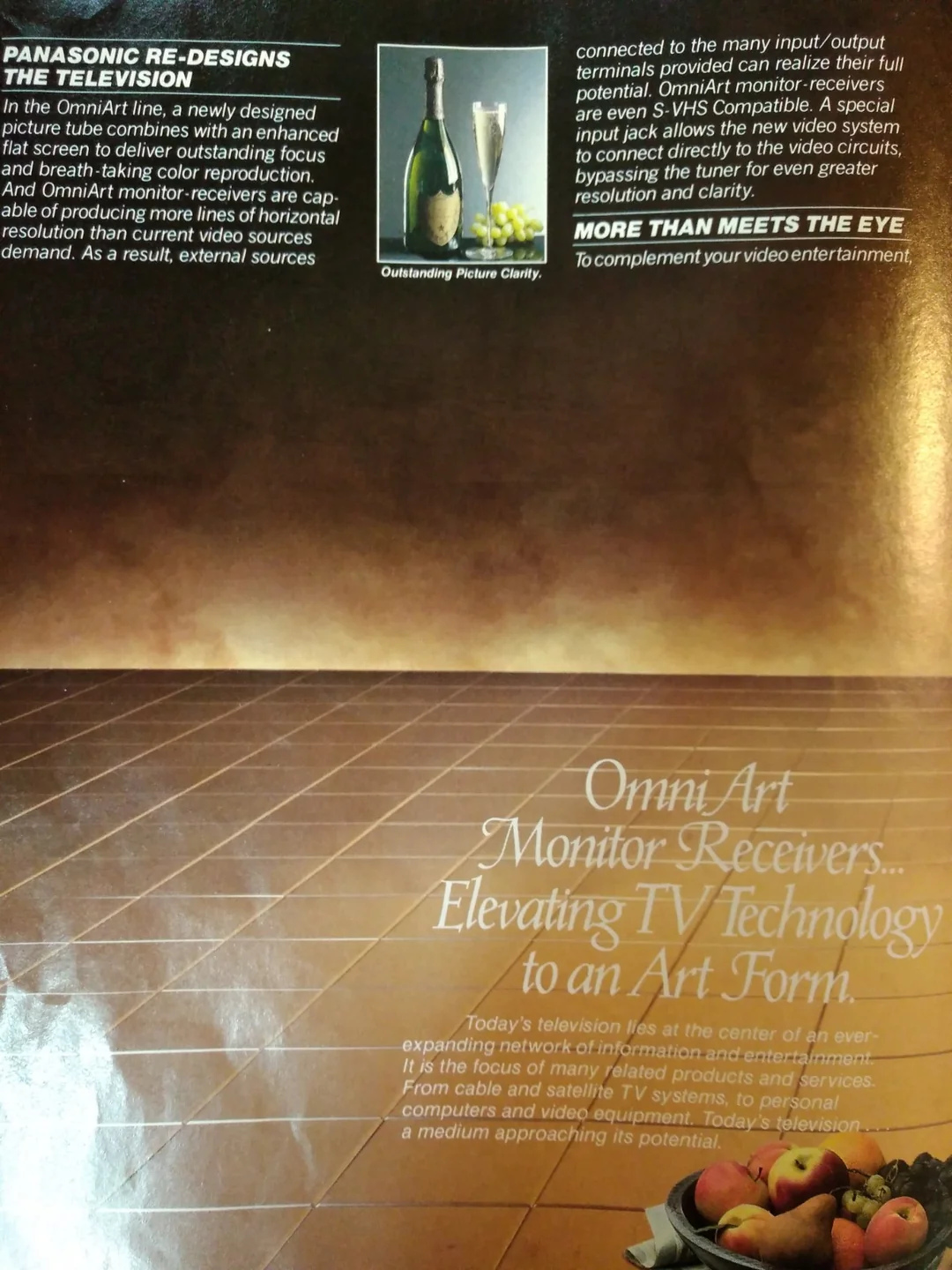

High-end 27" CRT by Panasonic. Has RF, composite, and the then-new SVHS input to accept an s-video signal. Originally manufactured in Mexico in 1988.
(Special thanks to Troy Branch for the pics!)
Manuals
Notes
This set has velocity modulation. To disable it, disconnect the jumper connecting the yoke to the neckboard.
This set also has a notch filter you can engage in the standard menu to clean up composite video. It is advised to turn it off when using s-video, or else you will get undesirable artifacts.
Gallery

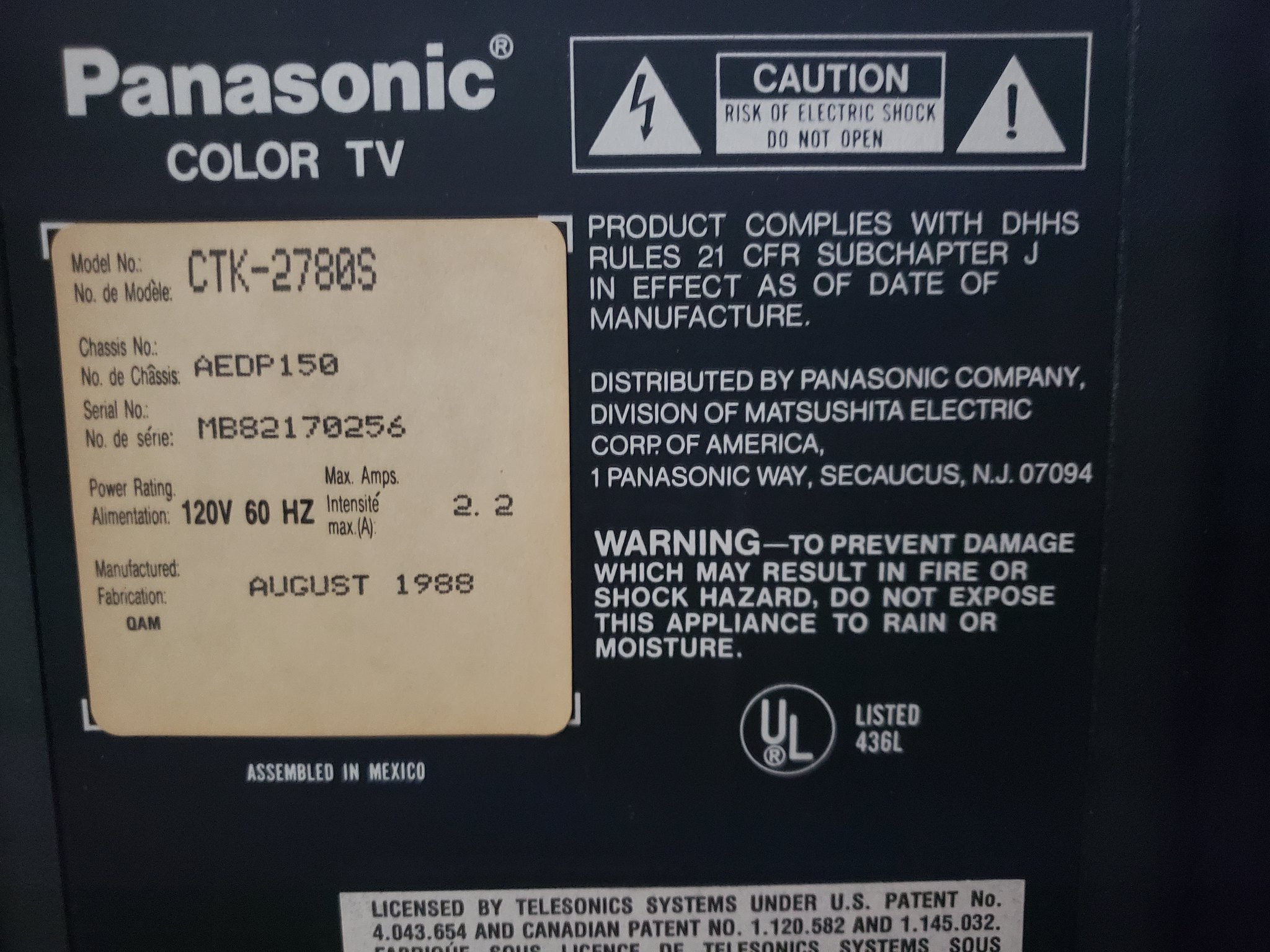

| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CTK-2780S |
| Series: | OmniArt |
| Viewable Size: | 27" |
| Input Signals: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers, Front Mounted Buttons |
| Jungle IC: | Panasonic, AN5301NK, AN5301 |
| Comb Filter IC: | TLK153152 |
| Flyback: | TLF15525B |
| Focus Type: | Single |
| Tube: | Panasonic , M68JUA21X |
| Heater Voltage: | 6.3v |
| Deflection: | 110° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | ETC35X7F |
| Speakers: | Stereo, 2W x 2 |

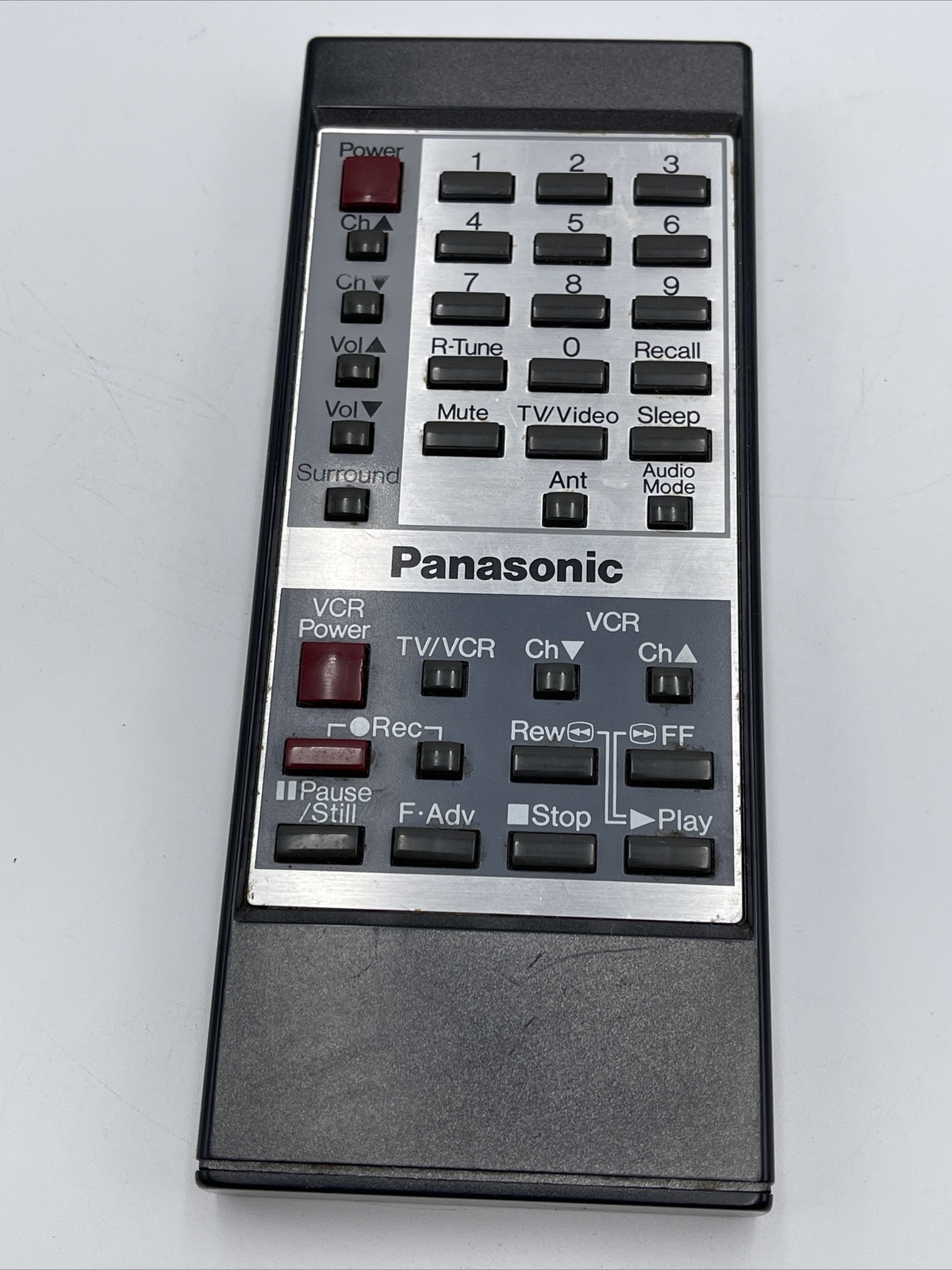

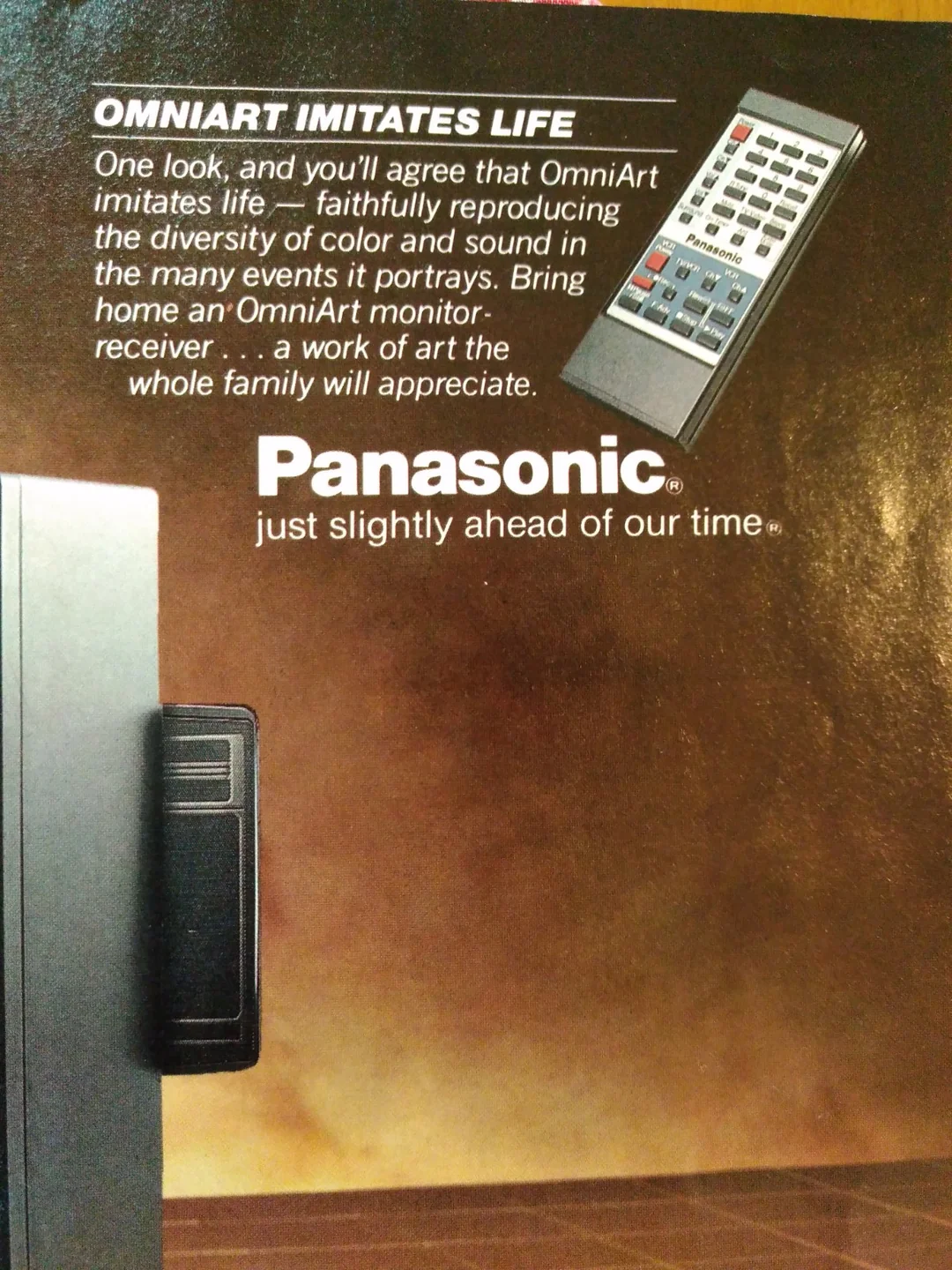

| Remote: | EUR50441 |
| Chassis: | AEDP150 |
| Weight: | 88.5 lbs (40.1 kg) |
| Dimensions (W/H/D): |
756 x 598 x 503 mm
(29.7 x 23.5 x 19.8") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1988 |
| MSRP: | 1199 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual |
