Summary

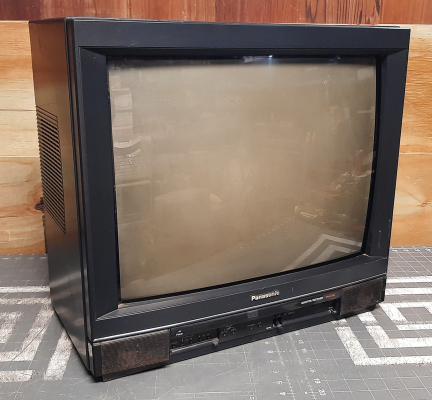

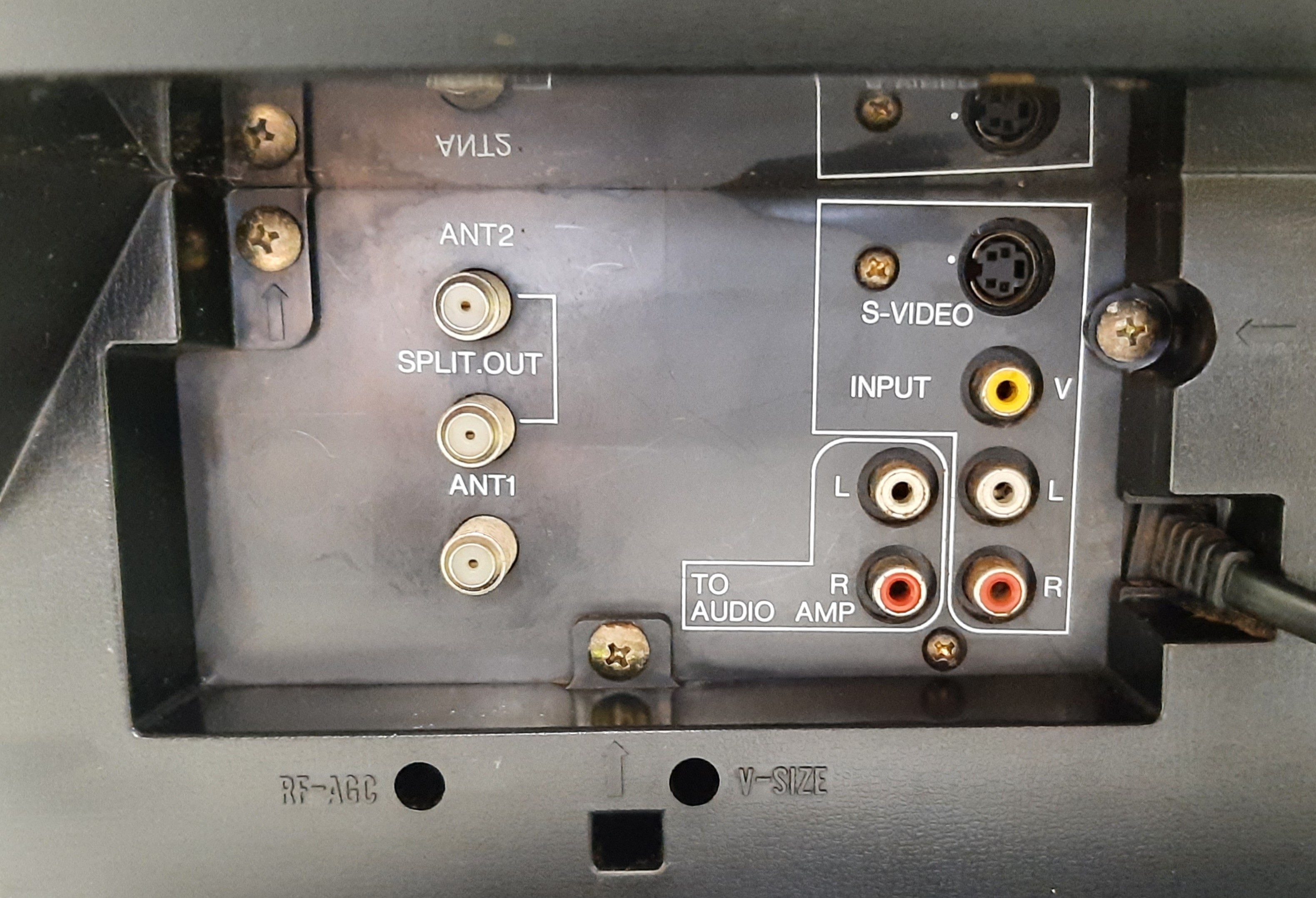

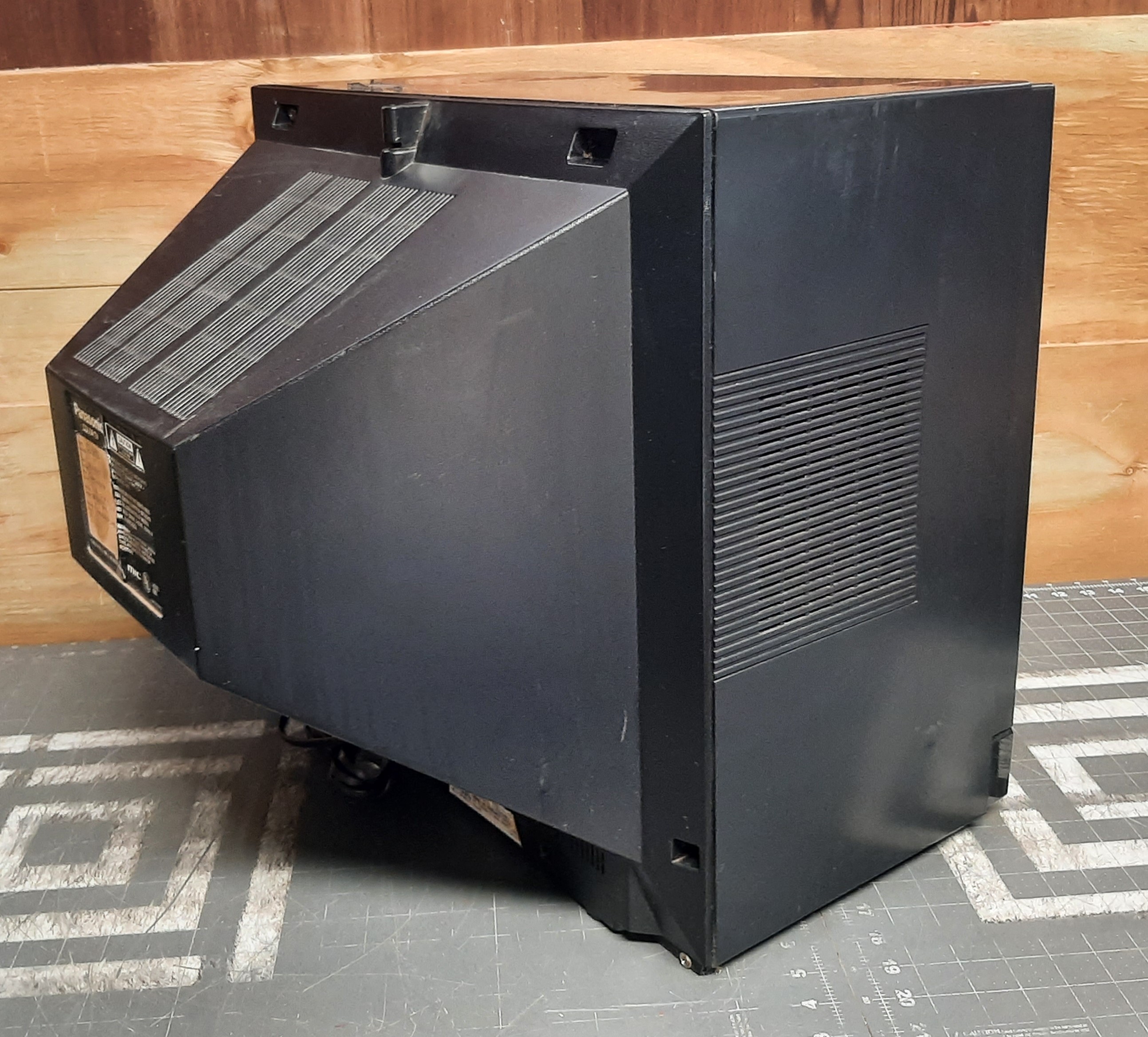

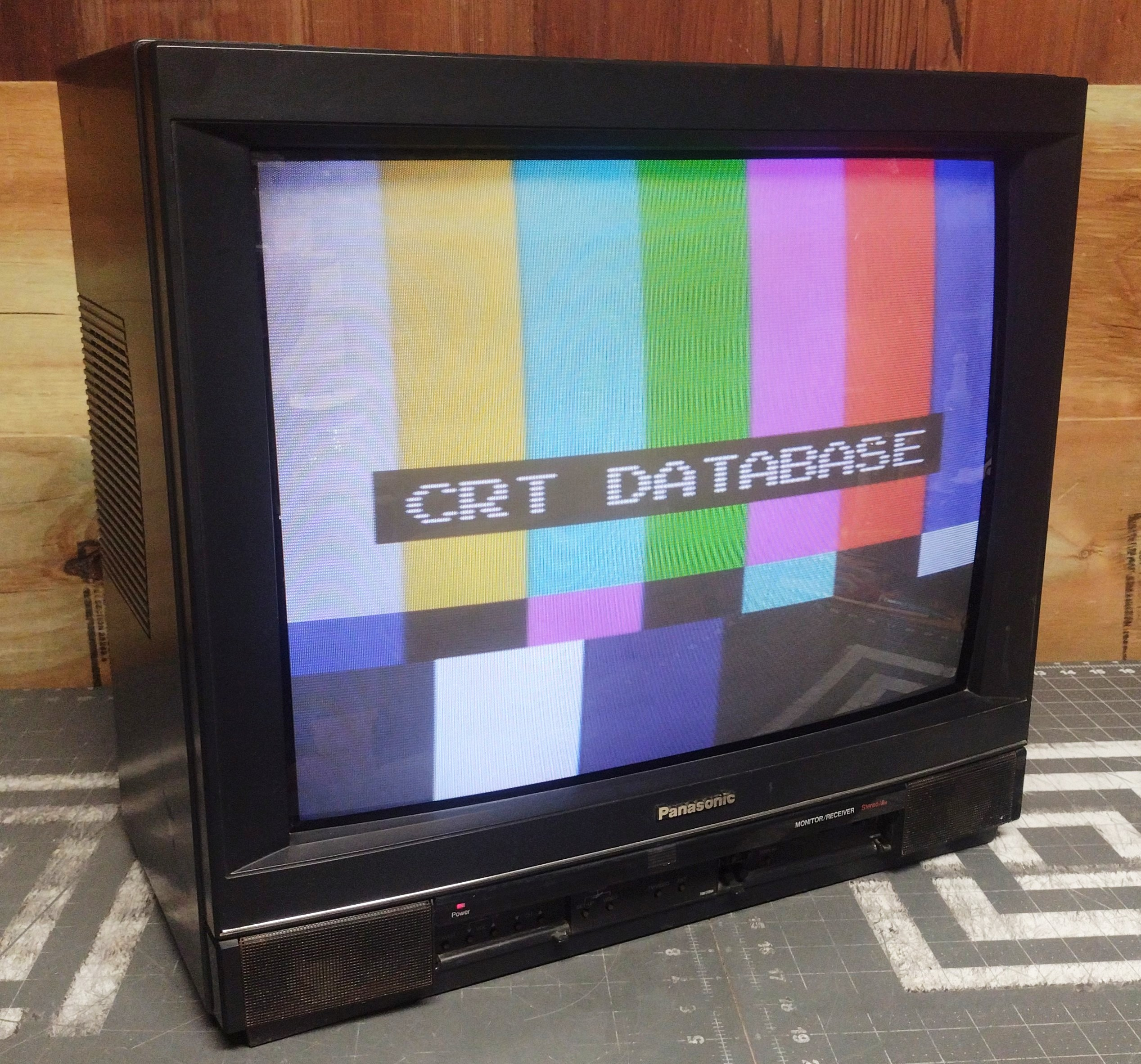

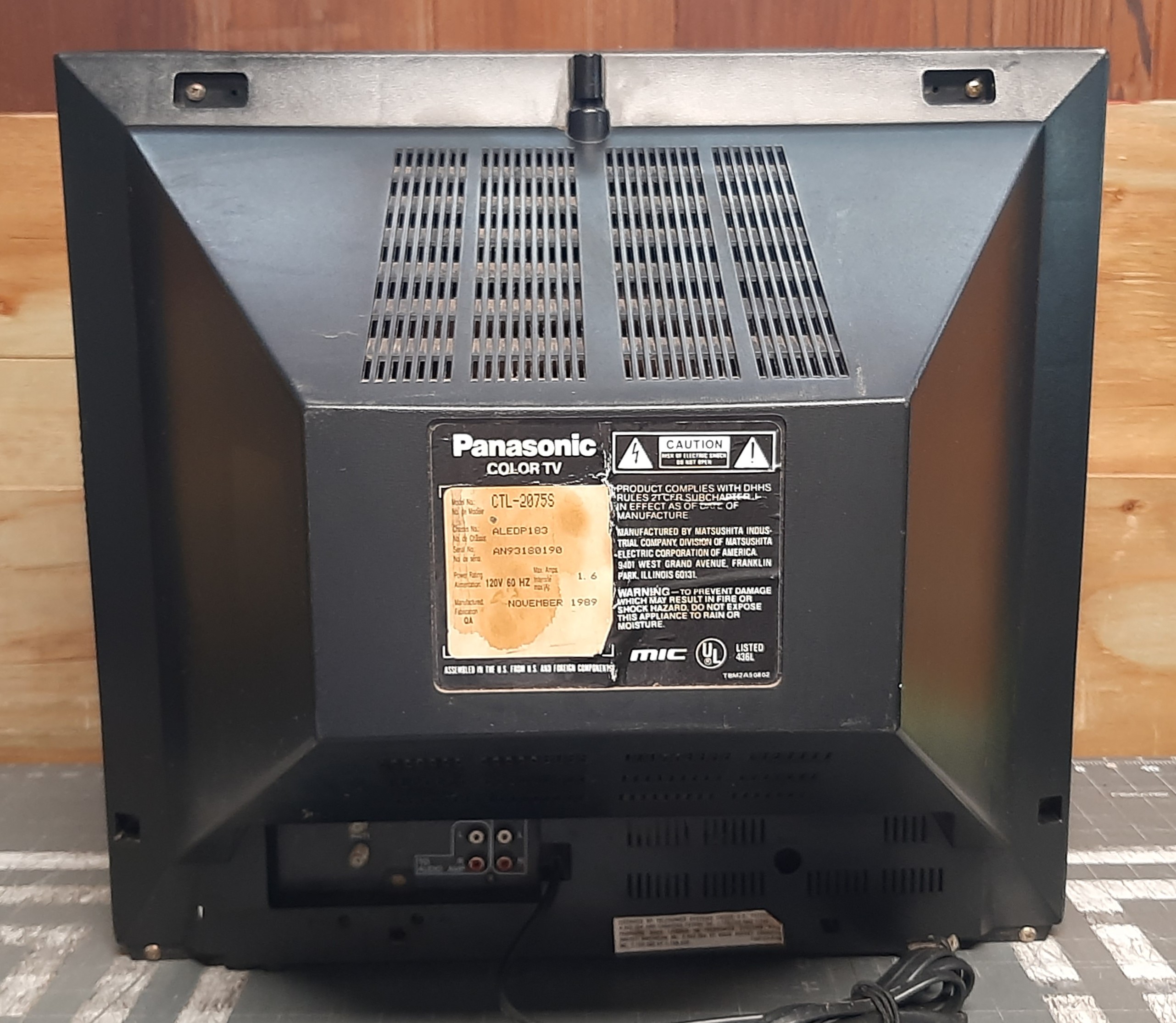

High end 20" TV from Panasonic with a classic boxy '80s look. Has advanced features for its time, including an S-Video input, audio out jacks, and large side-mounted speakers.
Literature
No documentation is available online at this time.
Notes
The jungle chip used in this TV does have a RGB inputs for the on screen display. However, according to the data sheet it takes 7.7vpp RGB, so it may not be suitable for an RGB mod.
Gallery

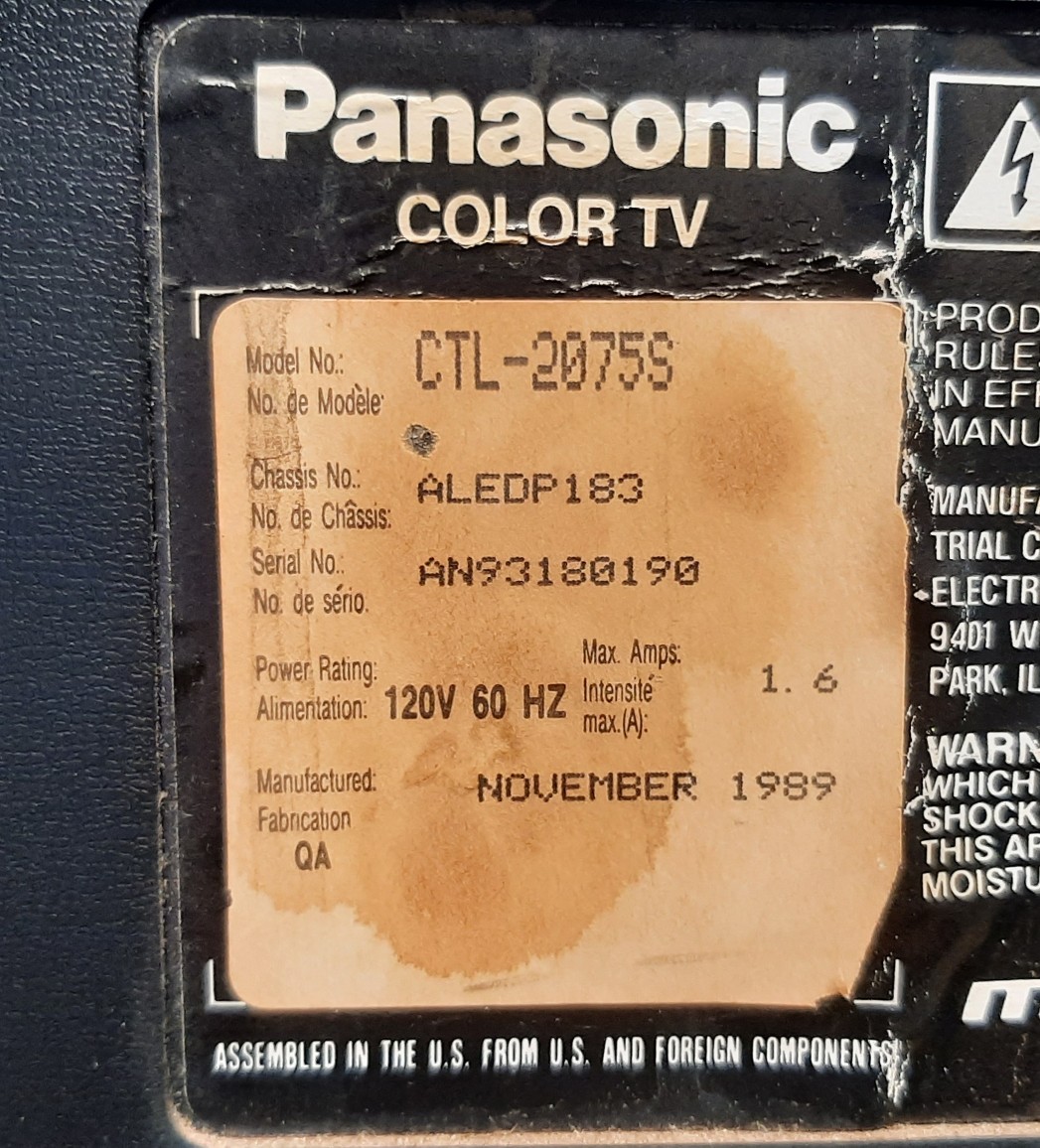

| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | CTL-2075S |
| Series: | CTL |
| Viewable Size: | 20" |
| Inputs: | Composite, S-Video, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Jungle IC: | AN5302K |
| Flyback: | TLF15526F |
| Tube: | Matsushita (MTC) , A51ADY02X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo |
| Chassis: | ALEDP183 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Pictures, Needs Yoke Info |
