Summary

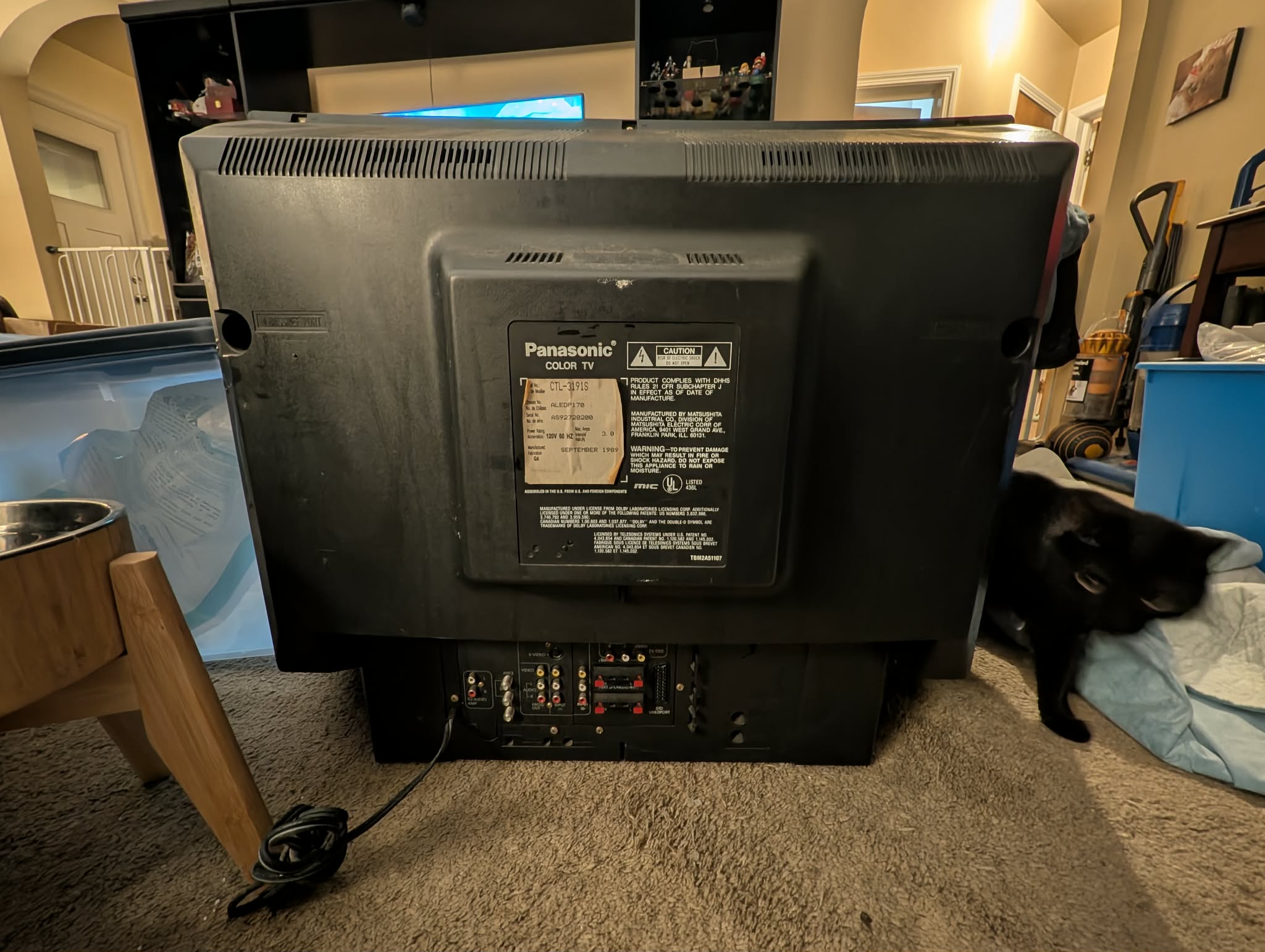

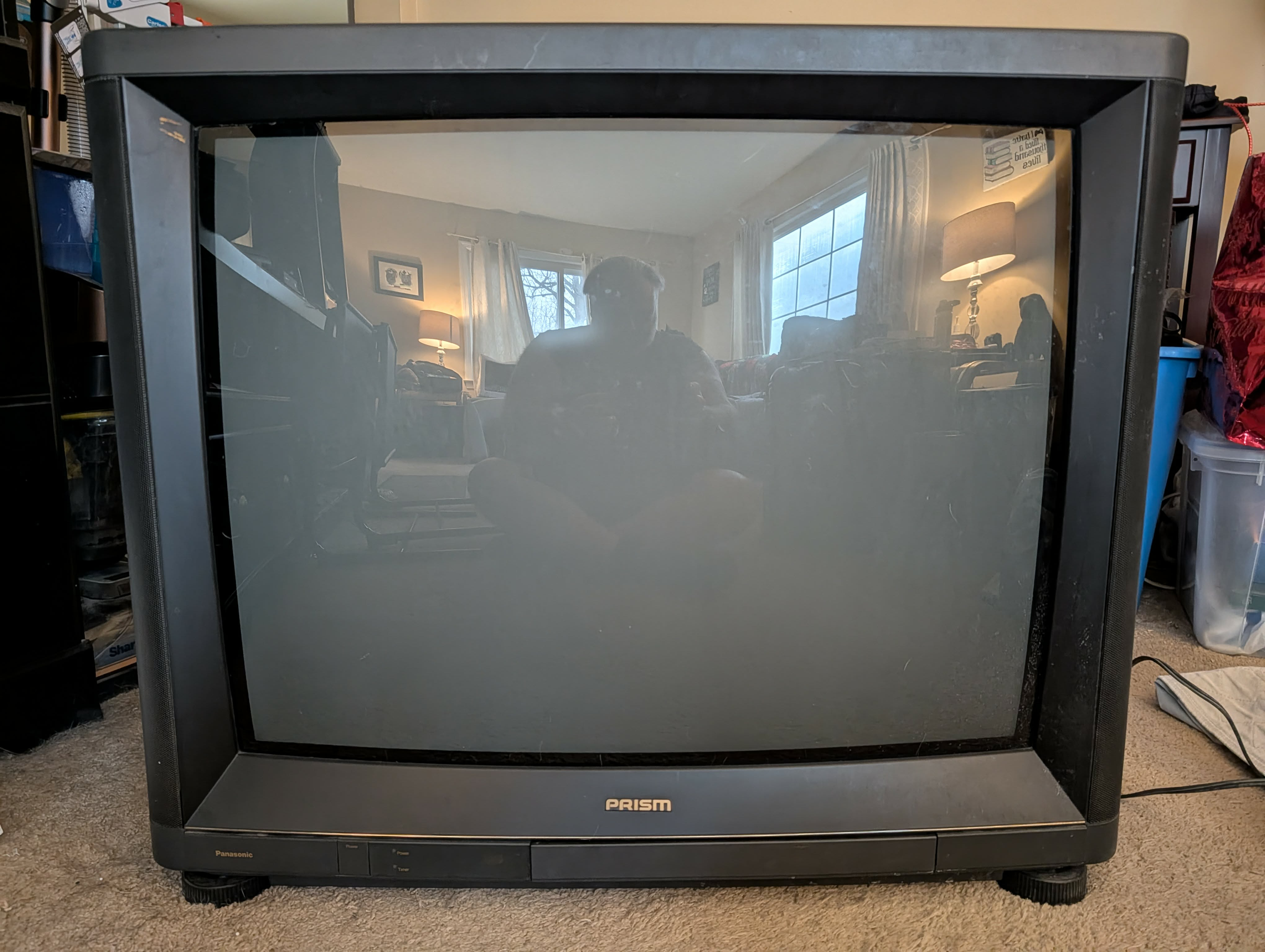

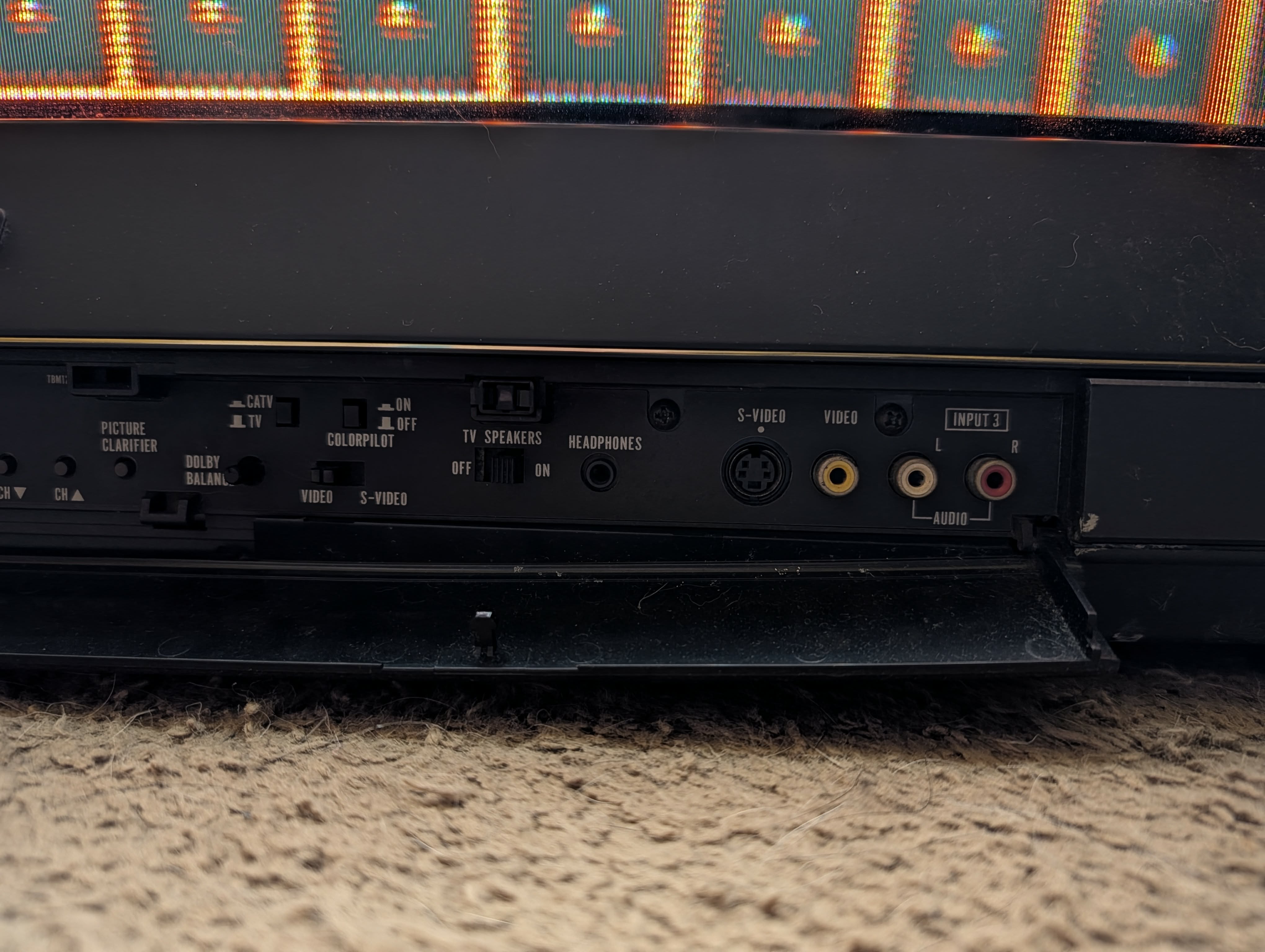

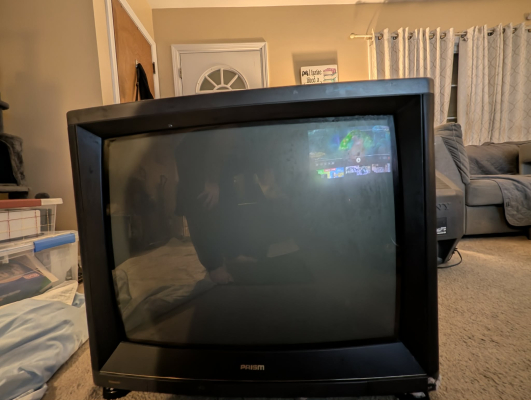

High-end 31" TV By Panasonic, under their premier Prism line. Has RF, composite, s-video and EIA Multiport inputs with bassy stereo DOME speakers. Originally manufactured in Mexico and launched in 1988.
(Special thanks to Jason Tryon for the pics!)
Manuals
(None at this time.)
Notes

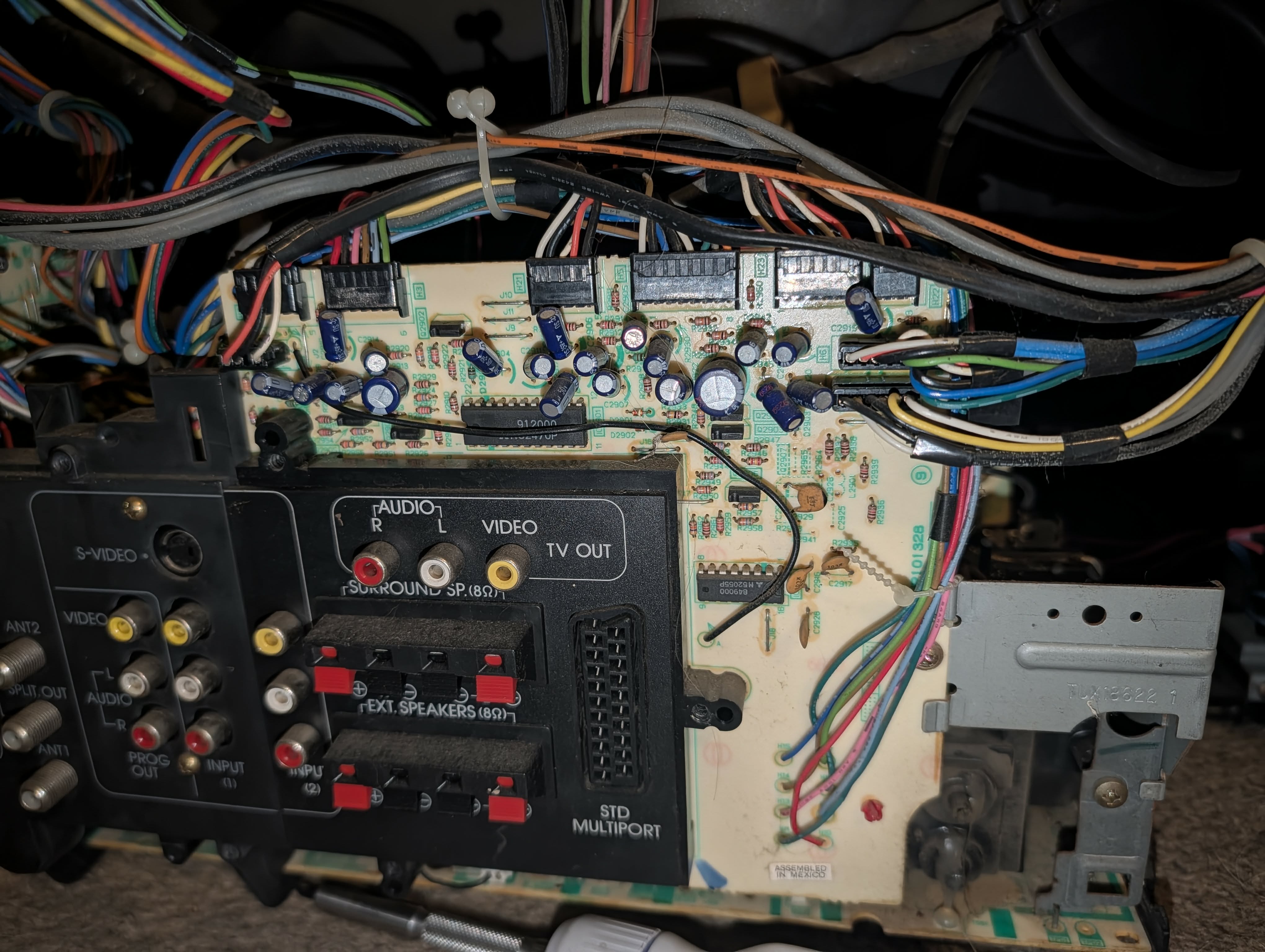

The EIA Multiport does not have the same functions as SCART. RGB is not supported, just composite and s-video.

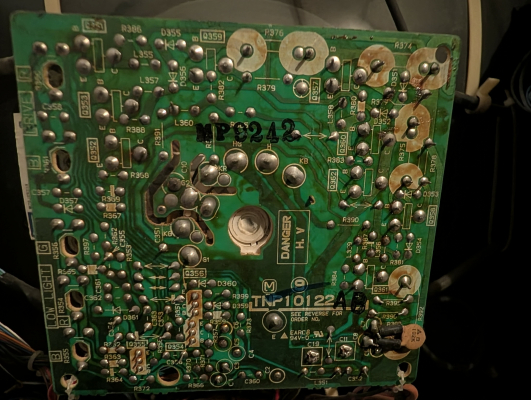

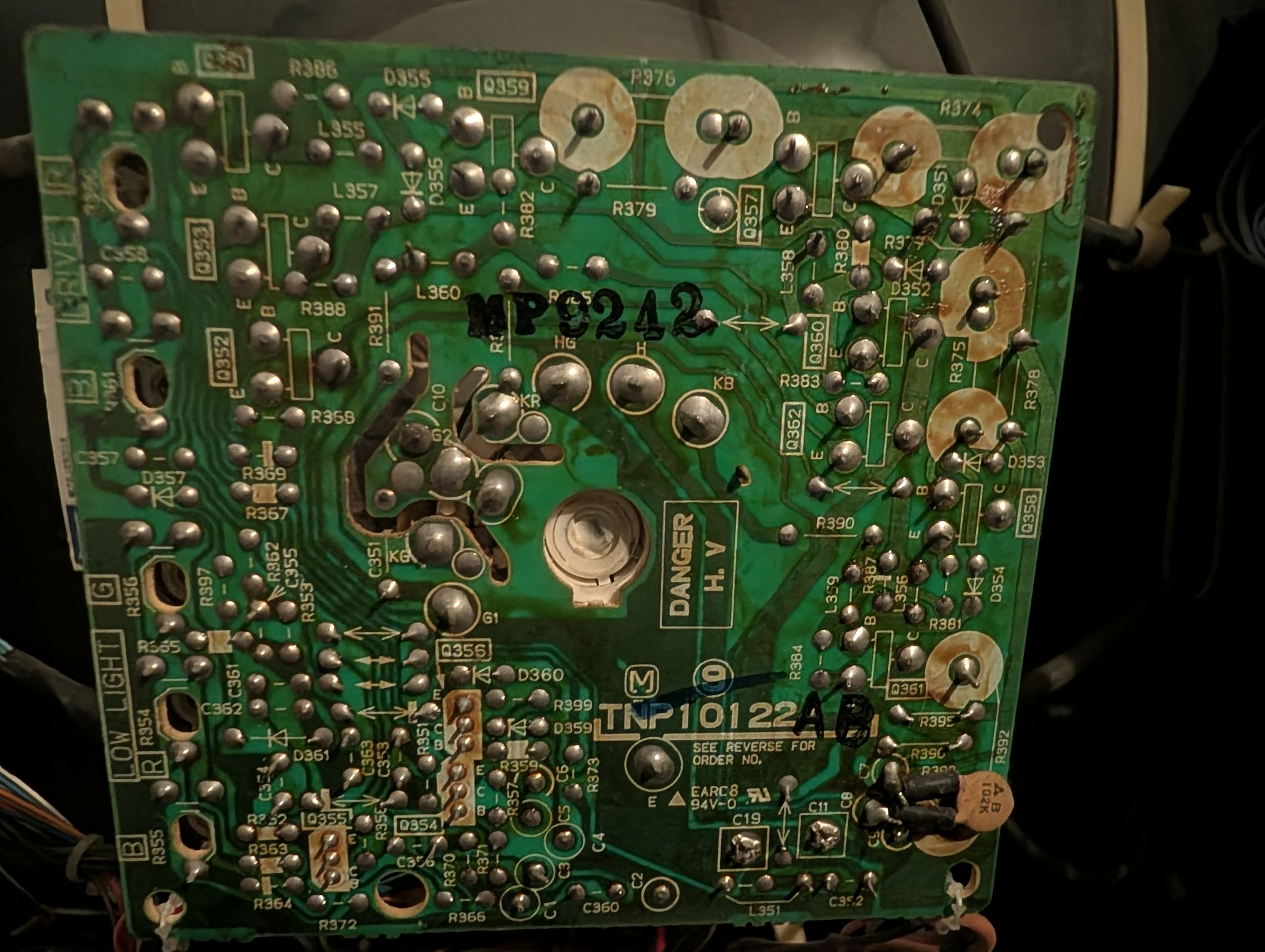

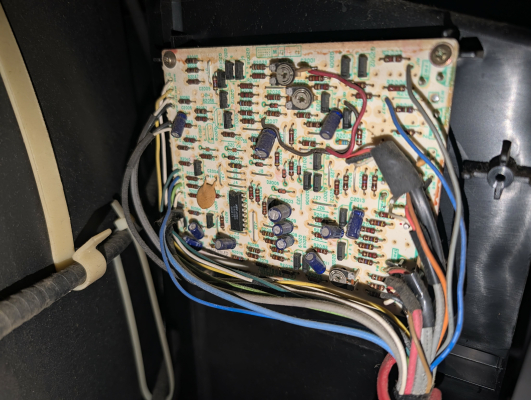

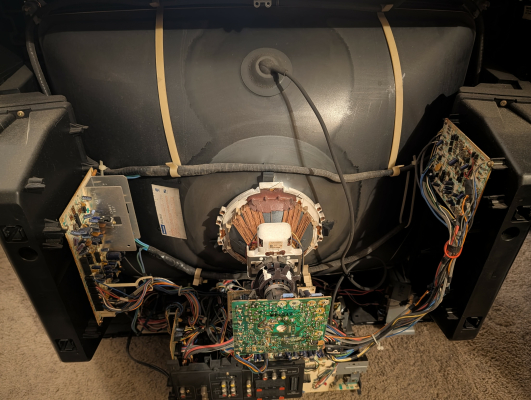

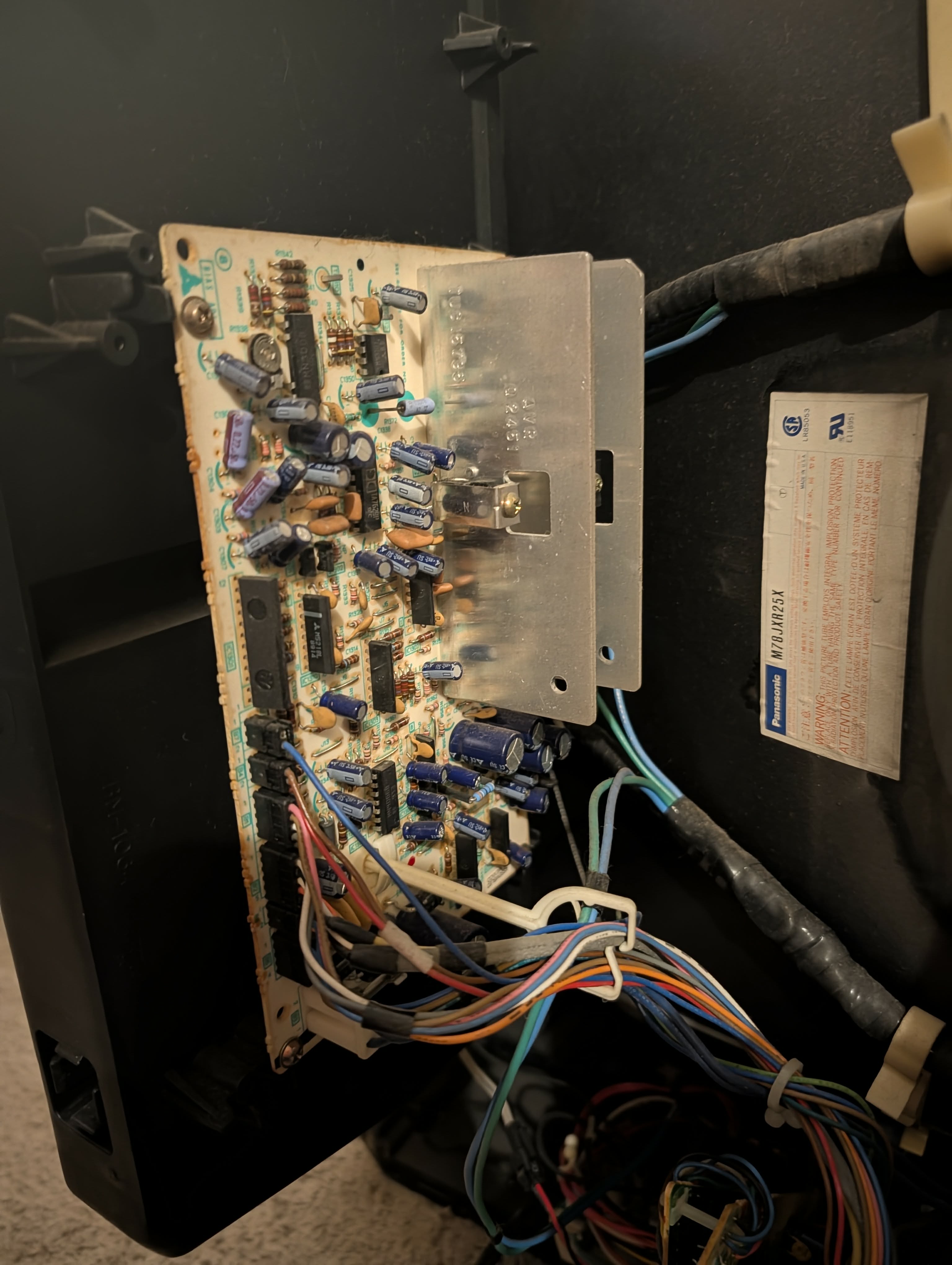

This set has VM. To disable it, unplug the wire connecting the yoke to the neckboard.

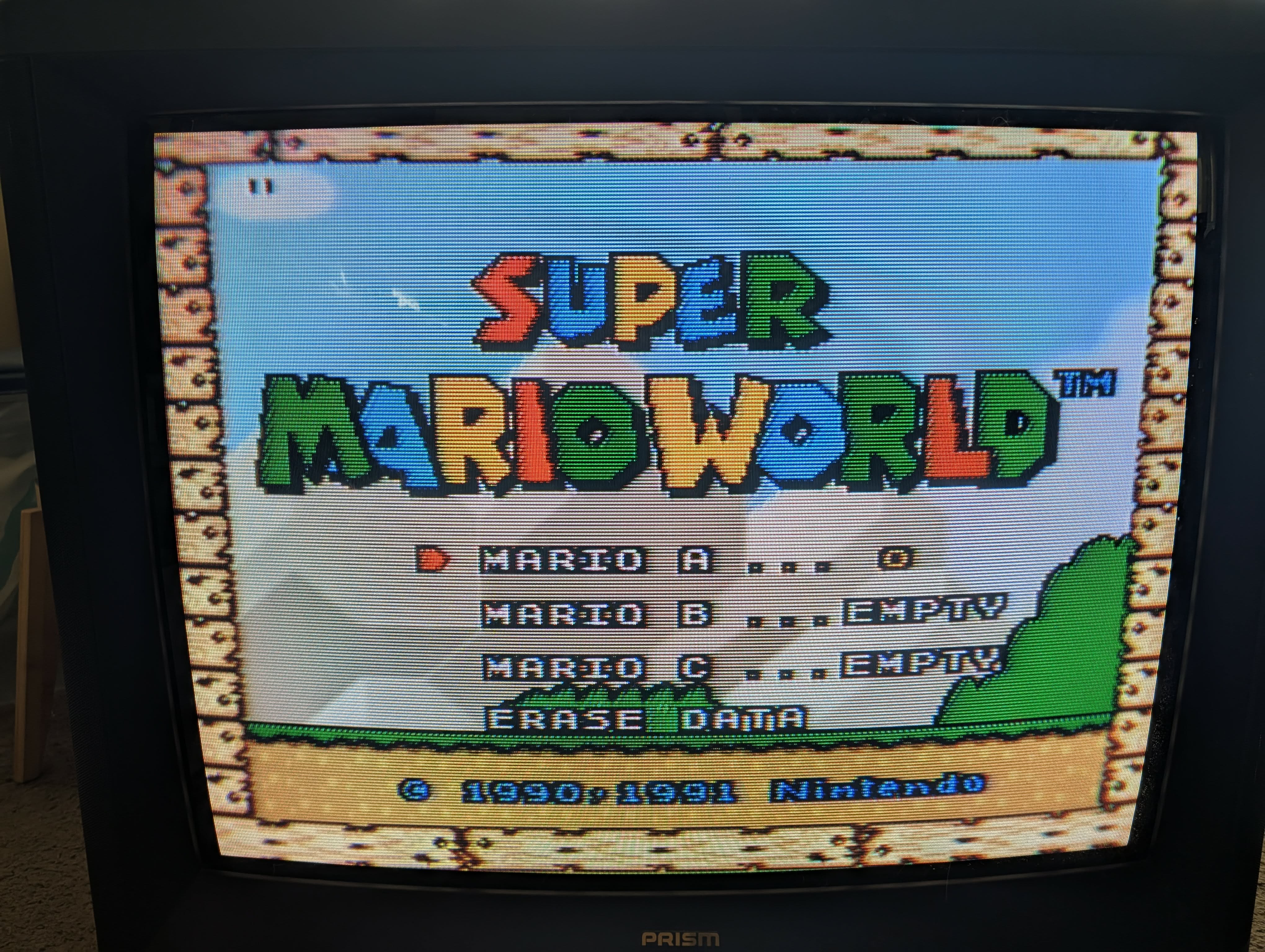

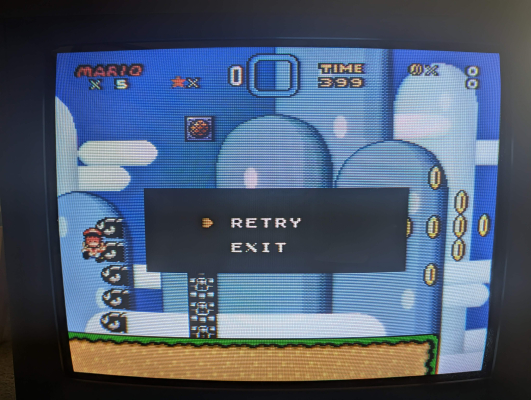

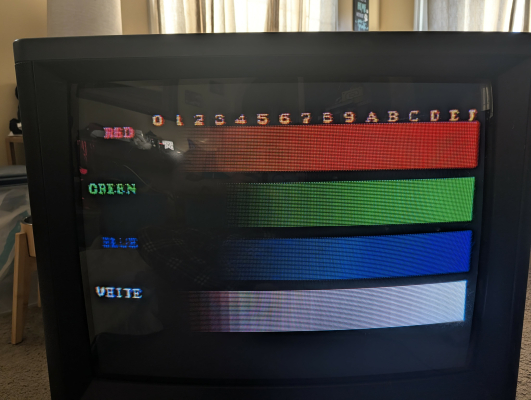

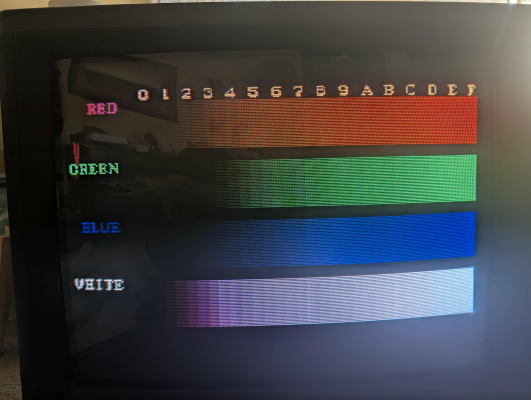

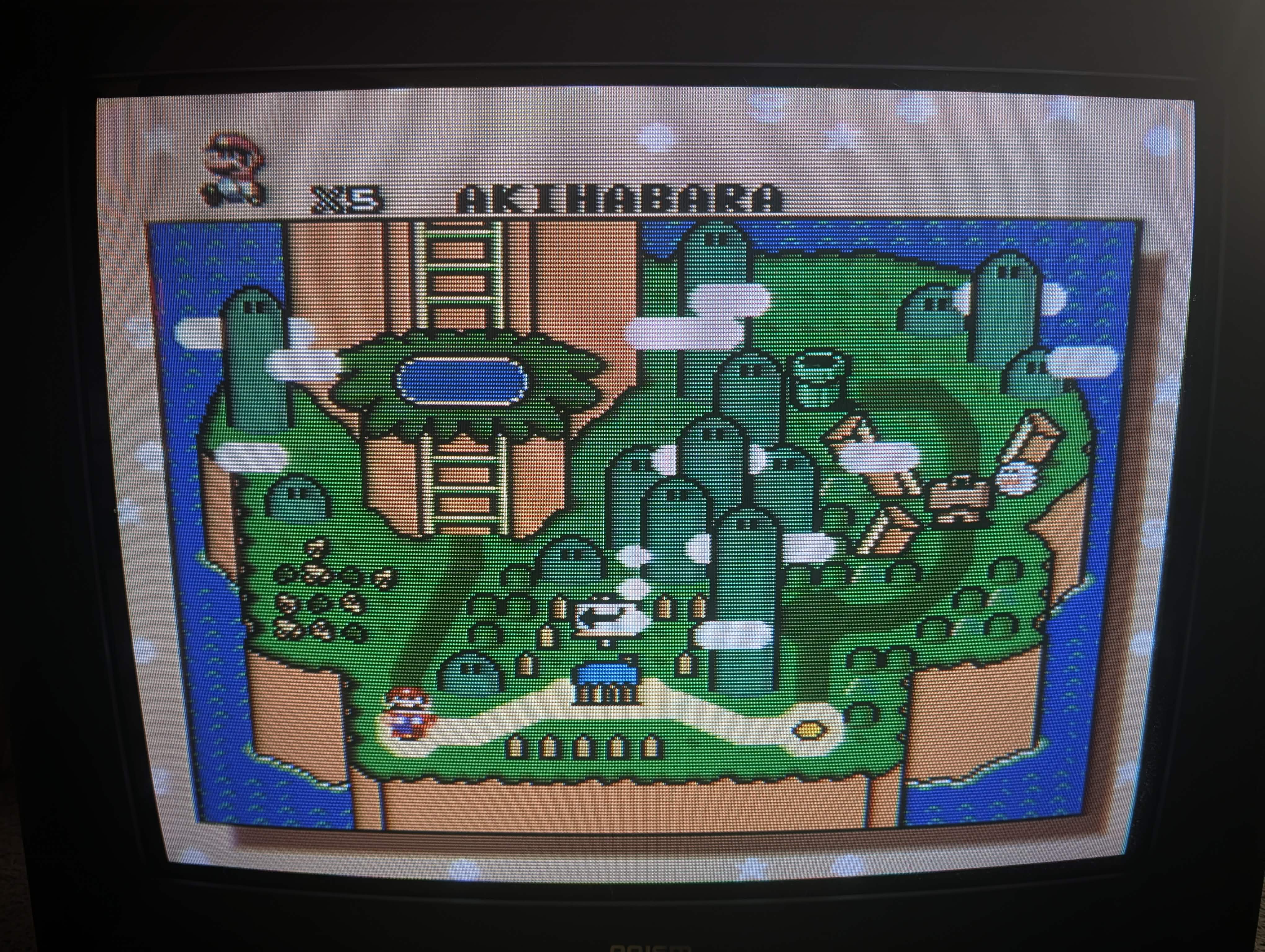

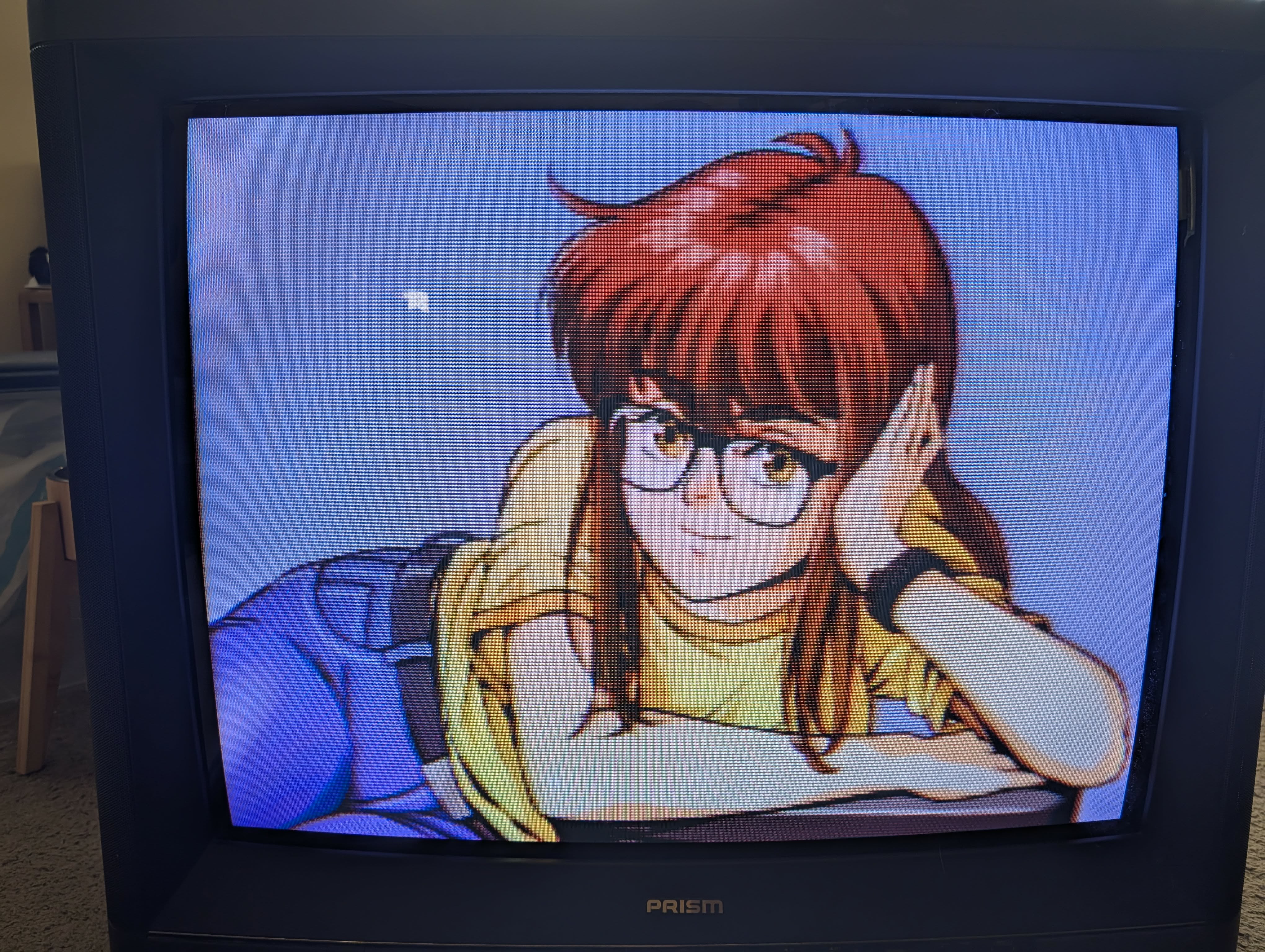

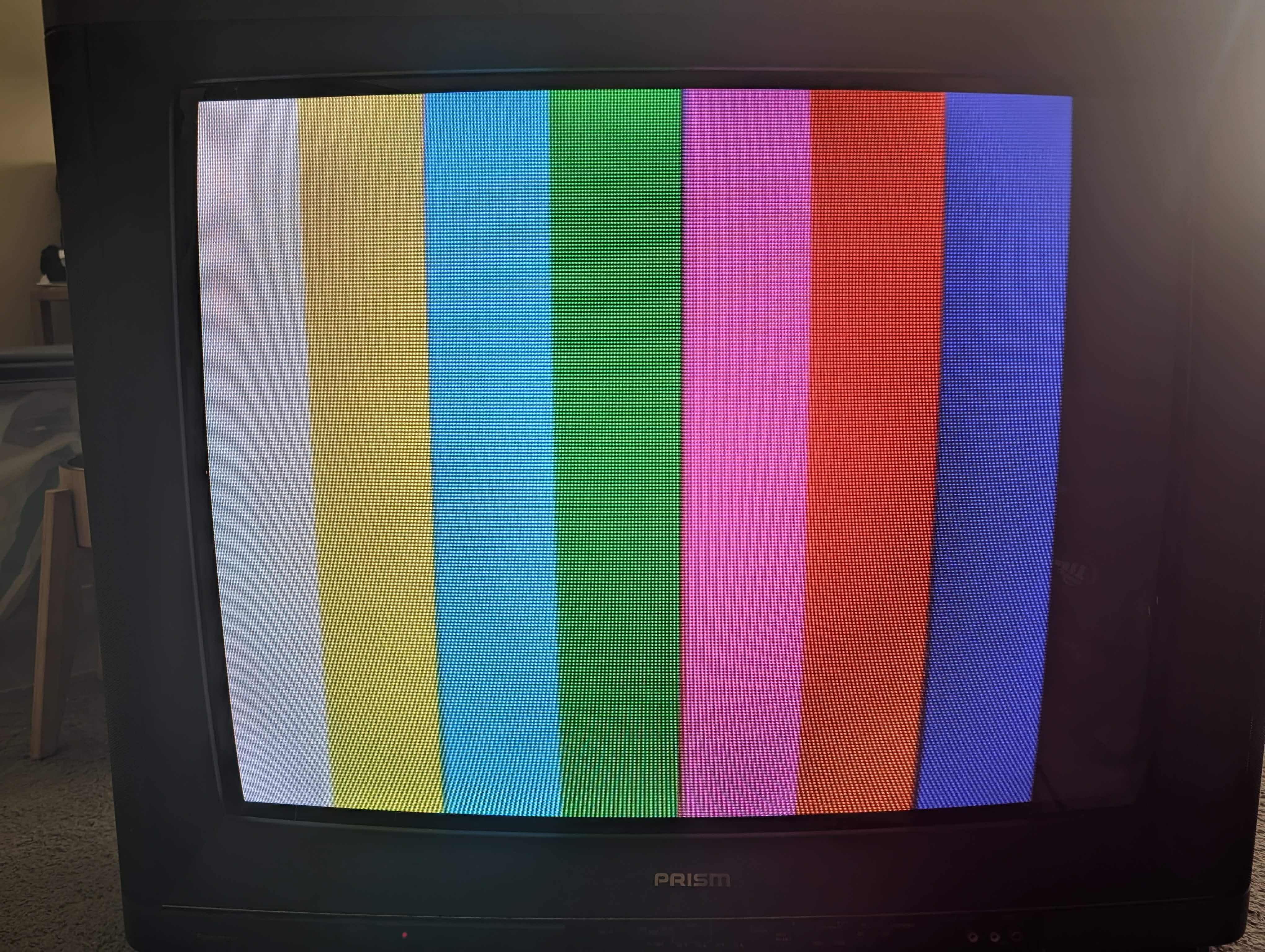

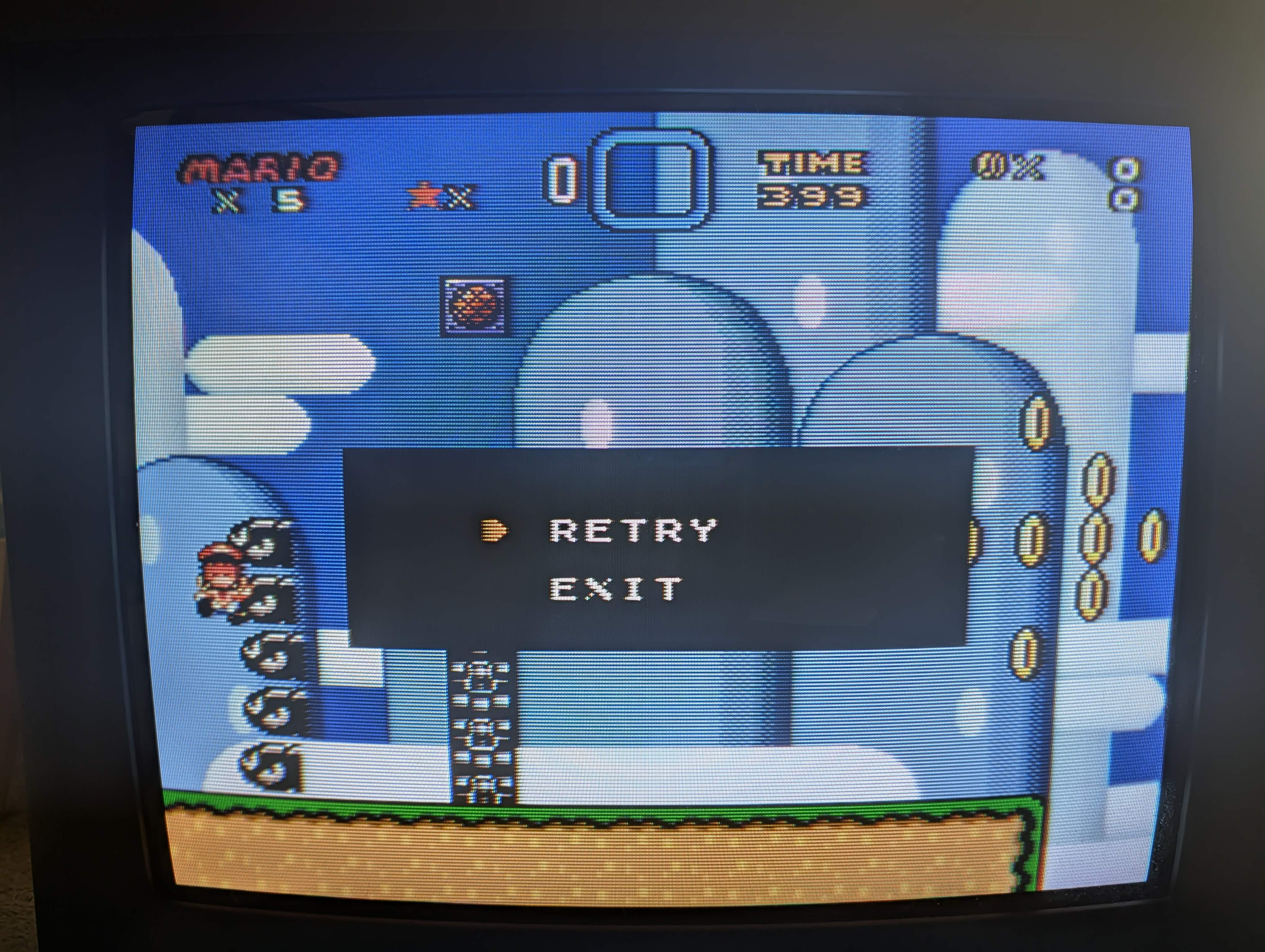

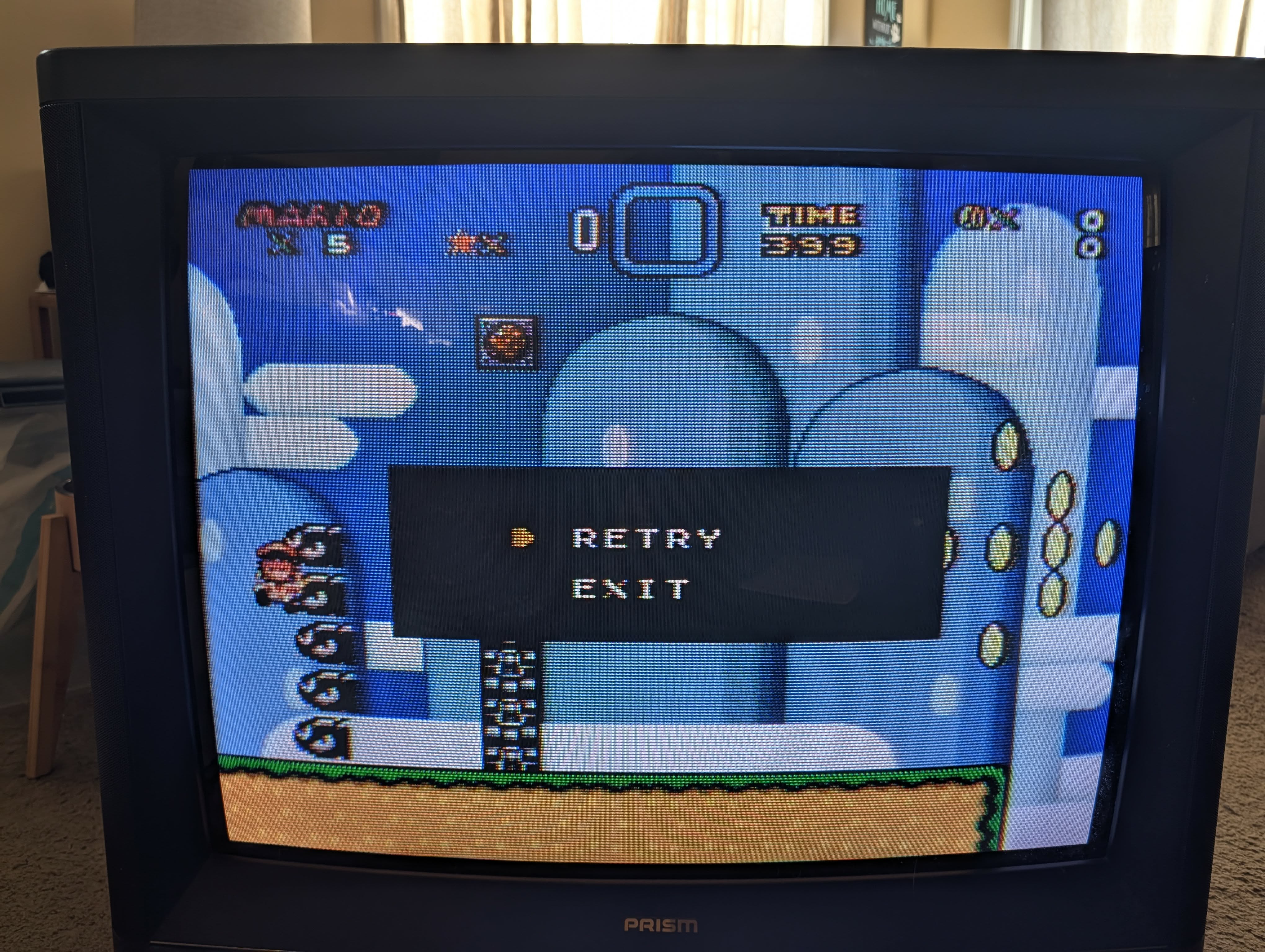

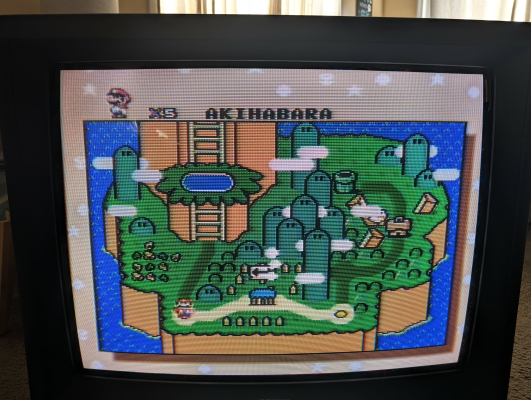

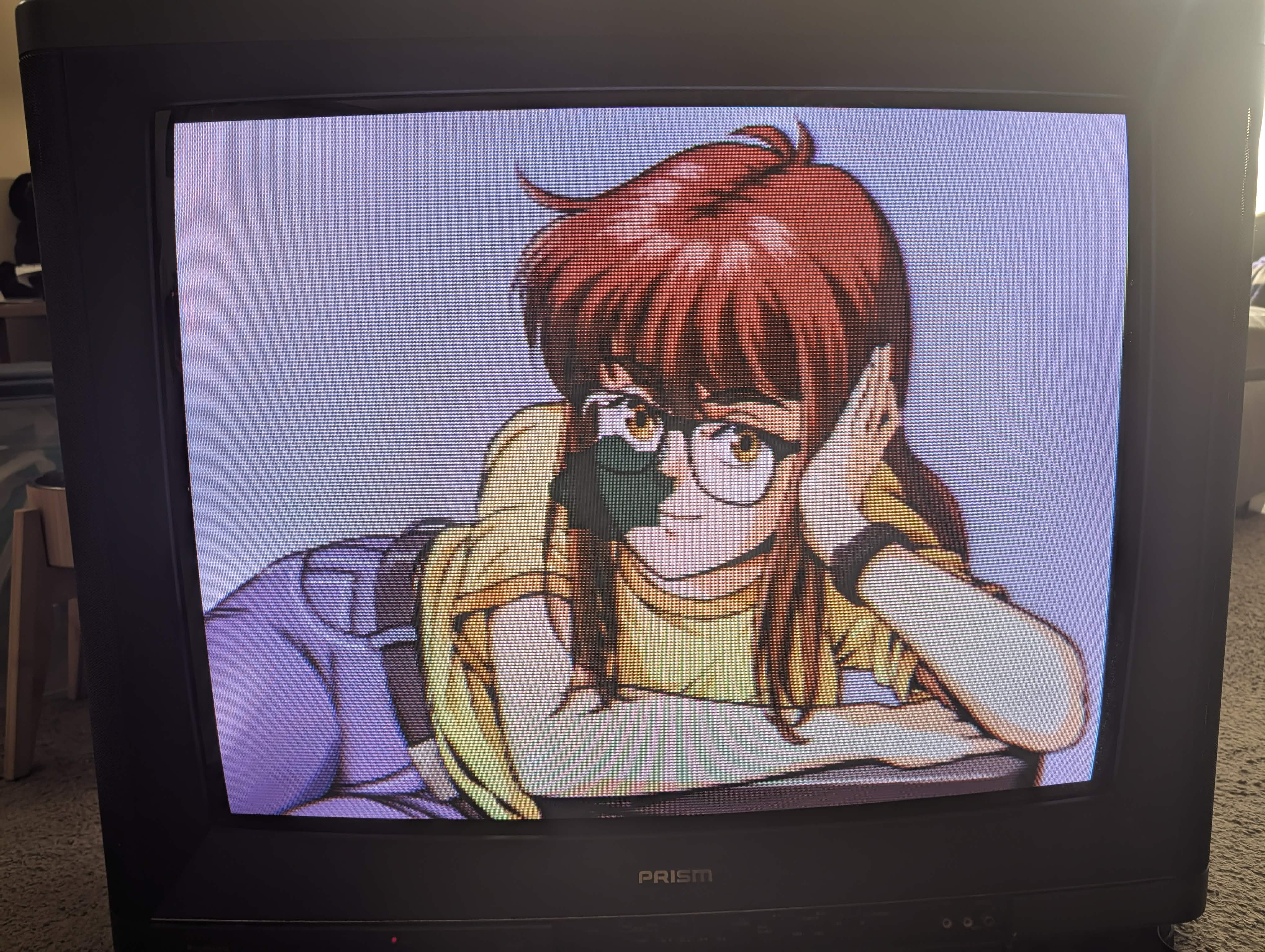

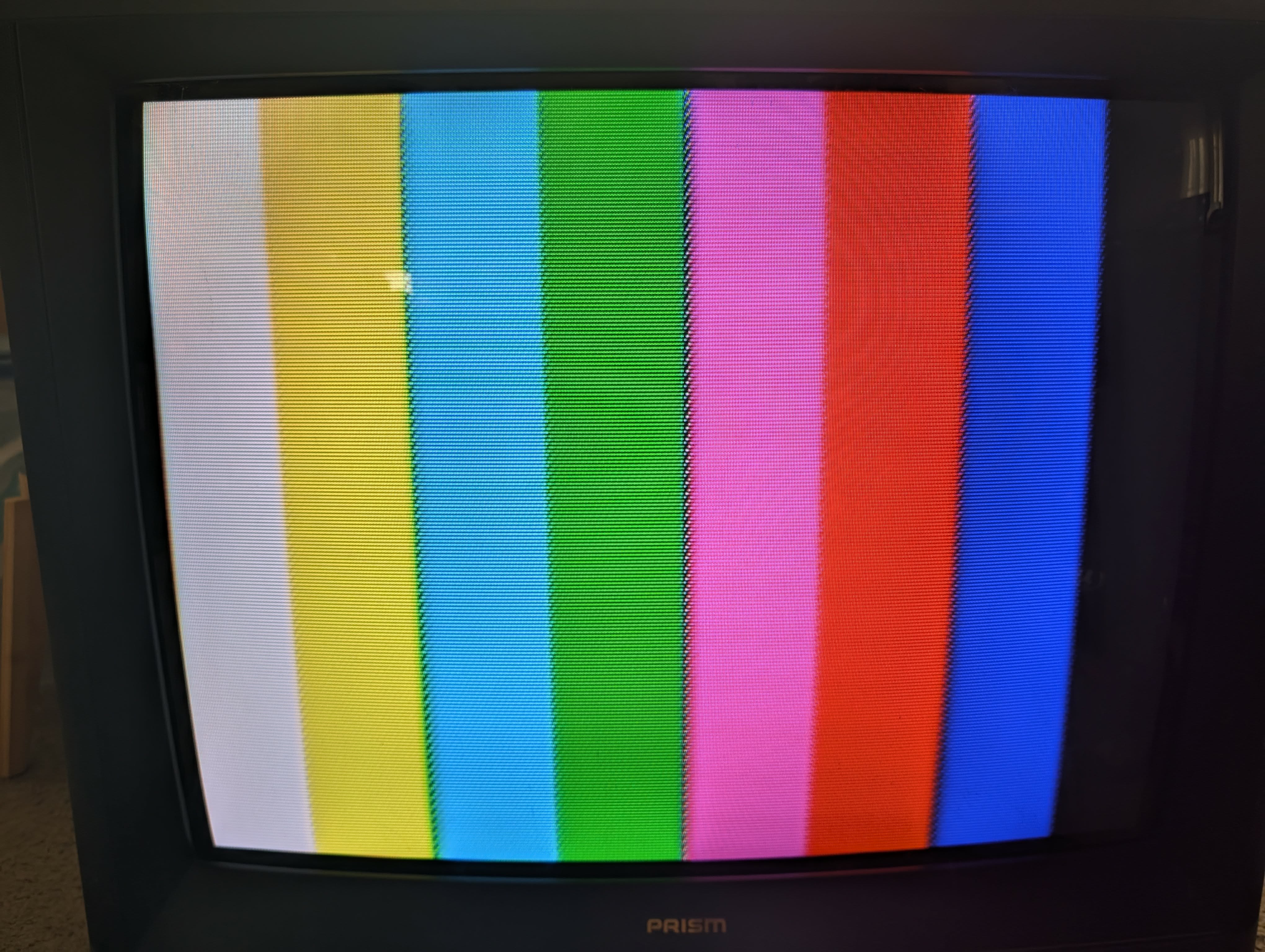

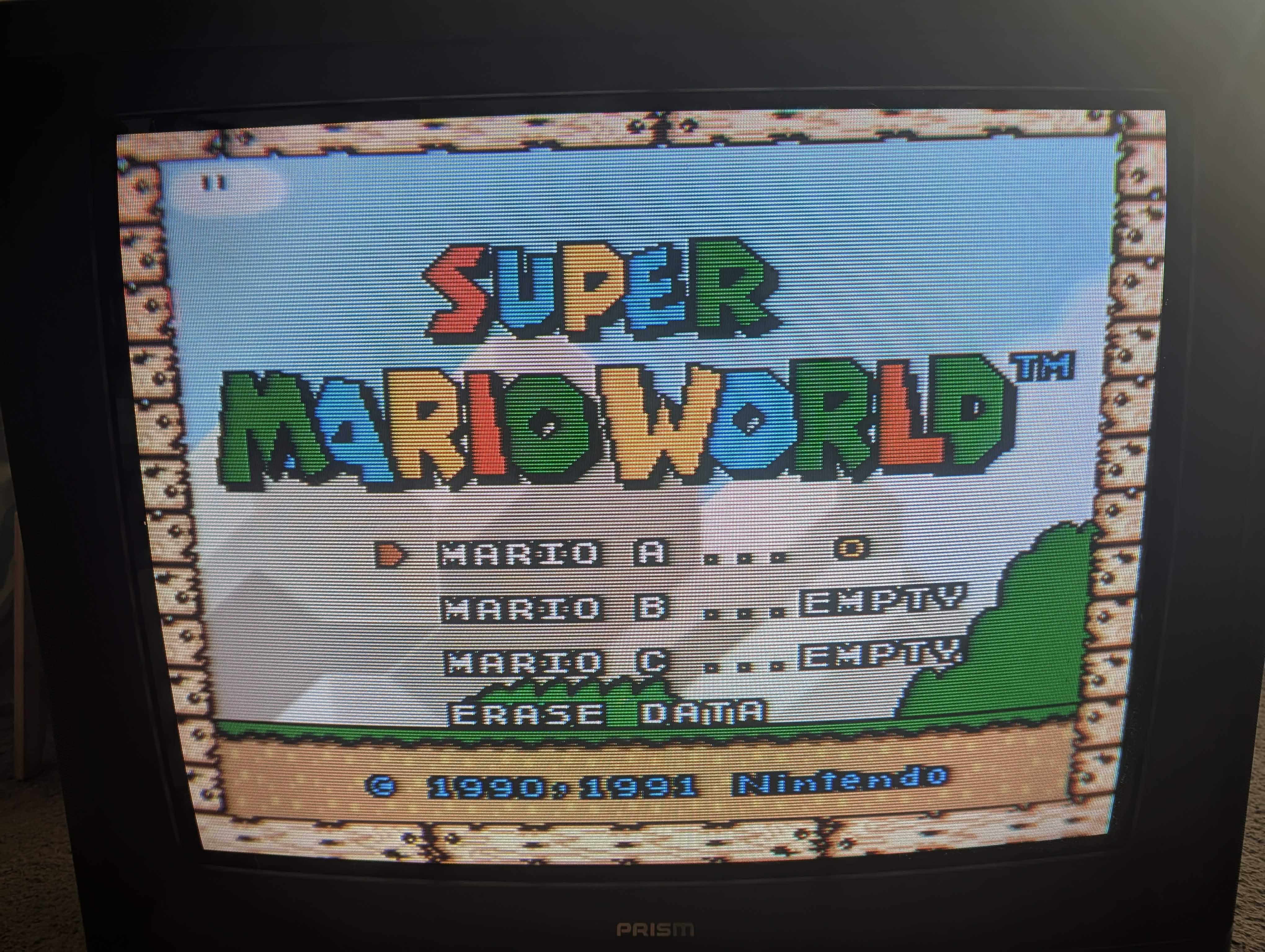

The featured gameplay pics have VM enabled. The first set of gameplay pics are of composite, and after the remote pics are of s-video.
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |

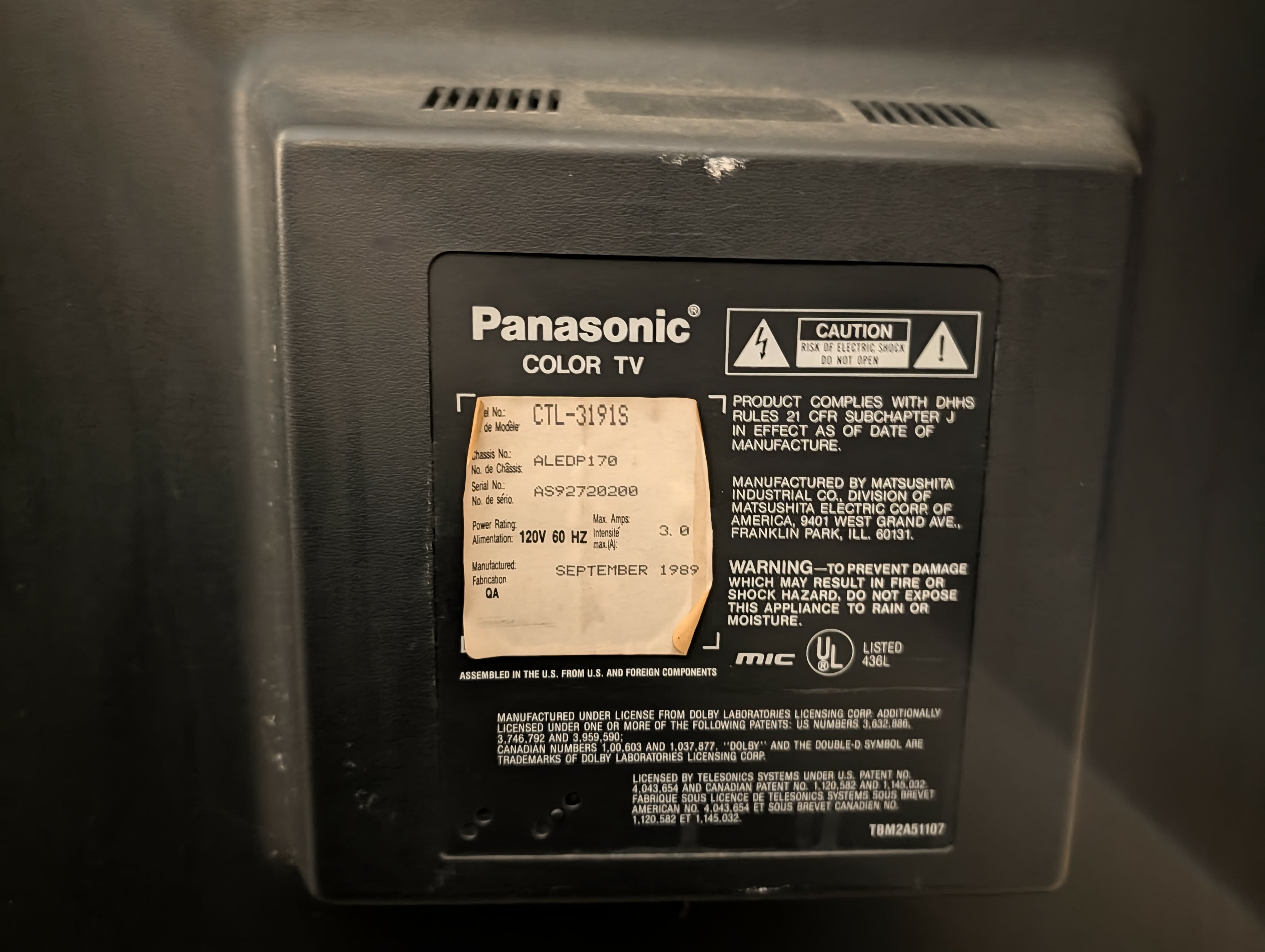

| Model: | CTL-3191S |
| Series: | Prism |
| Viewable Size: | 31" |

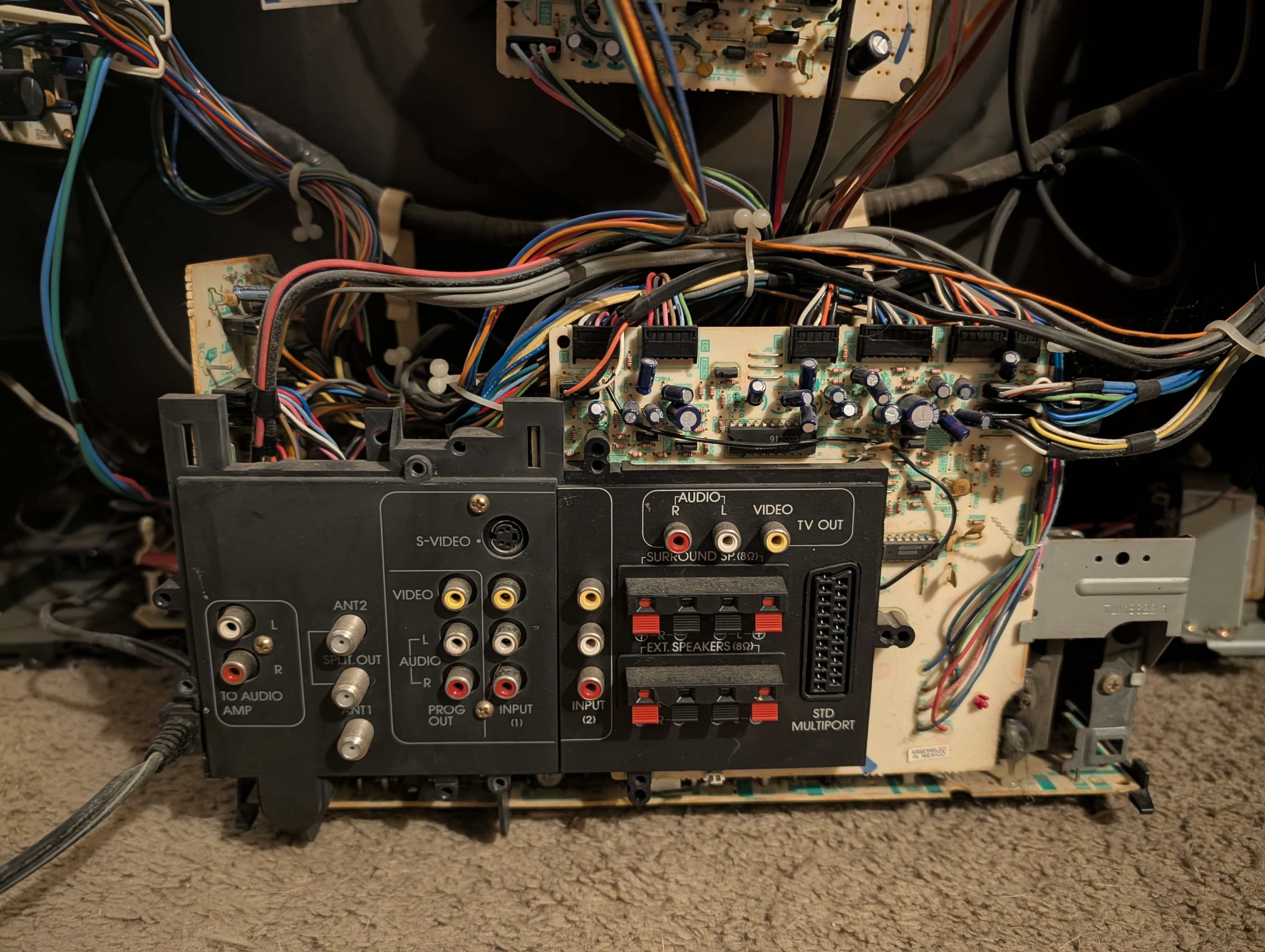

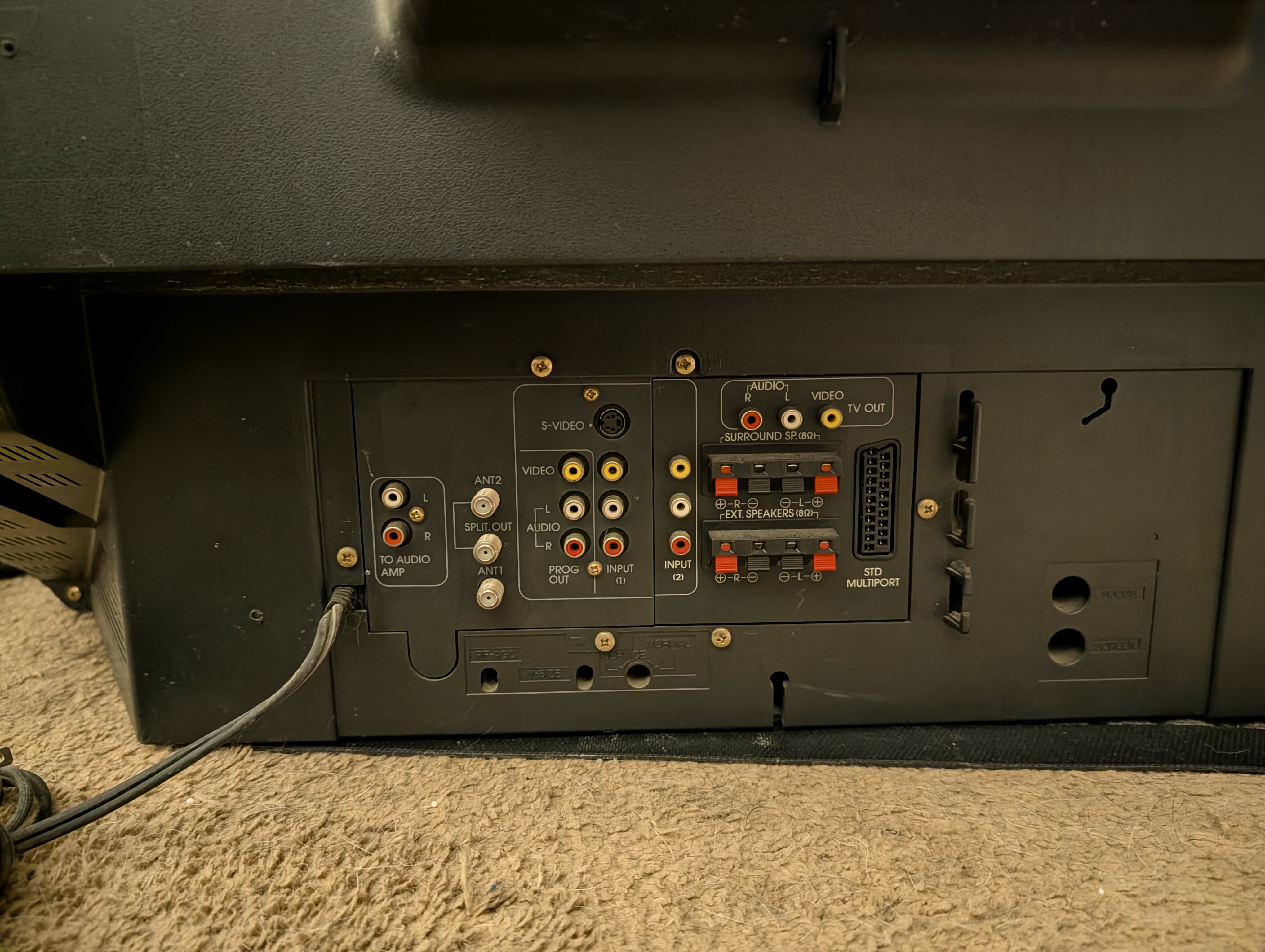

| Input Signals: | Composite, S-Video, RF, MultiPort |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |

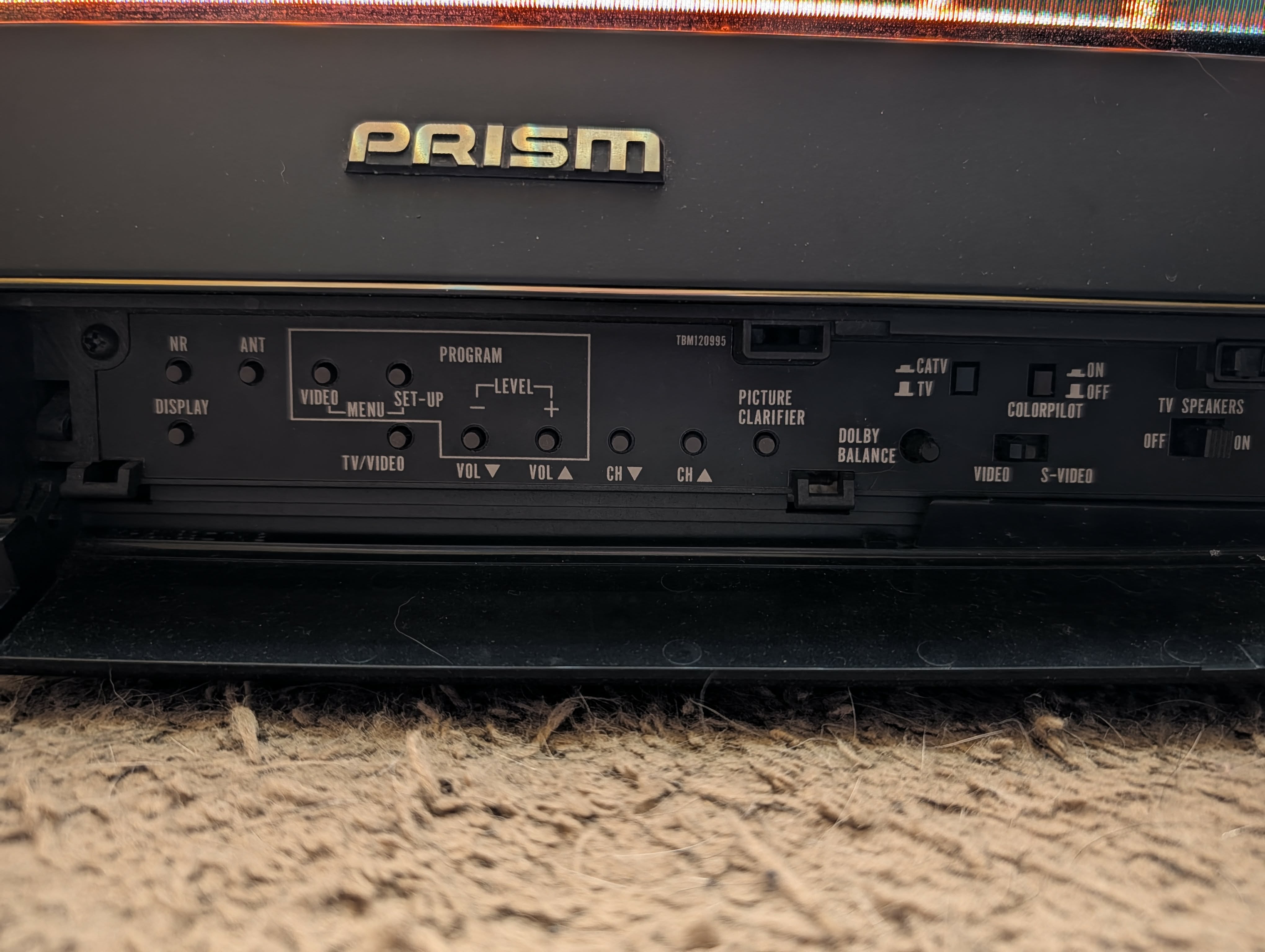

| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Jungle IC: | Panasonic, AN5302K |
| Focus Type: | Single |

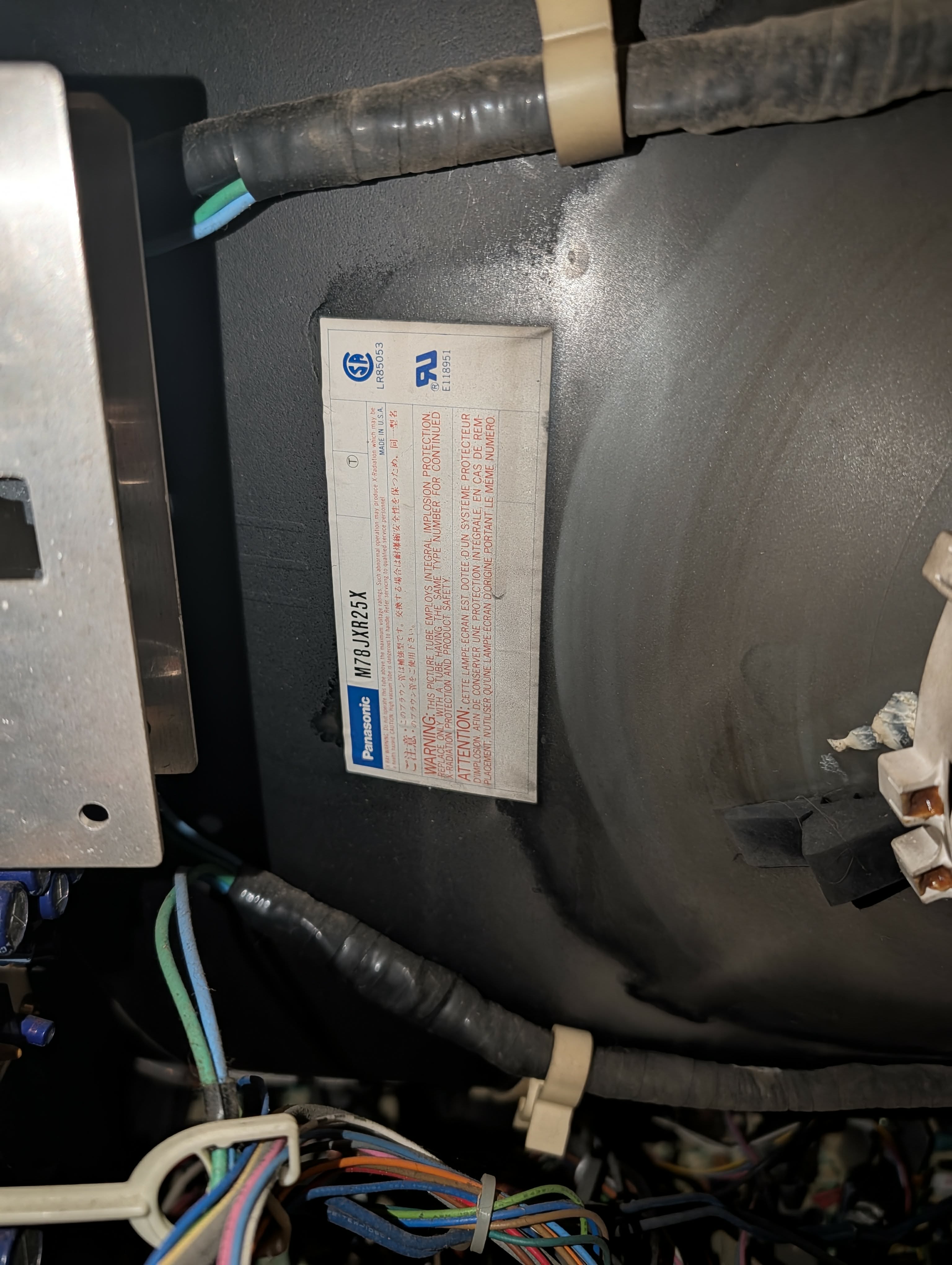

| Tube: | Panasonic , M78JXR25X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

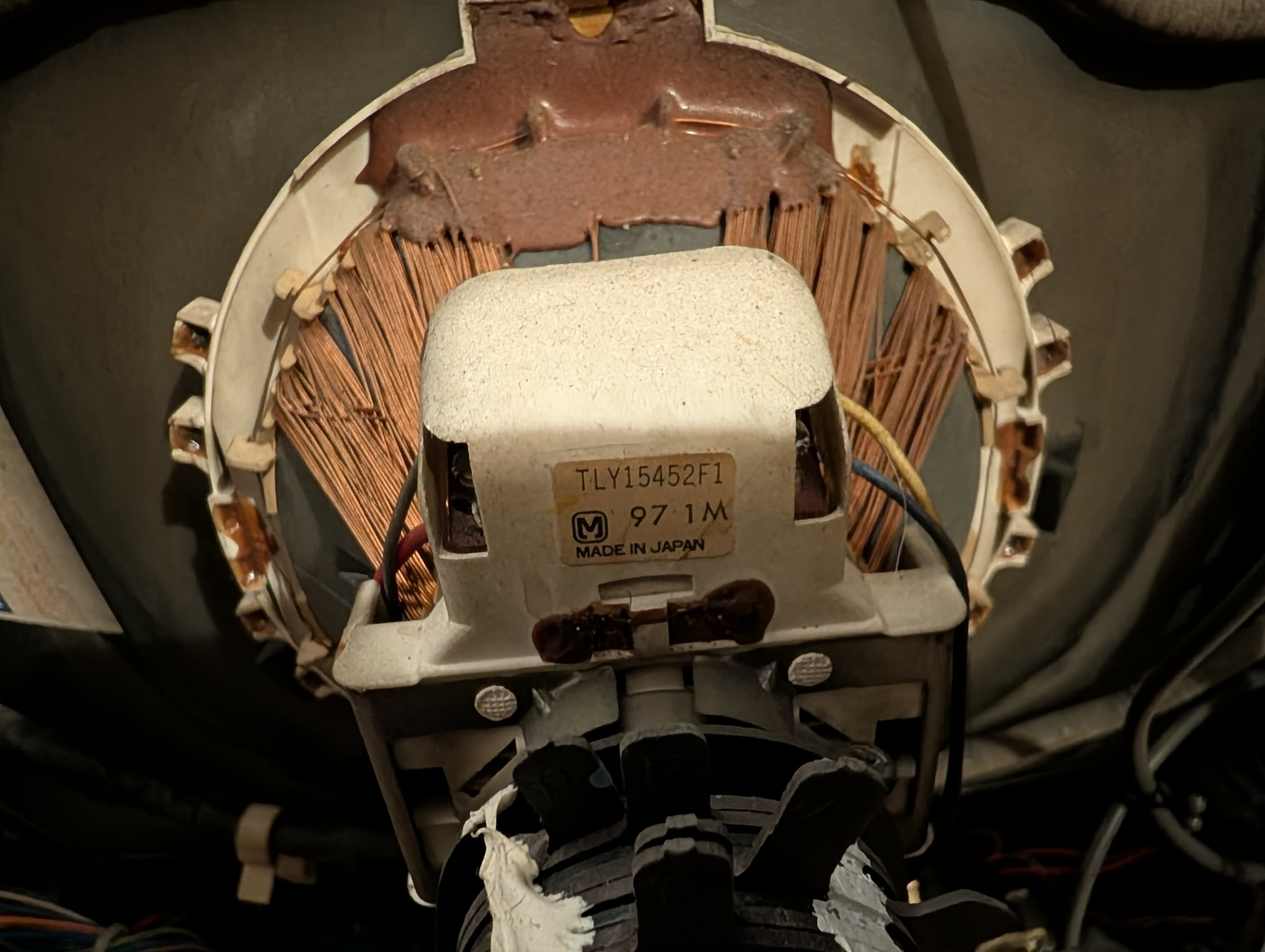

| Yoke: | TLY15452F1 |
| Speakers: | Stereo, Headphone Jack |

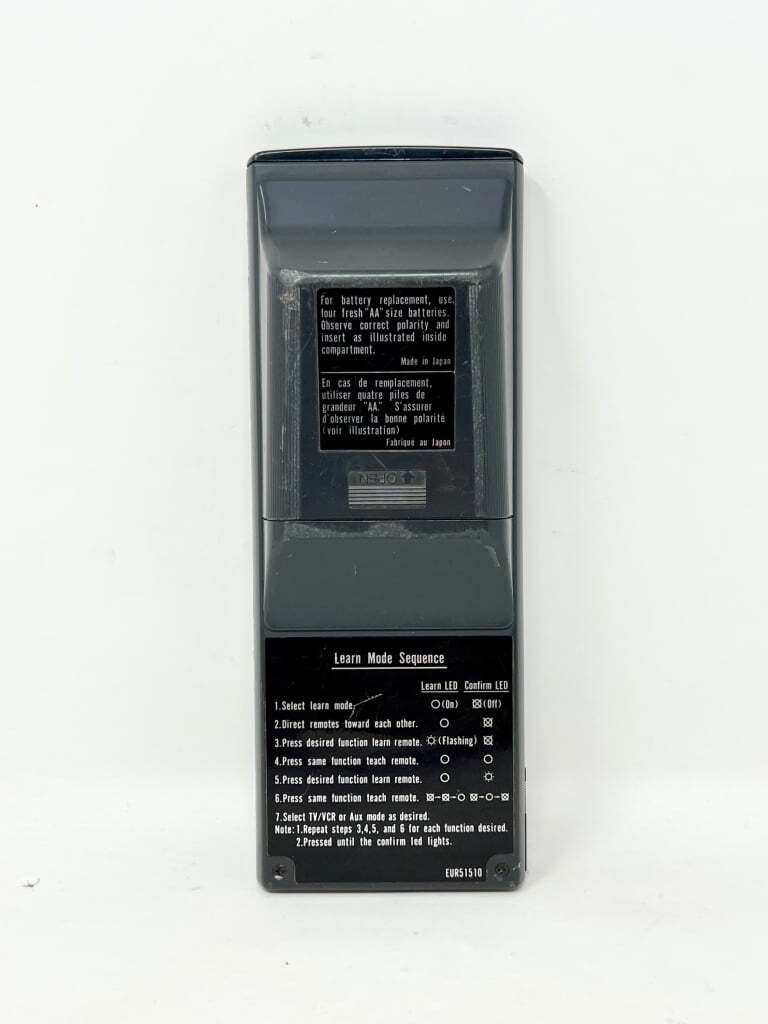

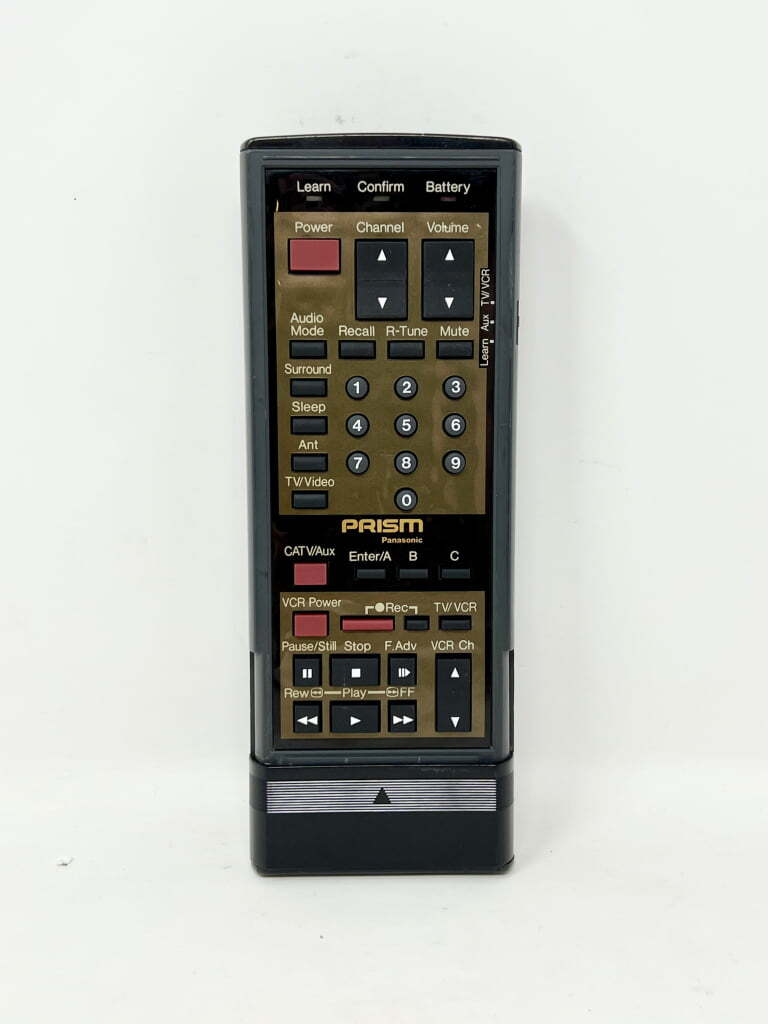

| Remote: | EUR51510A |

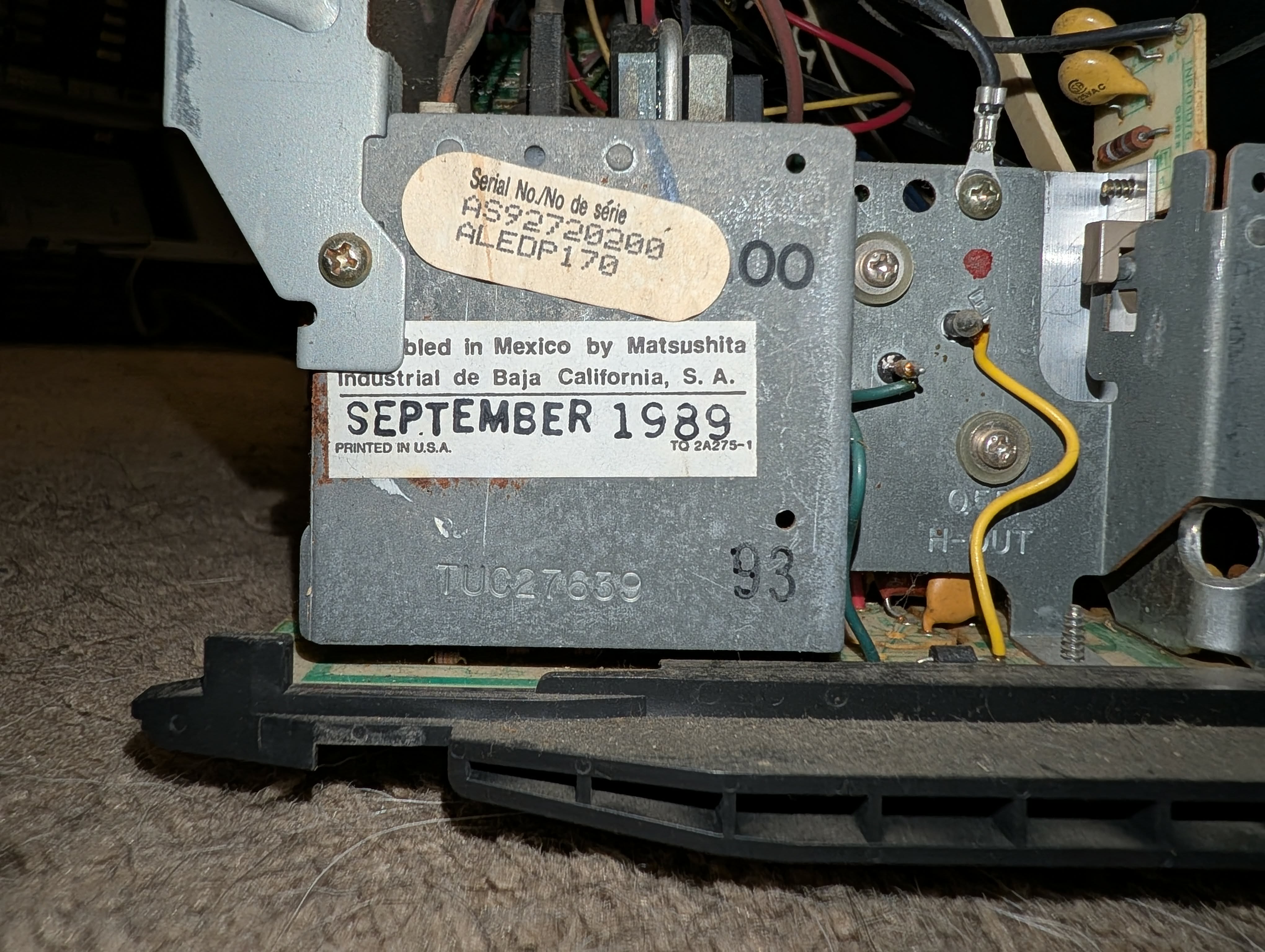

| Chassis: | ALEDP170 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1988 |
| MSRP: | 2800 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
