Summary

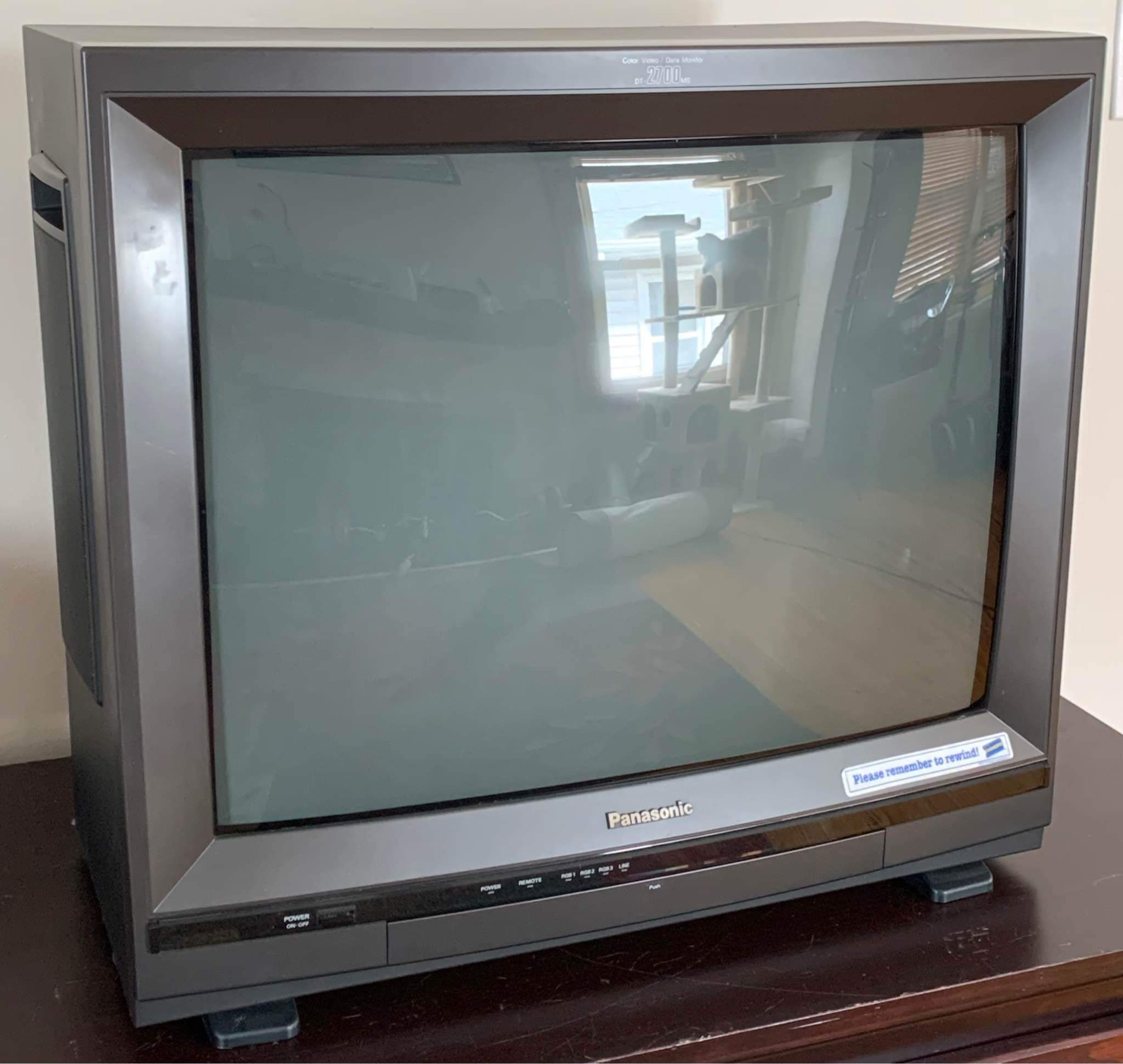

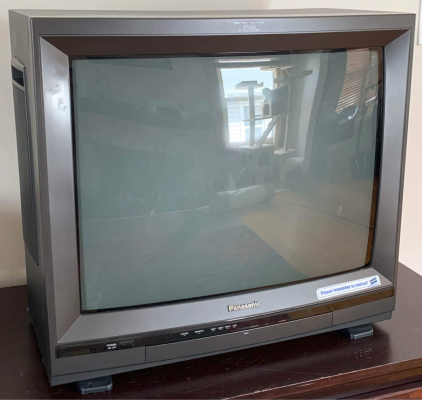

27" presentation monitor by Panasonic. Features composite, and s-video to support multiple formats, as well as RGB, and VGA inputs. Manufactured in Japan in 1992.
Manuals
No documentation is available online at this time.
Notes

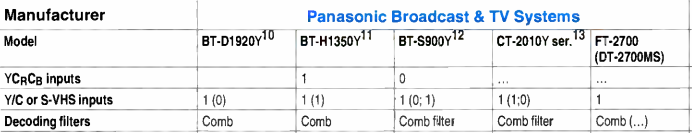

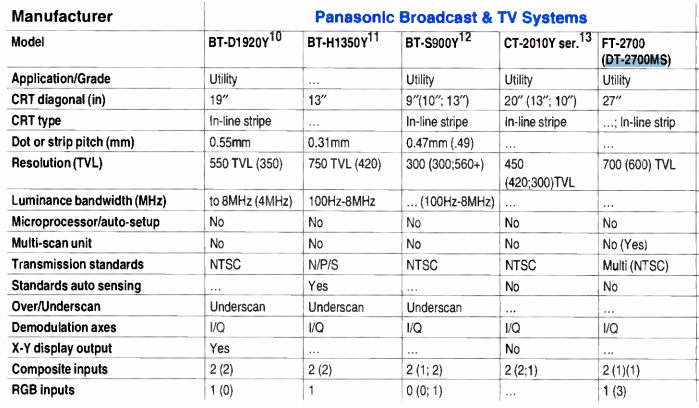

This monitor is basically the multisync cousin of the FT-2700, as it is a data-grade monitor that can display higher resolutions.

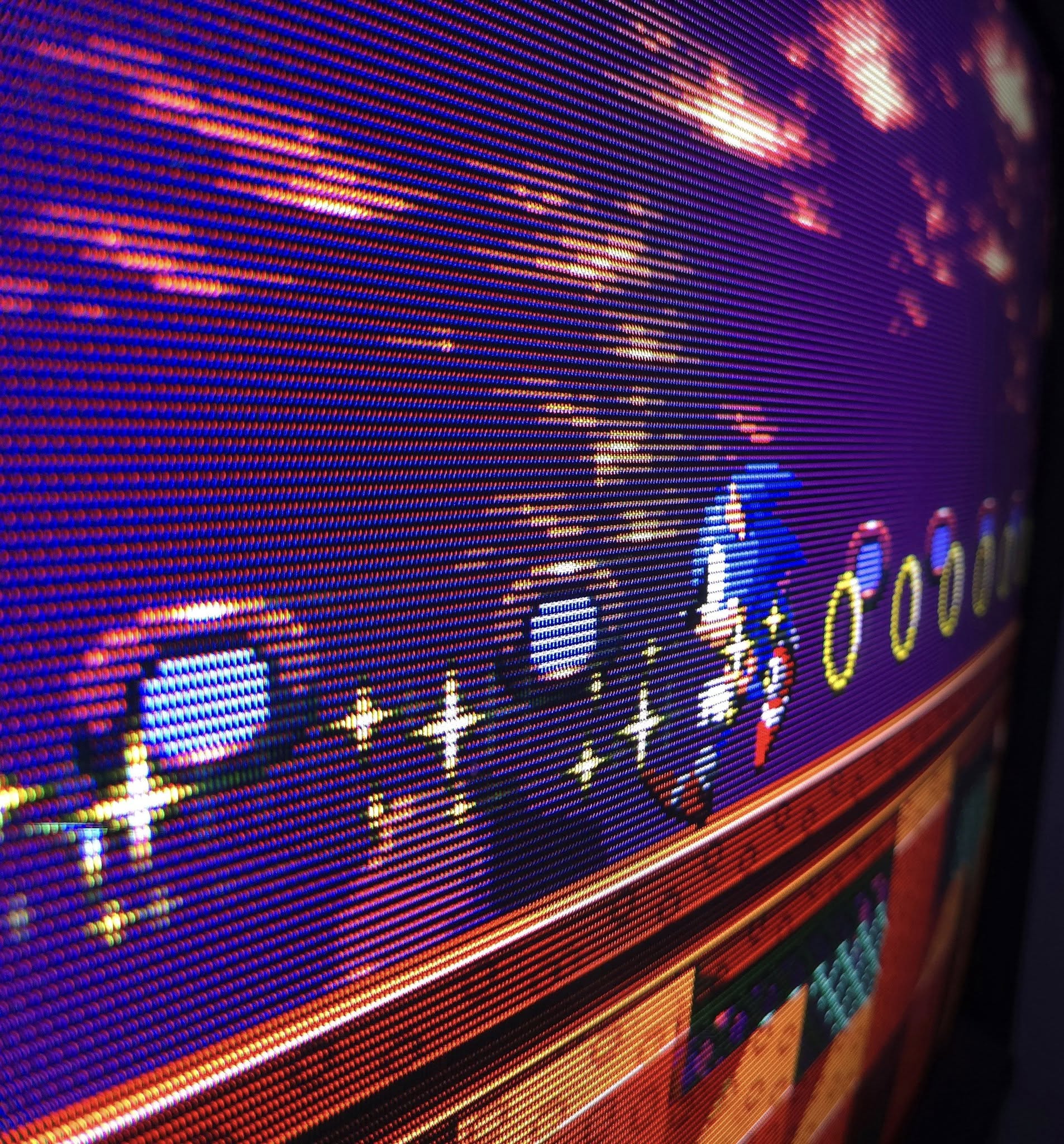

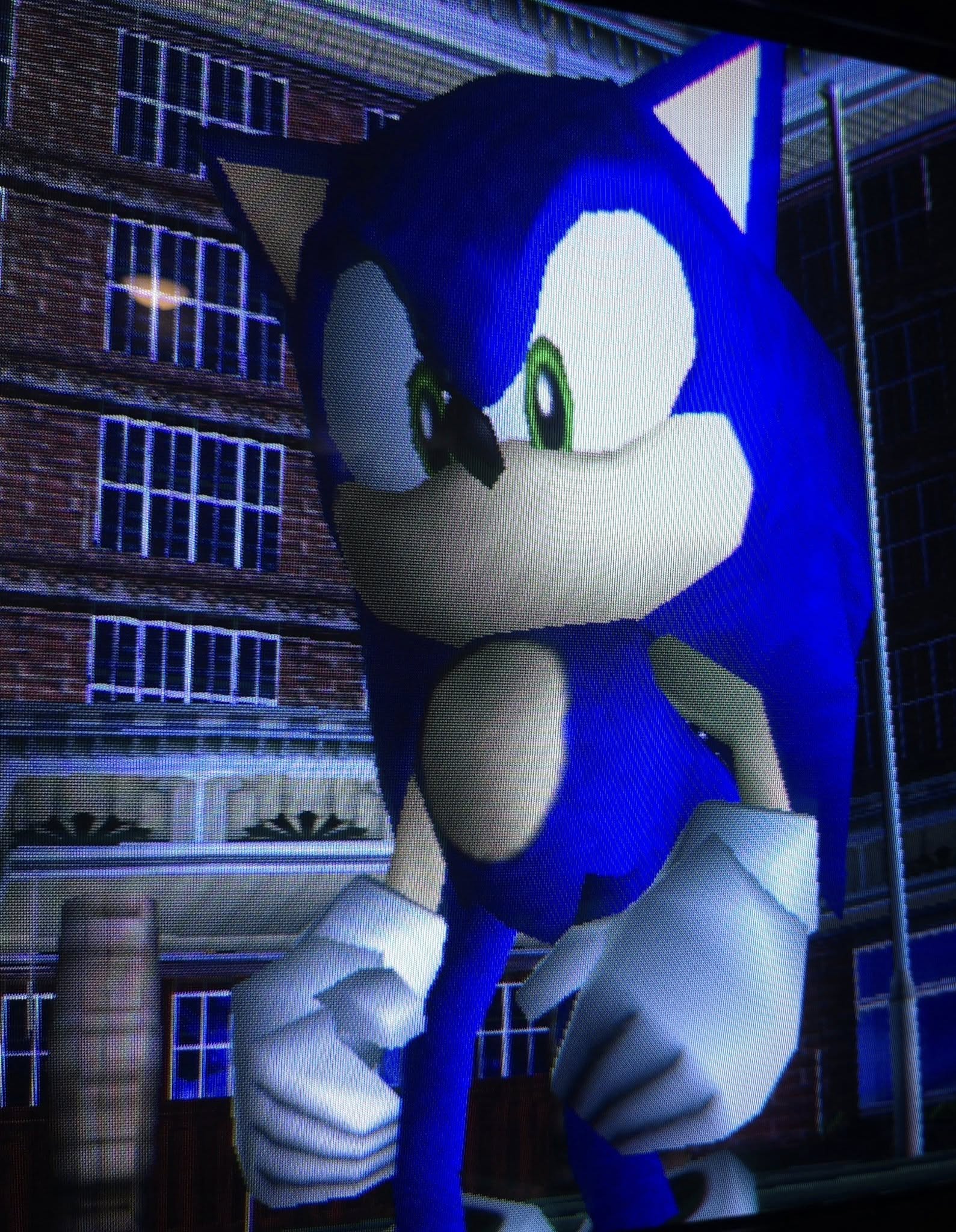

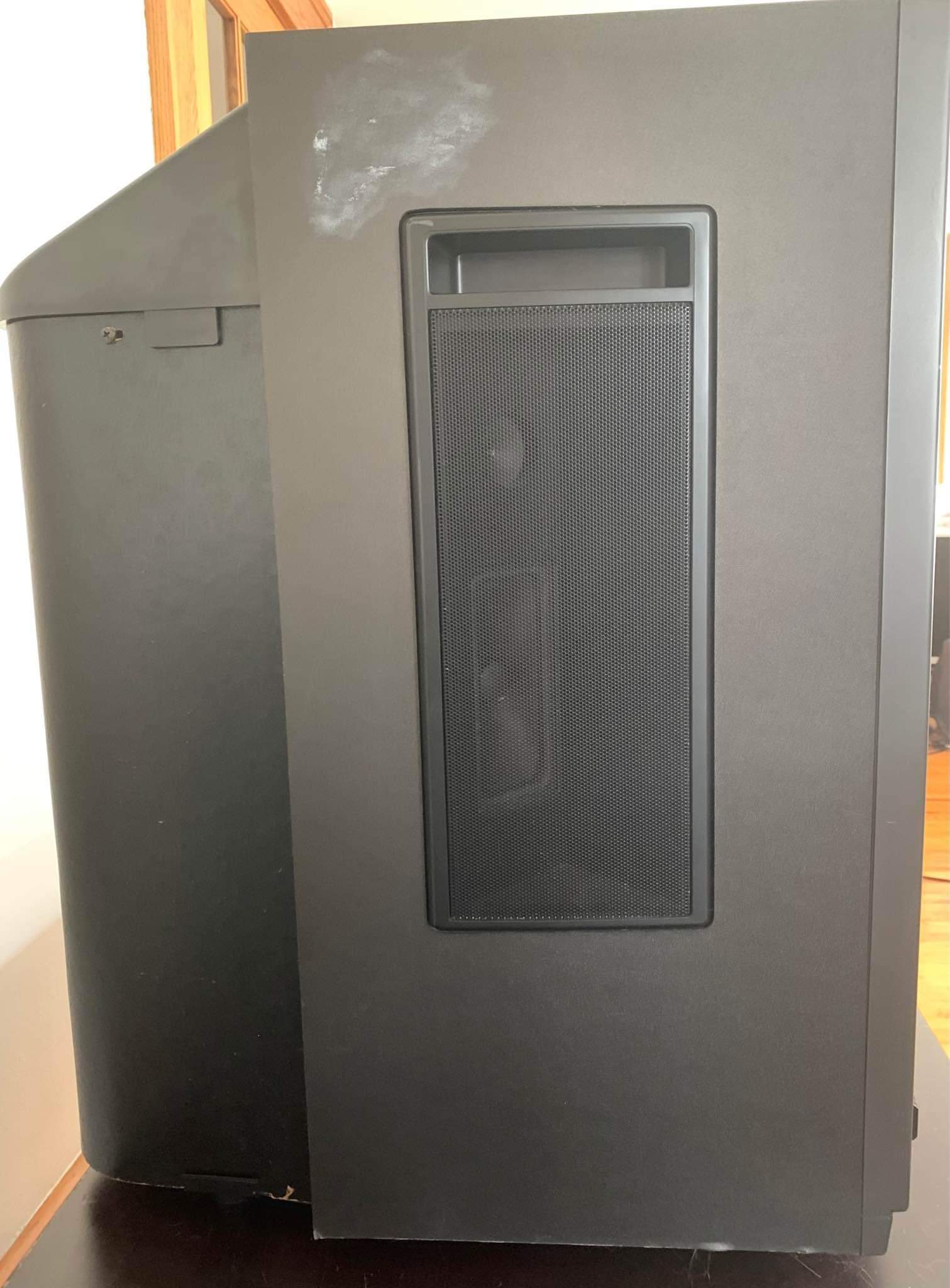

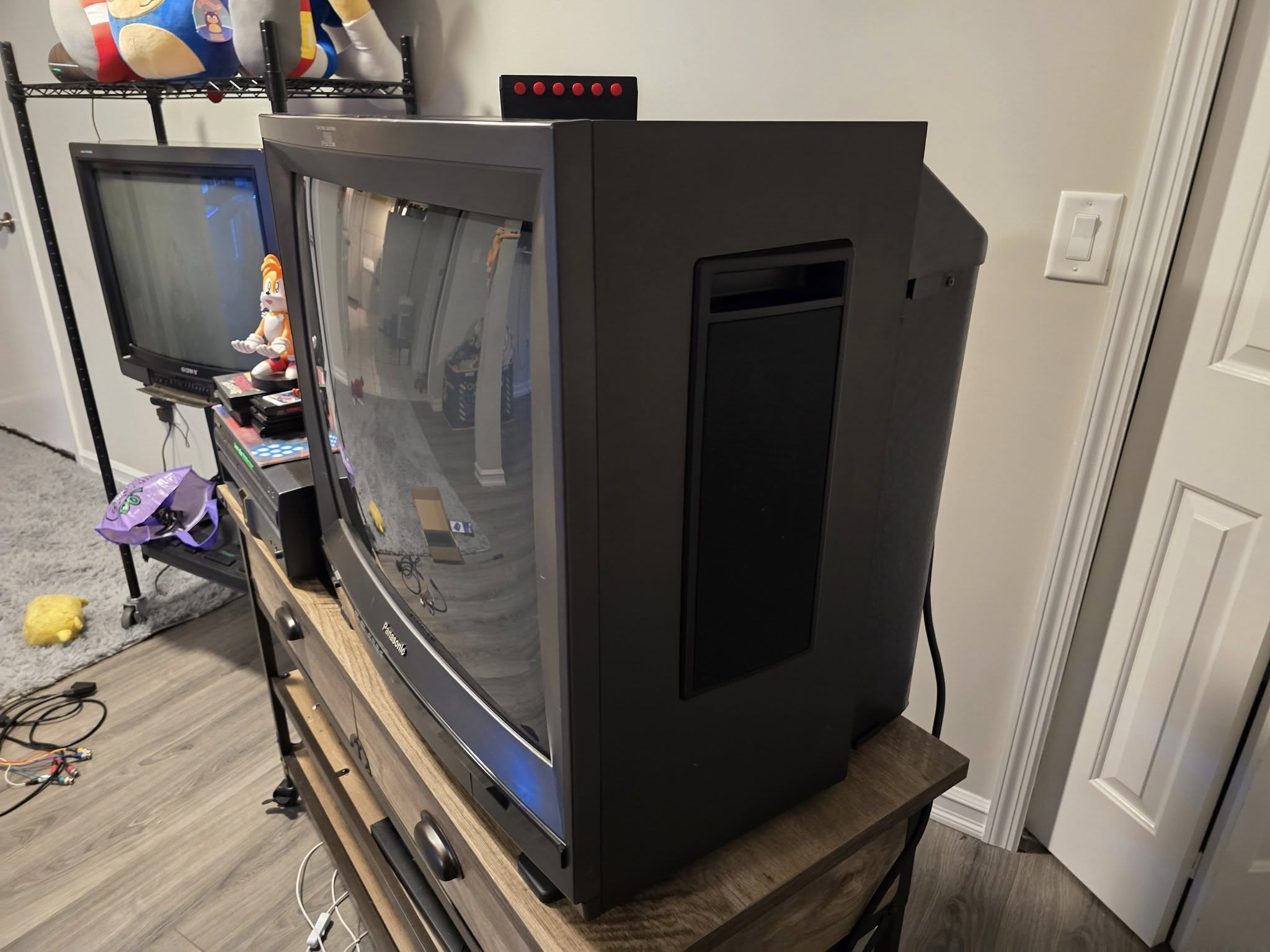

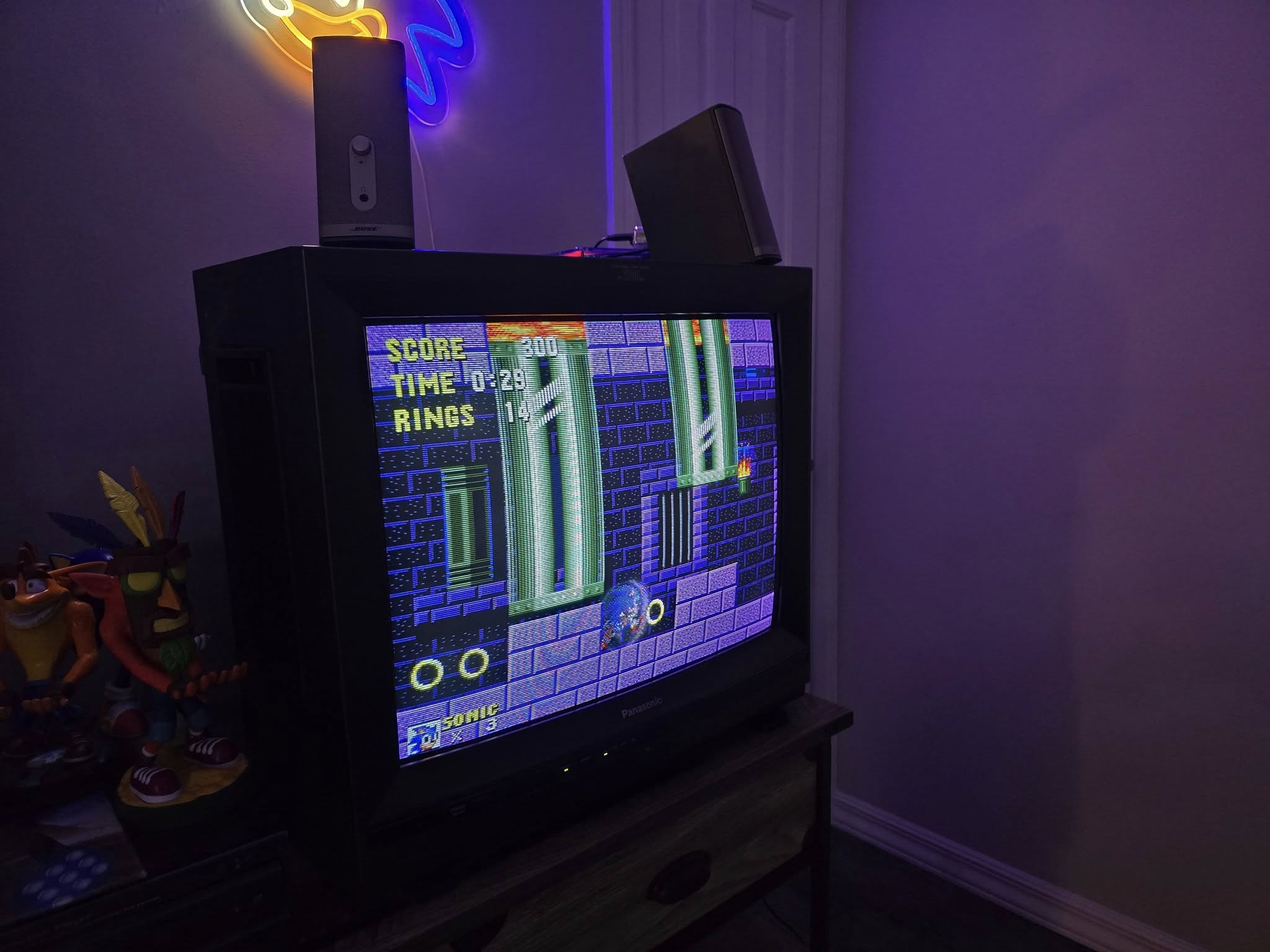

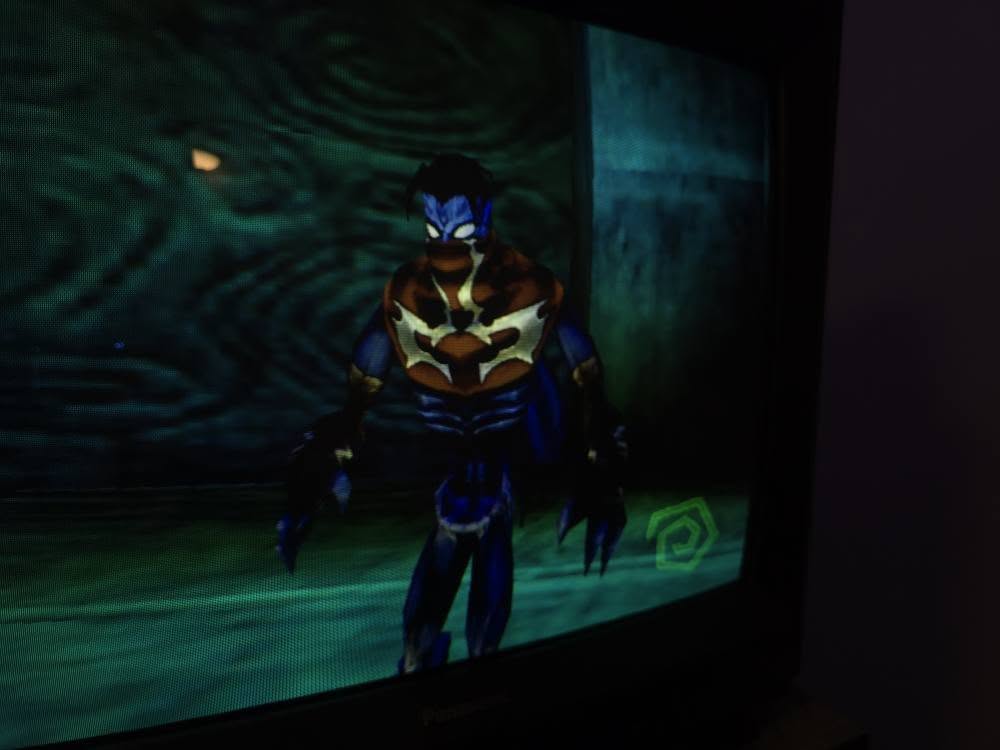

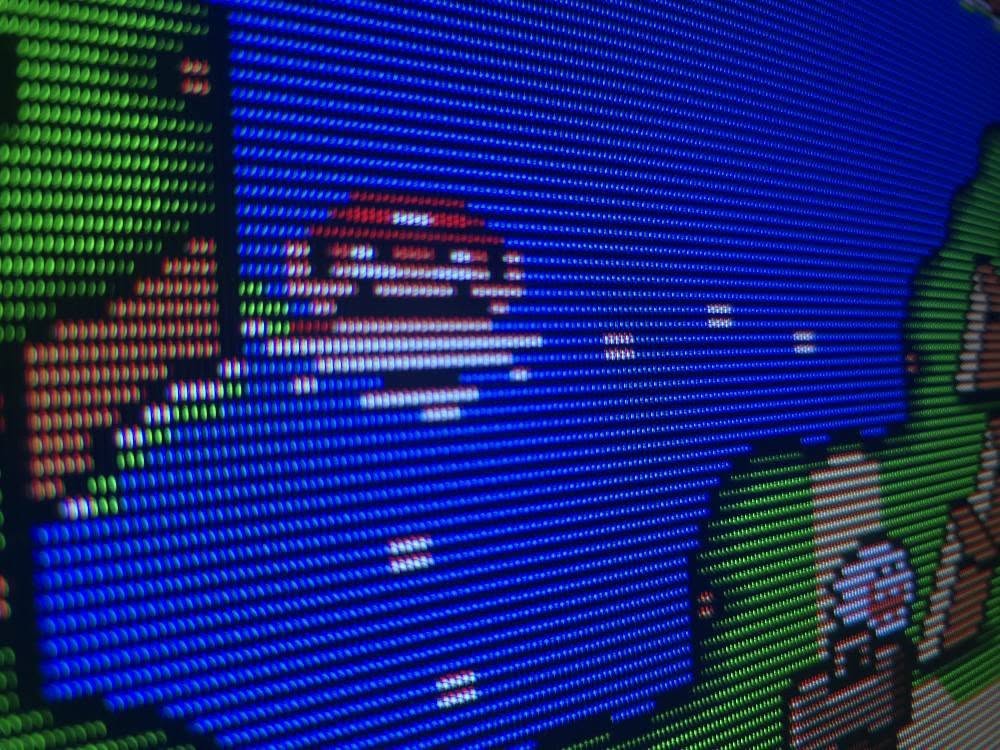

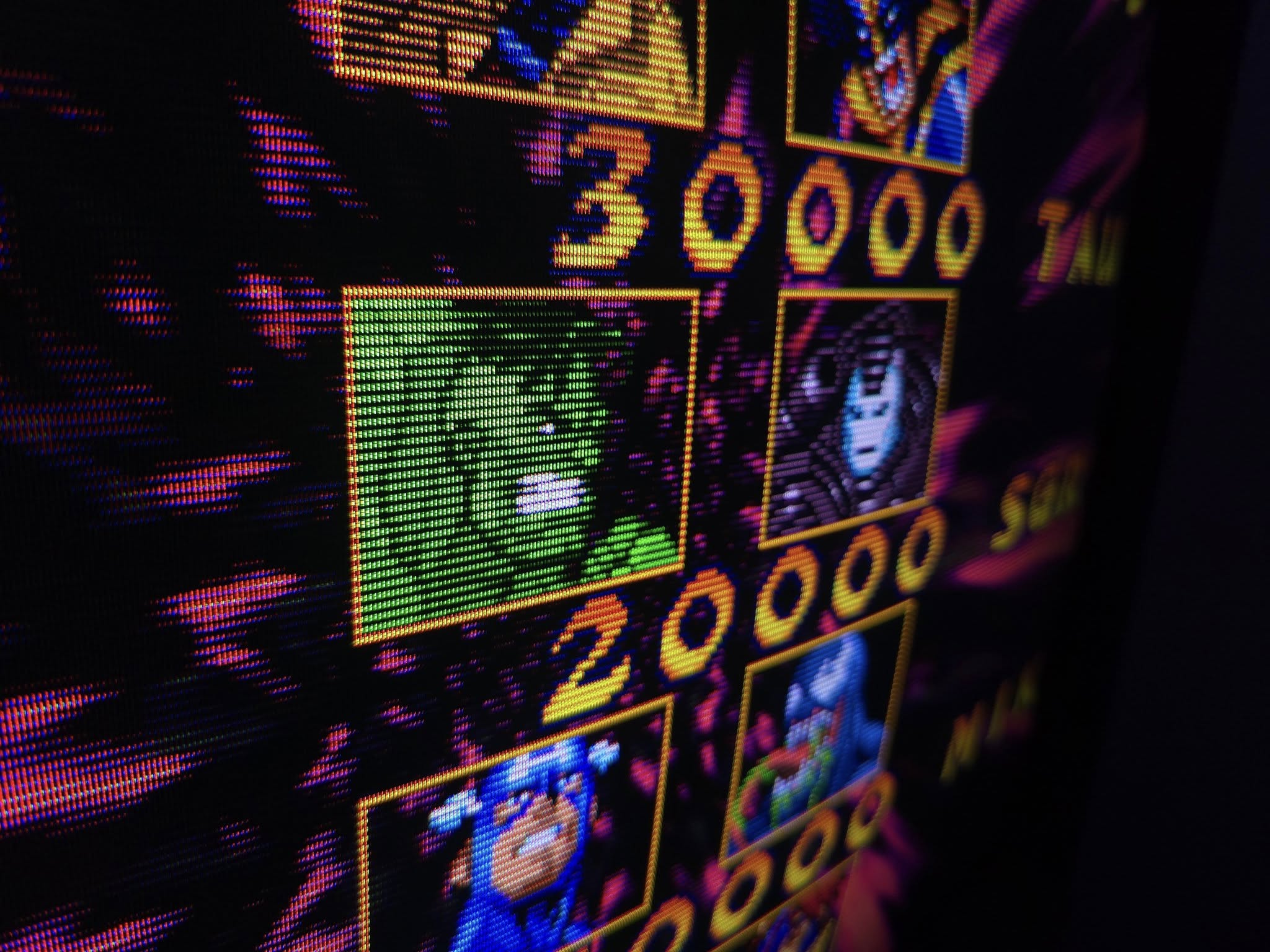

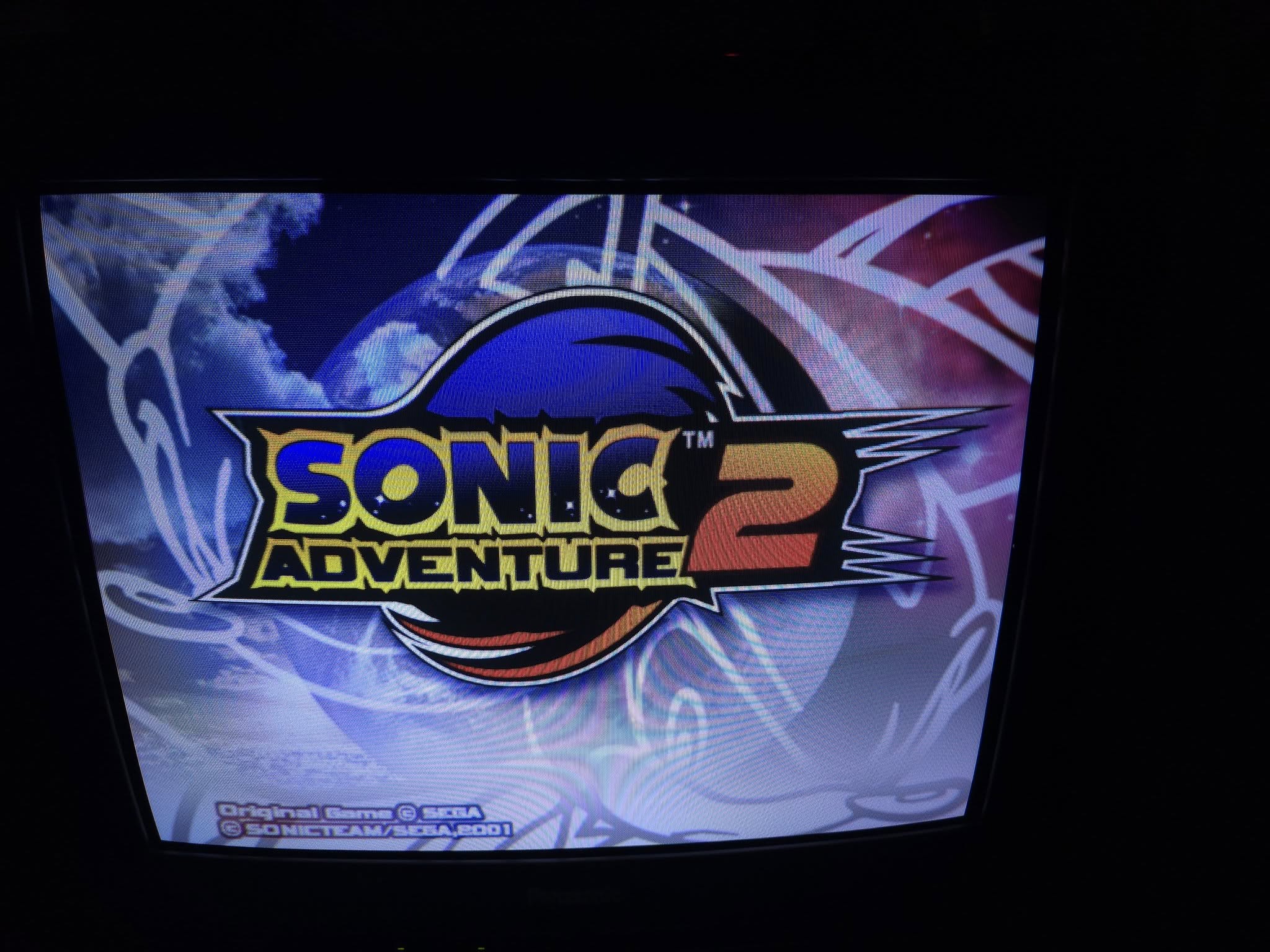

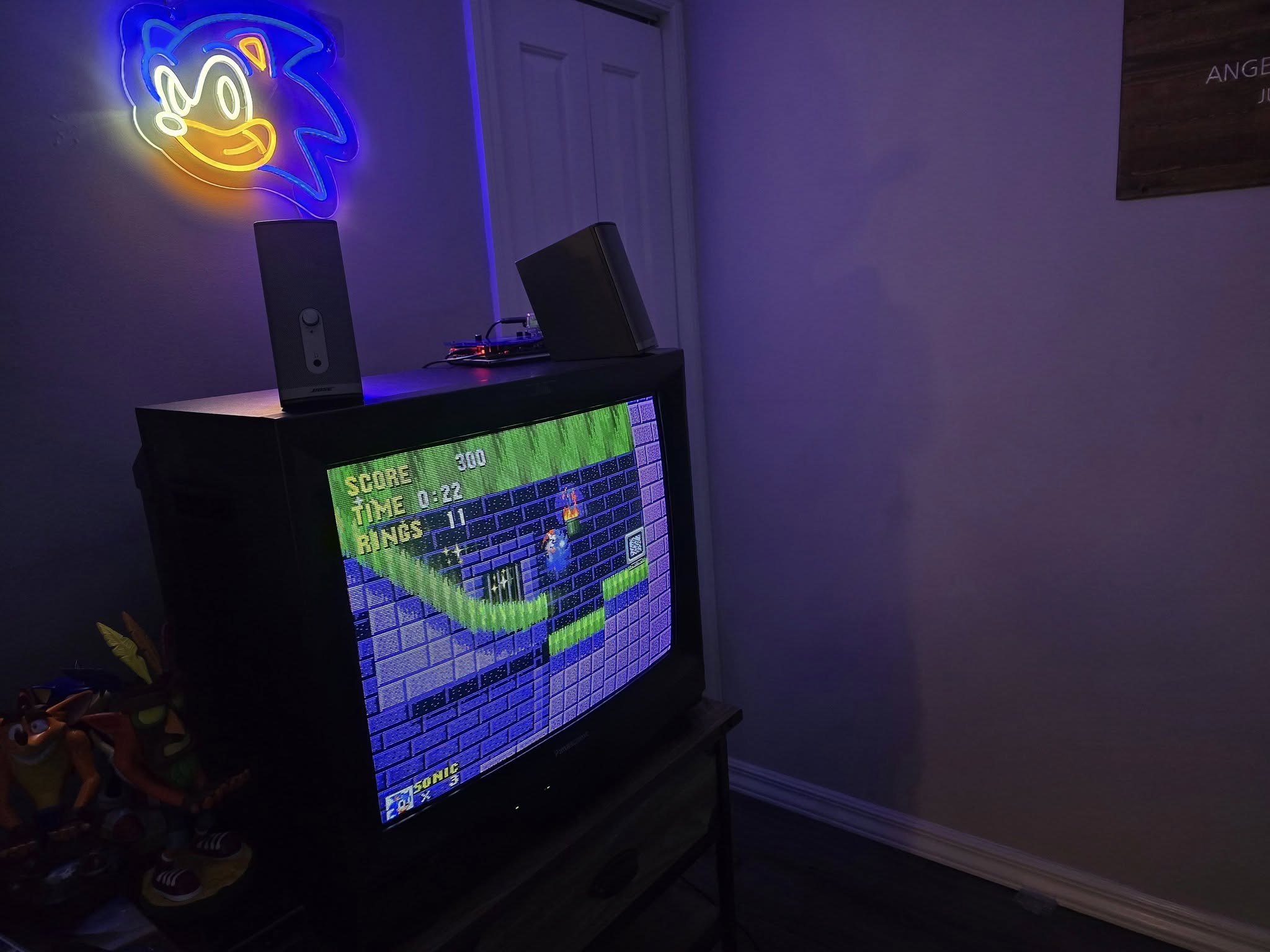

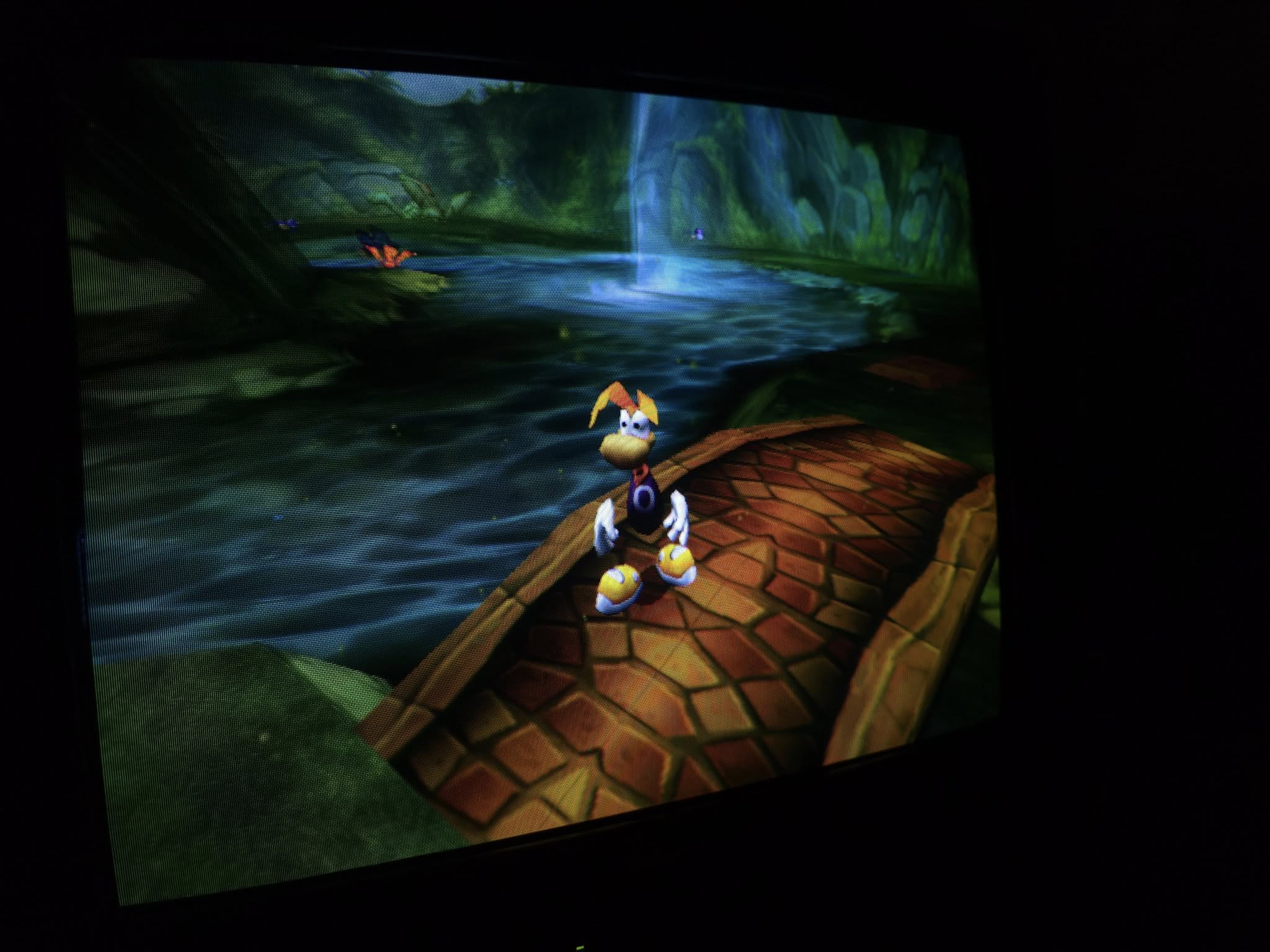

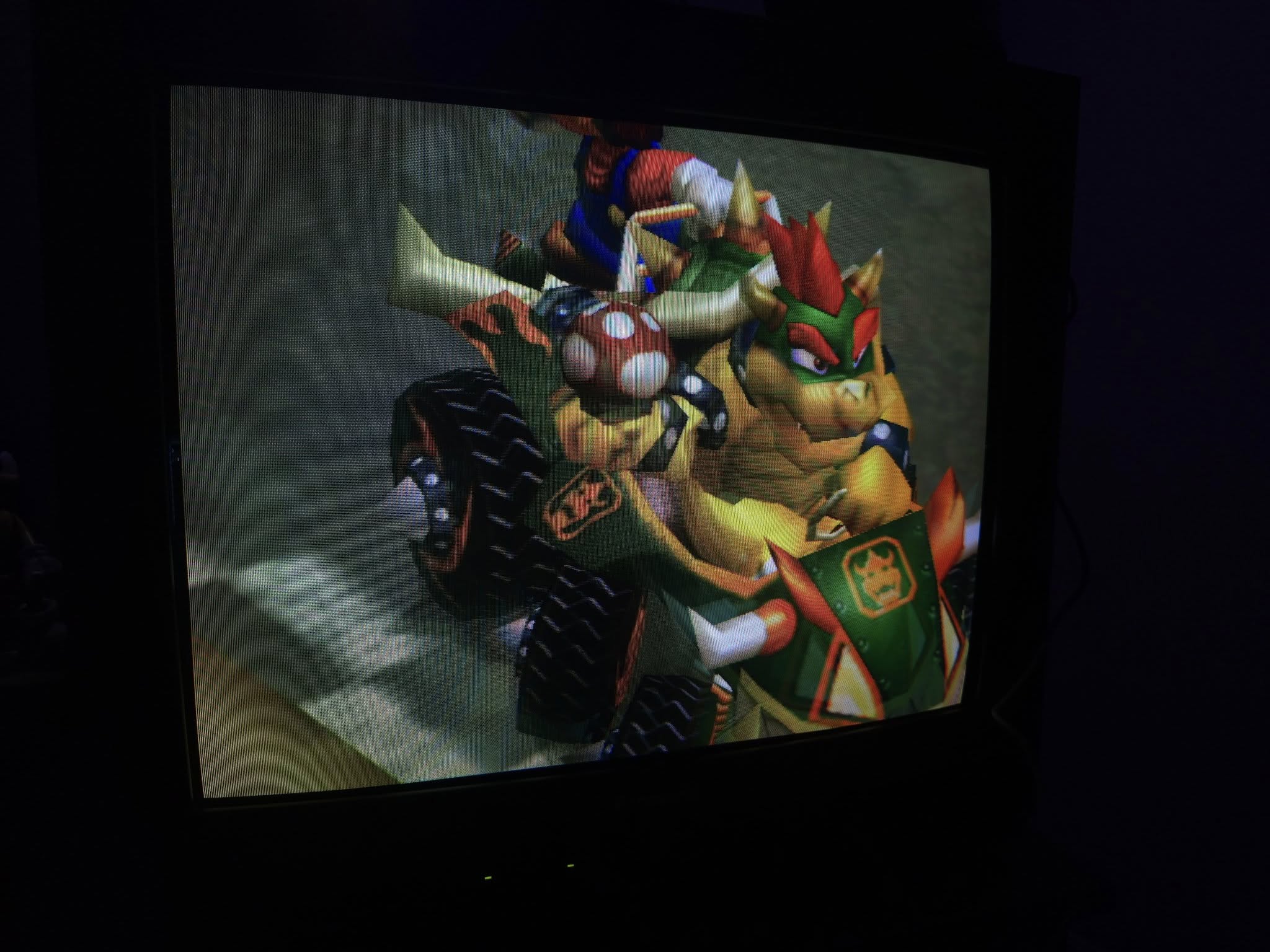

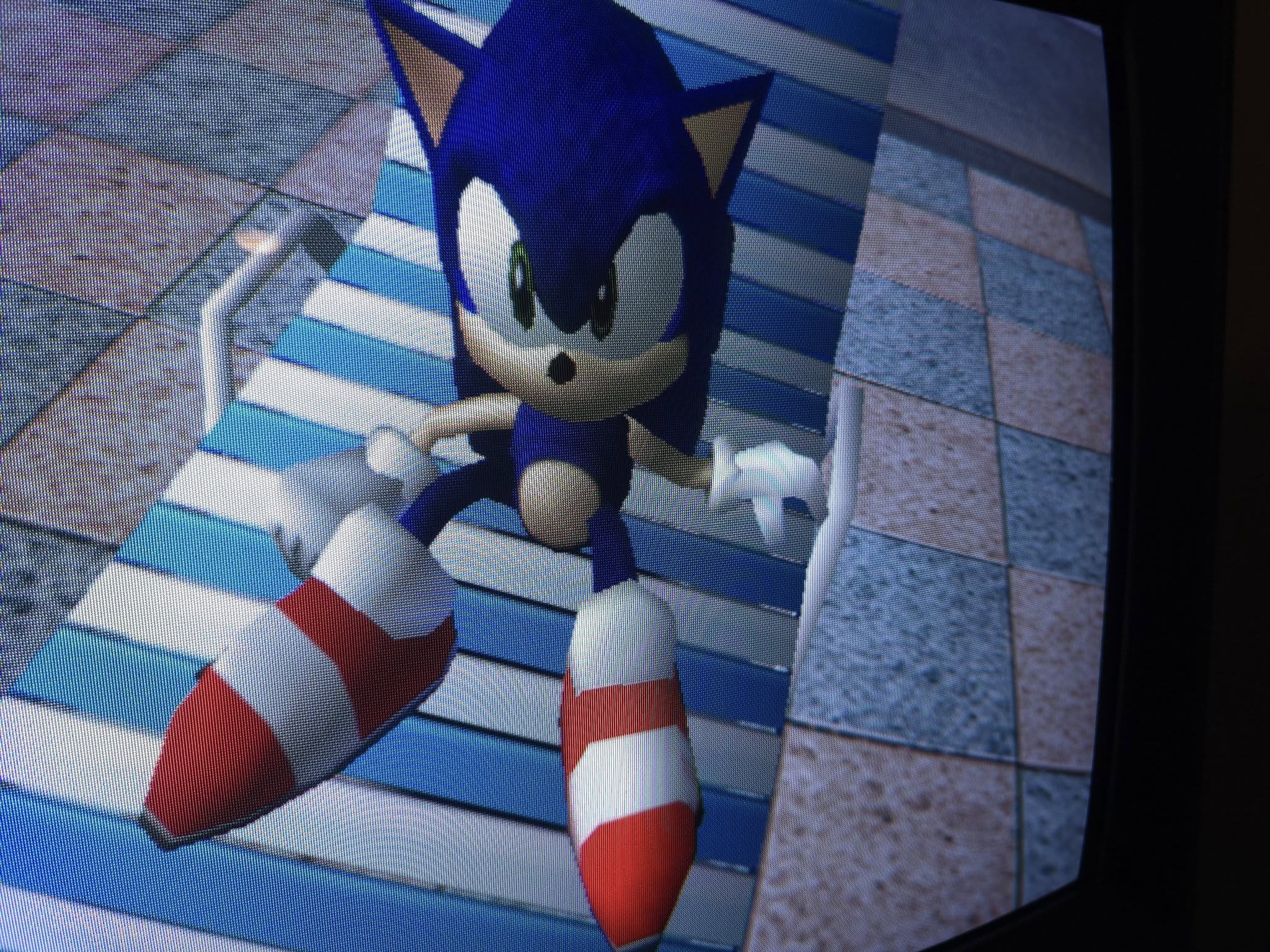

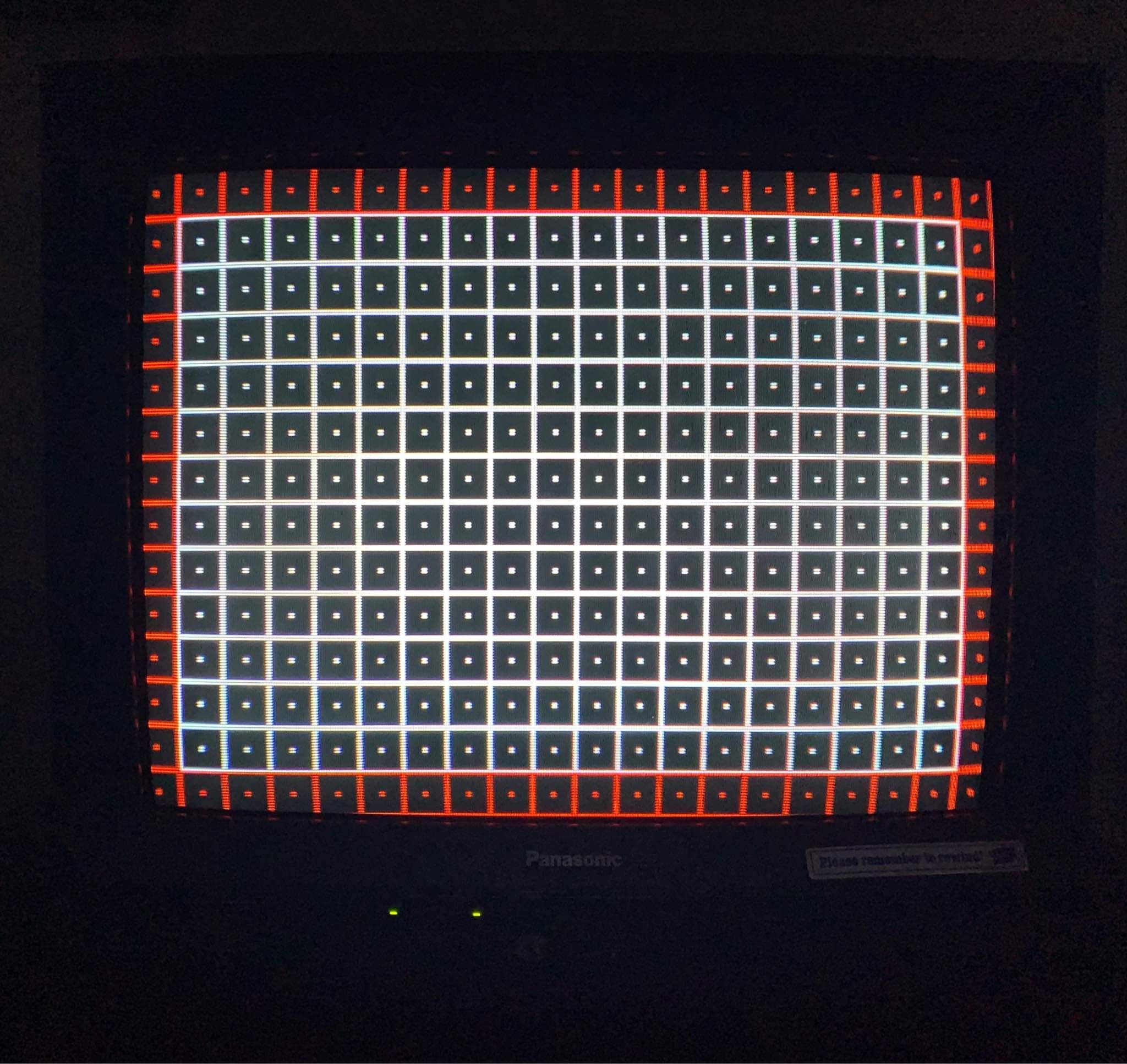

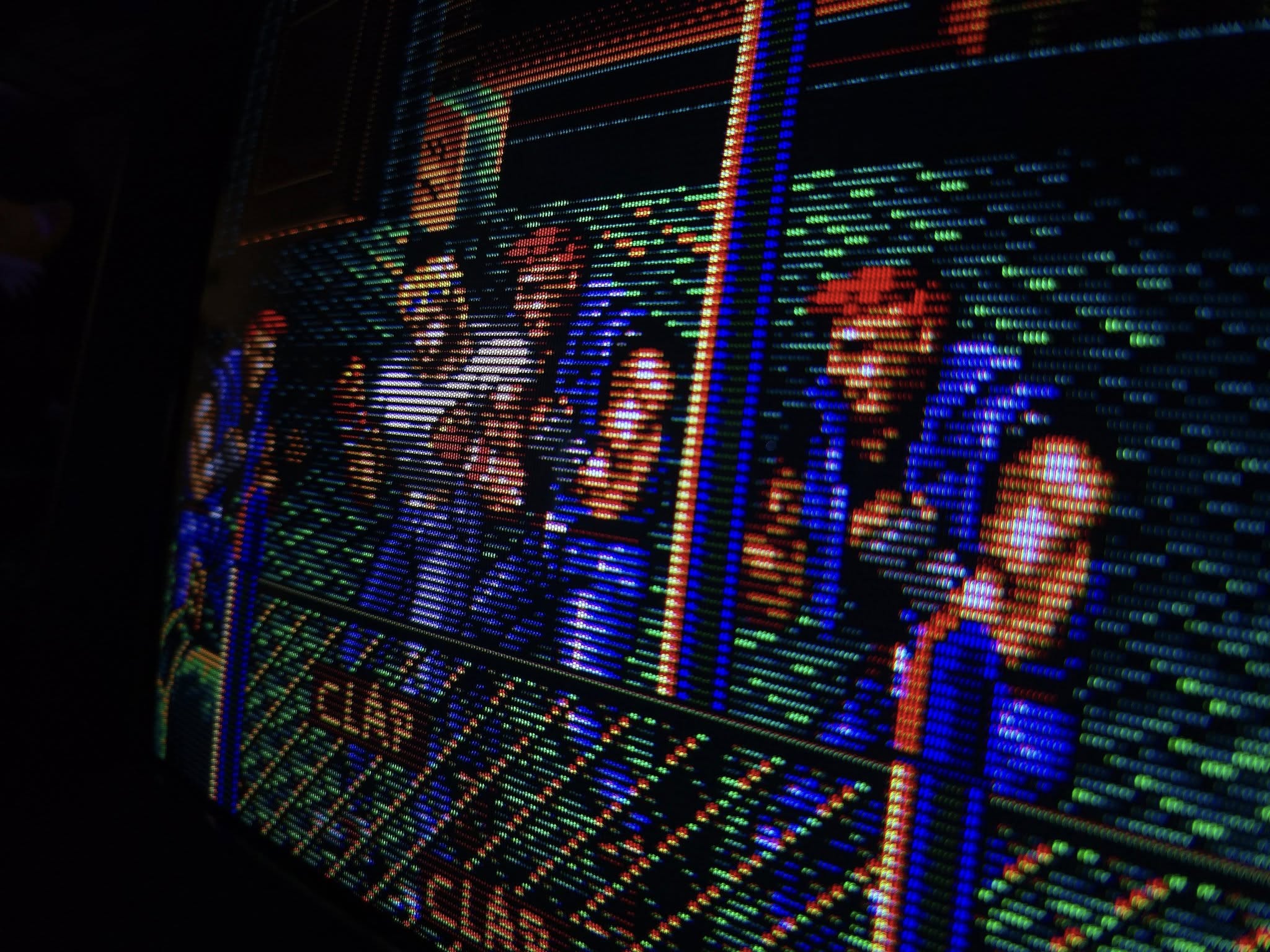

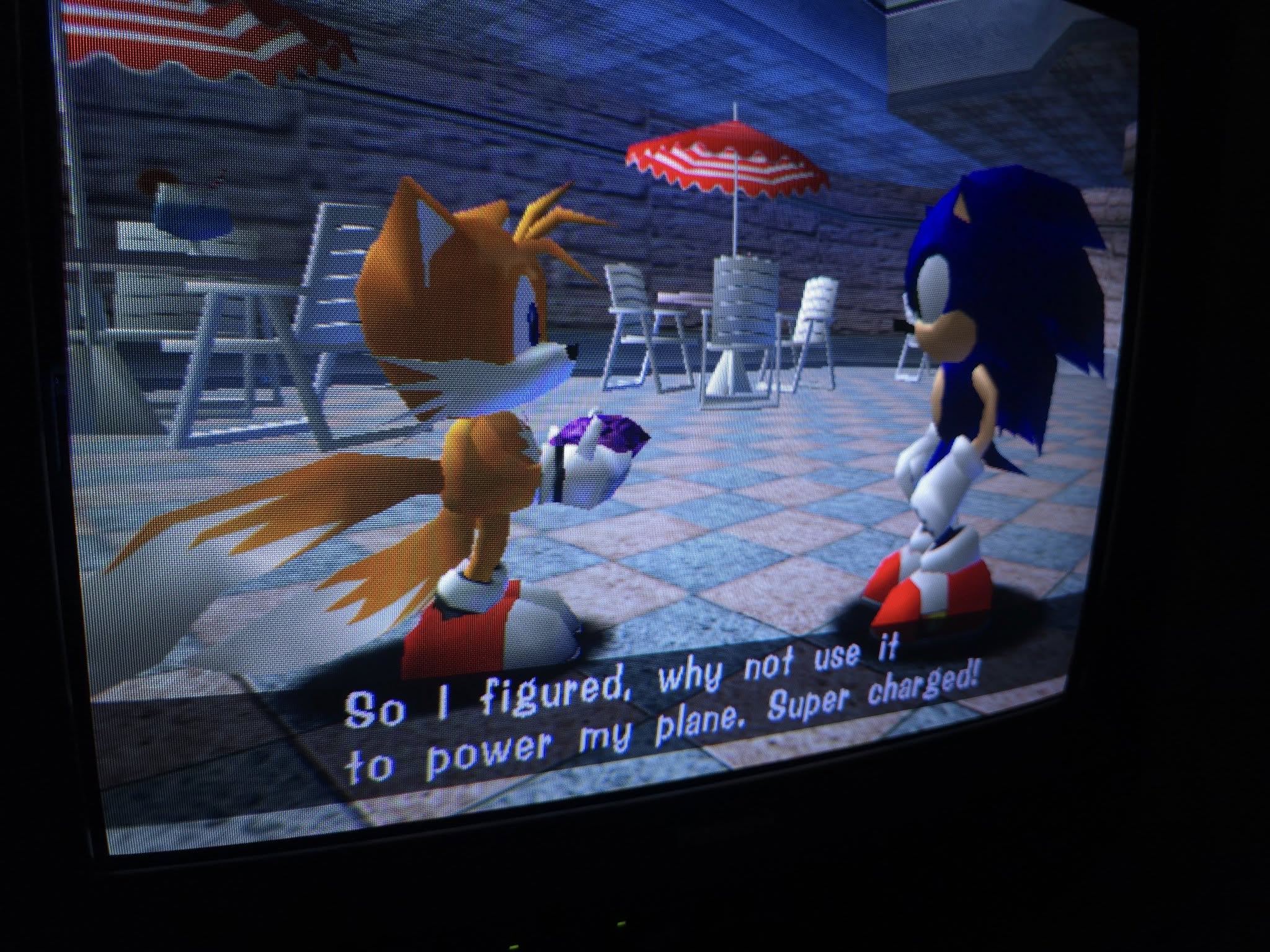

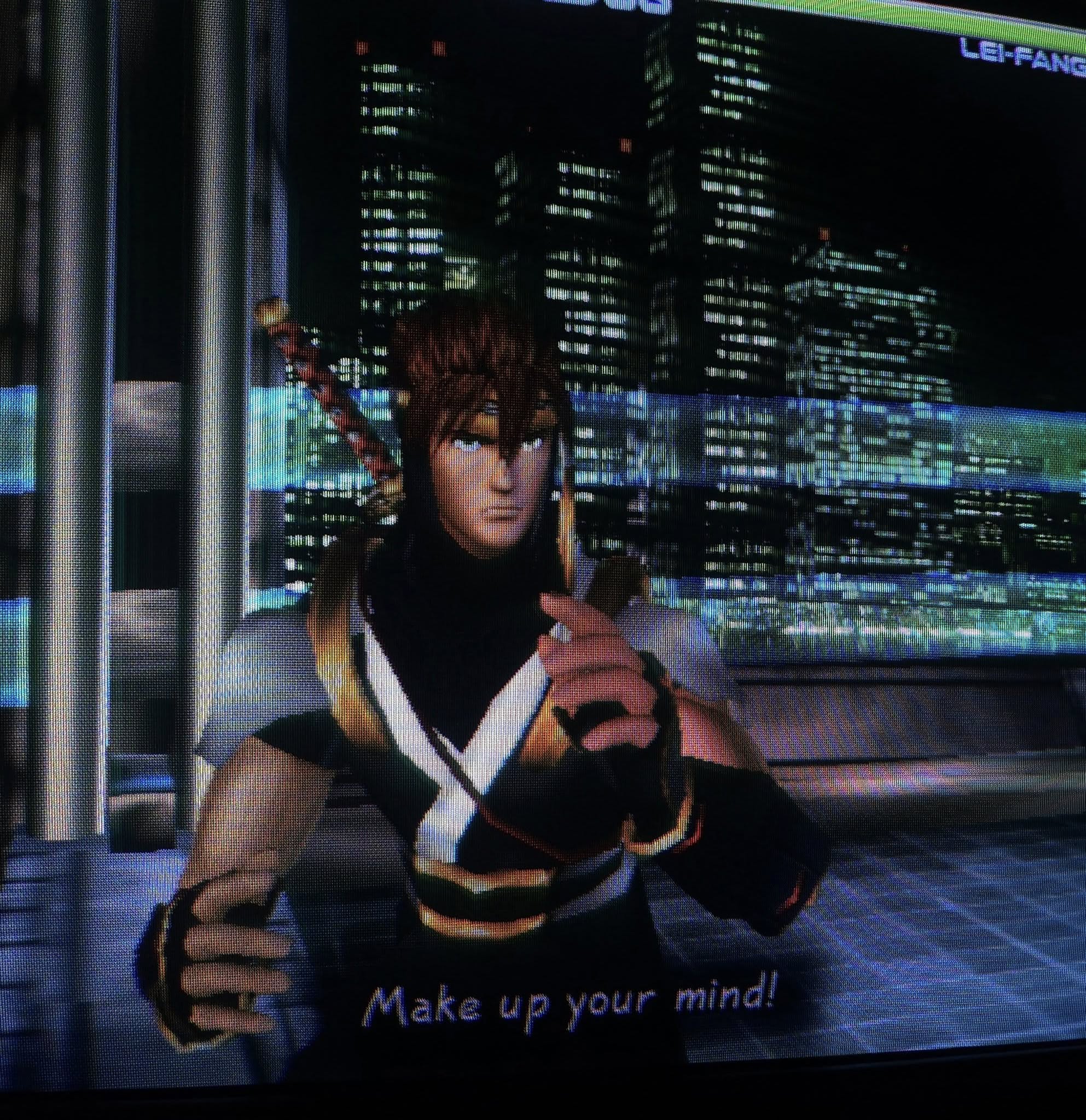

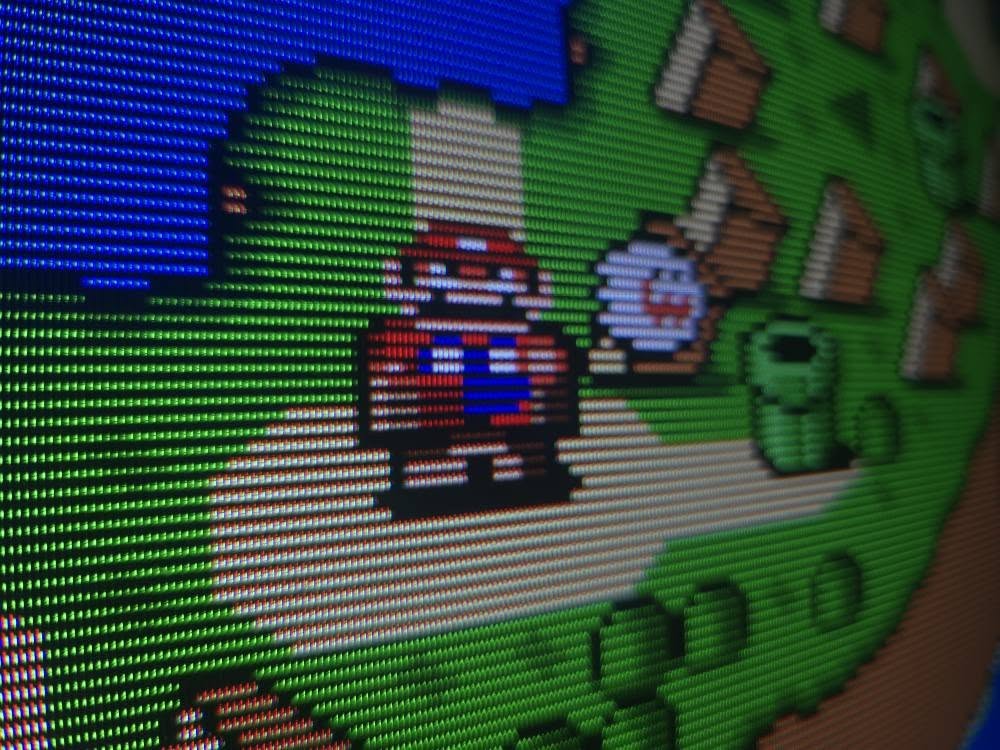

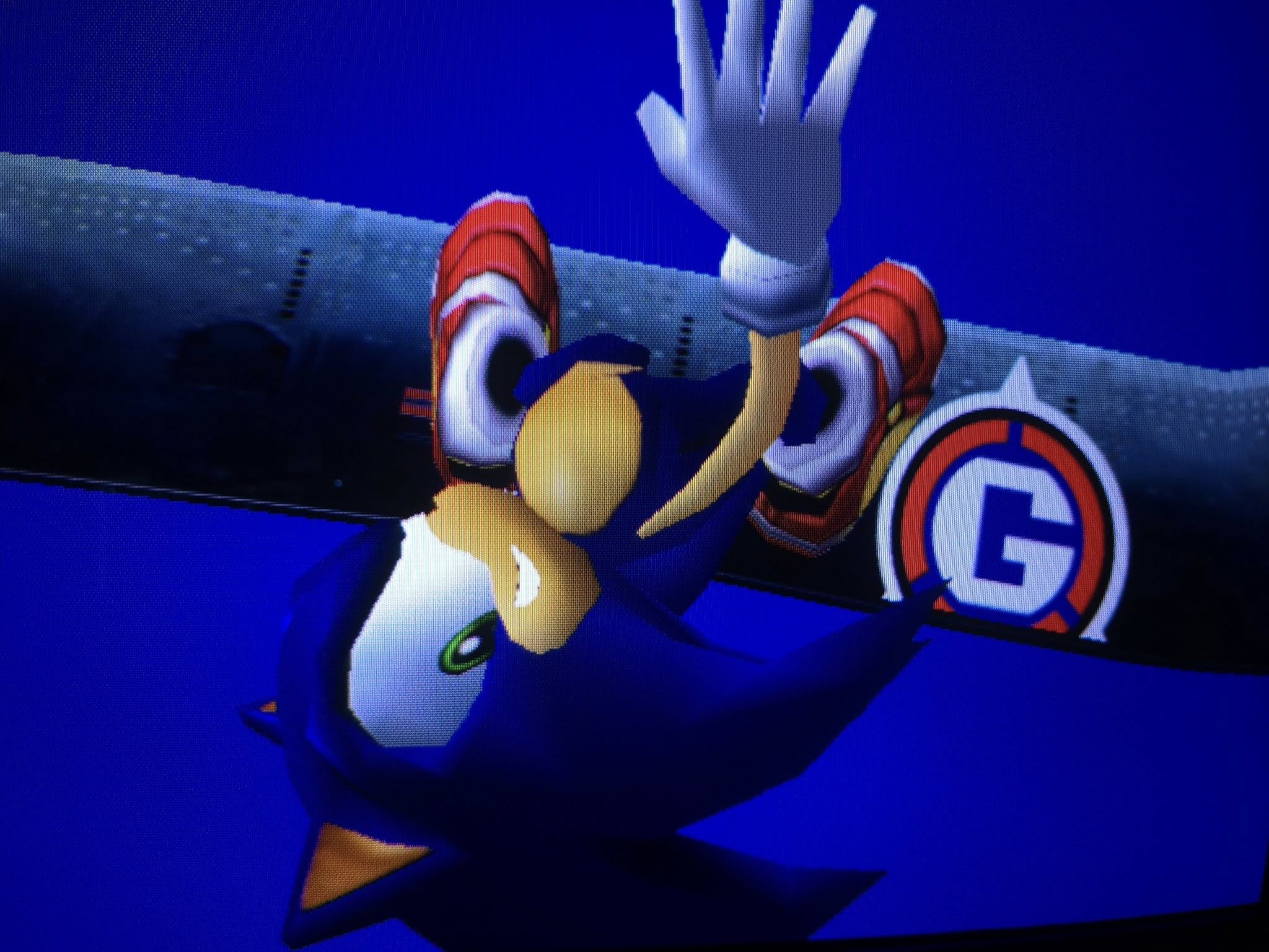

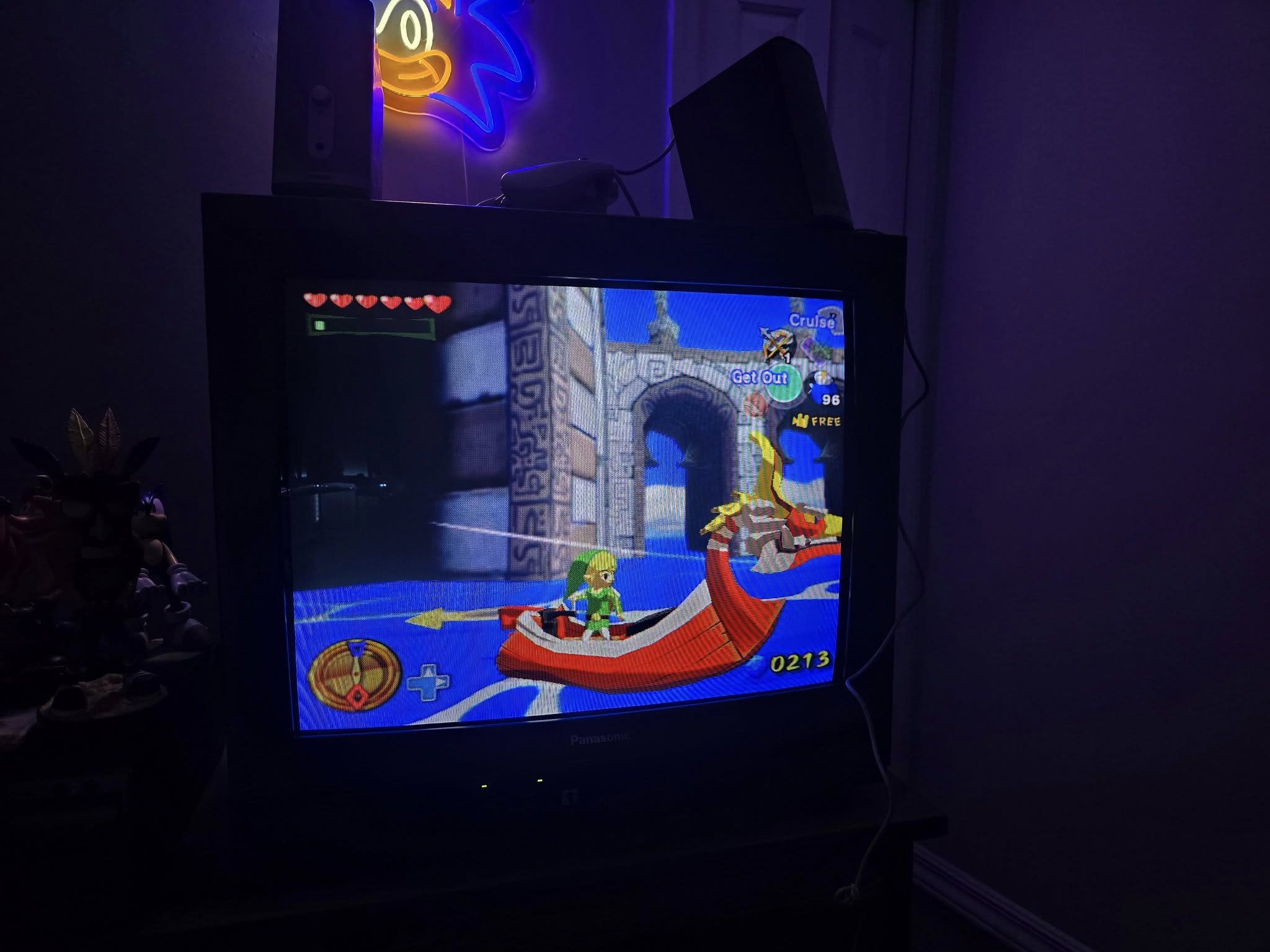

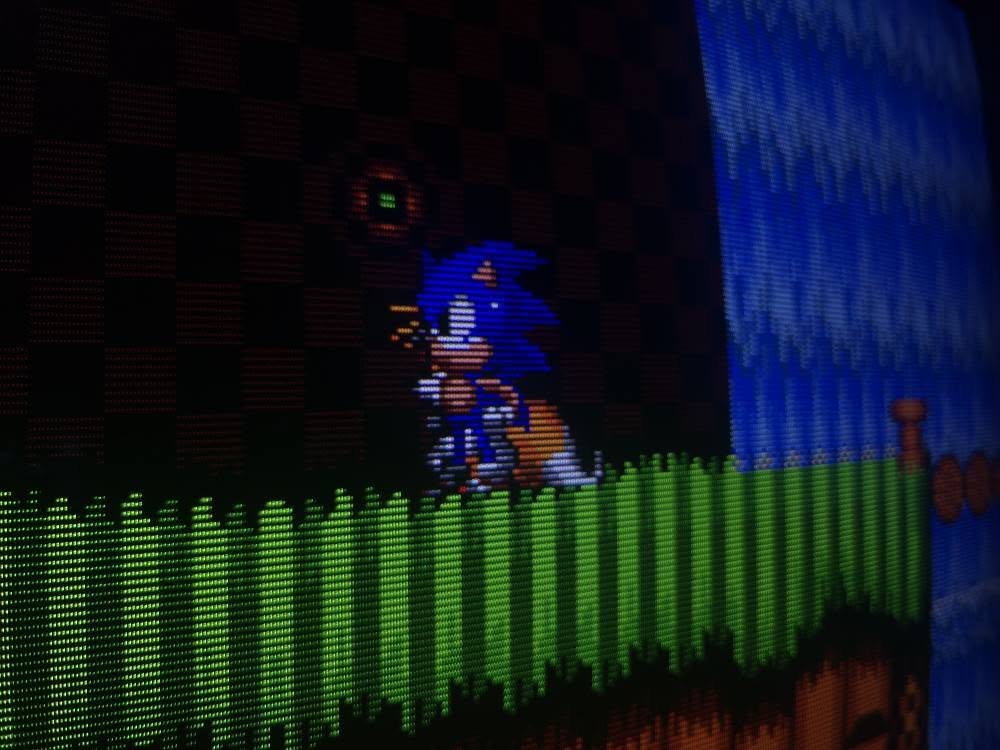

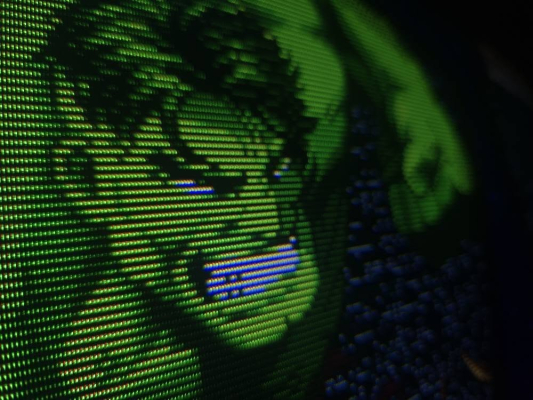

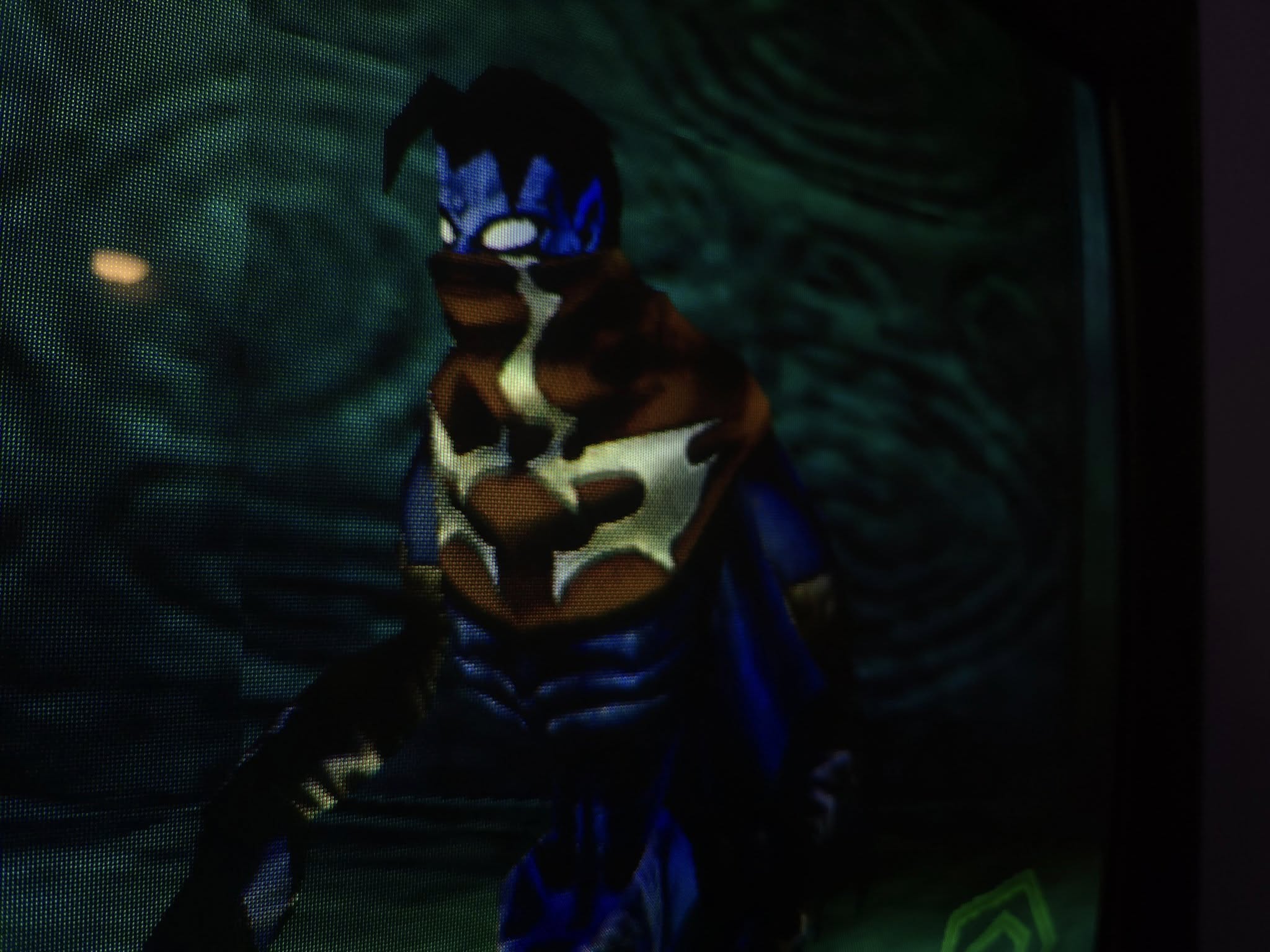

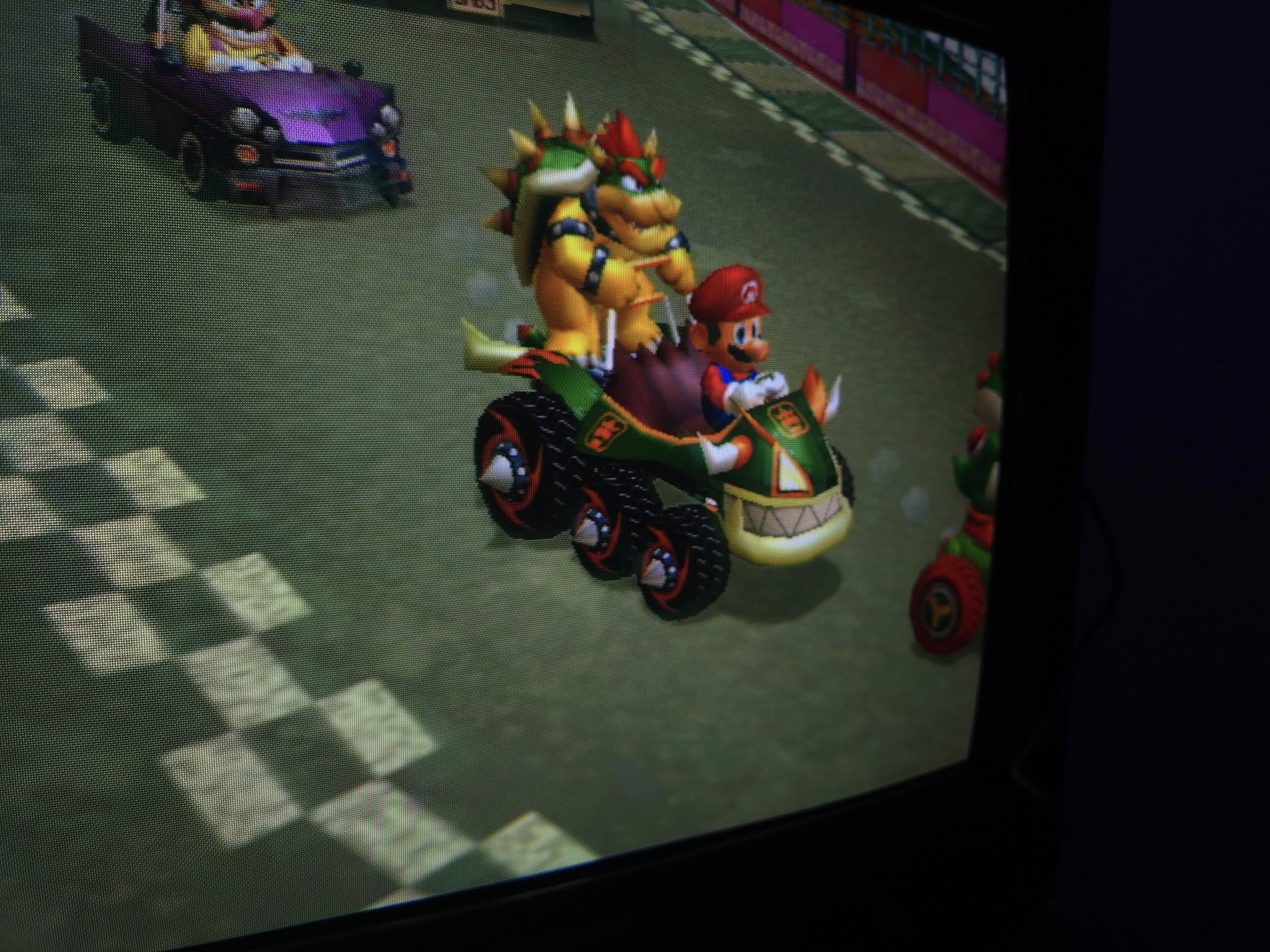

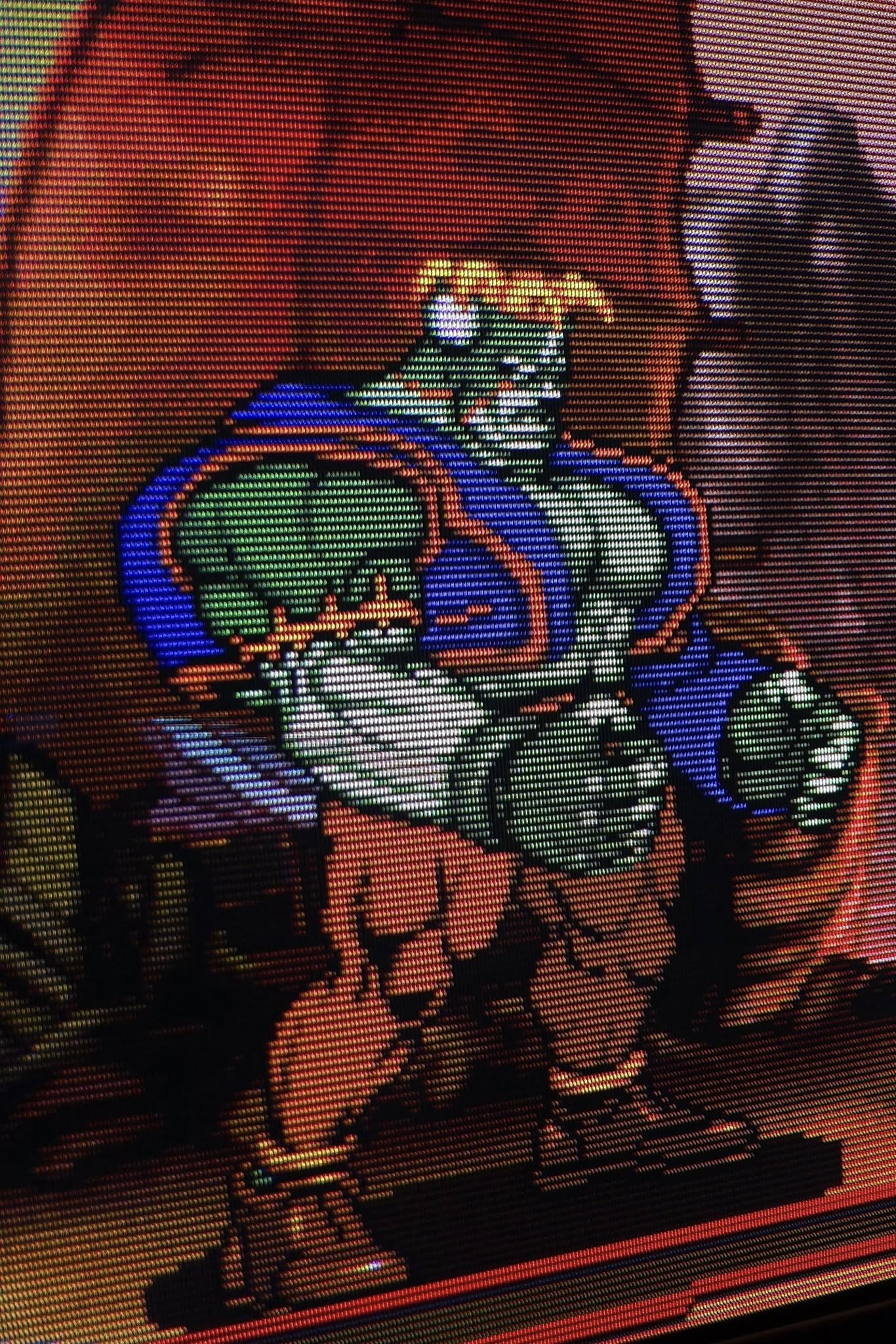

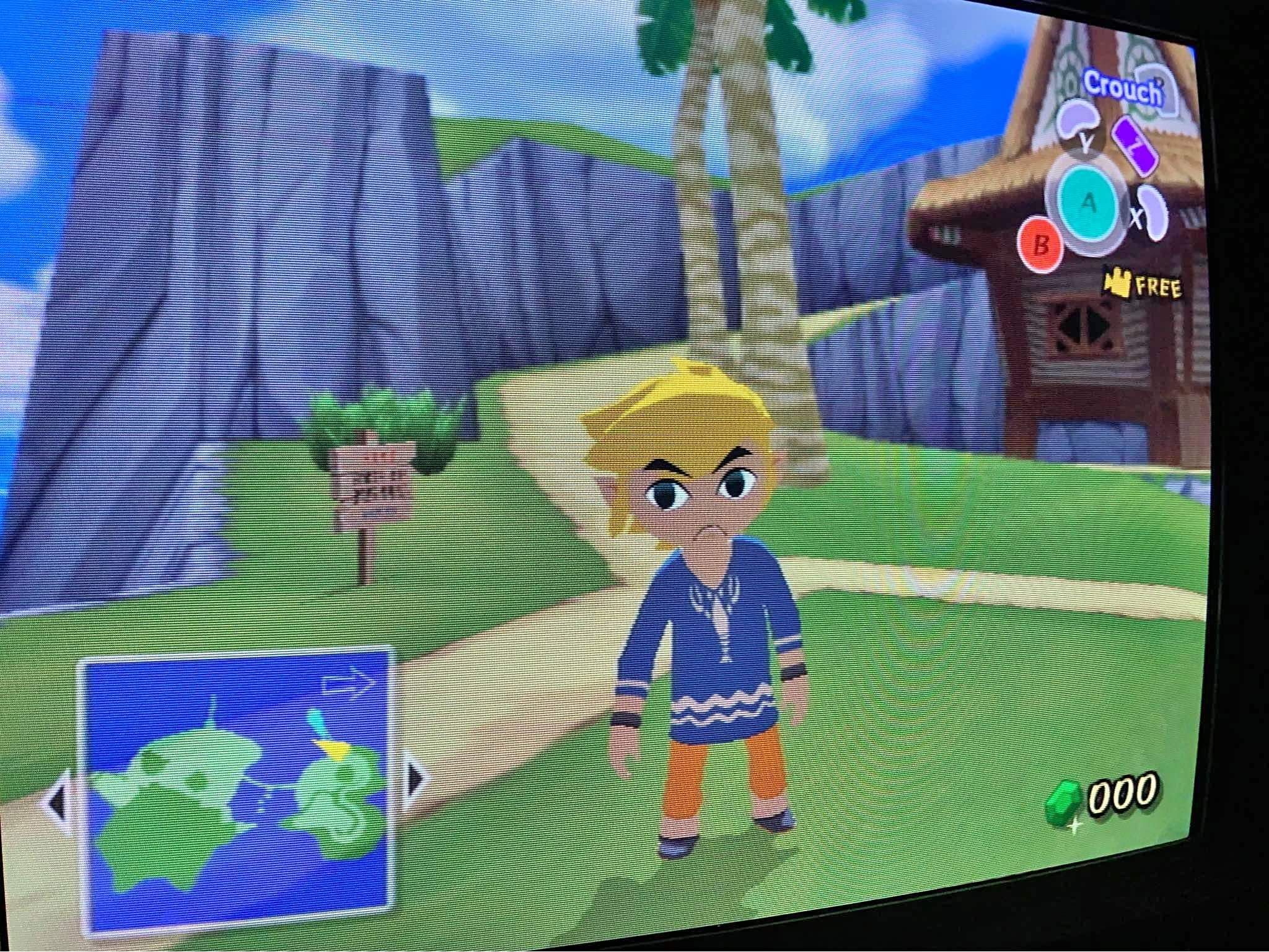

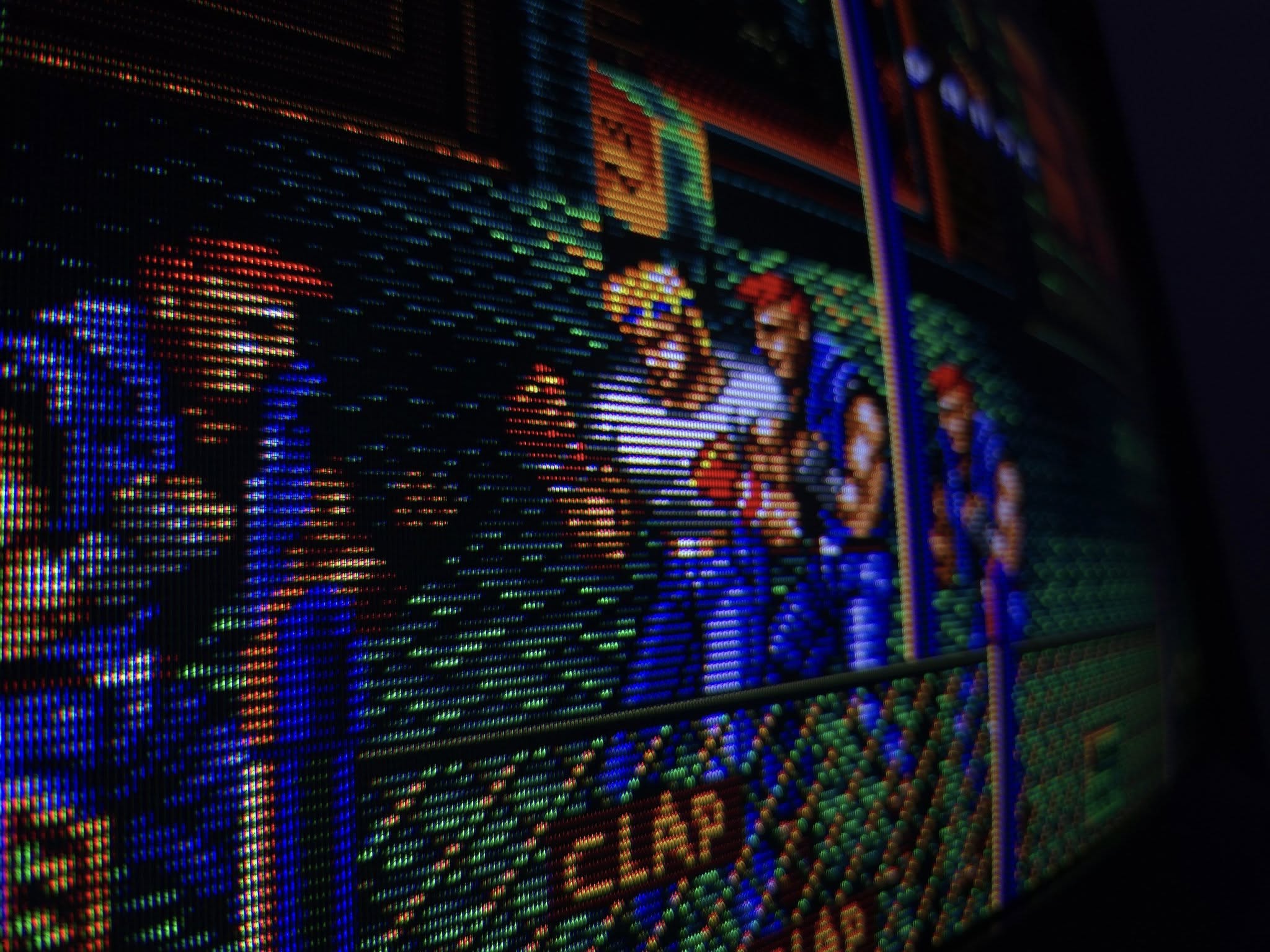

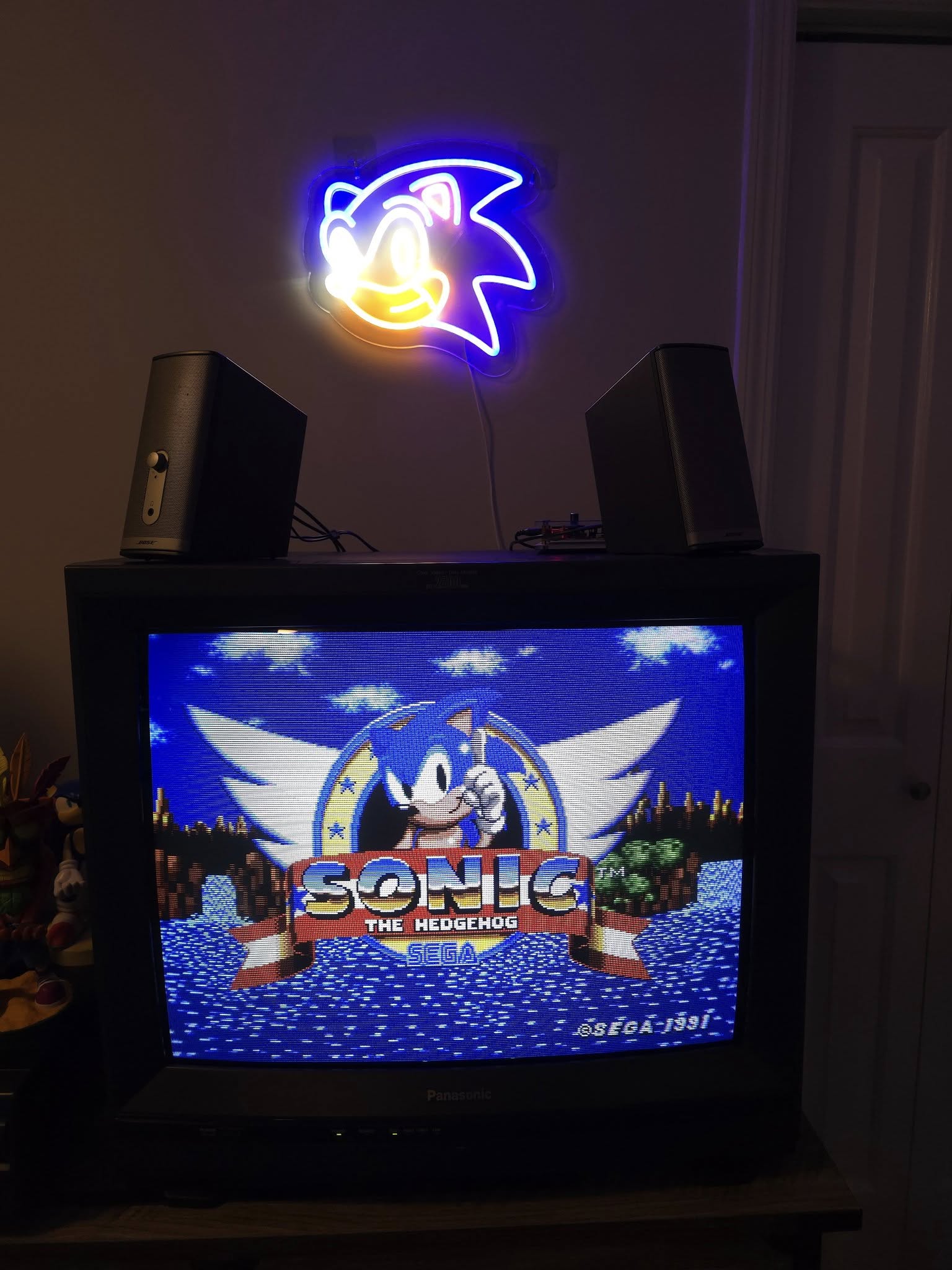

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | DT-2700MS |
| Series: | DT |
| Viewable Size: | 27" |

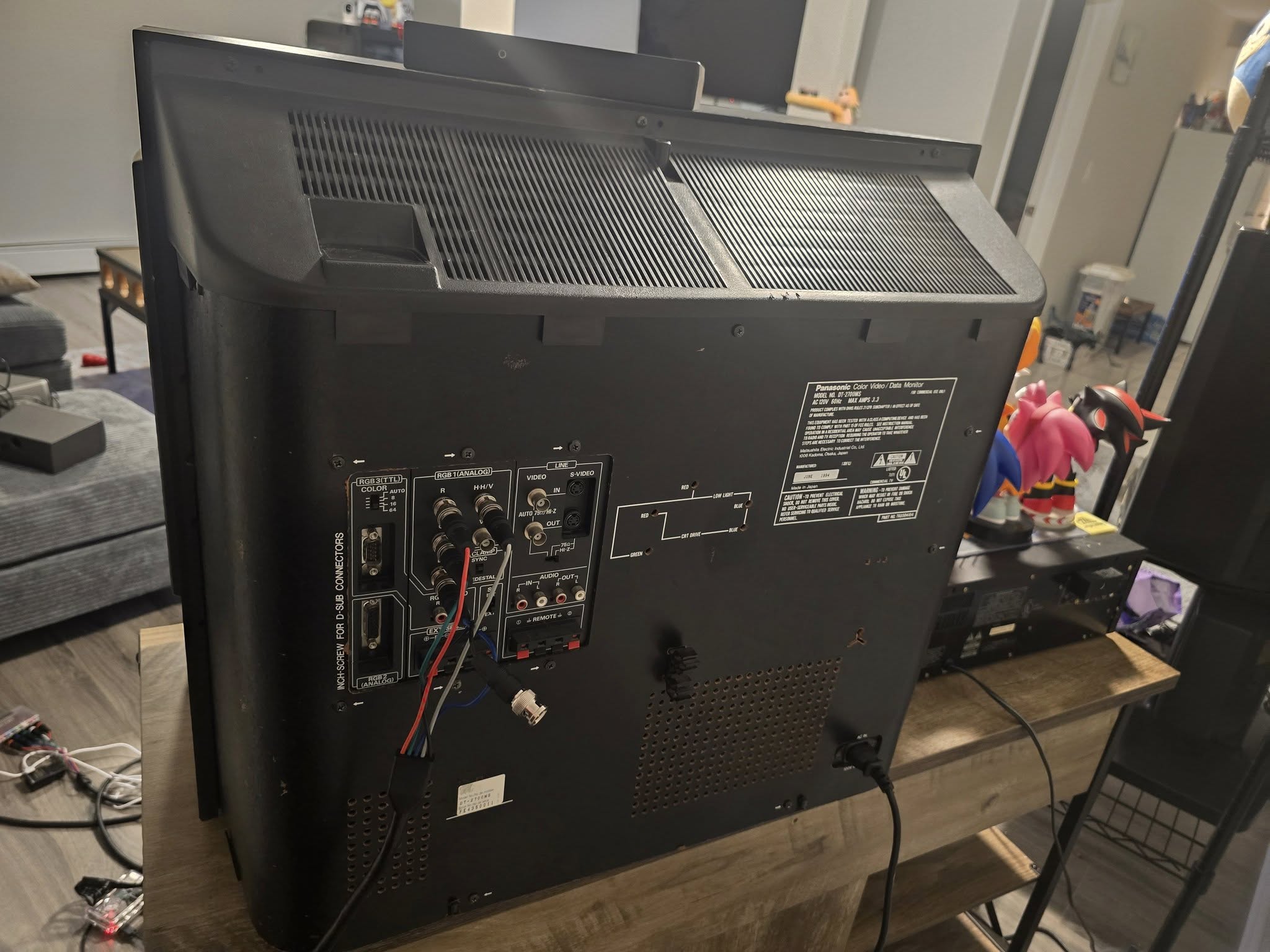

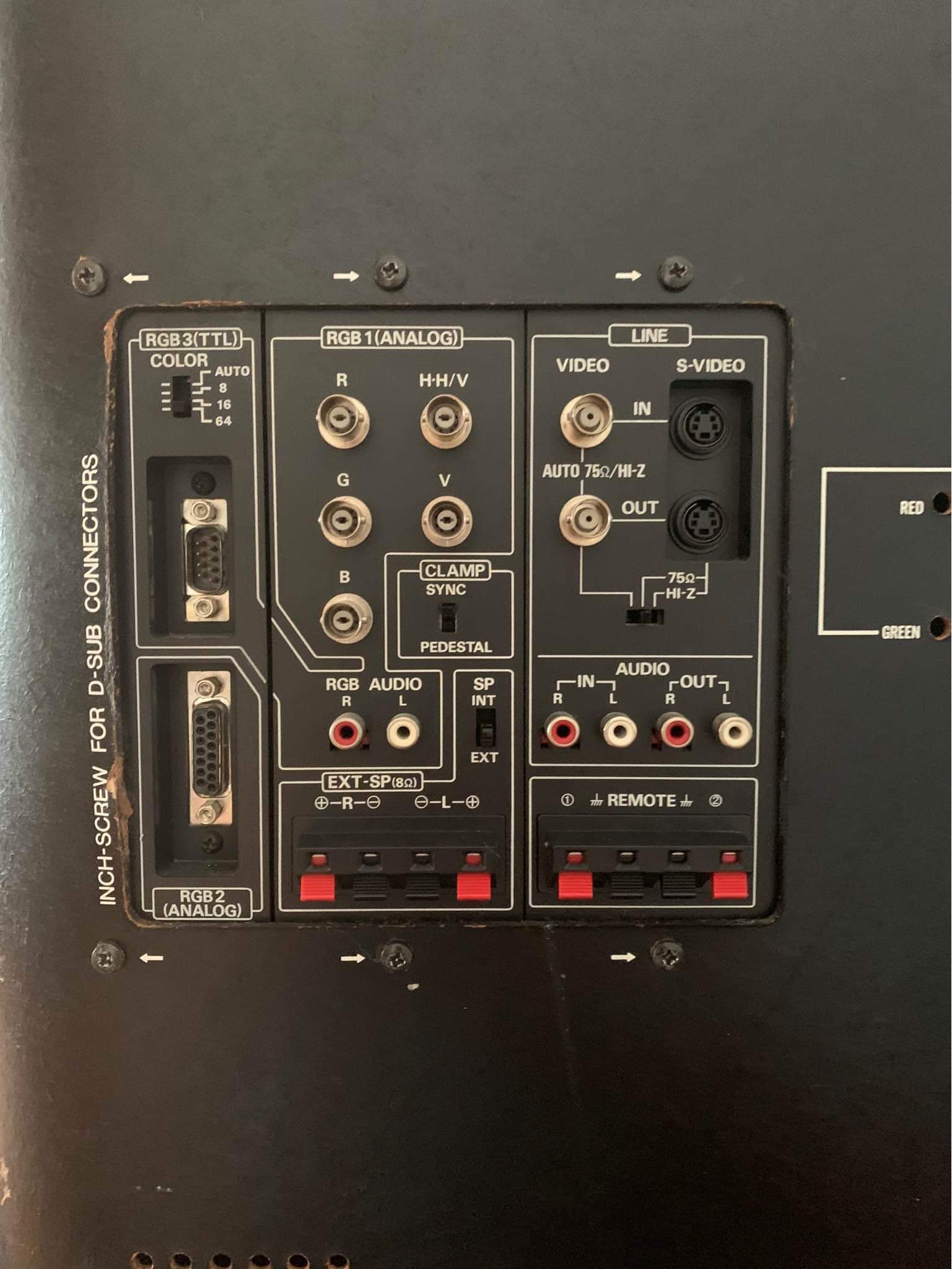

| Inputs: | VGA, Composite, S-Video, RGB, TTL RGB |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | 240p, 480i |
| Linecount: | 600 TVL |
| Horizontal Scan Range: | 15 kHz, 38 kHz |
| Vertical Scan Range: | 50 Hz, 100 Hz |
| Formats: | NTSC, PAL, SECAM |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Jungle: | Panasonic, AN5615 |
| Flyback: | TLF14446B |
| Focus Type: | Single |
| Tube: | Panasonic , M68JZK121X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY15476F |
| Speakers: | Stereo |
| Application: | Commercial |
| Cabinet Material: | Plastic |
| Launched: | 1992 |
| MSRP: | 3500 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
