Summary
30" widescreen monitor released in 1998, one of the few "presentation" style monitors built around a 16:9 tube. Supports a wide uninterrupted range of horizontal scan rates.

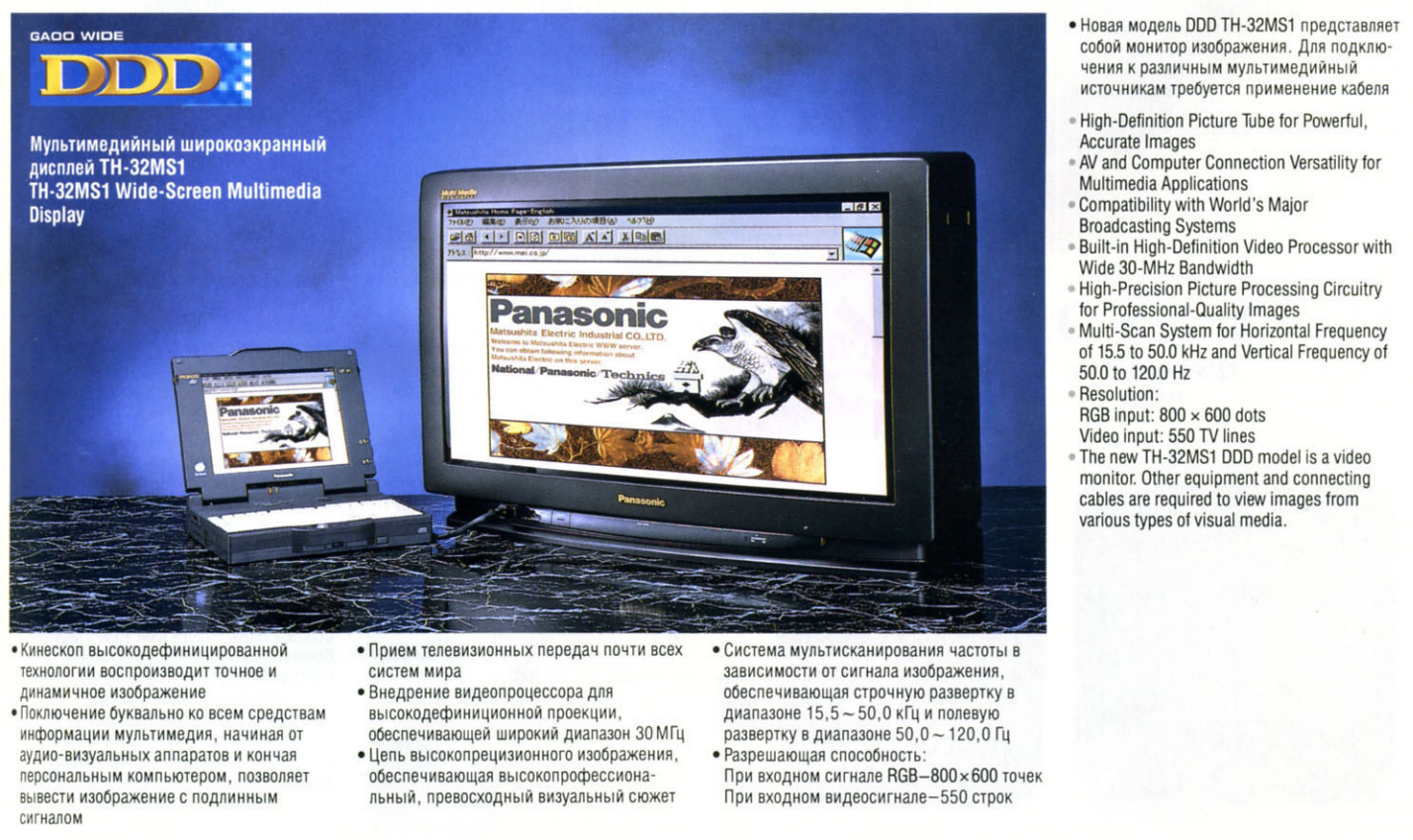

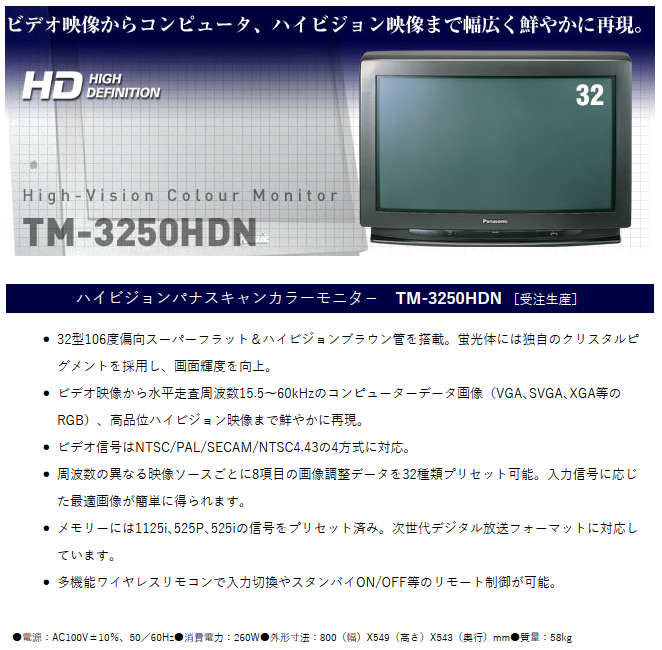

Sold under the JVC brand as the HV-M300VSU, and released in Japan as the Panasonic TM-3250HDN. A nearly identical model exists with a front panel DE-15 input, the Panasonic TH-32MS1, likely released internationally though little is known about this variant.
Manuals
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Matsushita Electric Industrial Co. Ltd. |
| Model: | DT-M3050W |
| Series: | DT |
| Viewable Size: | 30" |

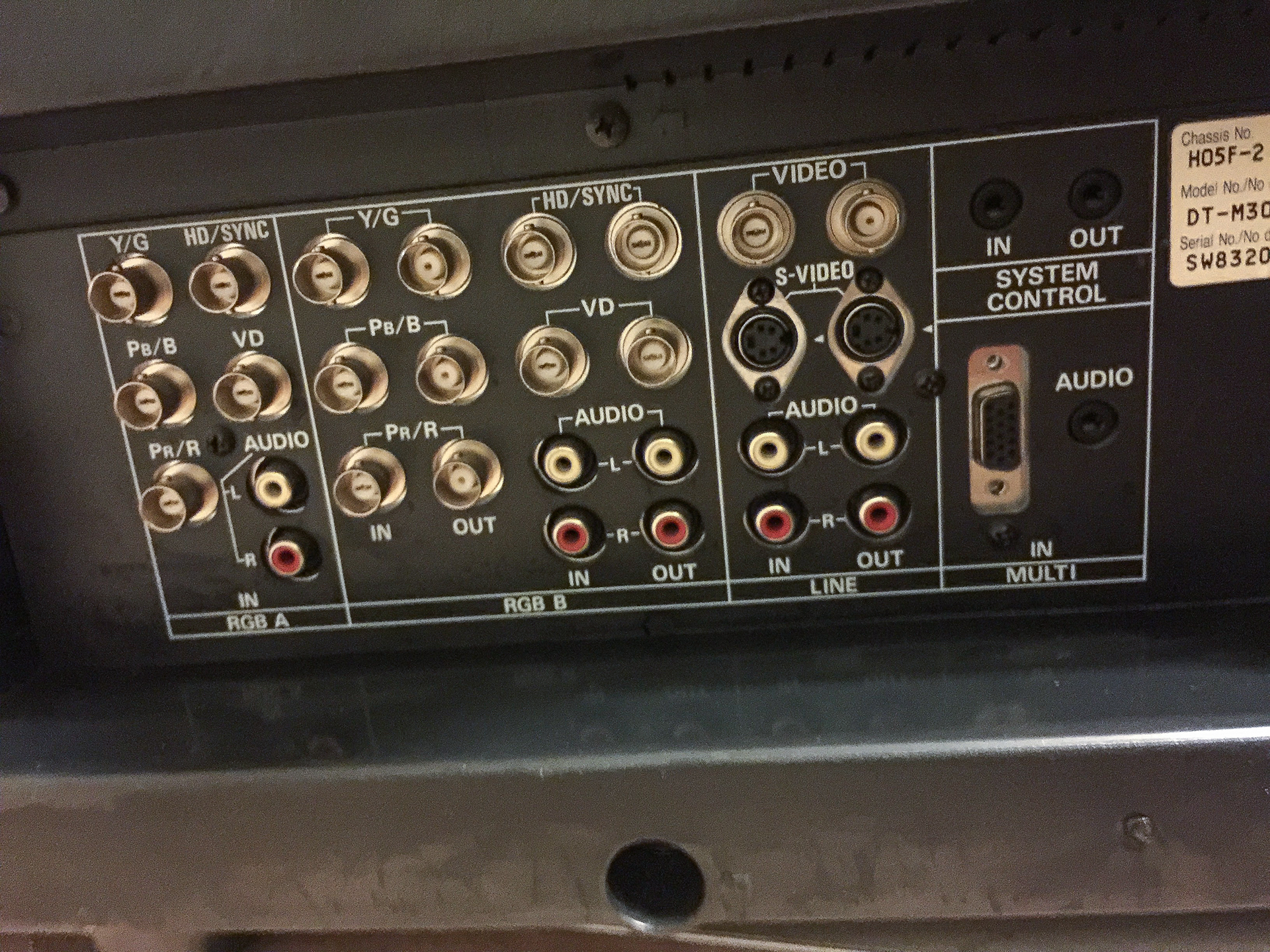

| Inputs: | VGA, Composite, S-Video, Component YPbPr, RGB |
| Native Resolutions: | VGA, SVGA, 240p, 480i, 1080i, 480p |
| Linecount: | 550 TVL |
| Horizontal Scan Range: | 15 kHz, 60 kHz |
| Vertical Scan Range: | 50 Hz, 120 Hz |
| Formats: | NTSC, PAL, SECAM, M-NTSC |
| Aspect: | 16:9 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SC5047 |
| Vertical Output IC: | STK79315A |
| Jungle IC: | CXA1478S |
| Comb Filtering: | 3-Line Digital |
| Comb Filter IC: | MN8236 |
| Flyback: | ZTFH97020A |
| Focus Type: | Dual |
| Tube: | W76LAL581X |
| Heater Voltage: | 6v |
| Deflection: | 106° |
| Mask: |
Slot
|
| Pitch: | .68 mm |
| Tint: | Dark |
| Yoke: | KDY4YG503F |
| Speakers: | Stereo, 4W x 2 |

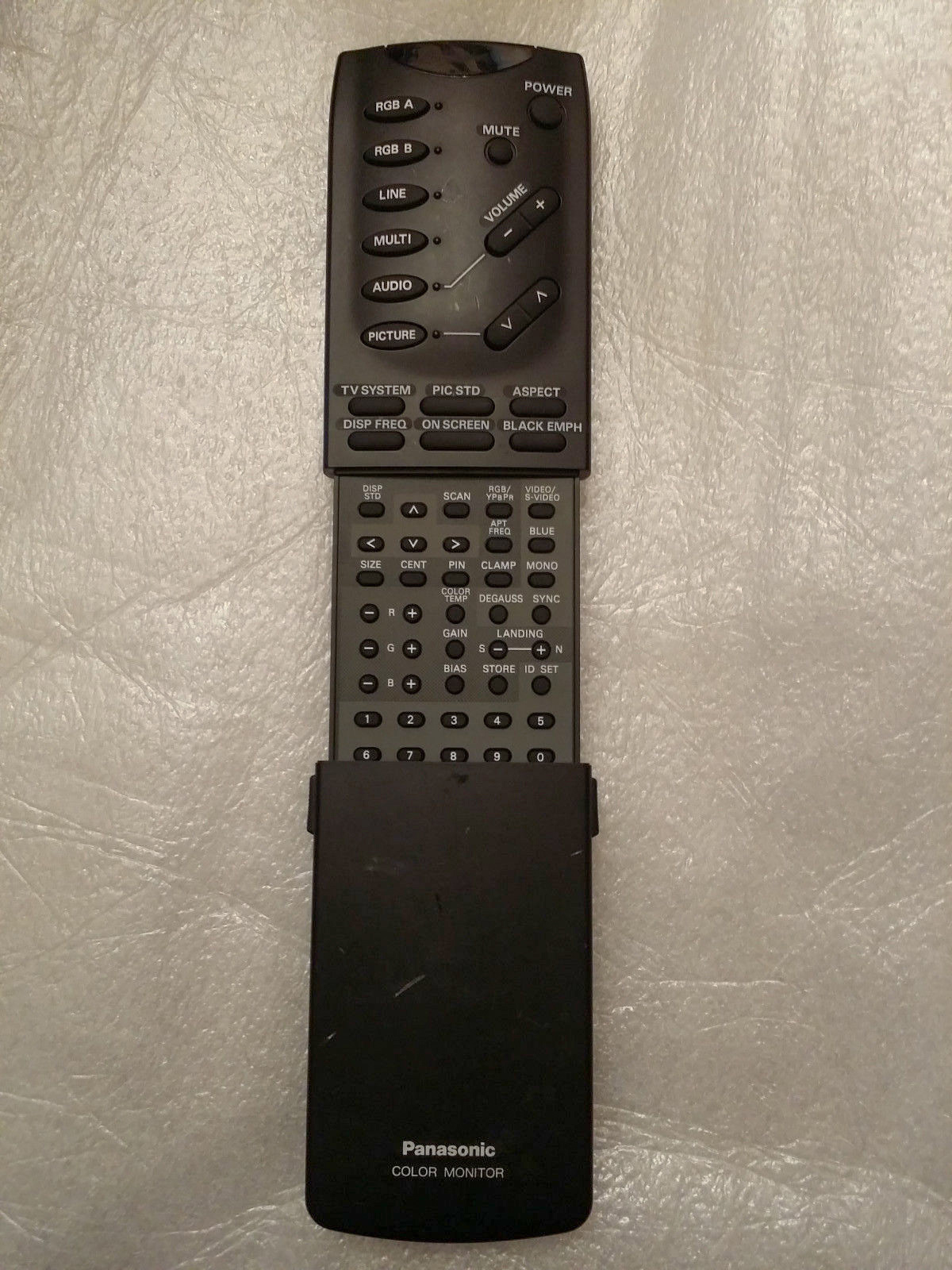

| Remote: | TNQE014 |
| Chassis: | H05F-2 |
| Weight: | 127.9 lbs (58 kg) |
| Dimensions (W/H/D): |
800 x 549 x 543 mm
(31.4 x 21.6 x 21.3") |
| Application: | Professional |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| MSRP: | 4300 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Yoke Info |
