Panasonic Panasync S70
Matt Ross
March 1, 2024, 4:23 pm
March 1, 2024, 4:23 pm
Summary

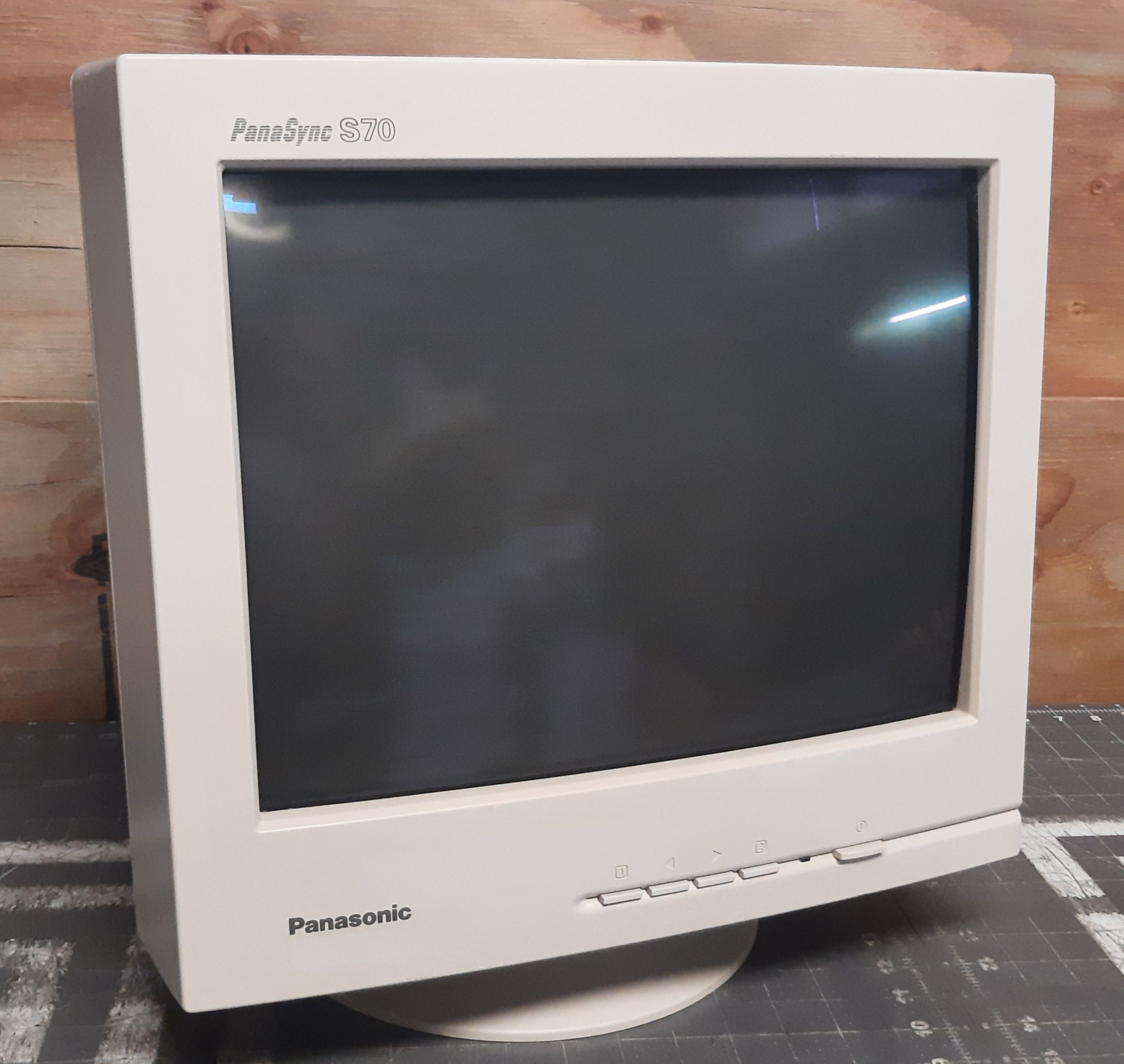

17" computer monitor from Panasonic. Introduced in the late 1997, it was a very good monitor for its time. Its 70 kHz scan rate allows it to display 1024x768 (XGA) at 85 Hz or 1440x1080 at 60 Hz. Unlike many monitors with those specifications, it has a detachable VGA cord.
Literature
Notes

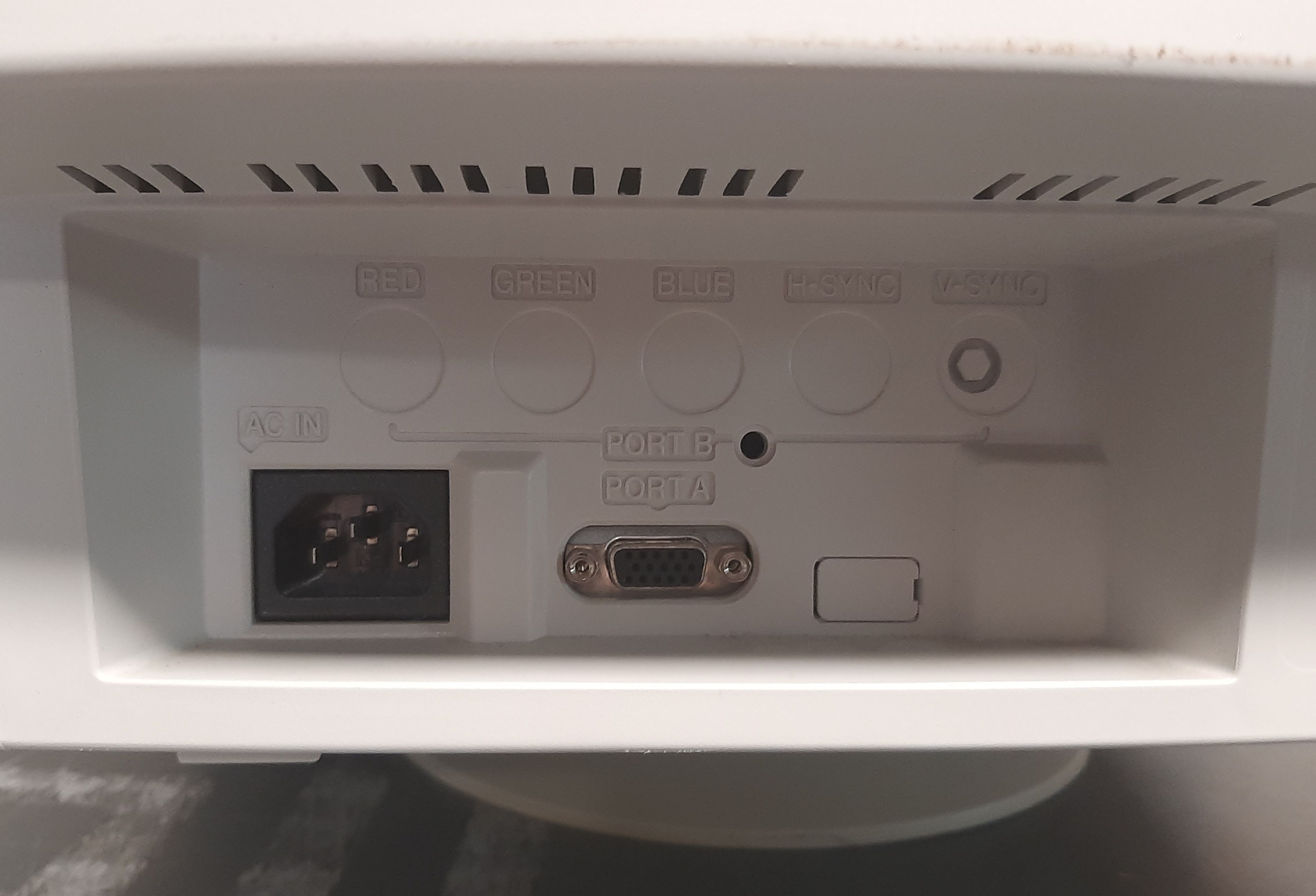

This monitor is very versatile with sync formats. It will accept H/V sync, composite sync (through the H sync pin), or sync on green.

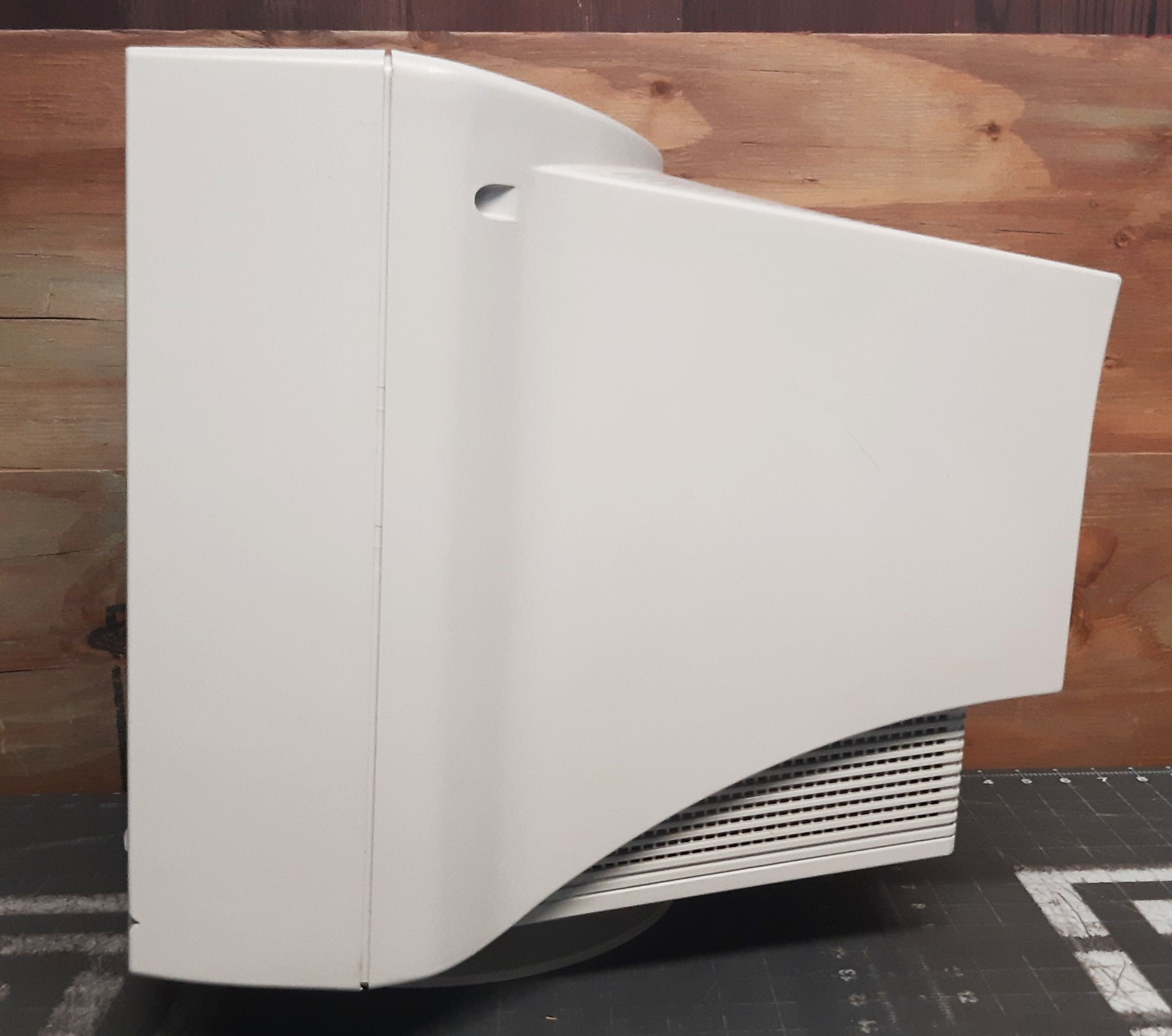

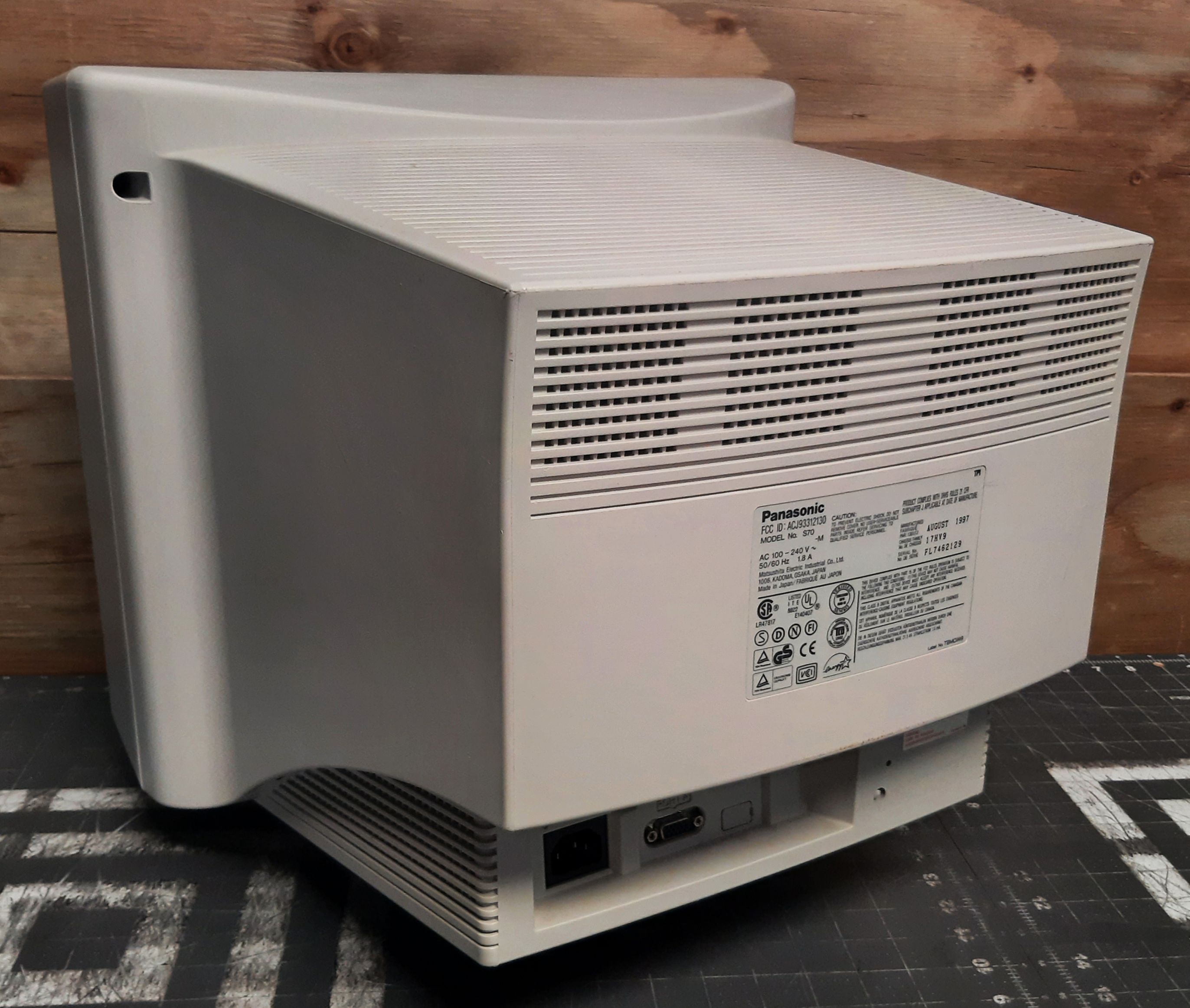

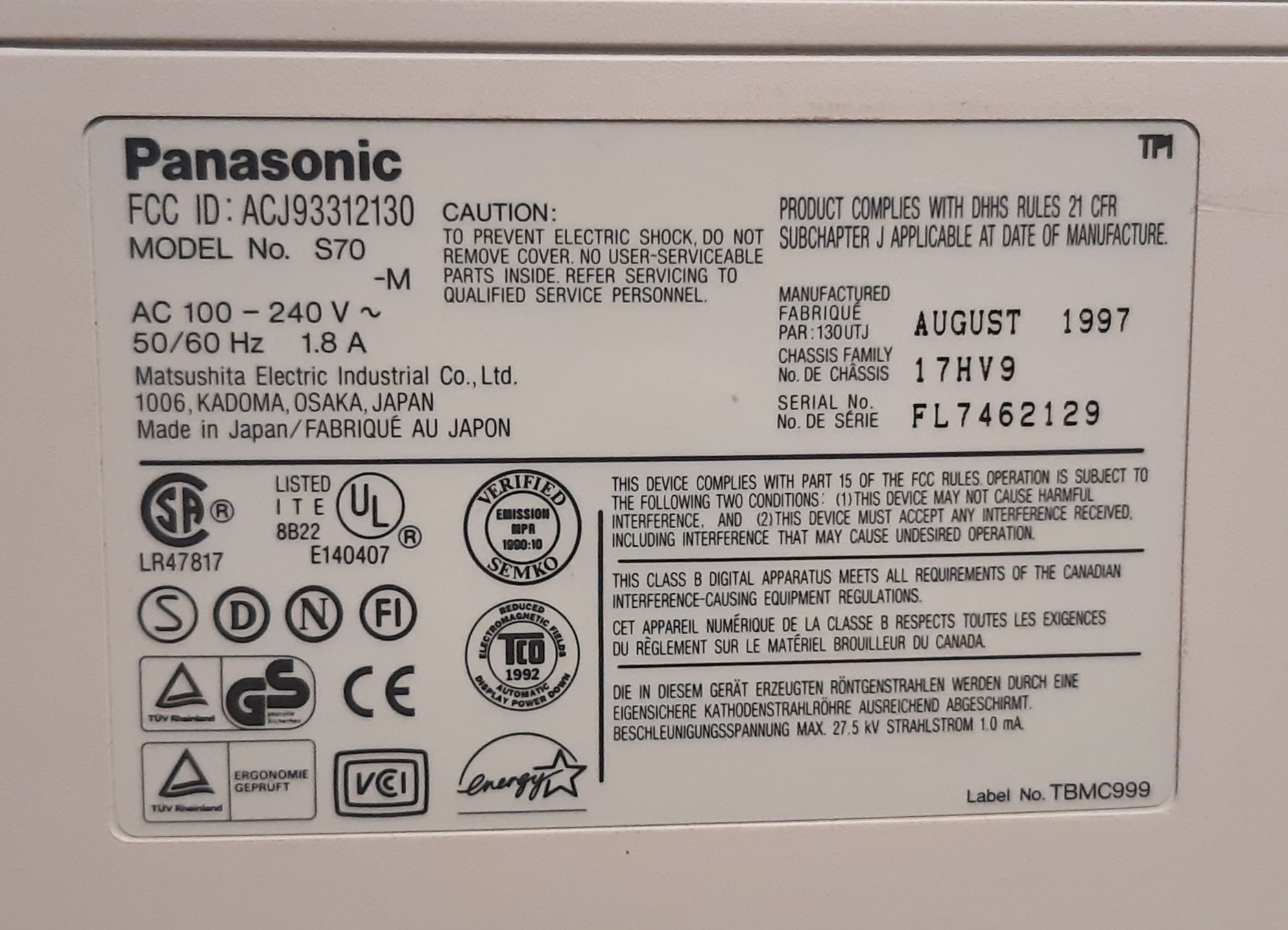

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | Panasync S70 |
| Series: | Panasync |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC, Sync on Green |
| Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Max: | 30 kHz, 70 kHz |
| Vertical Max: | 50 Hz, 180 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls |
| Flyback: | ZTFL03001A |
| Tube: | M41KXH140X |
| Heater Voltage: | 5.8v |
| Deflection: | 90 deg. |
| Mask: | Shadow |
| Pitch: | .27mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | None |
| Chassis: | 17HV9 |
| Weight: | 36 lbs (16 kg) |
| Application: | Computer Monitor |
| Launched: | 1997 |
| Country of Manufacture: | Japan |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
