| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | PV-C1350W |
| Series: | Omnivision |
| Viewable Size: | 13" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | 2SD2586LBK |
| Vertical Output IC: | LA7837 |
| Comb Filtering: | Notch |
| Jungle IC: | AN5367FB |

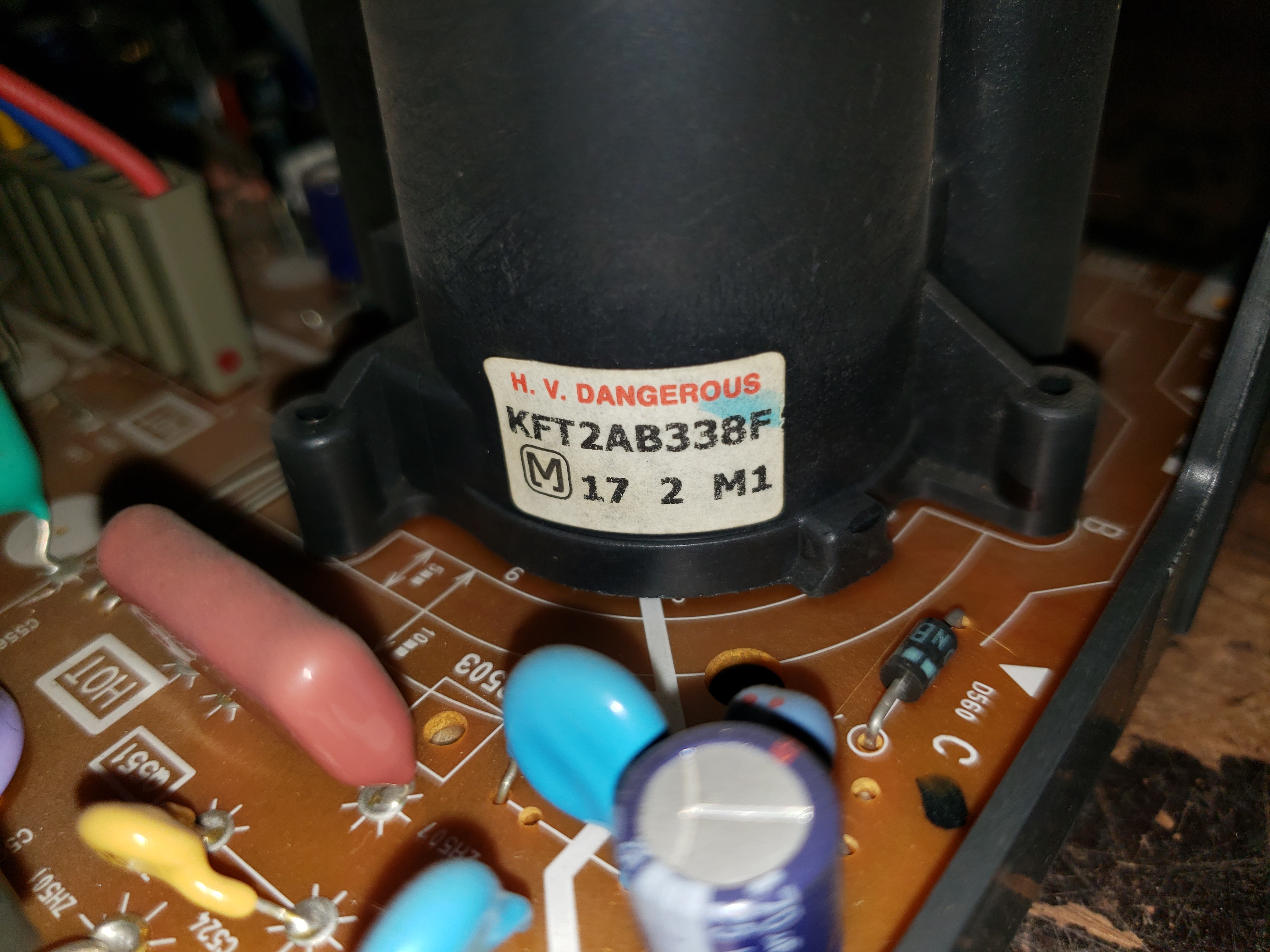

| Flyback: | KFT2AB338F |
| Focus Type: | Single |

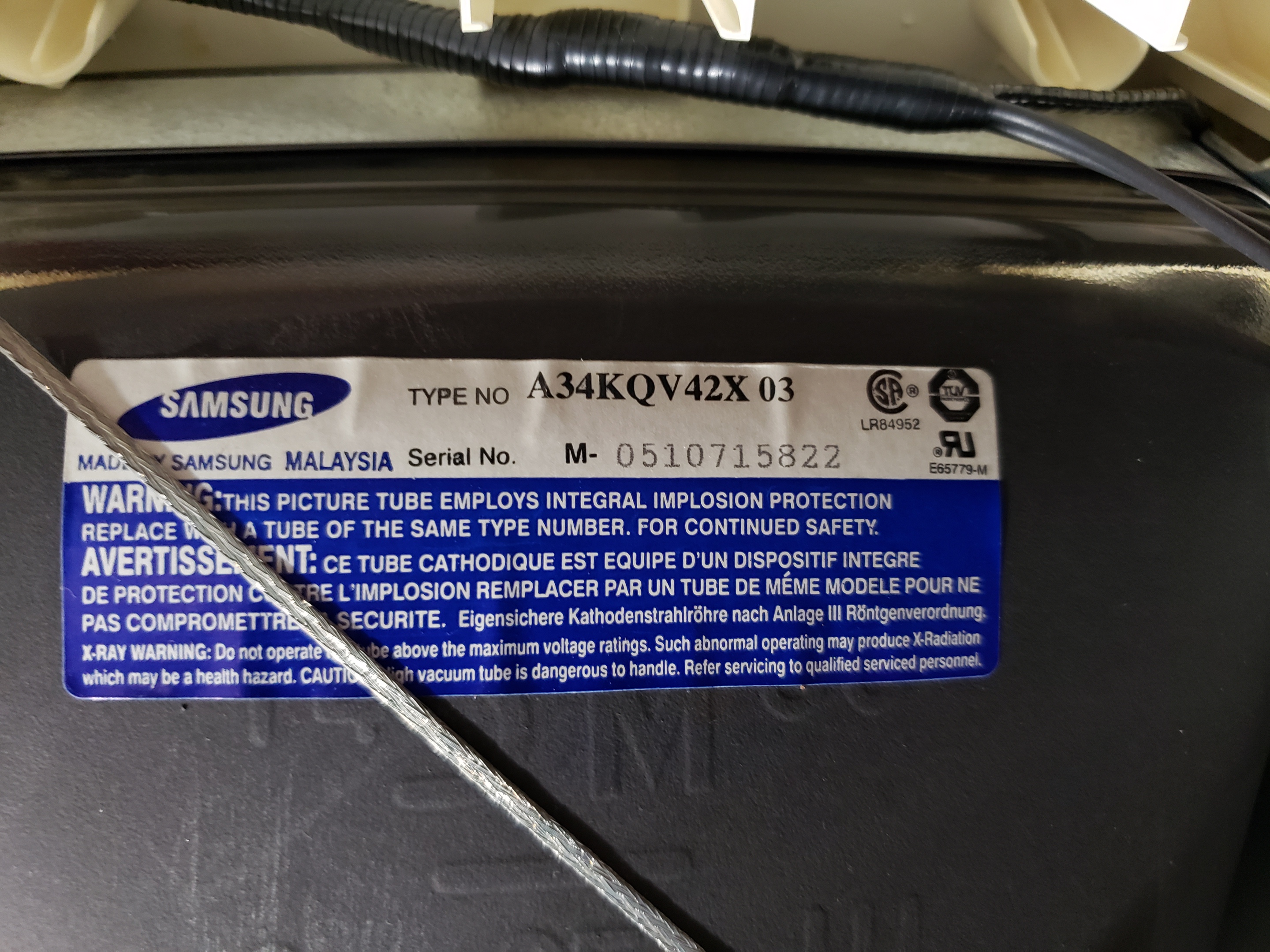

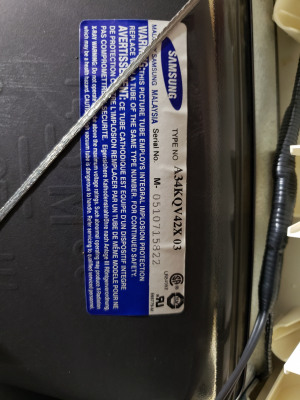

| Tube: | Samsung , A34KQV42X , A34KQV42X03 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

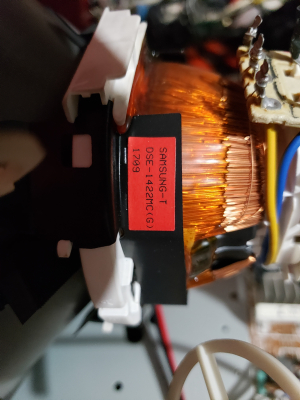

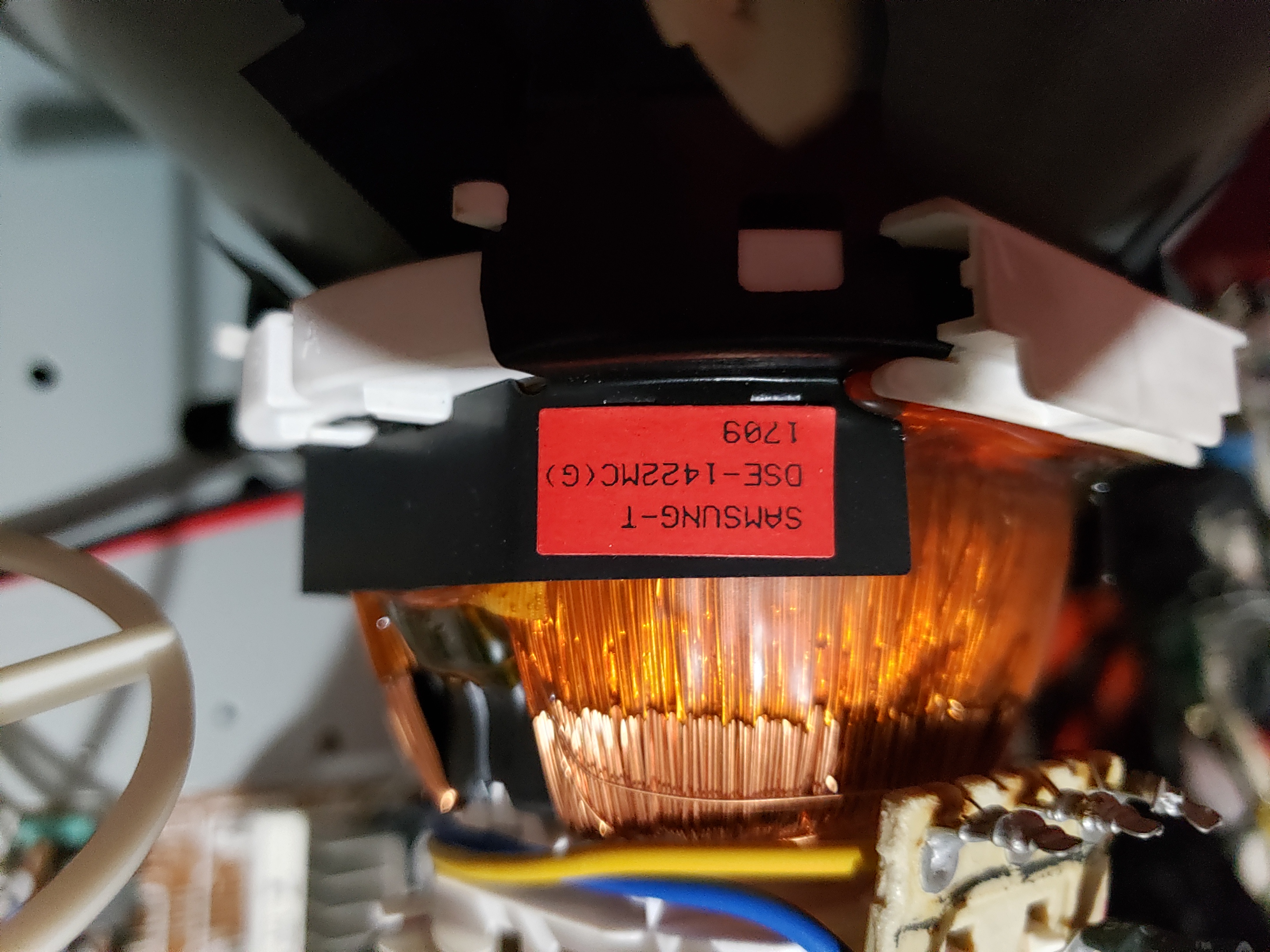

| Yoke: | DSE-1422MC |
| Yoke Horz. Inductance: | 3.888 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 31.16 mH (@ 100 Hz) |
| Speakers: | Mono |
| Remote: | LSSQ0282 |

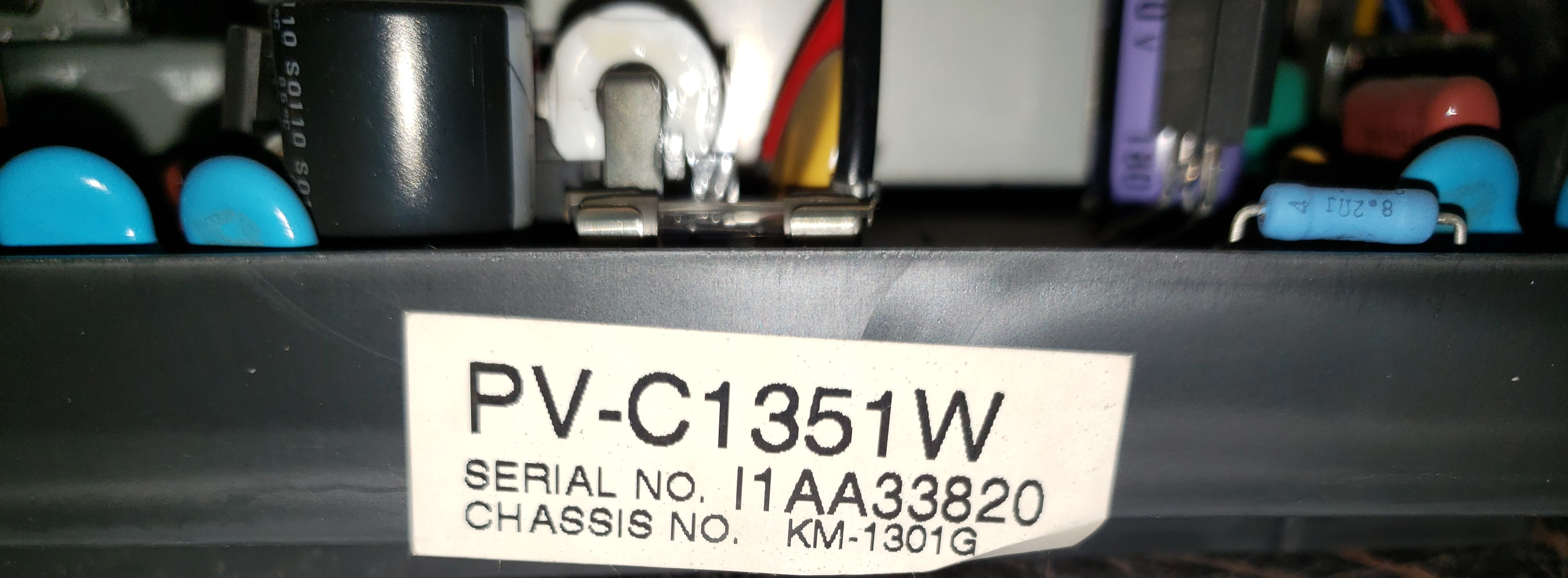

| Chassis: | KM-1301G |
| Weight: | 26.4 lbs (12 kg) |
| Dimensions (W/H/D): |
386 x 385 x 374 mm
(15.2 x 15.1 x 14.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2001 |
| MSRP: | 219 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Degaussing: | Automatic on Power-on |
