Panasonic PV-M1324W
September 4, 2024, 2:54 am
August 2, 2025, 11:40 am
Summary

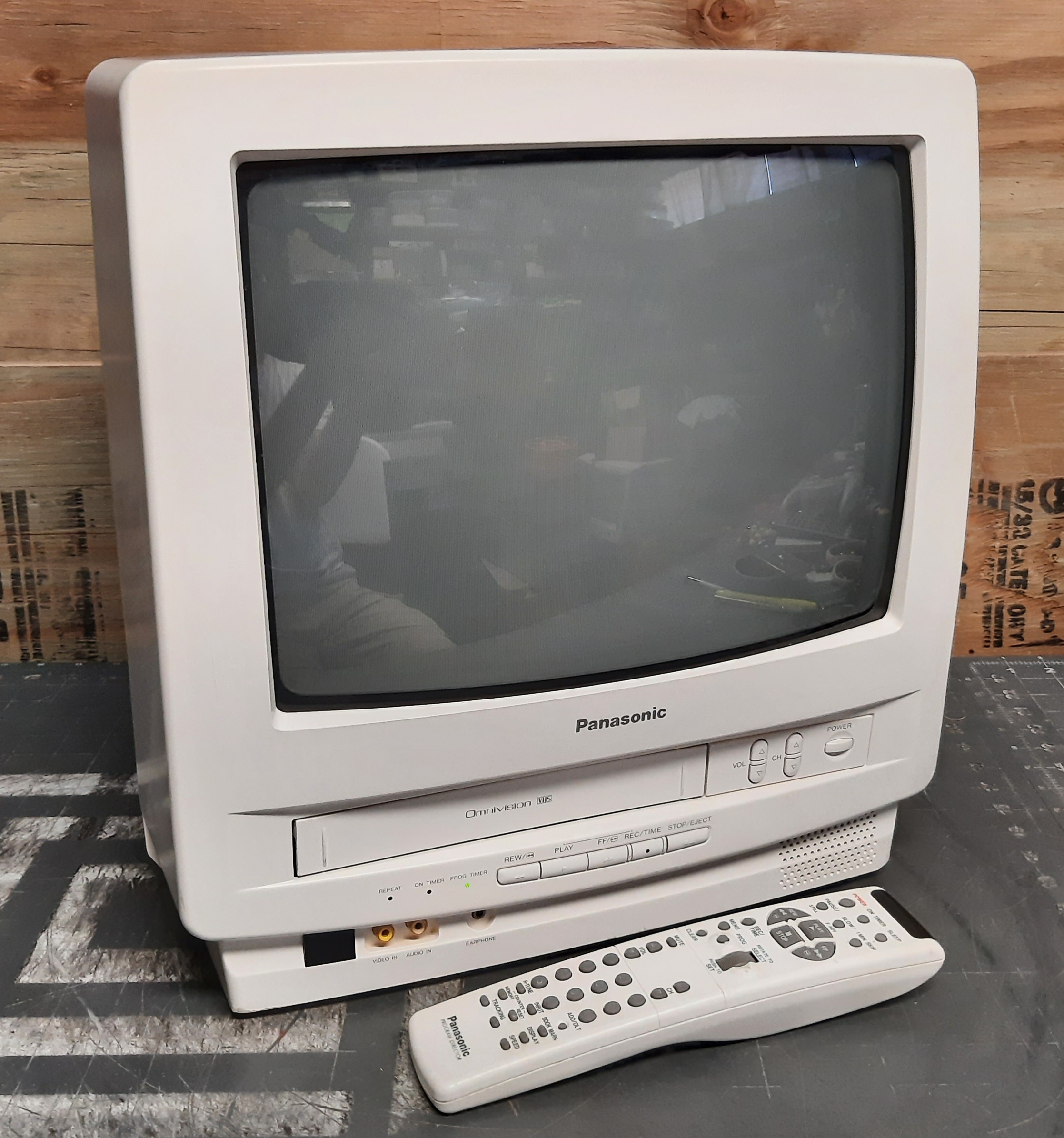

Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer grade VCR/TV combo units. Sold as an entry level consumer grade TV, It uses a very basic TV chassis along with a built-in VCR. It has a single front-mounted mono A/V input. This model is identical to the PV-M1324, but with a white case instead of black.
Manuals
Notes

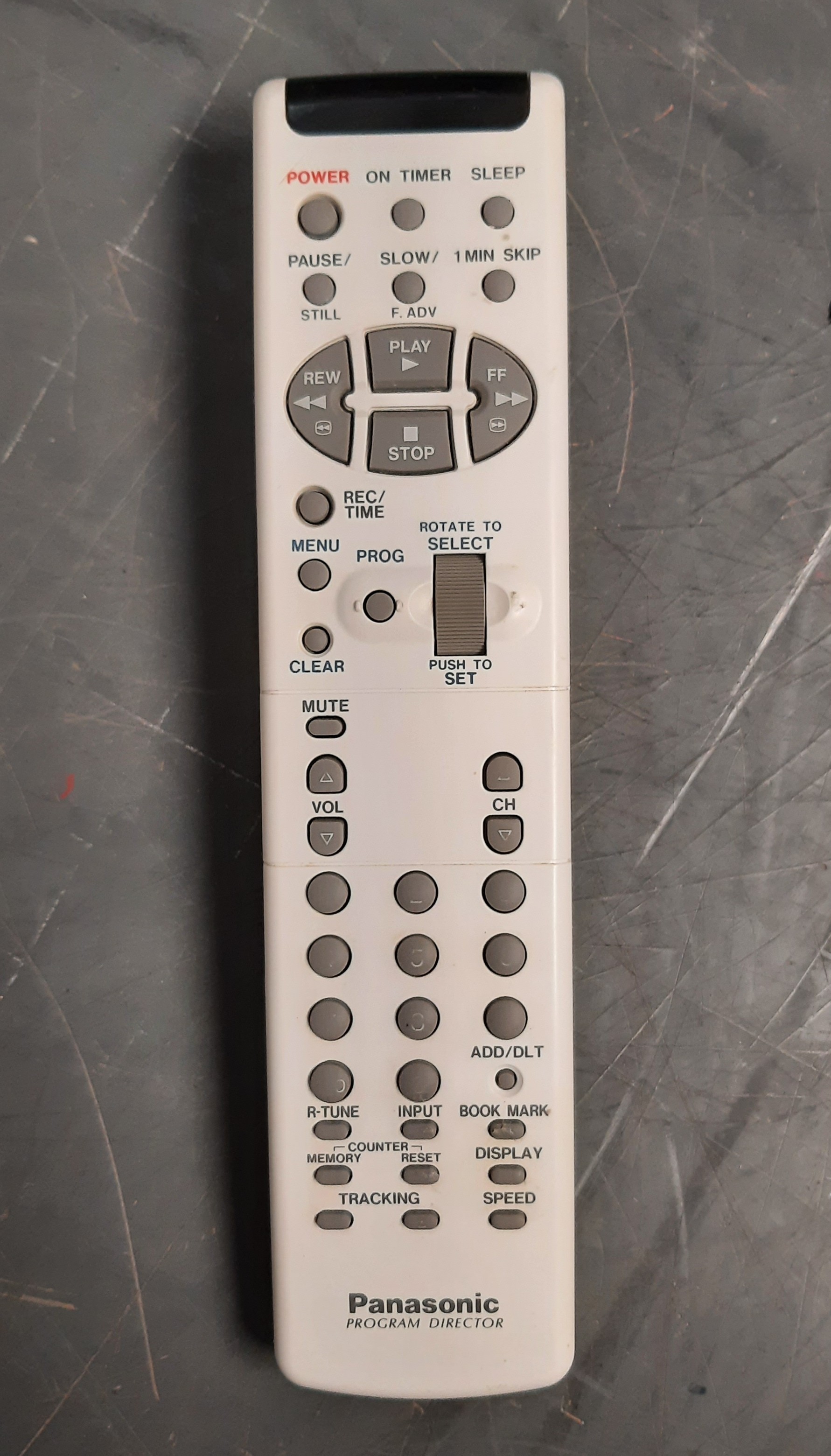

Changing to the AV input on this TV requires an original remote (VSQS1372 or VSQS1371). Most universal remotes don't have a code that allows the use of its input select button, and later models of PV-M use a different style of remote.
While it does have a user menu and on screen display, the PV-M1324 does not have a service menu. All adjustments are performed using trim pots on the chassis.
Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |

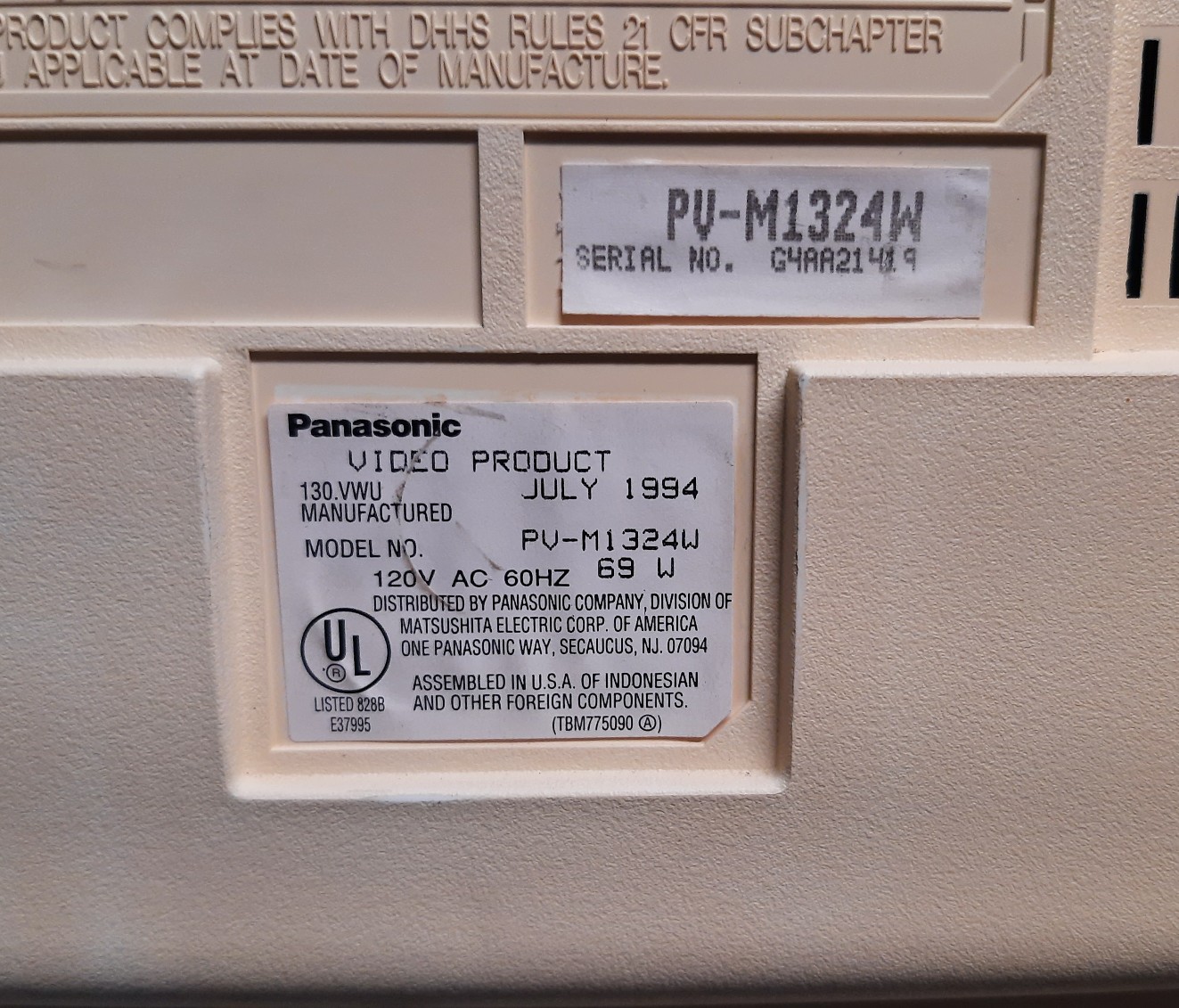

Model: | PV-M1324W |
Series: | Omnivision |
Viewable Size: | 13" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, OSD Customer Controls |
Jungle: | LA7621 |
Comb Filtering: | None |
Flyback: | TLF14767F |
Tube: | Panasonic , A34JQQ90X |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Speakers: | Mono |
Remote: | VSQS1372 |
Chassis: | KM-134 |
Weight: | 29.1 lbs (13.2 kg) |
Dimensions (W/H/D): |
376 x 403 x 384 mm
(14.8 x 15.8 x 15.1") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1994 |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual, Needs Yoke Info |
