Summary

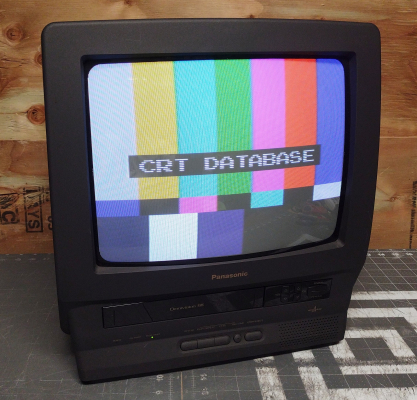

Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer grade VCR/TV combo units. Sold as an entry level consumer grade TV, the PV-M1346 uses a basic TV chassis along with a built-in VCR. It has a single rear mono A/V input.

Literature

• User Manual
• Service Manual

Notes

While it does have a user menu and on screen display, the PV-M1346 does not have a service menu. Adjustments are performed using trim pots on the chassis.

This TV does not have a vertical position pot. If it's necessary to adjust the screen position, the best option is to set the vertical position using the purity rings, and re-center the picture with the horizontal position pot. The convergence rings will have to be readjusted slightly afterwards.
