Summary

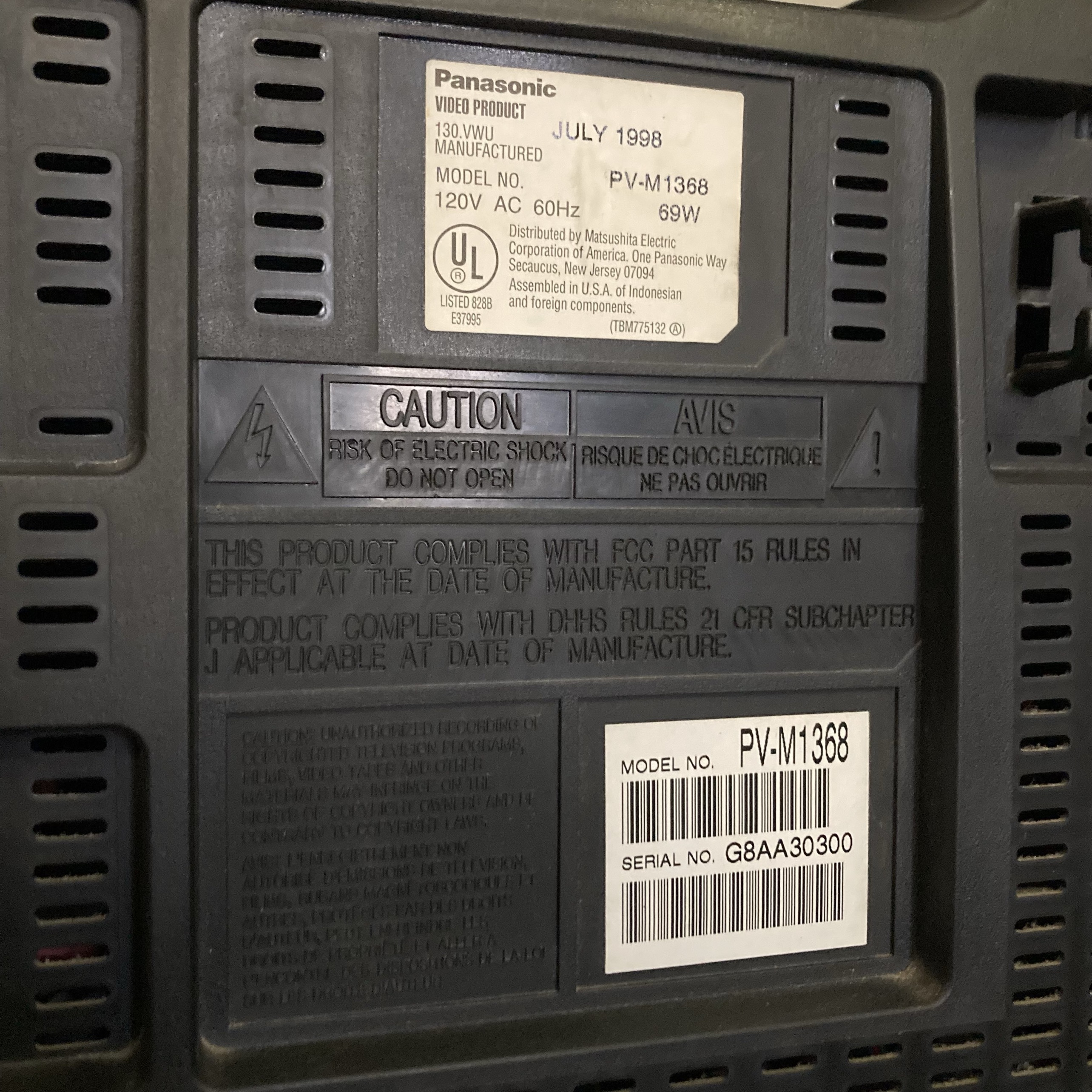

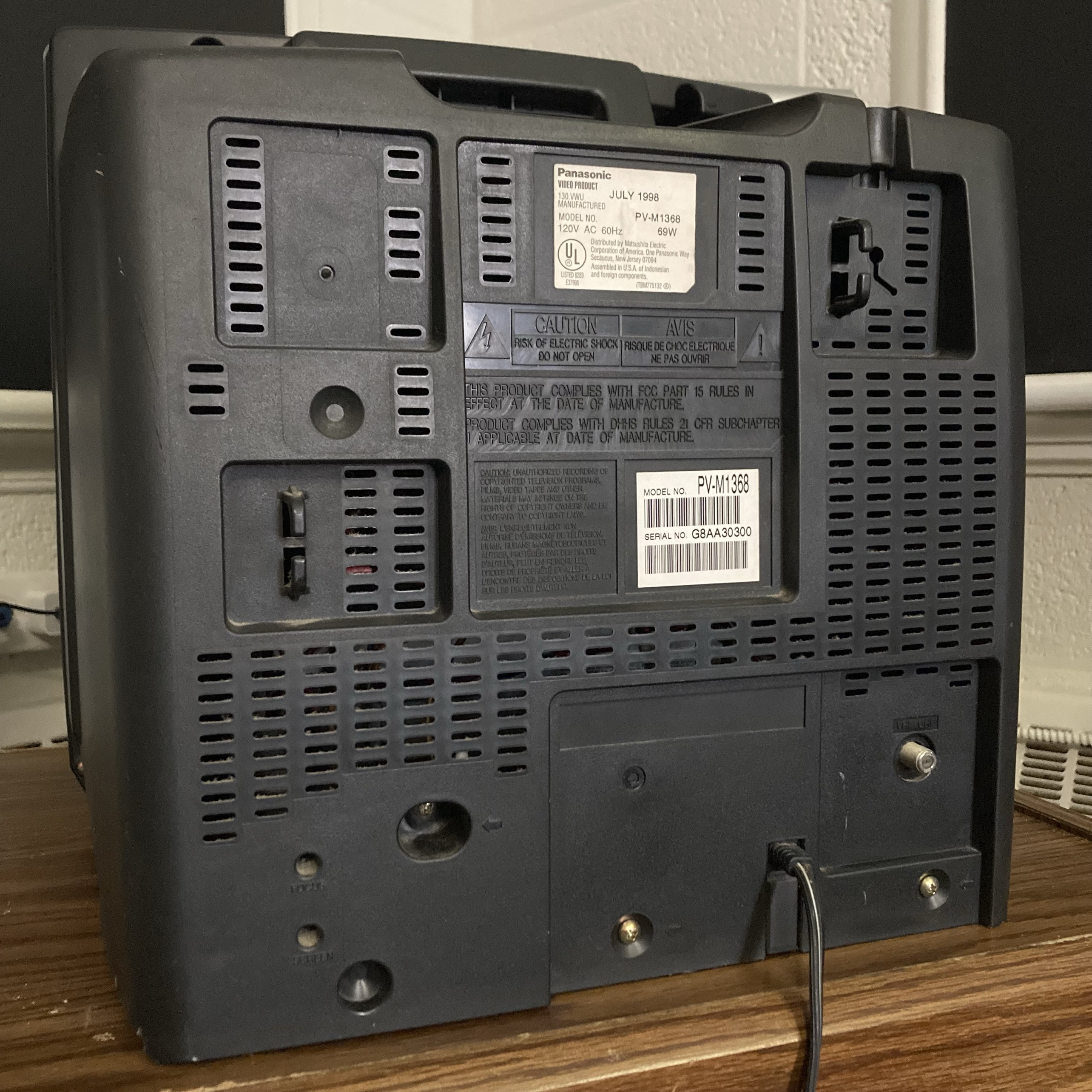

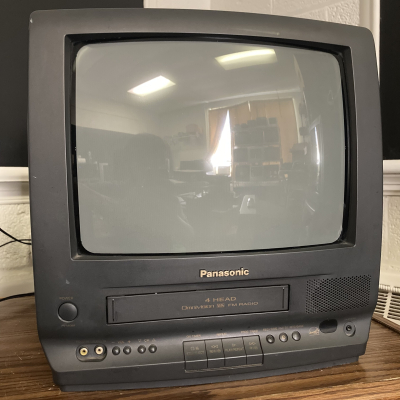

Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer grade VCR/TV combo units. The PV-M1368 combines a basic 13" TV with a built-in VCR. It has RF in the back, and a single front-mounted mono A/V input. The PCB was originally manufactured in Indonesia and assembled in the USA in 1998.
Manuals
Notes
Unlike most of their TVs from the 1990s, this TV uses a Chunghwa tube instead of a Panasonic branded one.

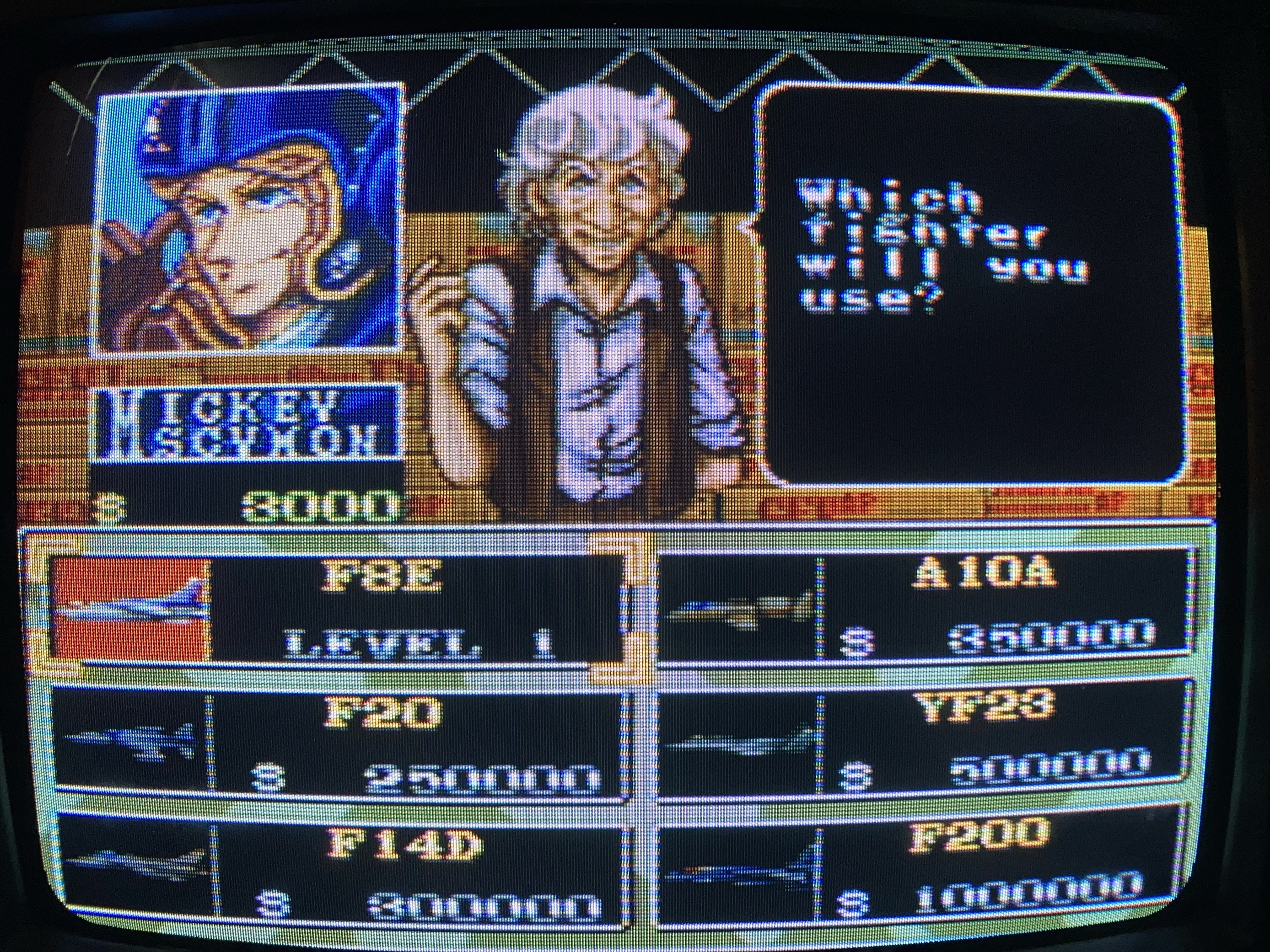

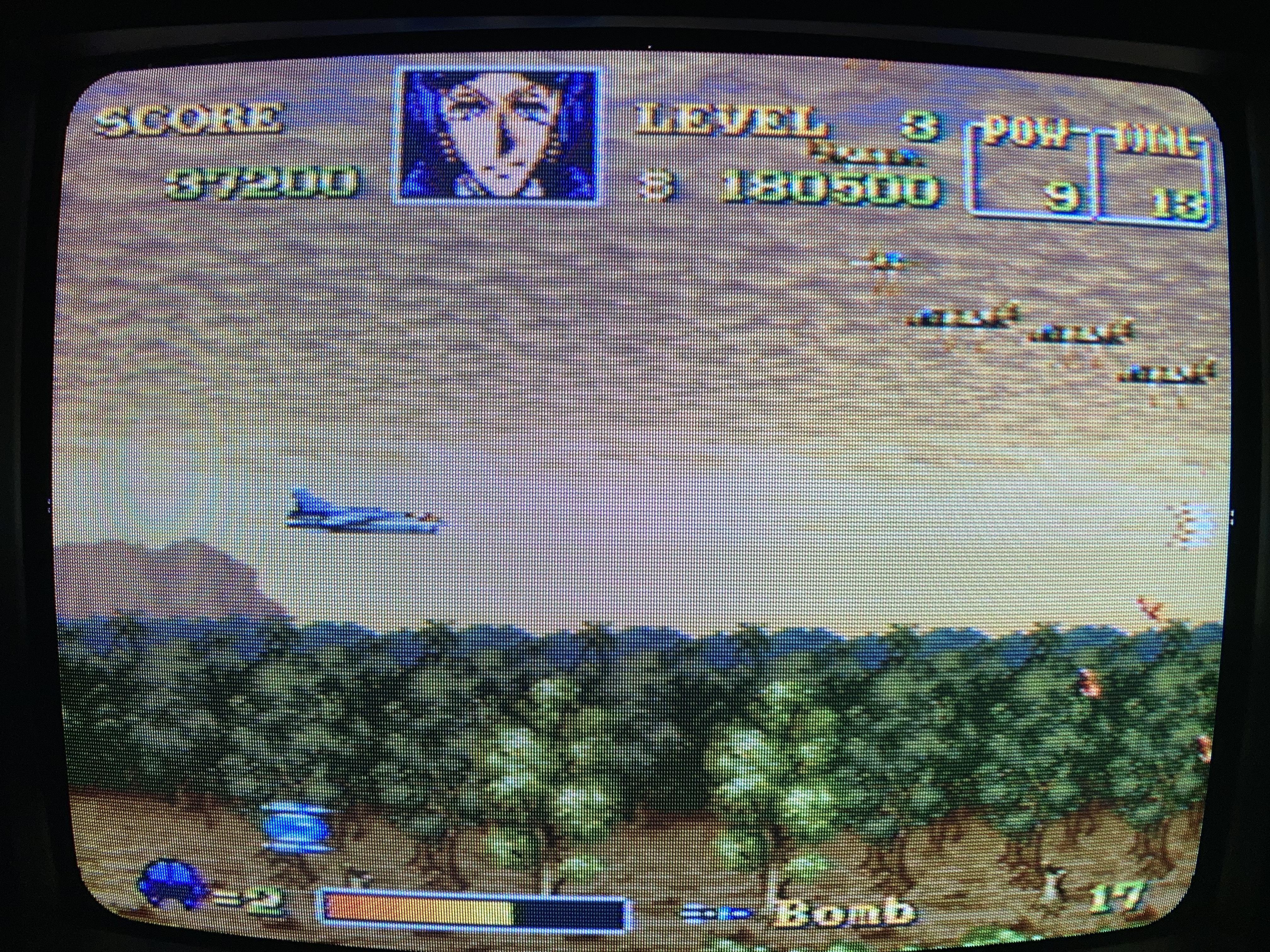

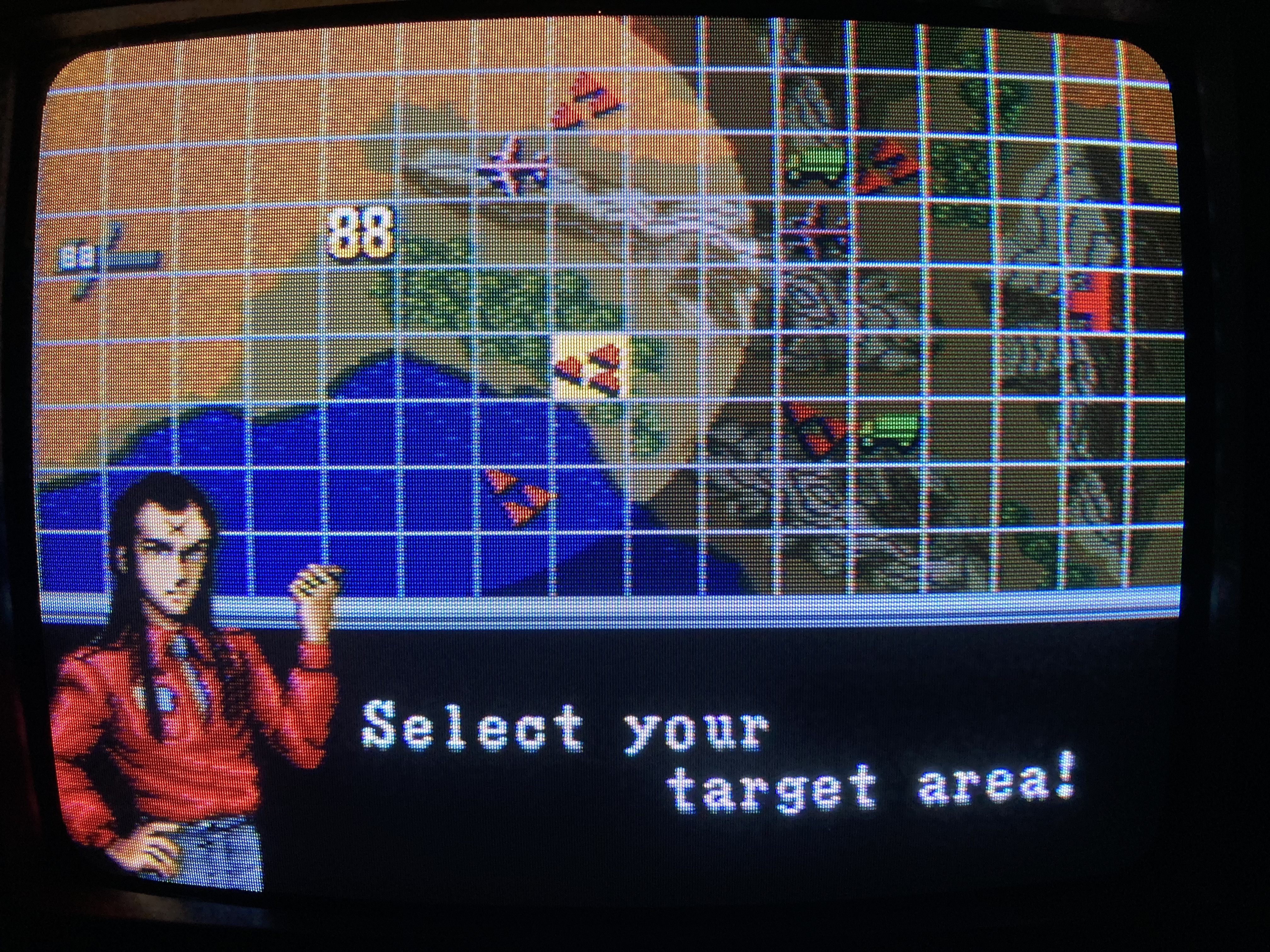

Gallery
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
.jpg "Click to view image in new tab")
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | PV-M1368 |
| Series: | Omnivision |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | Panasonic, AN5367FB, AN5367 |
| Comb Filtering: | None |

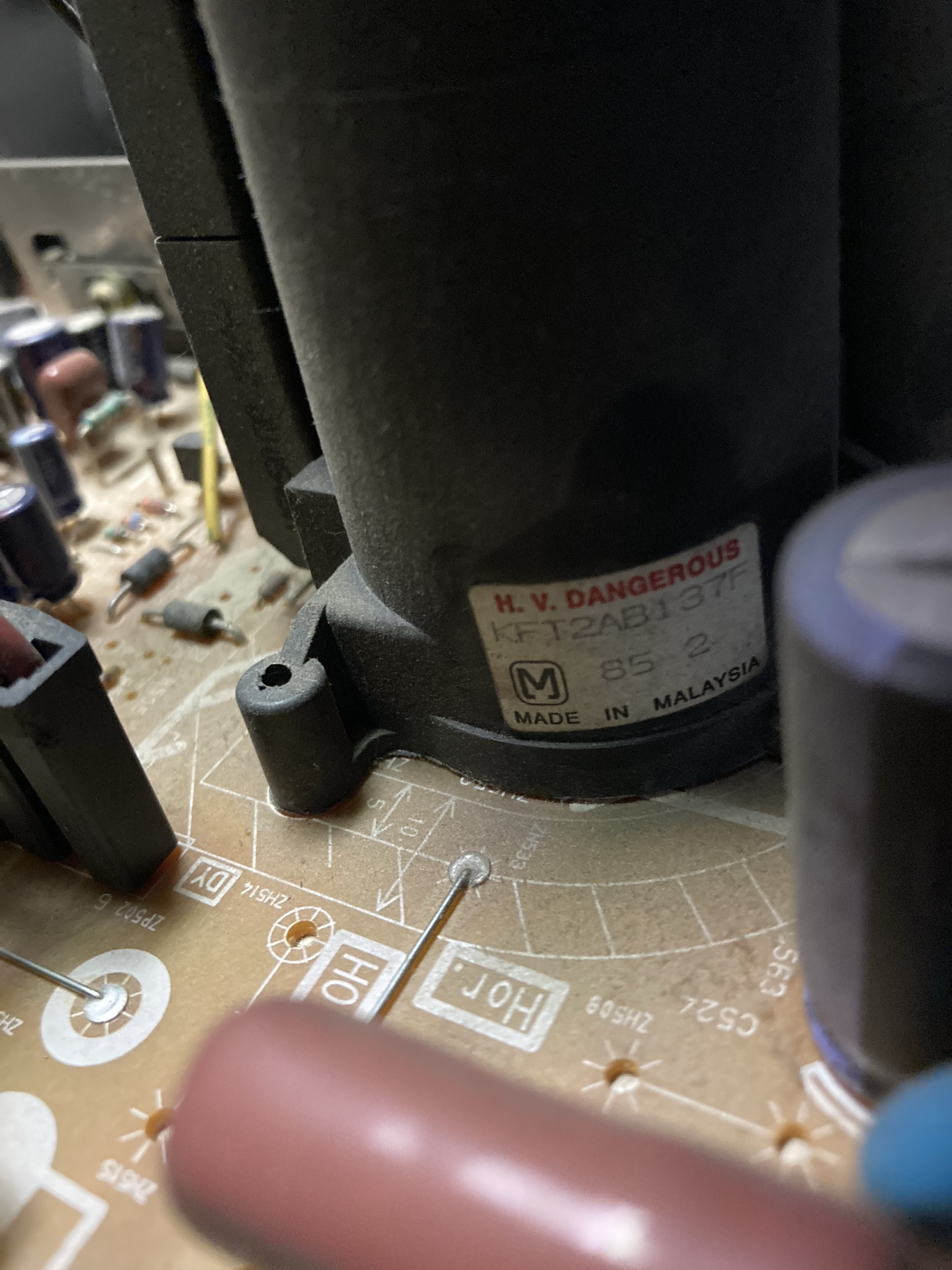

| Flyback: | KFT2AB137F |
| Focus Type: | Single |

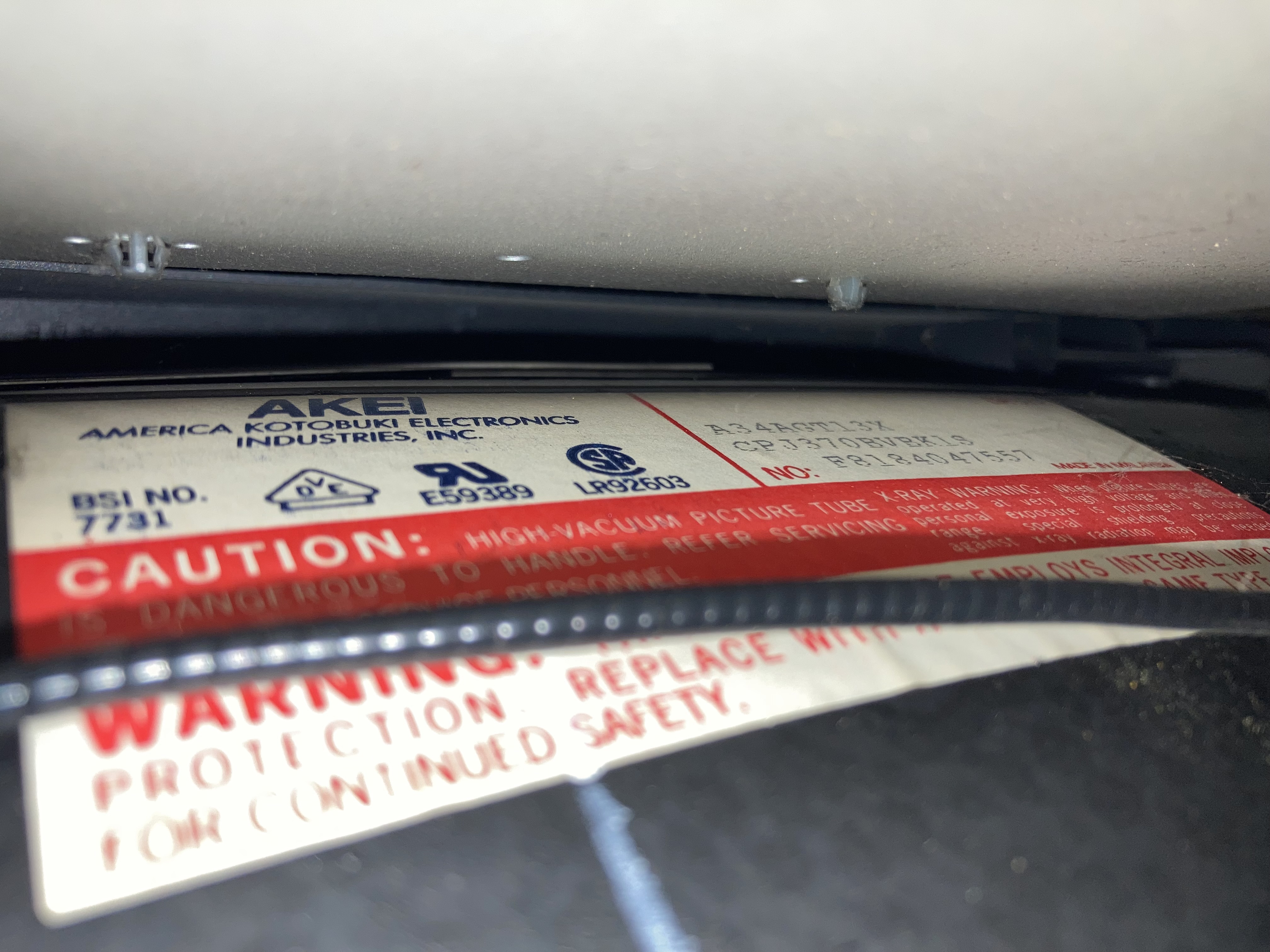

| Tube: | Chunghwa , A34AGT13X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

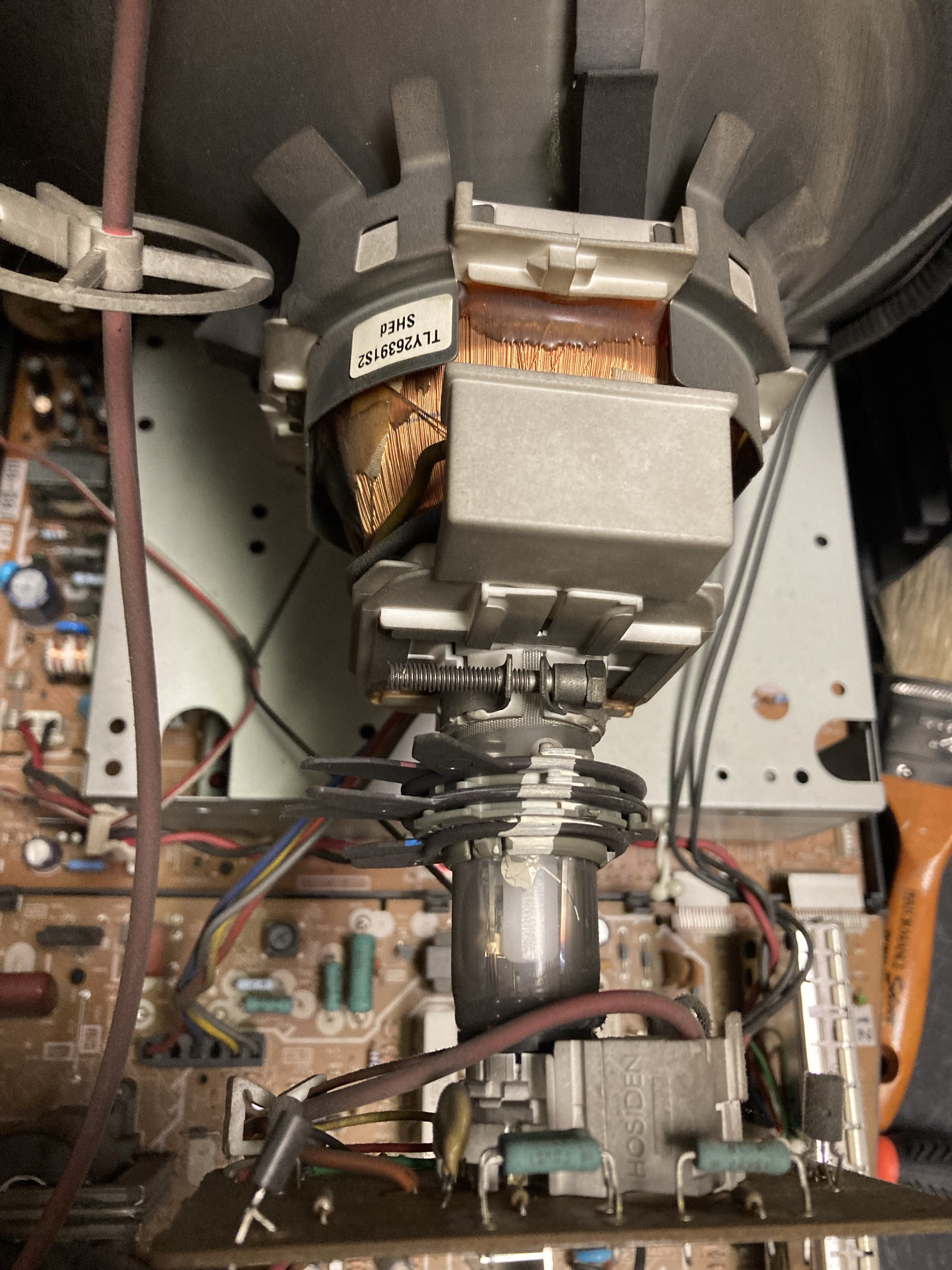

| Yoke: | TLY26391S2 |

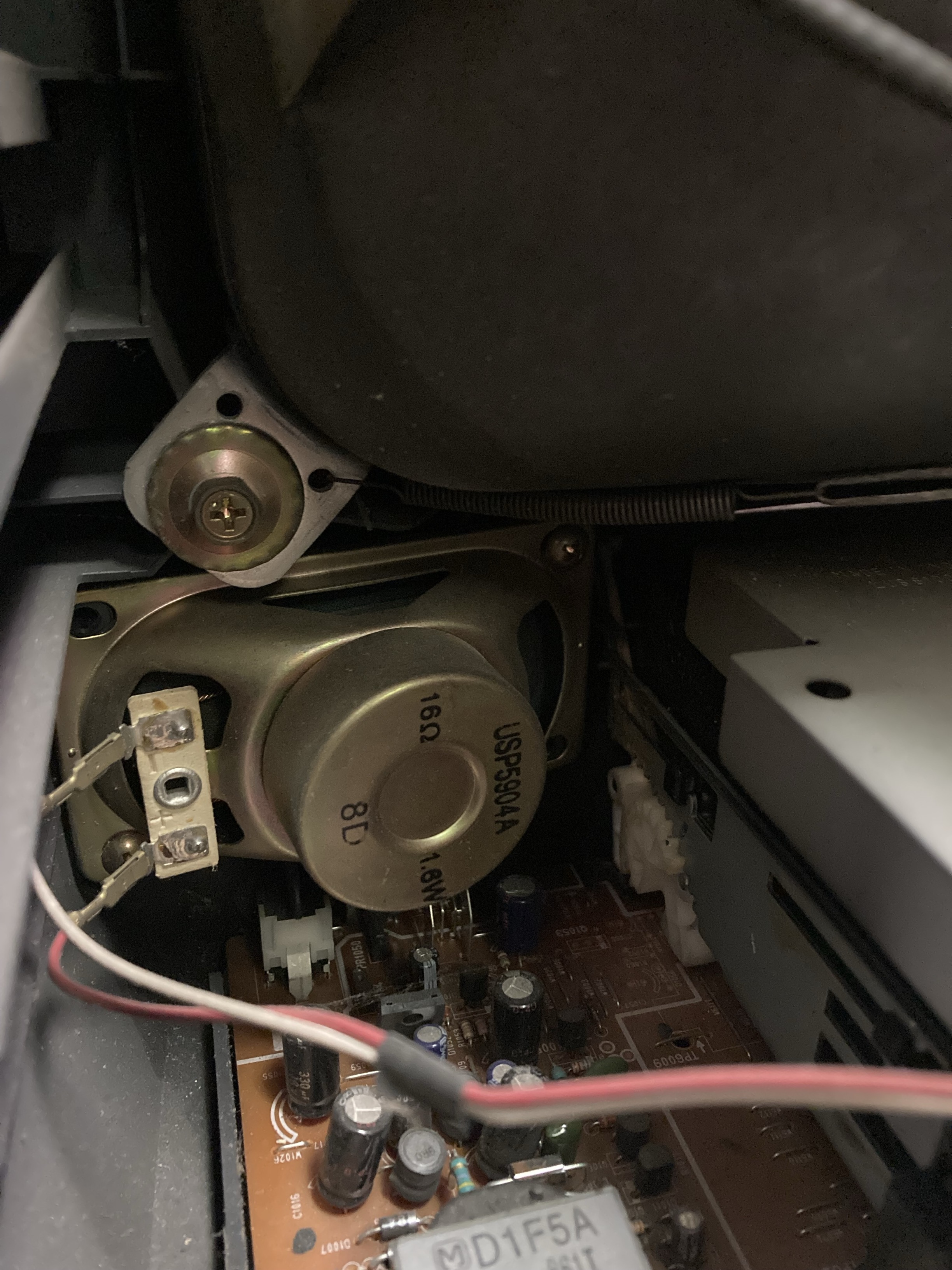

| Speakers: | Mono, 1.6W |
| Remote: | VSQS1563 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| MSRP: | 349 USD |
| Country of Manufacture: | USA |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Desk Stand, Carrying Handle |
| Degaussing: | Automatic on Power-on |
