Summary

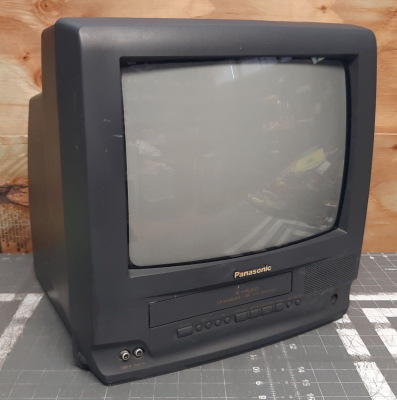

Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer grade VCR/TV combo units. The PV-M1369 combines a basic 13" TV with a built-in VCR. It has a single front-mounted mono A/V input.
Manuals
Notes
Unlike most of their TVs from the 1990s, this TV uses a Chunghwa tube instead of a Panasonic branded one.
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | PV-M1369 |
| Series: | Omnivision |
| Viewable Size: | 13" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2586 |
| Vertical Output IC: | LA7837 |
| Comb Filtering: | None |
| Flyback: | KFT1AA227F |
| Tube: | Chunghwa , A34AGT13X , A34AGT13X94 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | 3.086 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 28.39 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 5.425 ohm |
| Yoke Vert. Resistance: | 13.91 ohm |
| Speakers: | Mono |
| Remote: | VSQS1602 |
| Weight: | 26.4 lbs (12 kg) |
| Dimensions (W/H/D): |
386 x 385 x 374 mm
(15.2 x 15.1 x 14.7") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Pictures |
