Panasonic PV-M1378W
Eli Krause
April 28, 2023, 4:53 pm
April 28, 2025, 1:55 pm
April 28, 2023, 4:53 pm
April 28, 2025, 1:55 pm
Summary

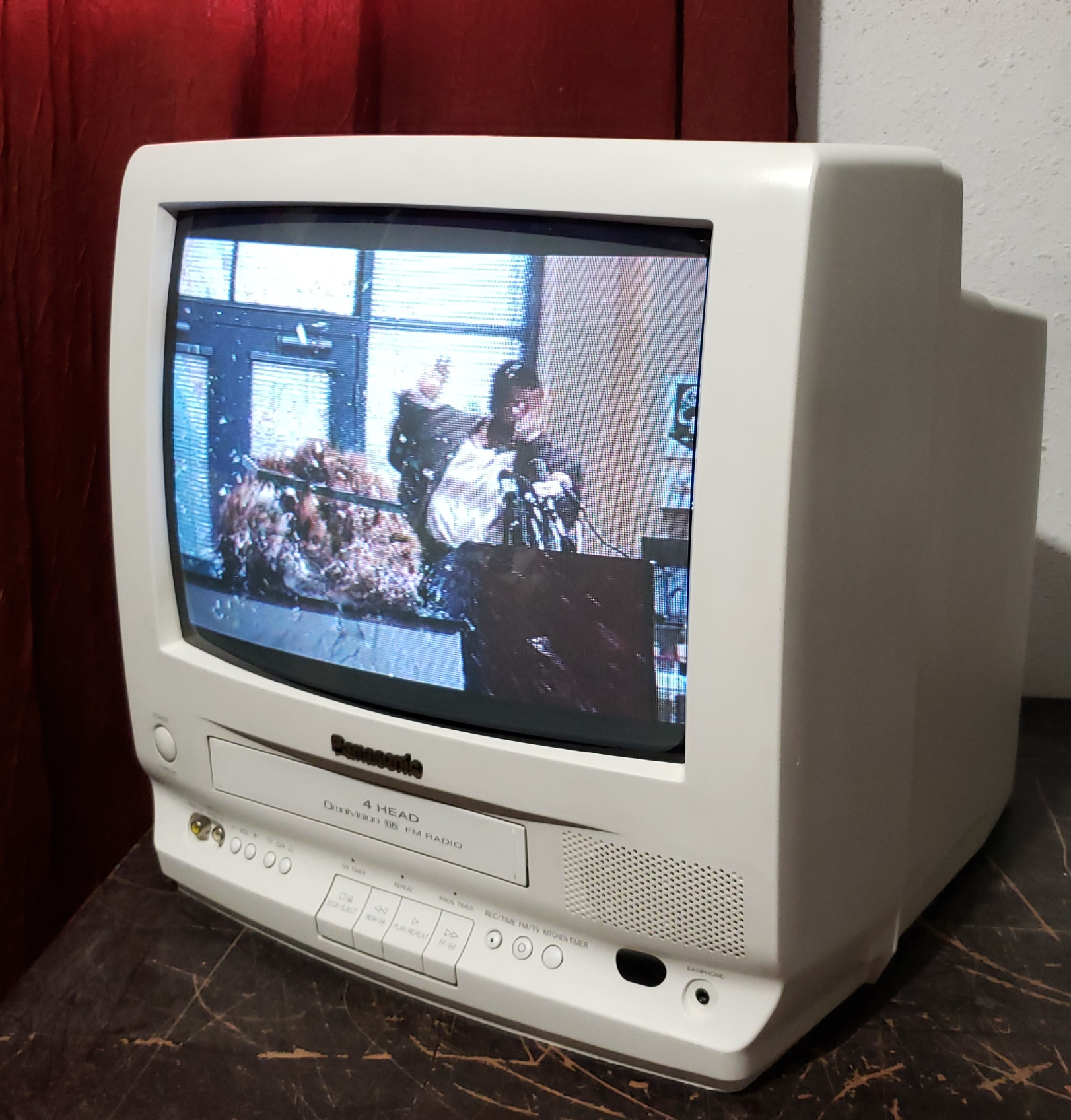

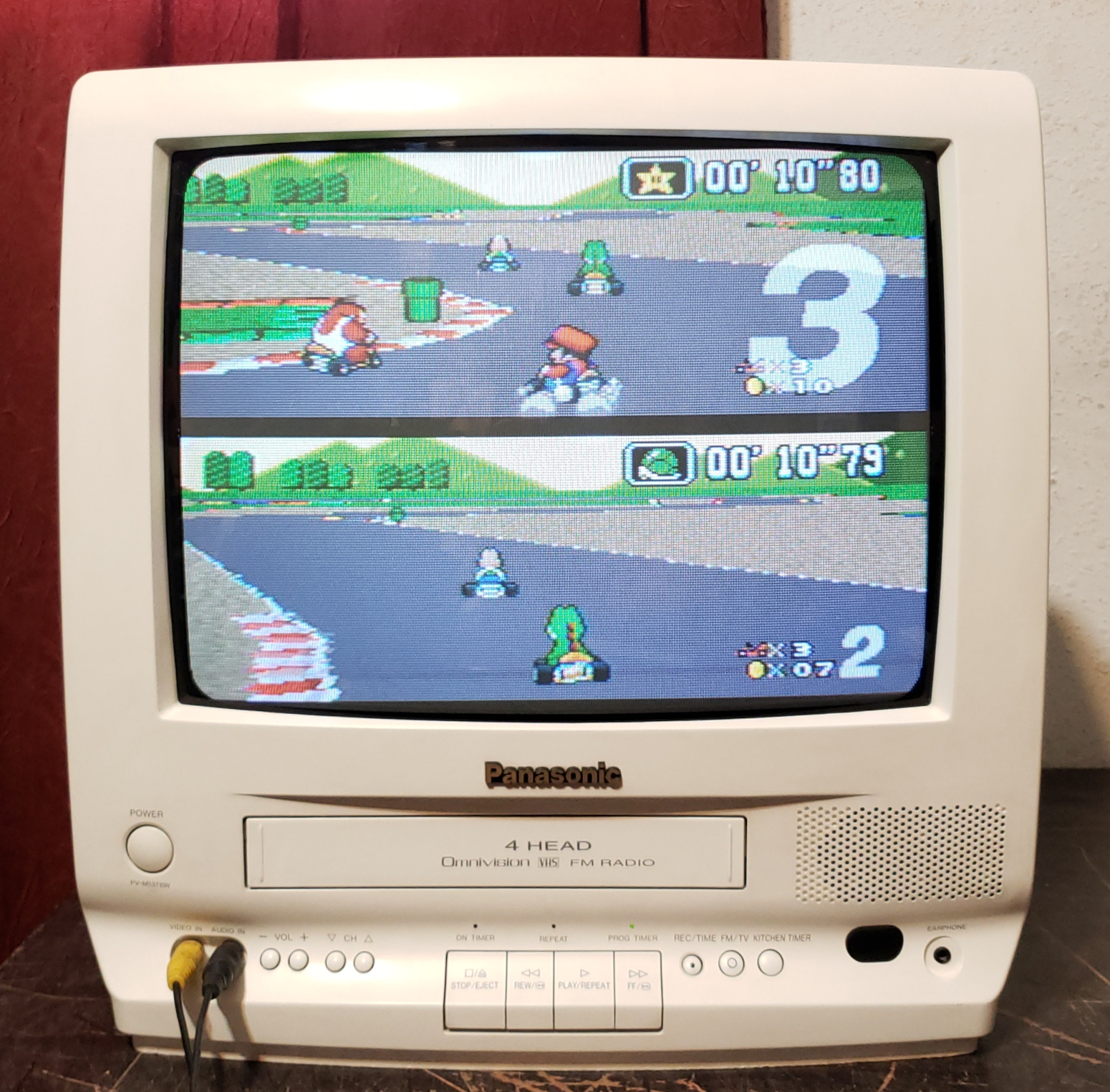

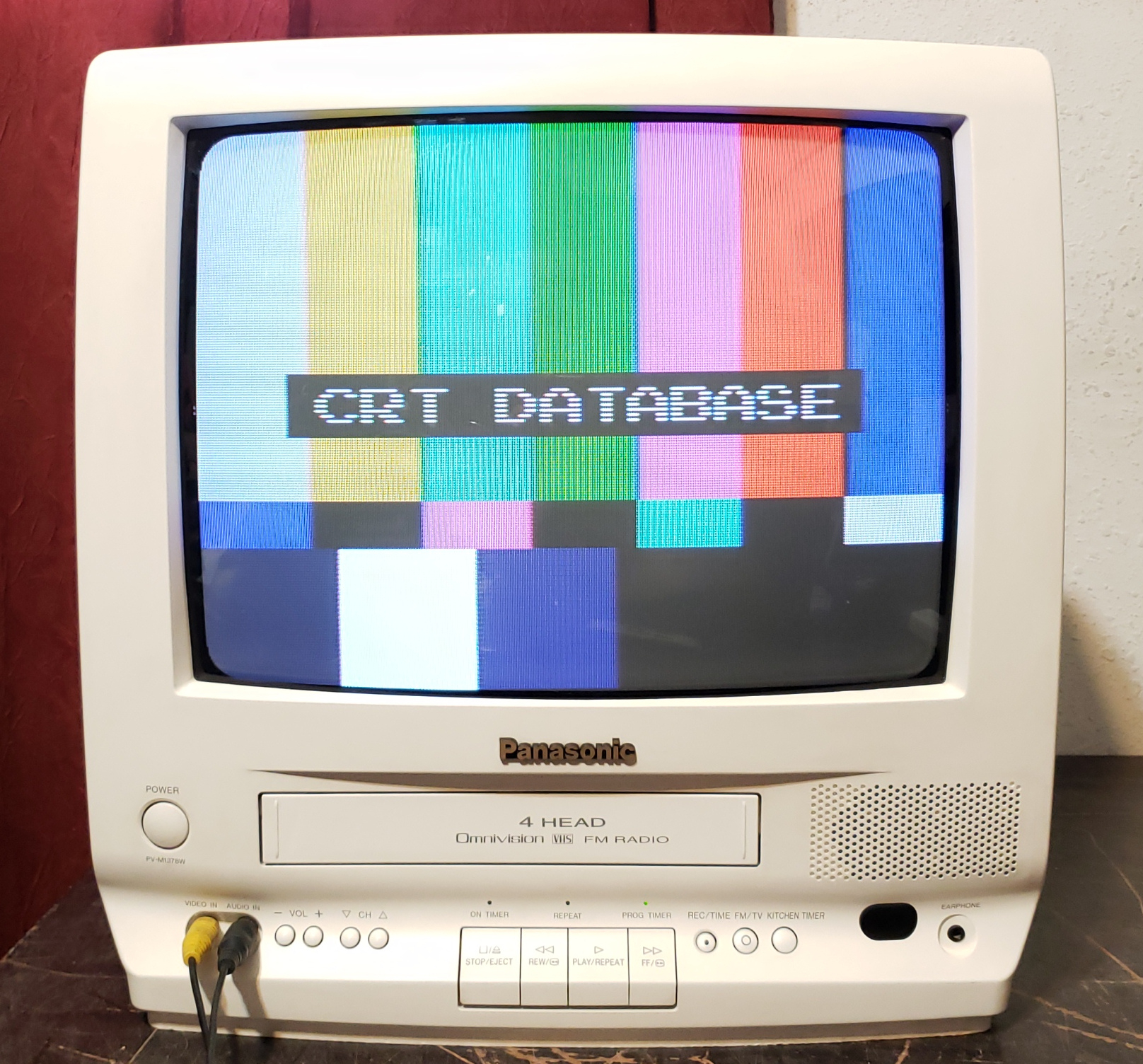

The PV-M2058 combines a basic 13" TV with a built-in VCR and an FM radio. It has a single front-mounted mono A/V input.
Manuals
Notes

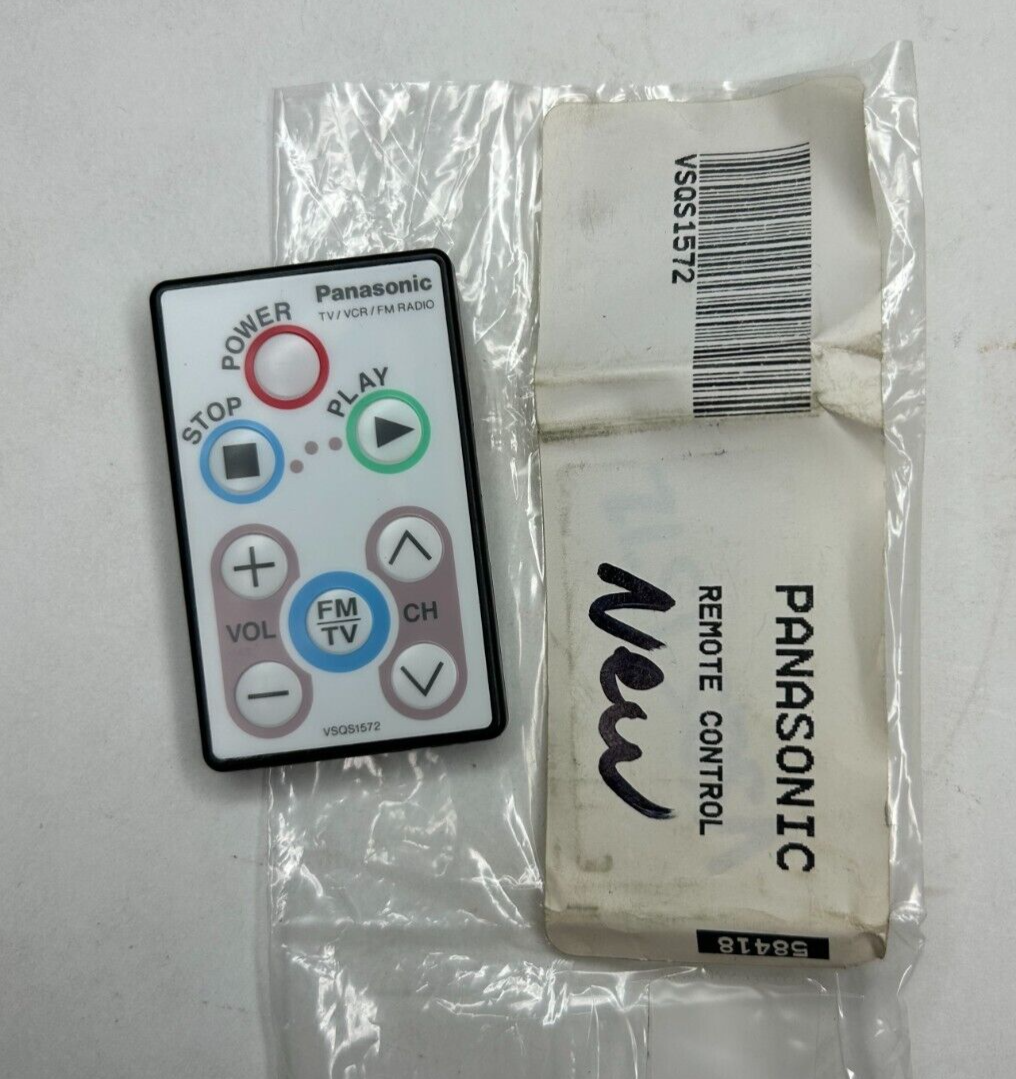

This model came with two remotes, one full-size, and a slim kitchen remote with fewer buttons that takes a coin-cell battery. To change between RF and the composite input requires accessing the user menu, which requires a remote.
Gallery













Specifications | |
---|---|
Brand: | Panasonic |
Manufacturer: | Panasonic |
Model: | PV-M1738W |
Series: | Omnivision |
Viewable Size: | 20" |
Inputs: | Composite, RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | OSD Customer Controls, OSD Service Menu |
Horz. Output Transistor: | 2SD2499LBK |
Vertical Output IC: | LA7837 |
Jungle: | AN3476FBP |
Flyback: | KFT2AB137F |
Focus Type: | Single |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Dark |
Removable Glare Film: | No |
Yoke: | TLY26444F5, TLY26391S2 |
Speakers: | Mono |
Remote: | VSQS1567, VSQS1572 |
Weight: | 26.4 lbs (12 kg) |
Dimensions (W/H/D): |
515 x 505 x 484 mm
(20.2 x 19.8 x 19") |
Application: | Consumer |
Cabinet Material: | Plastic |
Launched: | 1998 |
MSRP: | 399 USD |
Country of Manufacture: | USA |
Market: | North America |
Power Standard: | 120v |
Mounting: | Table Surface (Standard), Carrying Handle |
Degaussing: | Automatic on Power-on |
Tag: | Integrated Radio |
