Summary
Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer grade VCR/TV combo units.

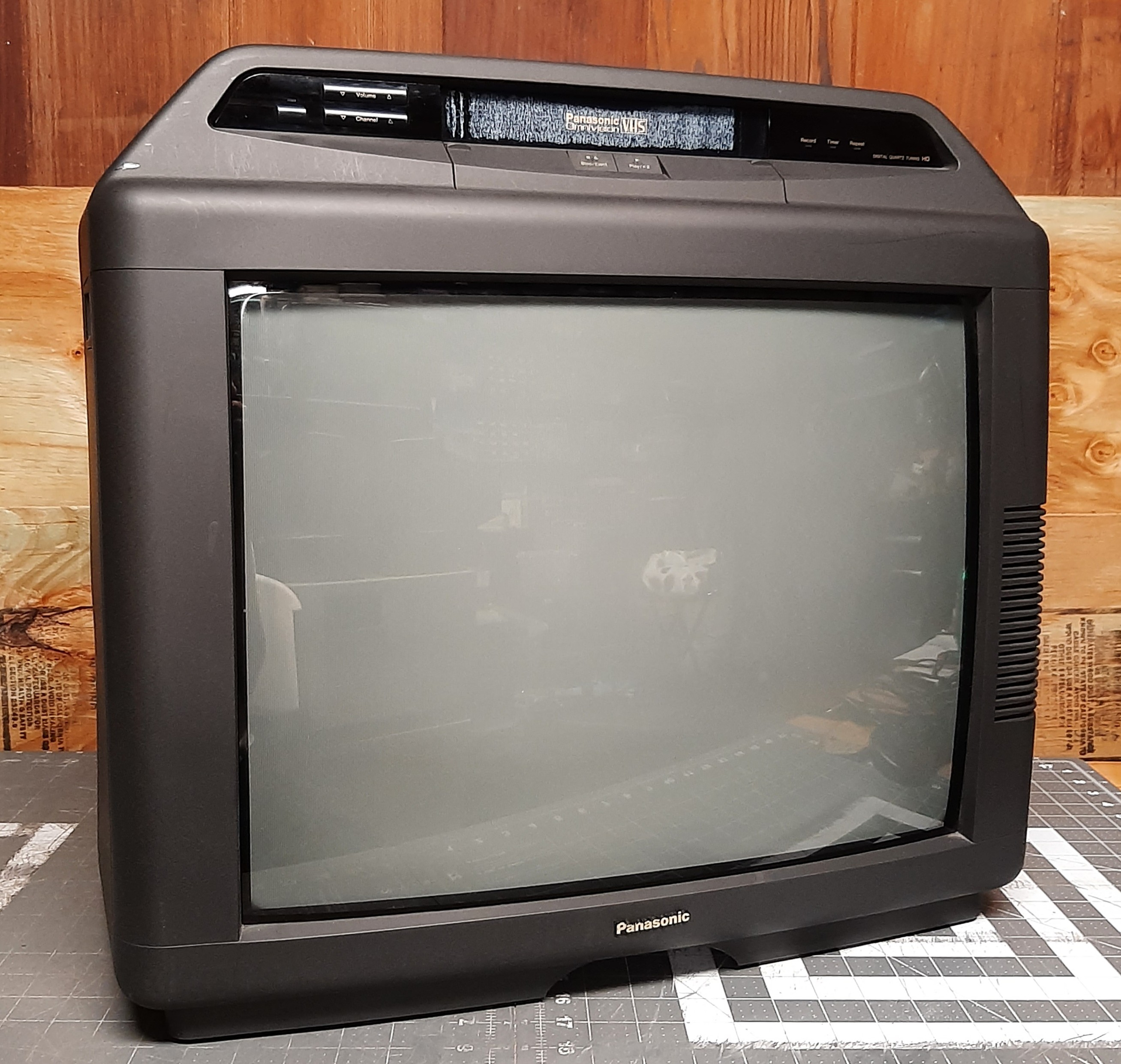

The PV-M2021 is unique in that it was designed with the VCR assembly on top of the unit.
Manuals
- Abbreviated Service Manual for the similar PV-M2021-K
Notes
Adjusting video settings on this TV requires an original remote. The necessary buttons are not present on the face of the TV, and universal remotes usually don't have a valid code for this model.
While it does have an on screen display, the PV-M2021 does not have a service menu. Adjustments are performed using trim pots on the chassis.

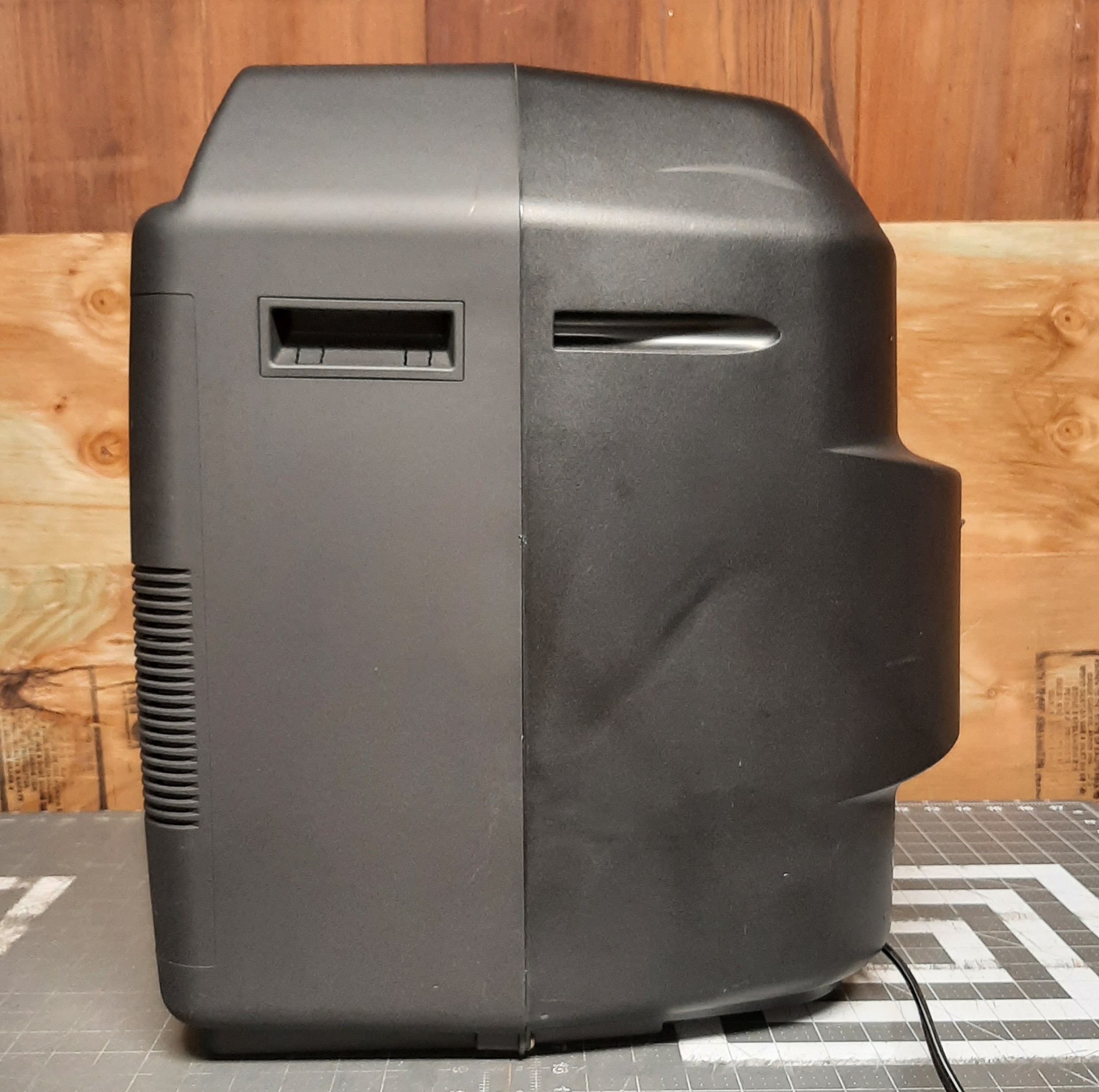

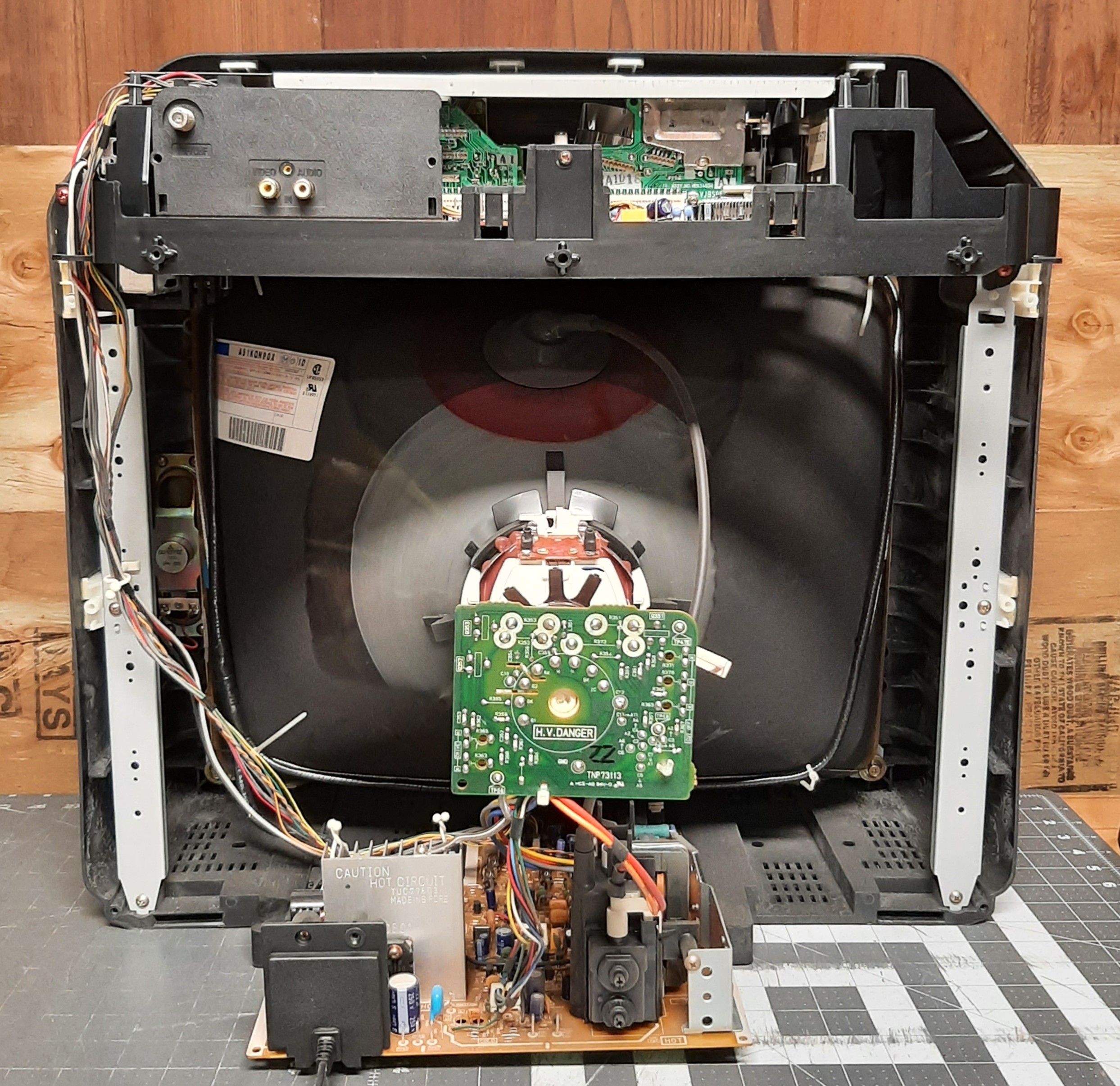

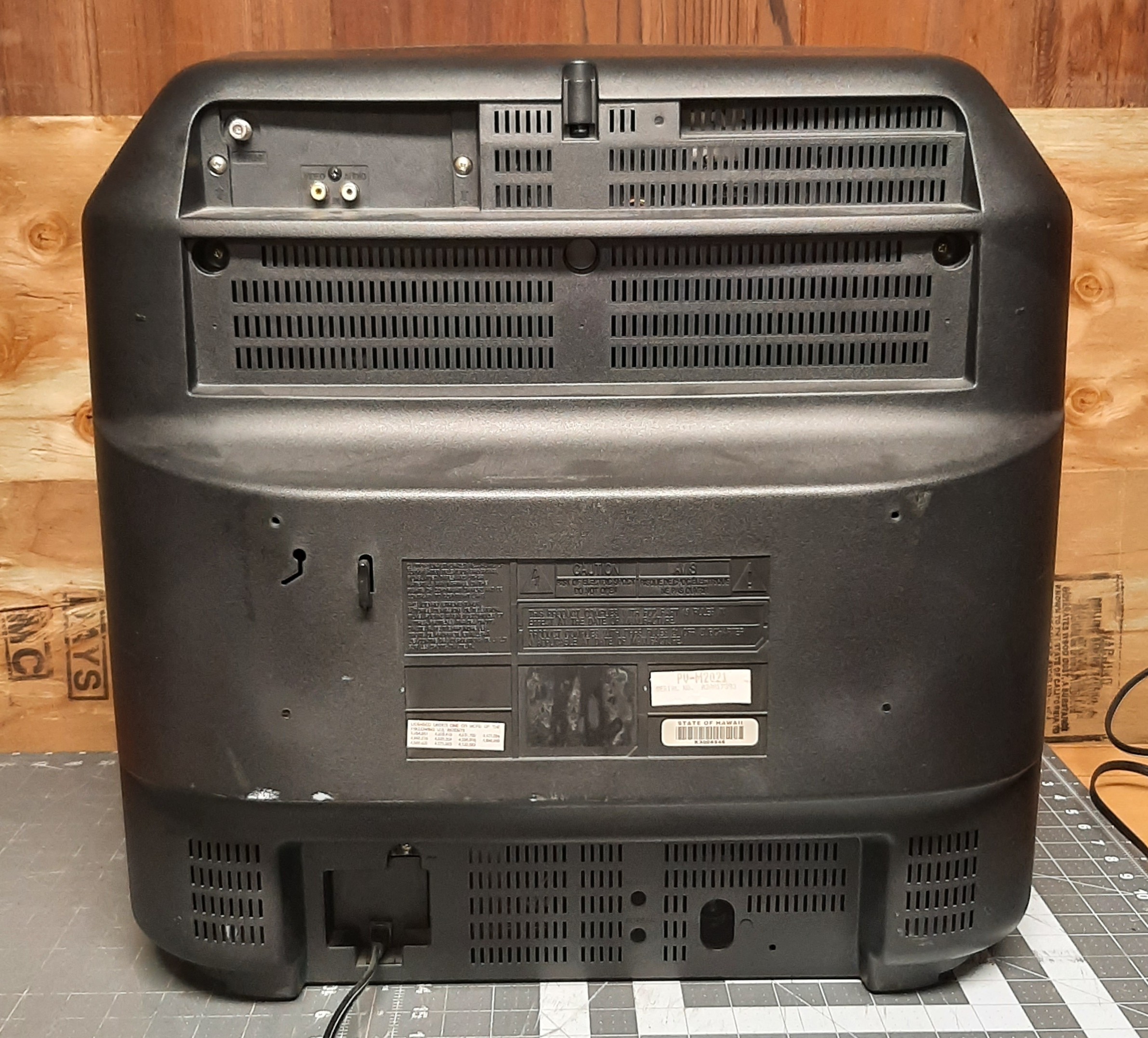

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | PV-M2021 |
| Series: | Omnivision |
| Viewable Size: | 20" |

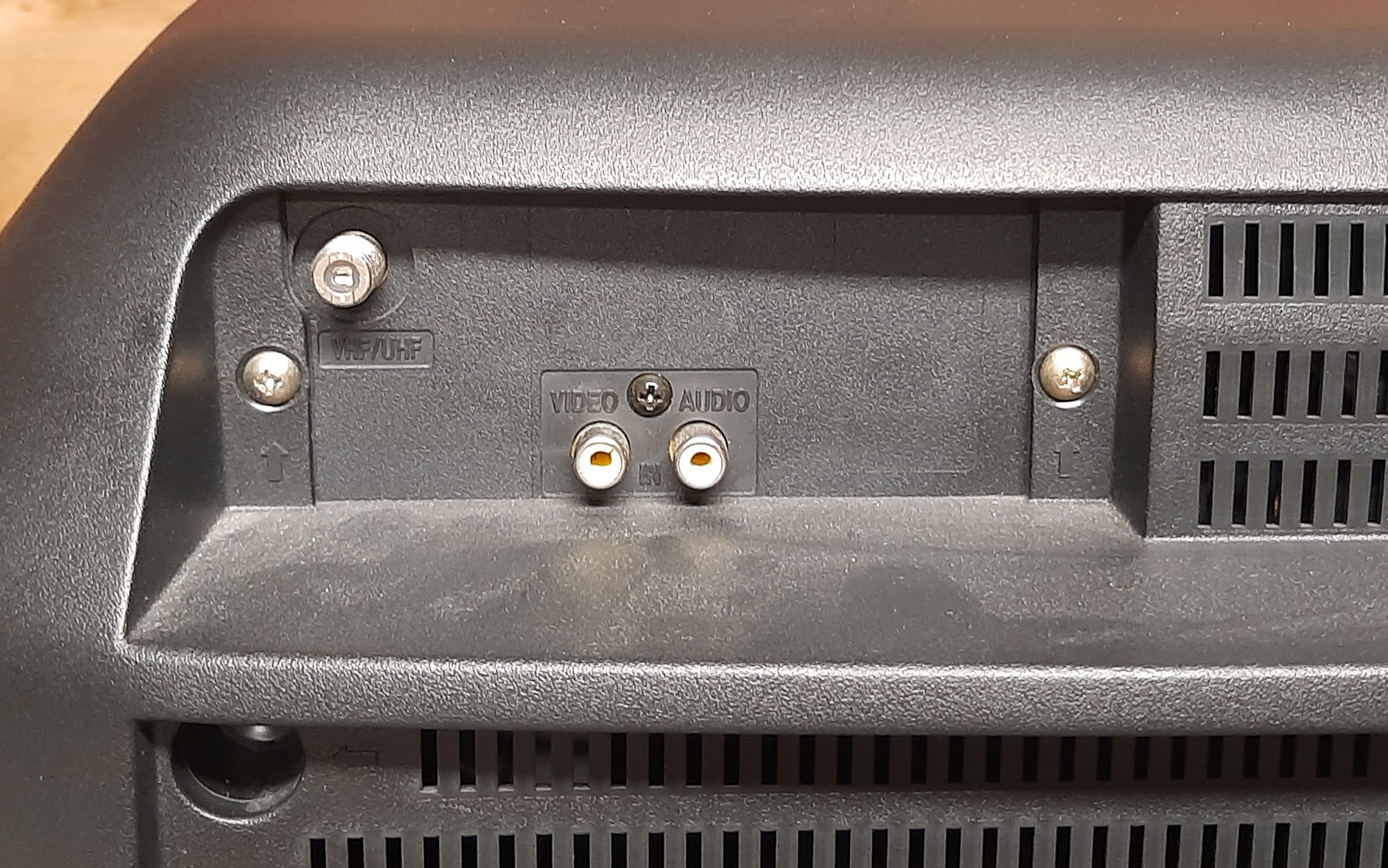

| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, OSD Customer Controls |
| Horz. Output Transistor: | D1441 |
| Vertical Output IC: | LA7835 |
| Flyback: | TLF15624F |
| Tube: | Matsushita (MTC) , A51KQN90X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | TLY26351F |
| Yoke Horz. Inductance: | 2.461 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 19.570 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.7 ohm |
| Yoke Vert. Resistance: | 11.6 ohm |
| Speakers: | Mono |
| Remote: | VSQS1107 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1993 |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements, Needs Pictures |
