Panasonic PV-M2037
Matt Ross
March 1, 2024, 4:23 pm
March 1, 2024, 4:23 pm
Summary

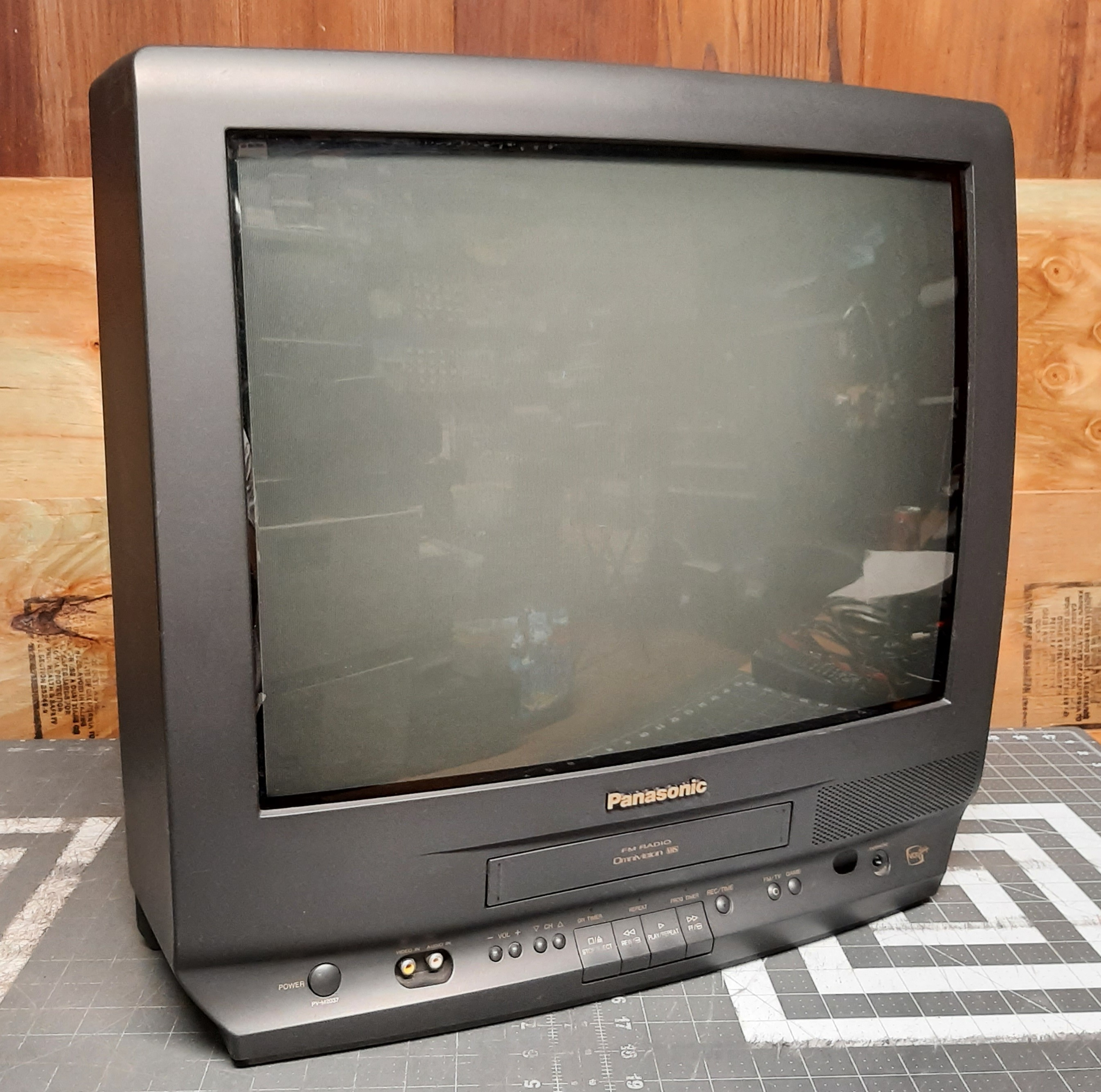

Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer grade VCR/TV combo units. The PV-M2037 combines a basic 20" TV with a built-in VCR. It has a single front-mounted mono A/V input.
Literature
Notes
The 13" version of this TV, the PV-M1337, has arguably the most "elite" model number of any CRT produced to date.

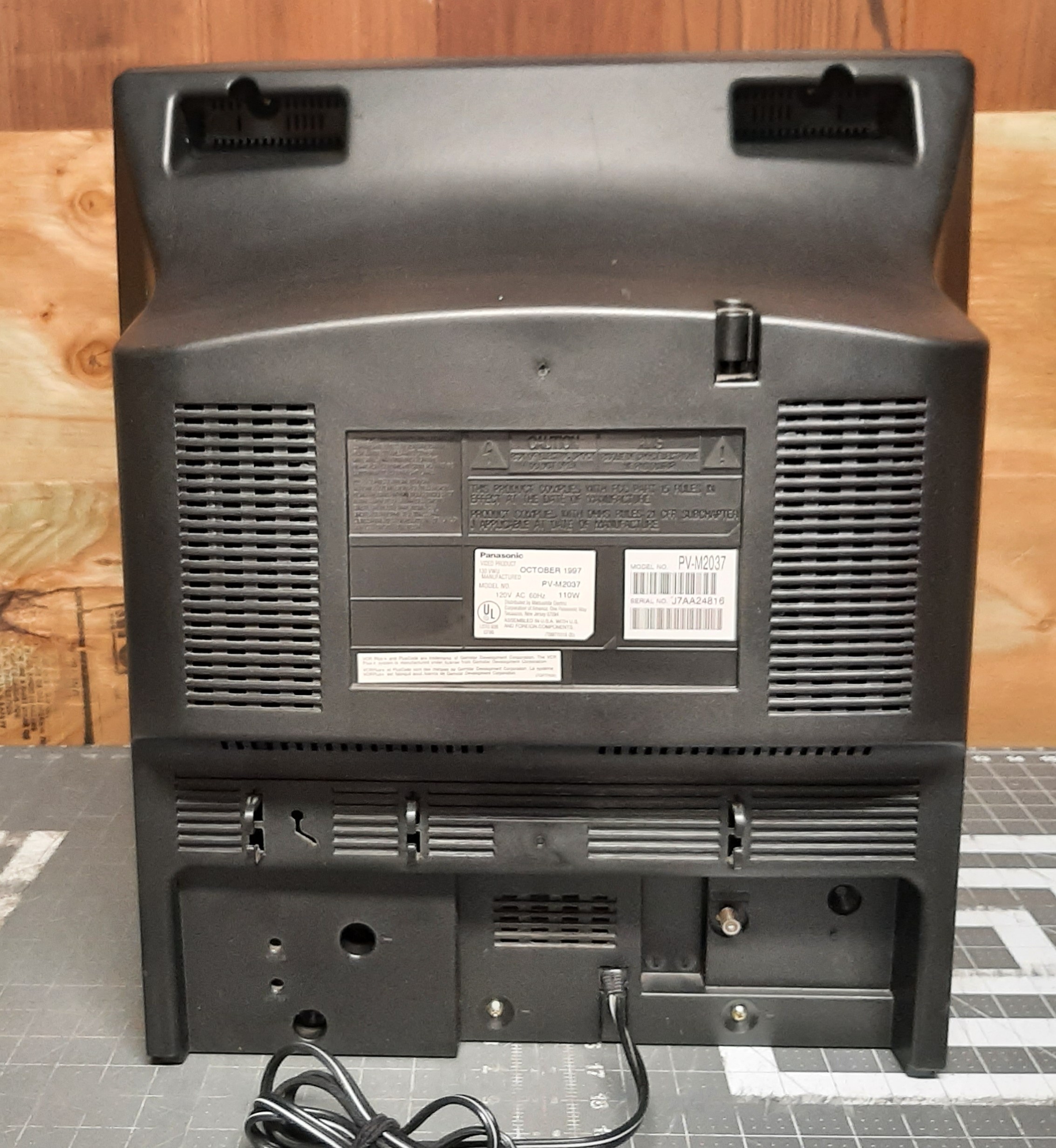

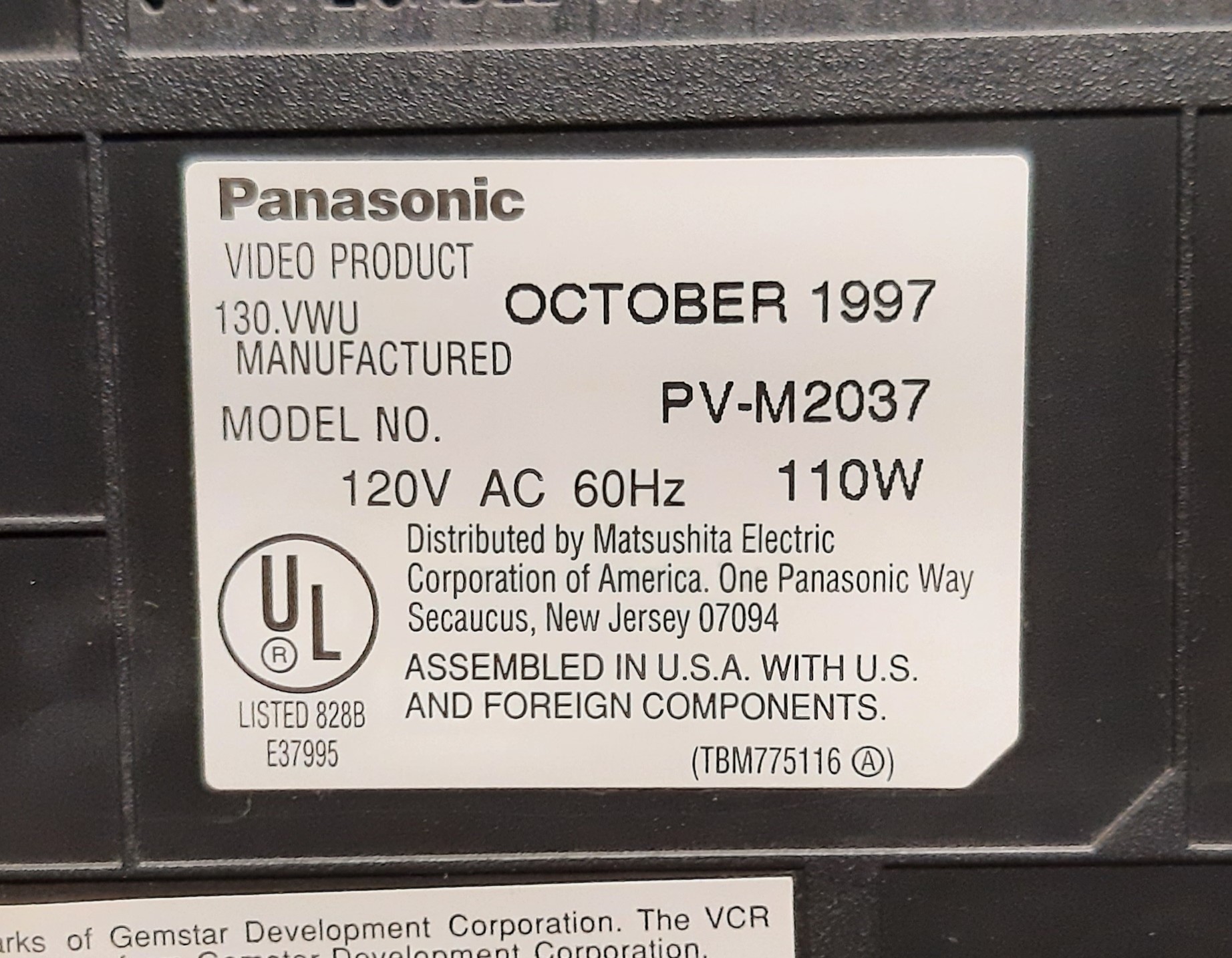

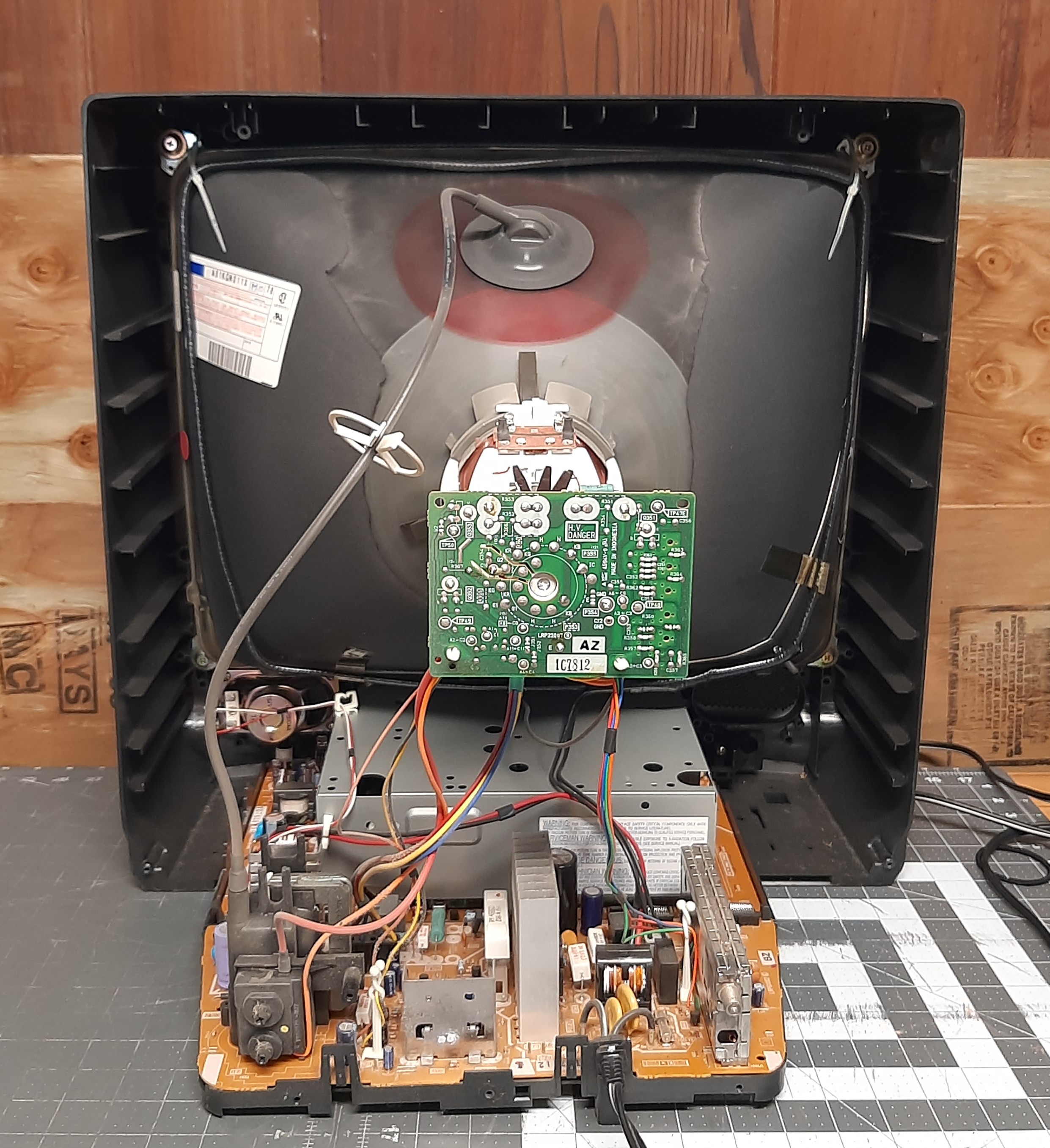

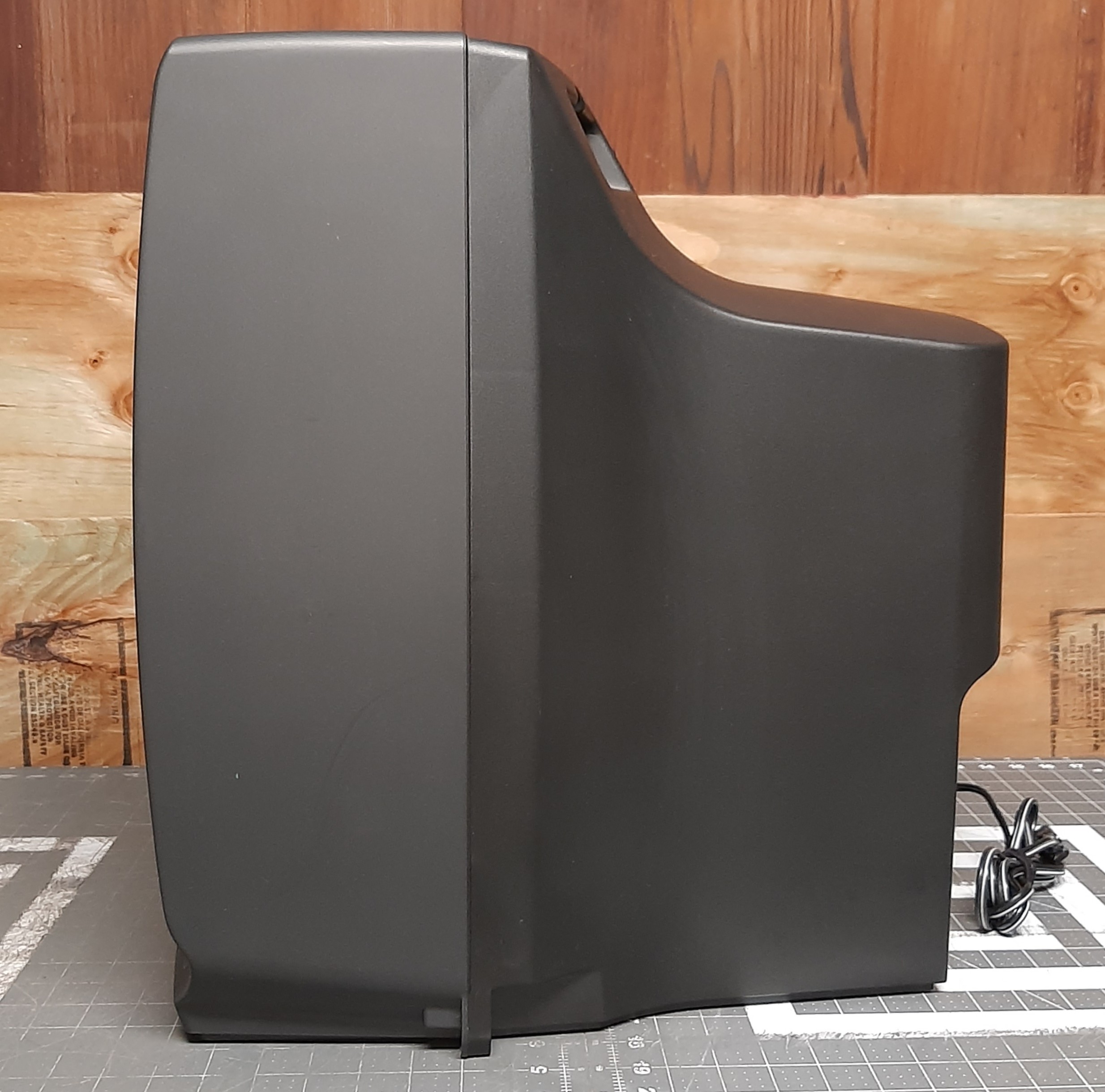

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | PV-M2037 |
| Series: | Omnivision |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Resolutions: | 240p, 480i |
| Horizontal Max: | 15 kHz |
| Vertical Max: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2586 |
| Vertical Output IC: | LA7837 |
| Jungle: | AN3475BFP |
| Flyback: | KFT3AB074F1 |
| Tube: | A51KQN011X |
| Deflection: | 90 deg. |
| Mask: | Slot |
| Tint: | Dark |
| Yoke: | LLY2303F1 |
| Yoke Horz. Inductance: | 2.453 mH |
| Yoke Vert. Inductance: | 19.800 mH |
| Yoke Horz. Resistance: | 3.7 ohms |
| Yoke Vert. Resistance: | 11.6 ohms |
| Speakers: | Mono |
| Weight: | 50 lbs (23 kg) |
| Application: | Consumer |
| Launched: | 1997 |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
