Summary

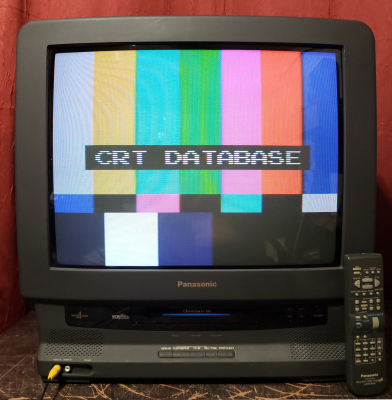

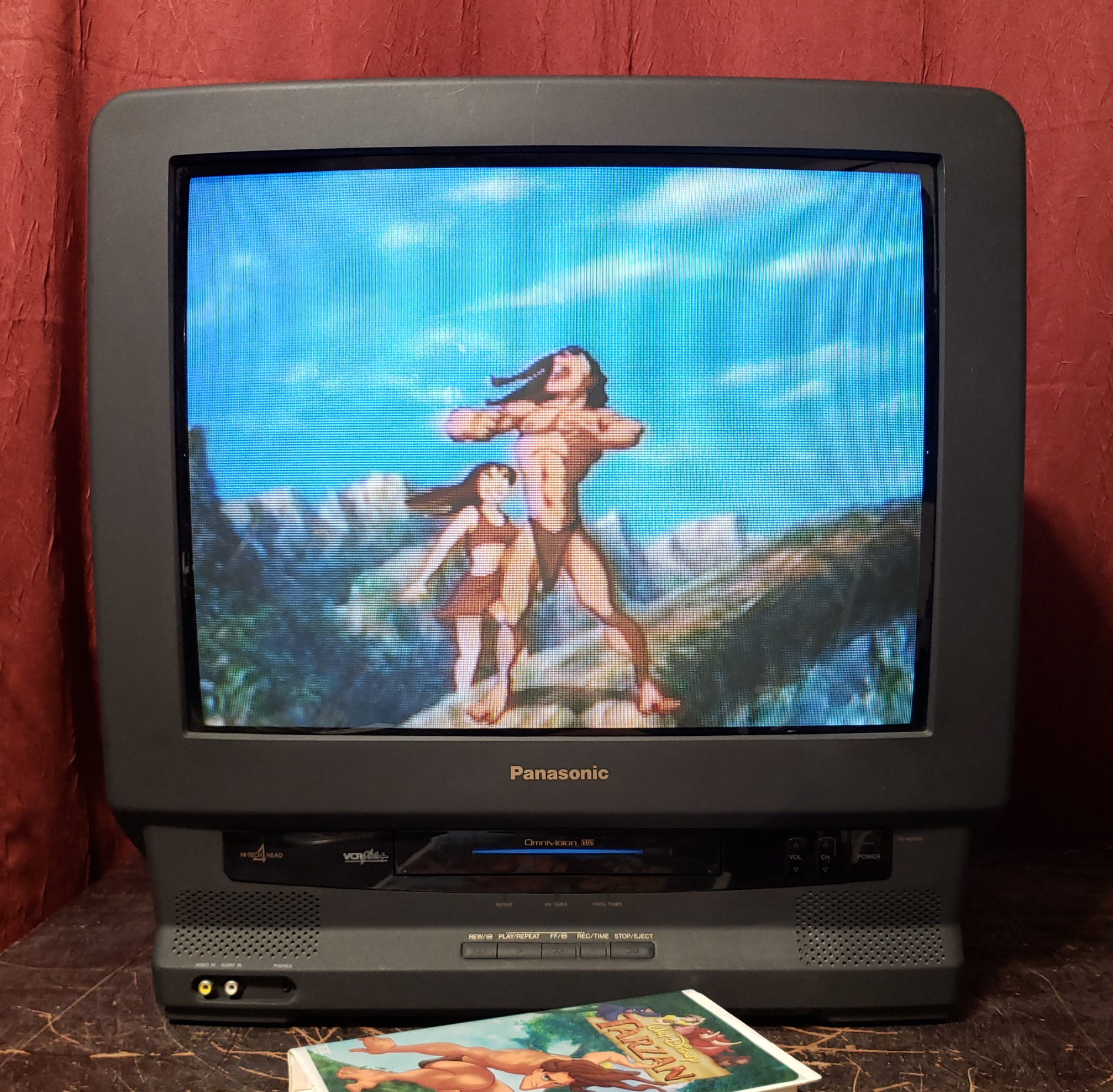

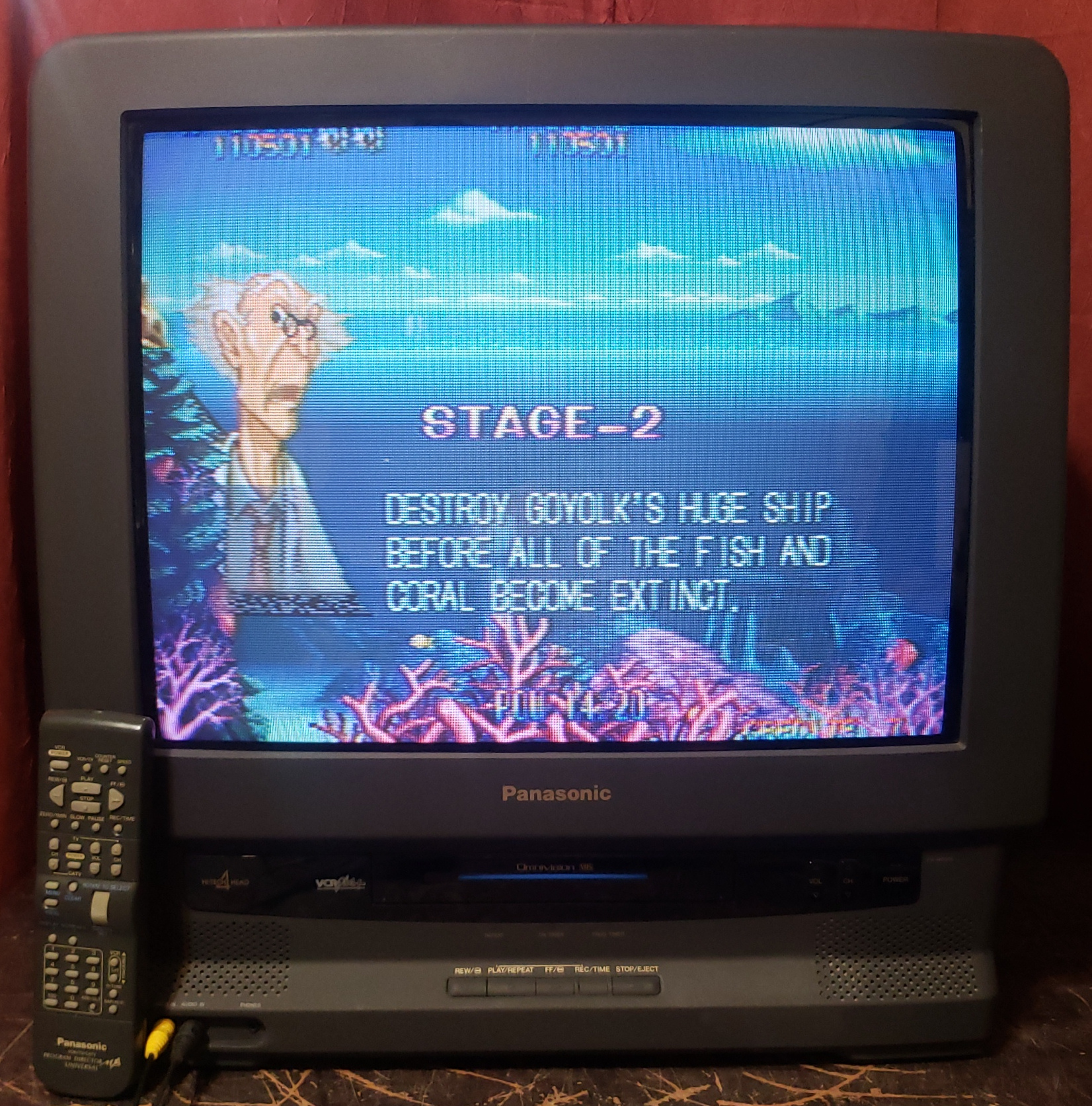

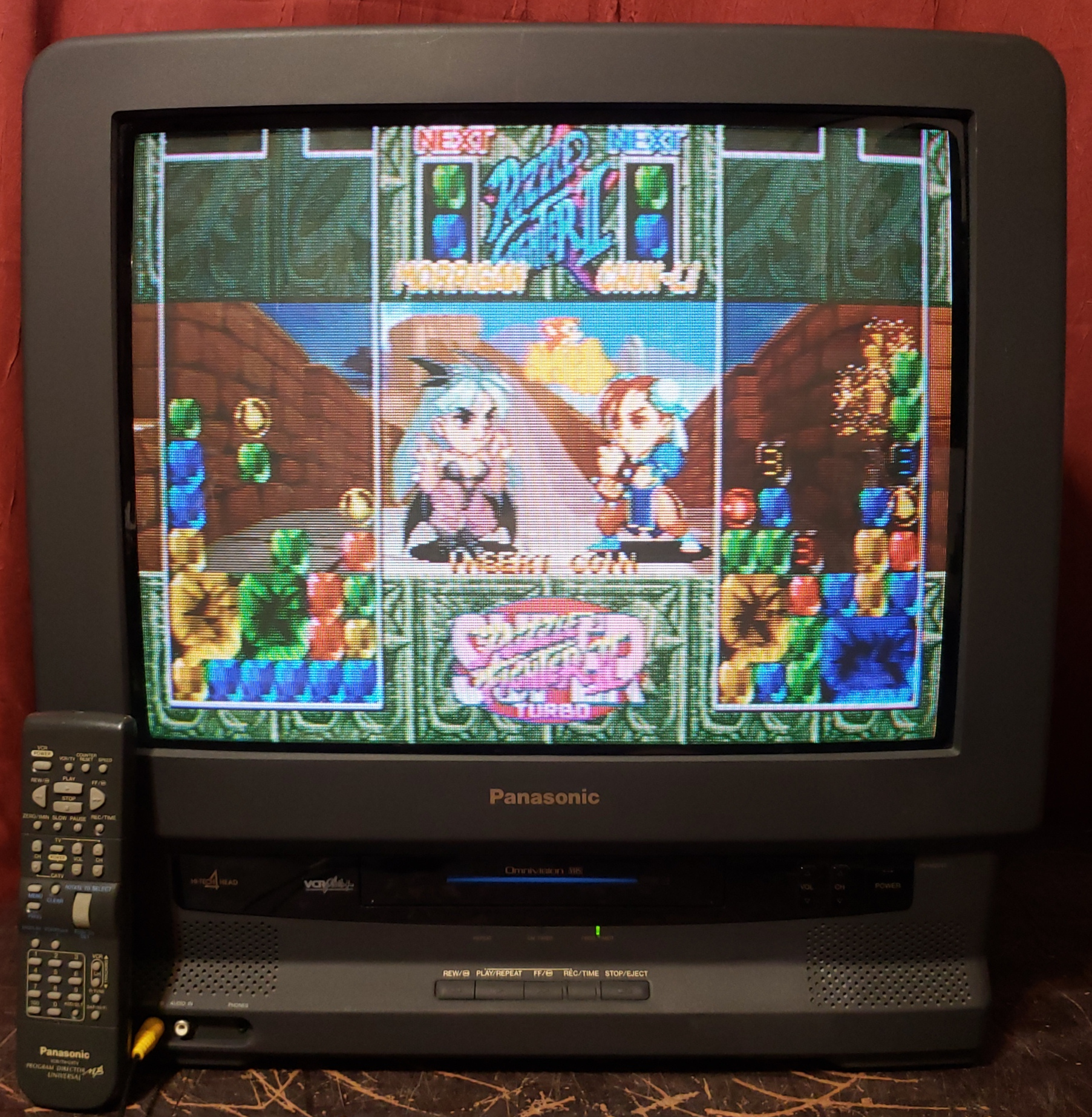

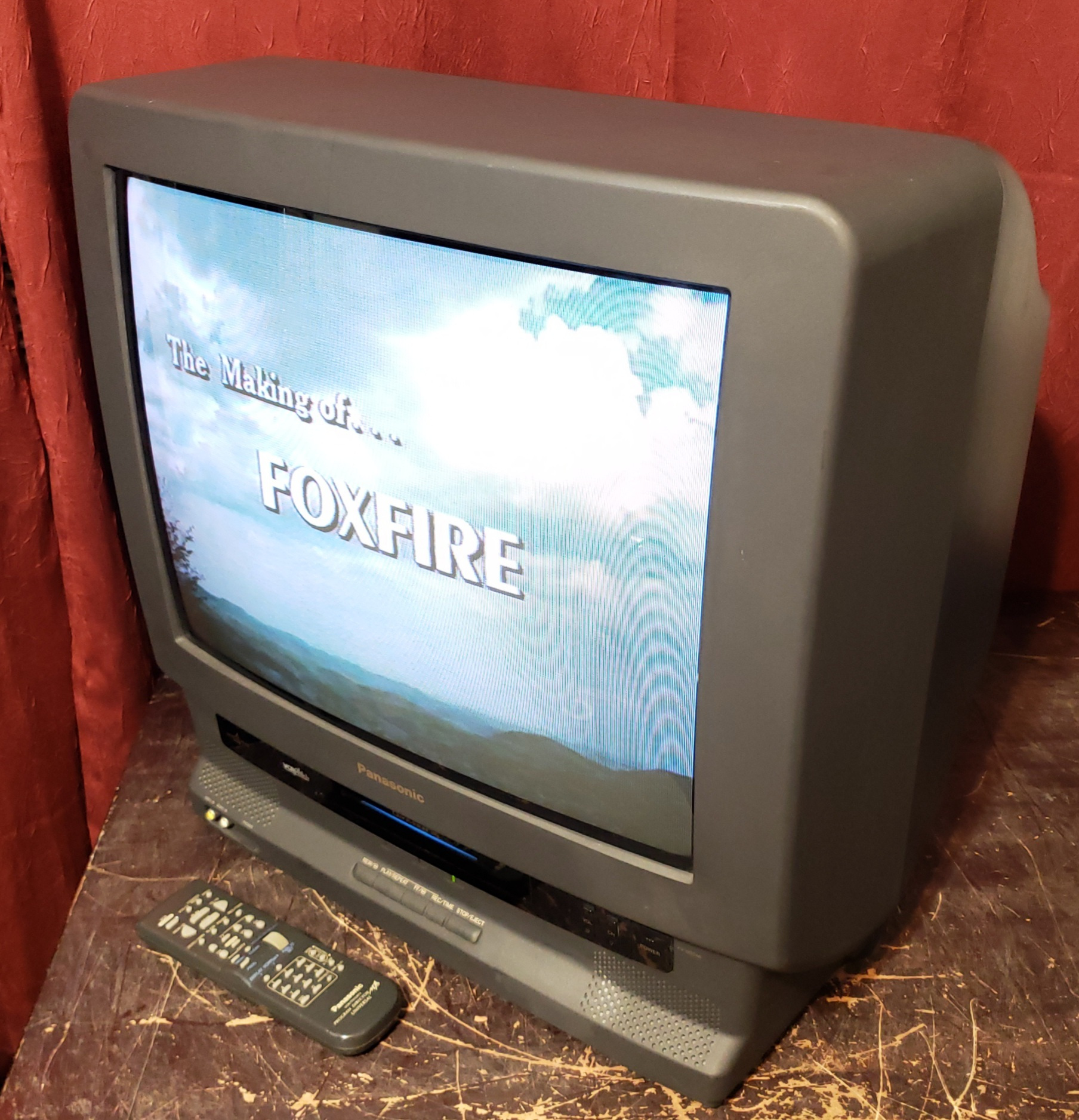

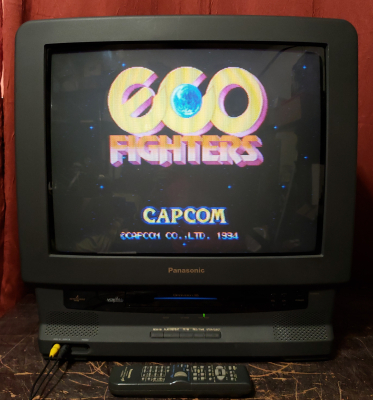

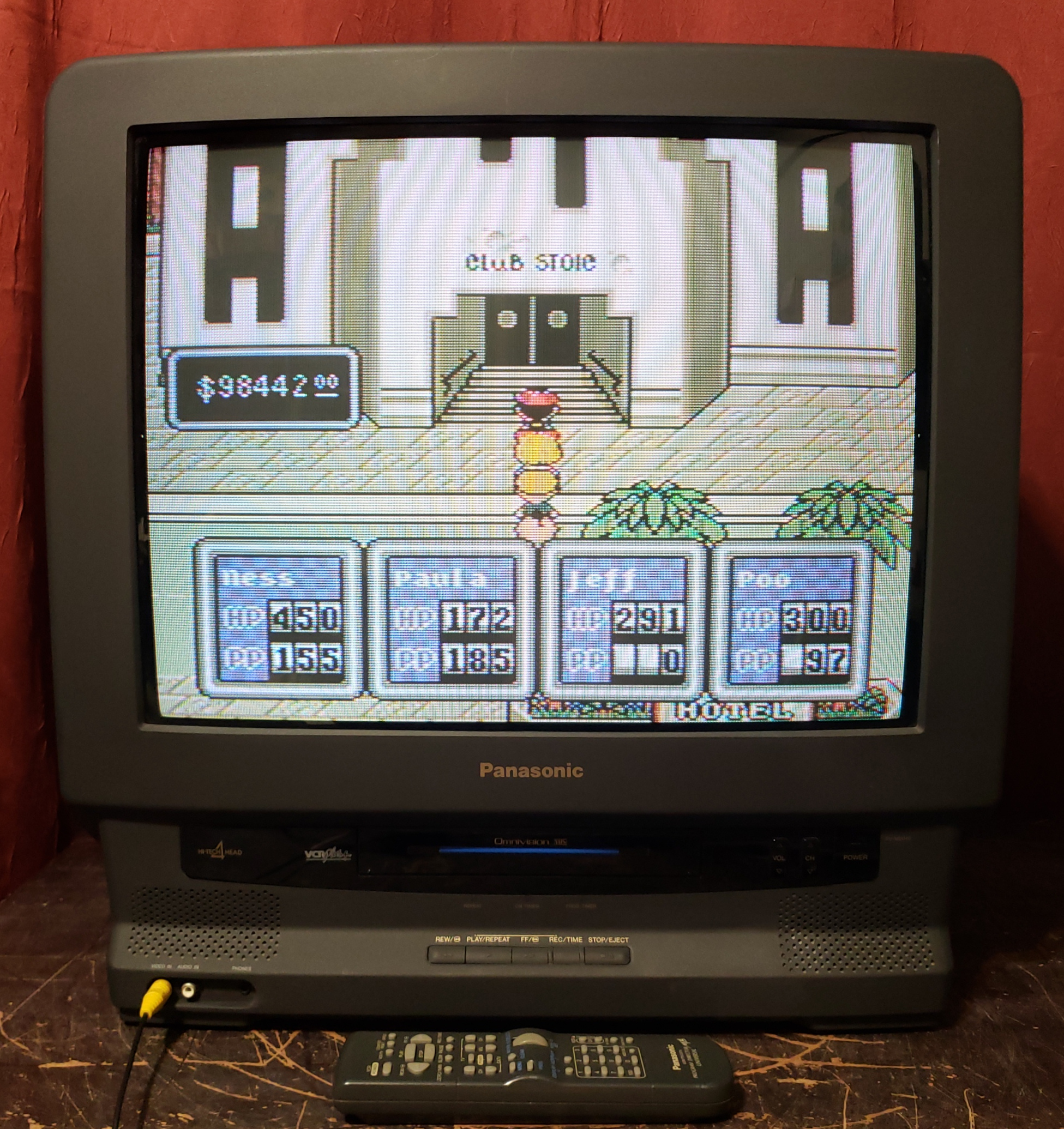

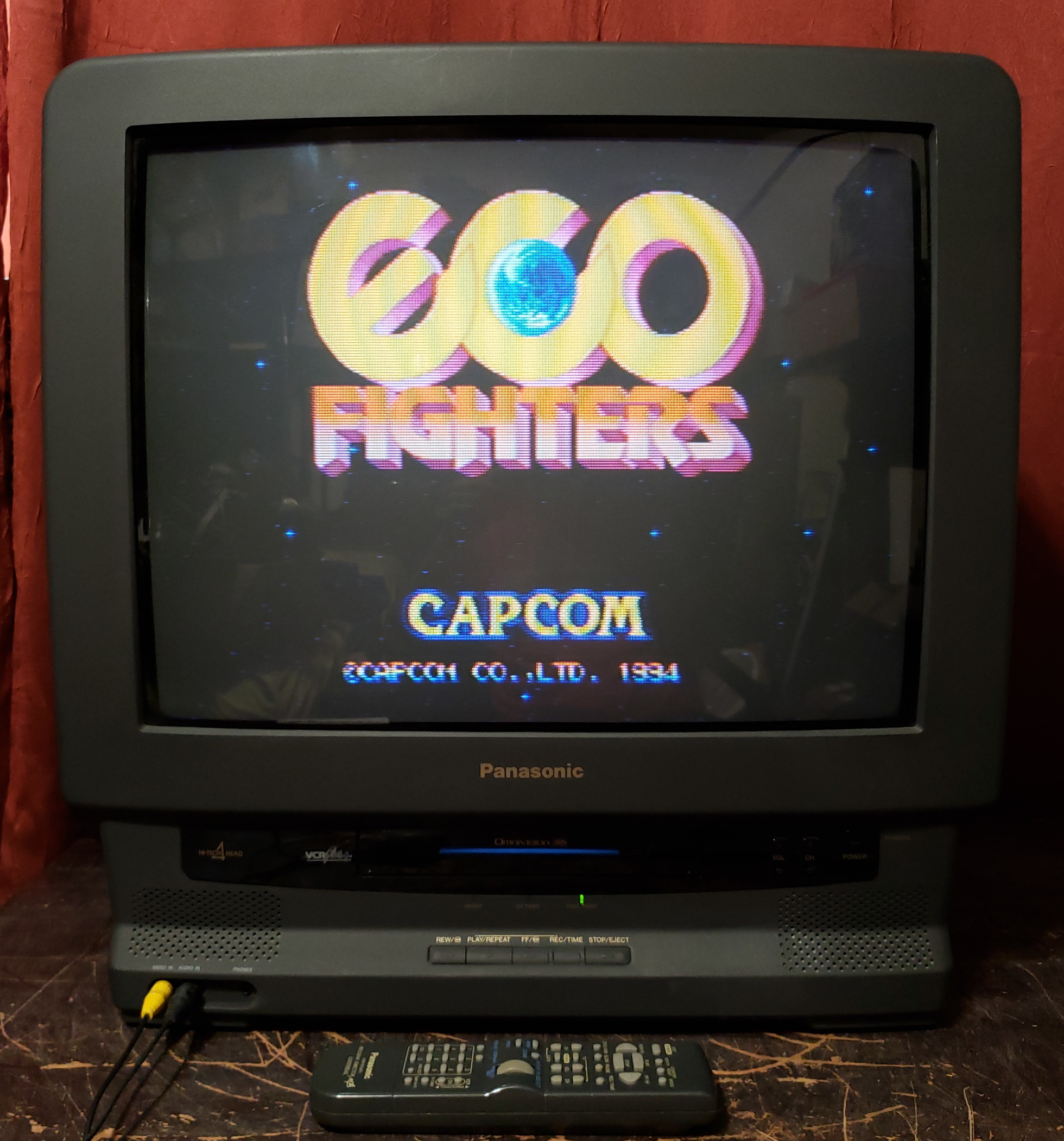

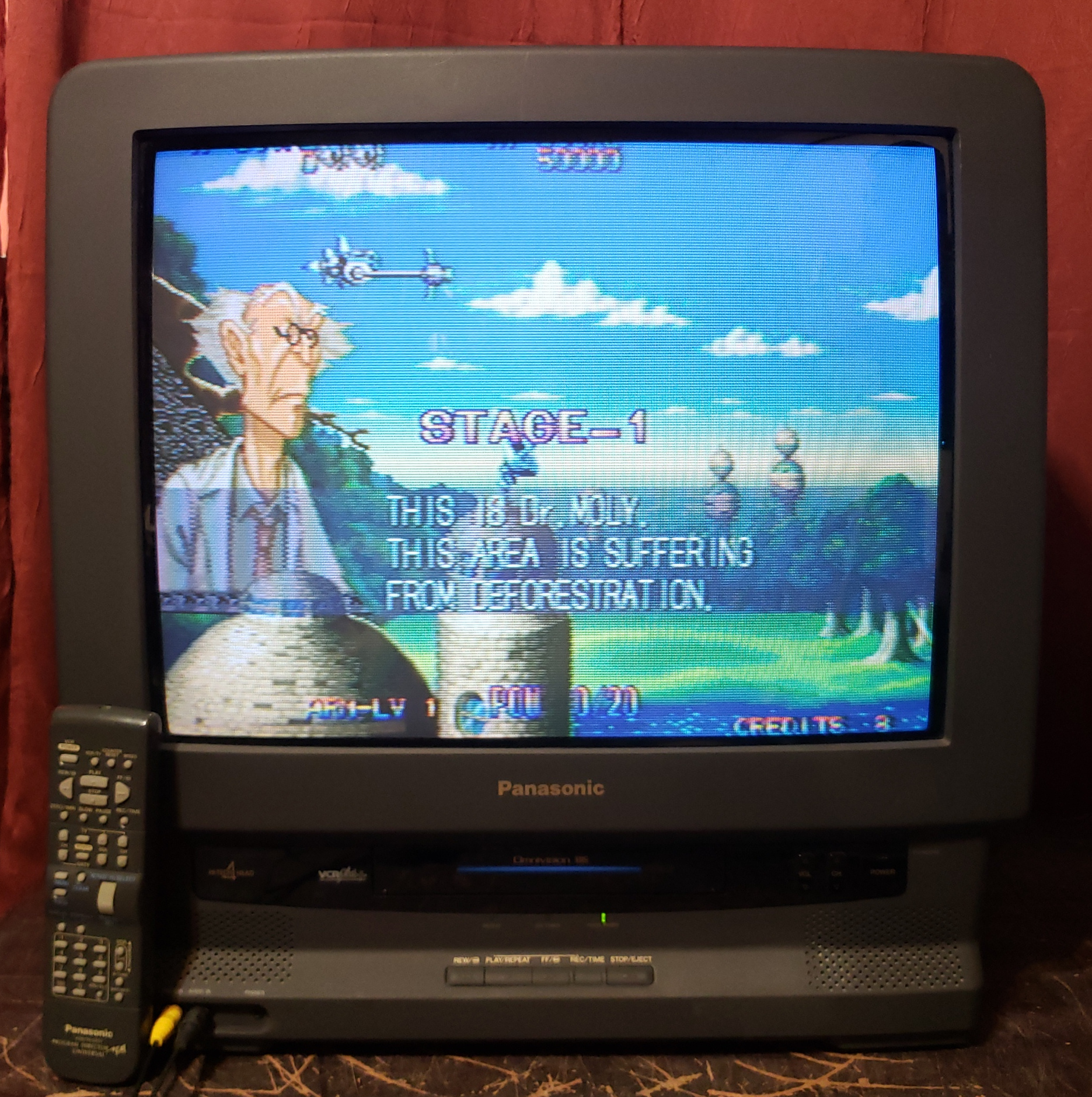

Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer VCR/TV combo units. It has a single mono A/V input.

Manuals

• User Manual
• Service Manual

Notes

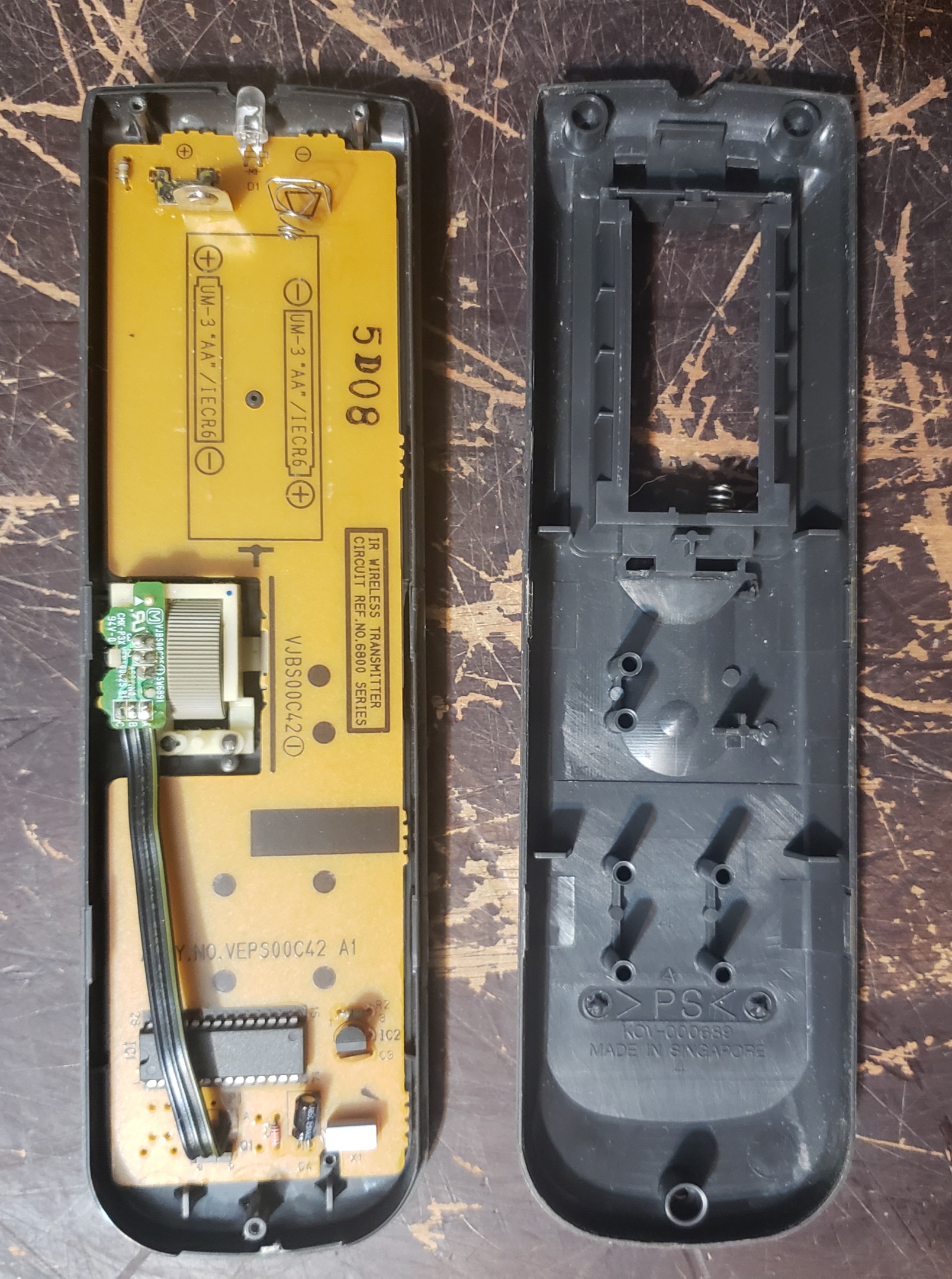

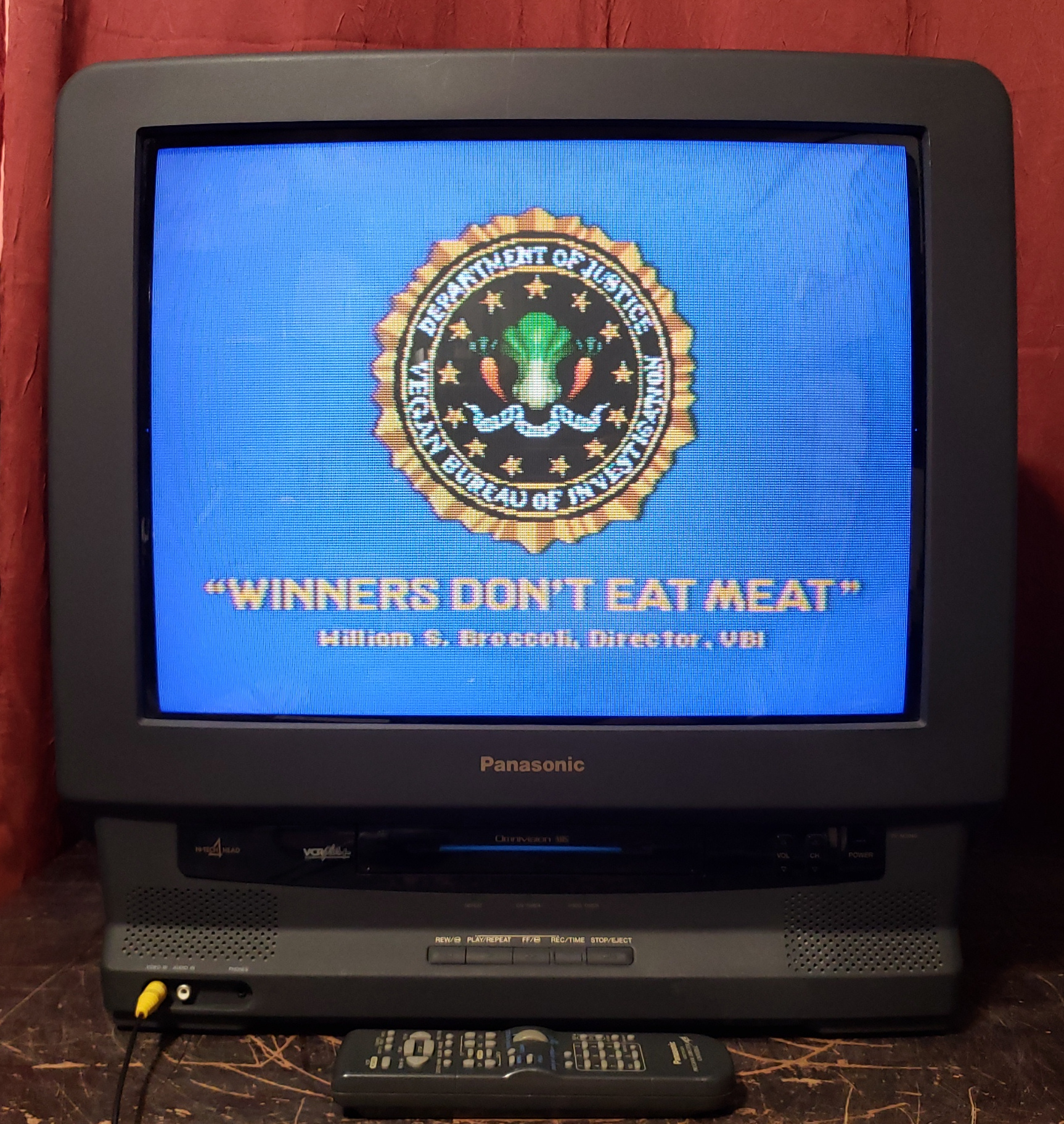

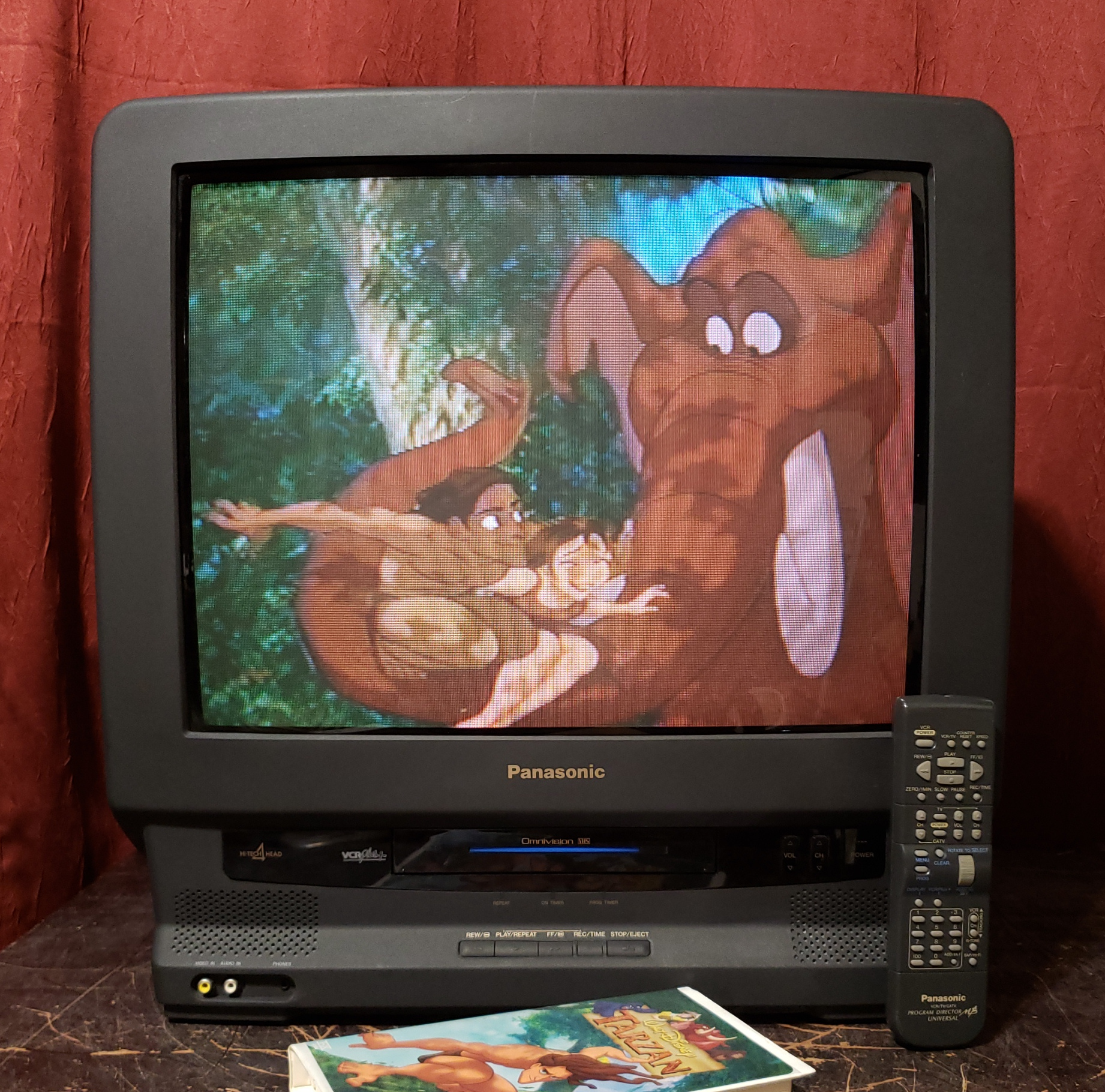

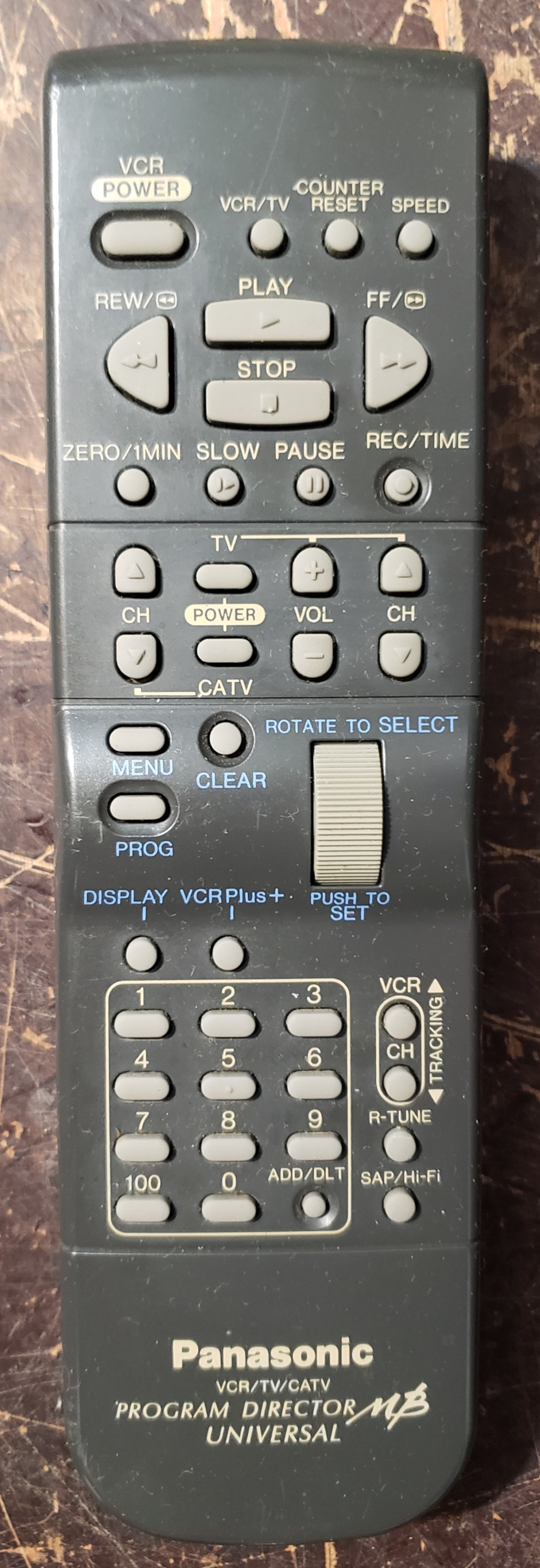

Switching between the antenna input and the front A/V input requires accessing the menu, which requires a remote. Navigating the menu is done via a scroll wheel on the remote.

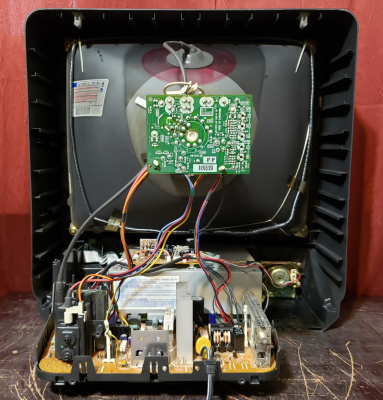

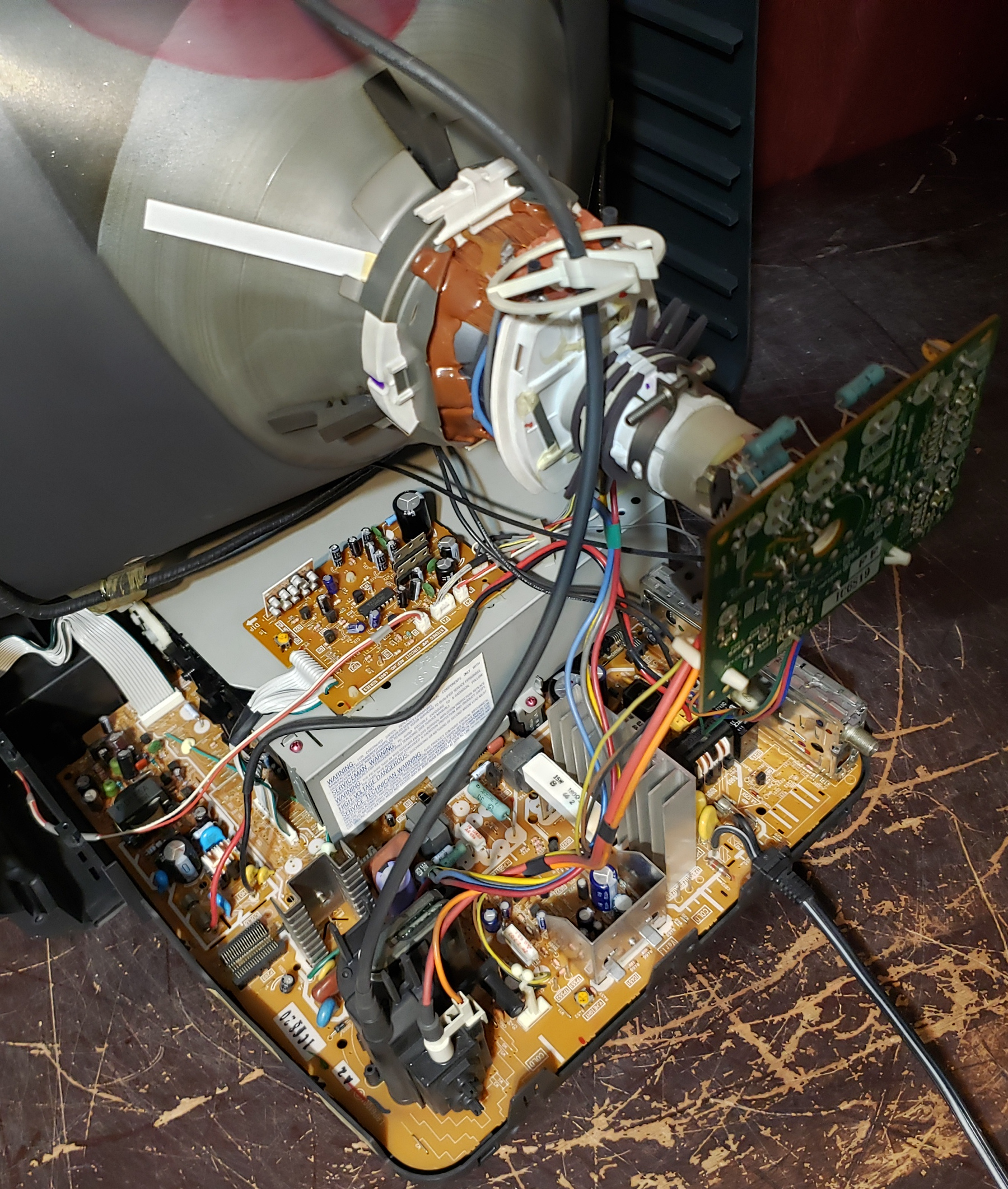

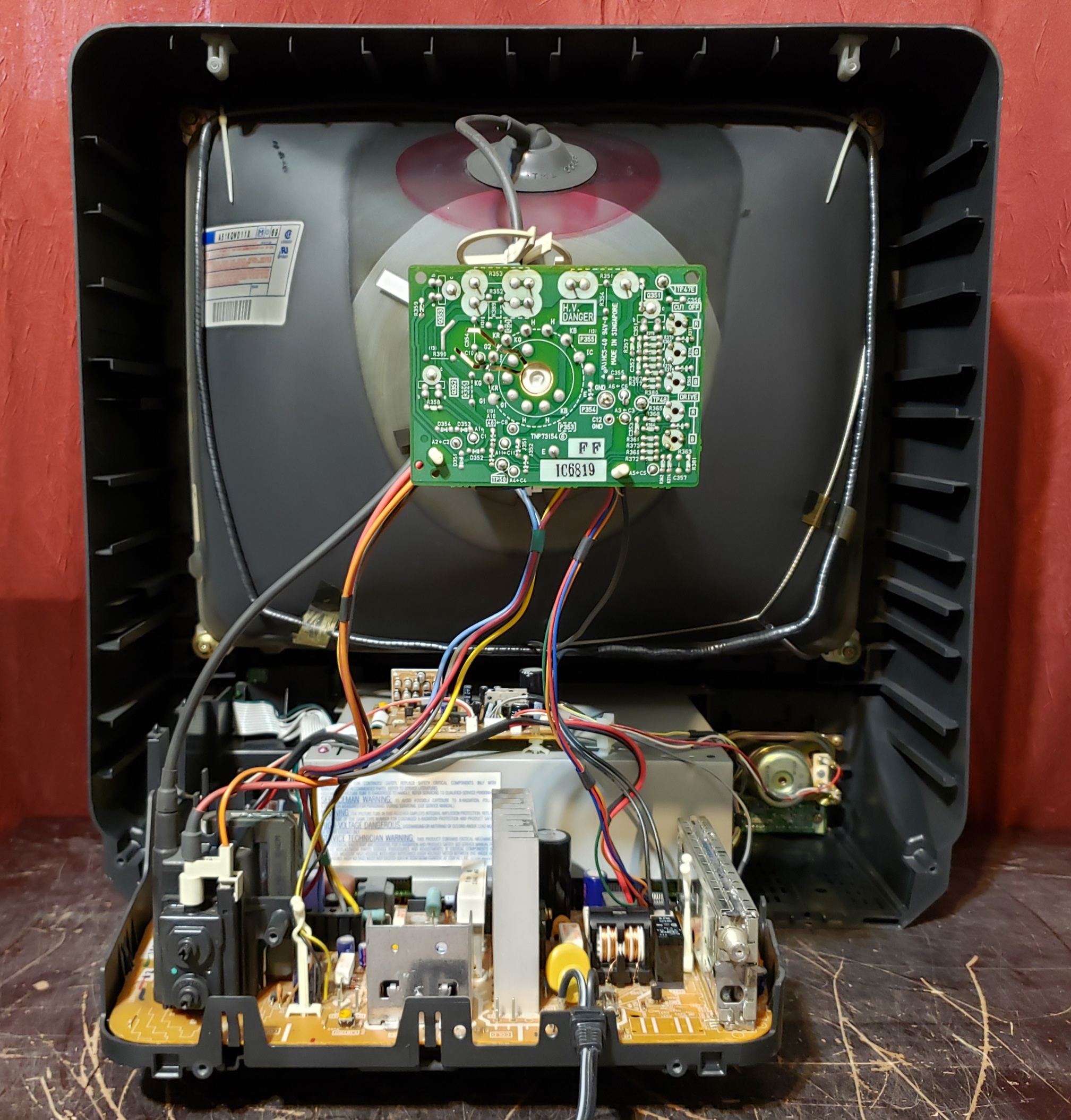

While it does have a user menu and on screen display, the PV-M2046 does not have a service menu. There are internal potentiometers for h. position, v. size, and RGB levels.

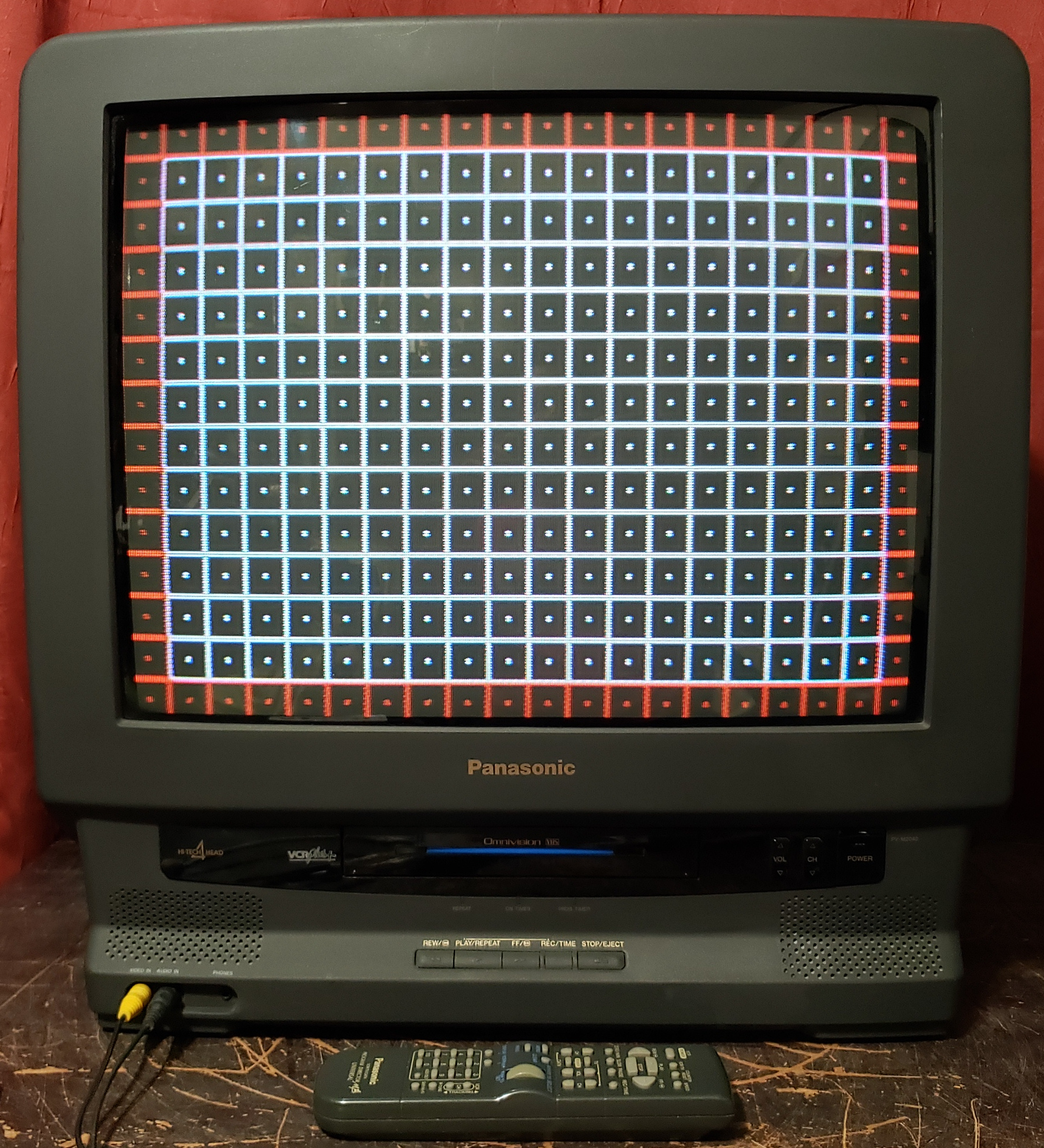

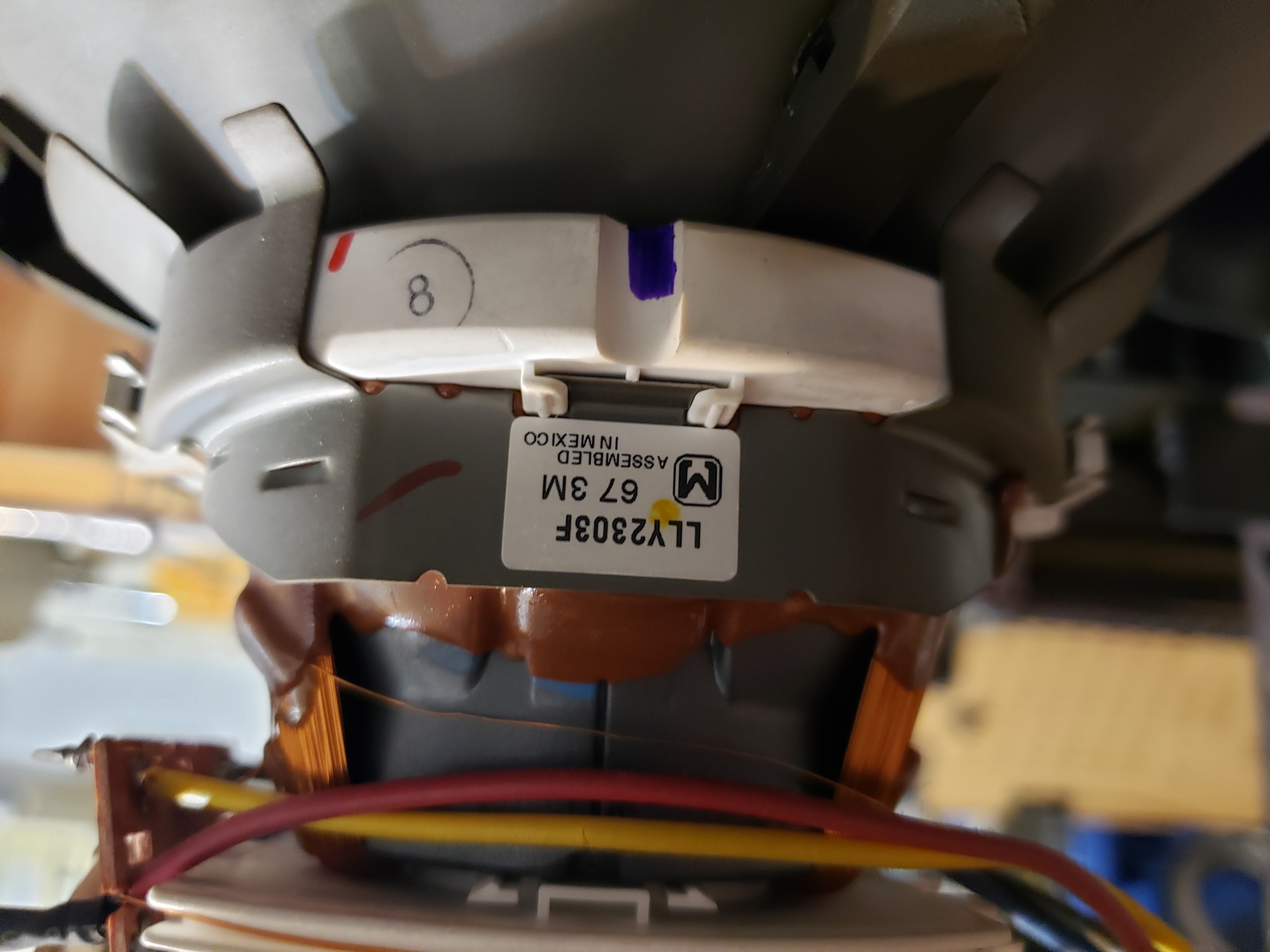

This TV does not have a vertical position pot. If it's necessary to adjust the screen position, the best option is to set the vertical position using the purity rings, and re-center the picture with the horizontal position pot. The convergence rings will have to be readjusted slightly afterwards.
