Summary

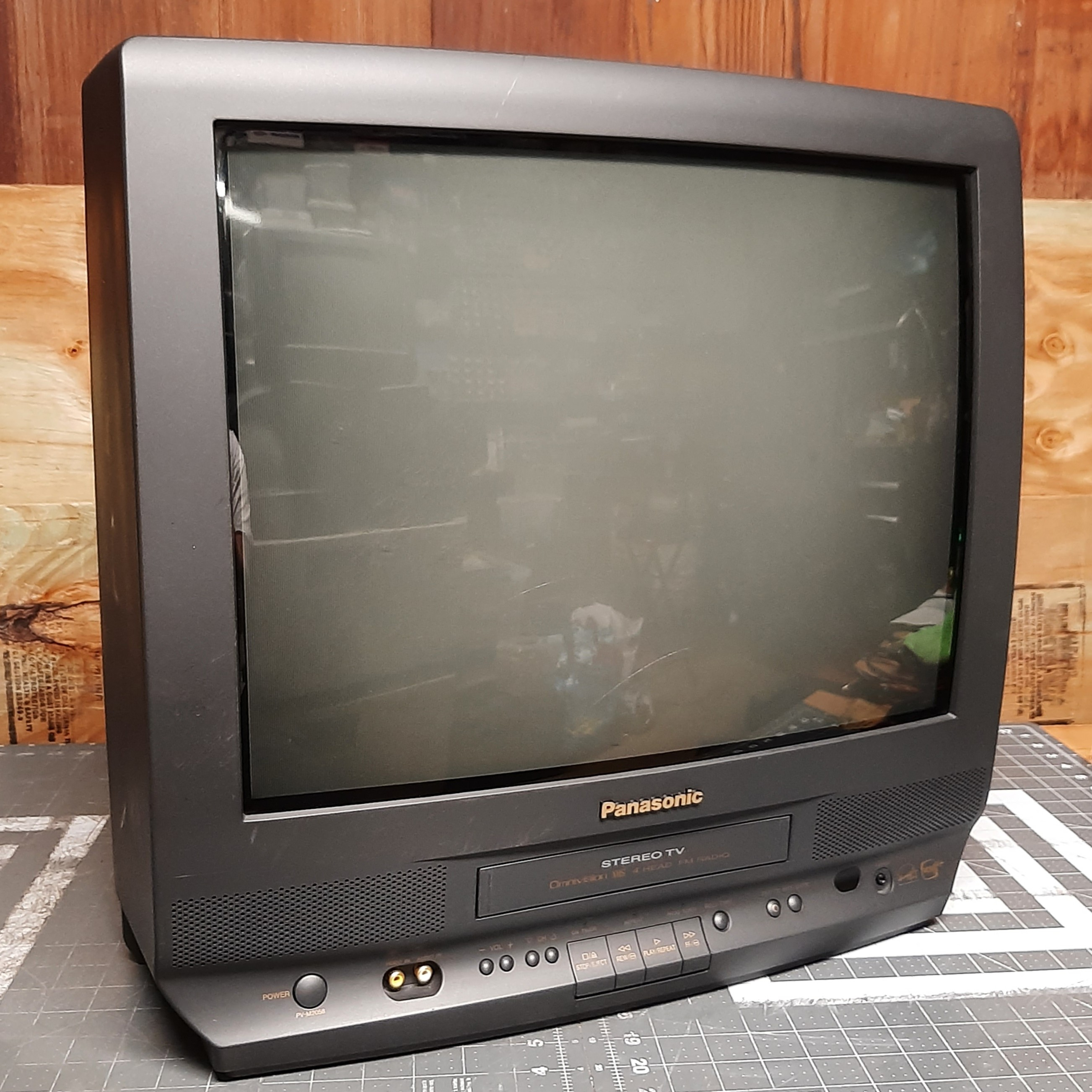

Not to be confused with Sony's PVM line of professional monitors, the PV-M TVs from Panasonic were consumer grade VCR/TV combo units. The PV-M2058 combines a basic 20" TV with a built-in VCR and an FM radio. It has a single front-mounted mono A/V input.
Manuals
Notes
While this TV has stereo speakers for broadcast TV and FM radio, it only has a mono AV input.

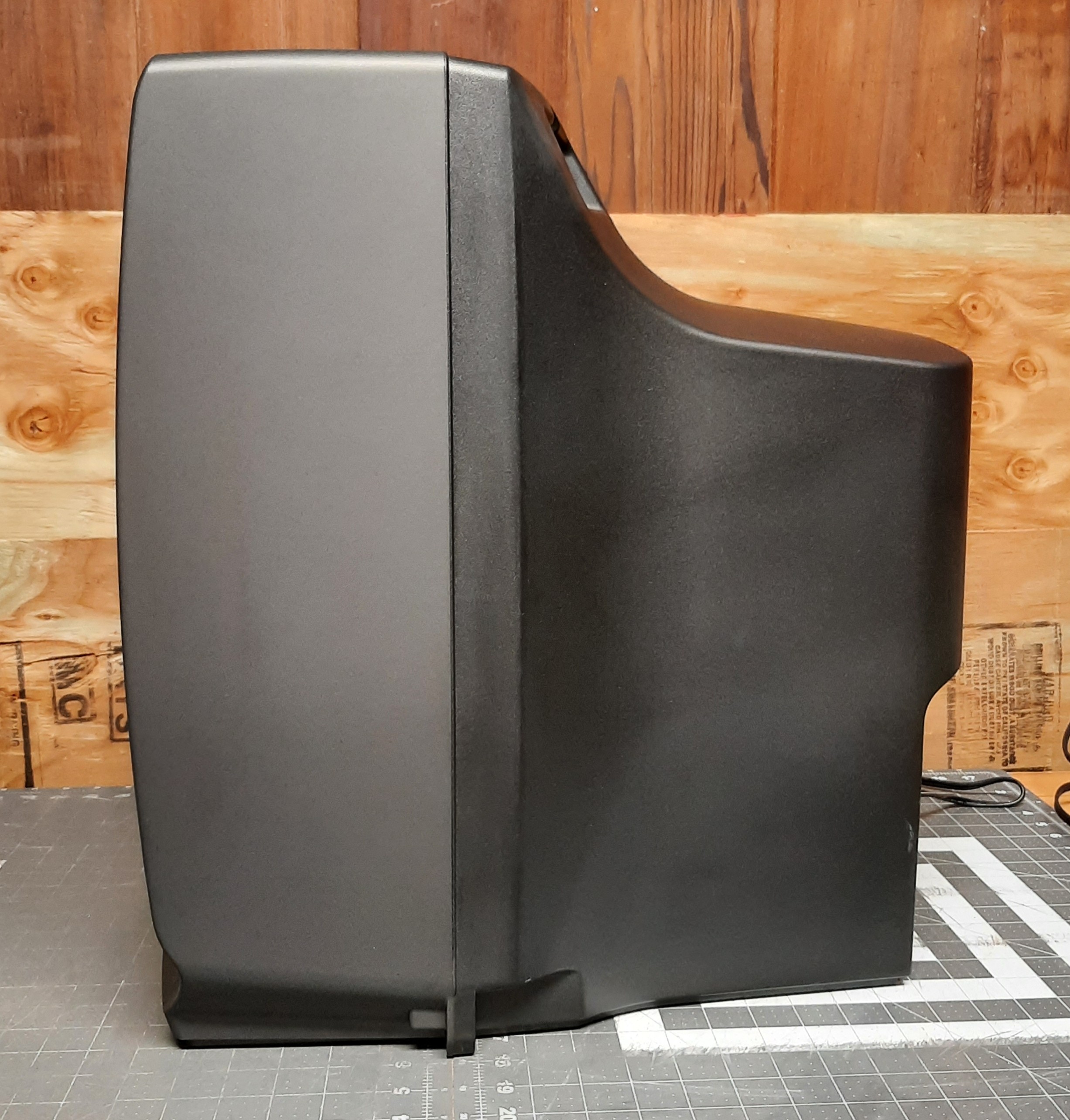

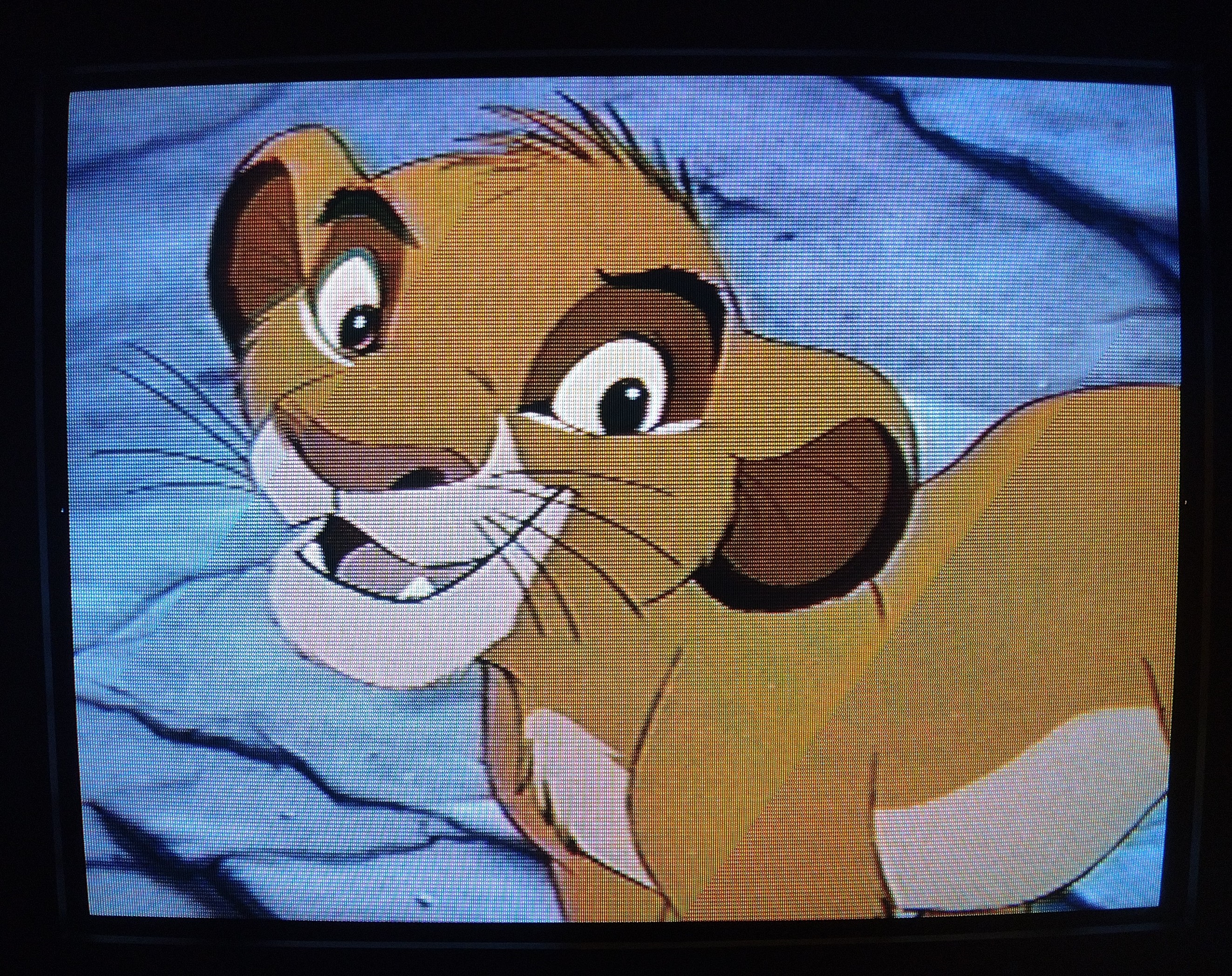

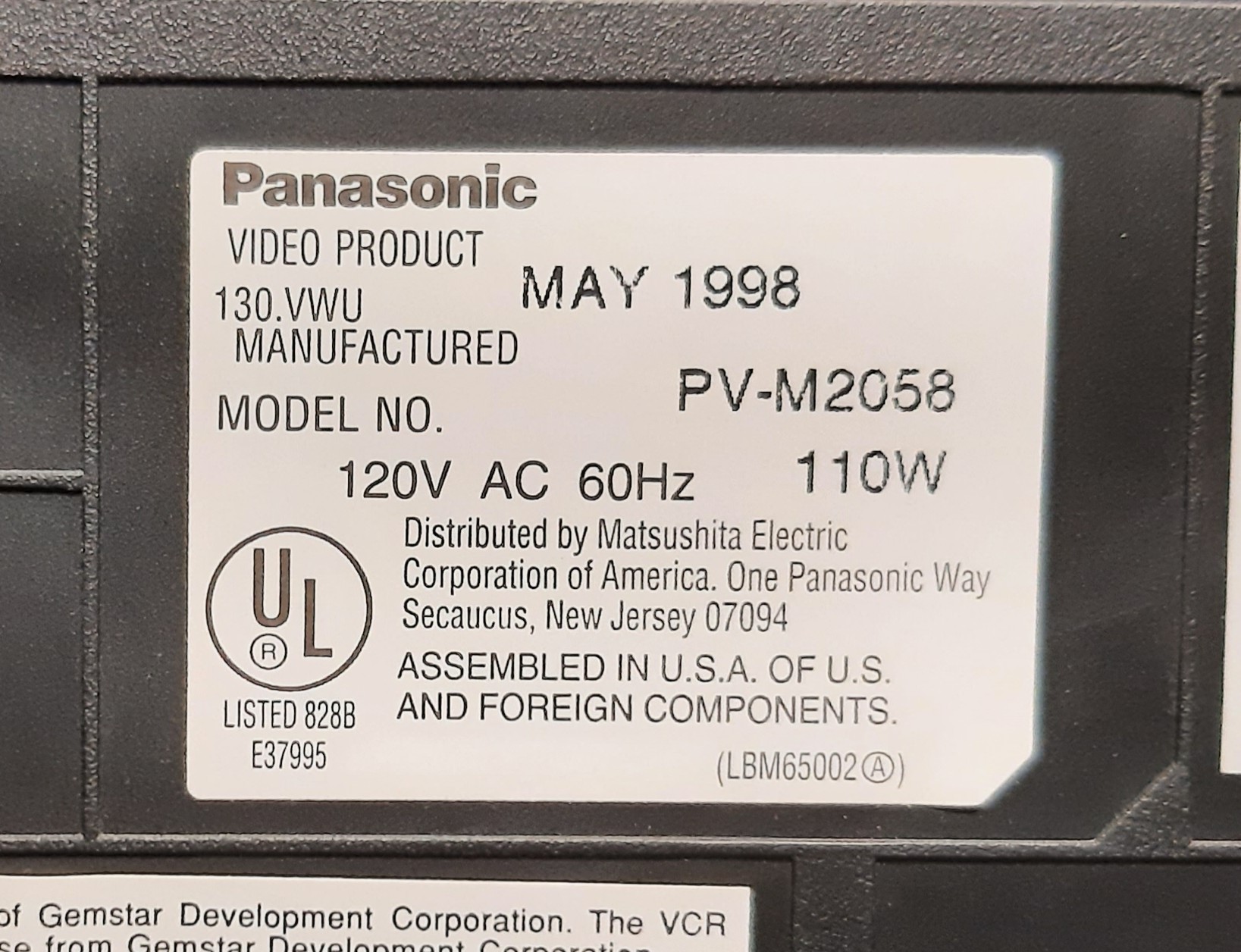

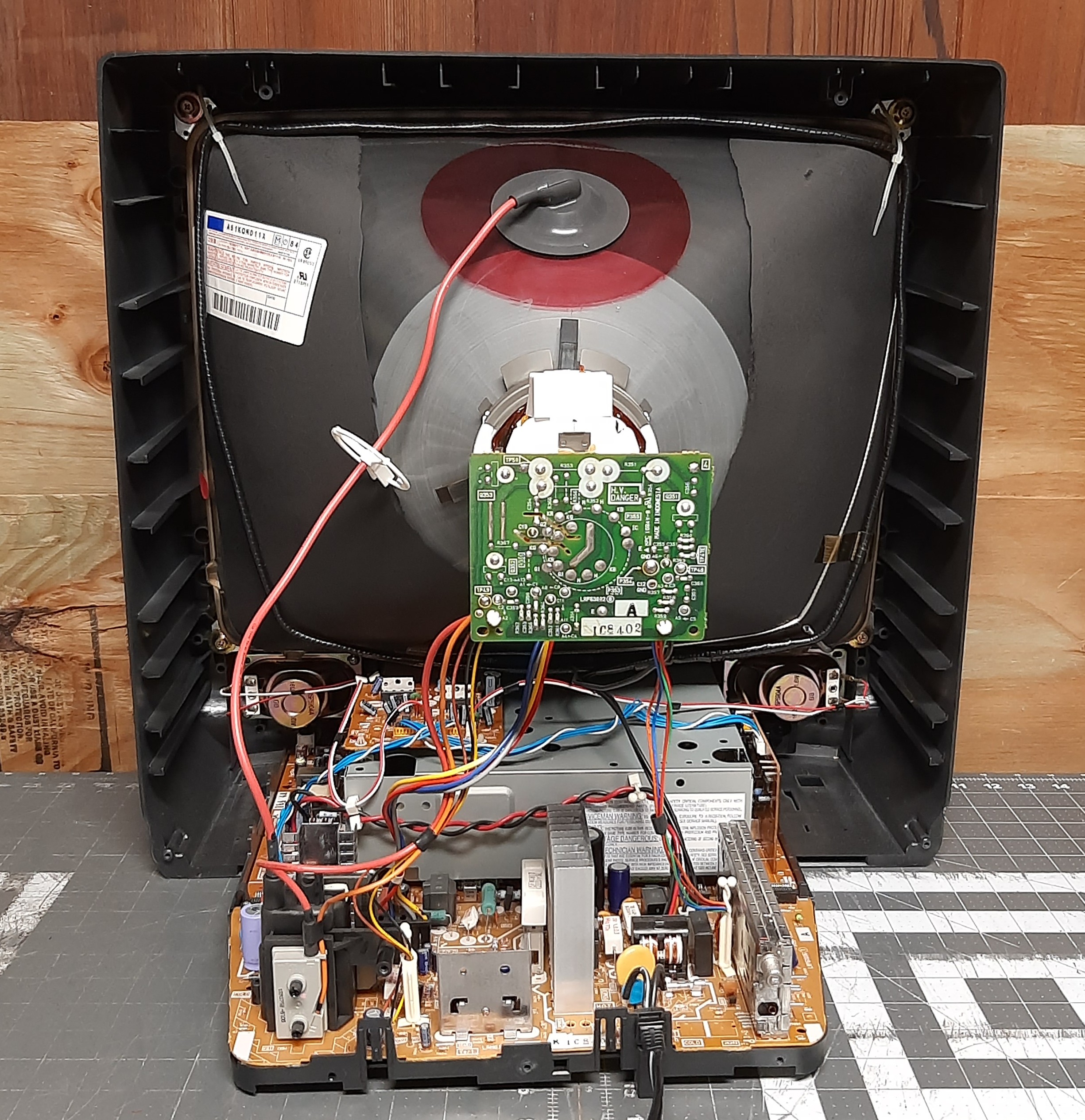

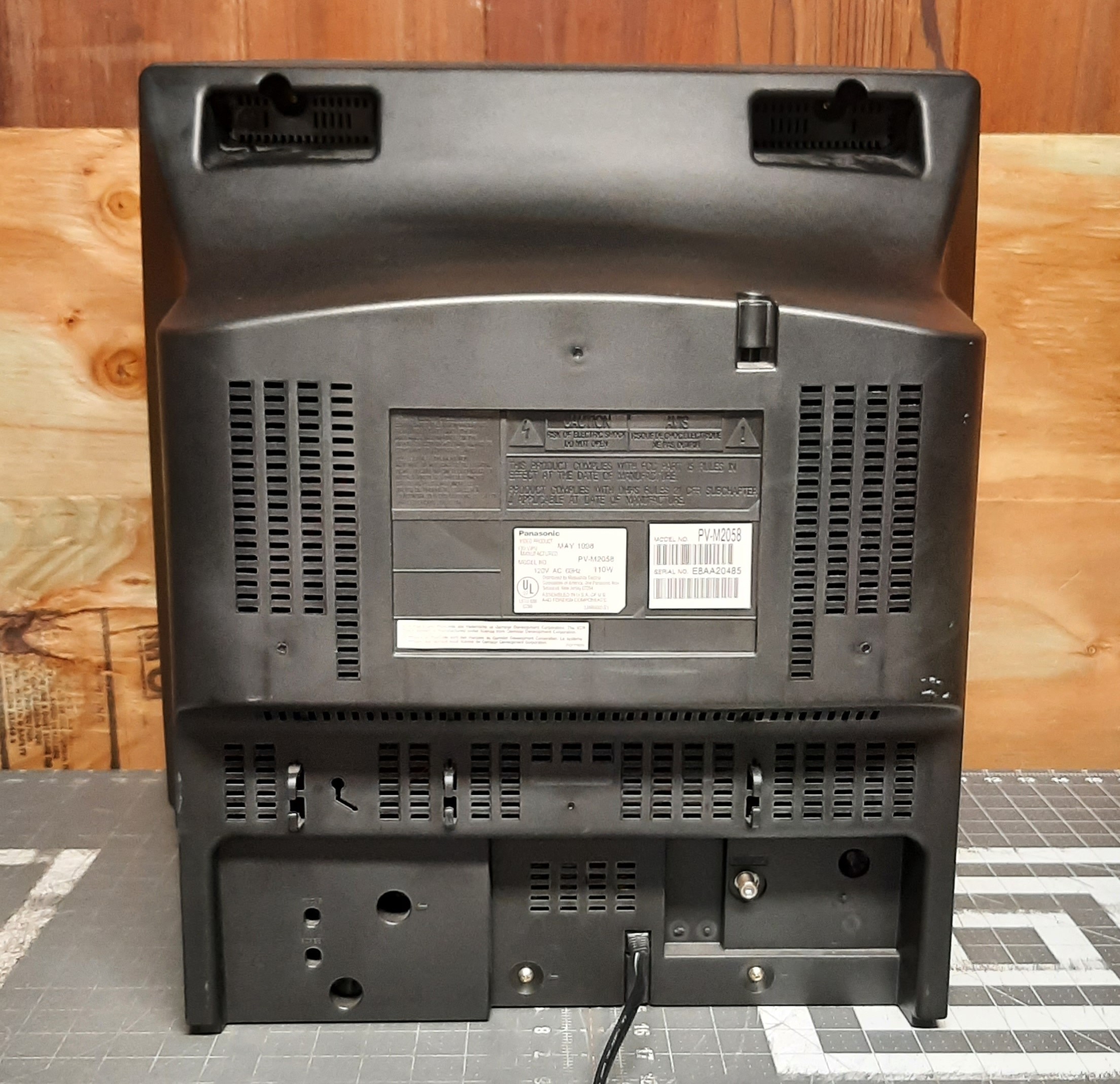

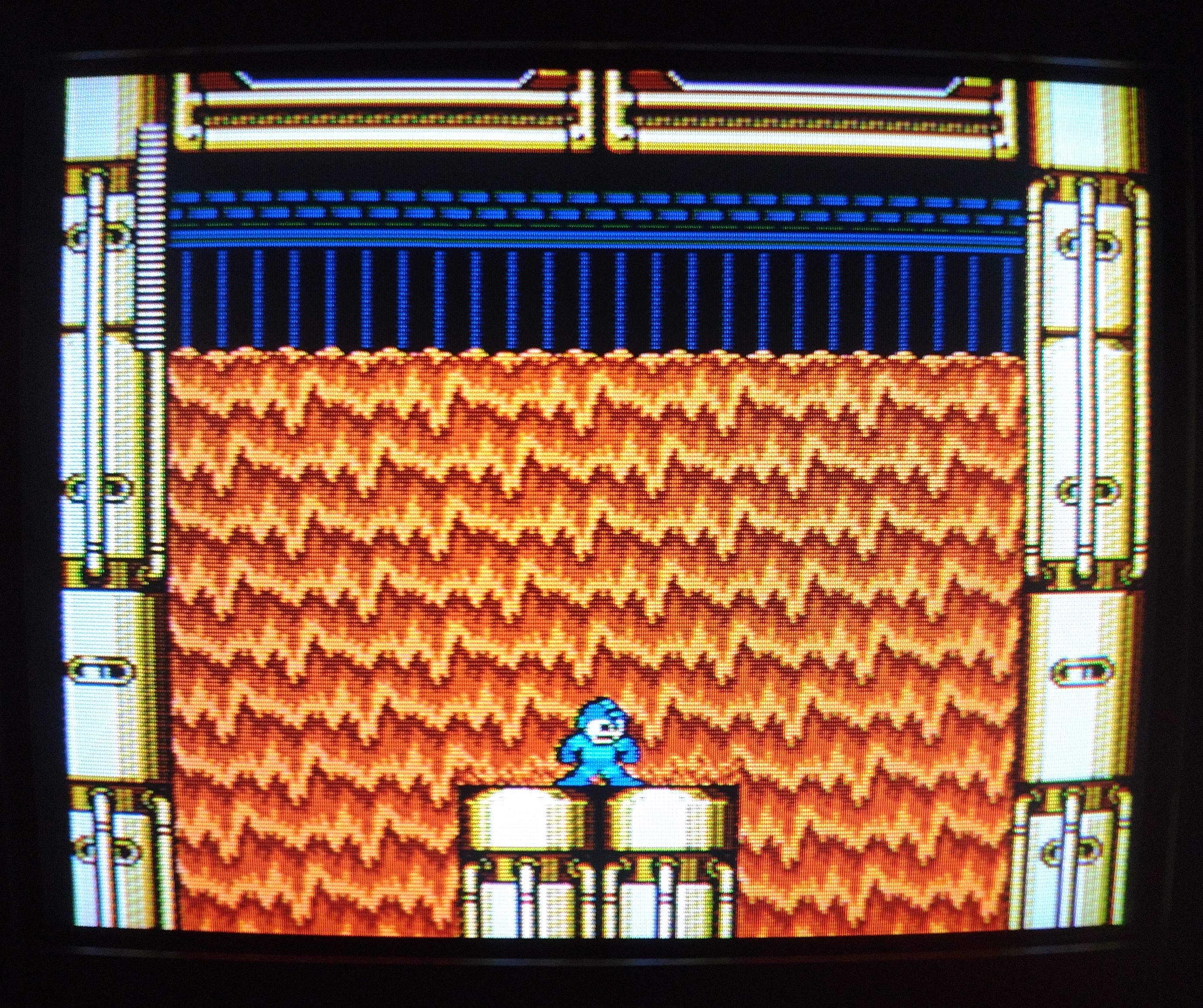

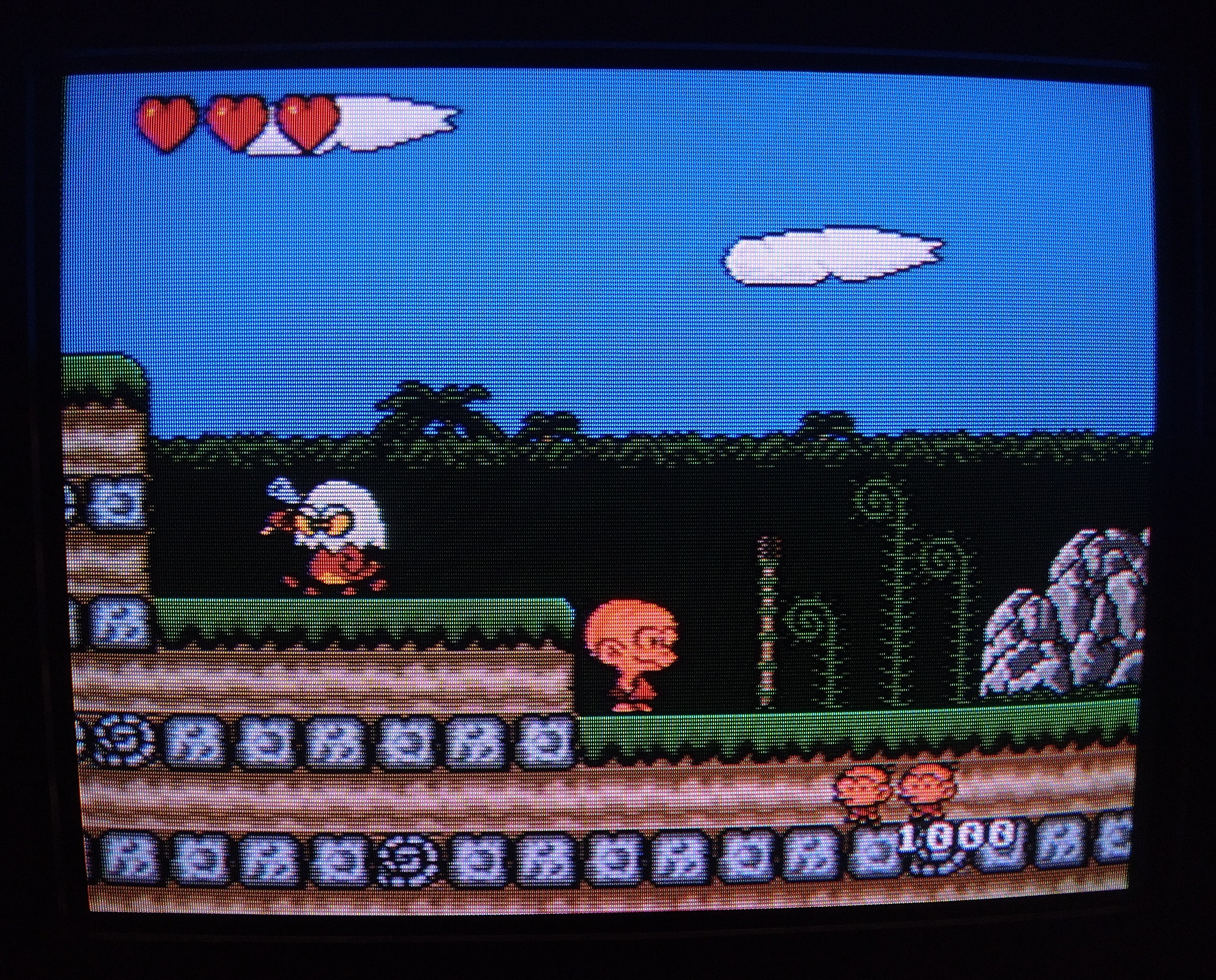

Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |
| Model: | PV-M2058 |
| Series: | Omnivision |
| Viewable Size: | 20" |
| Inputs: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2586 |
| Vertical Output IC: | LA7837 |
| Jungle IC: | AN3475BFP |
| Flyback: | KFT3AB074F1 |
| Tube: | A51KQN011X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | LLY6308S |
| Yoke Horz. Inductance: | 2.624 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 19.910 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.5 ohm |
| Yoke Vert. Resistance: | 11.2 ohm |
| Speakers: | Stereo |
| Remote: | VSQS1564 |
| Chassis: | KM-208 |
| Weight: | 50 lbs (22.7 kg) |
| Dimensions (W/H/D): |
515 x 505 x 484 mm
(20.2 x 19.8 x 19") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1998 |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Pictures |
