Summary
25" TV / 4-Head VCR, FM Radio. Hi-Tech 4 Video Heads provide improved picture quality in both SP and SLP tape speeds. PanaBlackā¢ Picture Tube helps combat the picture-degrading effects of ambient light for a picture with higher contrast & more accurate color reproduction.
Manuals
Media & Promo Materials
Notes

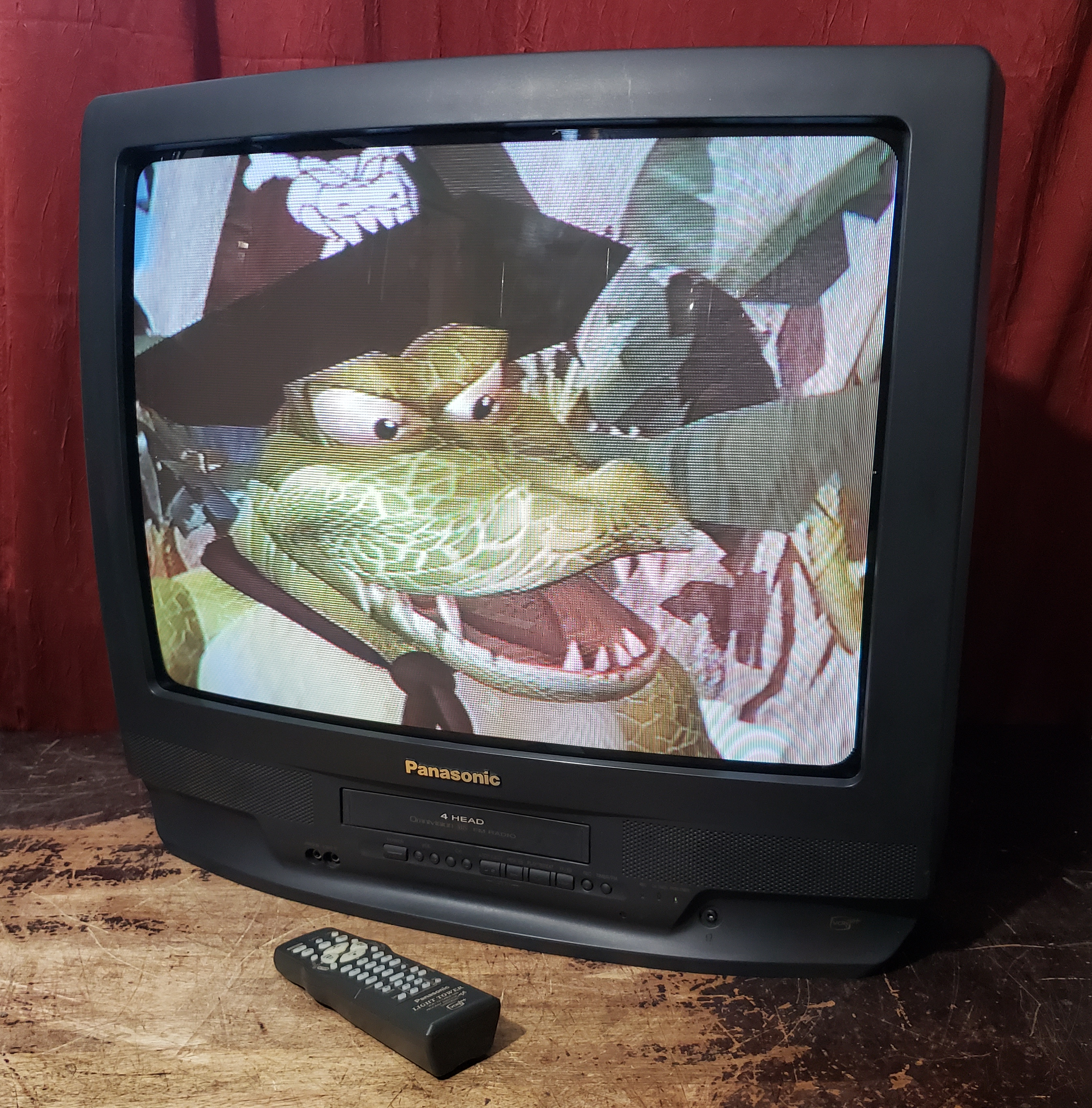

The remote in one of the pictures is not the exact matching remote. See the owner's manual for the original remote.
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |

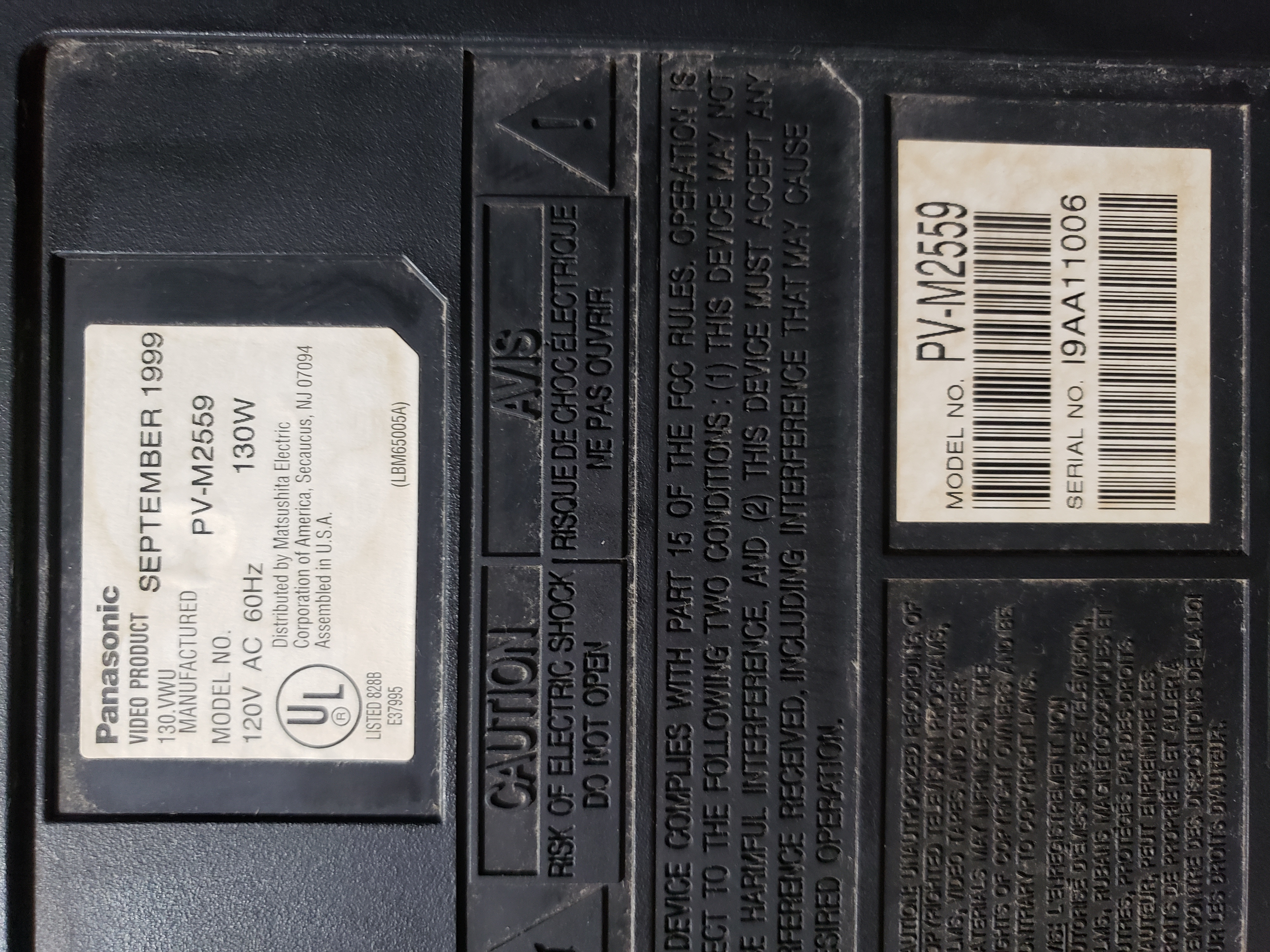

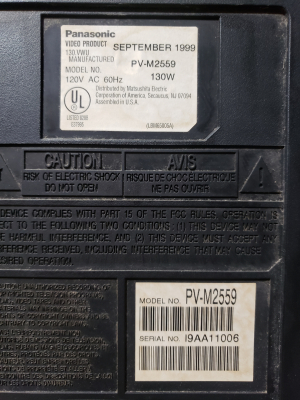

| Model: | PV-M2559 |
| Series: | Omnivision |
| Viewable Size: | 25" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | None |

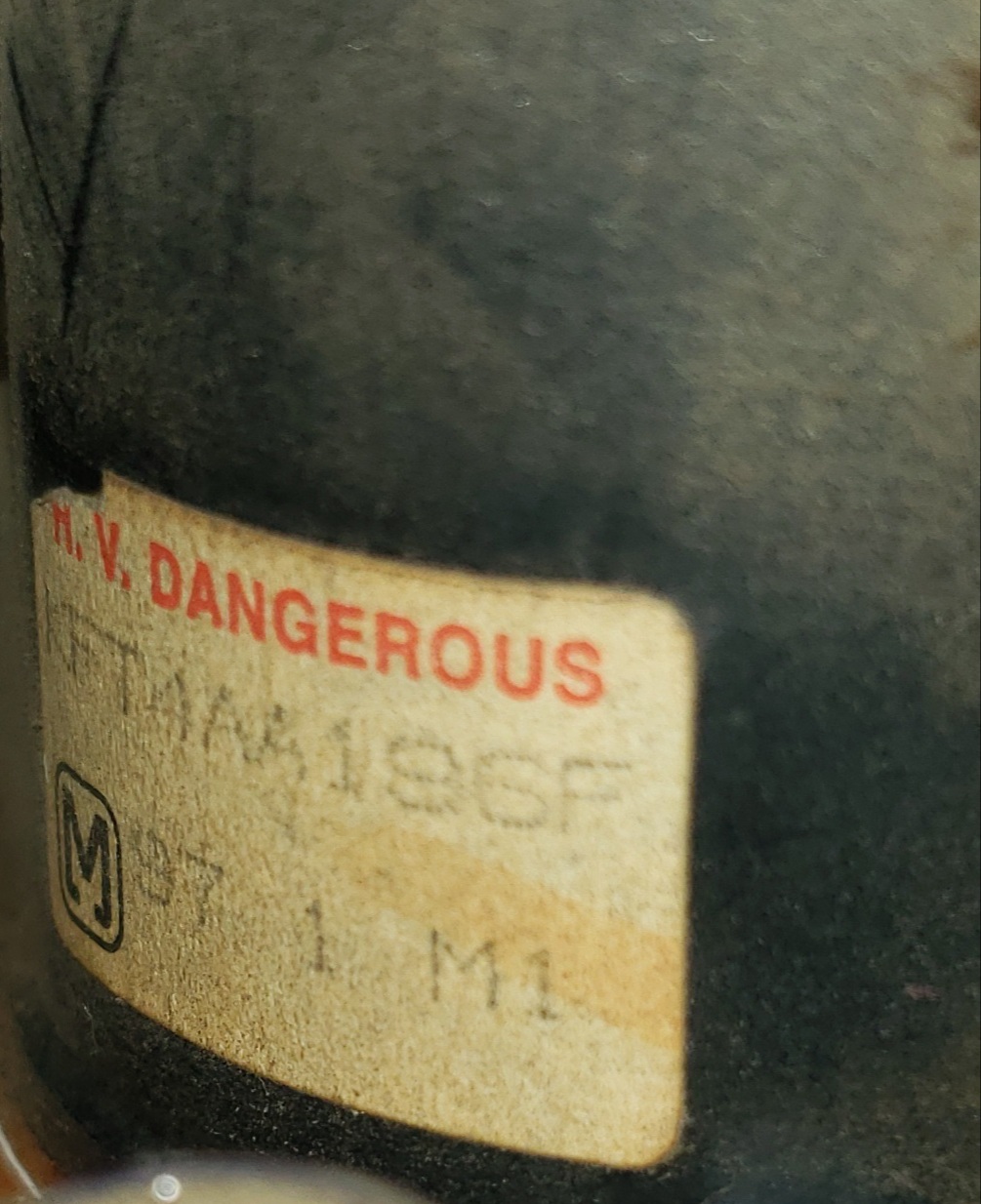

| Flyback: | KFT4AA196F |

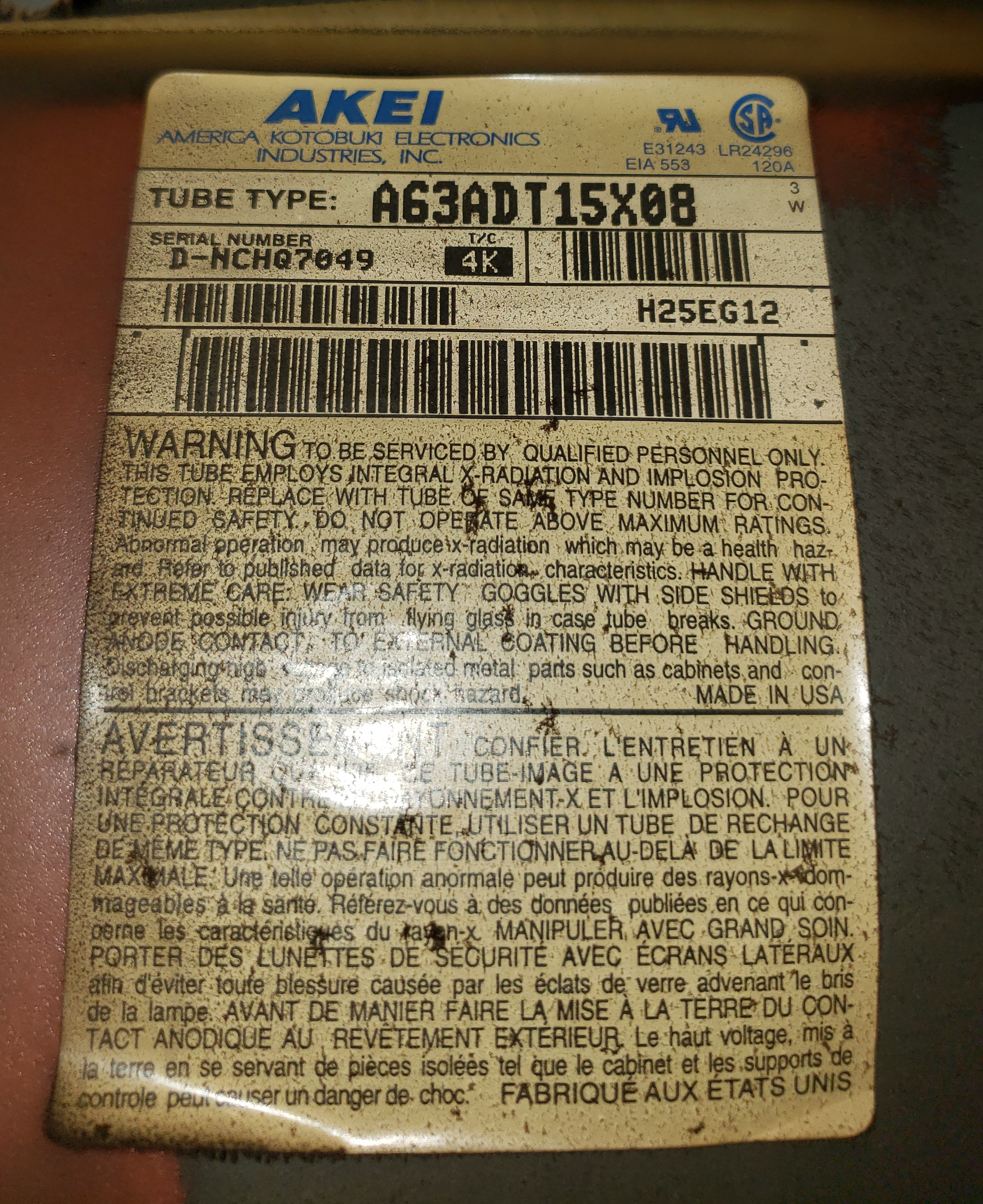

| Tube: | Thomson , RCA , A63ADT15X , A63ADT15X08 , PanaBlack |
| Heater Voltage: | 6.3v |
| Deflection: | 110Ā° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | 1.291 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 17.98 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 2.30 ohm |
| Yoke Vert. Resistance: | 5.85 ohm |
| Speakers: | Mono, Headphone Jack |
| Remote: | VSQS1602 |
| Weight: | 72.6 lbs (32.9 kg) |
| Dimensions (W/H/D): |
515 x 505 x 474 mm
(20.2 x 19.8 x 18.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 449 USD |
| Country of Manufacture: | Indonesia |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs IC Info |
