Summary

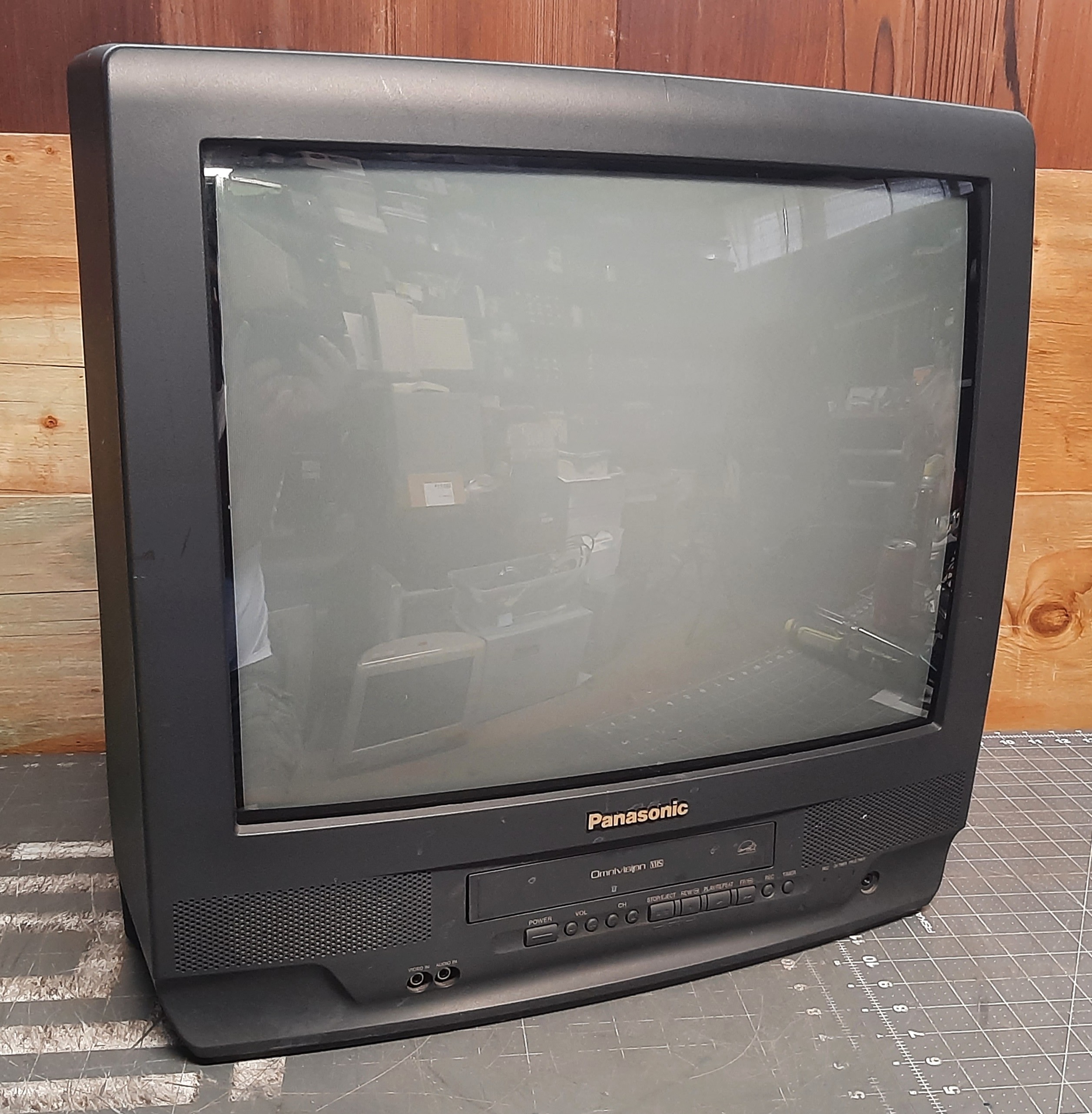

20" TV/VCR combo from Panasonic. Includes a single front-mounted mono A/V input.
Manuals
Notes
This TV was also sold as the Quasar VV-2002.
Gallery
| Specifications | |
|---|---|
| Brand: | Panasonic |
| Manufacturer: | Panasonic |

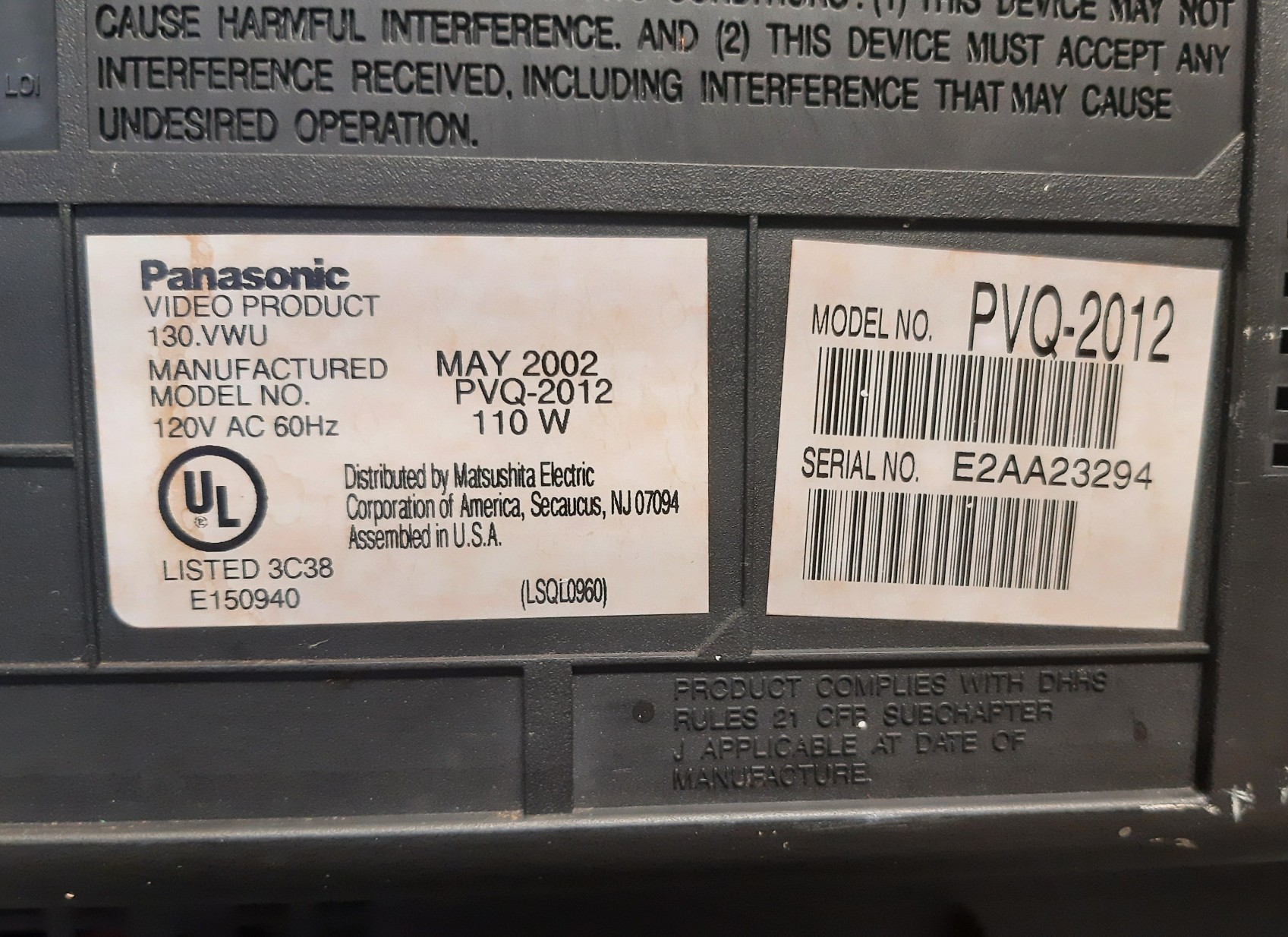

| Model: | PVQ-2012 |
| Series: | Omnivision |
| Viewable Size: | 20" |
| Input Signals: | Composite, RF |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Horz. Output Transistor: | D2578 |
| Vertical Output IC: | LA7837 |
| Comb Filtering: | None |
| Jungle IC: | AN3479FBP-A |
| Flyback: | KFT3AB400F |

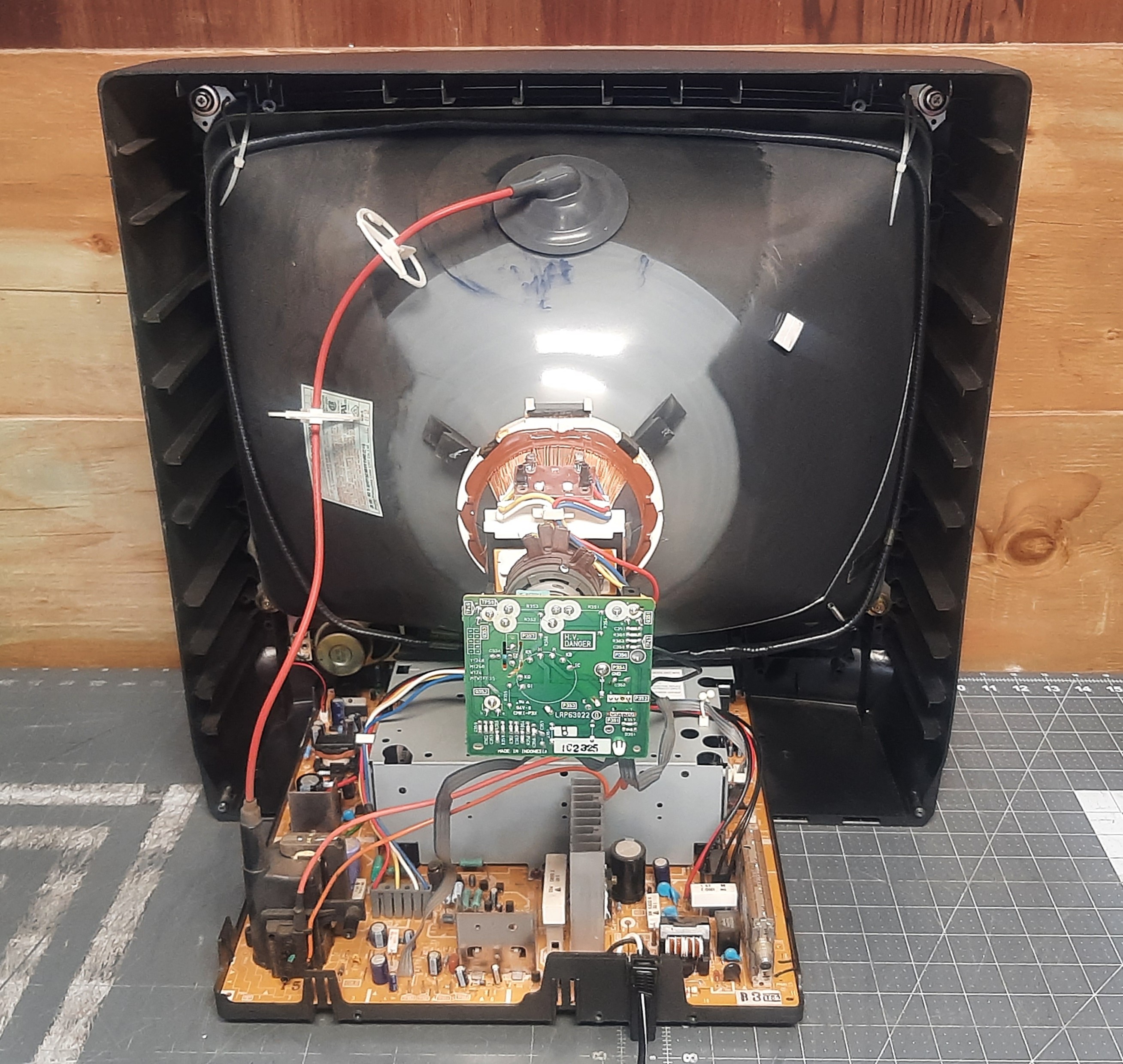

| Tube: | A51JXS098X30 , A51JXS098X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | QPC-N5404D |
| Yoke Horz. Inductance: | 2.362 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 20.27 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 3.17 ohm |
| Yoke Vert. Resistance: | 8.97 ohm |
| Speakers: | Mono |
| Remote: | LSSQ0280 |
| Chassis: | KM-2002 |
| Weight: | 50.6 lbs (23 kg) |
| Dimensions (W/H/D): |
515 x 505 x 474 mm
(20.2 x 19.8 x 18.6") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2002 |
| Country of Manufacture: | USA |
| Degaussing: | Automatic on Power-on |
