Panasonic WV-BM500

Matt Ross
June 6, 2024, 5:57 am
January 19, 2025, 12:26 am

Summary

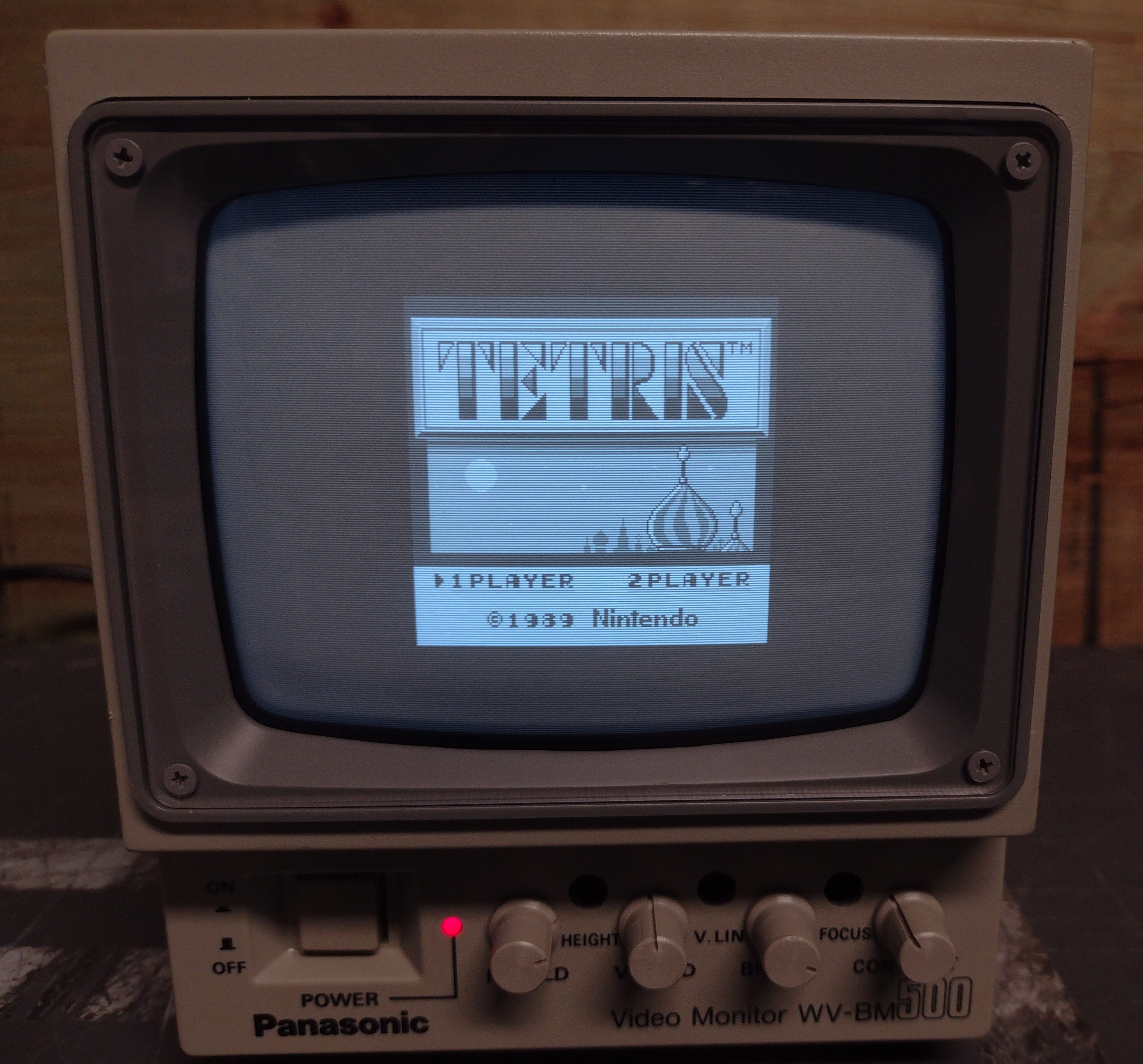

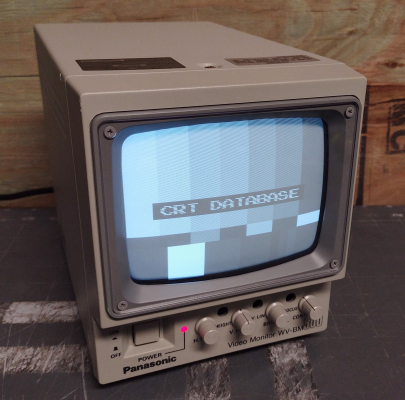

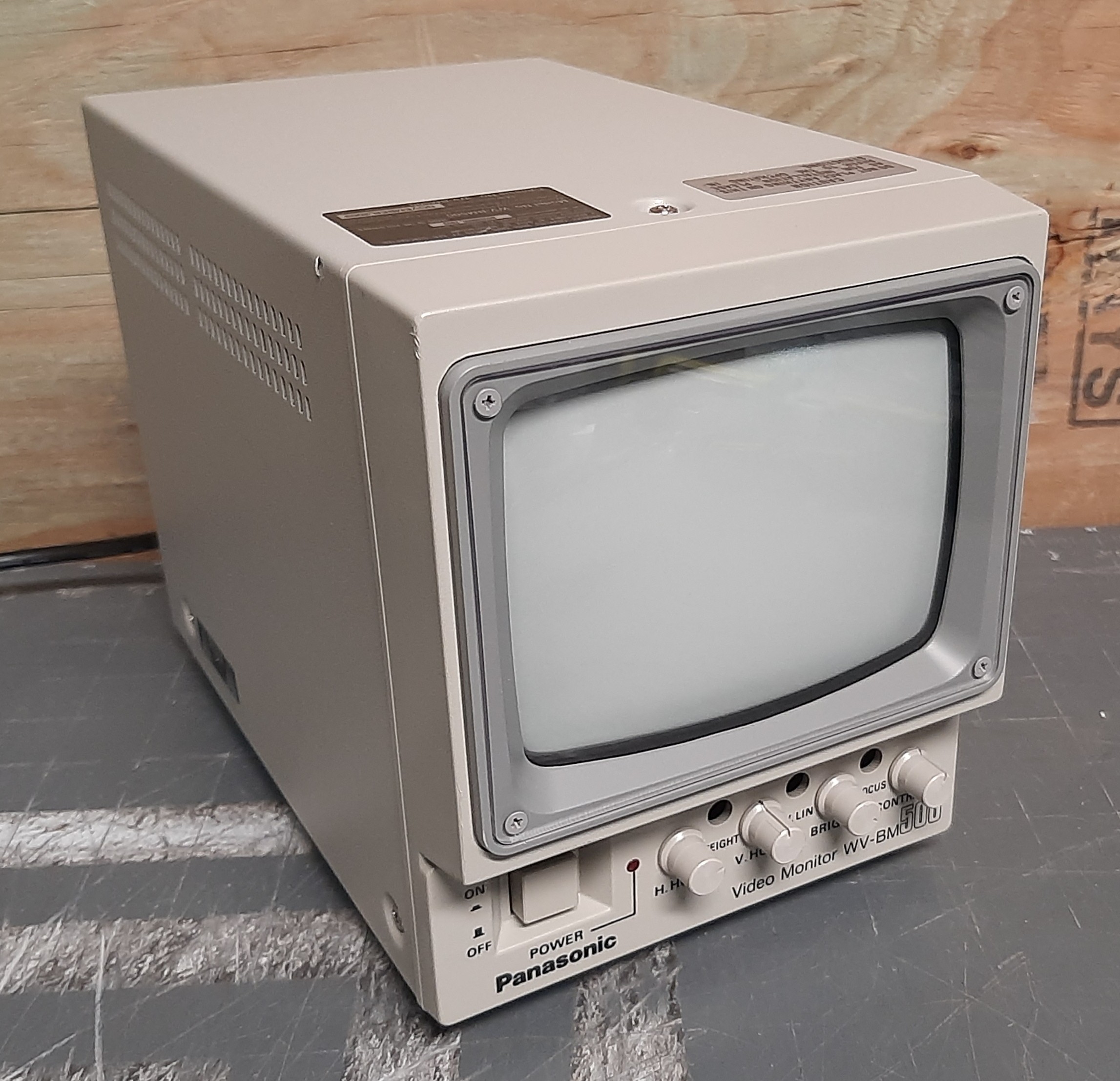

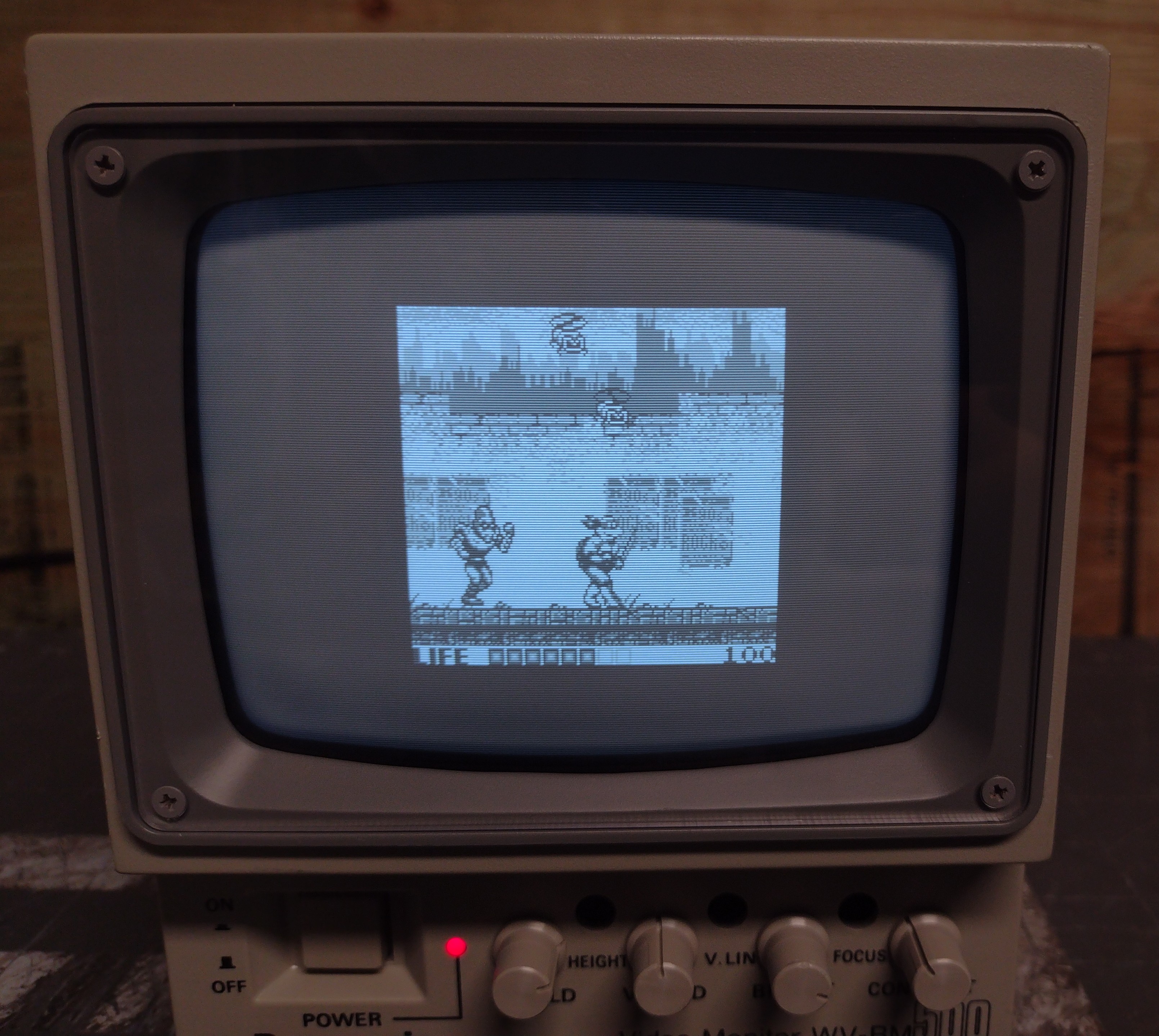

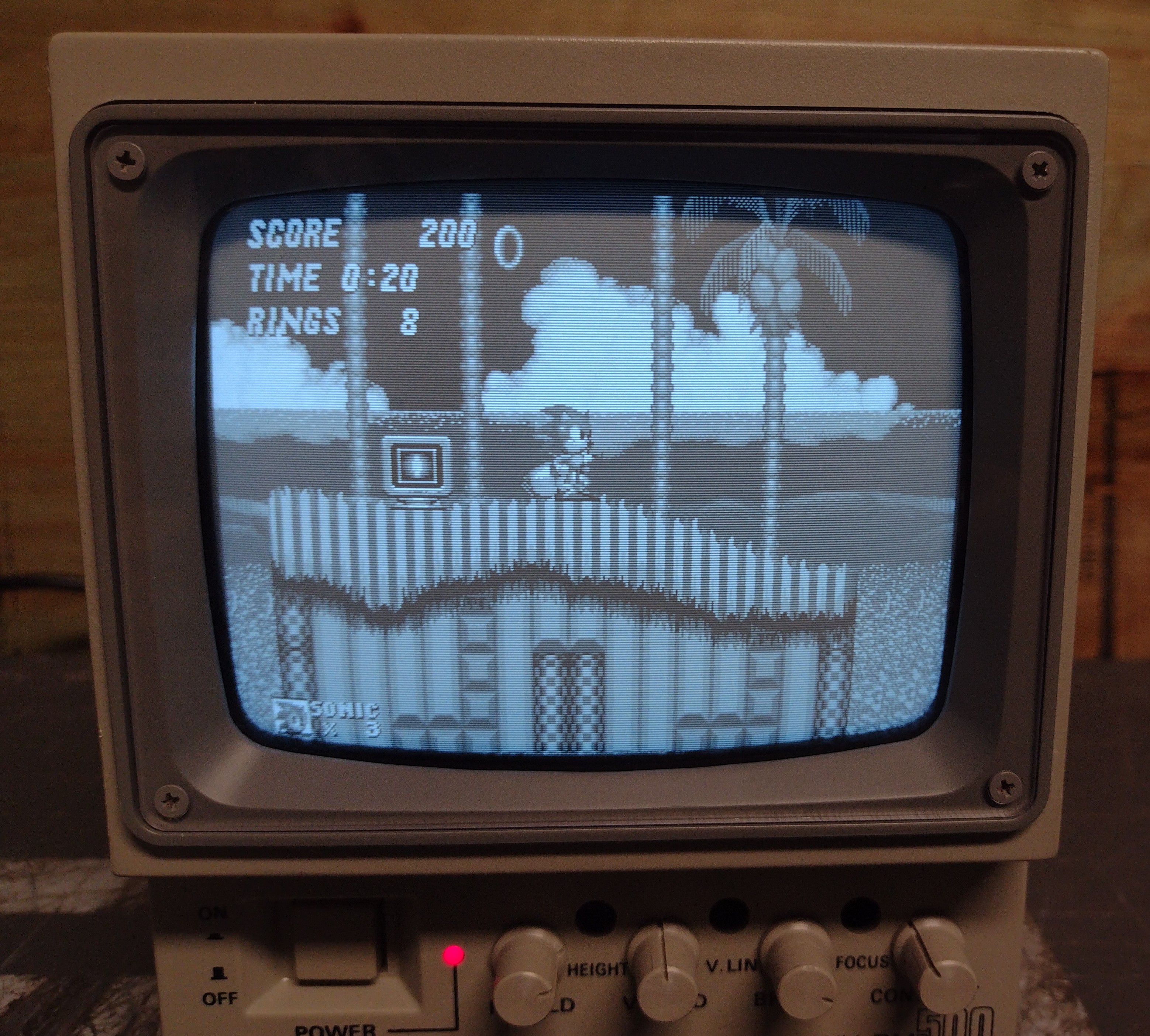

5" monochrome monitor CCTV monitor. Picture is very sharp despite its small size, with a 700 TVL rating.

This monitor was also sold preinstalled in a rack mounted unit of 3 monitors, with the model number WV-BM503.

Specifications

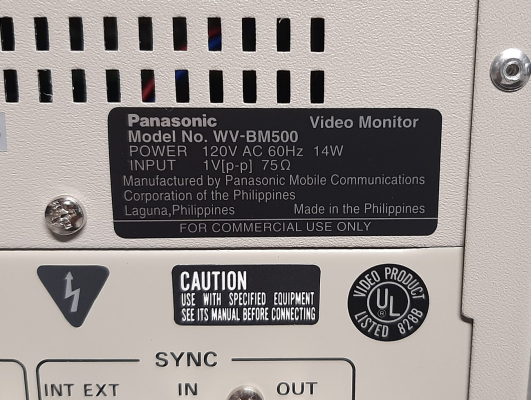

Brand:	Panasonic
Manufacturer:	Panasonic
Model:	WV-BM500
Series:	WV
Viewable Size:	5"

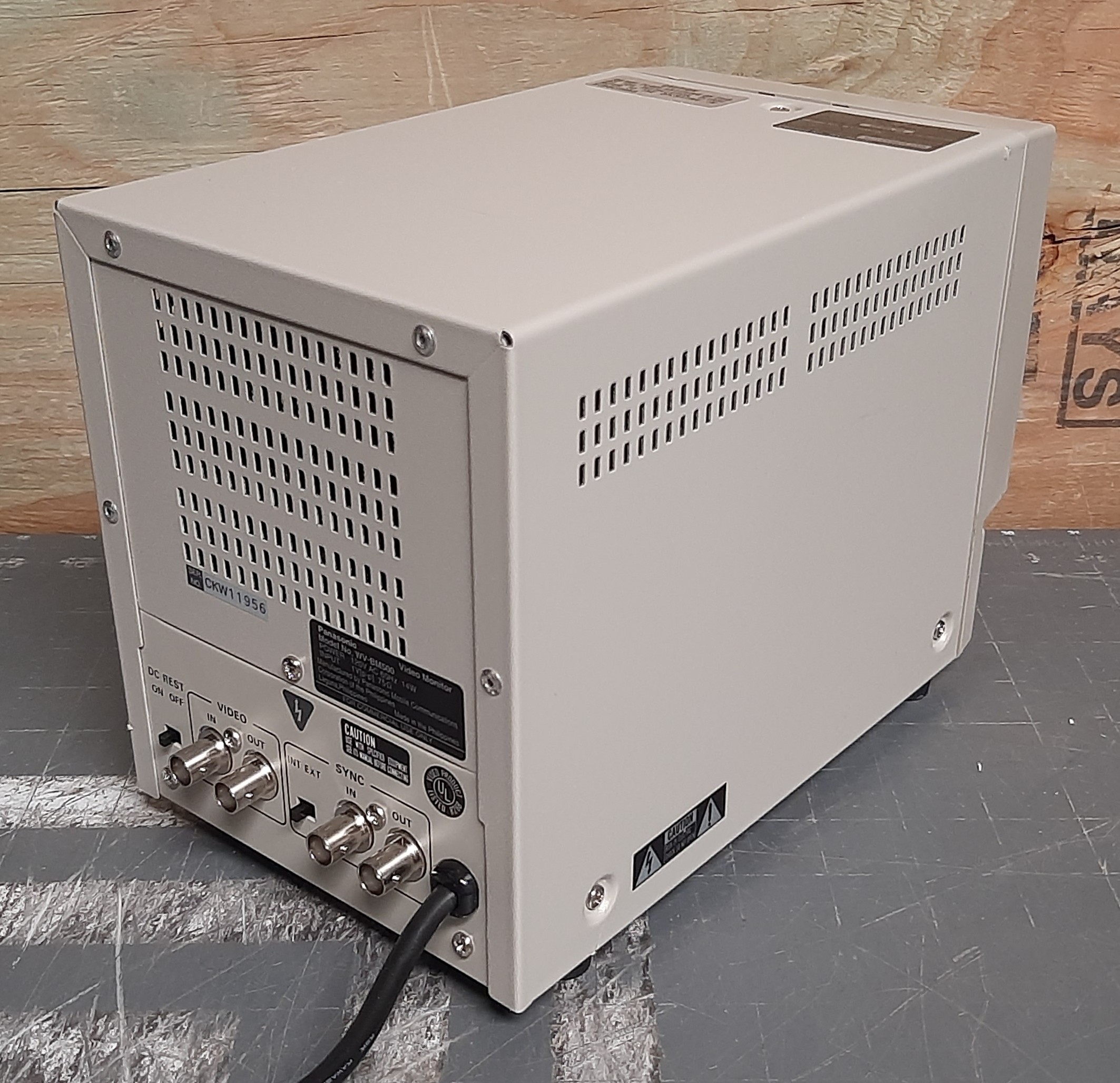

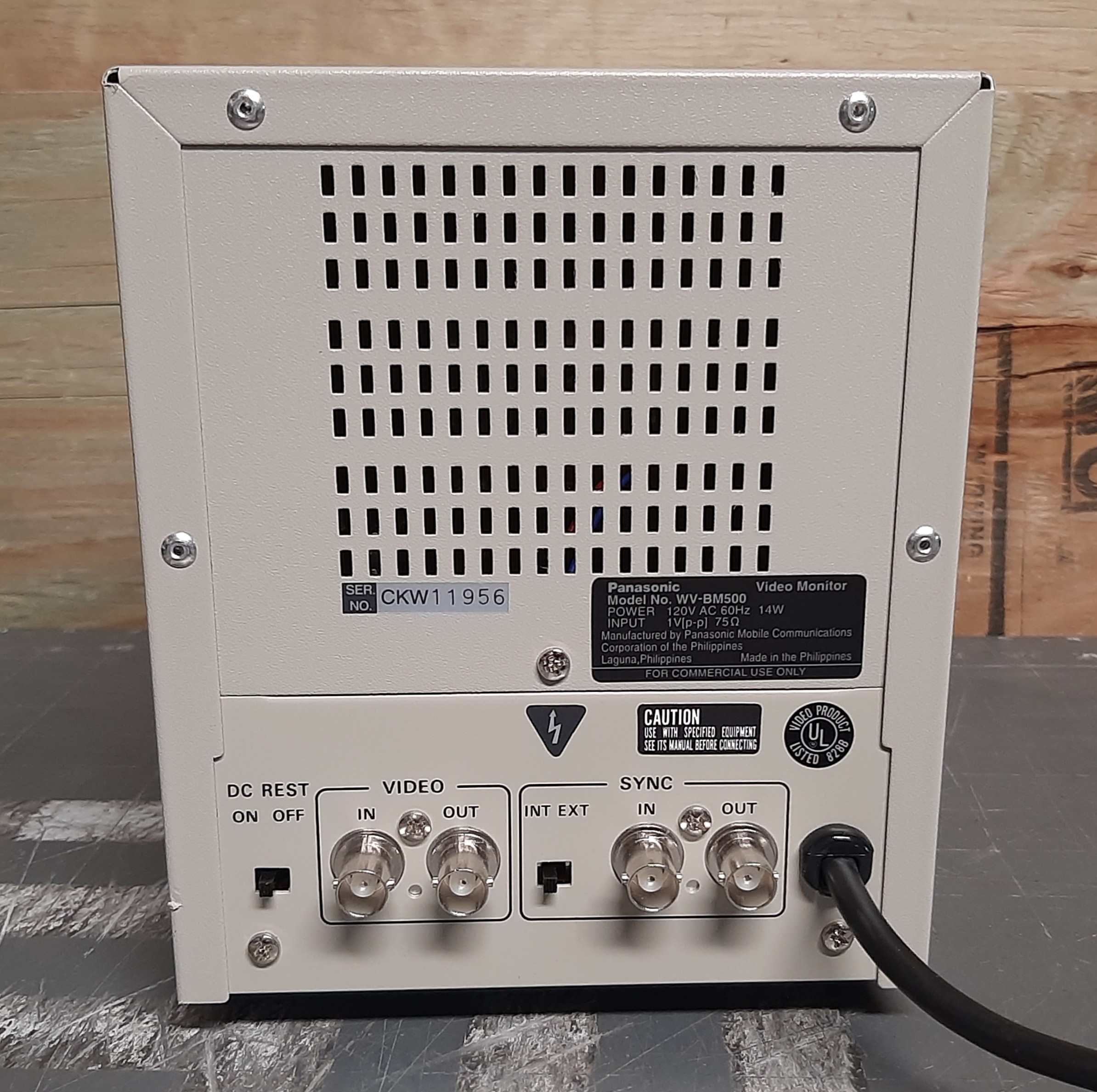

Inputs:	Composite
Sync:	CSYNC
Native Resolutions:	240p, 480i
Linecount:	700 TVL
Horizontal Scan Range:	15 kHz
Vertical Scan Range:	60 Hz
Formats:	Monochrome
Aspect:	4:3

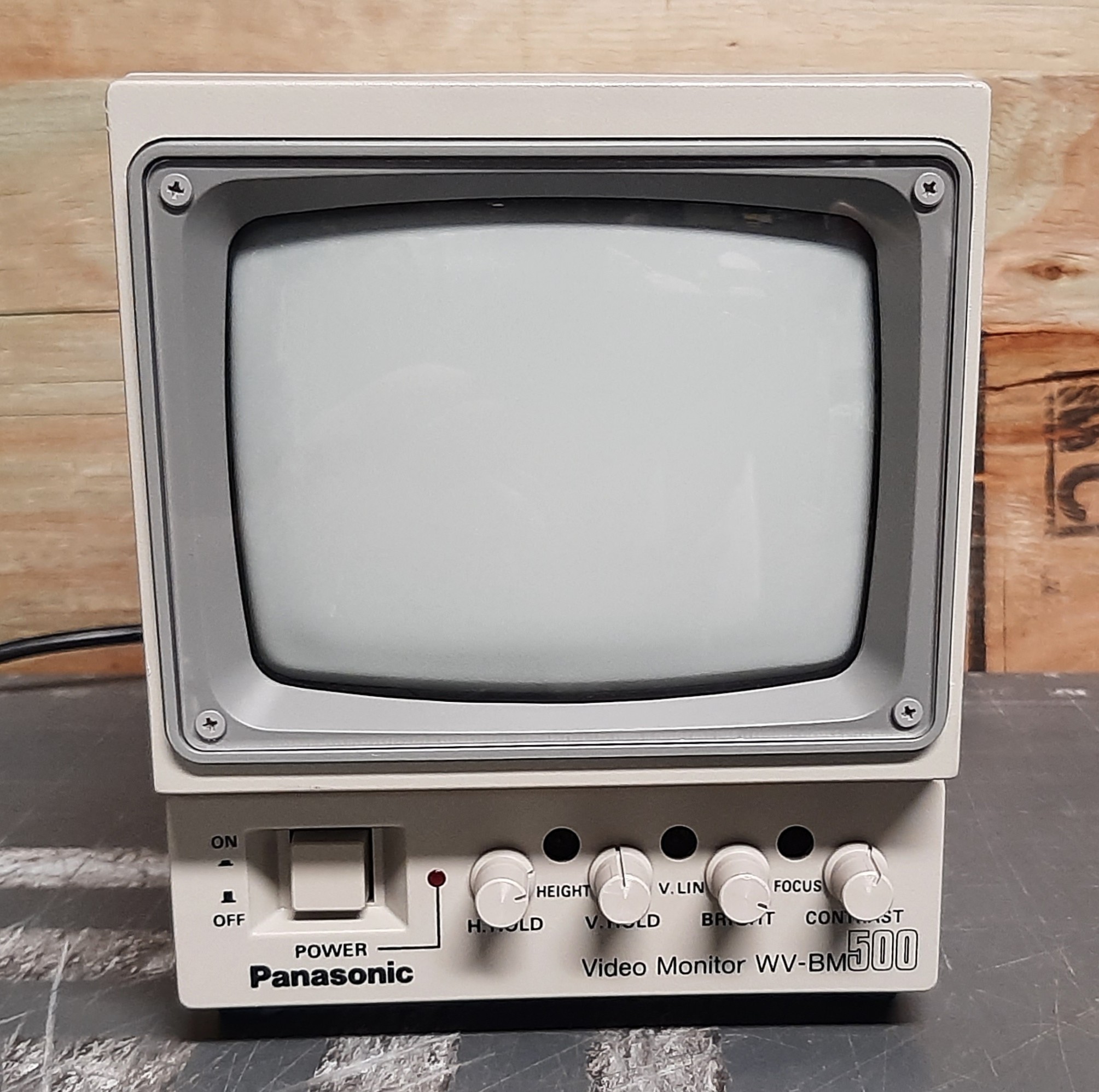

Adjustments:	Internal Potentiometers, External Potentiometers

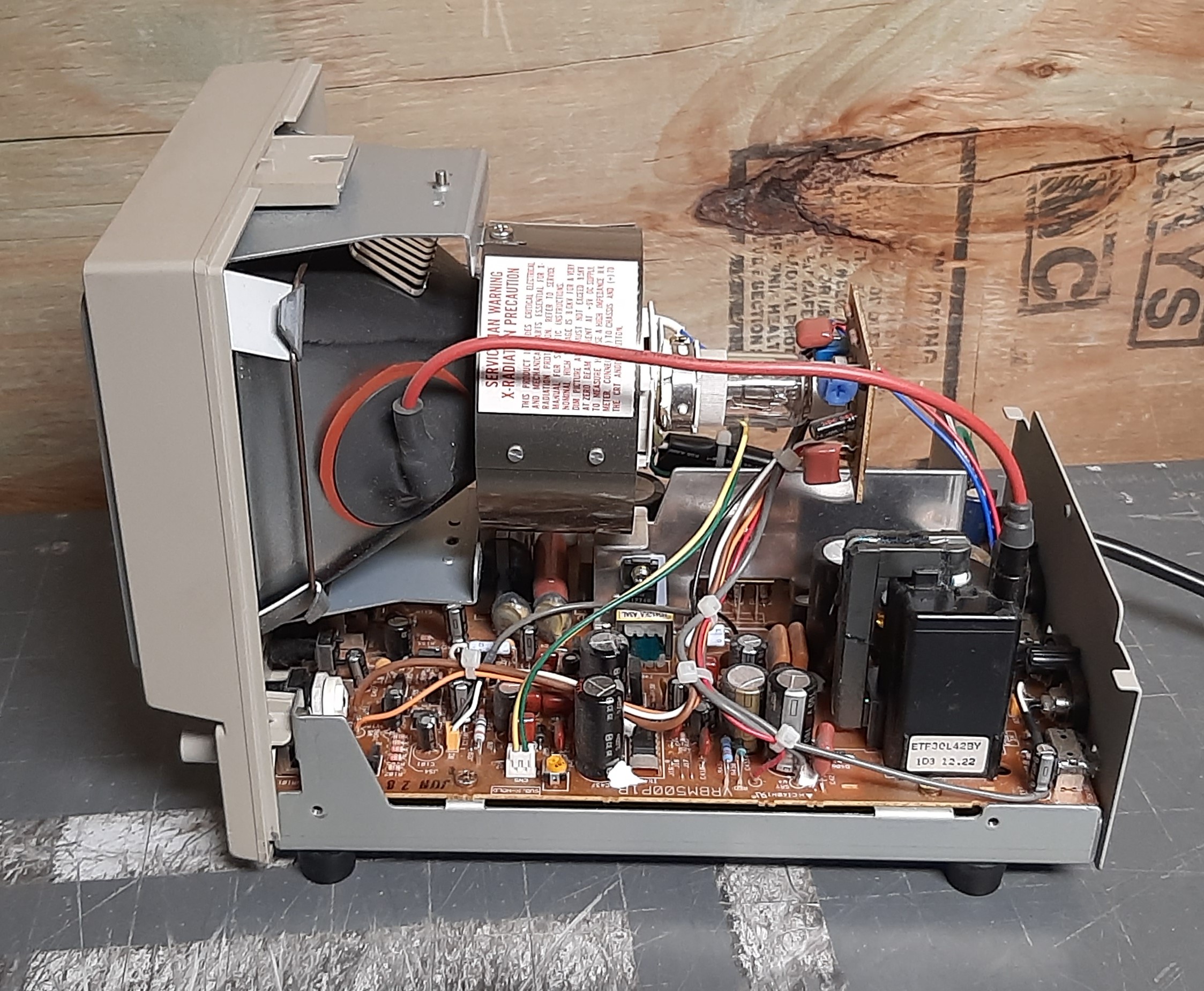

Horz. Output Transistor:	2SD1274B
Vertical Output IC:	uPC1379C
Flyback:	ETF30L42BY
Tube:	Toshiba , E2765B4
Heater Voltage:	12v
Mask:	Monochrome Tube (no mask)
Tint:	Light
Removable Glare Film:	No
Speakers:	None
Weight:	5.1 lbs (2.3 kg)
Dimensions (W/H/D):	147 x 180 x 245 mm (5.8 x 7.1 x 9.6")
Application:	Professional
Cabinet Material:	Metal
Country of Manufacture:	Philippines
Mounting:	Rackable
Degaussing:	Not Applicable
