Philips 107S (107S11/74)
Matt Ross
April 12, 2025, 7:20 pm
April 21, 2025, 3:42 am
April 12, 2025, 7:20 pm
April 21, 2025, 3:42 am
Summary

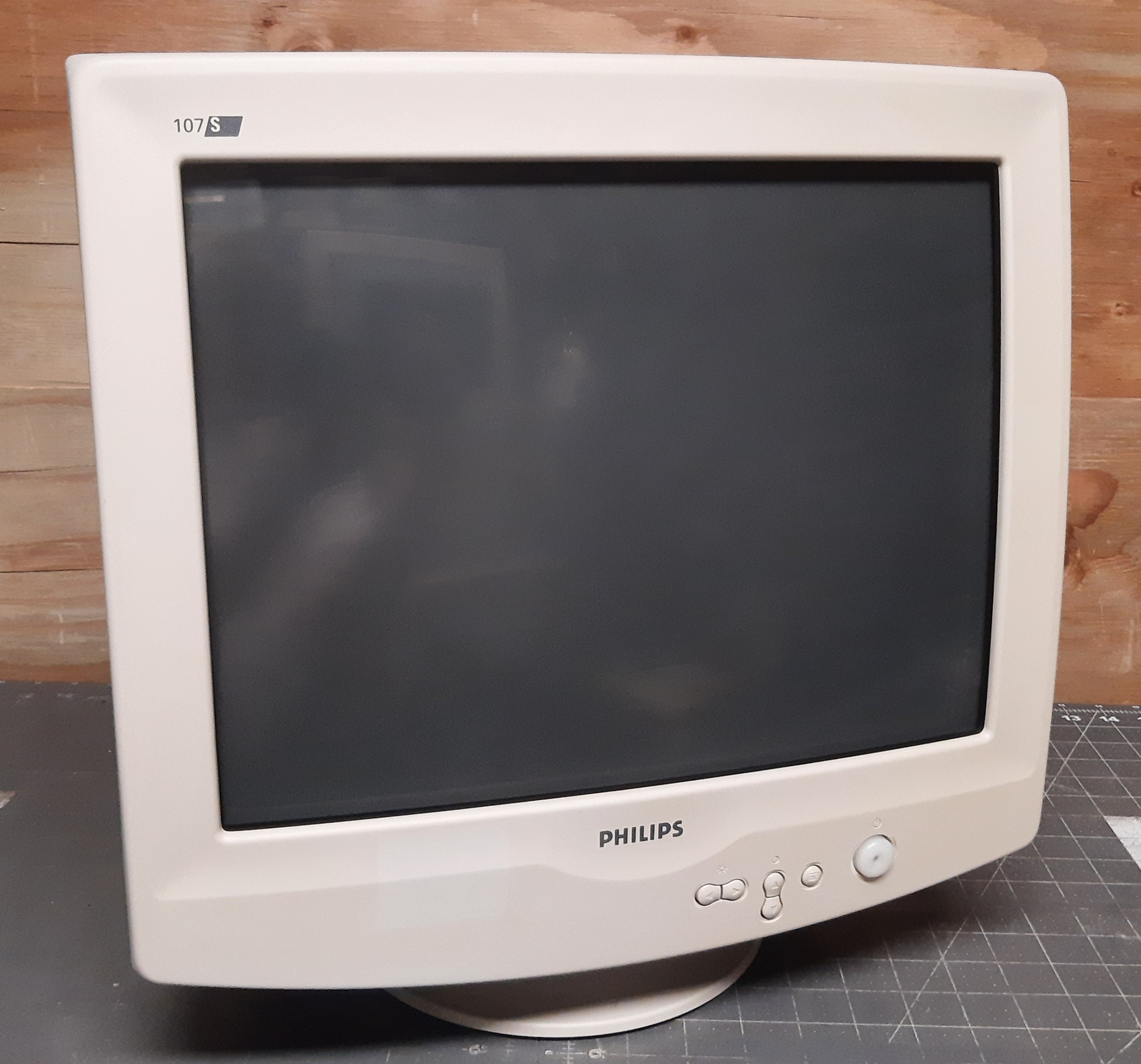

17" CRT computer monitor from Philips. A typical late '90s/early 2000s monitor, it has a 70 kHz scan rate and was designed to be used with 1024x768 at 85 Hz.
Manuals
Notes
Like many Philips computer monitors, this model has a service menu and can be calibrated manually without the need for a PC interface. To access it, hold the left and right arrow buttons while the powering on the monitor. Then, press "OK" to open the user menu. A new line of text (red colored) with the model number will appear. Scroll down to this line and select it with the "OK" button.
Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |
| Model: | E771p |
| Series: | Standard Series |
| Viewable Size: | 16" |
| Inputs: | VGA |
| Sync: | HV Sync, CSYNC |
| Native Resolutions: | VGA, SVGA, XGA, SXGA |
| Horizontal Scan Range: | 30 kHz, 70 kHz |
| Vertical Scan Range: | 50 Hz, 160 Hz |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu, Software Calibration |
| Flyback: | FB-5B/CF1465 |
| Focus Type: | Dual |
| Tube: | Chunghwa , M41AGE83X46 , M41AGE83X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.27 mm |
| Tint: | Dark, Matte Anti-Glare |
| Removable Glare Film: | No |
| Yoke: | JNY-7701C1 |
| Yoke Horz. Inductance: | 0.18527 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 5.647 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 0.584 ohm |
| Yoke Vert. Resistance: | 10.25 ohm |
| Speakers: | None |
| Chassis: | CM2317P |
| Weight: | 33 lbs (15 kg) |
| Dimensions (W/H/D): |
399 x 410 x 408 mm
(15.7 x 16.1 x 16") |
| Application: | Computer Monitor |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v, Universal, 100v, 240v |
| Mounting: | Desk Stand |
| Degaussing: | Automatic on Power-on, Manual |
| Tag: | Needs Service Manual |
