Summary

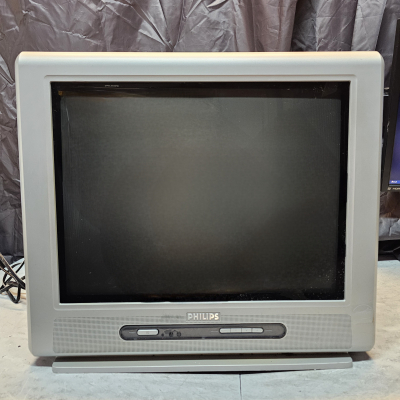

Decent little consumer TV. One of the few in it's class size that features S-Video and component inputs.
Manuals
Notes
Like many Philips TVs, this model is capable of syncing to 50hz. Pal video will still display in black and white through the composite and S-Video inputs, but will be in color if you use component.
Several Philips TVs, including this model, are prone to oxidized microswitches on the front panel. This causes the buttons to perform the wrong function when pressed. This can be fixed by replacing the switches, or avoided by using the remote instead.

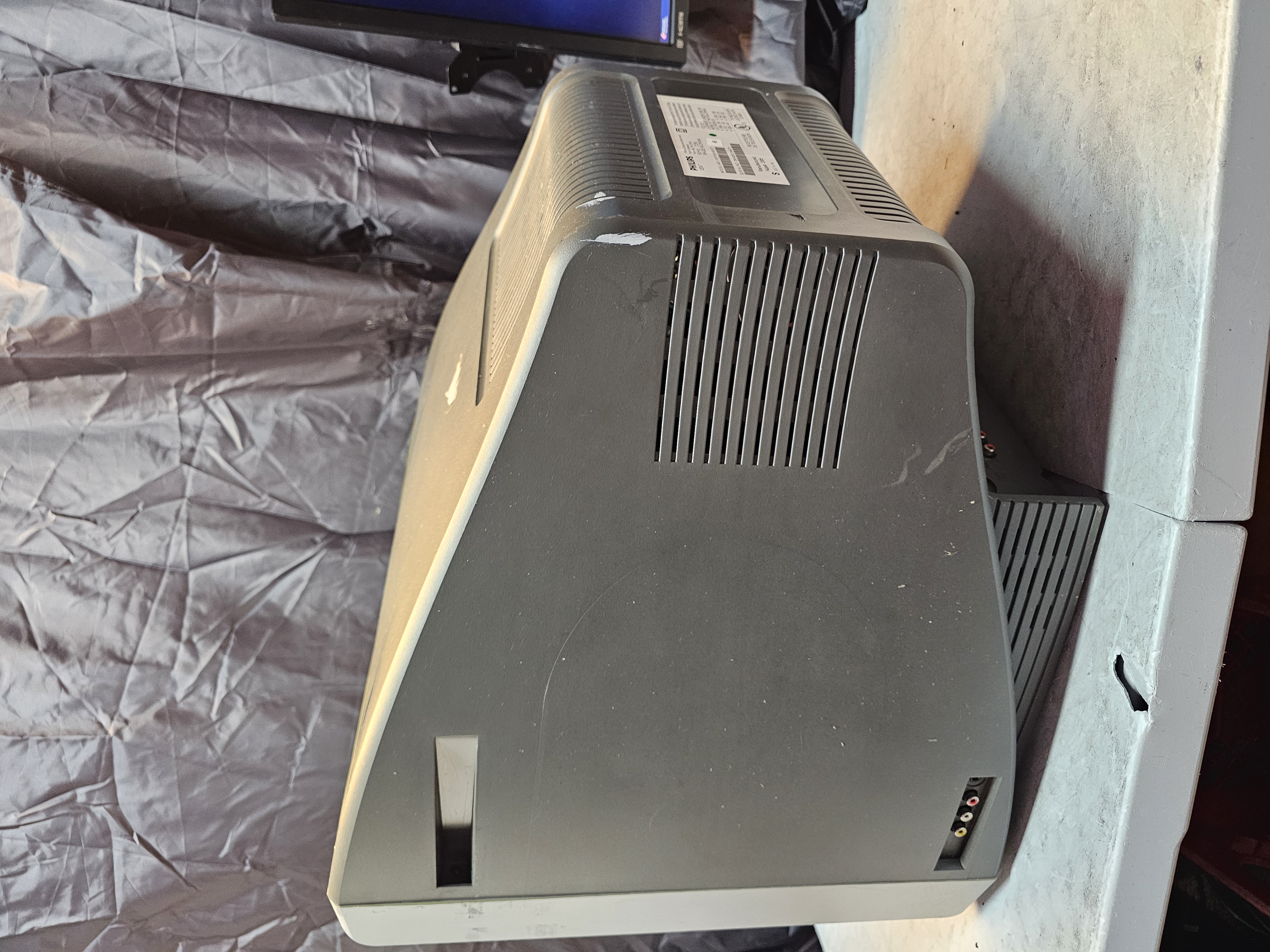

Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |

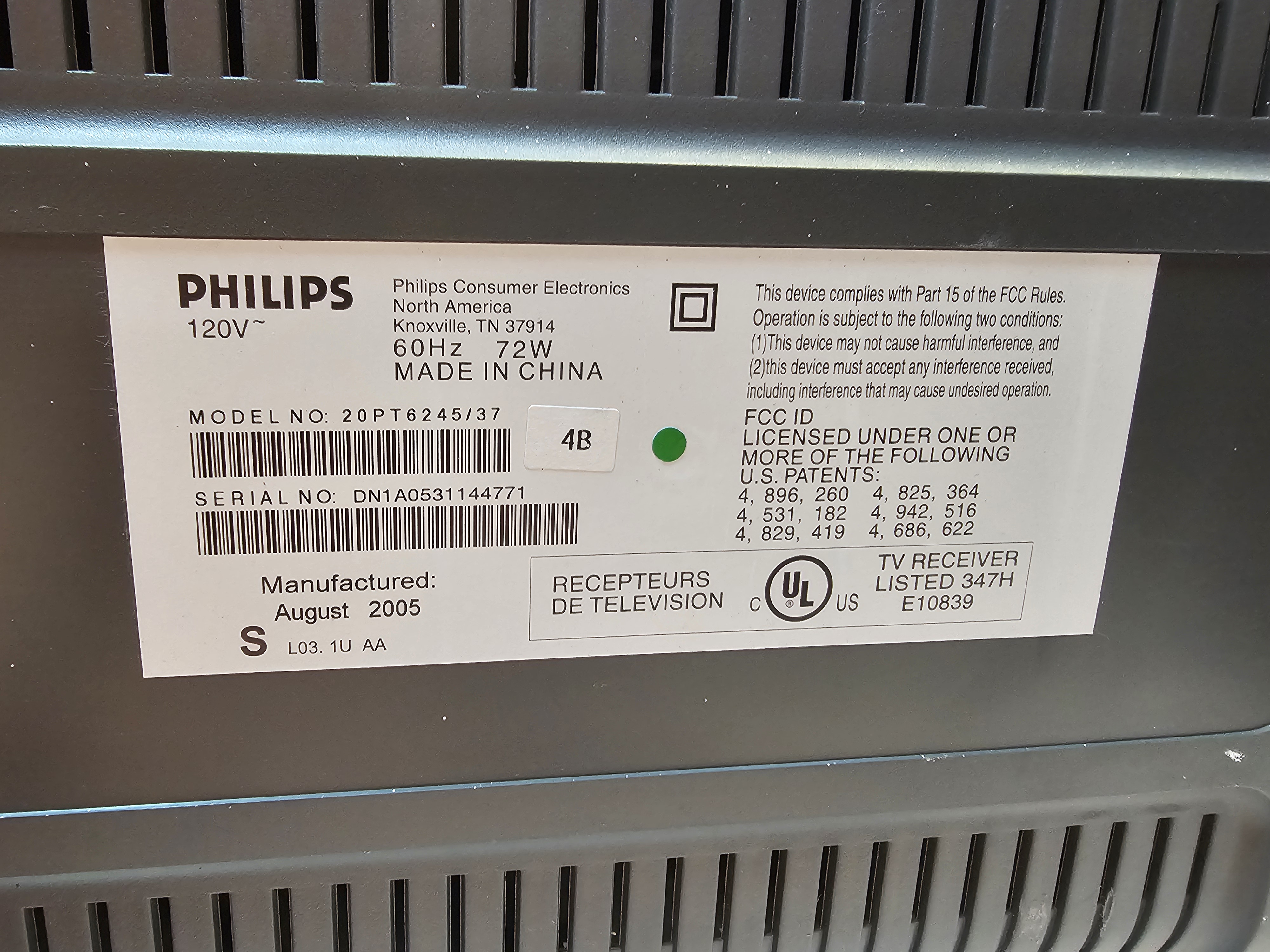

| Model: | 20PT6245/37 |
| Series: | RealFlat |
| Viewable Size: | 20" |

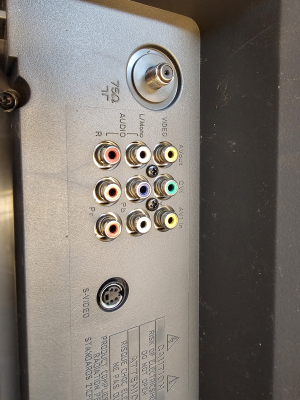

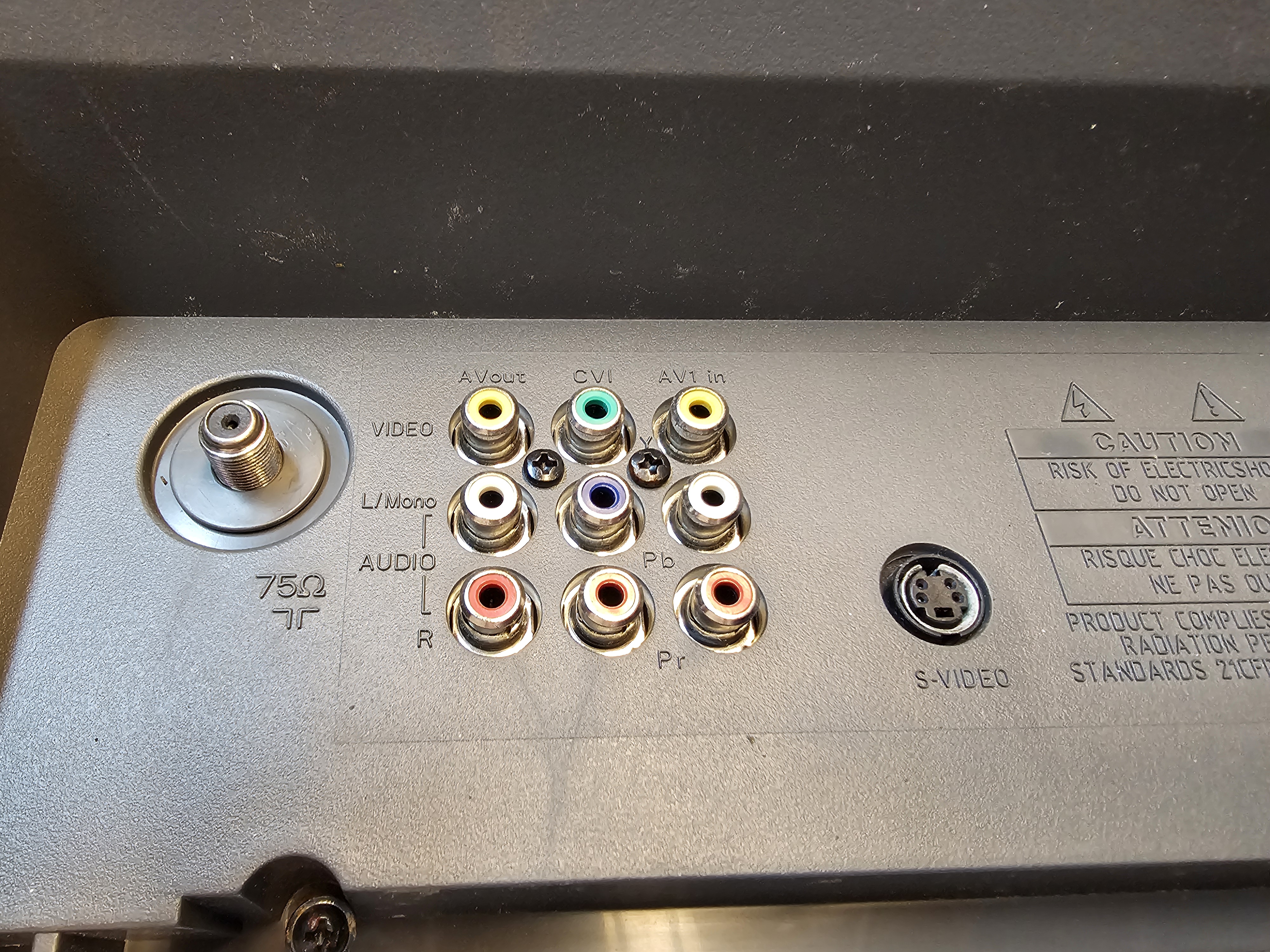

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle IC: | TDA9377PS |

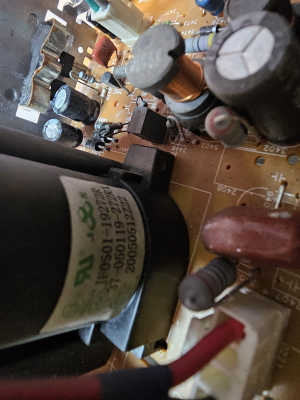

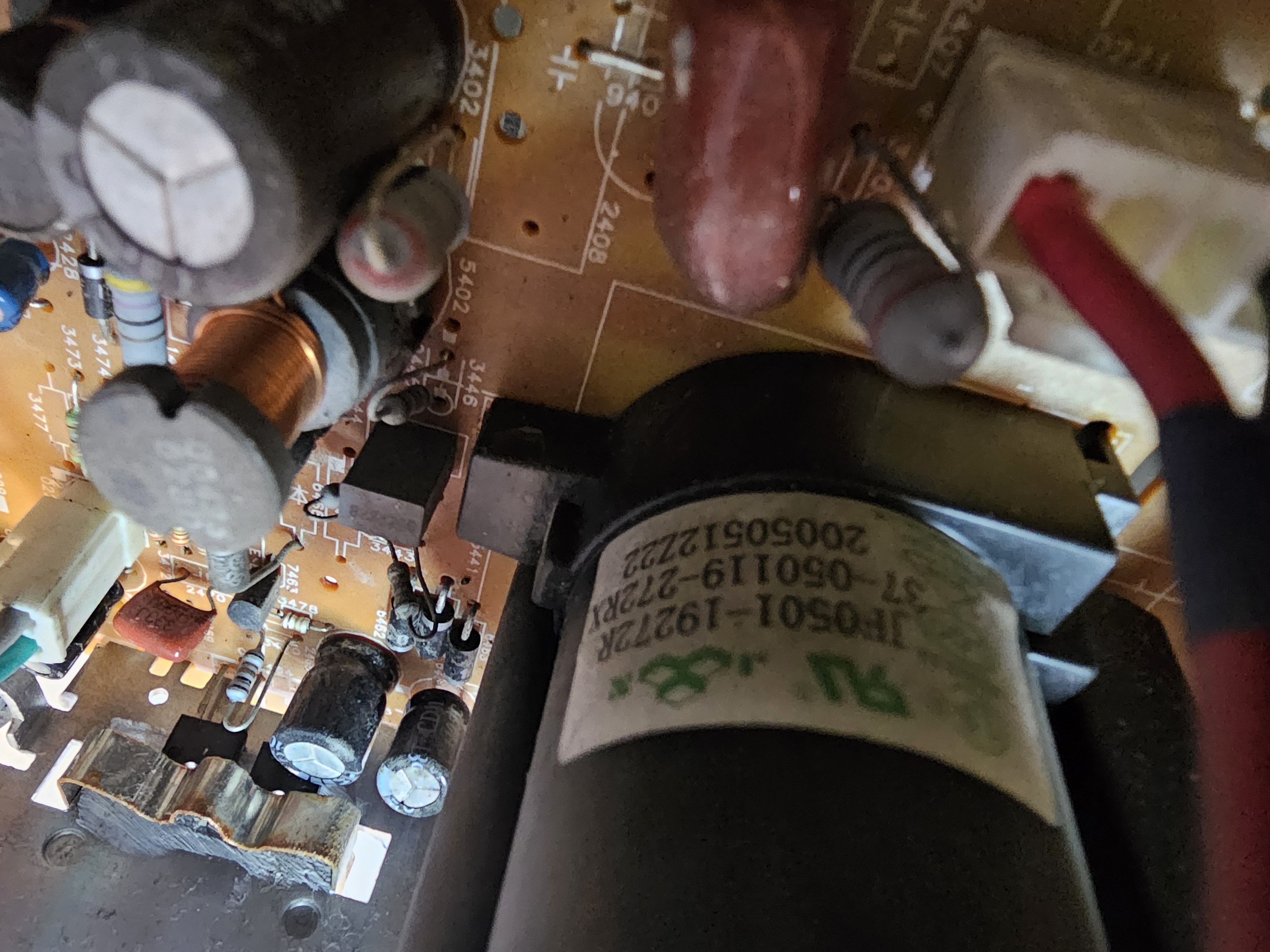

| Flyback: | JF0501-19272R |
| Focus Type: | Single |

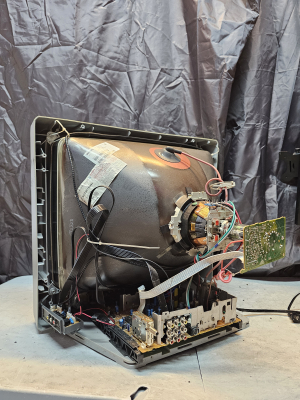

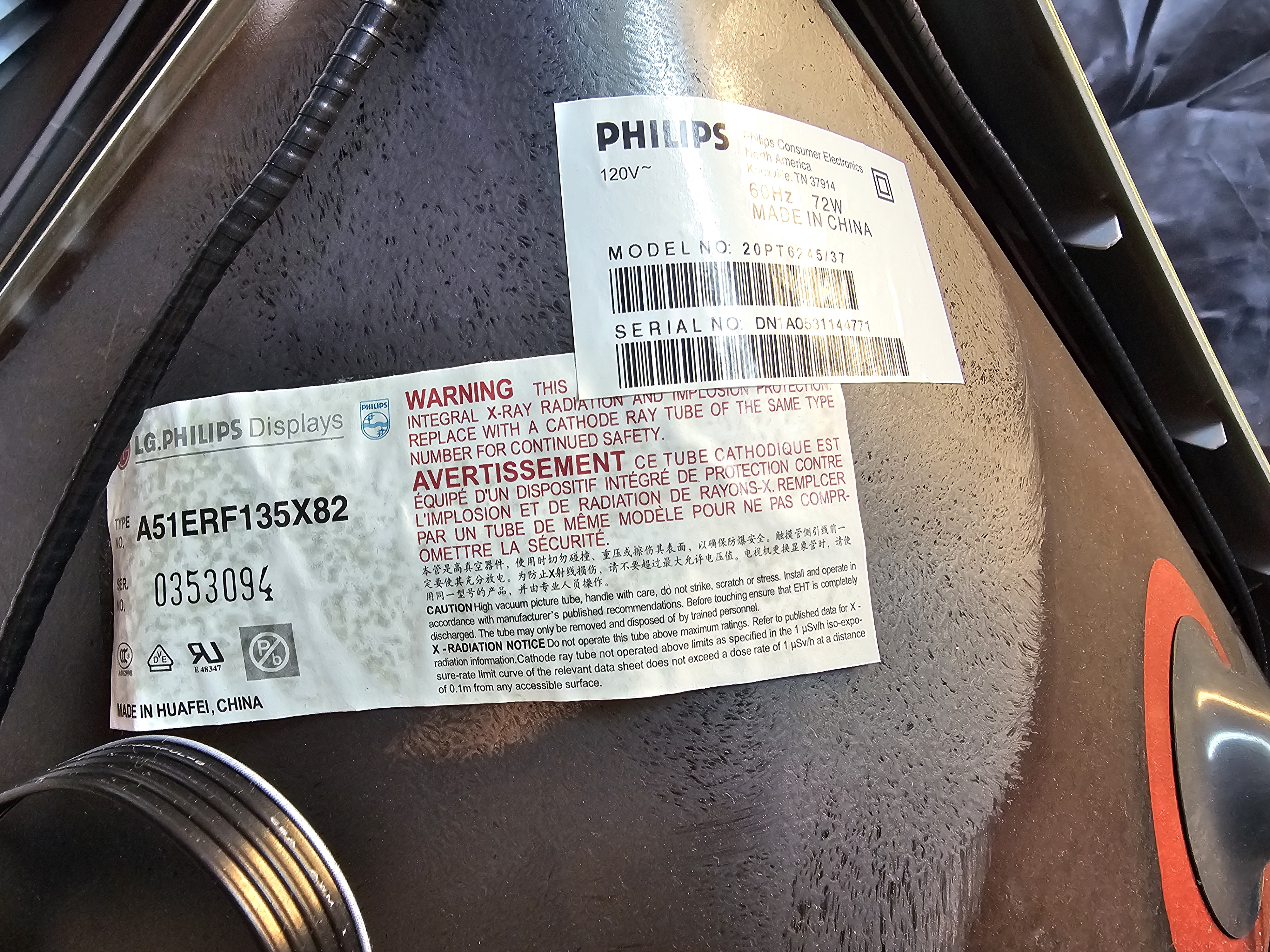

| Tube: | LG.Philips , A51ERF135X82 , A51ERF135X |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke: | AT6045/82 |
| Speakers: | Stereo, 3W x 2 |
| Weight: | 50.83 lbs (23.1 kg) |
| Dimensions (W/H/D): |
532 x 470 x 546 mm
(20.9 x 18.5 x 21.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2005 |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Pictures |
