Summary

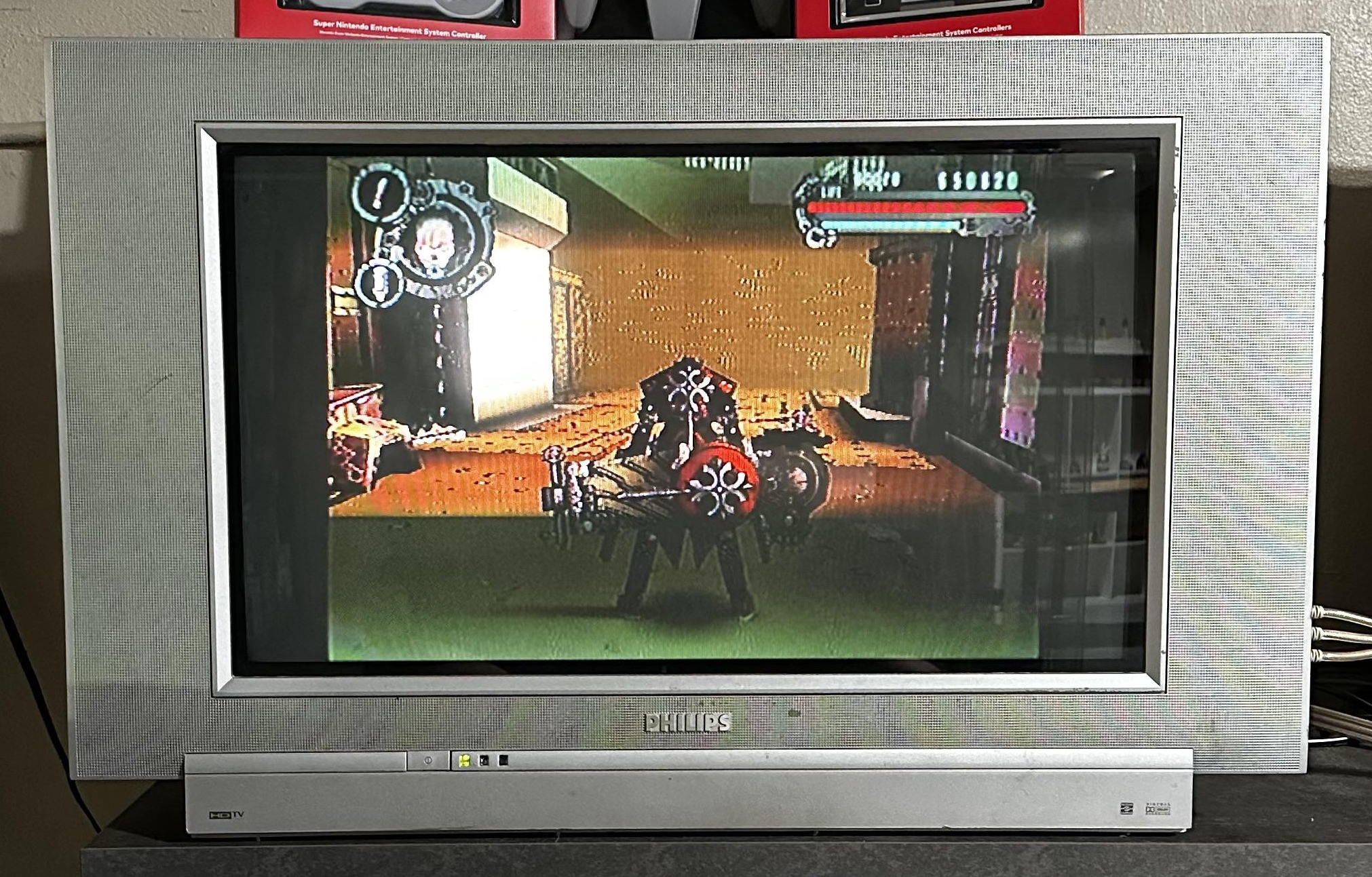

26" HD CRT by Philips. Originally manufactured in Mexico in 2004. Lacks HDMI input, unlike it's 30" brother.
Manuals
A02U AA Chassis Lag & Light Gun Testing
by Eli Krause
Both 480p and 1080i have less than 1 frame of lag at 9ms. This chassis does not accept 720p.
| 1080i HDMI & YPbPr | 480p HDMI & YPbPR | 480i/240p |
|---|---|---|
| <1 Frame (9ms) | <1 Frame (9ms) | 1 Frame |
For the Guncon 2 to work, you must switch to 2-point at the calibration screen by pointing the gun off-screen and pressing the trigger and the C button at the same time. House of the Dead III for the Xbox natively outputs 480p, but light guns do not work.
| Light Gun | NES Zapper | PS1 Guncon | PS2 Guncon 2 | Xbox Blaster |
|---|---|---|---|---|
| 240p/480i | ☓ | ☓ | ✓ | ☓ |
| 480p | - | - | - | ☓ |

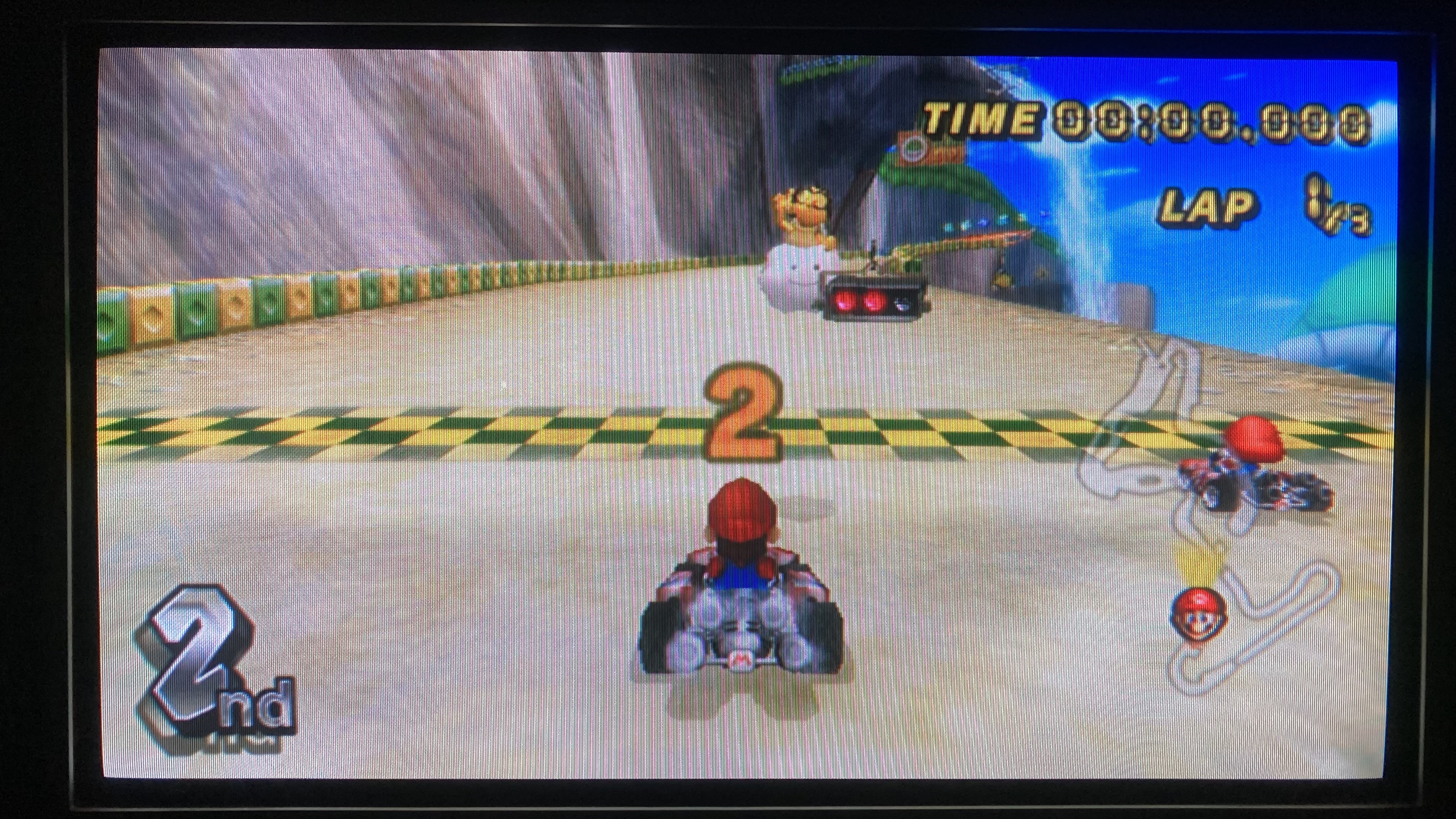

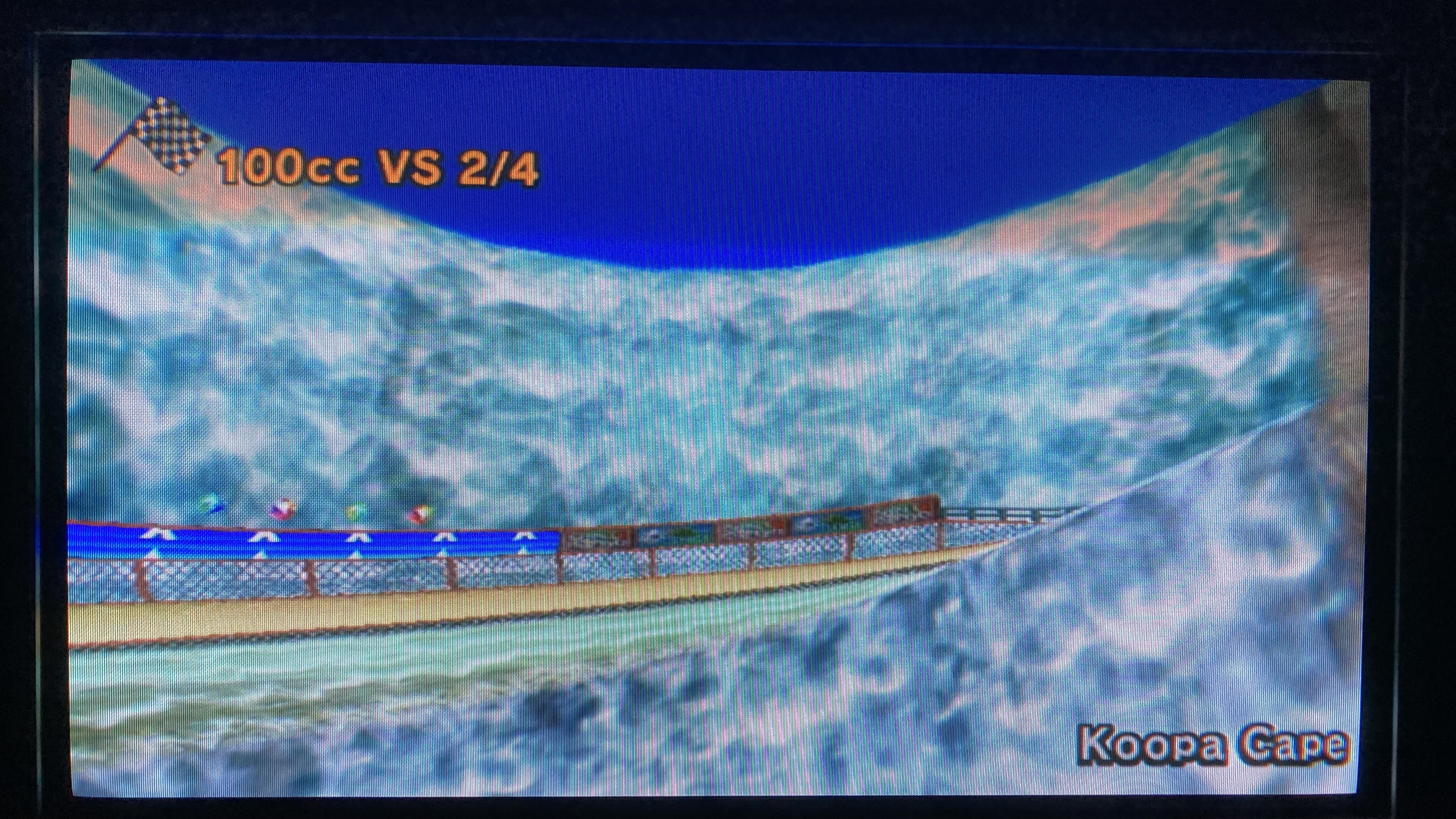

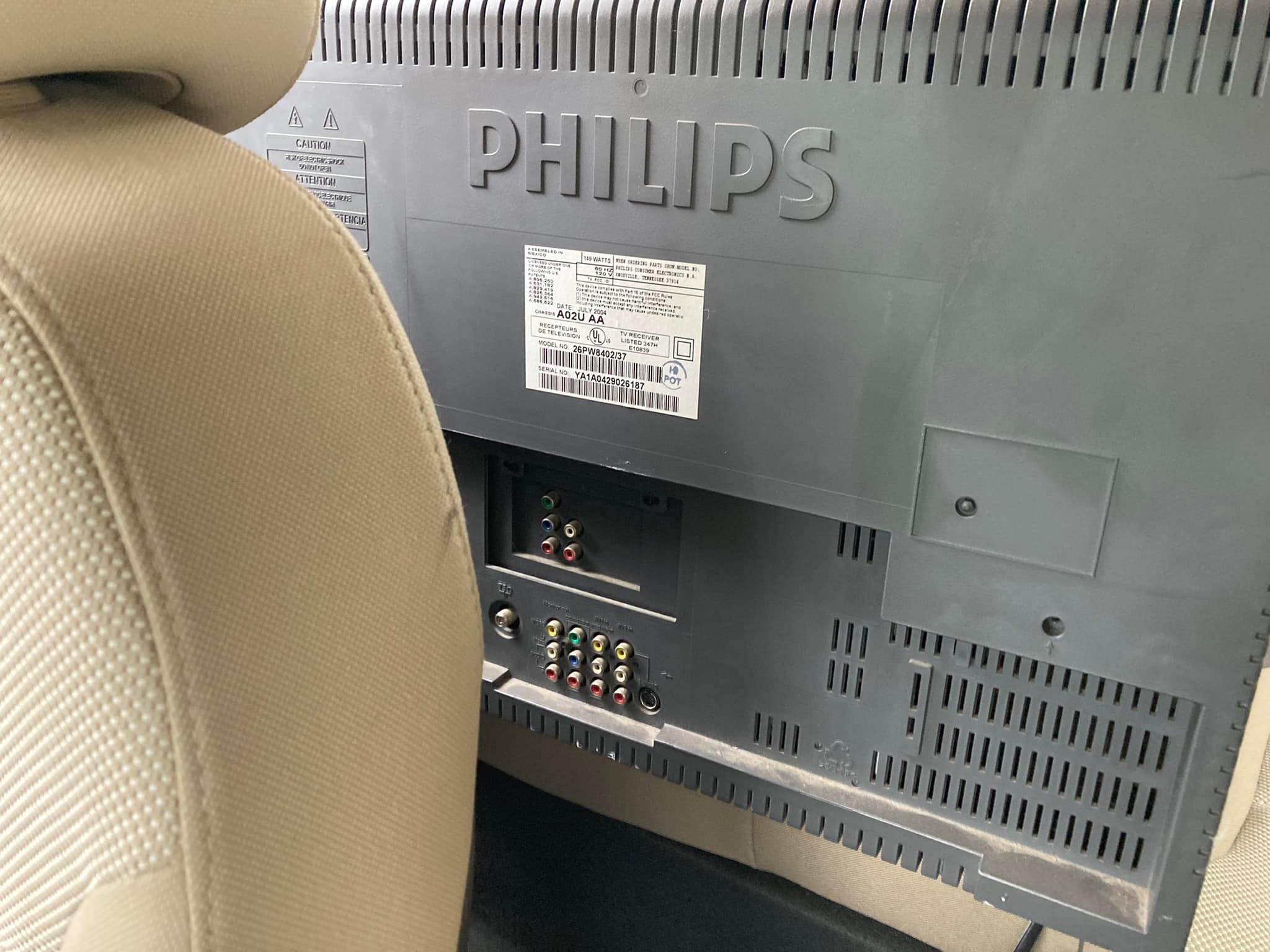

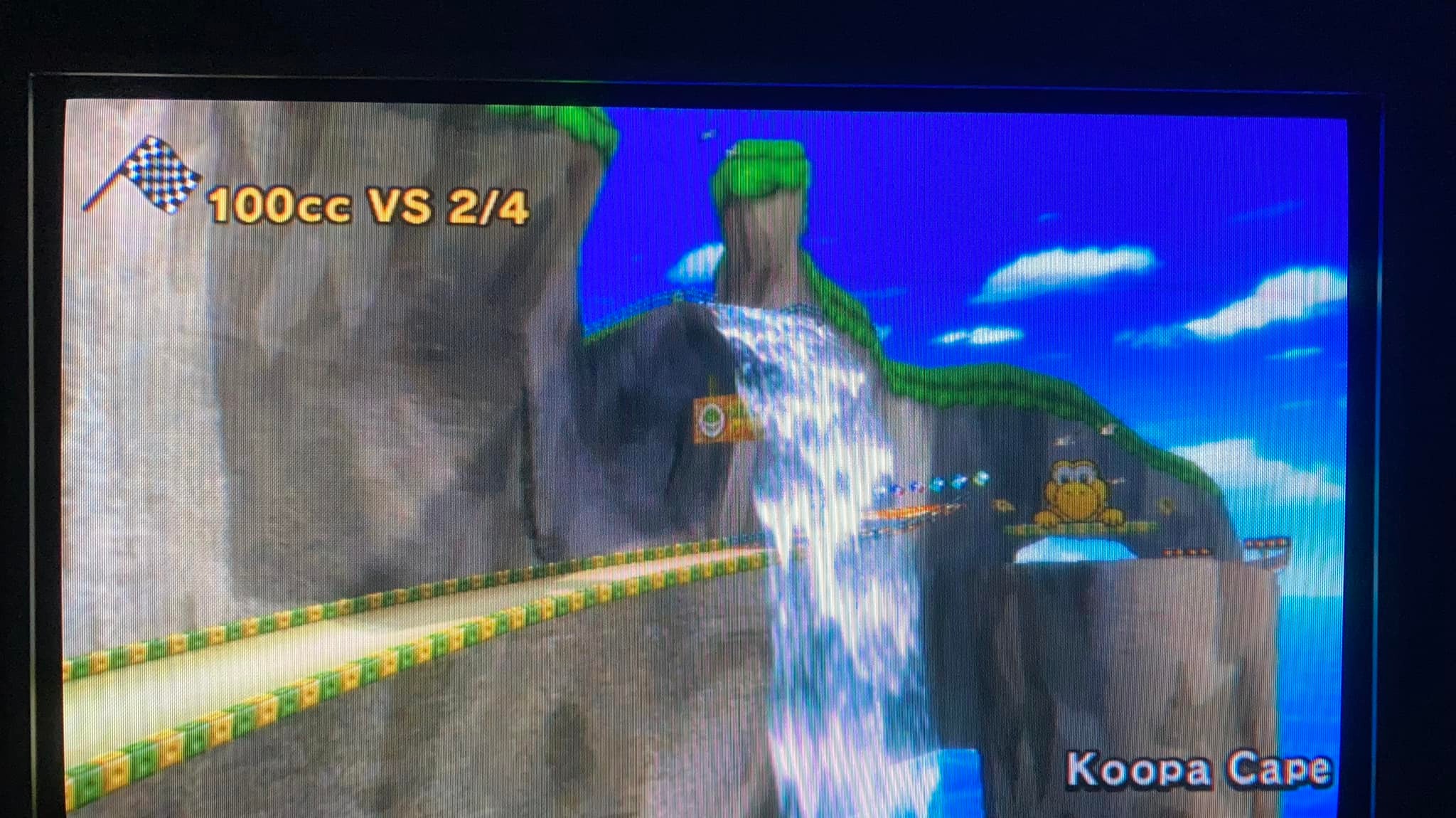

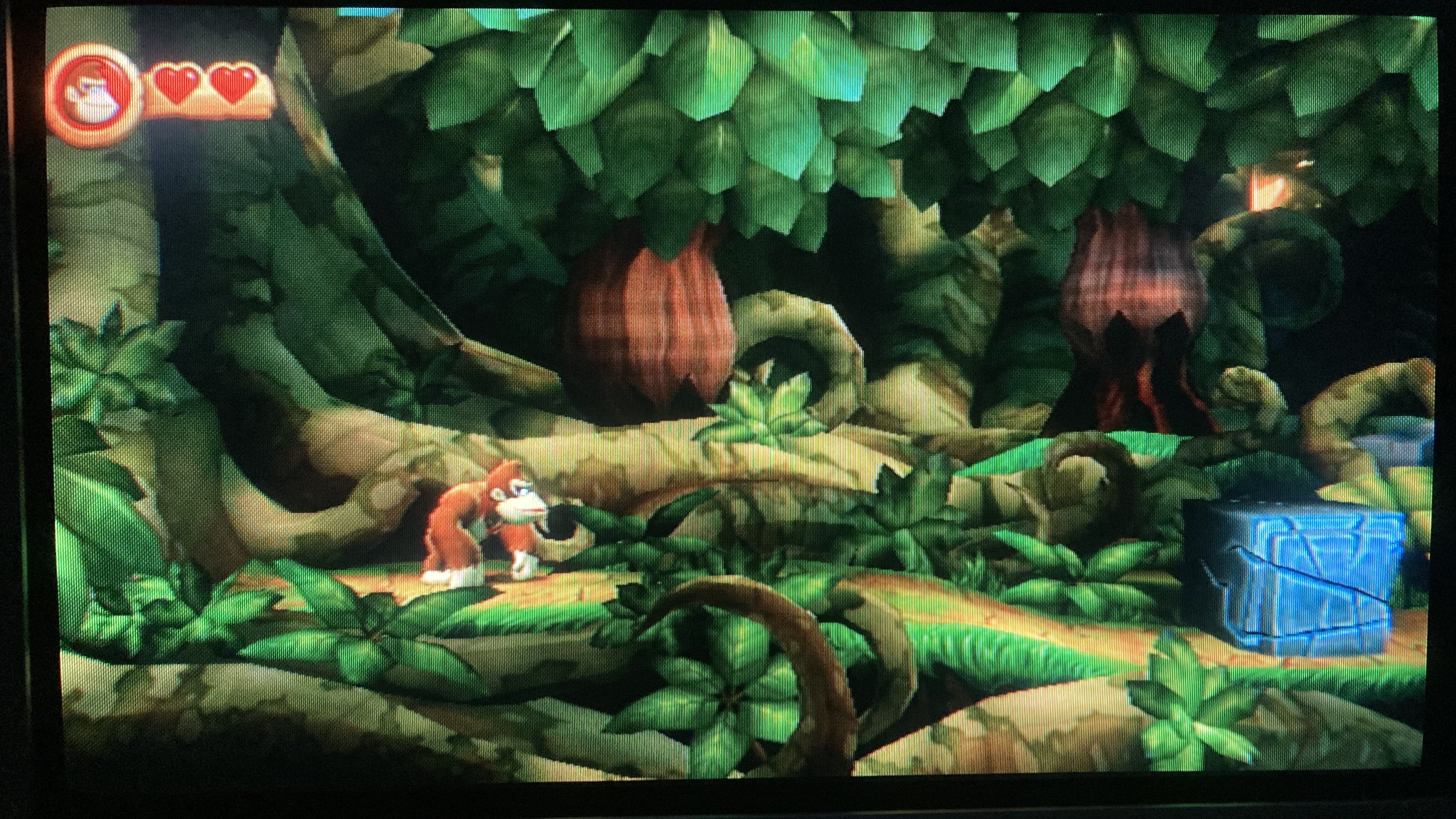

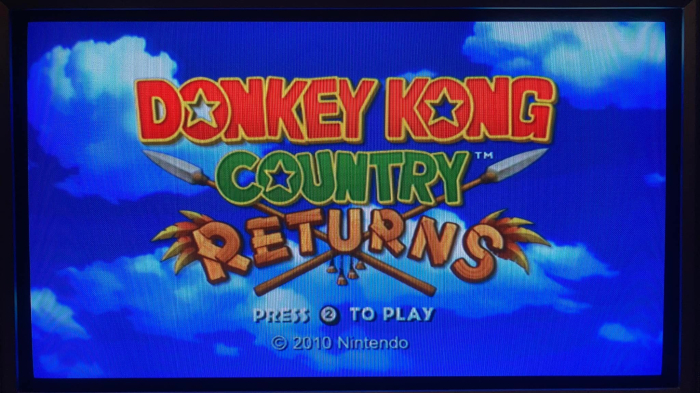

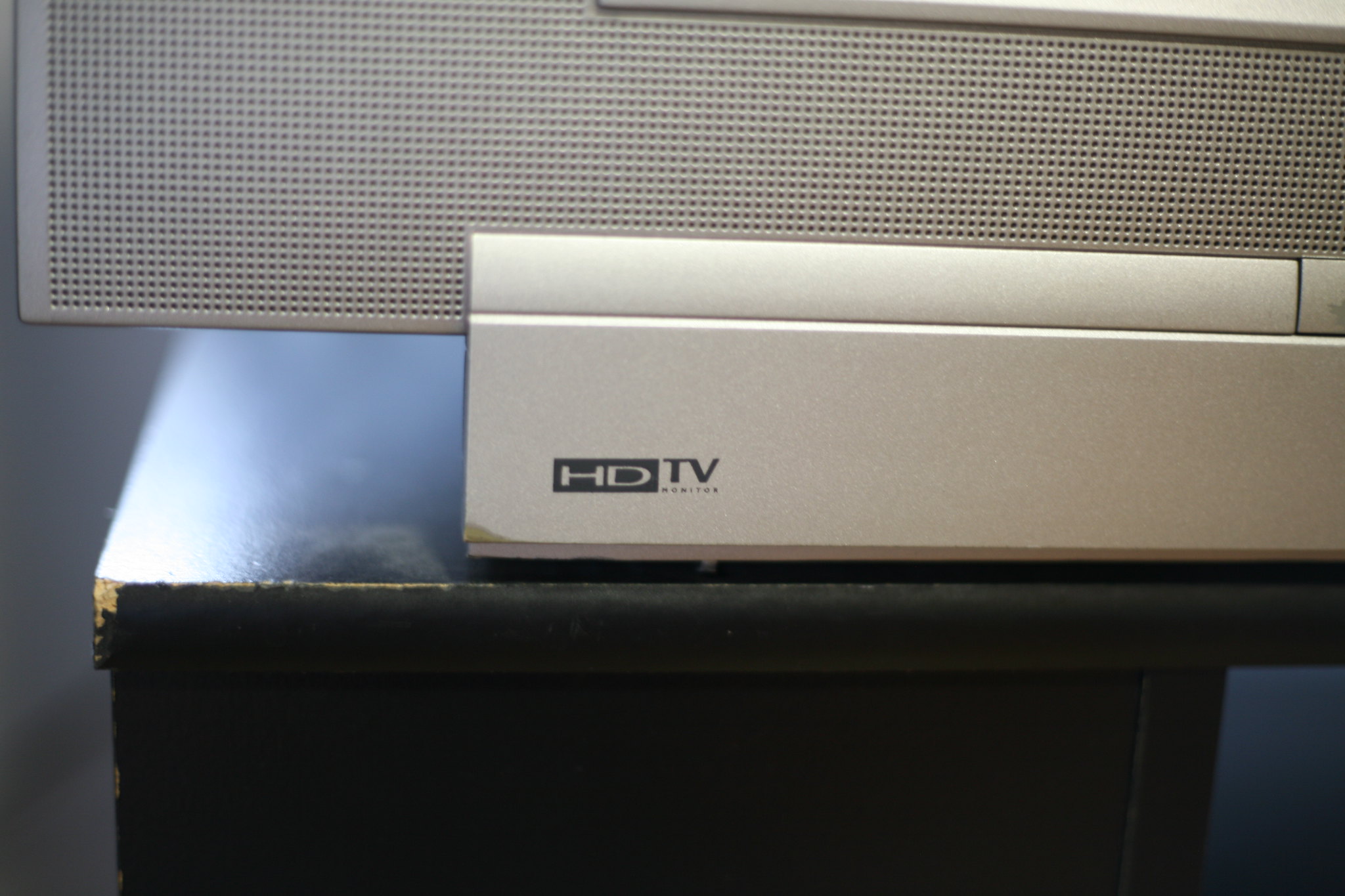

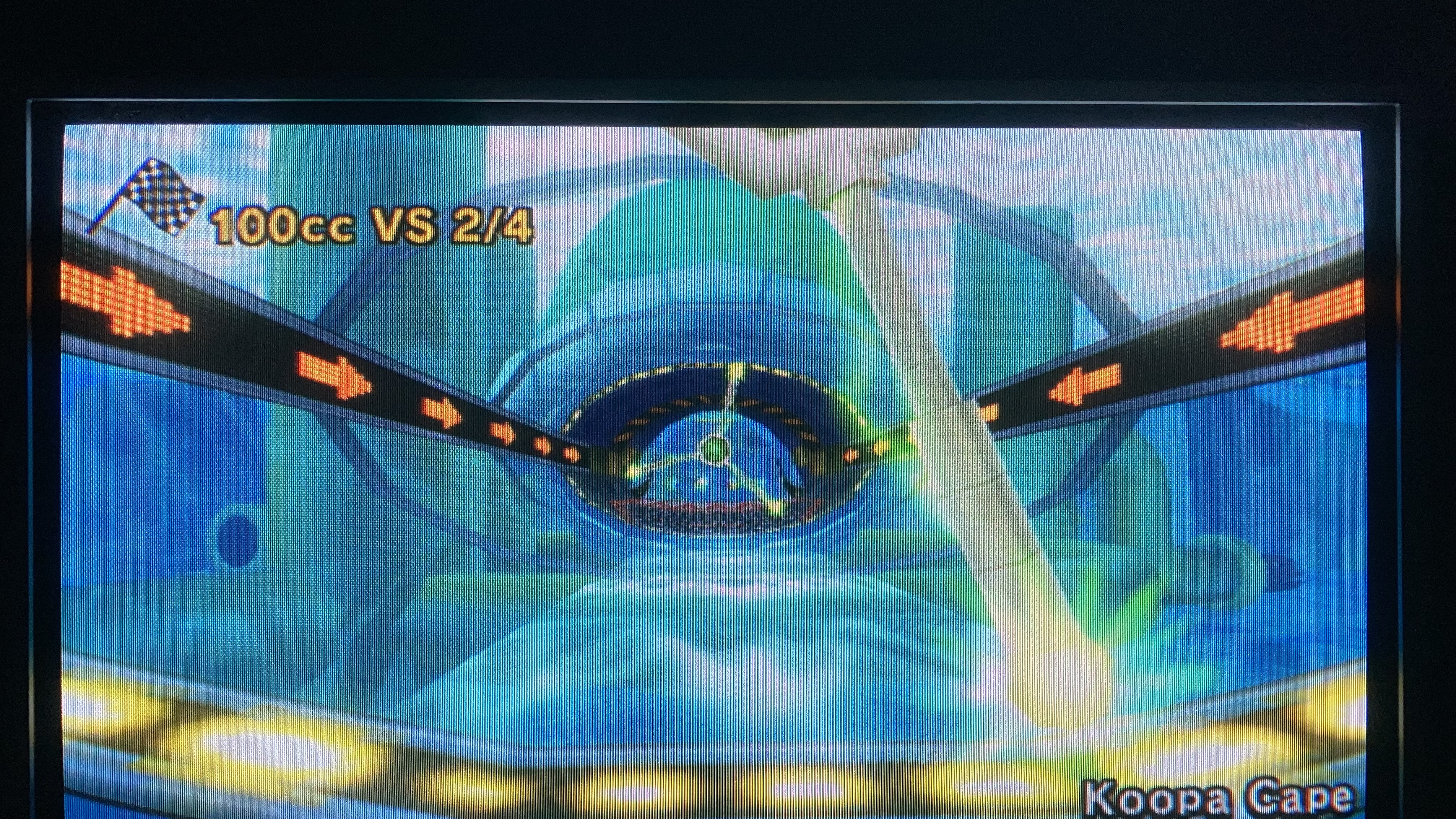

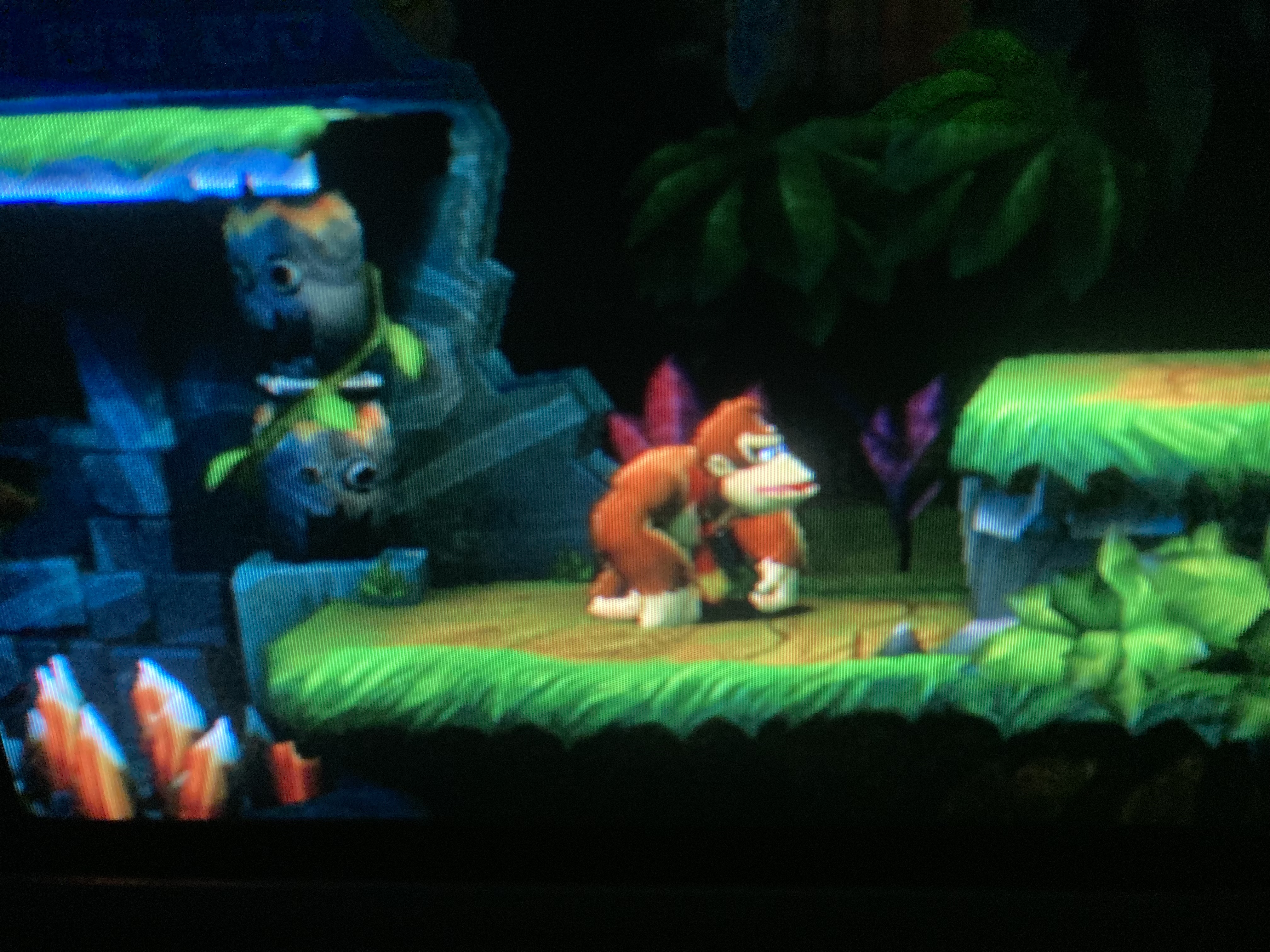

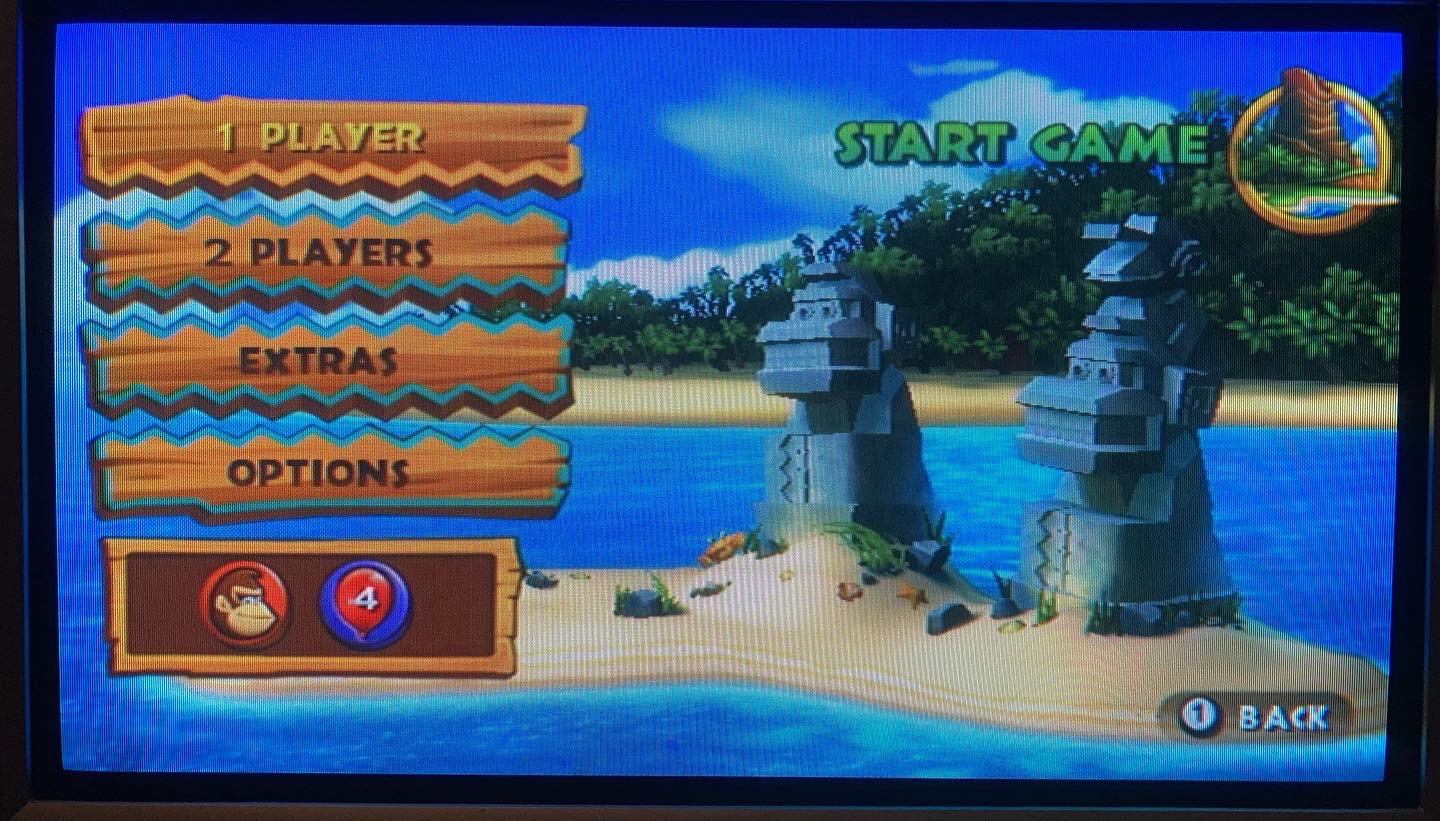

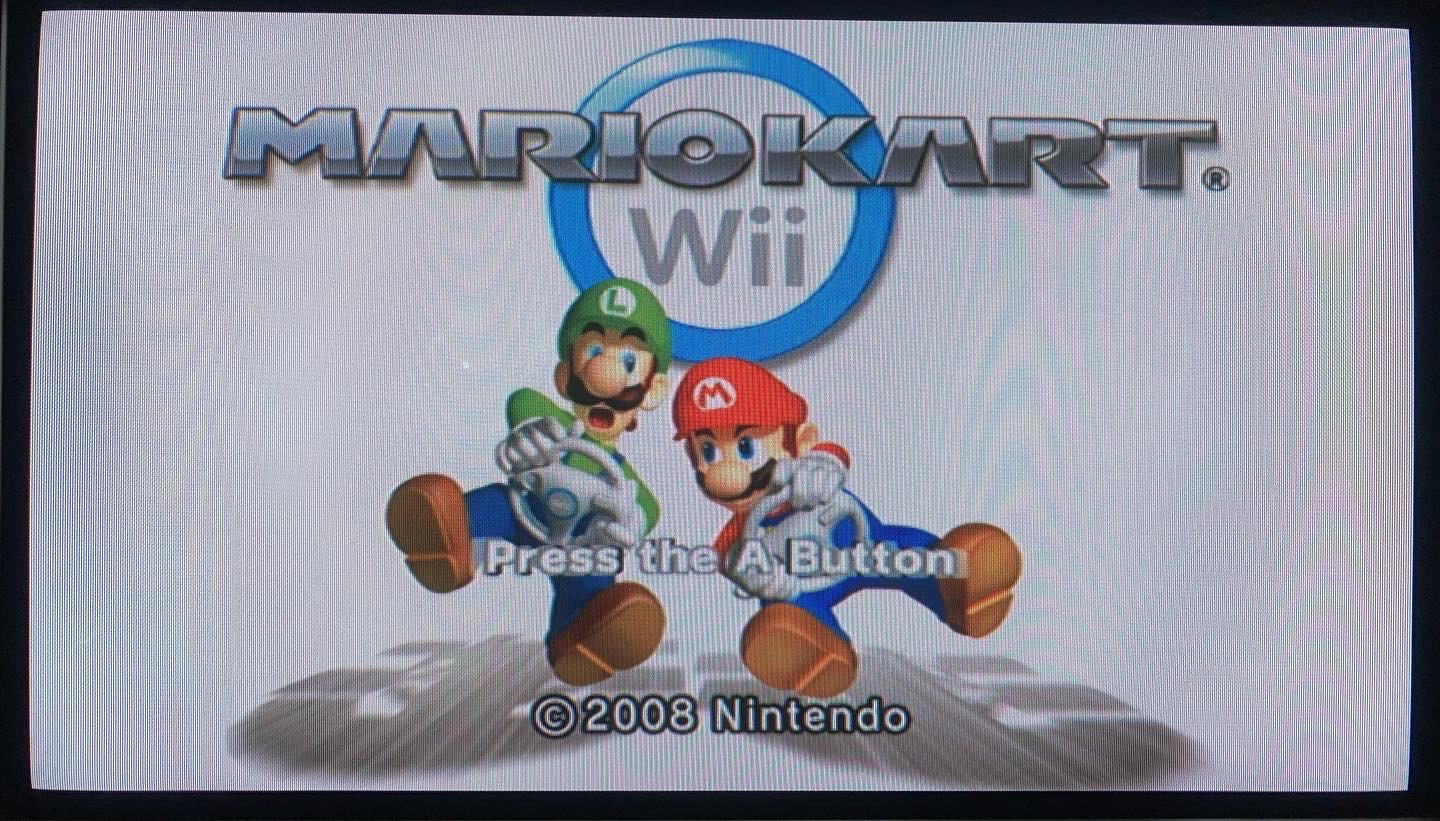

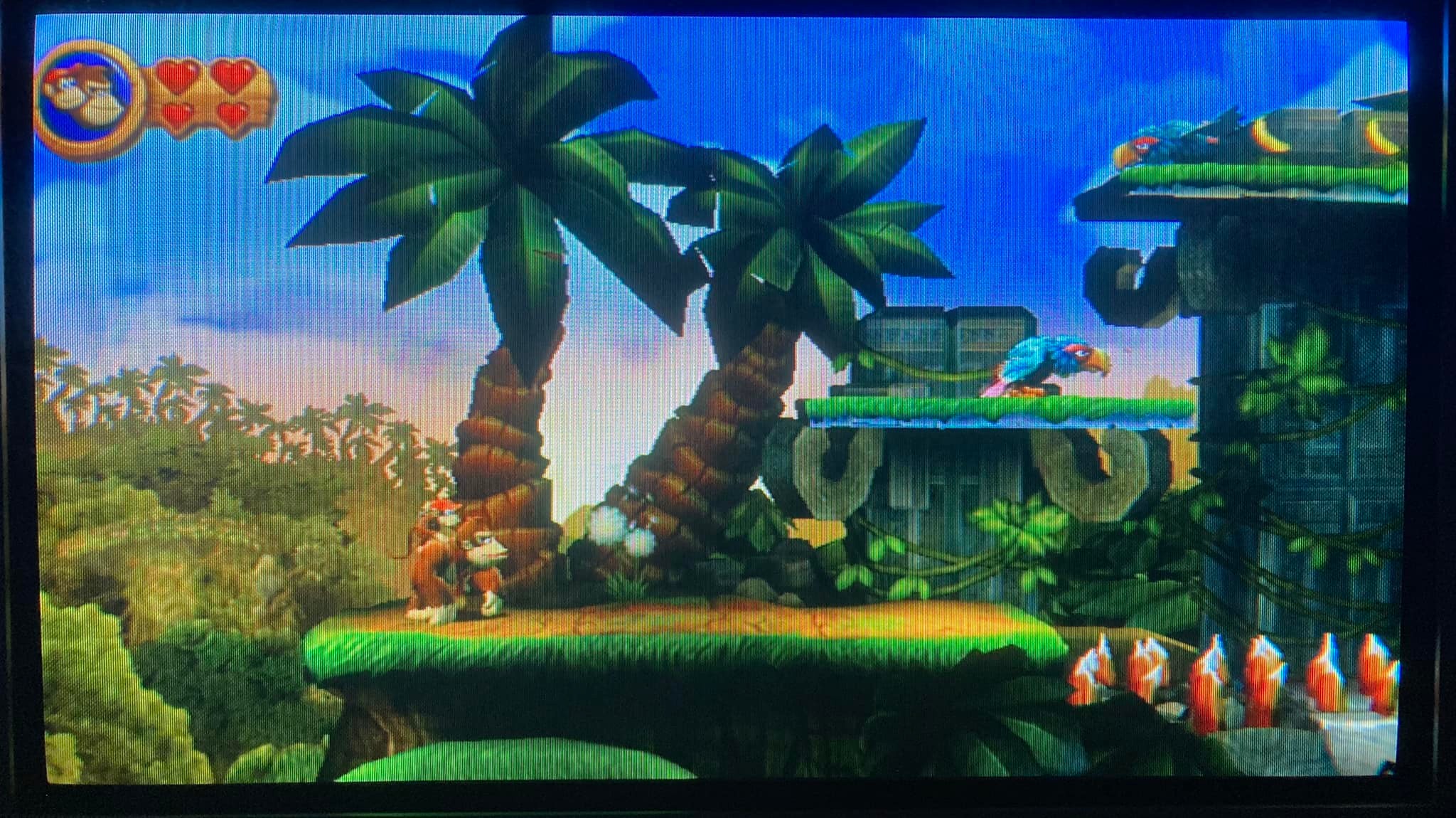

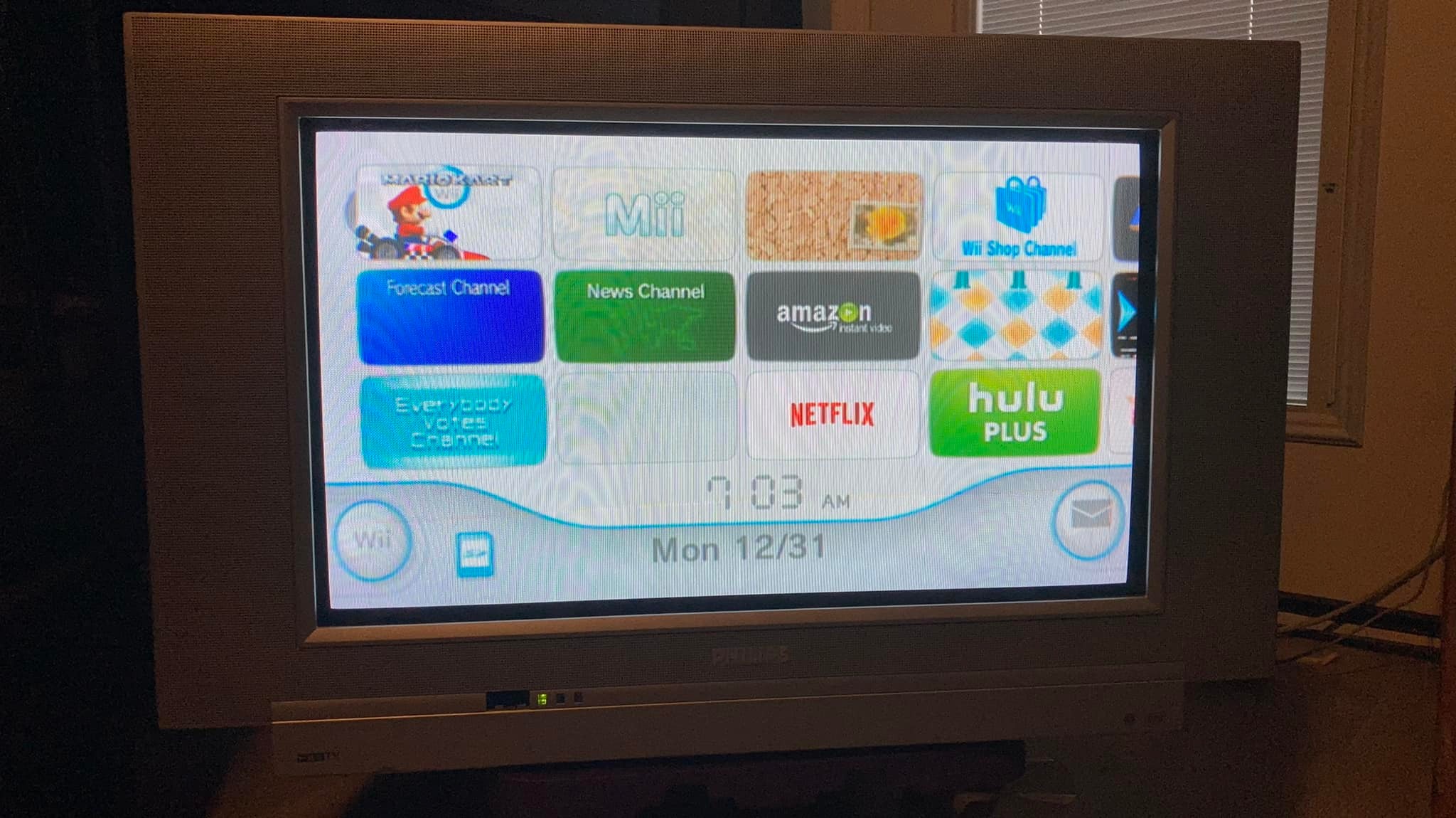

Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |
| Model: | 26PW8402/37 |
| Series: | RealFlat HD |
| Viewable Size: | 26" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 1080i, 480p |
| Scaled Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 33.75 kHz, 31.5 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | M-NTSC |
| Aspect: | 16:9 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | 2-Line Digital |
| Focus Type: | Single |
| Tube: | LG.Philips , W66ERF072x044 , W66ERF072X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | Yes |
| Speakers: | Stereo, 10W x 2 |
| Remote: | RC4331/01 |

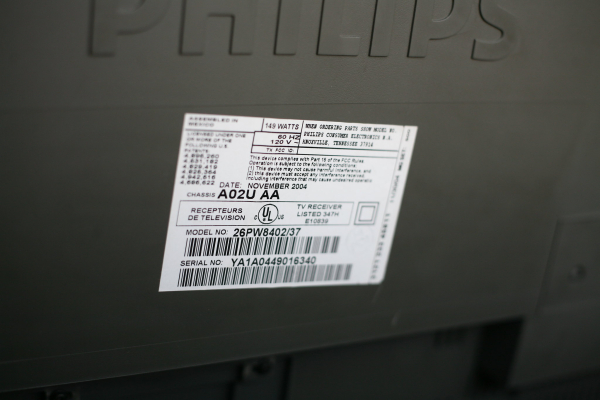

| Chassis: | A02U AA |
| Weight: | 88 lbs (39.9 kg) |
| Dimensions (W/H/D): |
805 x 516 x 513 mm
(31.6 x 20.3 x 20.2") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 599 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
