Philips 27PT543S37A
Mike Morisette
July 4, 2022, 3:24 am
July 4, 2022, 3:24 am
Summary

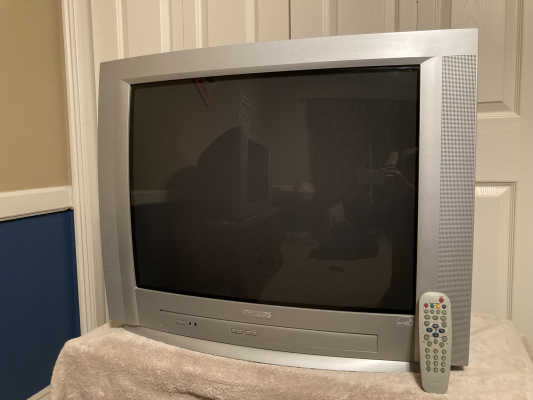

27" curved screen TV from Philips. Similar in design to JVC's D Series, the 27PT543S37A has excellent picture quality, especially through component video. The image is clean and sharp, with no edge enhancement artifacts.
Literature
Notes
This model has a service menu and can be adjusted using a standard remote.
Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |
| Model: | 27PT543S37A |
| Series: | Designer Series |
| Viewable Size: | 27" |
| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Resolutions: | 240p, 480i |
| Horizontal Max: | 15 kHz |
| Vertical Max: | 60 Hz, 50 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Flyback: | 1342.0043B |
| Tube: | LG Philips , A68AJB82X11 |
| Deflection: | 100 deg. |
| Mask: | Slot |
| Tint: | Dark |
| Speakers: | Stereo |
| Remote: | RC19335004/01 |
| Chassis: | L01.1U AC |
| Weight: | 73.9 lbs (34 kg) |
| Application: | Consumer |
| Launched: | 2003 |
| Country of Manufacture: | Mexico |
| Degaussing: | Automatic on Power-on |
