Summary

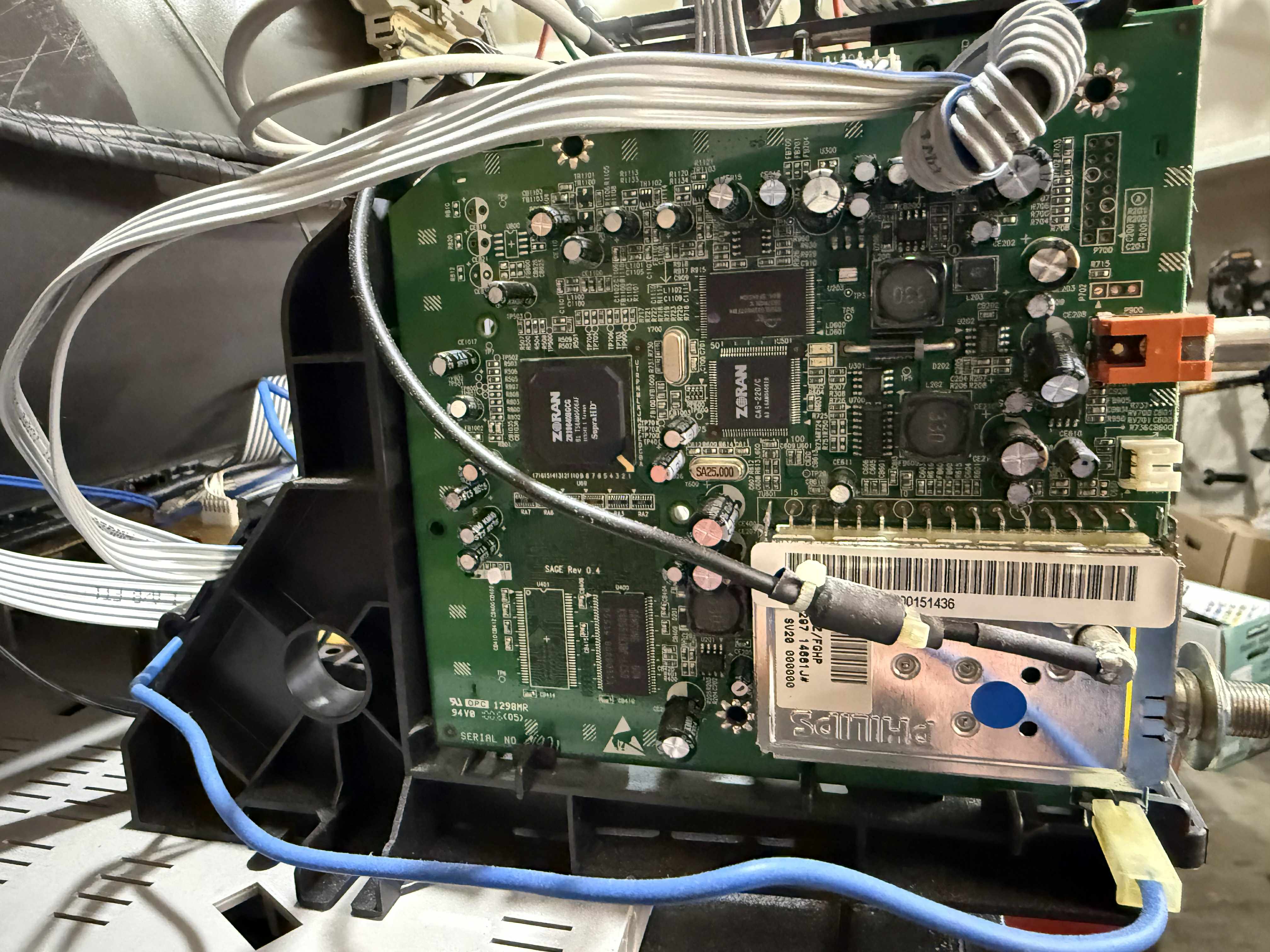

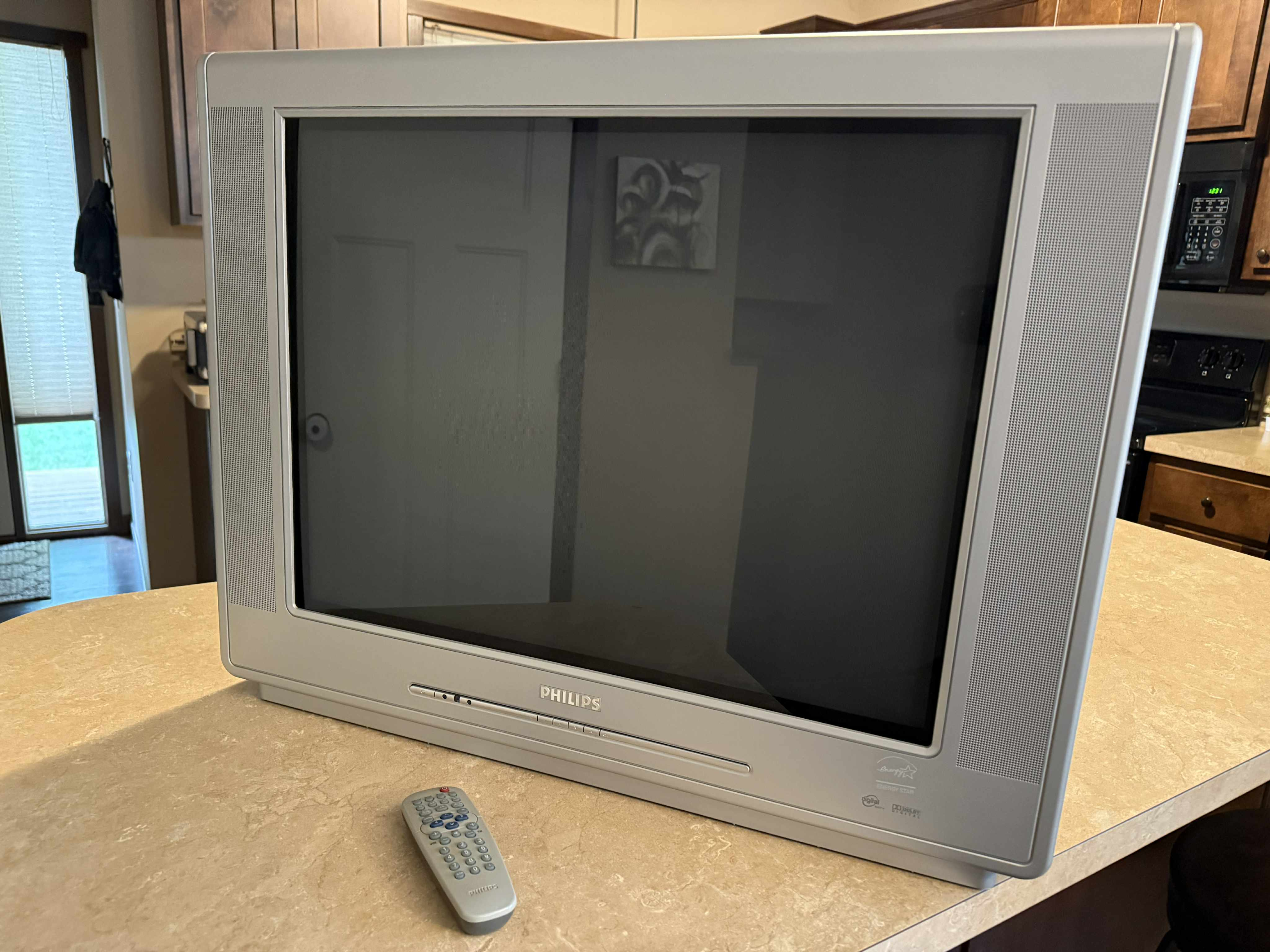

Late 27" flat CRT by Philips, made in Mexico in 2006. Has a full set of inputs: RF, composite, s-video and component. The "D" in the model number indicates it has a digital tuner.
(Special thanks to Kyle L. for some of the pics!)
Manuals
Notes

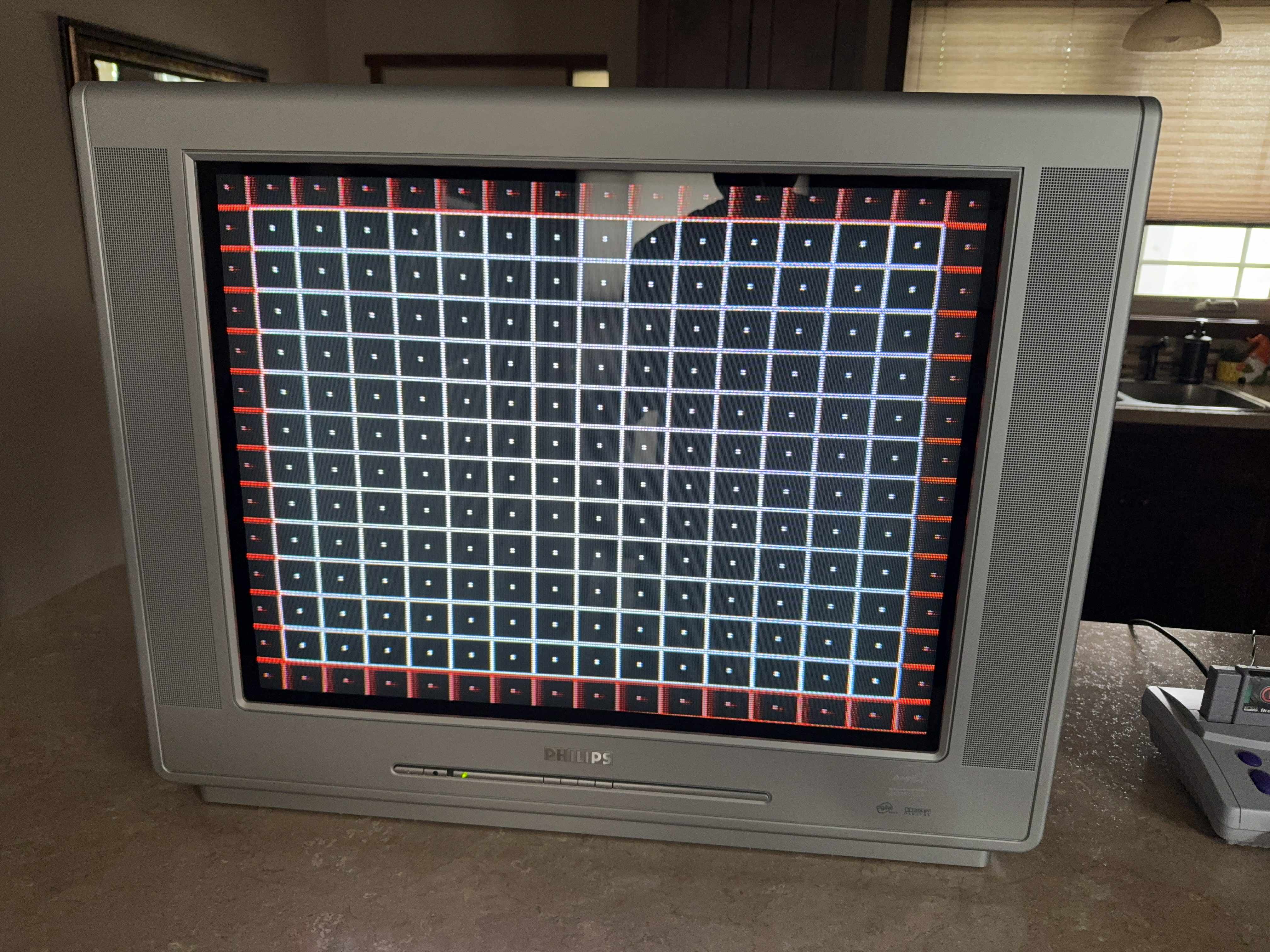

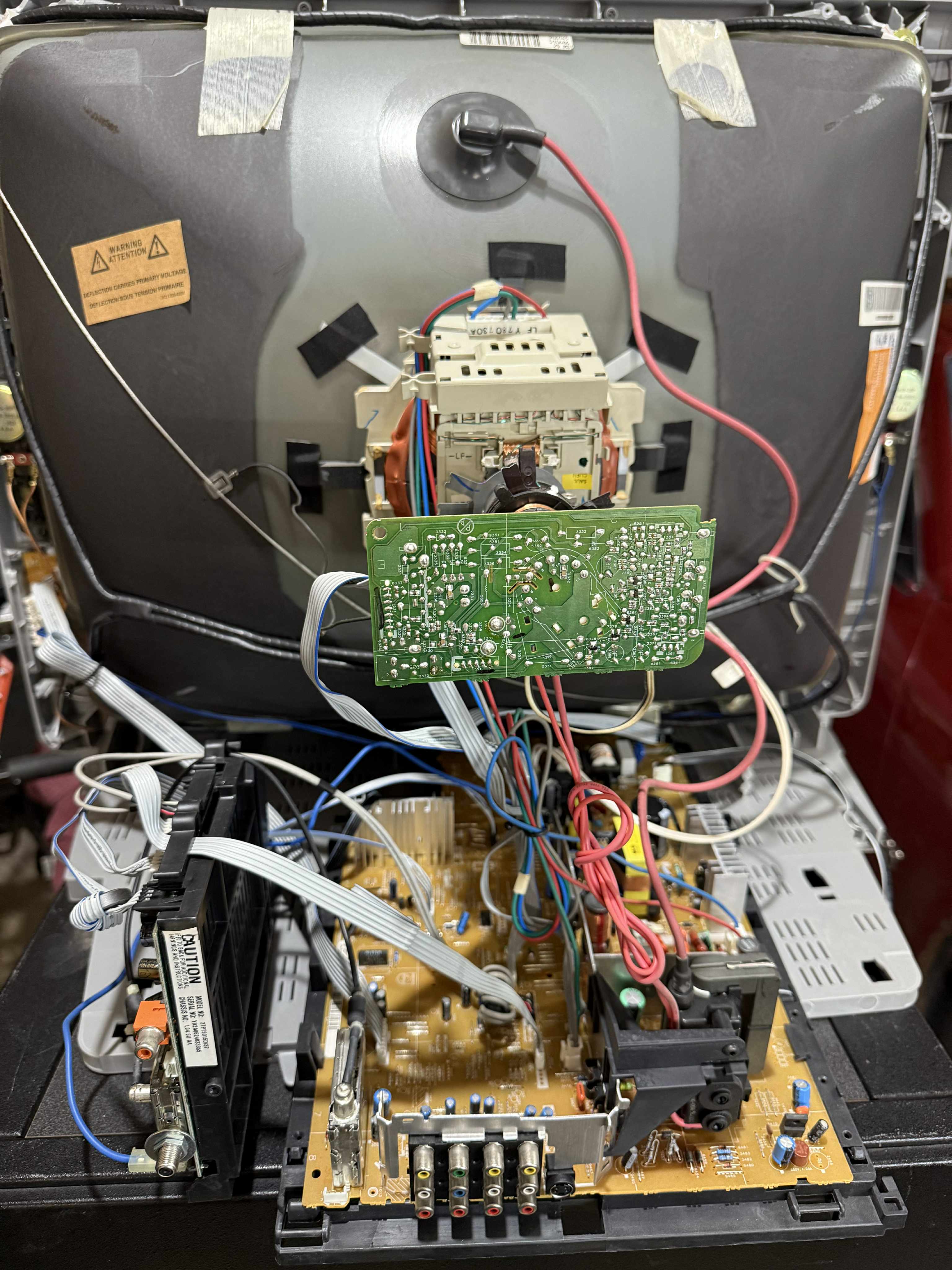

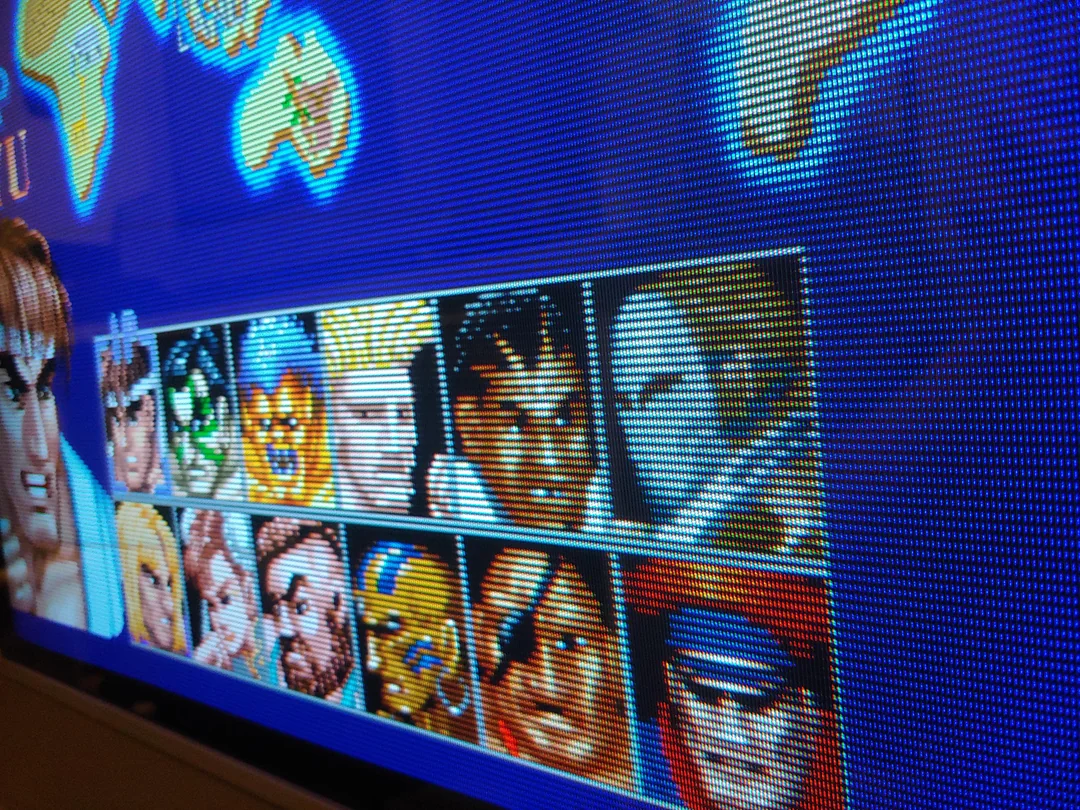

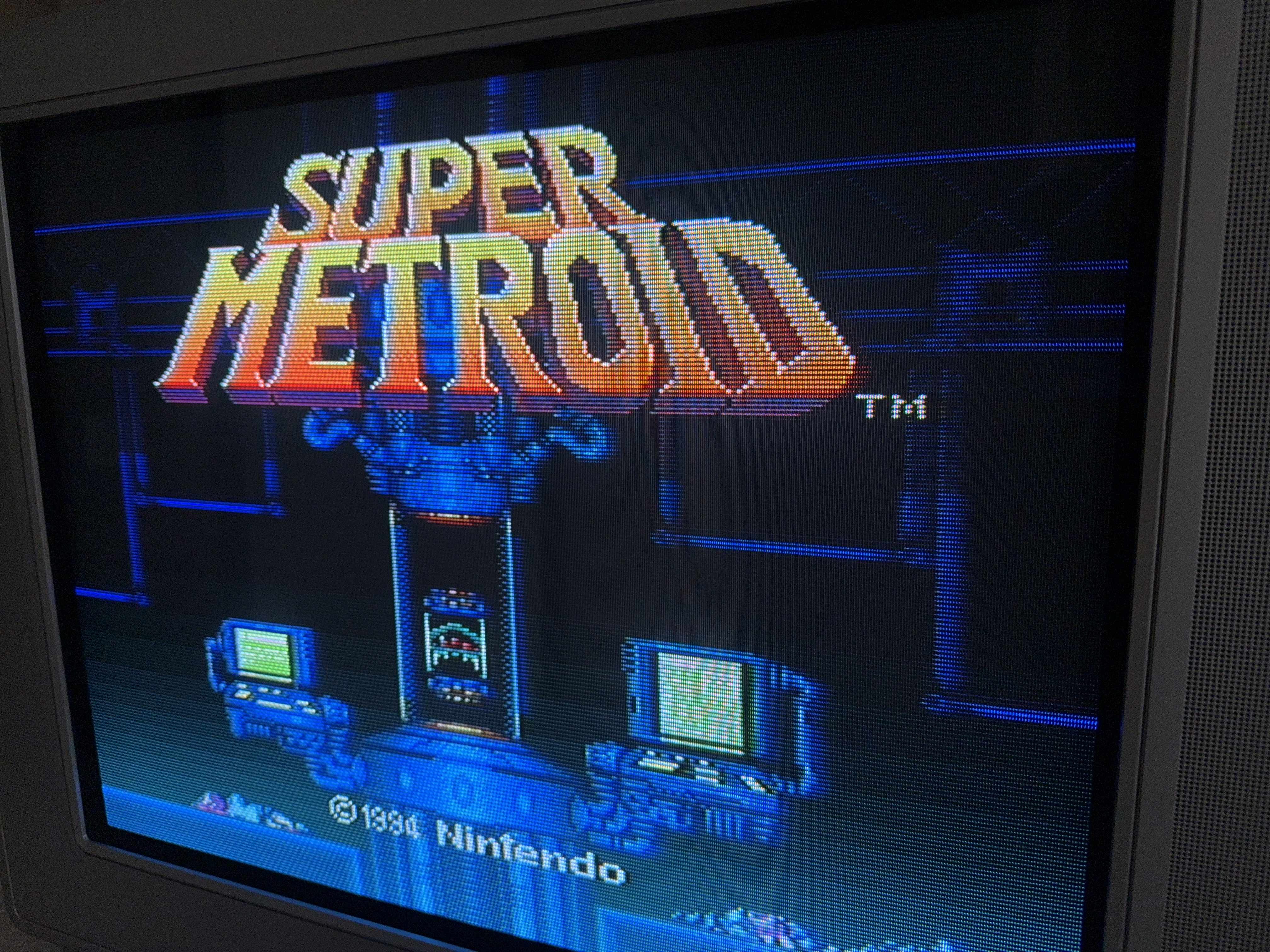

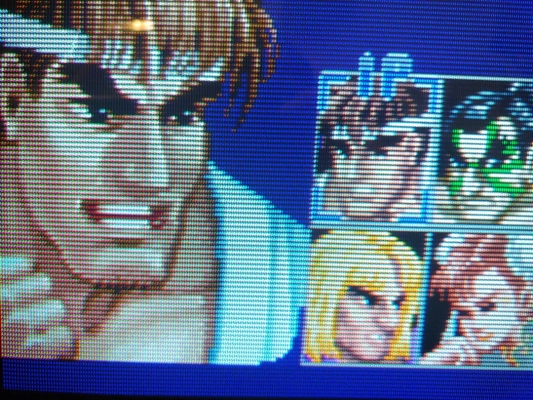

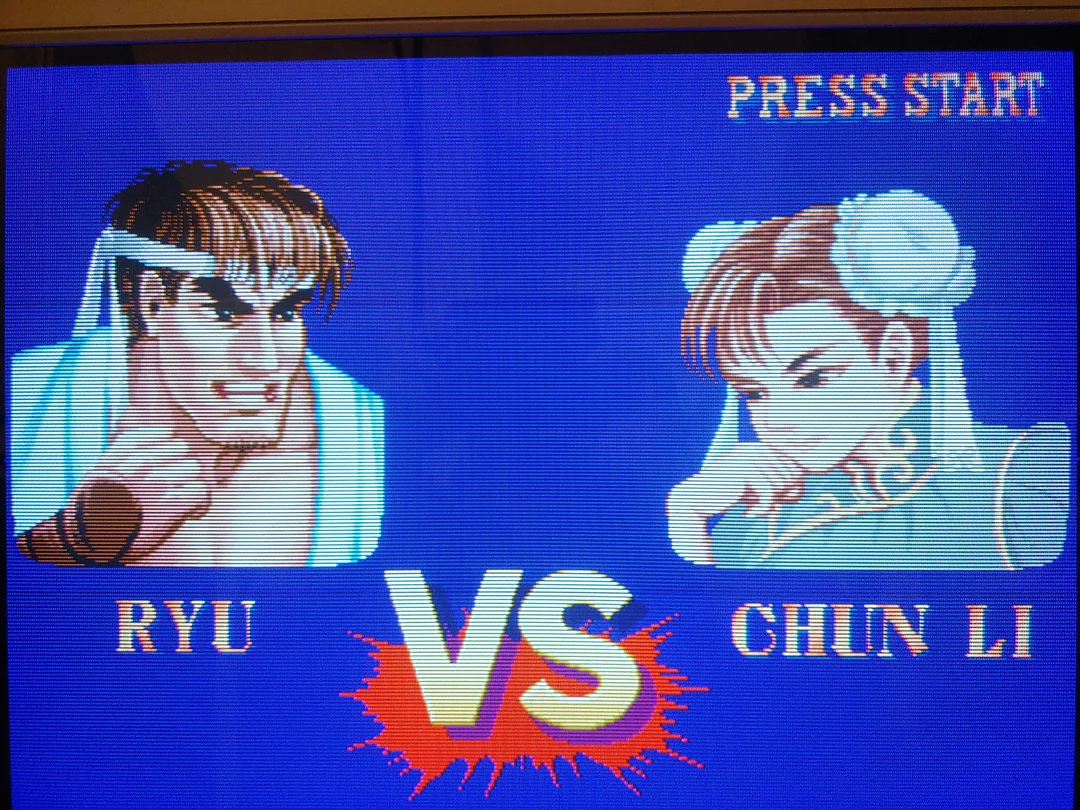

Picture quality is good, but there is some VM that may irk some. Only way top disable it is to pull the jumper from the neckboard that is injecting it.
Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |

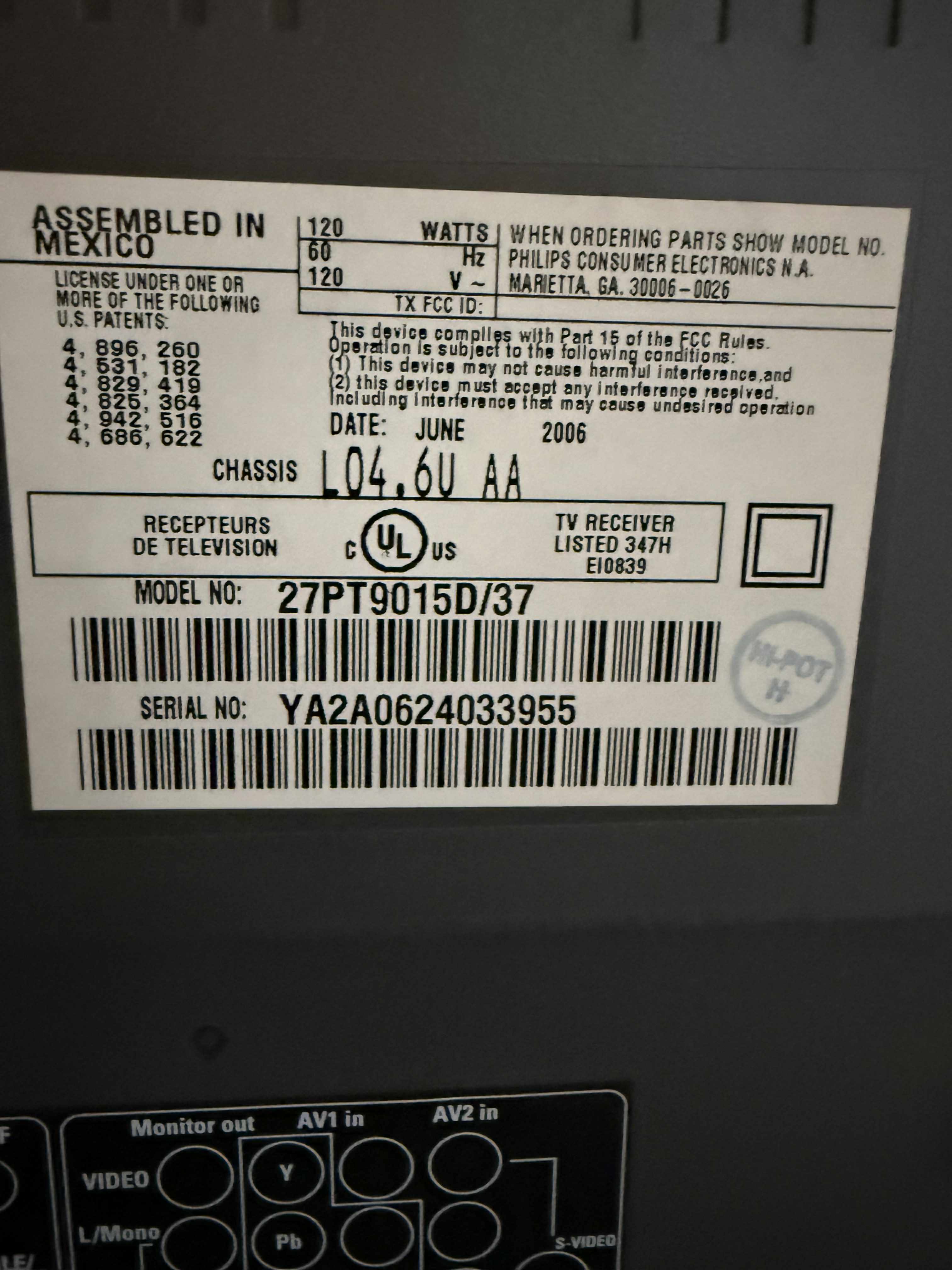

| Model: | 27PT9015D/37 |
| Series: | PT |
| Viewable Size: | 27" |

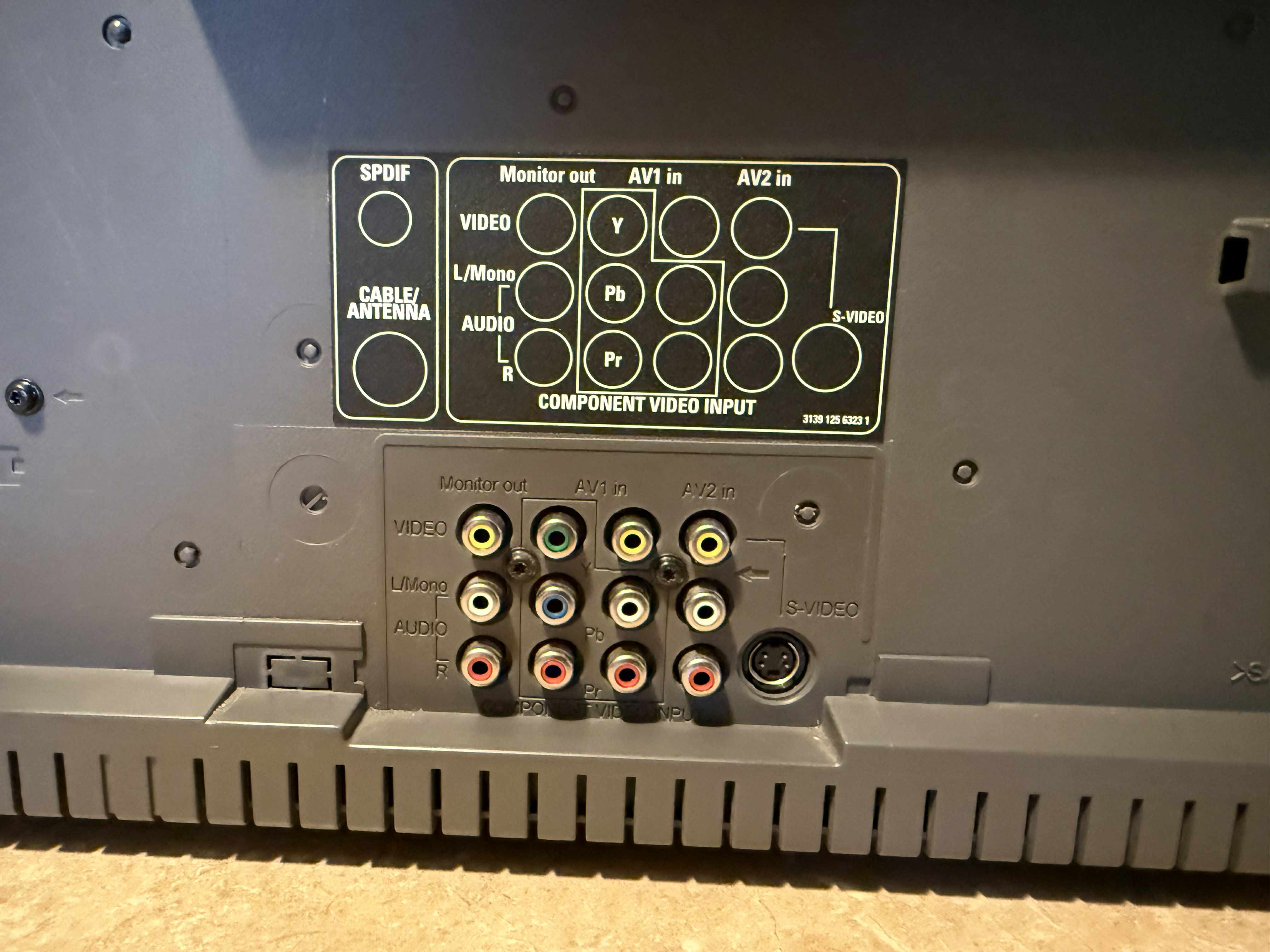

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Jungle: | Philips, TDA12001H1, TDA12001 |
| Focus Type: | Single |

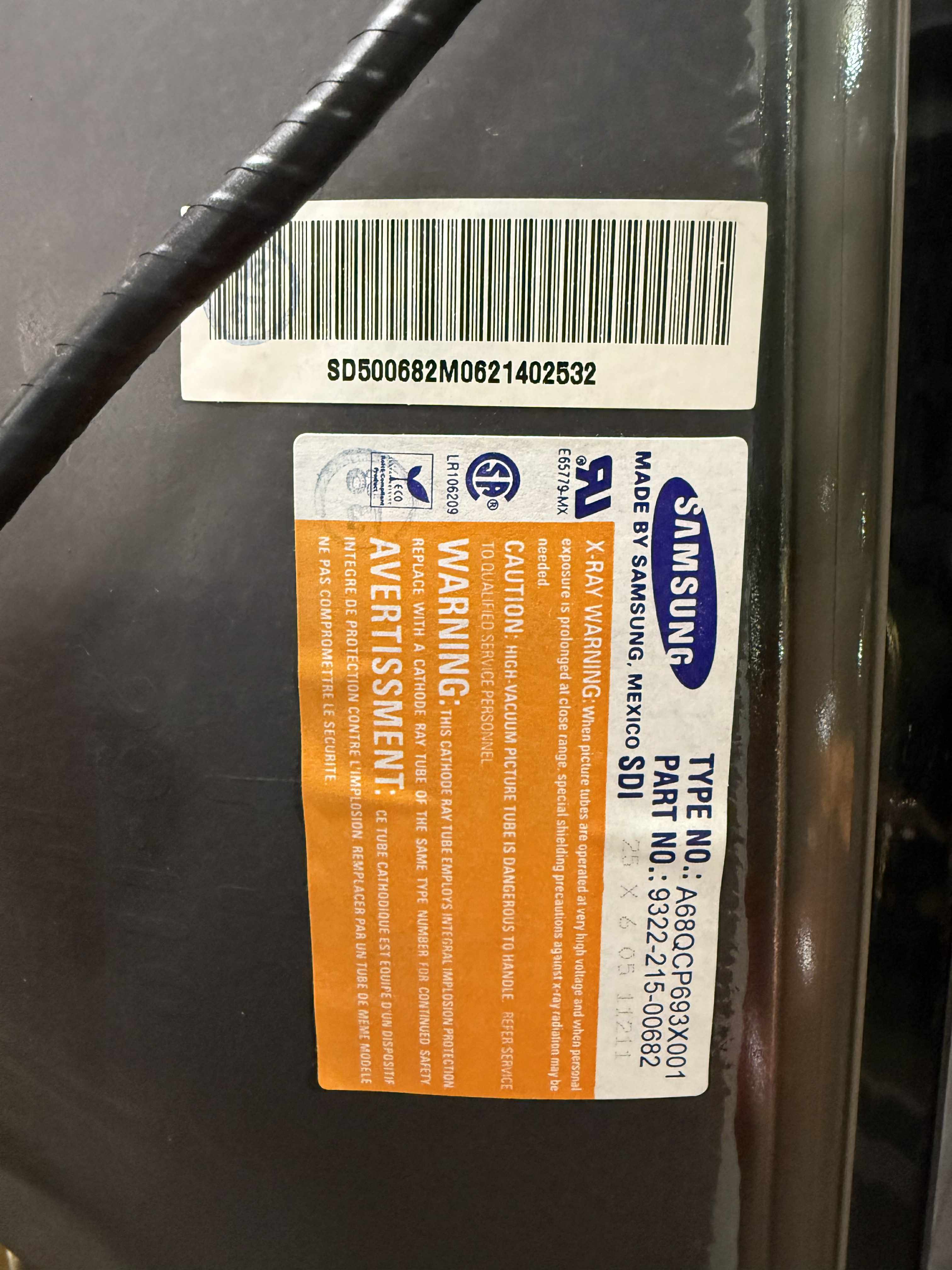

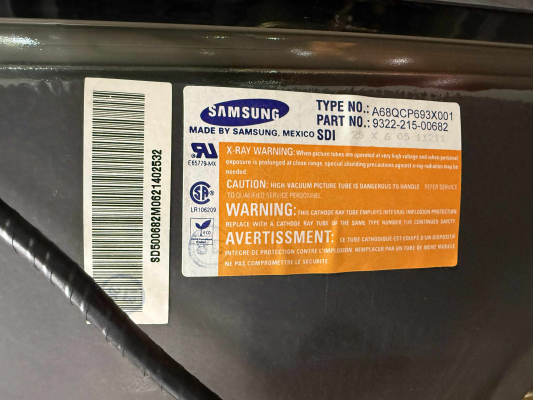

| Tube: | Samsung , A68QCP693X , A68QCP693X001 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |

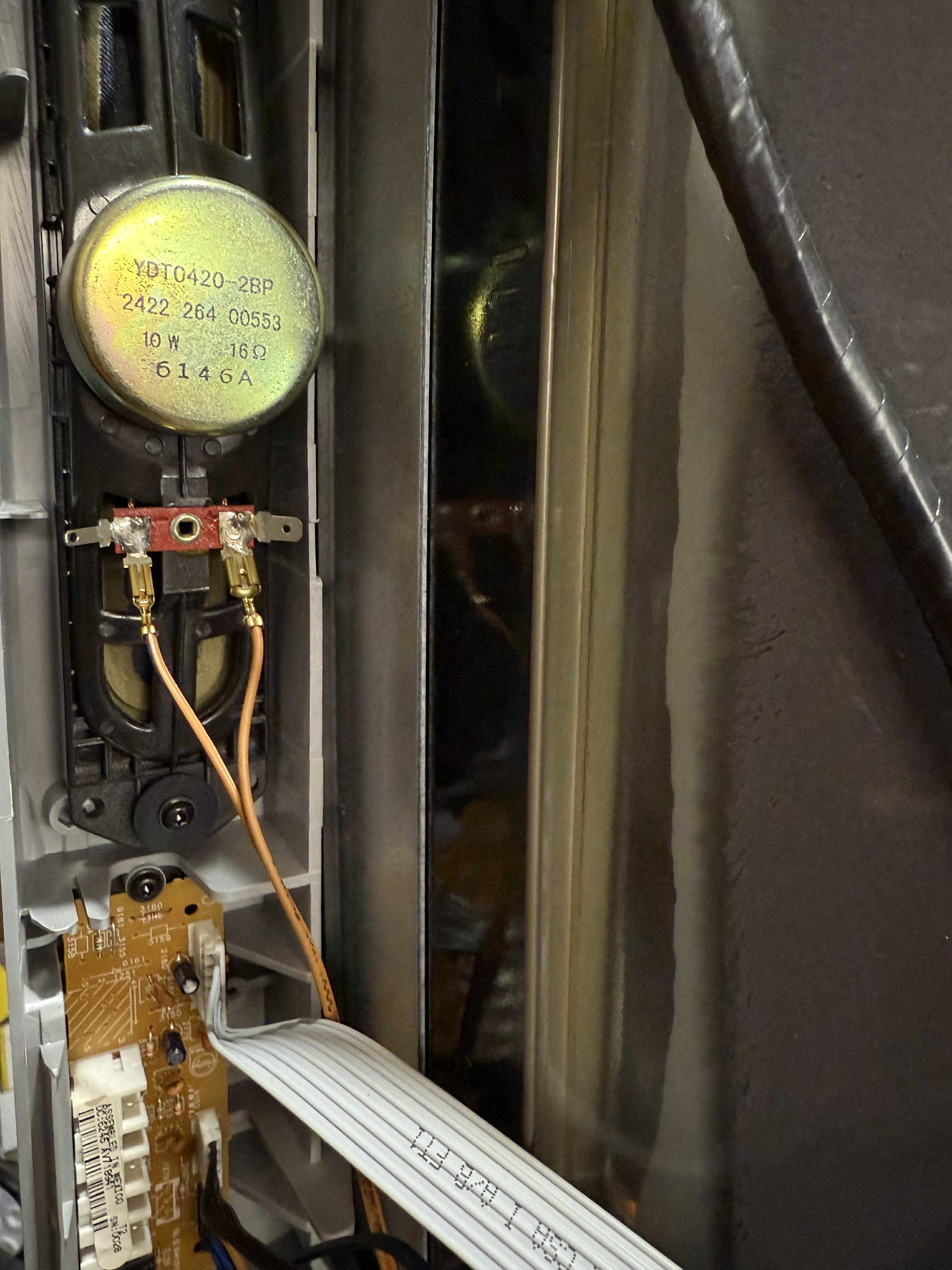

| Speakers: | Stereo, 5W x 2 |
| Remote: | RCLU023 |
| Chassis: | L04.6U AA |
| Weight: | 96.8 lbs (43.9 kg) |
| Dimensions (W/H/D): |
736 x 580 x 490 mm
(28.9 x 22.8 x 19.3") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2006 |
| MSRP: | 349 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
