Summary

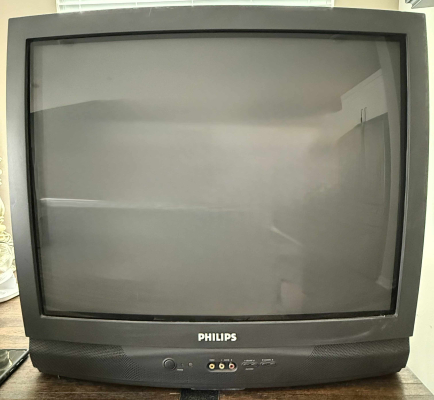

An excellent 27" Philips CRT intended for both television and institutional use from 2004.
(Special thanks to Brett Viker for the pics!)
Manuals
Notes
Reds and blues are overblown by default, so I recommend turning down color saturation a bit to get the image looking more accurate.
The jungle chip in this set supports 50hz and other oddball resolutions withing the 15khz range; however, only over component will it be in color.

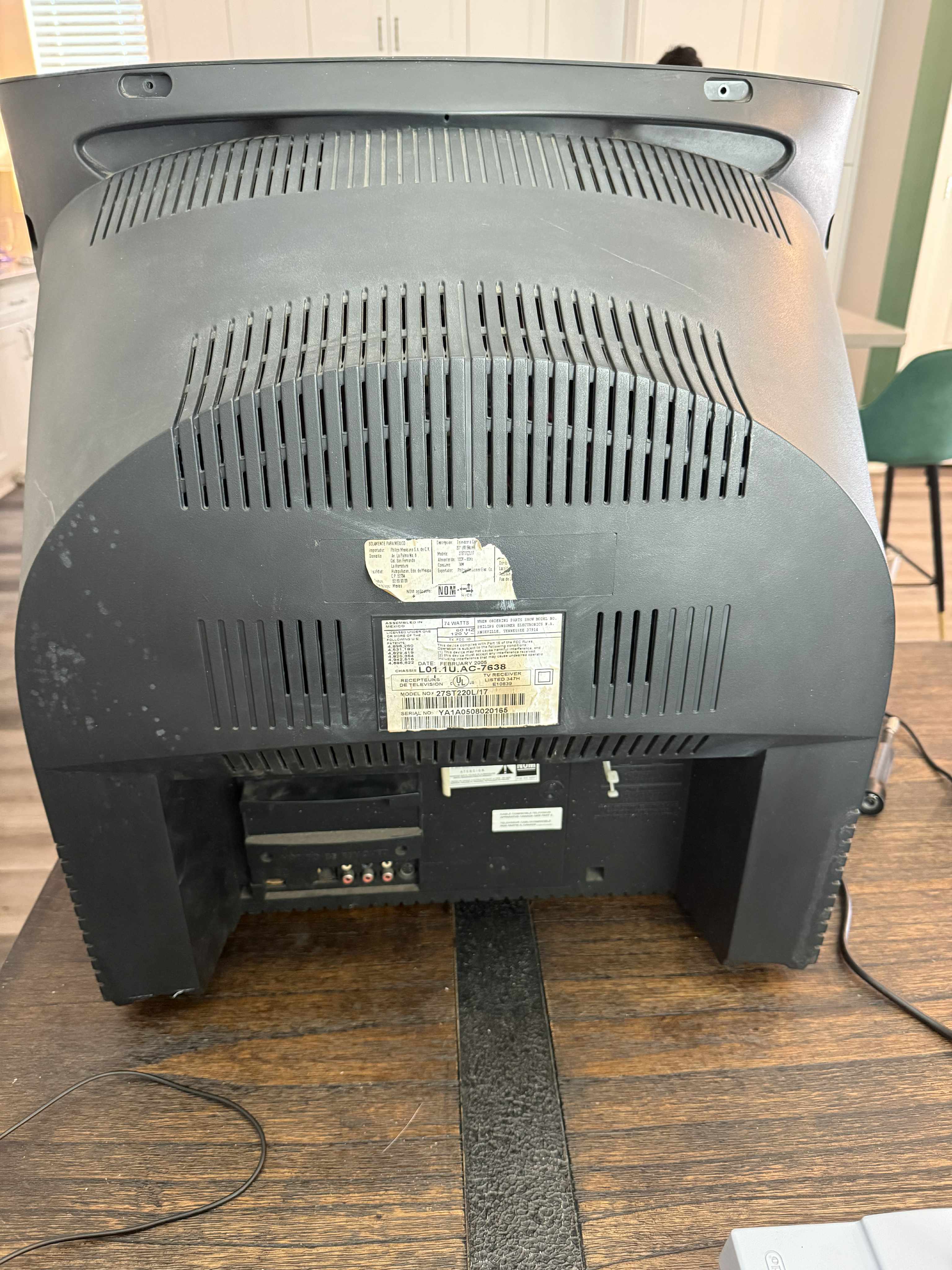

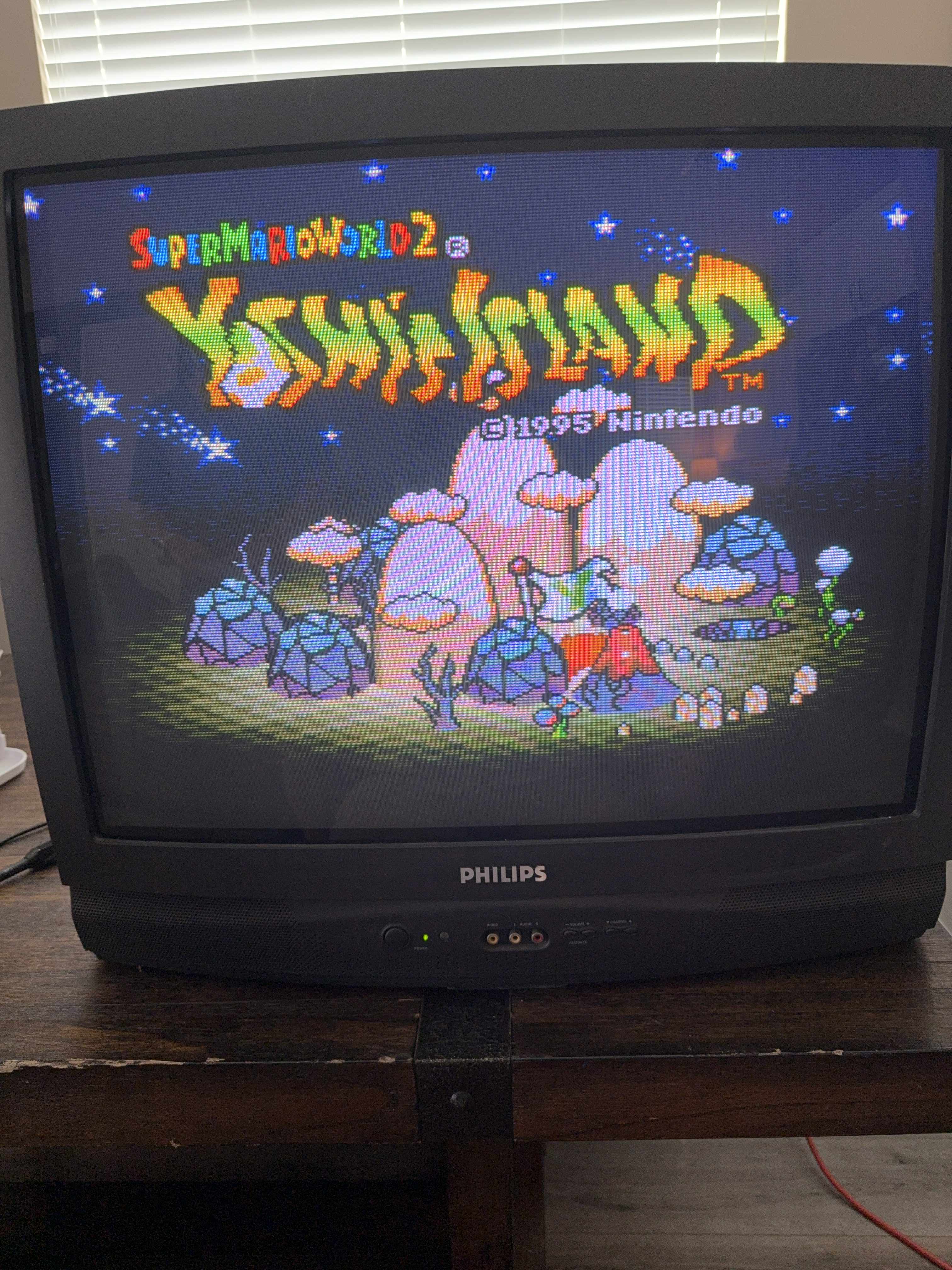

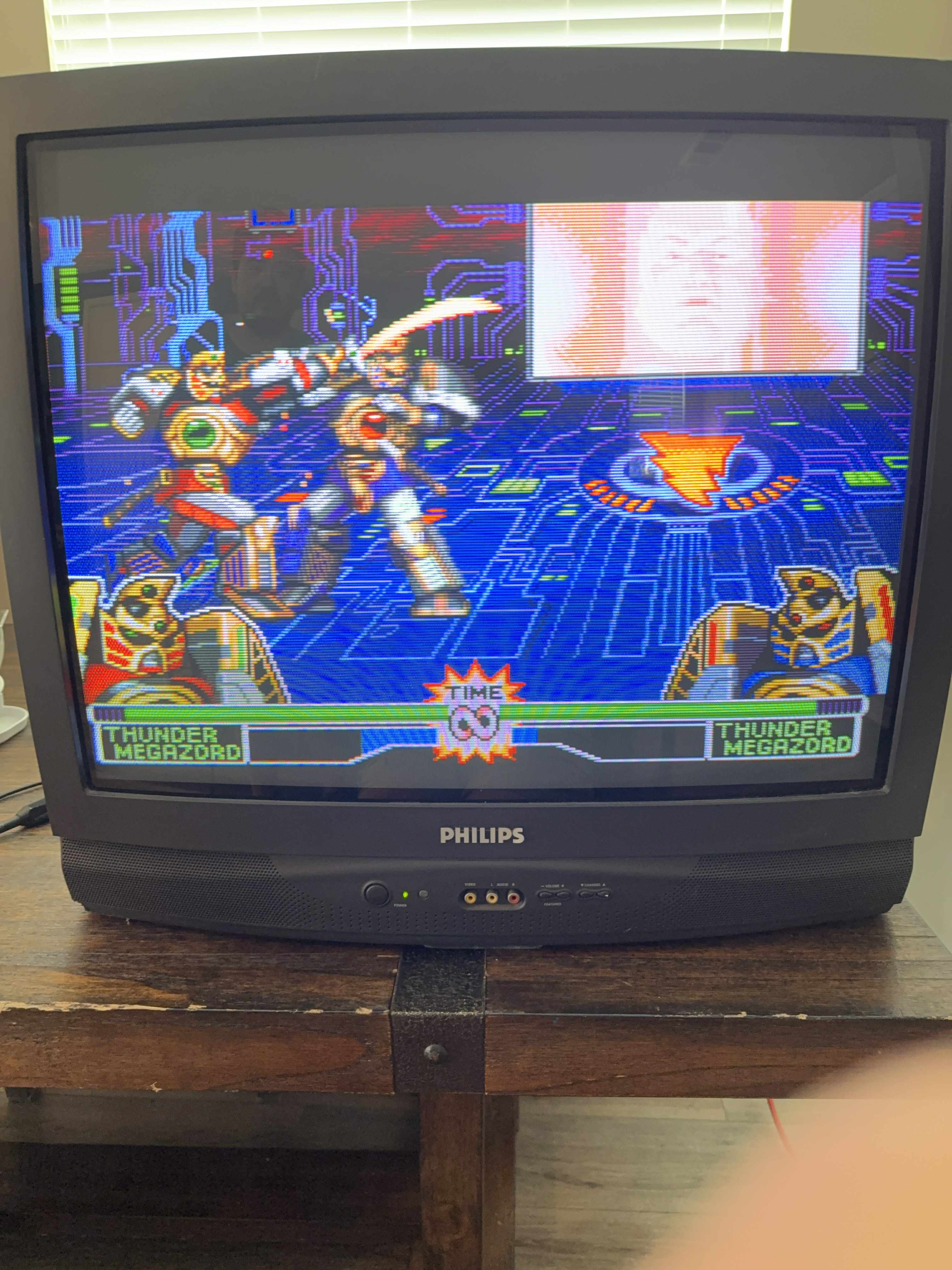

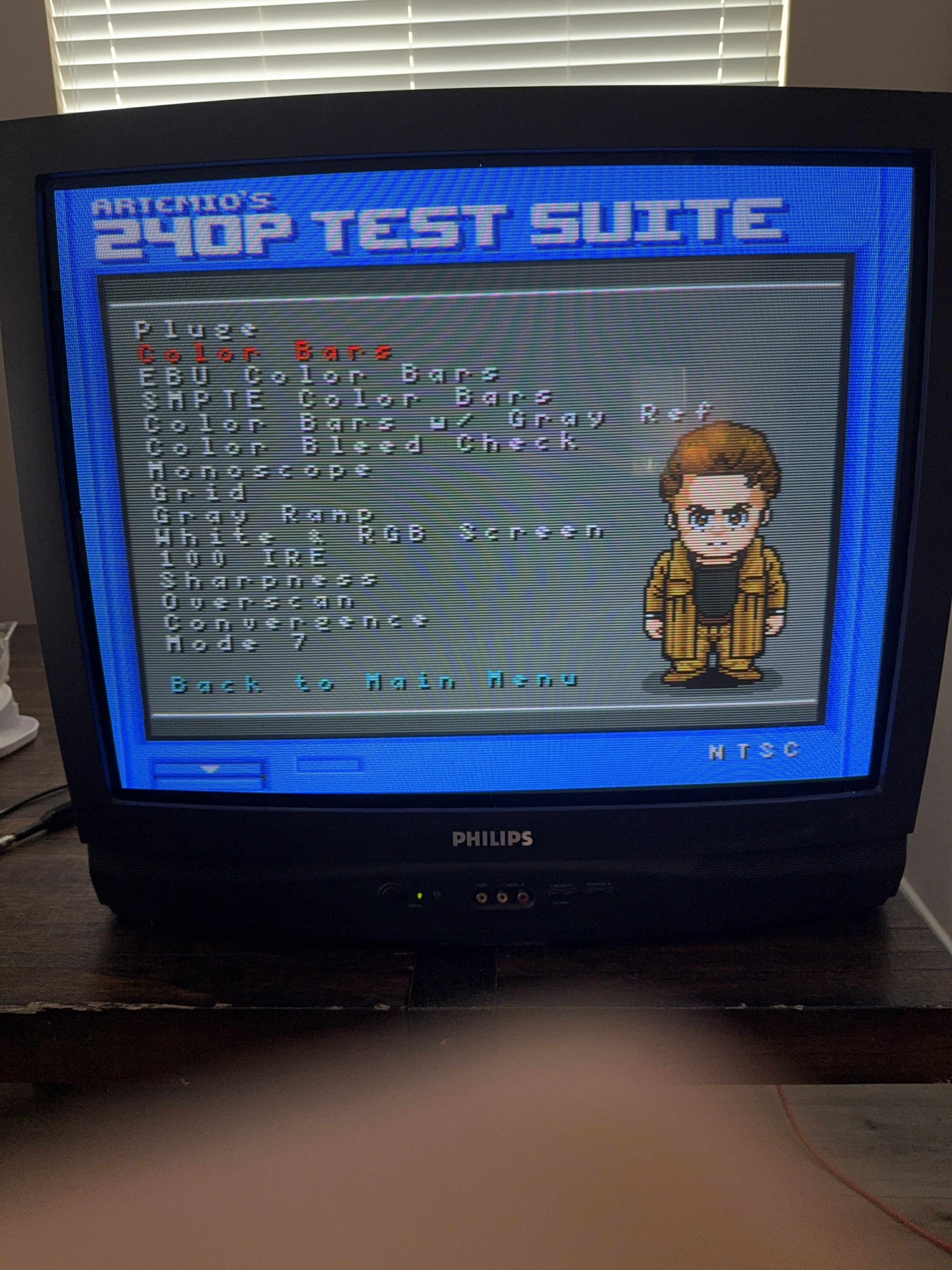

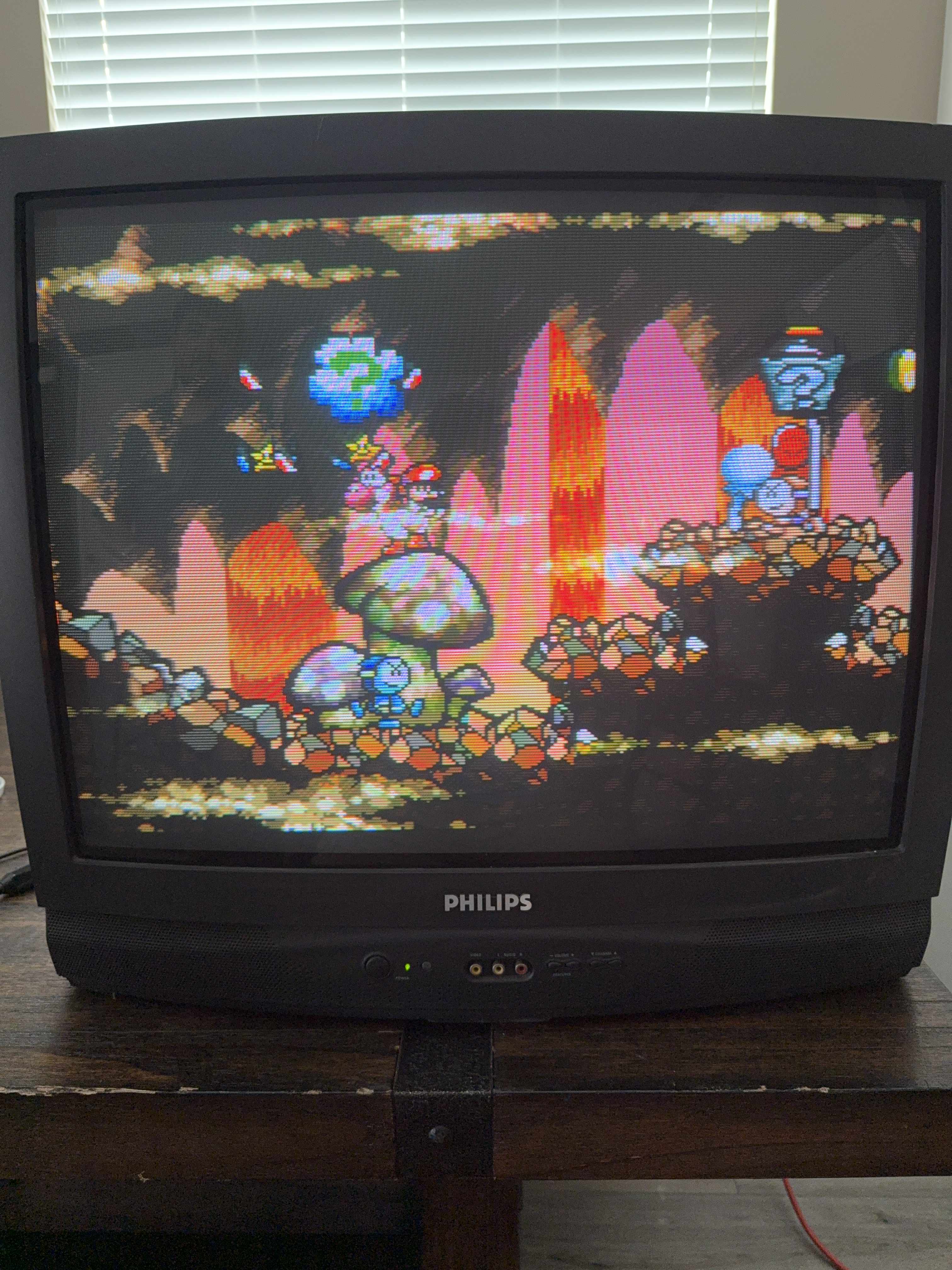

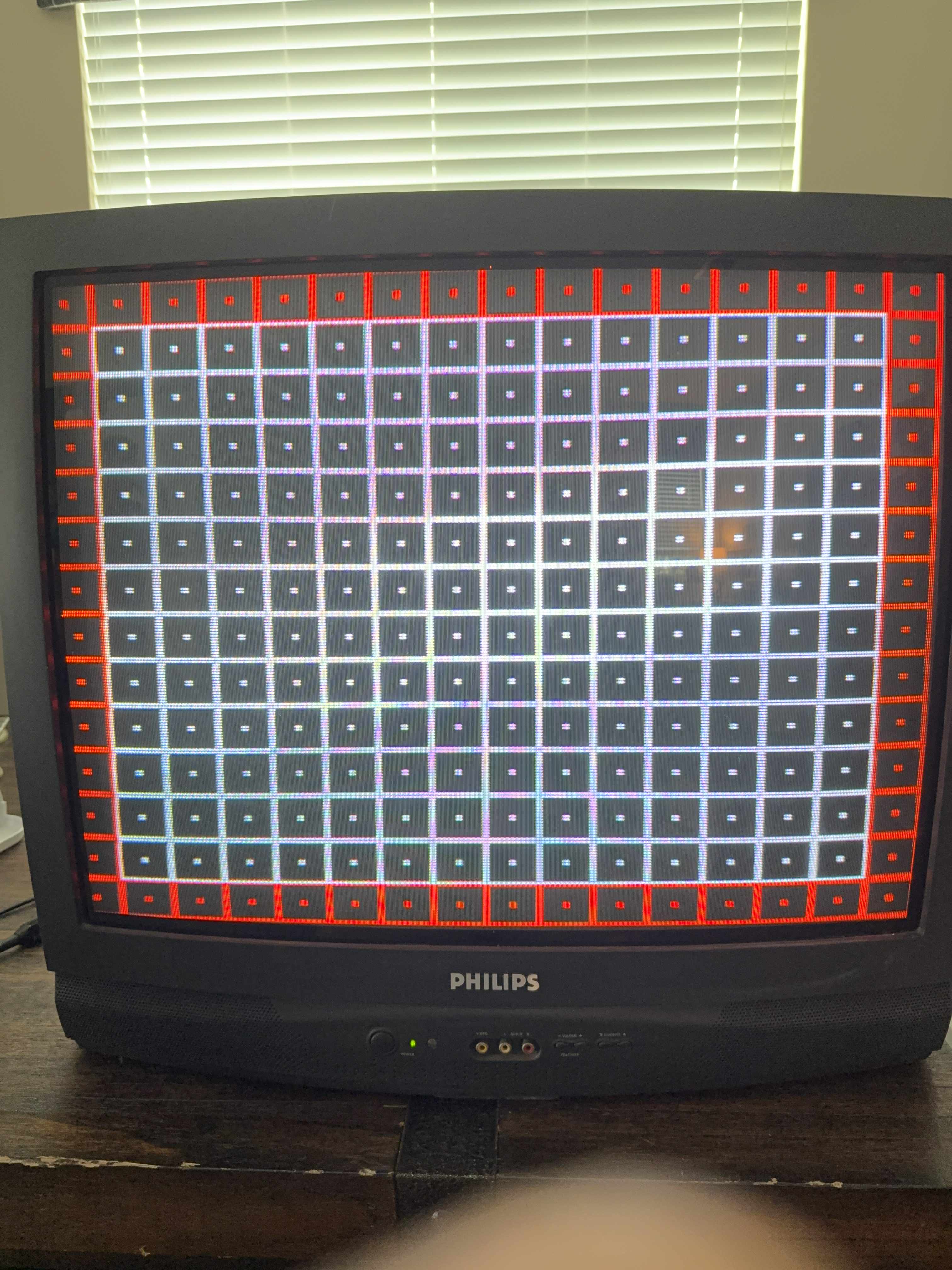

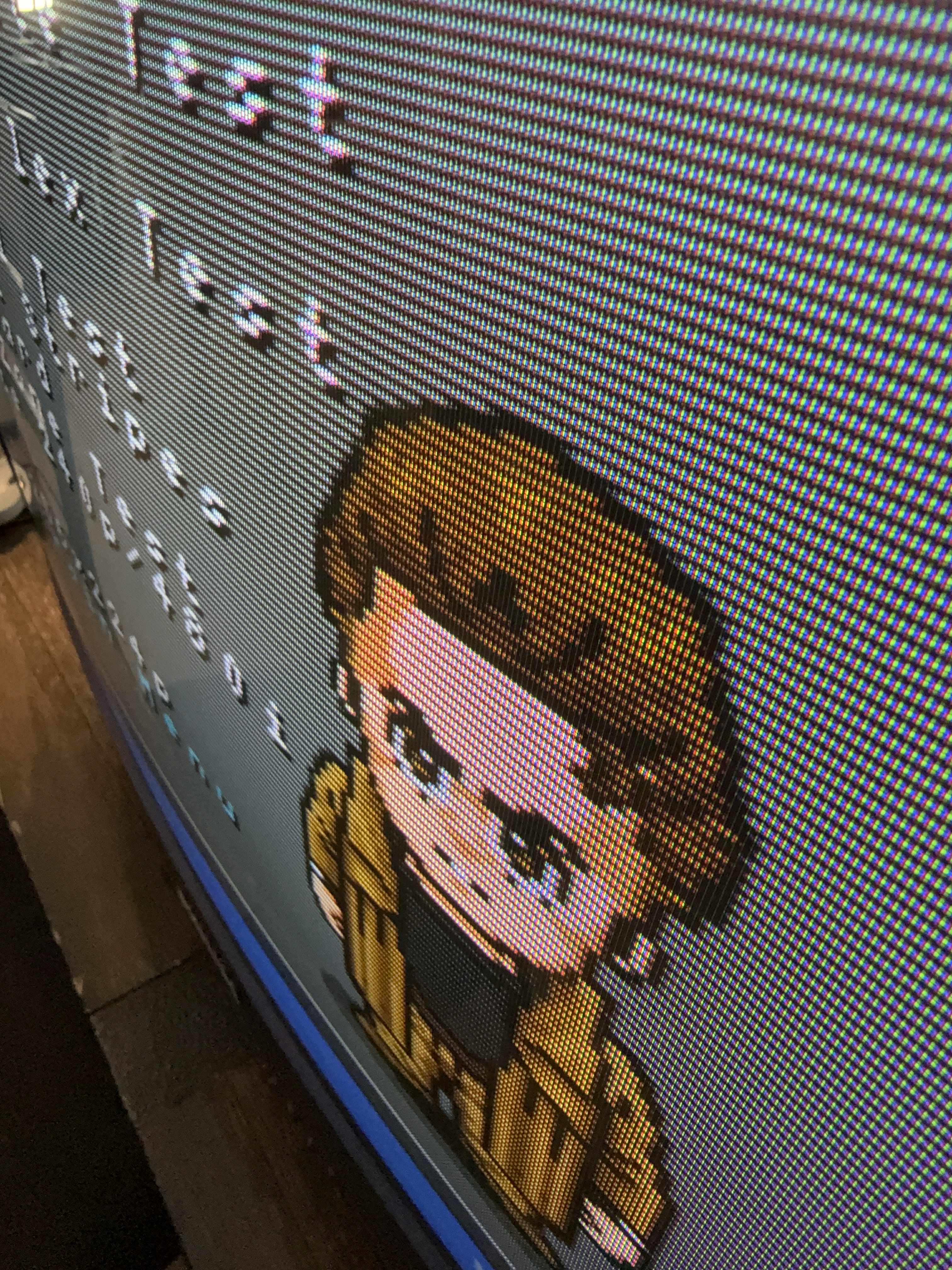

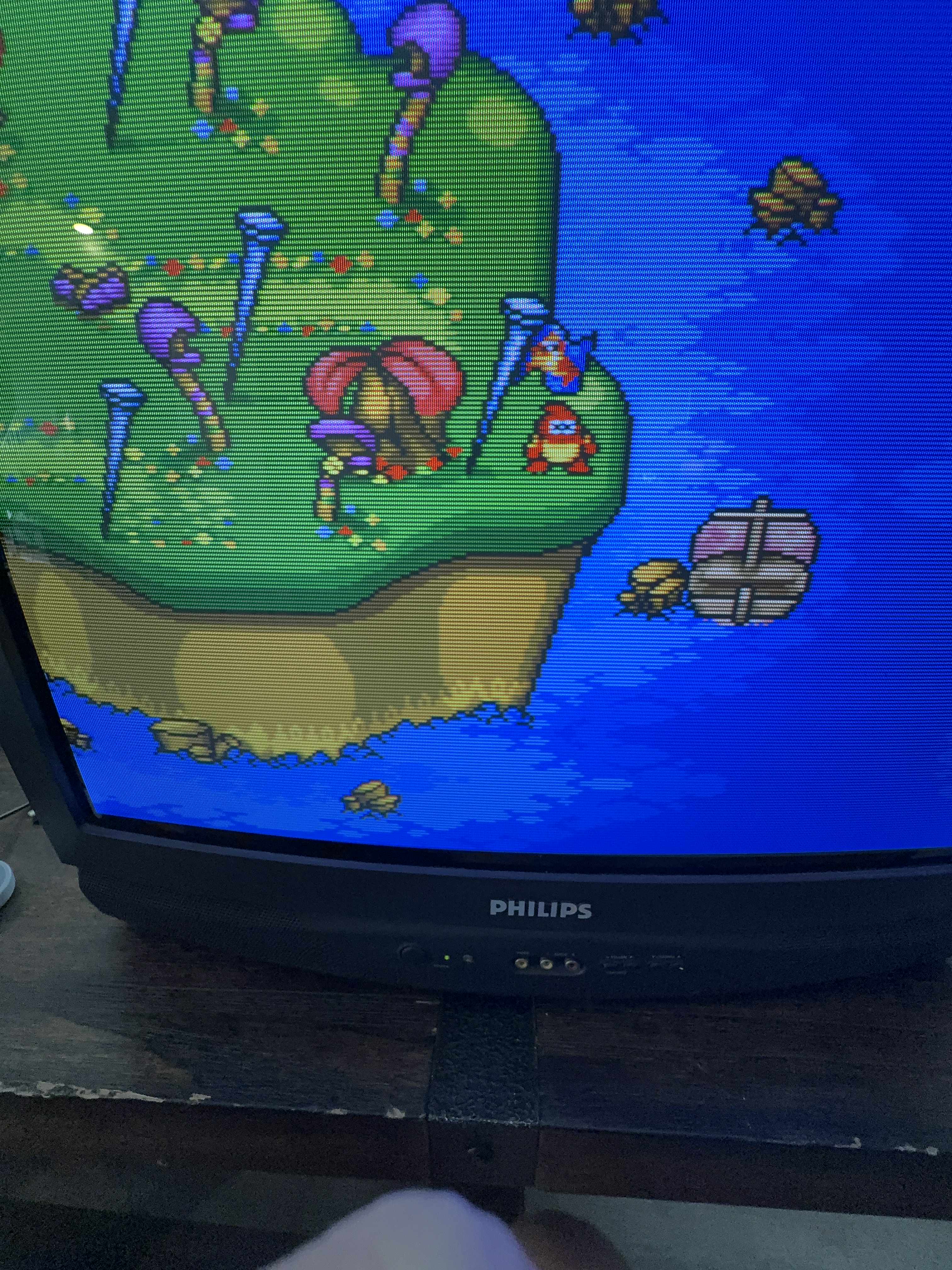

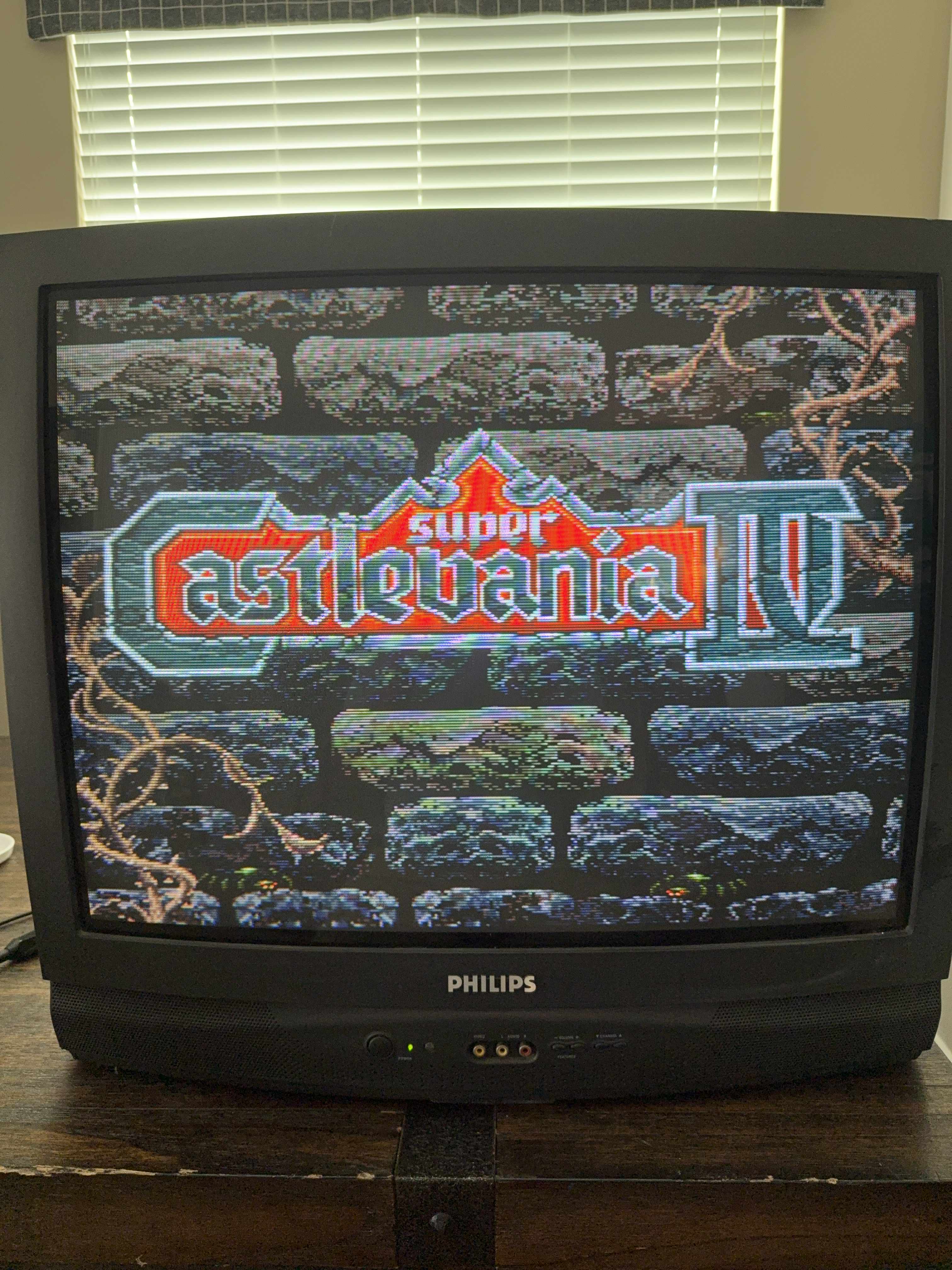

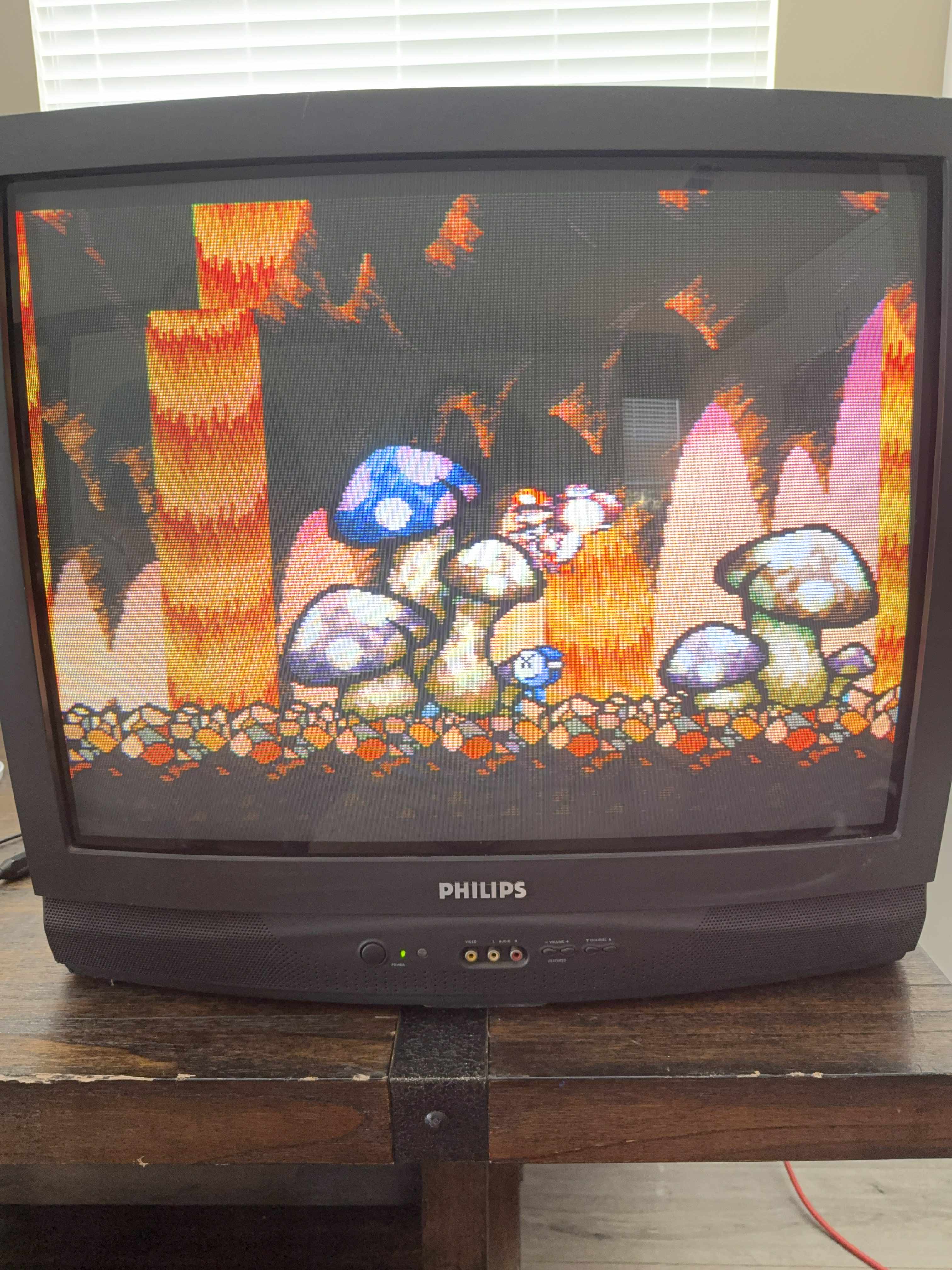

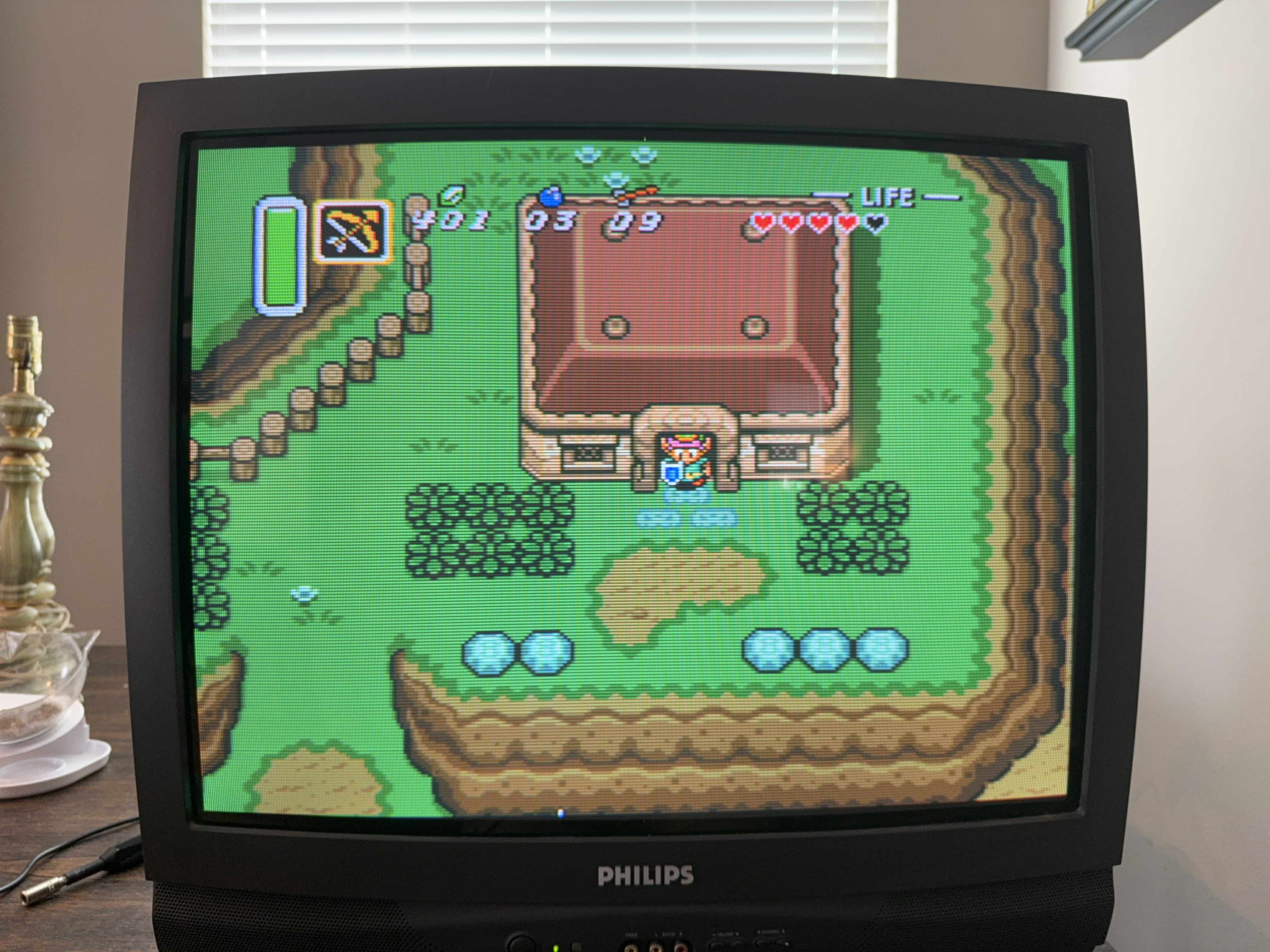

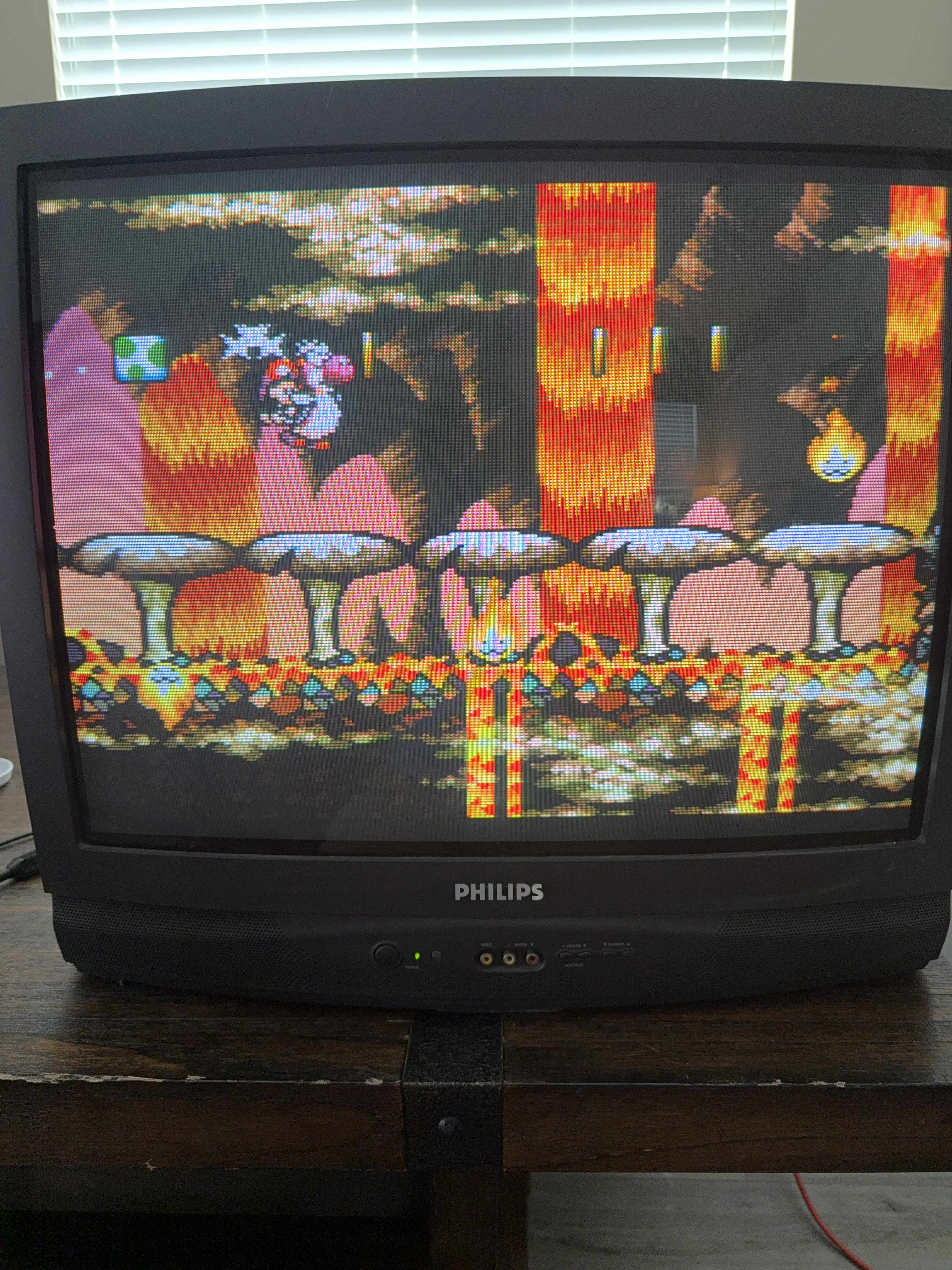

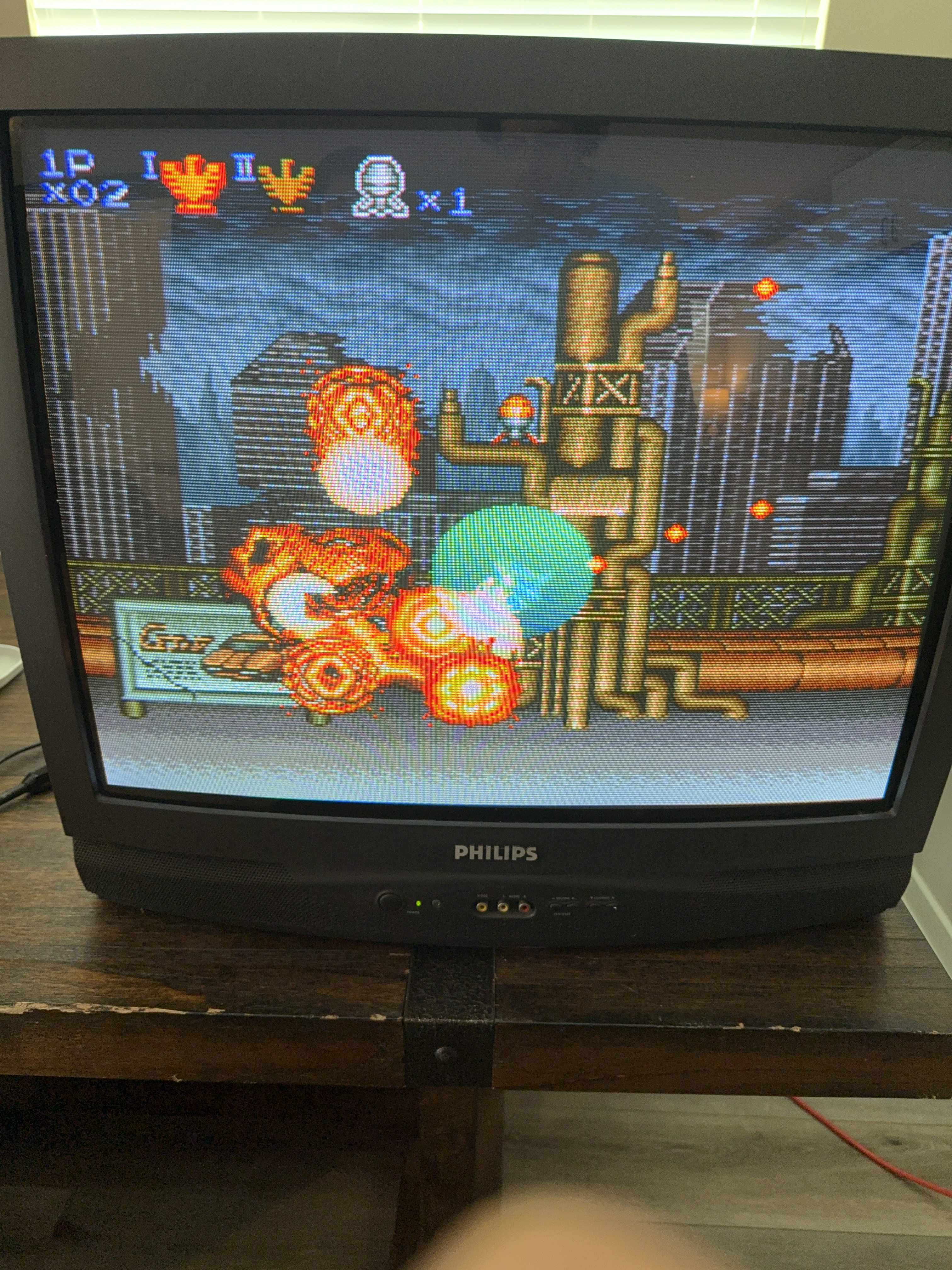

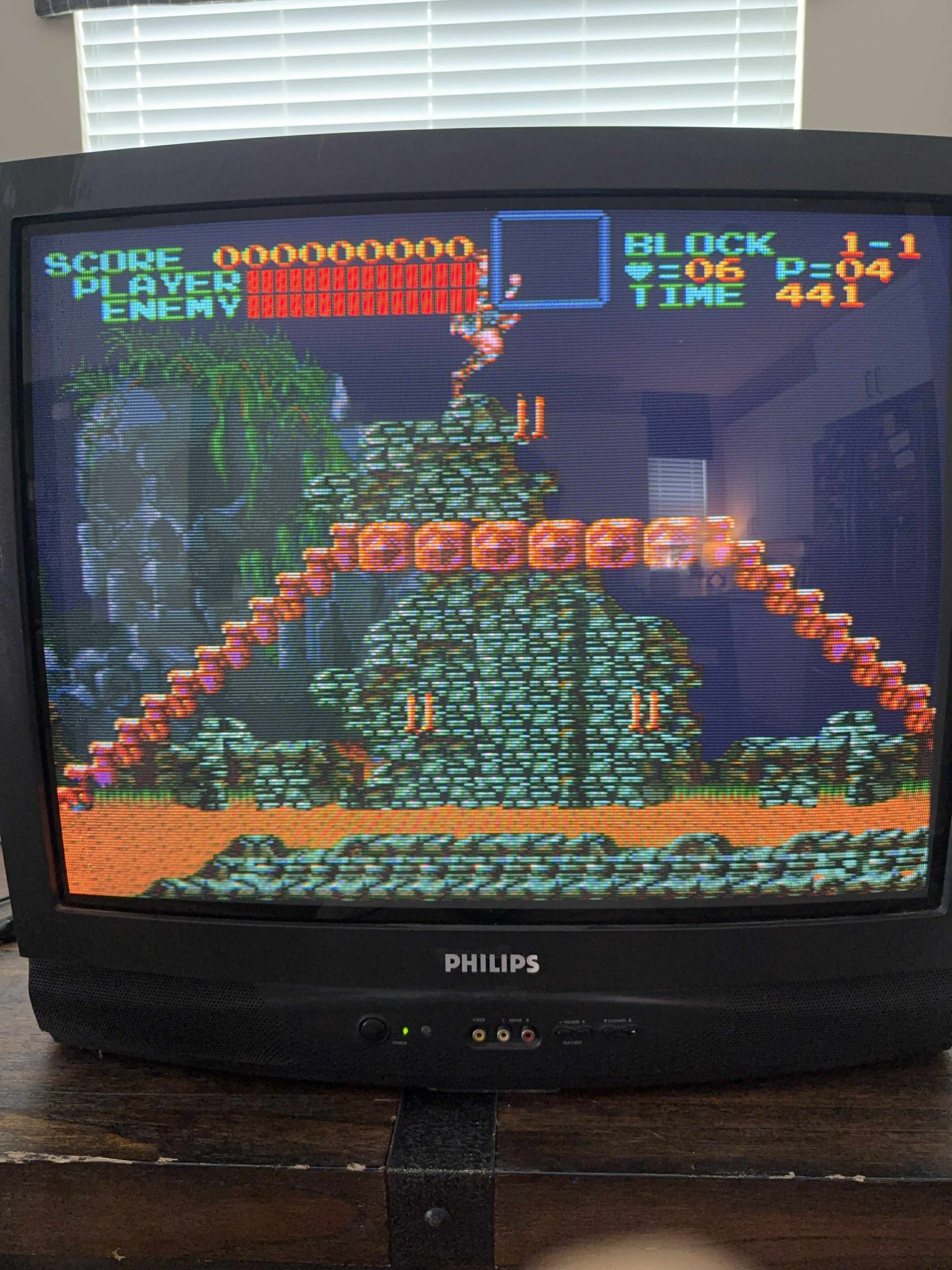

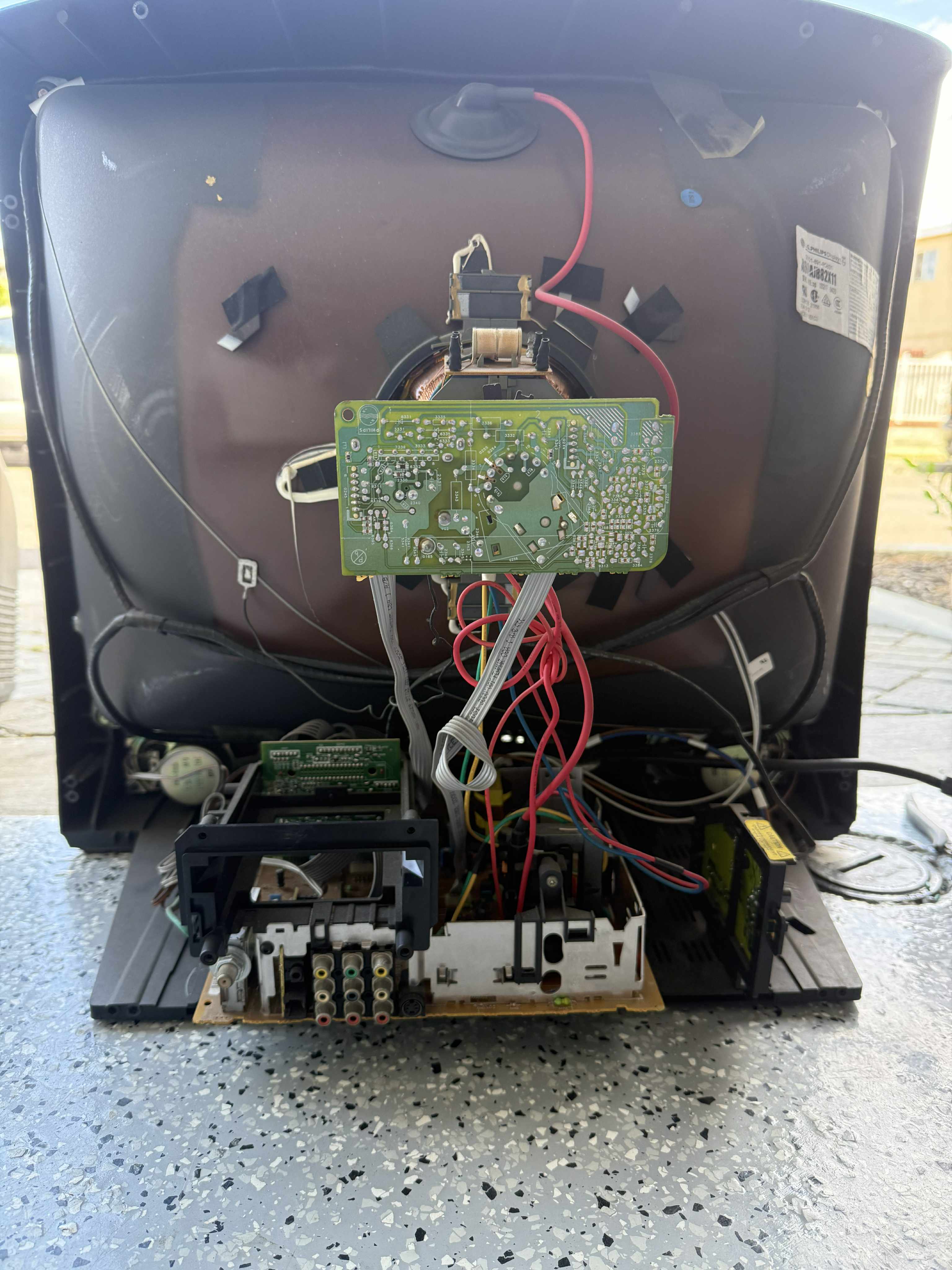

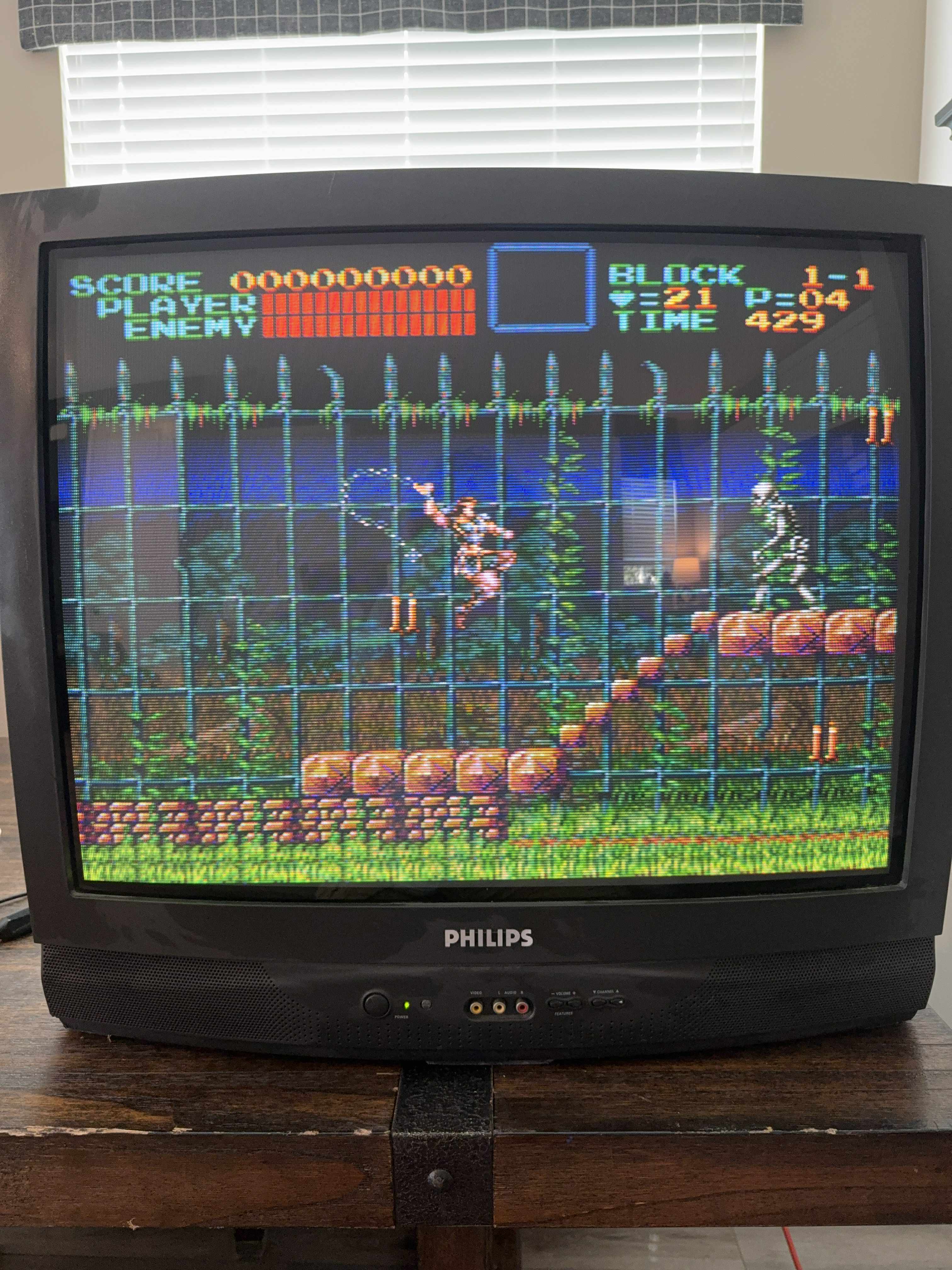

Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |
| Model: | 27ST220L/17 |
| Series: | ST |
| Viewable Size: | 27" |

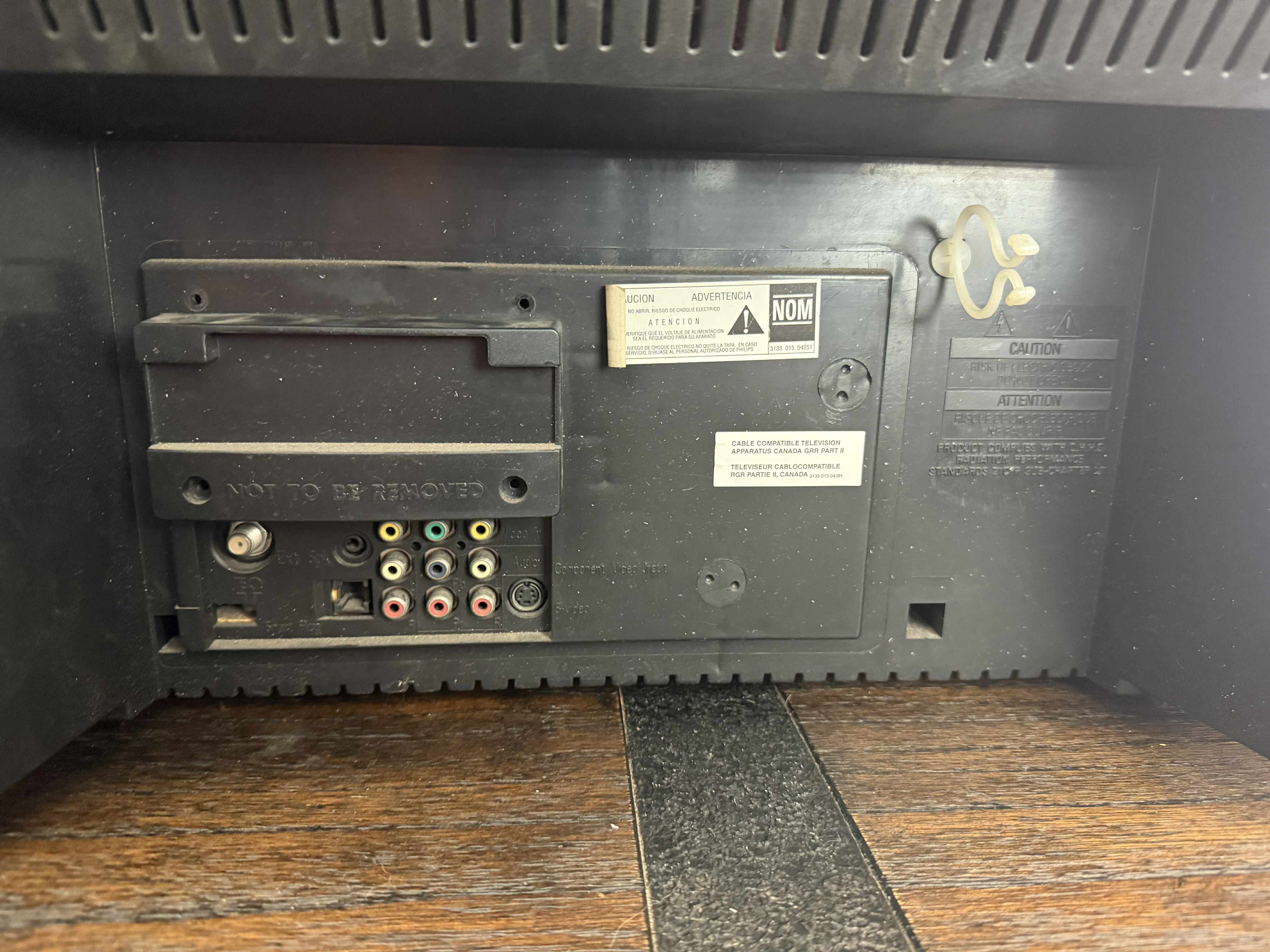

| Inputs: | Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Philips, TDA8359J |
| Jungle: | Philips, TDA9588H |
| Comb Filtering: | 3-Line Digital |
| Flyback: | JF0501-21835 |
| Focus Type: | Single |

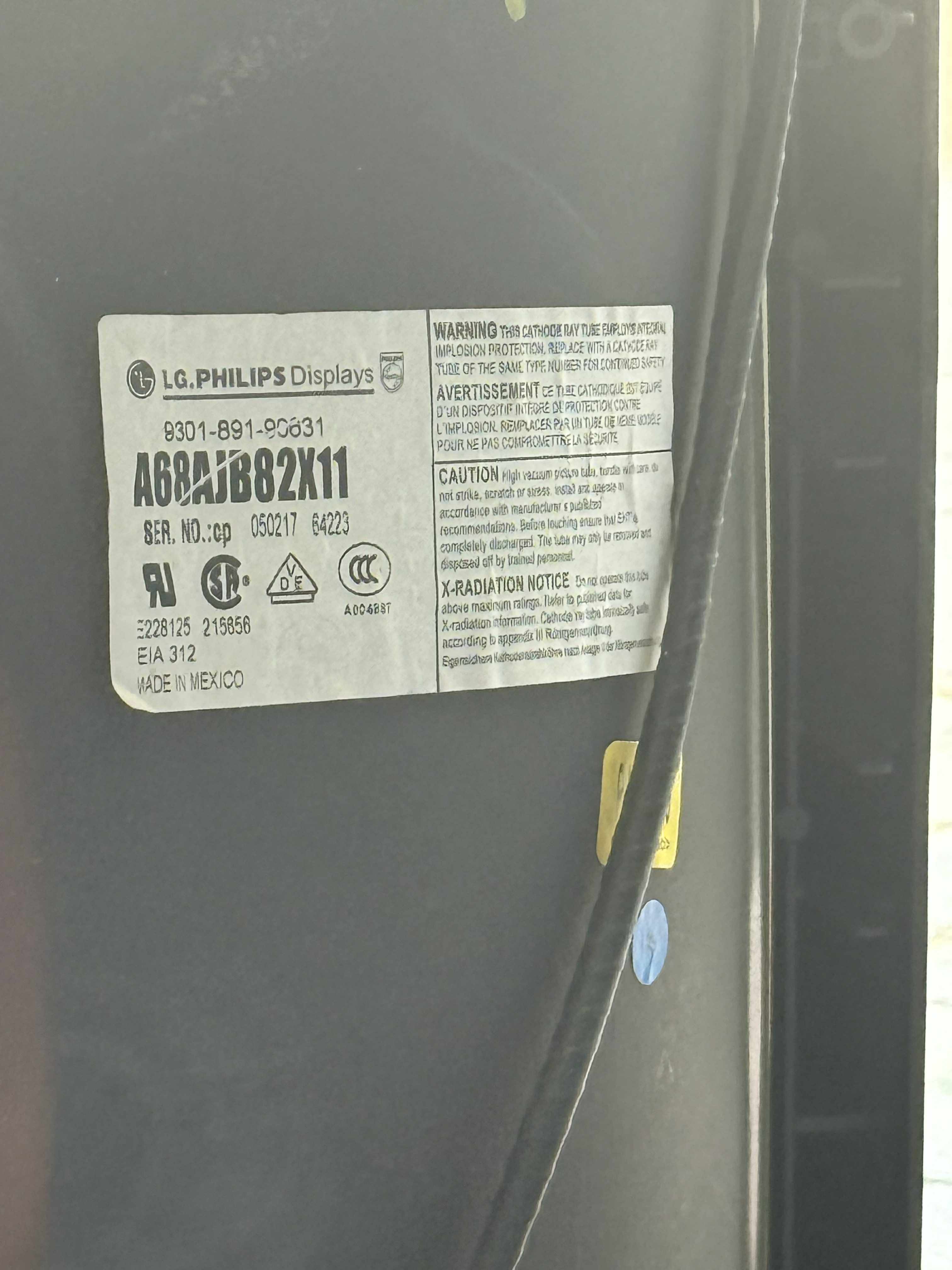

| Tube: | LG.Philips , A68AJB82X , A68AJB82X11 |
| Heater Voltage: | 6.3v |
| Deflection: | 90° |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 2 |

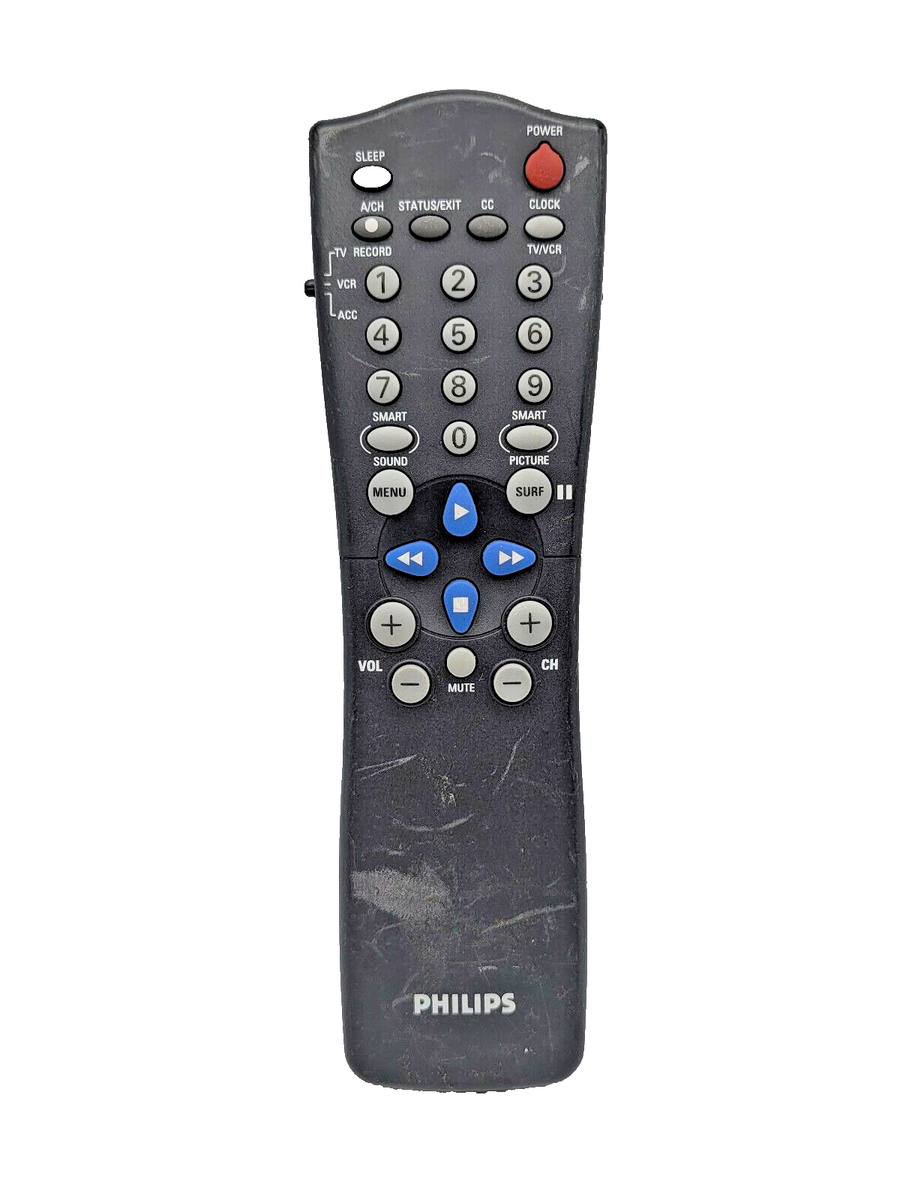

| Remote: | RC2572/01 |

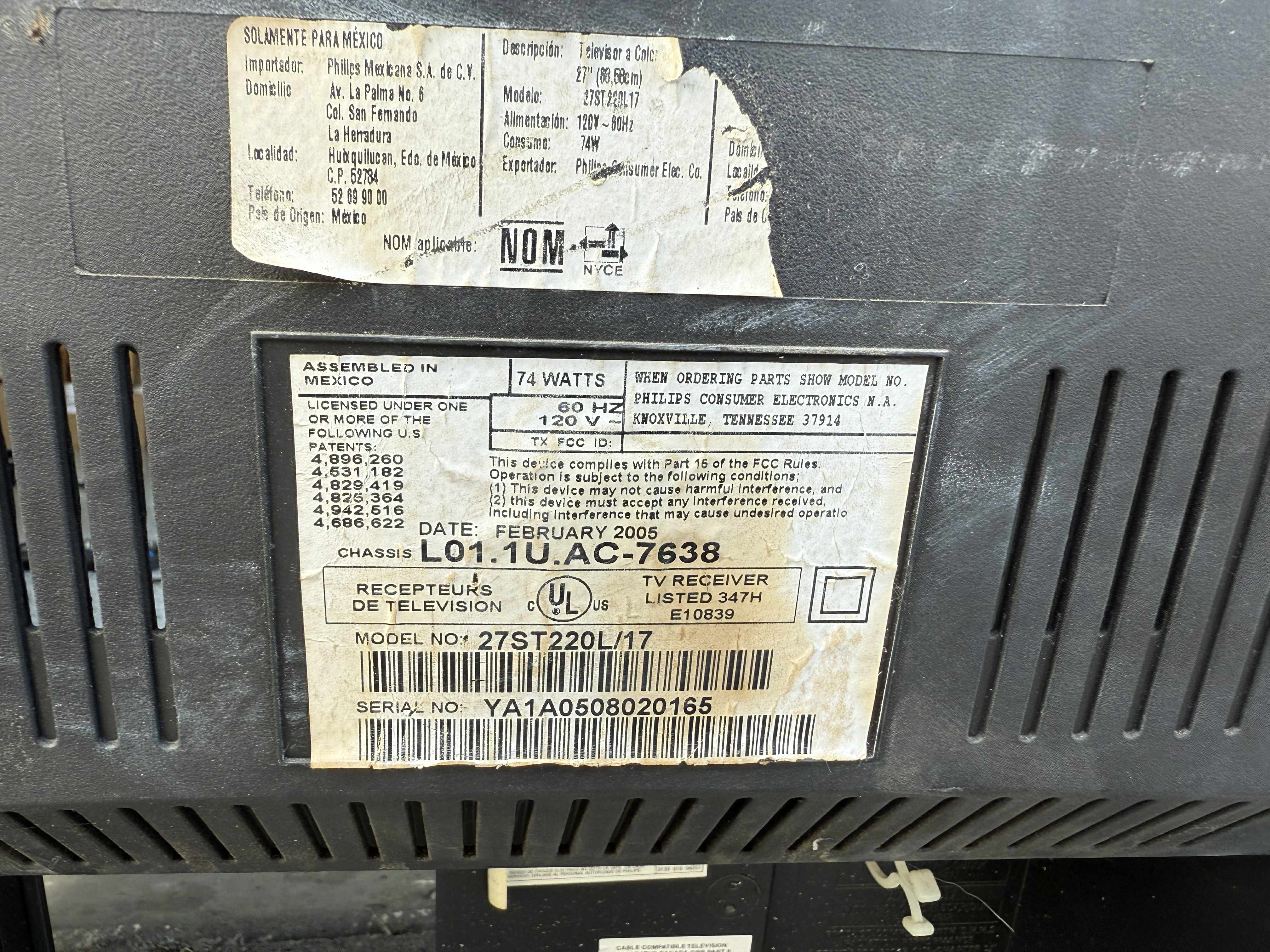

| Chassis: | L01.1U AC-7638 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
