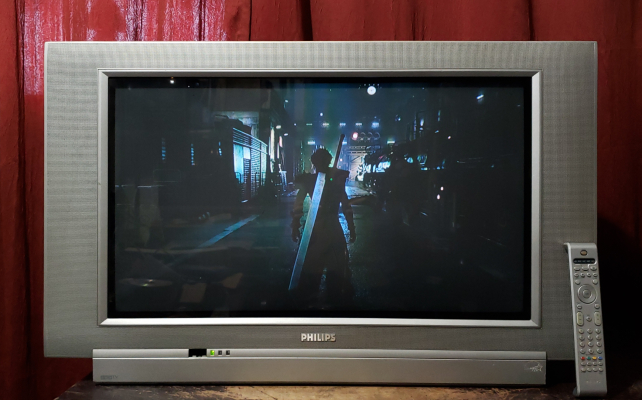

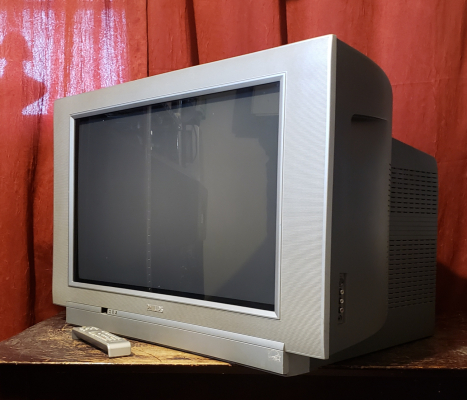

Philips 30PW8402/37
Trixter192, John S
February 15, 2025, 3:24 am
October 27, 2025, 3:48 pm
February 15, 2025, 3:24 am
October 27, 2025, 3:48 pm
Summary
Very early HDMI enabled television. Component input AV5 also doubles as RGB.
Manuals
- Specification sheet
- User Manual
- TV Specific Service Manual missing some pages
- Chassis Specific Service Manual helps fill in the blanks including entering SAM
Media & Promo Materials
Notes
Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |
| Model: | 30PW8402/37 |
| Series: | RealFlat HD |
| Viewable Size: | 30" |
| Inputs: | Composite, S-Video, RF, Component YPbPr, RGB, HDMI |
| Native Resolutions: | 1080i, 540p |
| Scaled Resolutions: | 240p, 480i, 480p, 720p |
| Horizontal Scan Range: | 33.75 kHz, 31 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | M-NTSC |
| Aspect: | 16:9 |
| Adjustments: | OSD Customer Controls, Factory Service Remote |
| Comb Filtering: | 3D Digital |
| Comb Filter IC: | UPD64083GF |
| Flyback: | 1392.9014AY |

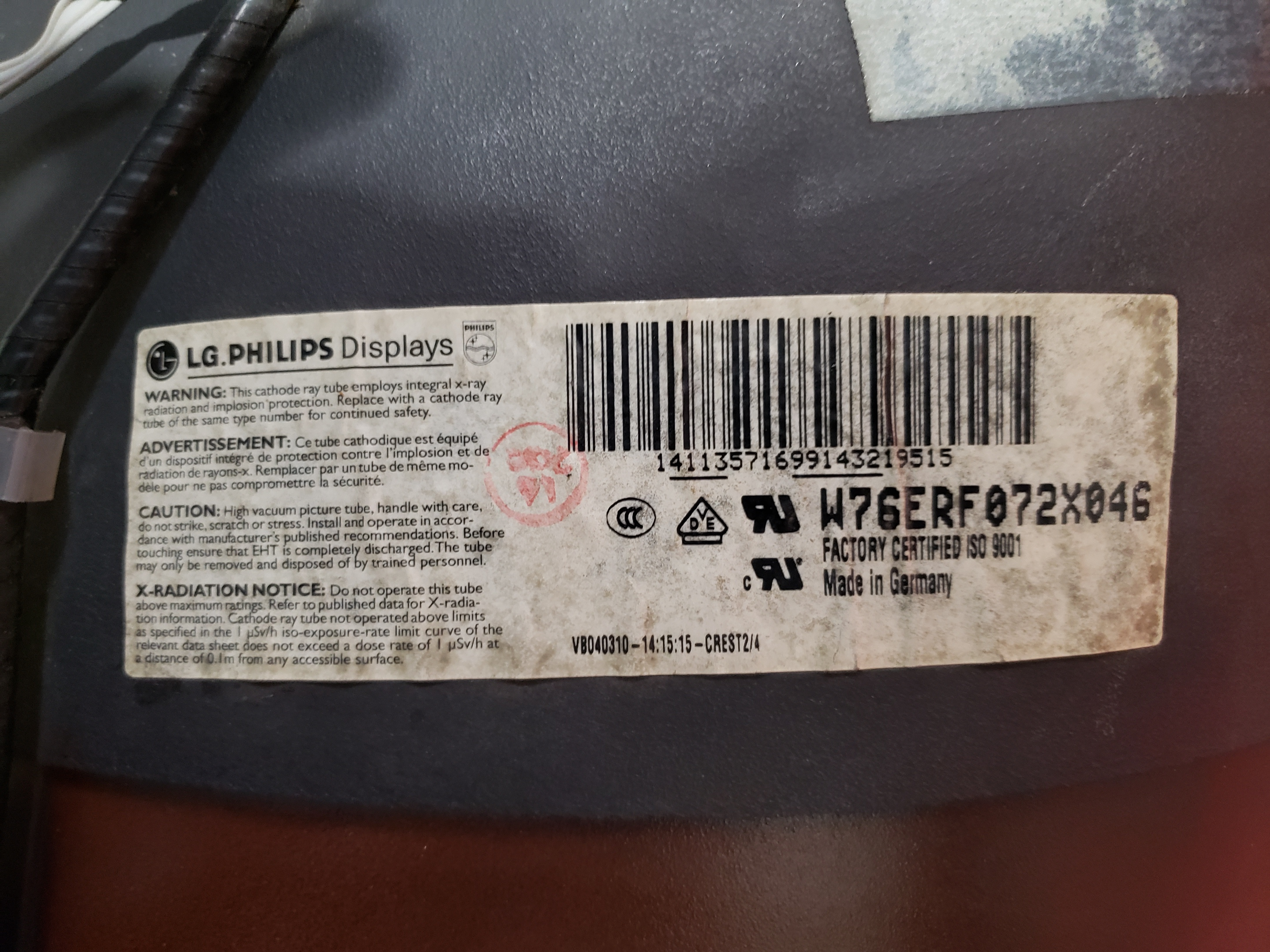

| Tube: | W76ERF072X046 |
| Tint: | Dark |
| Speakers: | Stereo, 10W x 2 |
| Remote: | RC4331/01 |
| Chassis: | A02U AA |
| Weight: | 123 lbs (55.8 kg) |
| Dimensions (W/H/D): |
889 x 597 x 546 mm
(34.9 x 23.5 x 21.5") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2004 |
| MSRP: | 799 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Yoke Info, Community Submission |
