Summary

Turn up your viewing experience with High Definition TV with an integrated QAM digital receiver, this TV gives you high-definition images that you experience as real as being there. It'll make you want to see everything.

Manuals

• User Manual
• L05.1U Chassis Service Manual

Media & Promo Materials

• Specification Sheet
• Consumer Reports March 2006
• Lengthy User Review from 2005/2006
• 101 USES FOR YOUR DEAD PHILIPS 30PW9100D HDTV

Notes

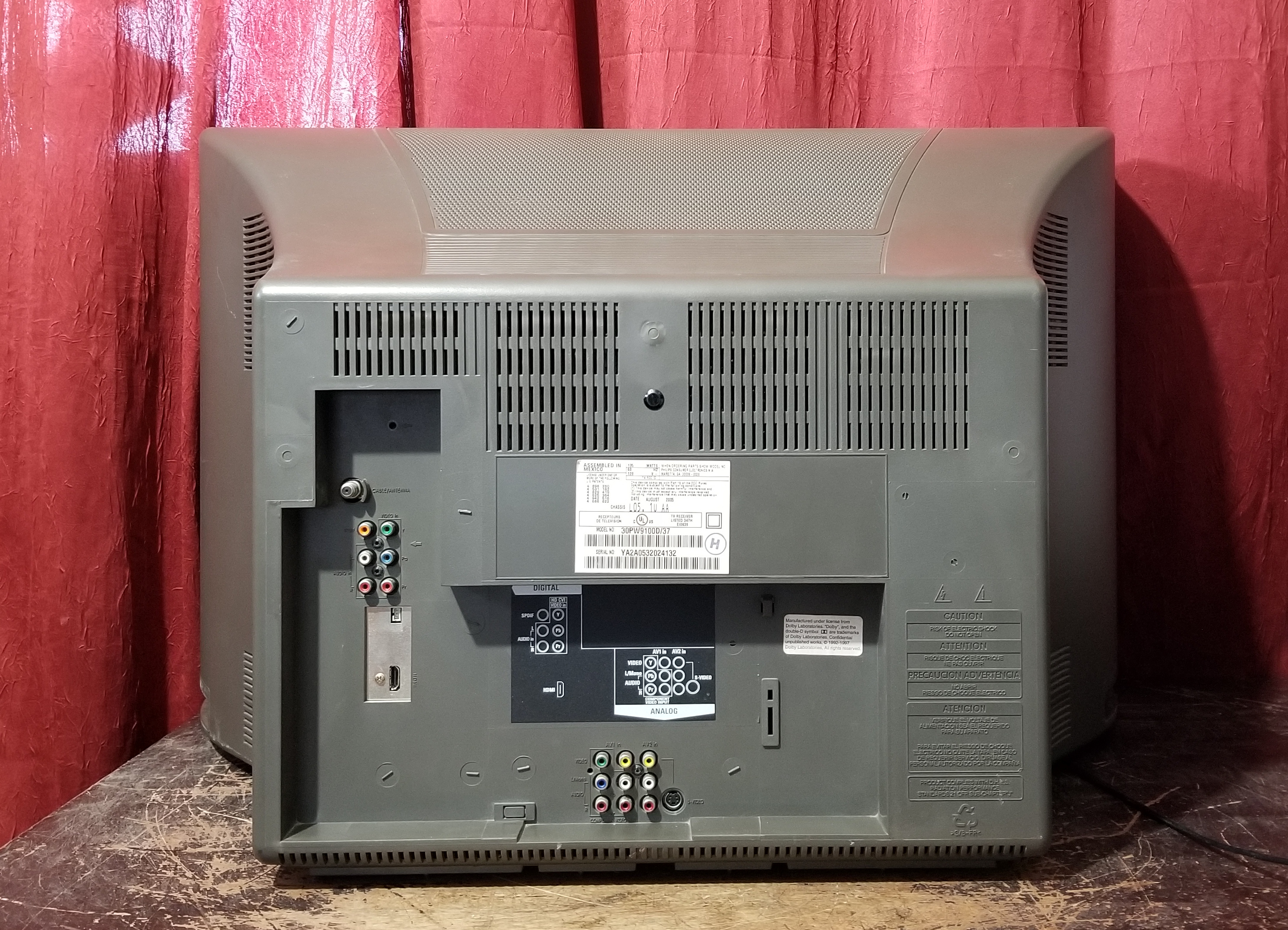

On the rear of the set, the upper HD component input (HD CVI) can accept ED/HD signals, unlike the lower component input (CVI) which is only for standard definition. The connections for velocity modulation are 3-wire connectors labelled 1361/1362 on the neck board, which can be unplugged to disable.

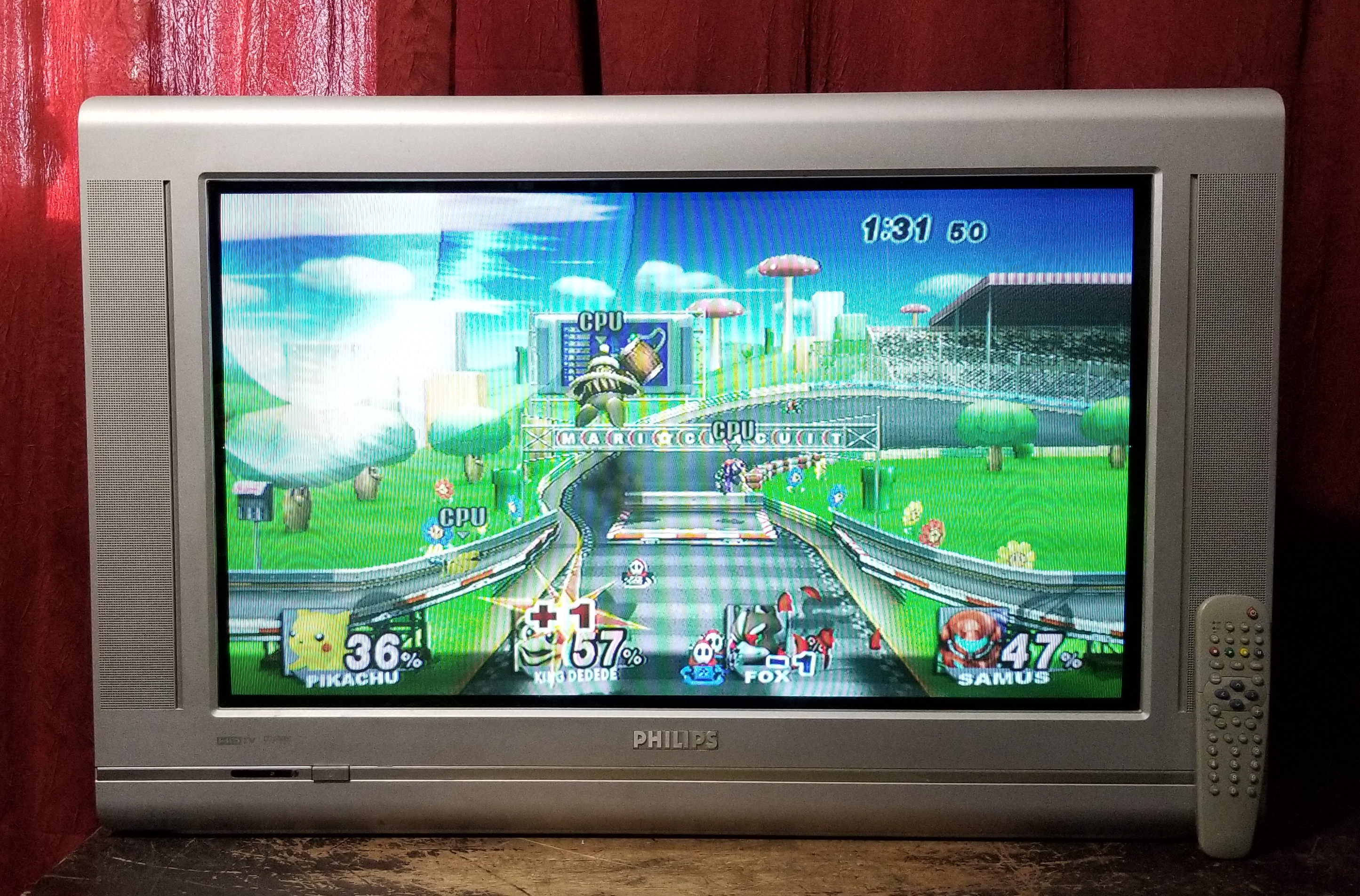

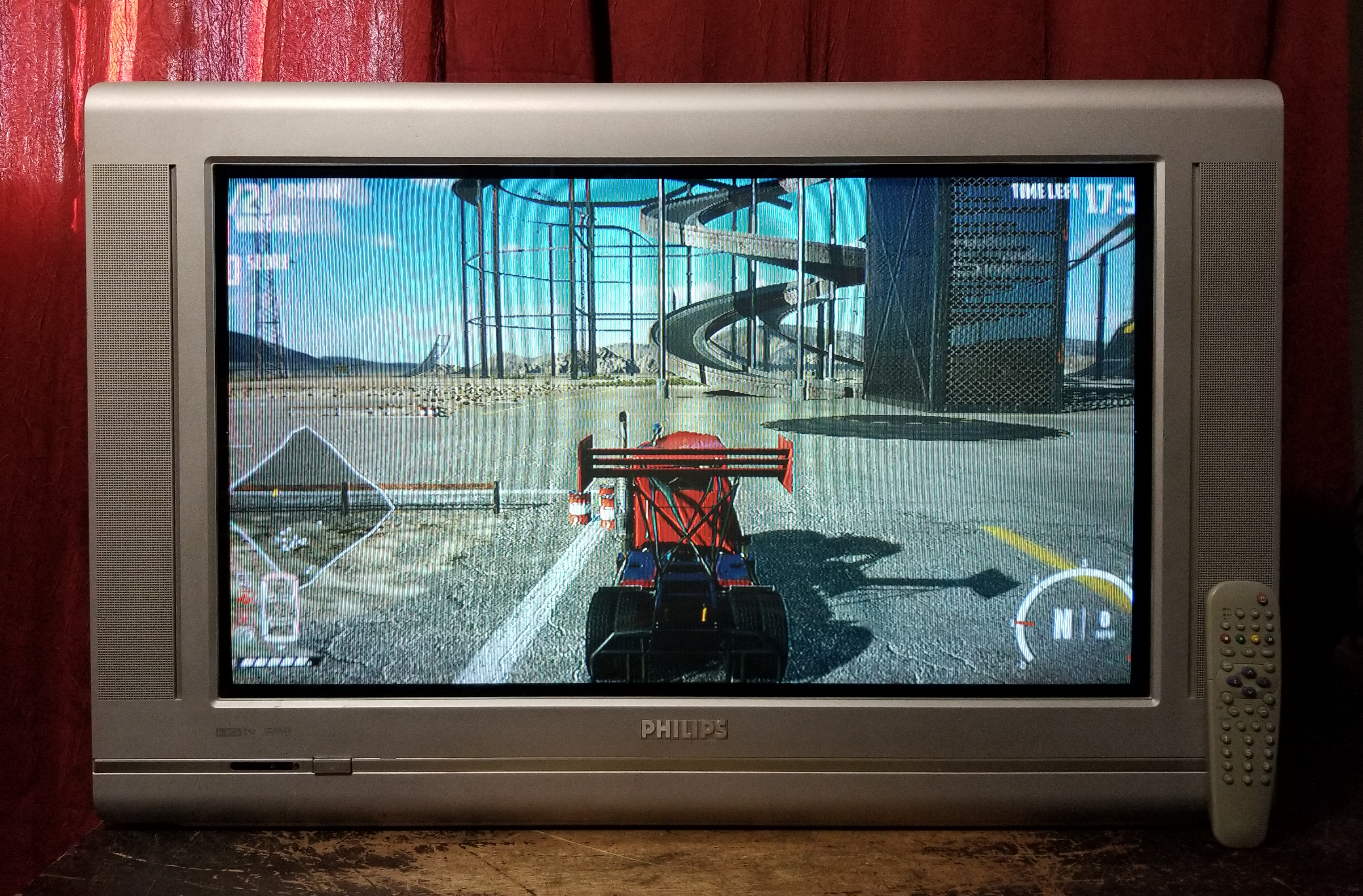

L05.1U AA Chassis Lag & Light Gun Testing

by Eli Krause

The number of frames of lag per resolution/input are listed below. The lowest lag results were at 480p.

Unlike Philips' A02U AA chassis, the Guncon 2 does not work even with 2-point calibration. No light guns tested worked correctly.
