Summary

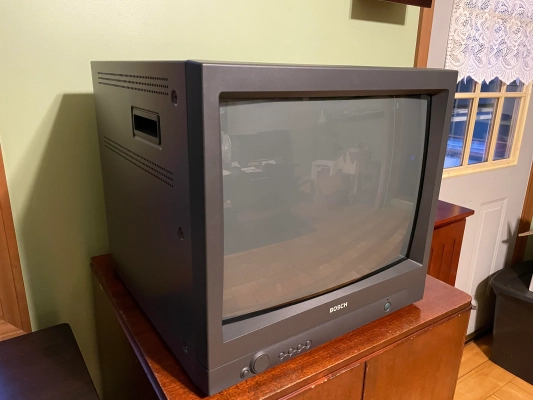

19" CCTV monitor with two composite inputs and a built in speaker. Uses a 19", 90 degree Panasonic tube. Also sold by Bosch (with the same model number).
Literature
Notes
The jungle chip on this model has external RGB inputs. Also, the chassis doesn't have an OSD and relies on internal pots for adjustments. As such, this is a very good RGB mod candidate.
Gallery
| Specifications | |
|---|---|
| Brand: | Philips |
| Manufacturer: | Philips |
| Model: | LTC 2919/90 |
| Series: | LTC |
| Viewable Size: | 18" |
| Inputs: | Composite, S-Video |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Deflection: | 90° |
| Mask: |
Shadow
|
| Pitch: | 0.27 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Mono |
| Weight: | 52.9 lbs (24 kg) |
| Application: | Commercial |
| Cabinet Material: | Metal |
| Mounting: | Rackable |
| Mods: | RGB via Direct |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Service Manual, Needs Tube Info, Community Submission |
