Summary

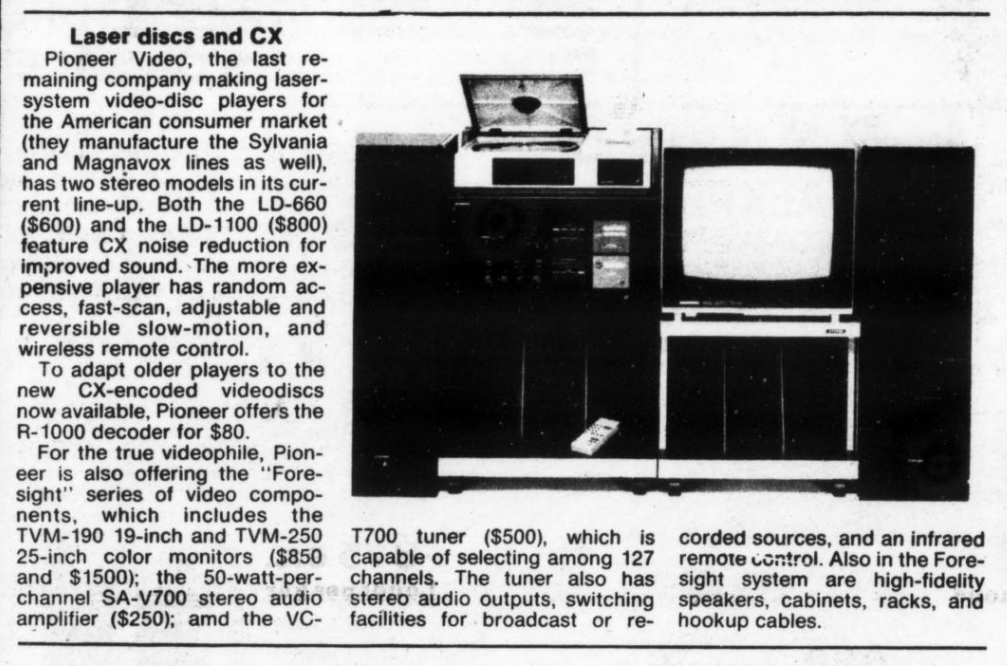

Top end monitor with no built-in speakers nor tuner. This page includes also include information on the TVM-252's related predecessor the TVM-250.
Manuals
(None at this time.)
Media & Promo Materials
- Pioneer Foresight Promo Video including the TVM-250 and components intended to be paired with it
Repair Notes
- One unit would not turn on due to the switching transistor having shorted.

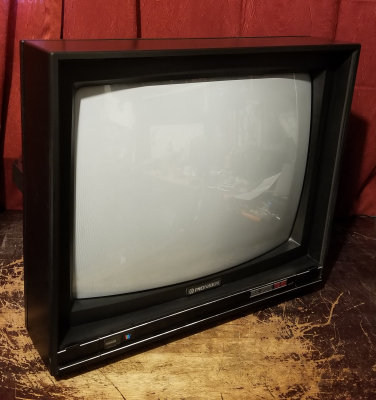

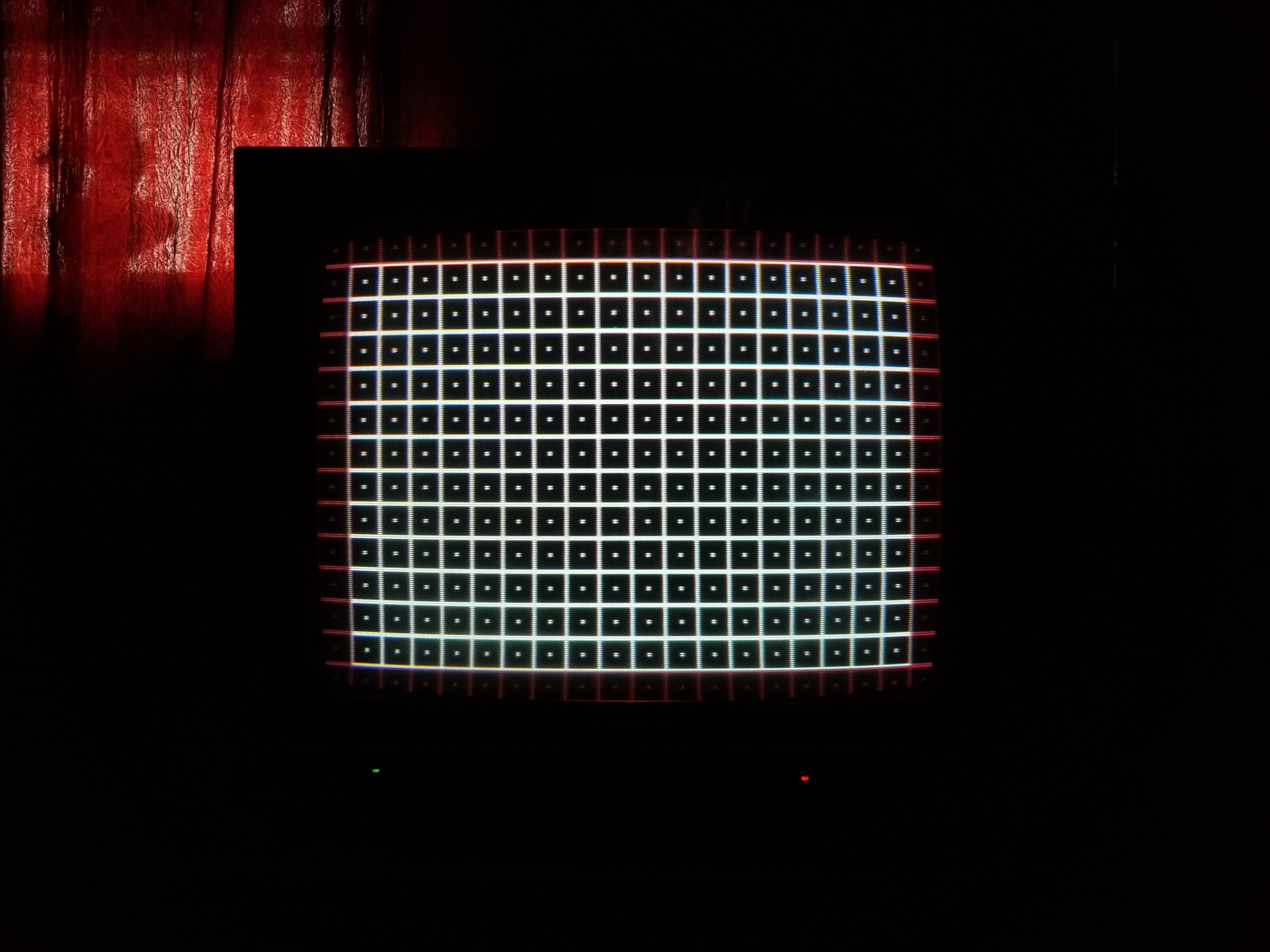

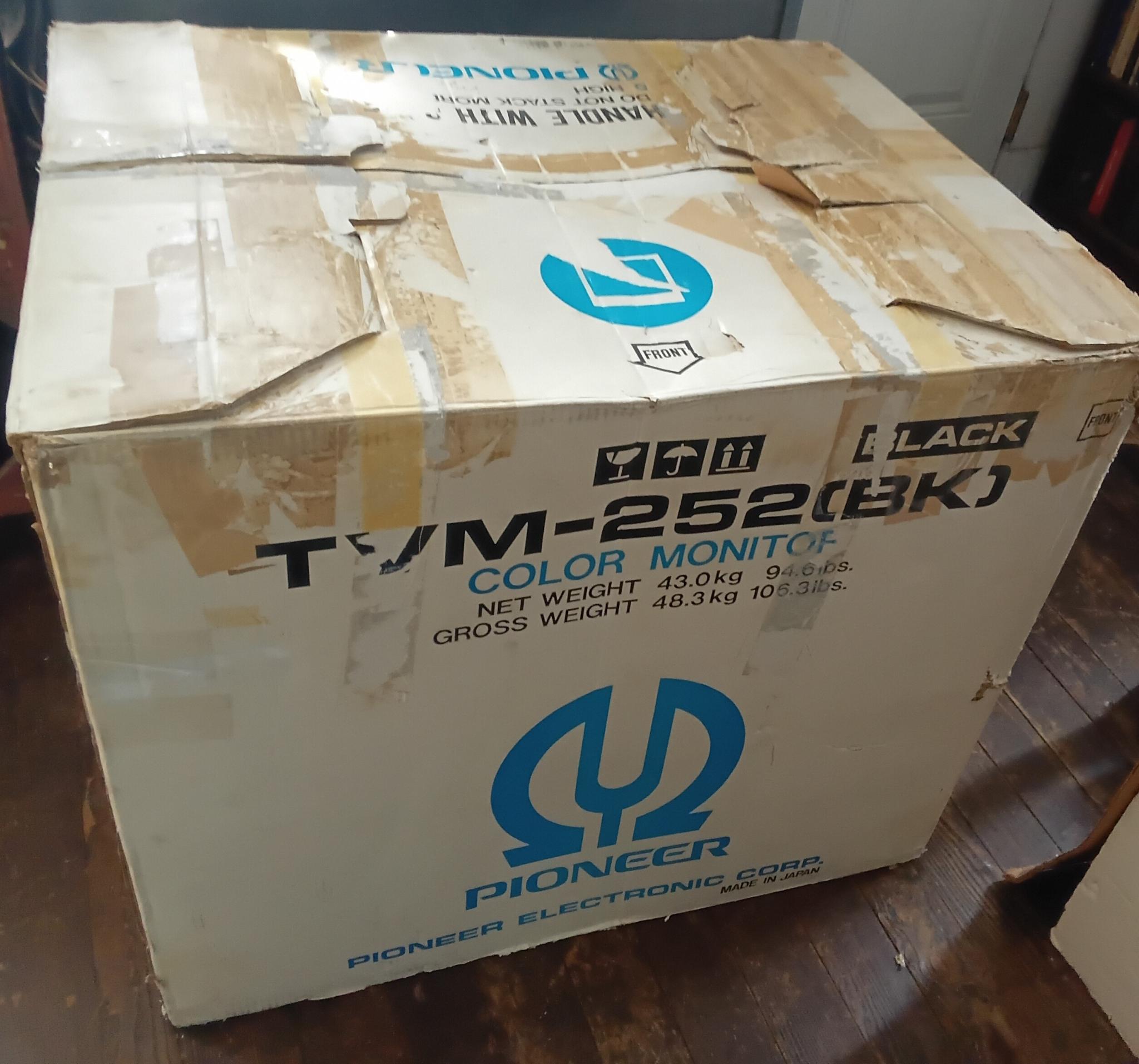

Gallery
| Specifications | |
|---|---|
| Brand: | Pioneer |
| Manufacturer: | Pioneer |
| Model: | TVM-252 |
| Series: | Foresight |
| Viewable Size: | 25" |
| Input Signals: | Composite |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |
| Focus Type: | Single |

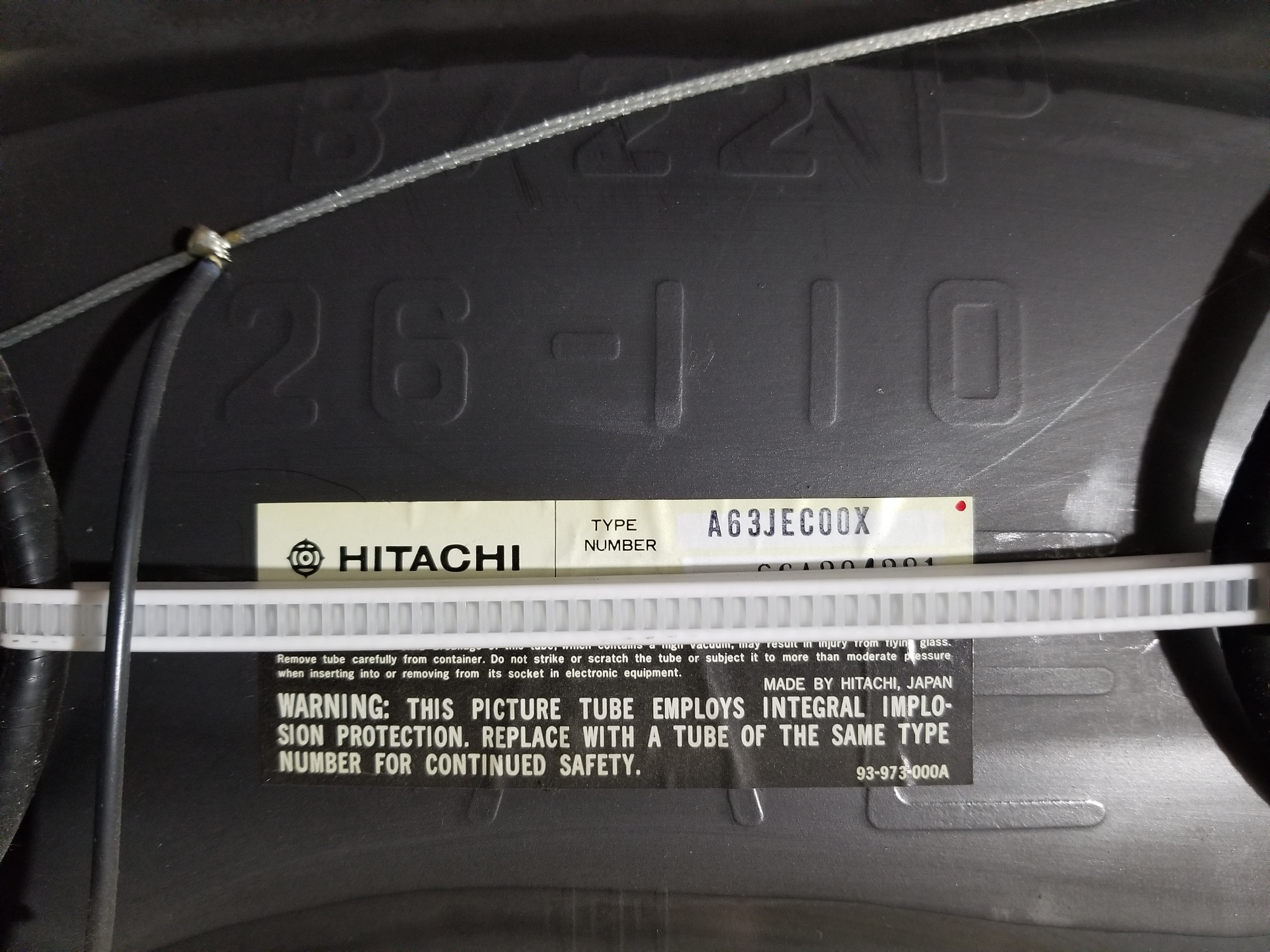

| Tube: | Hitachi |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |
| Yoke Horz. Inductance: | .7948 mH (@ 10 kHz) |
| Yoke Vert. Inductance: | 35.37 mH (@ 100 Hz) |
| Yoke Horz. Resistance: | 1.088 ohm |
| Yoke Vert. Resistance: | 13.59 ohm |
| Speakers: | None |
| Application: | Consumer |
| Cabinet Material: | Wood |
| Launched: | 1985 |
| MSRP: | 999 USD |
| Country of Manufacture: | Japan |
| Market: | North America |
| Power Standard: | Universal |
| Mounting: | OEM Stand |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual, Needs Measurements |
