Portland TCK-405P
Andy King
September 17, 2024, 9:55 am
December 24, 2024, 7:28 am
September 17, 2024, 9:55 am
December 24, 2024, 7:28 am
Summary

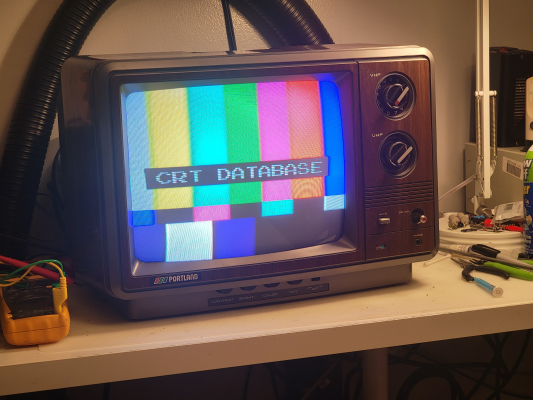

Very cute 14" television from the early 80s. Manufactured by Taihan Electric Wire Co. in South Korea, sold under the "Portland" brand. Inside it is mostly Toshiba parts with an Orion tube. Taihan Electric was later purchased by Daewoo.
Manuals
Notes
The potentiometers in this seem to have deteriorated over time. If you are having problems with vertical height I suggest starting with testing the height adjustment pot on the back. It should have 100K range.
Gallery







Specifications | |
---|---|
Brand: | Portland |
Manufacturer: | Taihan Electric Wire Co. |
Model: | 405P |
Series: | TCK |
Viewable Size: | 14" |
Inputs: | RF |
Native Resolutions: | 240p, 480i |
Horizontal Scan Range: | 15 kHz |
Vertical Scan Range: | 60 Hz |
Formats: | NTSC |
Aspect: | 4:3 |
Adjustments: | Internal Potentiometers, External Potentiometers |
Horz. Output Transistor: | Toshiba, 2SC1893 |
Jungle: | Toshiba, TA7608CP |
Tube: | Daewoo-Orion , 370DJB22 |
Heater Voltage: | 6.3v |
Deflection: | 90° |
Mask: |
Slot
![]() |
Tint: | Light |
Removable Glare Film: | No |
Yoke: | YS-52482, DOK-8315T |
Speakers: | Mono |
Chassis: | C-22B |
Application: | Consumer |
Cabinet Material: | Plastic, Simulated Woodgrain |
Launched: | 1983 |
Country of Manufacture: | Korea |
Mounting: | Carrying Handle |
Degaussing: | Automatic on Power-on |
Tag: | Needs Owners Manual |
