Summary

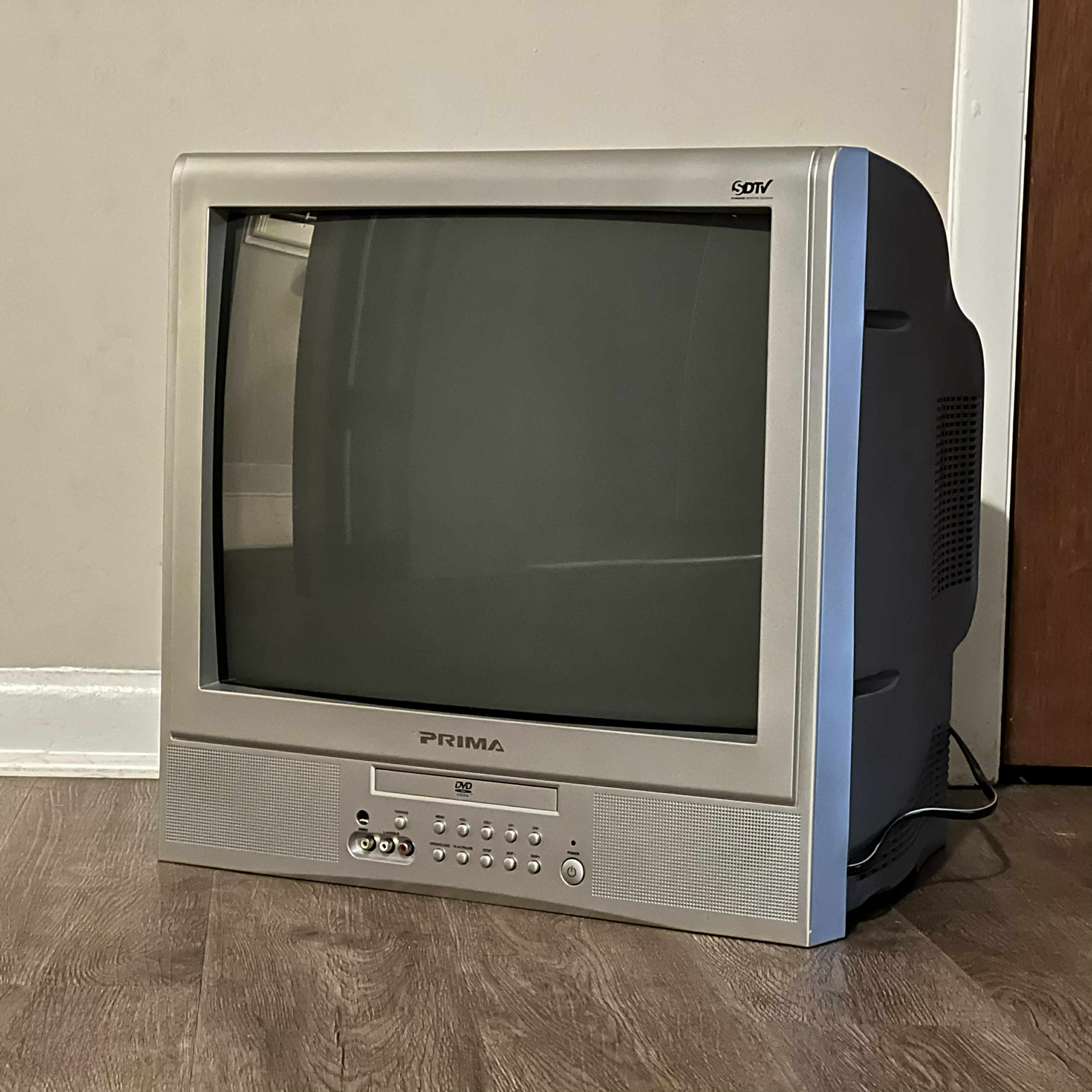

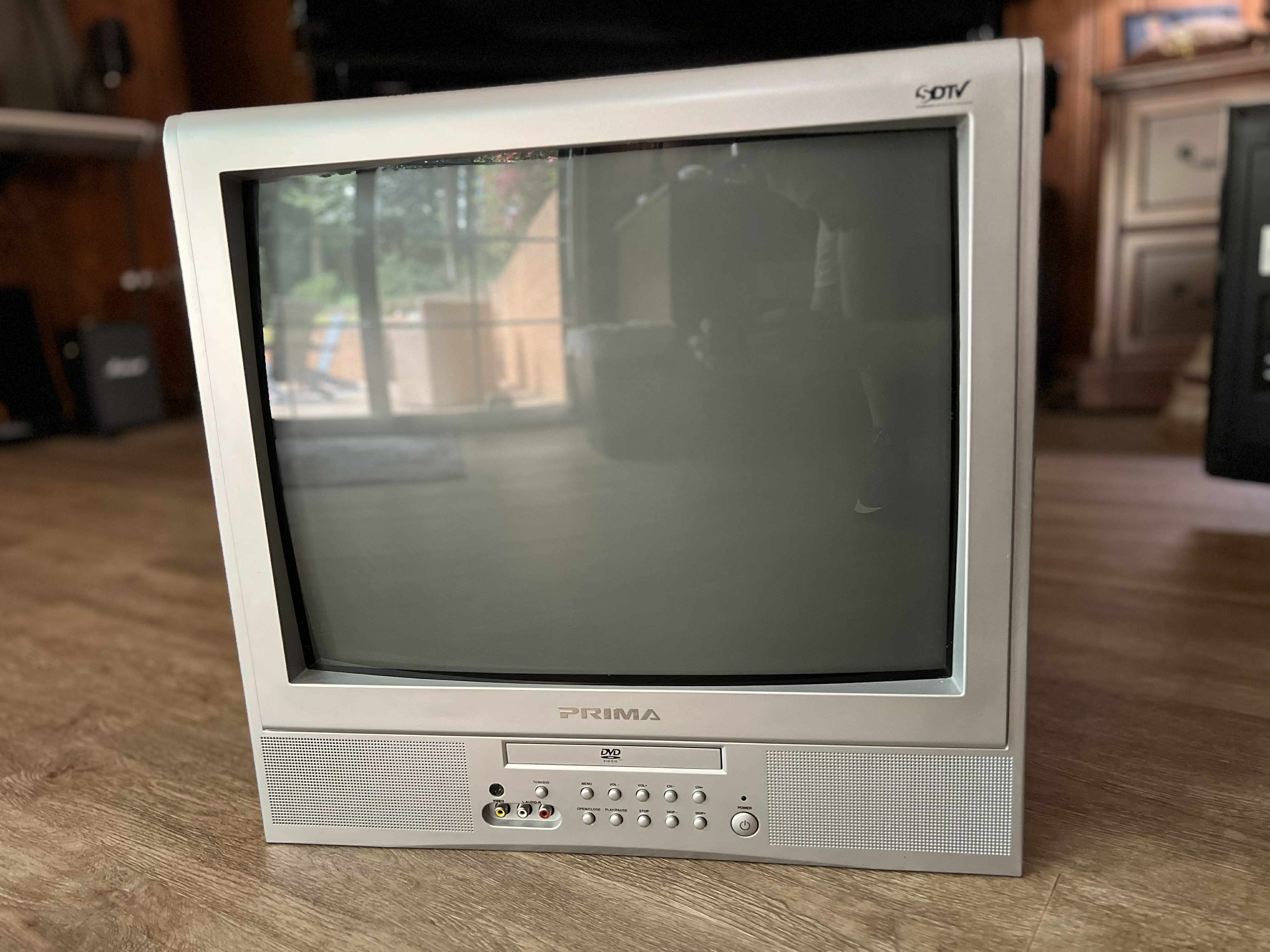

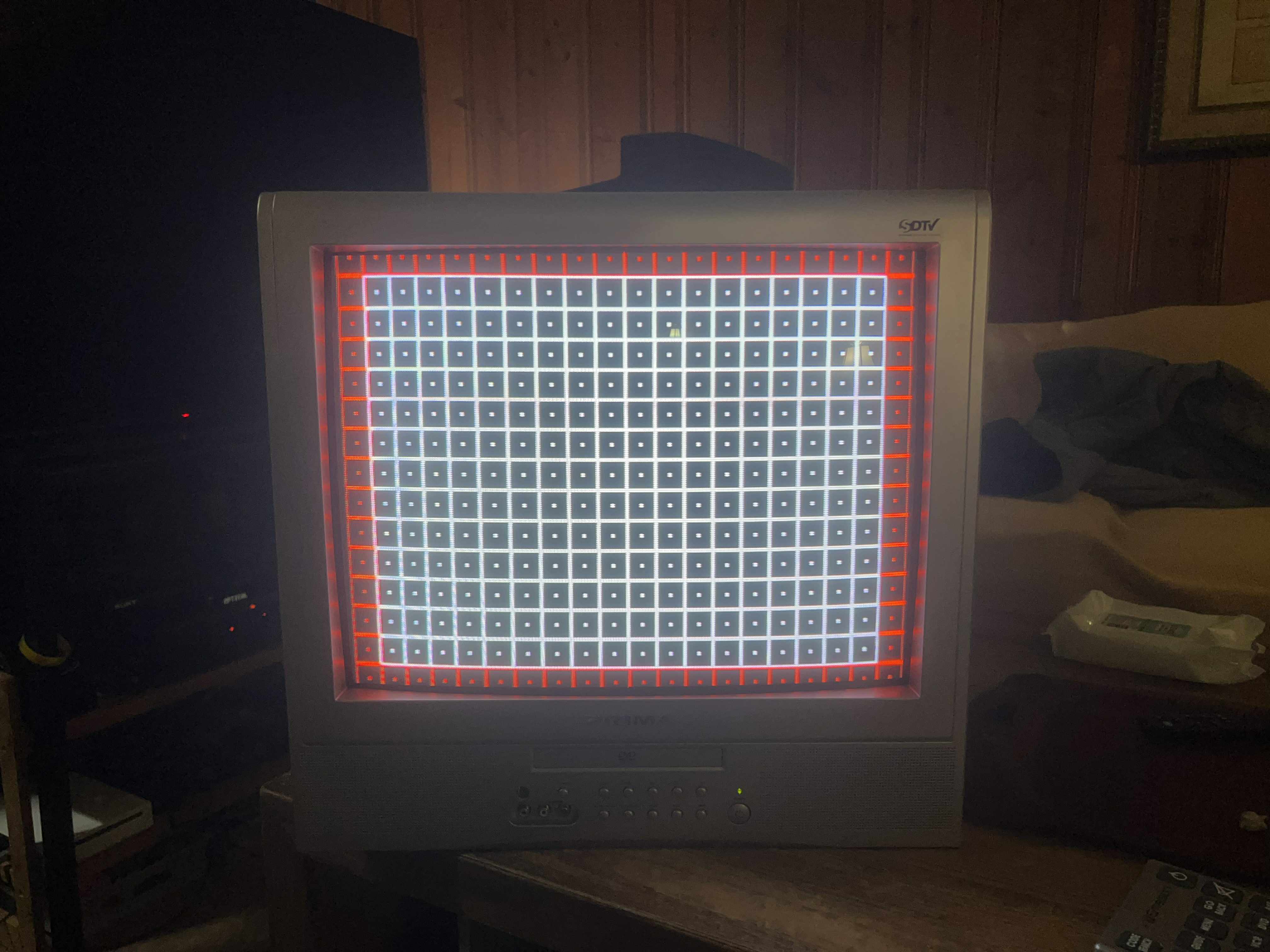

20" DVD combo by Prima. Has RF, composite and component inputs as well as an ATSC tuner. Originally manufactured by Haier in China, a rebadge of their TCR20.
(Special thanks to Austin G. for the pics!)
Manuals
Notes

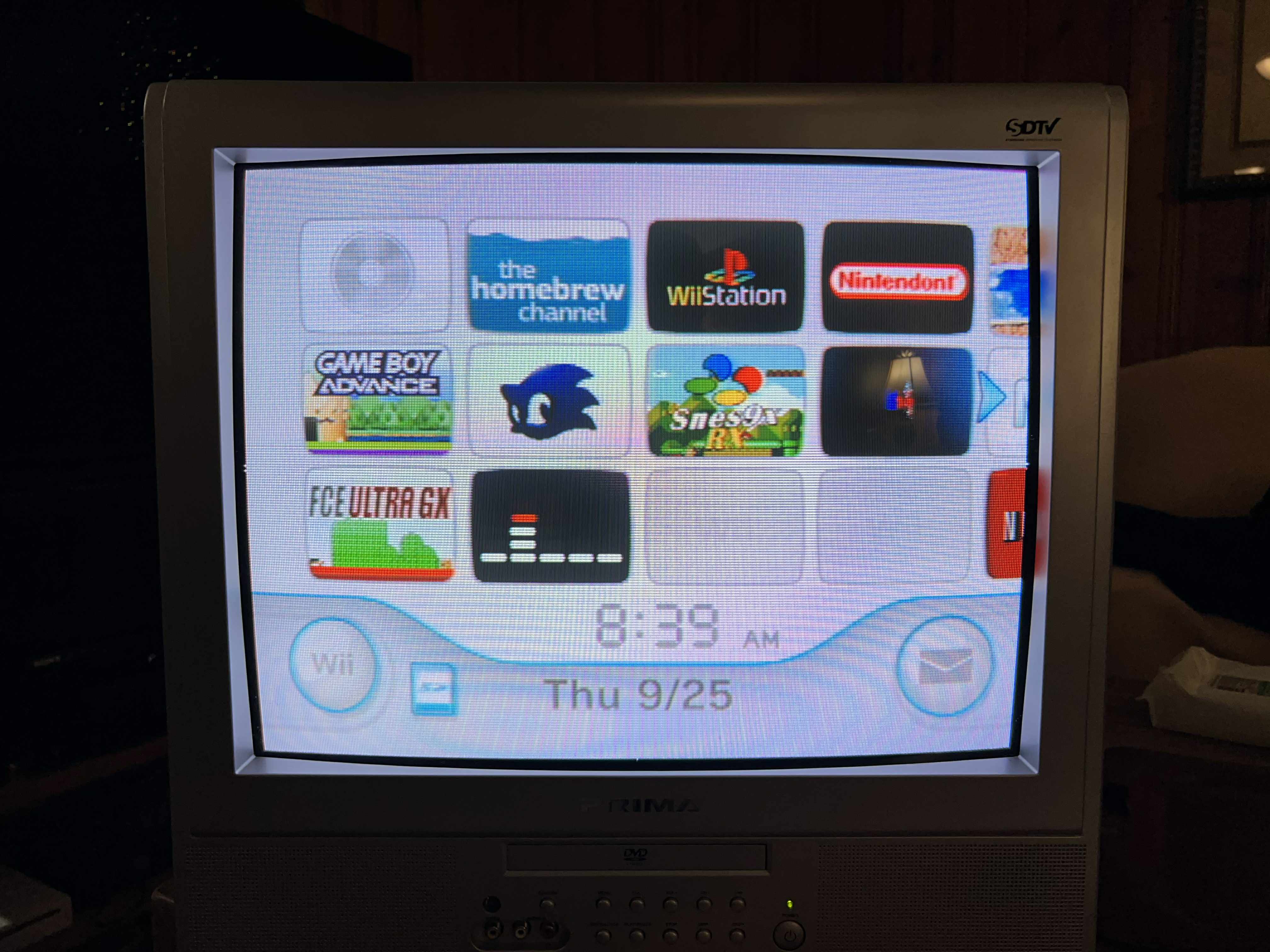

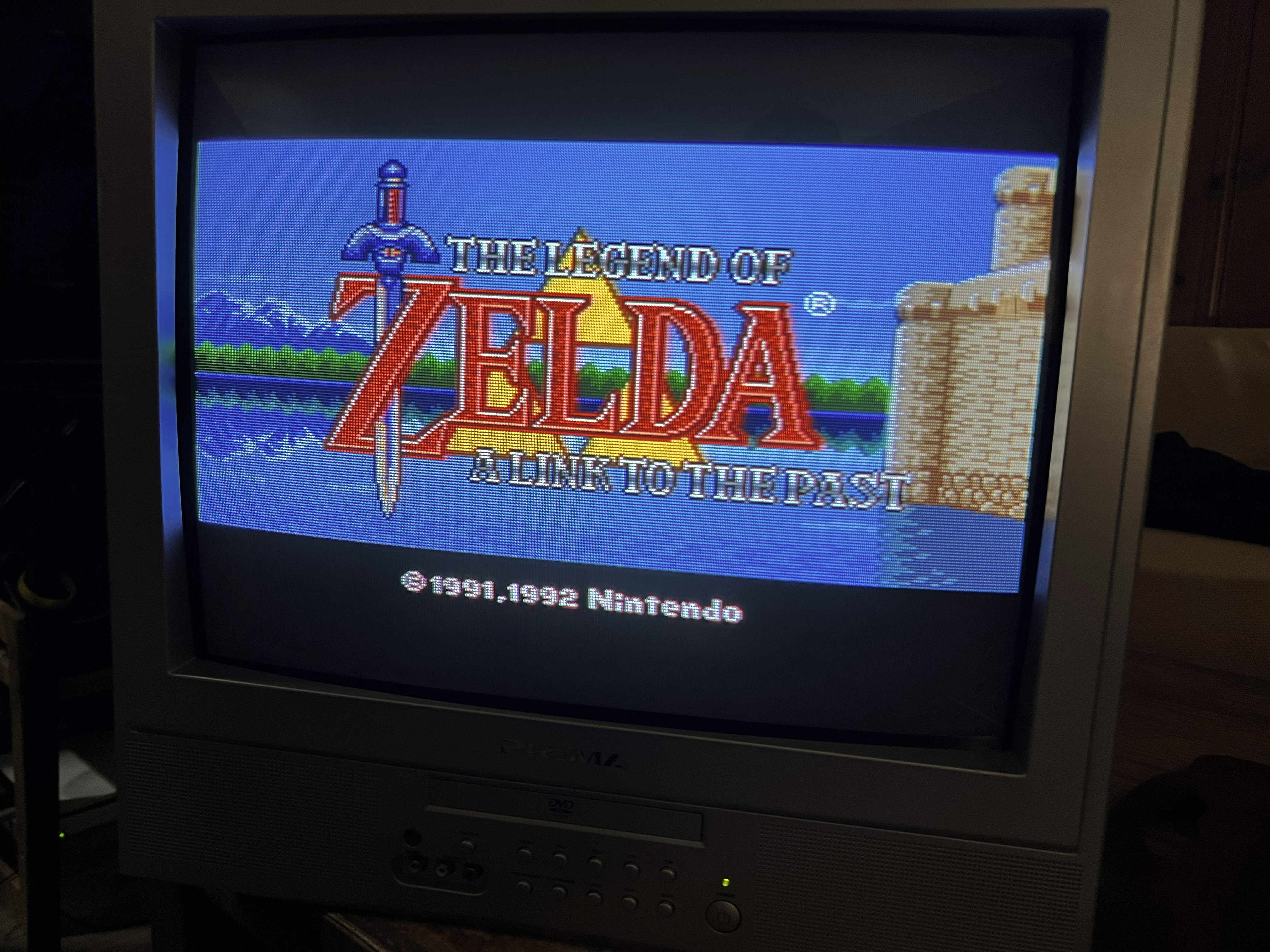

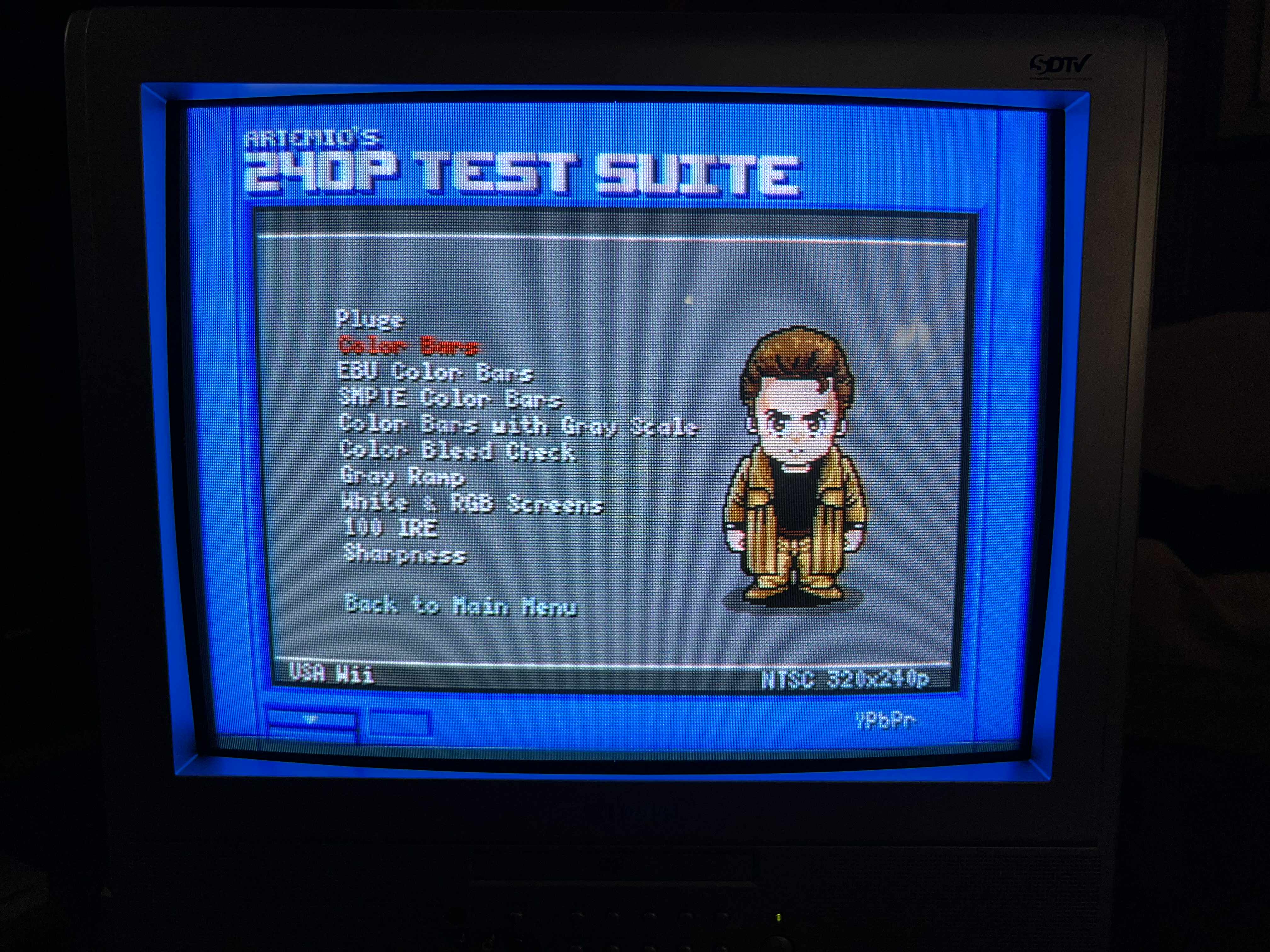

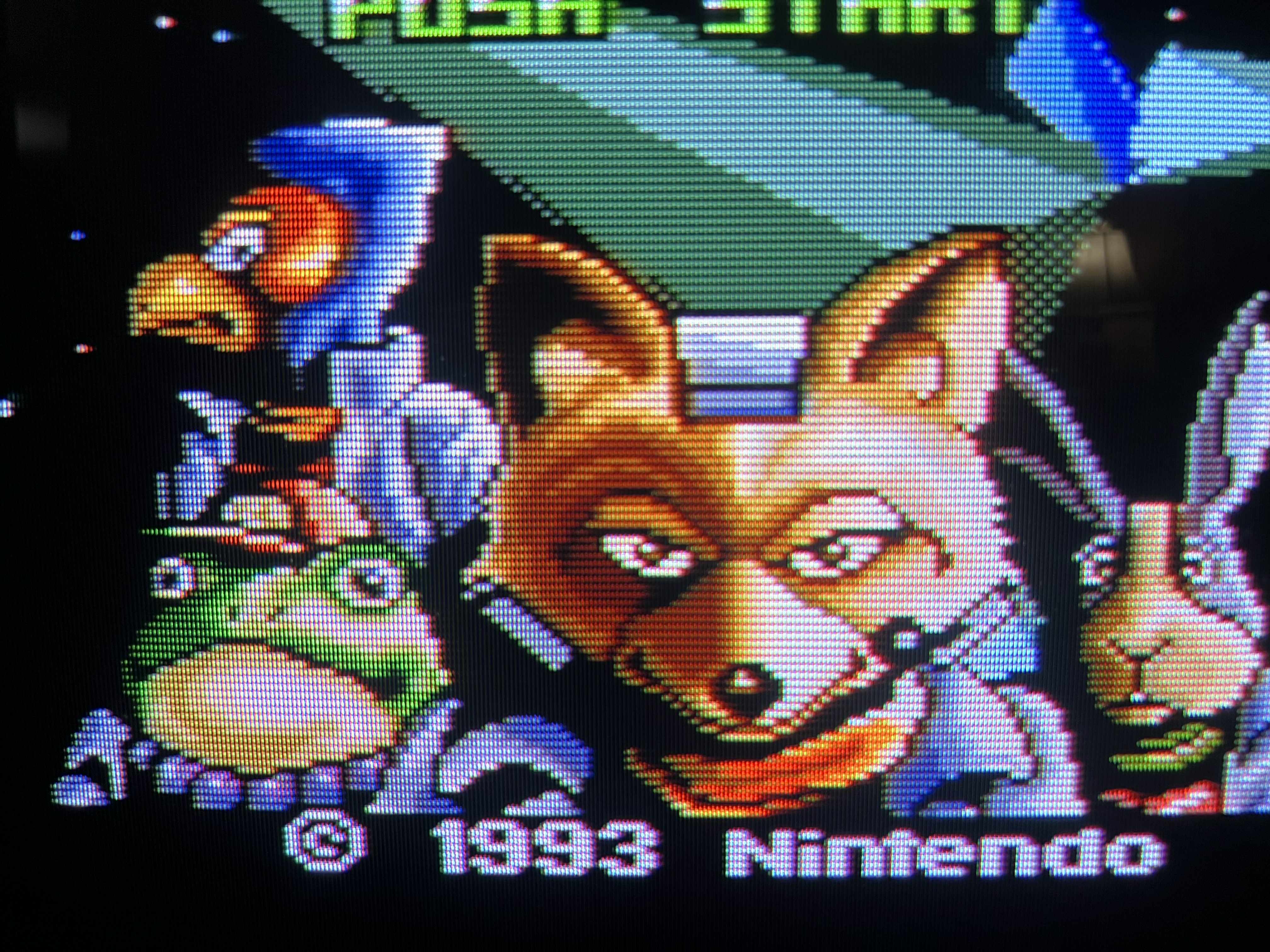

The quality of the component video signal is a mixed bag. The Renesas jungle chip has misaligned chroma artifacts, and color bleed. Still, it looks pretty good all things considered.
Gallery
| Specifications | |
|---|---|
| Brand: | Prima |
| Manufacturer: | Haier |

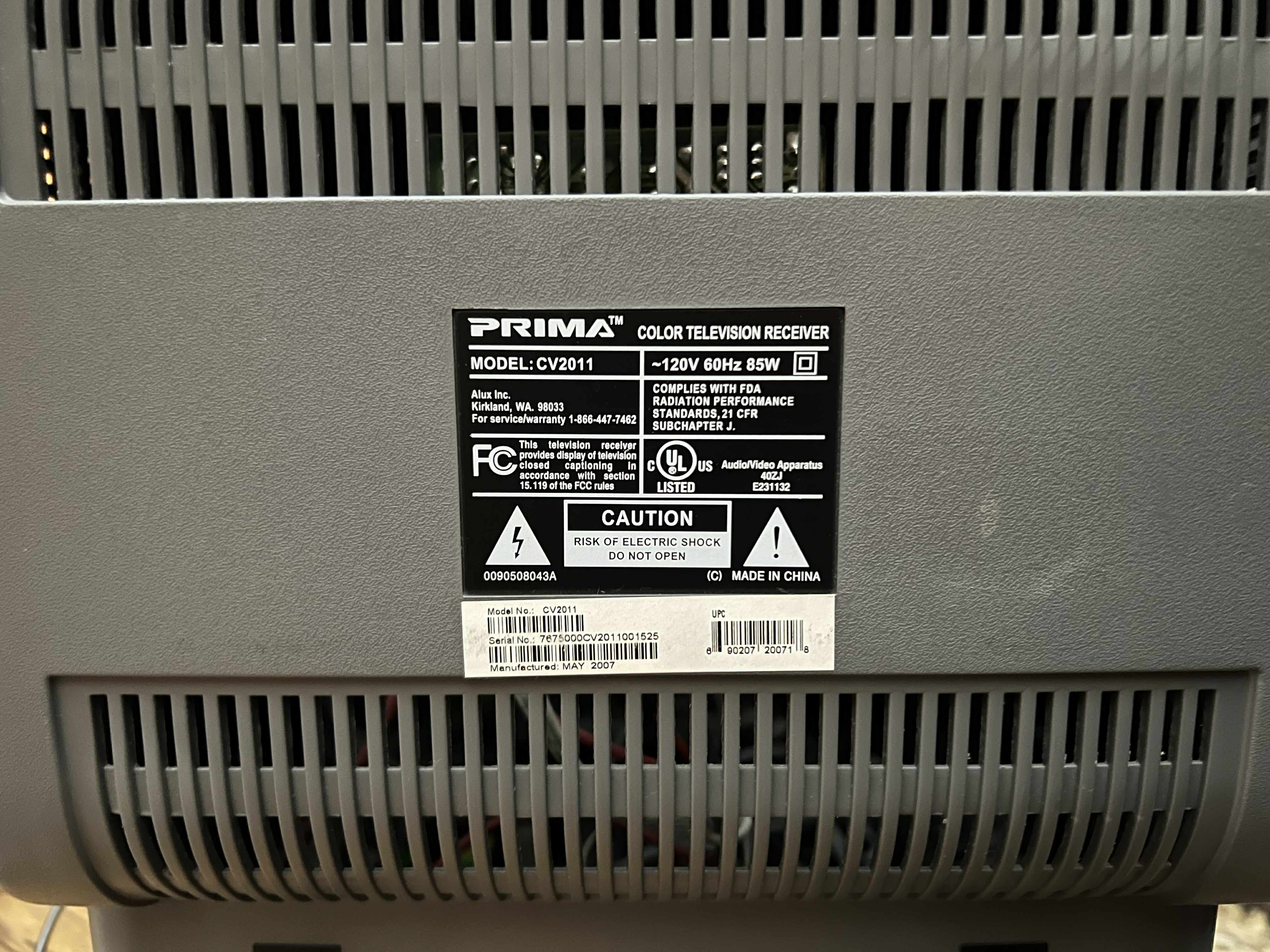

| Model: | CV2011 |
| Series: | CV |
| Viewable Size: | 20" |

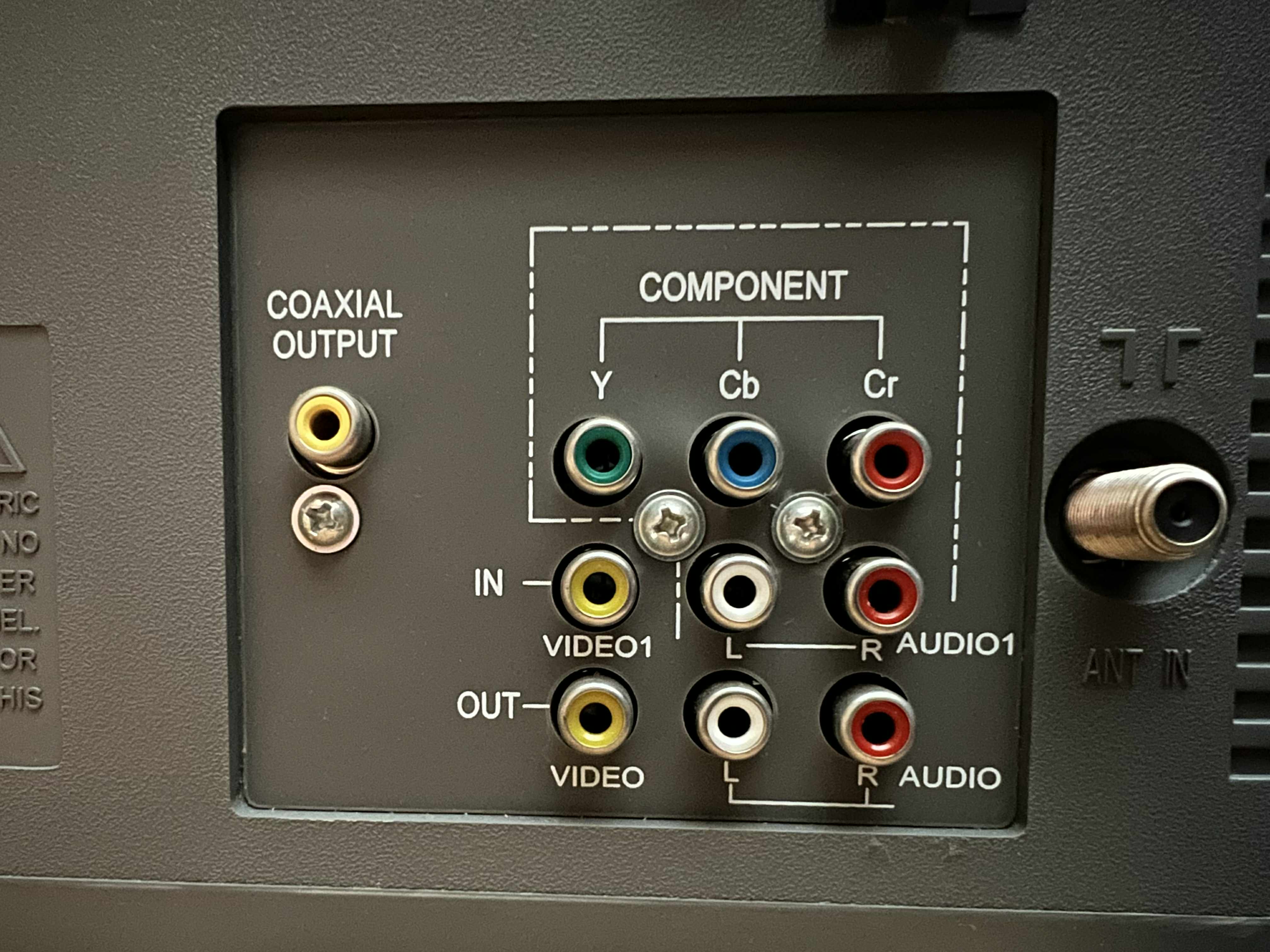

| Inputs: | Composite, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Vertical Output IC: | Philips, TDA9302 |

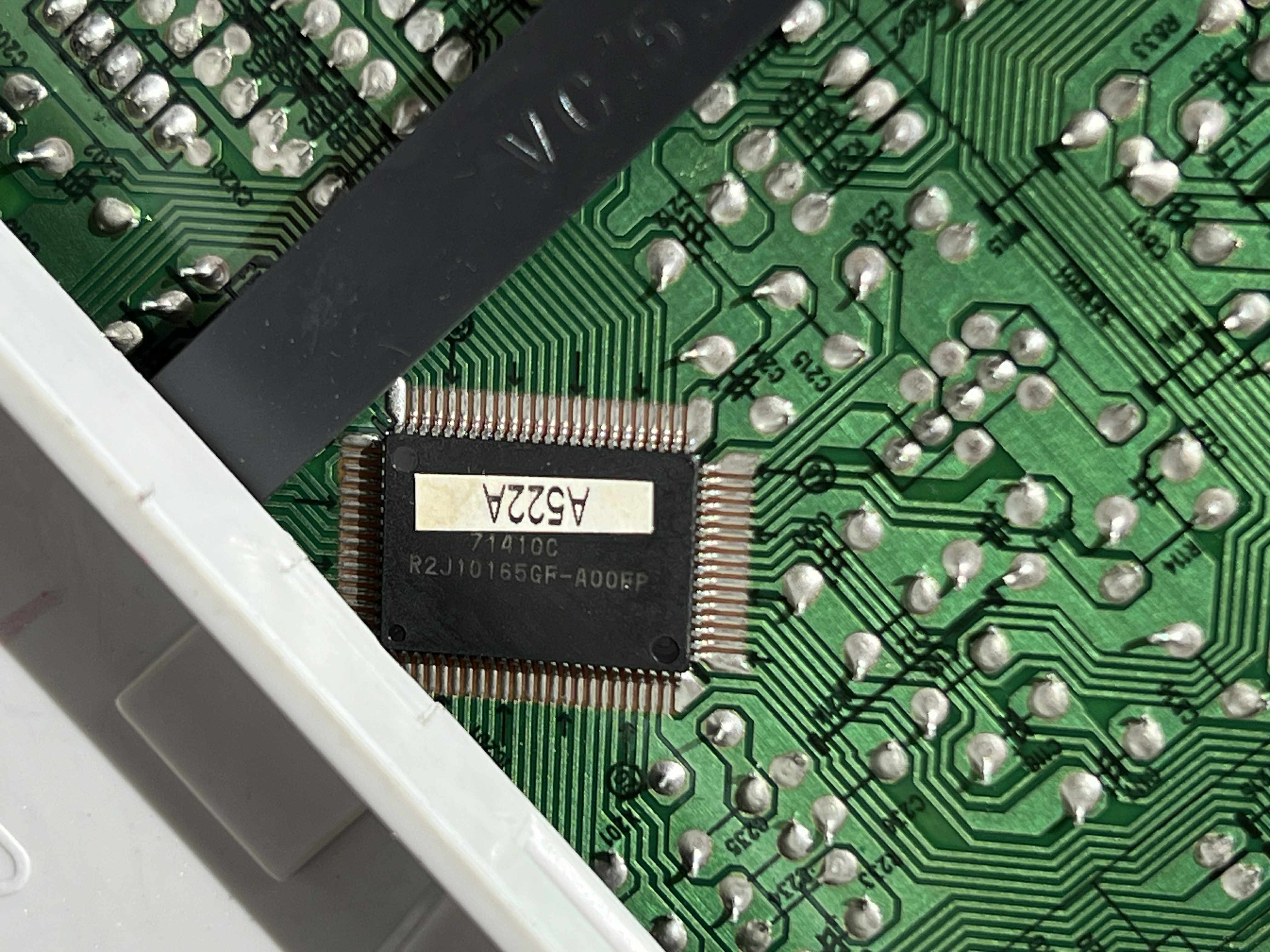

| Jungle IC: | Renesas, R2J10165GF-A00FP |

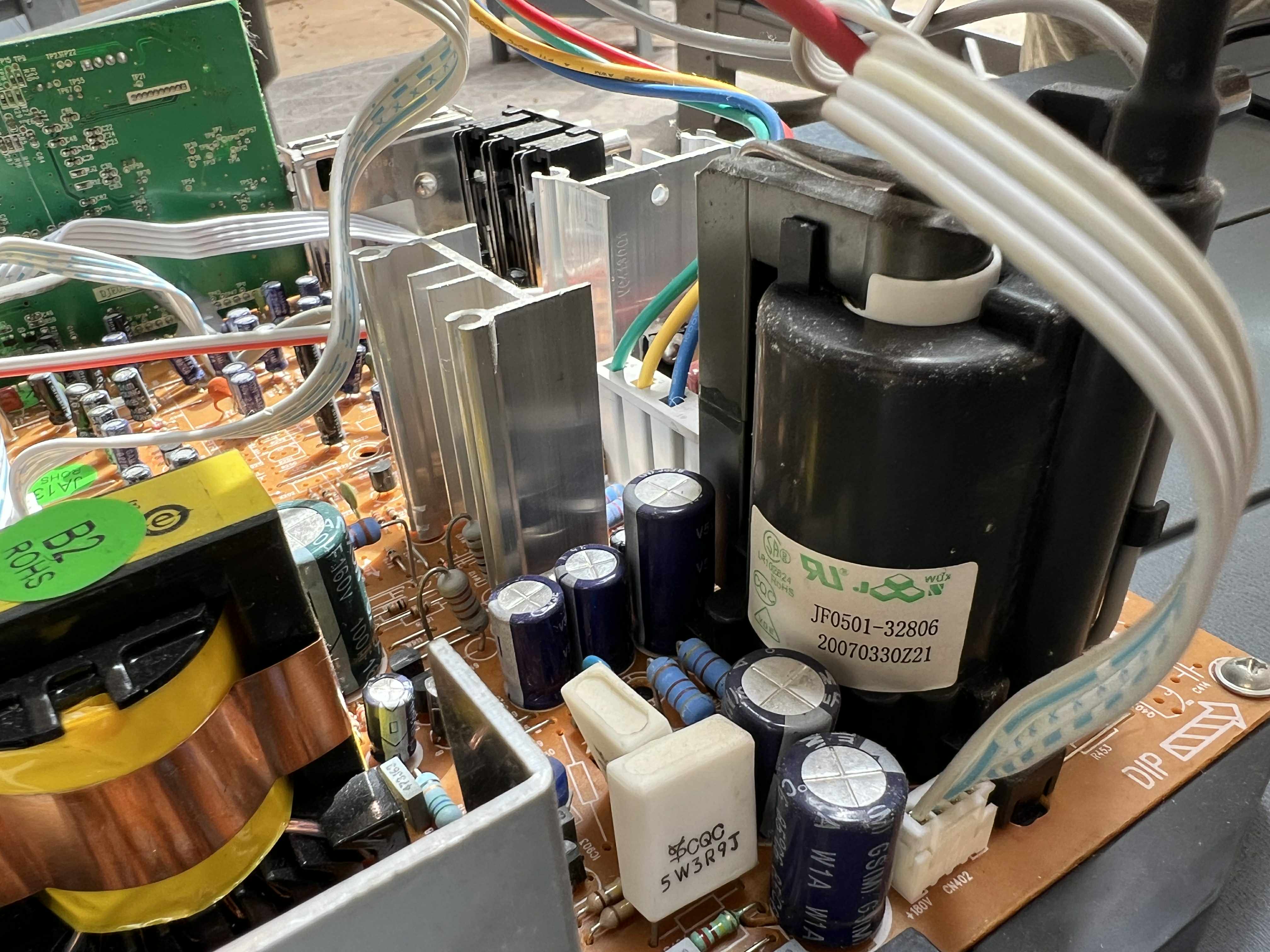

| Flyback: | JF0501-32806 |
| Focus Type: | Single |

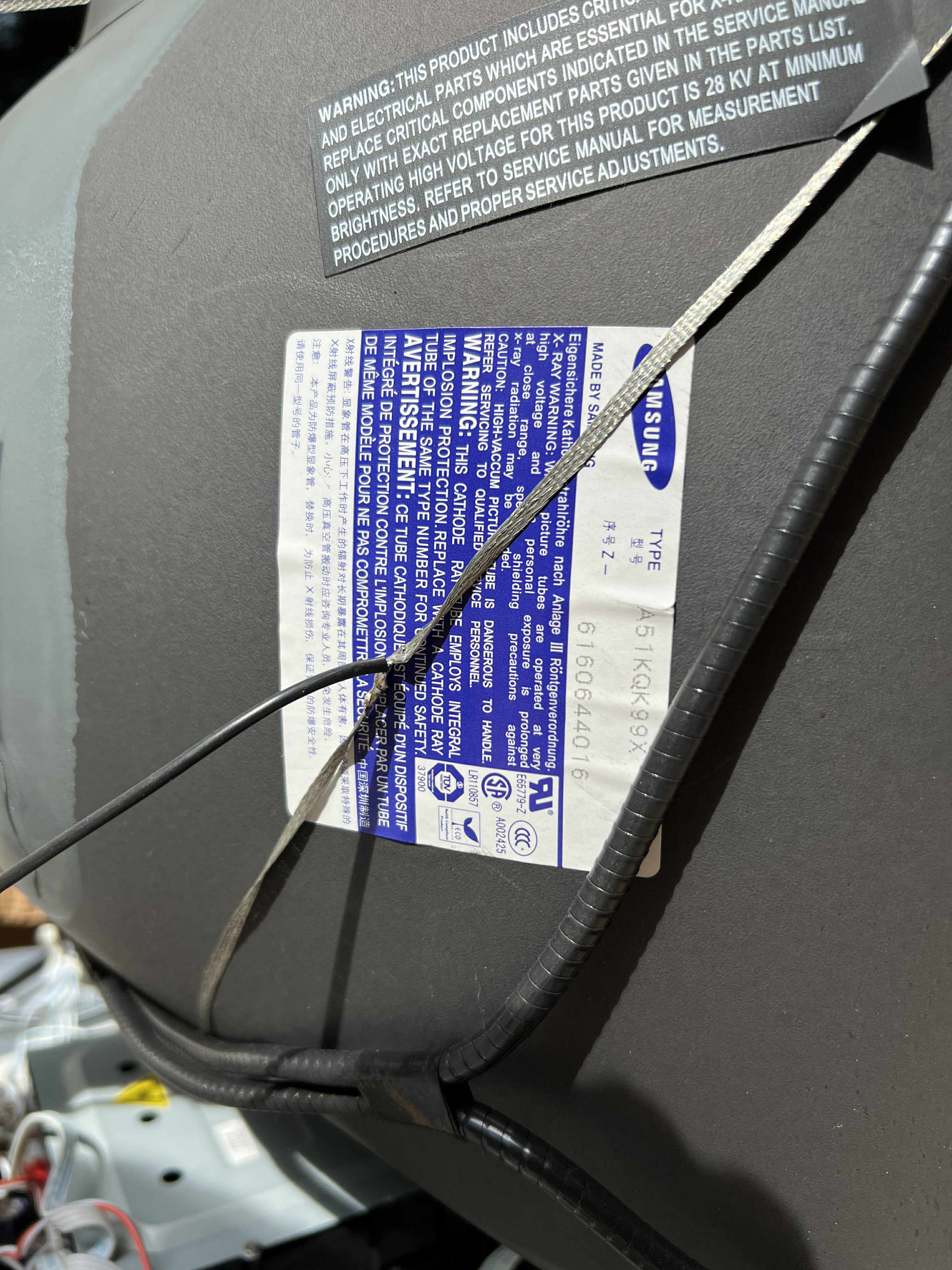

| Tube: | Samsung , A51KQK99X |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

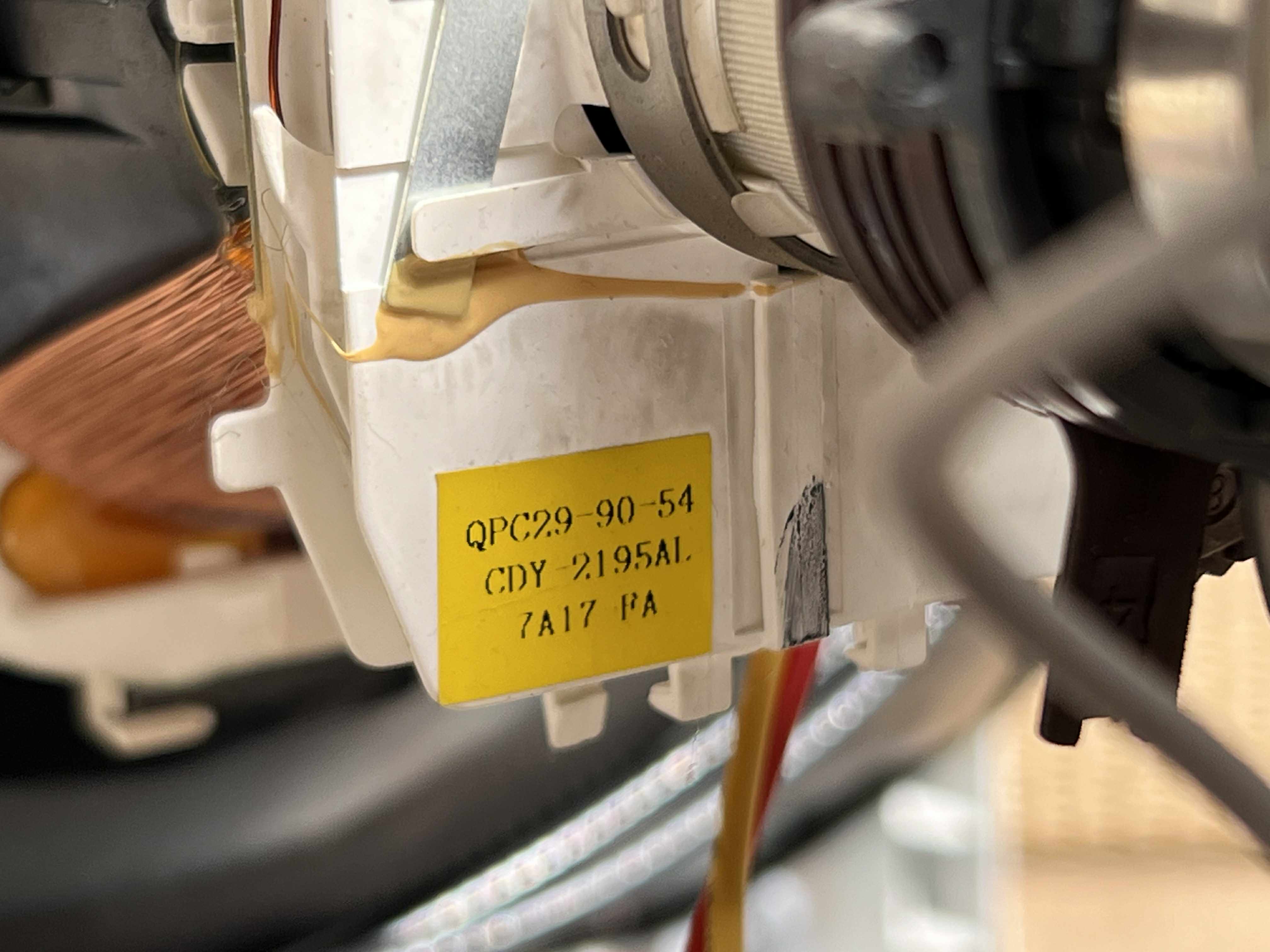

| Yoke: | CDY-2195AL |

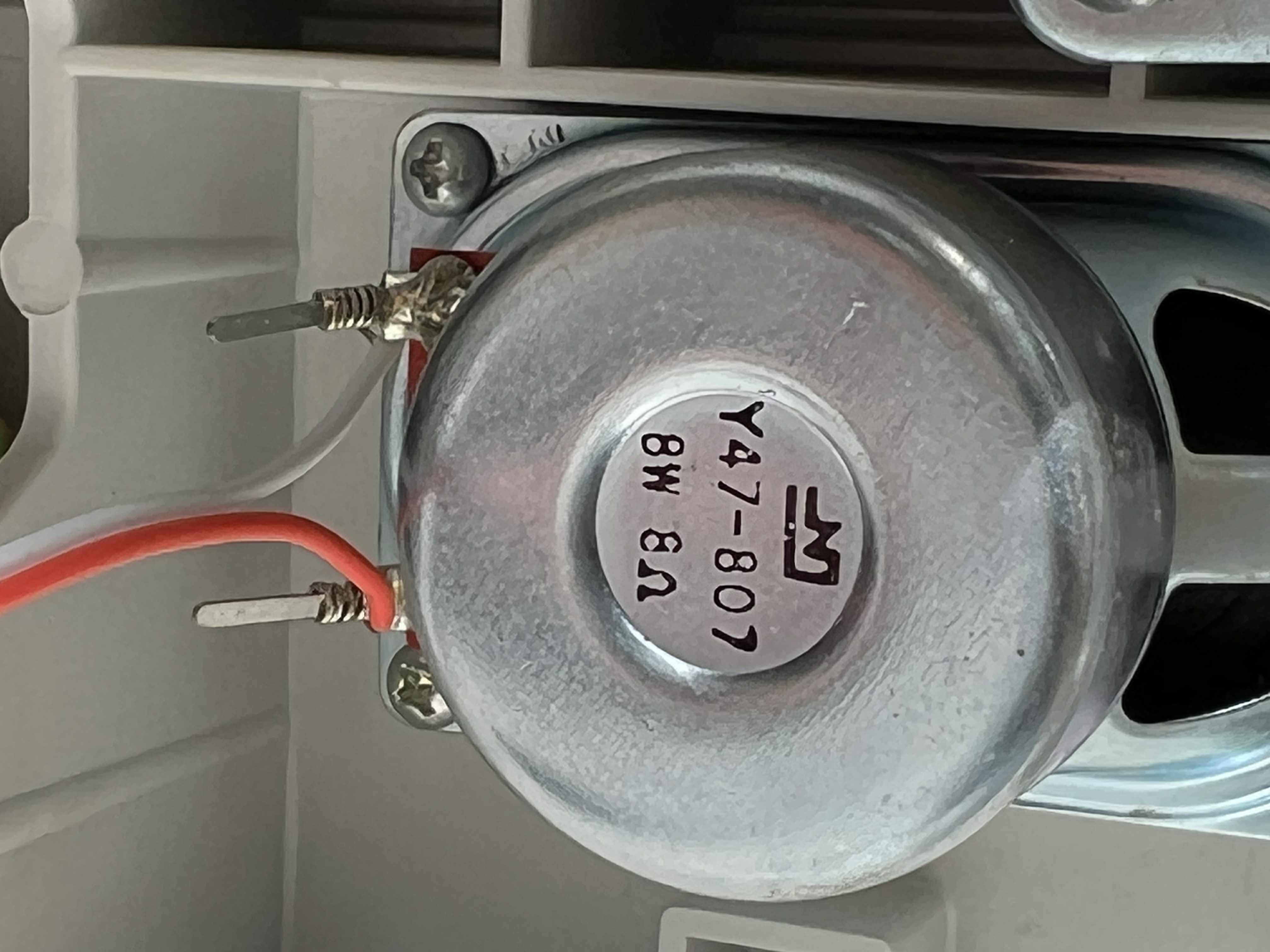

| Speakers: | Stereo, 8W x 2 |
| Dimensions (W/H/D): |
499 x 482 x 484 mm
(19.6 x 18.9 x 19") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 2007 |
| MSRP: | 199 USD |
| Country of Manufacture: | China |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
