Princeton Ultra 72e

Matt Ross
April 16, 2023, 2:24 pm
October 26, 2024, 7:16 am

Summary

Standard 17" PC monitor with a 70 kHz scan rate. Manufactured by Lite-On.

Literature

No documentation is available online at this time.

Notes

Gallery

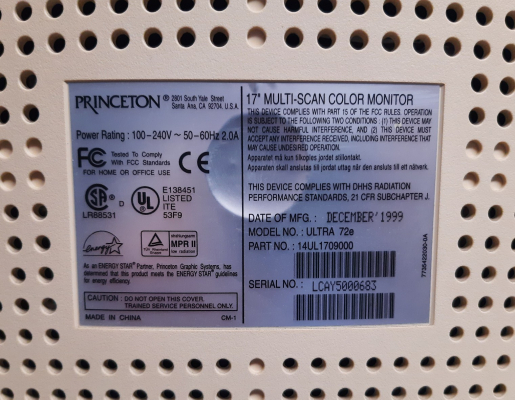

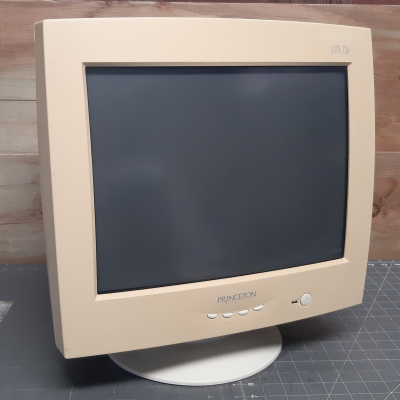

Princeton Ultra 72e Princeton Ultra 72e Princeton Ultra 72e
Specifications
Brand: Princeton
Manufacturer: Lite
Model: Ultra 72e
Series: Ultra
Viewable Size: 16"
Inputs: VGA
Sync: HV Sync
Native Resolutions: VGA, SVGA, XGA, SXGA
Horizontal Scan Range: 30 kHz, 70 kHz
Vertical Scan Range: 50 Hz, 160 Hz
Aspect: 4:3
Adjustments: OSD Customer Controls
Vertical Output IC: TDA4866
Flyback: FEA867
Tube: Chunghwa , M41AGE83X46 , M41AGE83X
Heater Voltage: 6.3v
Deflection: 90°
Mask: Shadow
Pitch: 0.28 mm
Tint: Dark, Matte Anti-Glare
Removable Glare Film: No
Yoke: SRY-7701C1
Yoke Horz. Inductance: 0.17734 mH (@ 10 kHz)
Yoke Vert. Inductance: 6.173 mH (@ 100 Hz)
Yoke Horz. Resistance: 0.44 ohm
Yoke Vert. Resistance: 9.93 ohm
Speakers: Stereo
Weight: 34.4 lbs (16 kg)
Application: Computer Monitor
Launched: 1999
Country of Manufacture: China
Mounting: Desk Stand
Degaussing: Automatic on Power-on
Tag: Needs Owners Manual, Needs Service Manual
