Summary

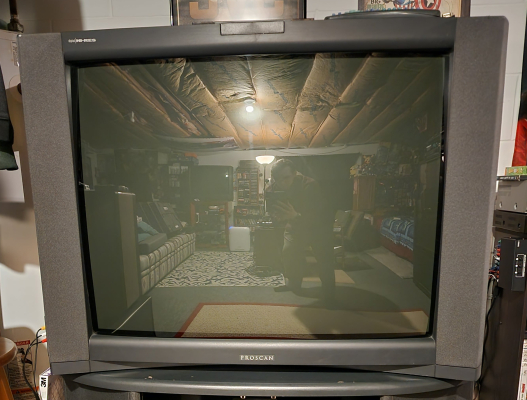

A very high-end 36" CRT by ProScan, made by RCA/Thomson in 1999. Natively scans 240p/480i over the standard inputs, as well as 480p, 600p, and 1080i over VGA. Uses a fine-pitch RCA tube model with dynamic focus and invar shadow mask. Has the same chassis as the RCA MM36100.
(Special thanks to Shane Torvik for the pics!)
Manuals
Webpages
Notes
Came with its own DTV box model, ProScan PSHD105.

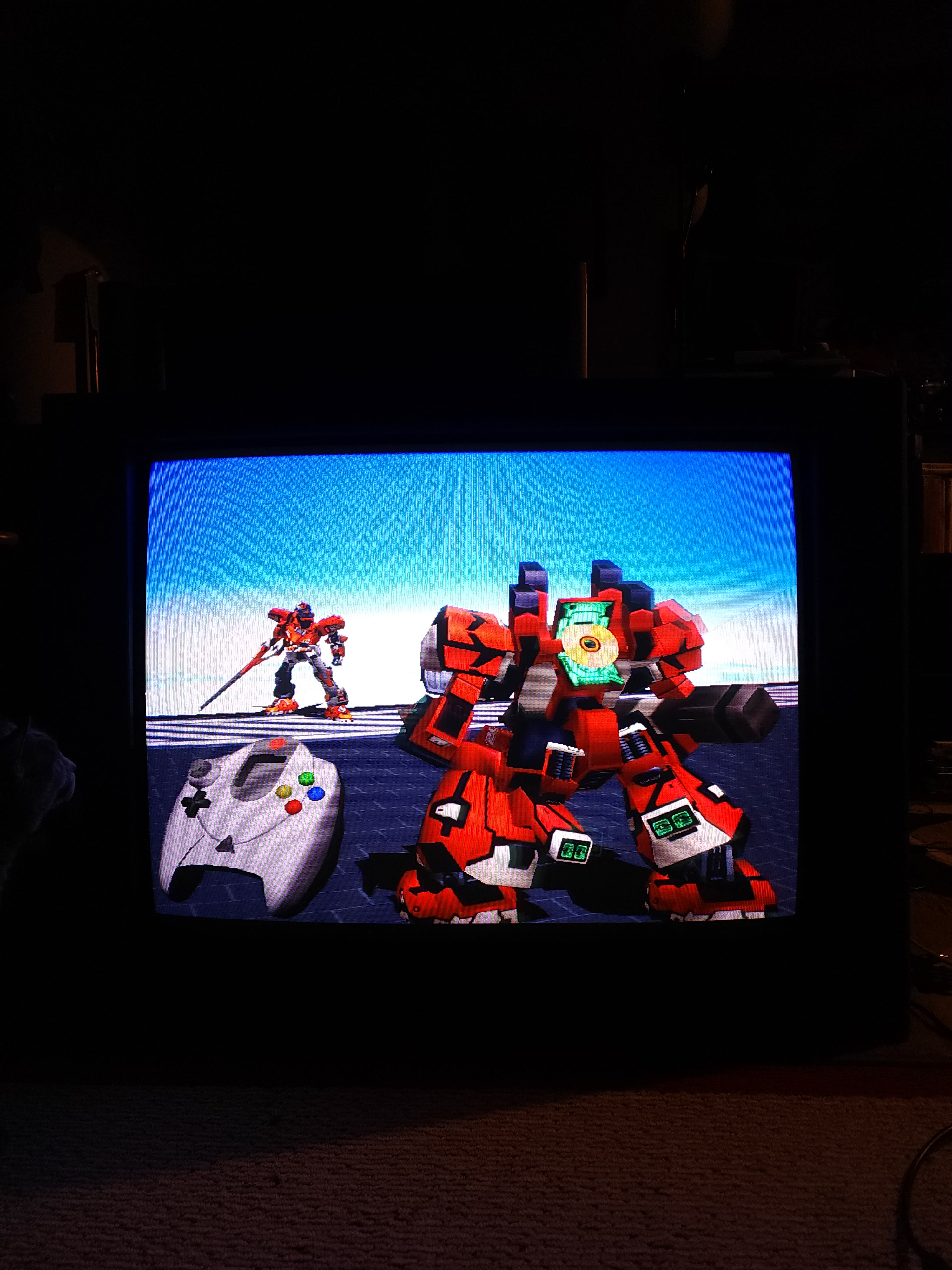

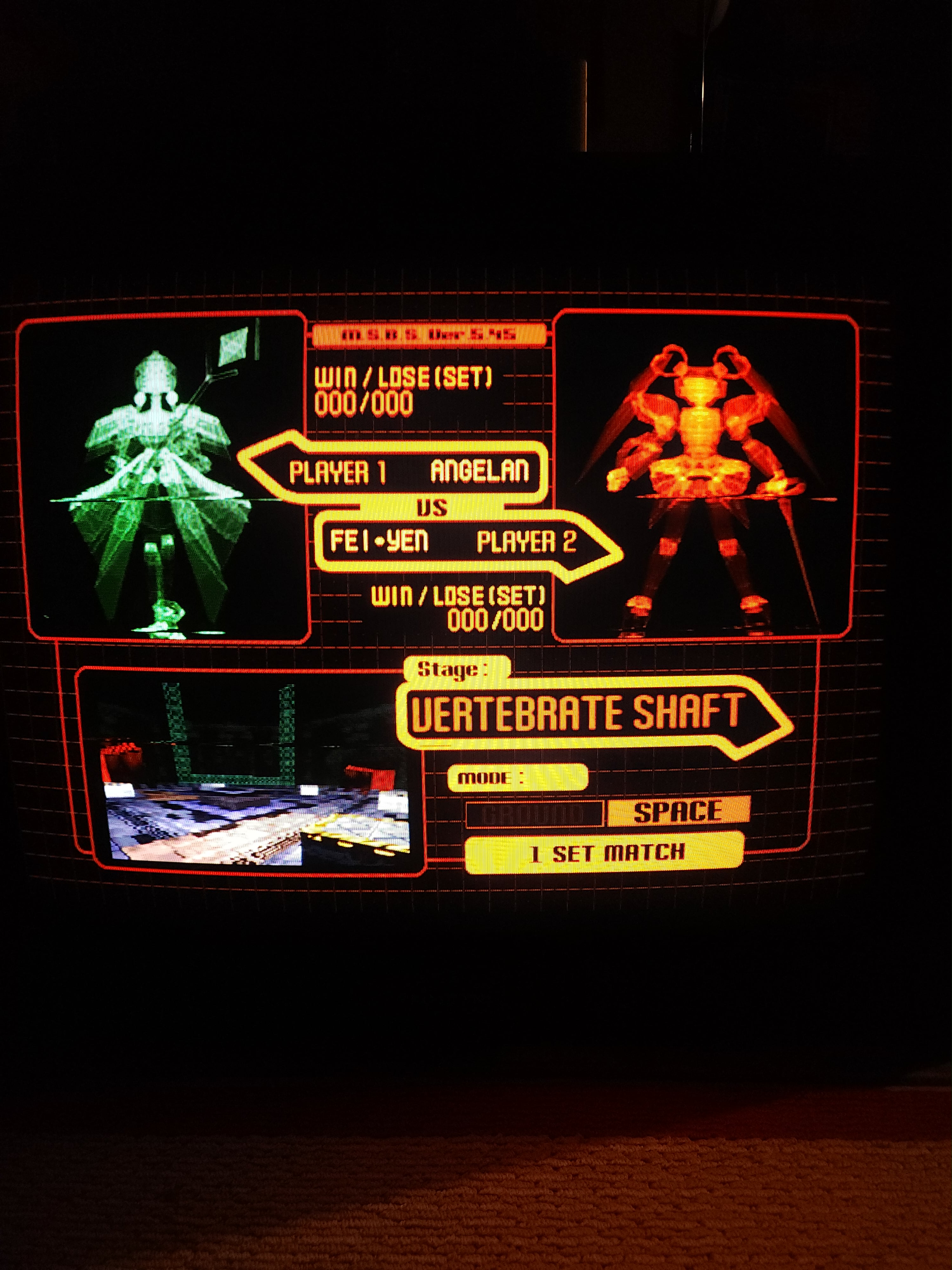

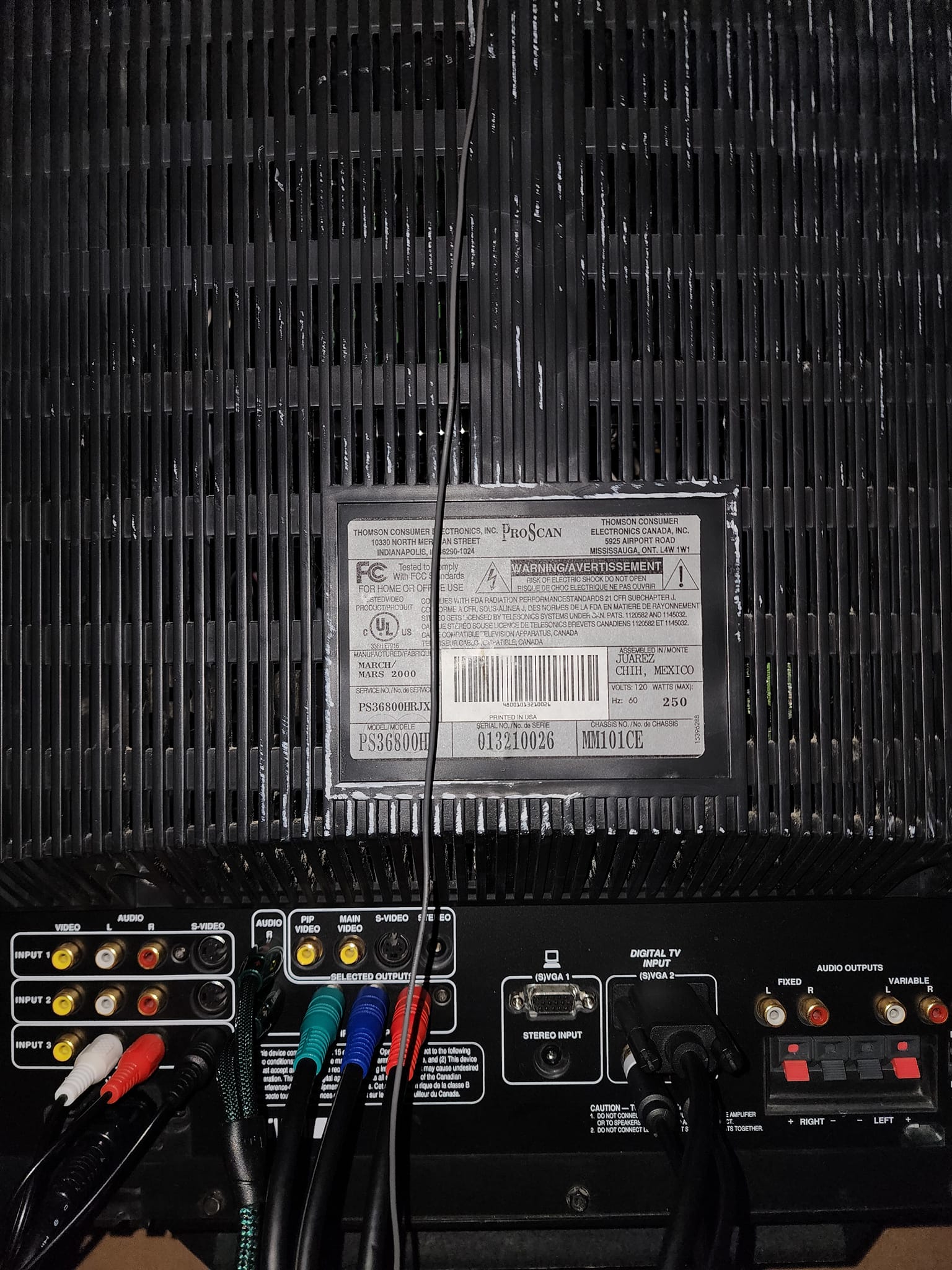

Gallery
| Specifications | |
|---|---|
| Brand: | Proscan |
| Manufacturer: | Thomson |
| Model: | PS36800HR |
| Series: | Digital Hi-Res |
| Viewable Size: | 36" |
| Inputs: | VGA, Composite, S-Video, RF, Component YPbPr |
| Native Resolutions: | 240p, 480i, 1080i, 480p, 600p |
| Horizontal Scan Range: | 15 kHz, 33.75 kHz |
| Vertical Scan Range: | 60 Hz, 72 Hz, 56 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | OSD Customer Controls, OSD Service Menu |
| Comb Filtering: | 3-Line Digital |
| Focus Type: | Dual |

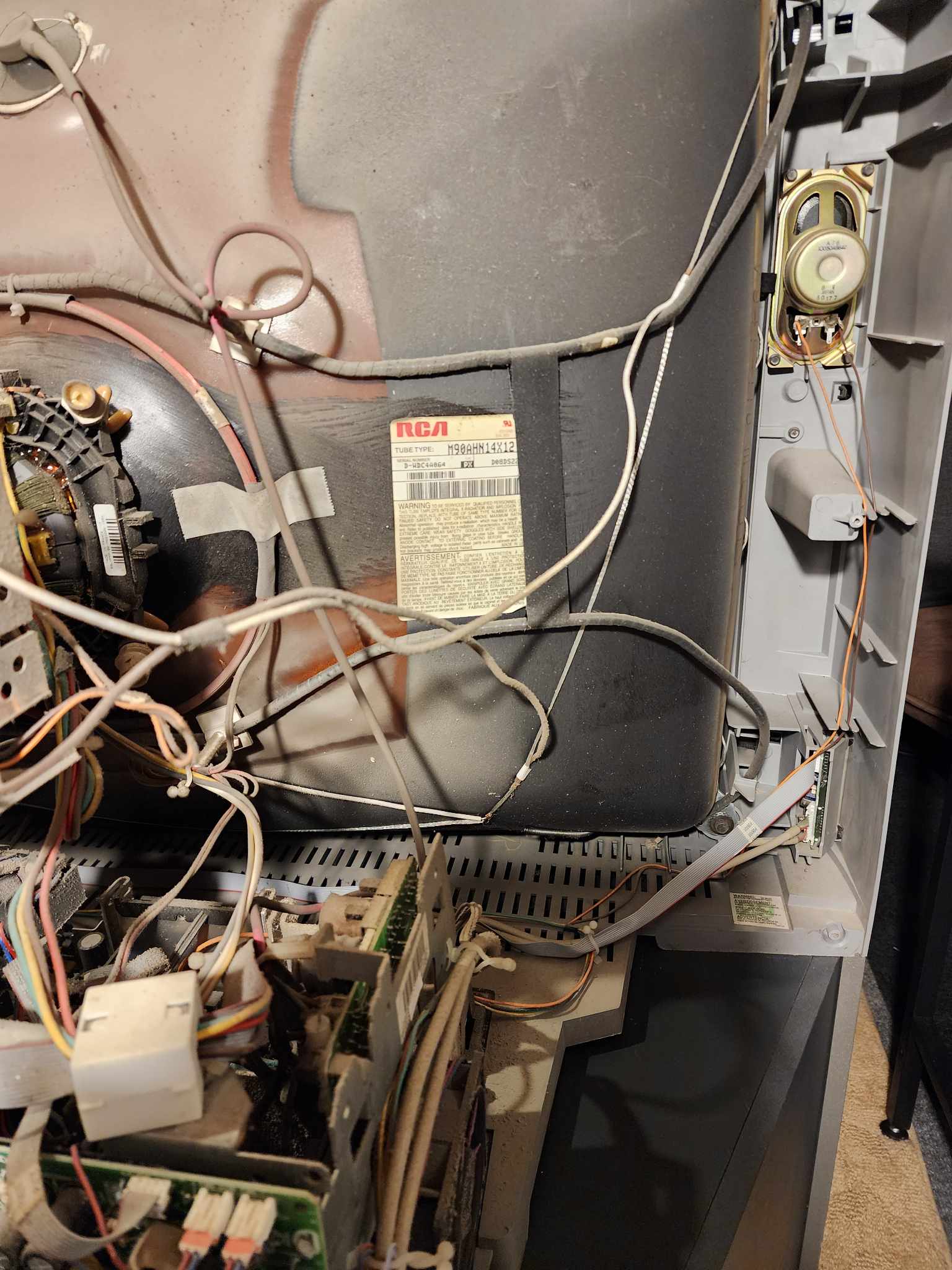

| Tube: | RCA , M90AHN14X , M90AHN14X12 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Pitch: | 0.78 mm |
| Tint: | Dark |
| Removable Glare Film: | No |
| Speakers: | Stereo, 5W x 4 |
| Remote: | CRK76TCL3 |
| Chassis: | MM101CE, MM101 |
| Weight: | 190 lbs (86.2 kg) |
| Dimensions (W/H/D): |
980 x 716 x 671 mm
(38.5 x 28.1 x 26.4") |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1999 |
| MSRP: | 2499 USD |
| Country of Manufacture: | Mexico |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard), OEM Stand, PRP36S |
| Degaussing: | Automatic on Power-on |
