Summary

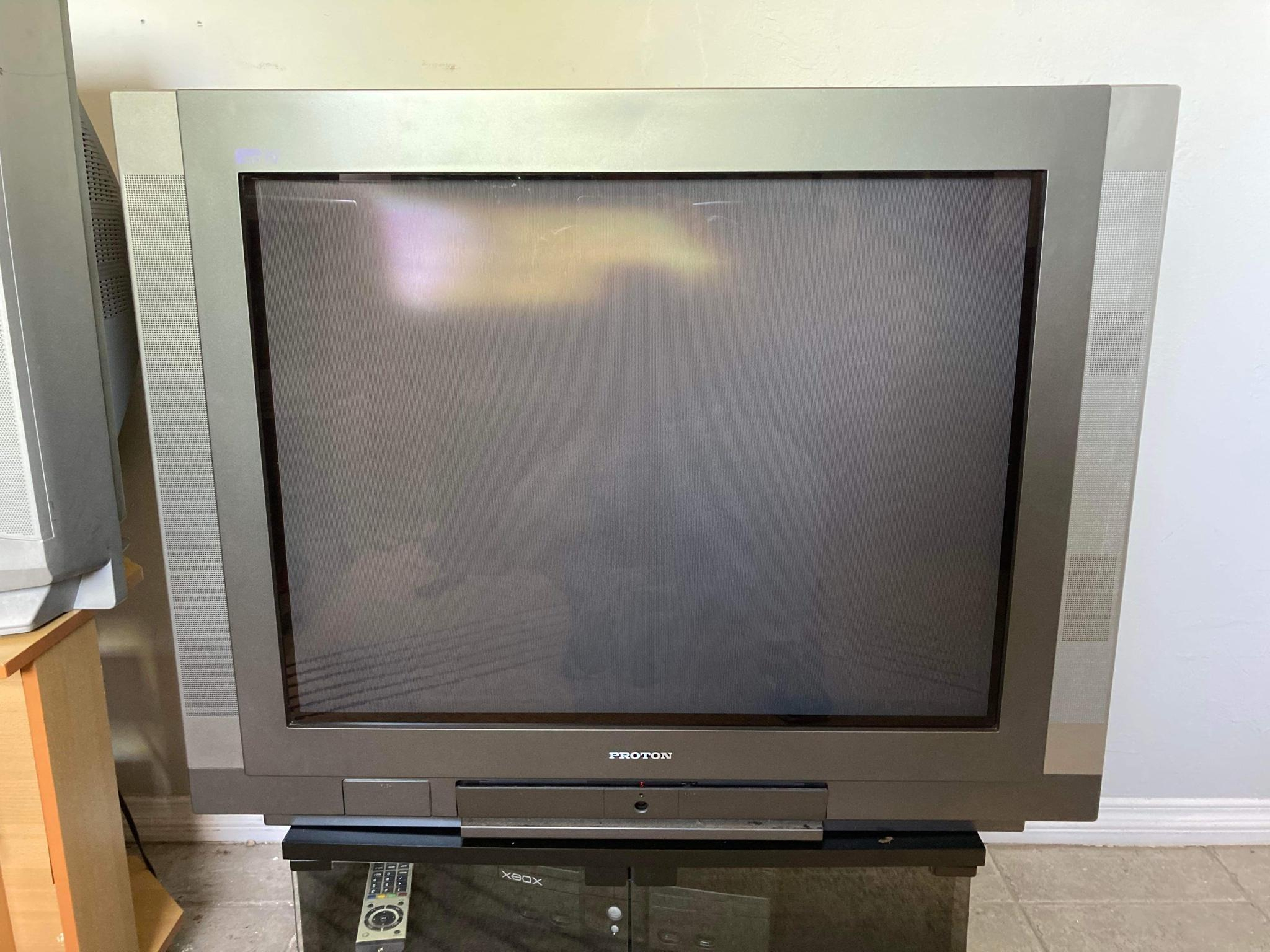

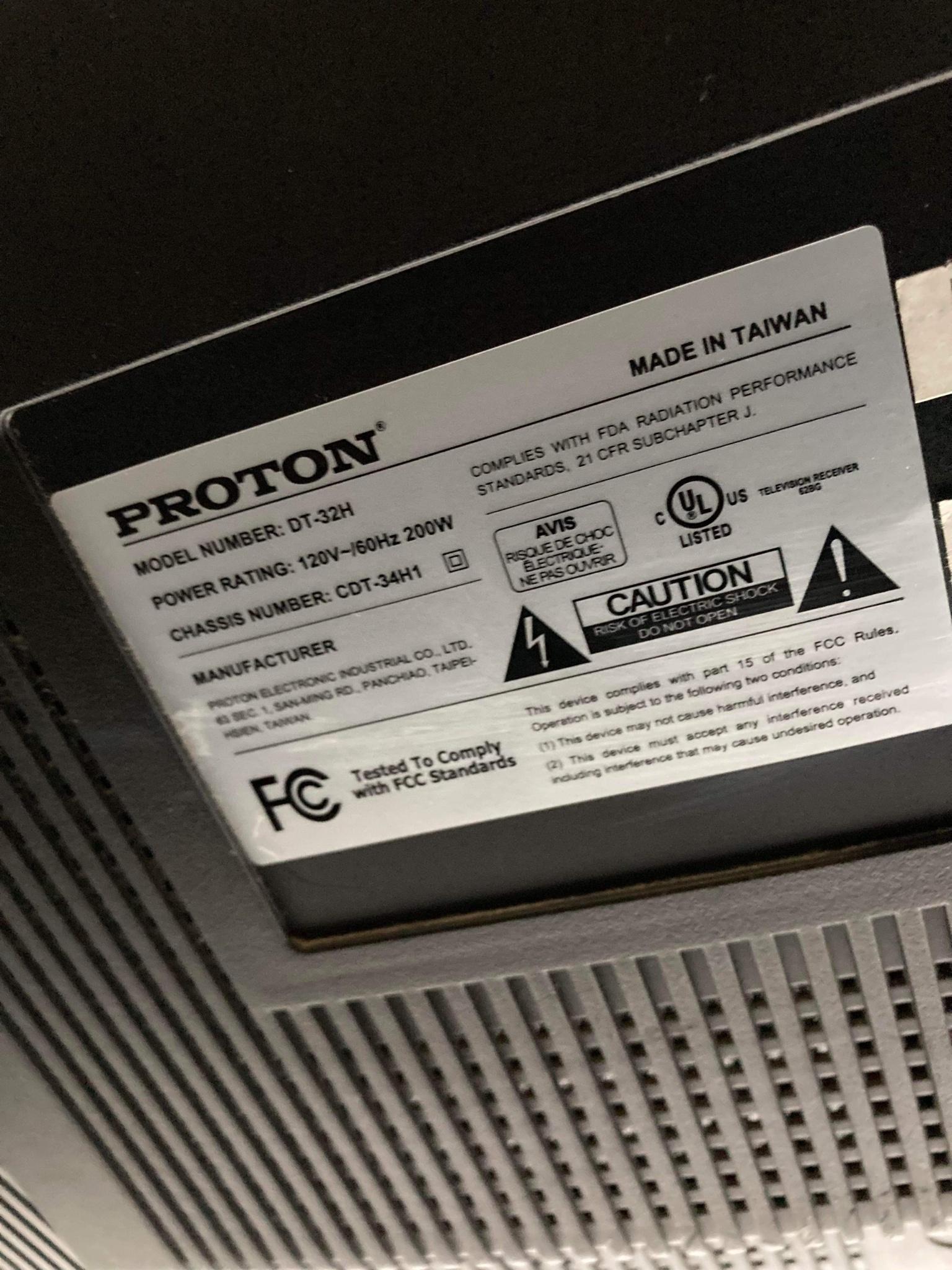

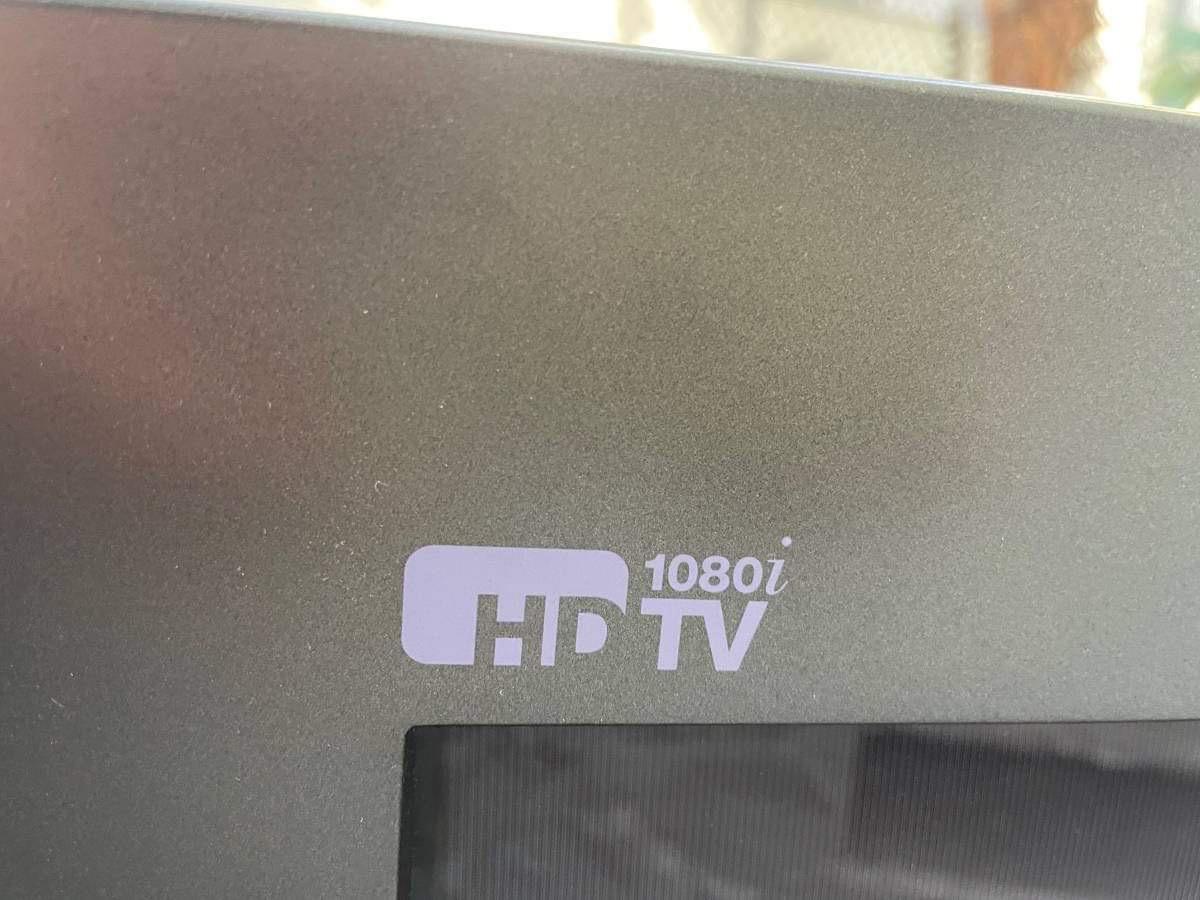

Higher-end 32" HD CRT by Proton, cousin set of the DT-27H. Made in Taiwan in 2004, among the company's very last.

Manuals

(None at this time.)

Media & Promo Materials

• TVTech Article
• Tvia Article

Notes

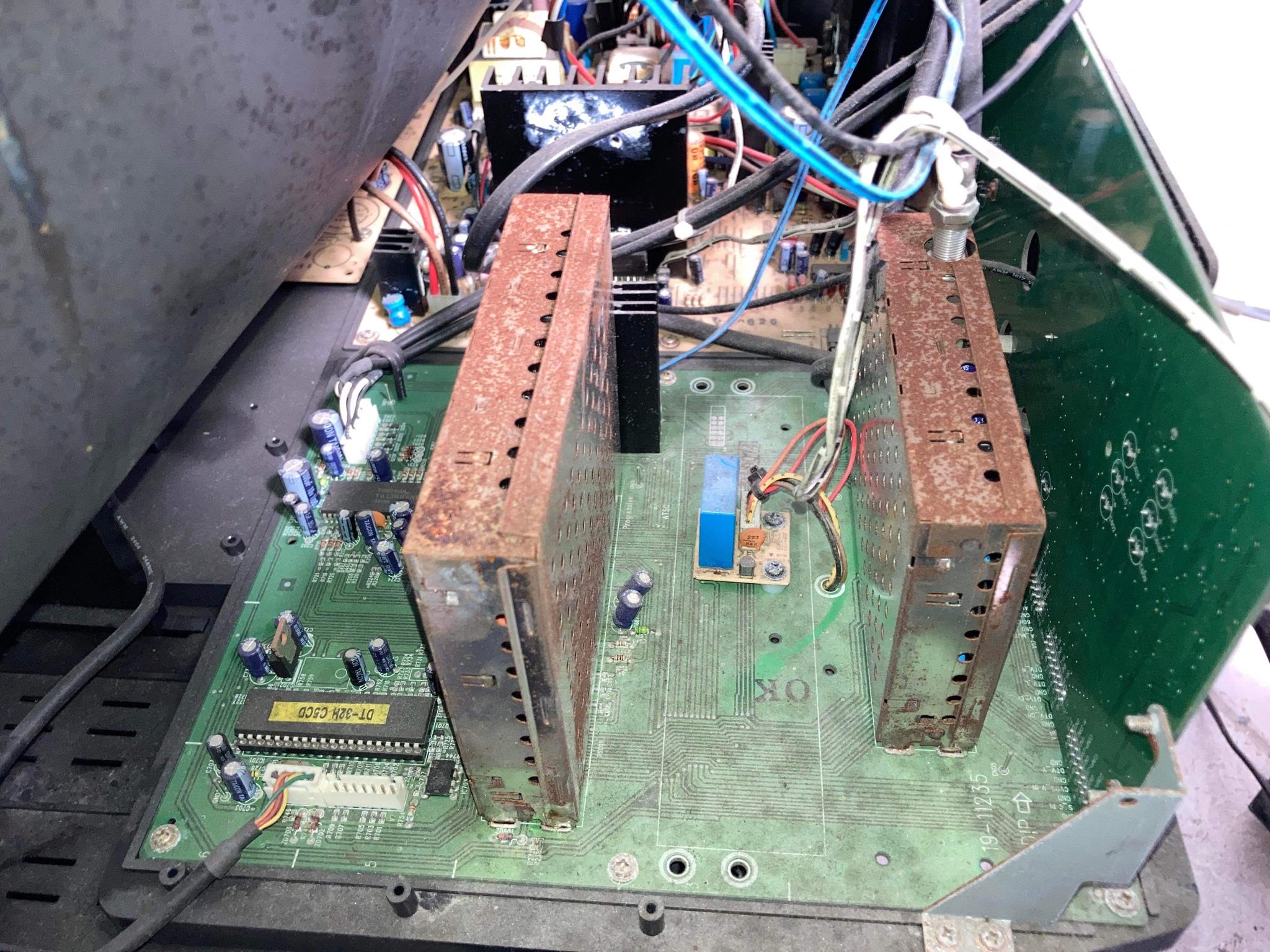

The set is packing a Tvia TrueView 5700 signal processor that functions for "3D noise reduction, advanced de-interlacing, frame-rate conversion and 3:2 pull down."

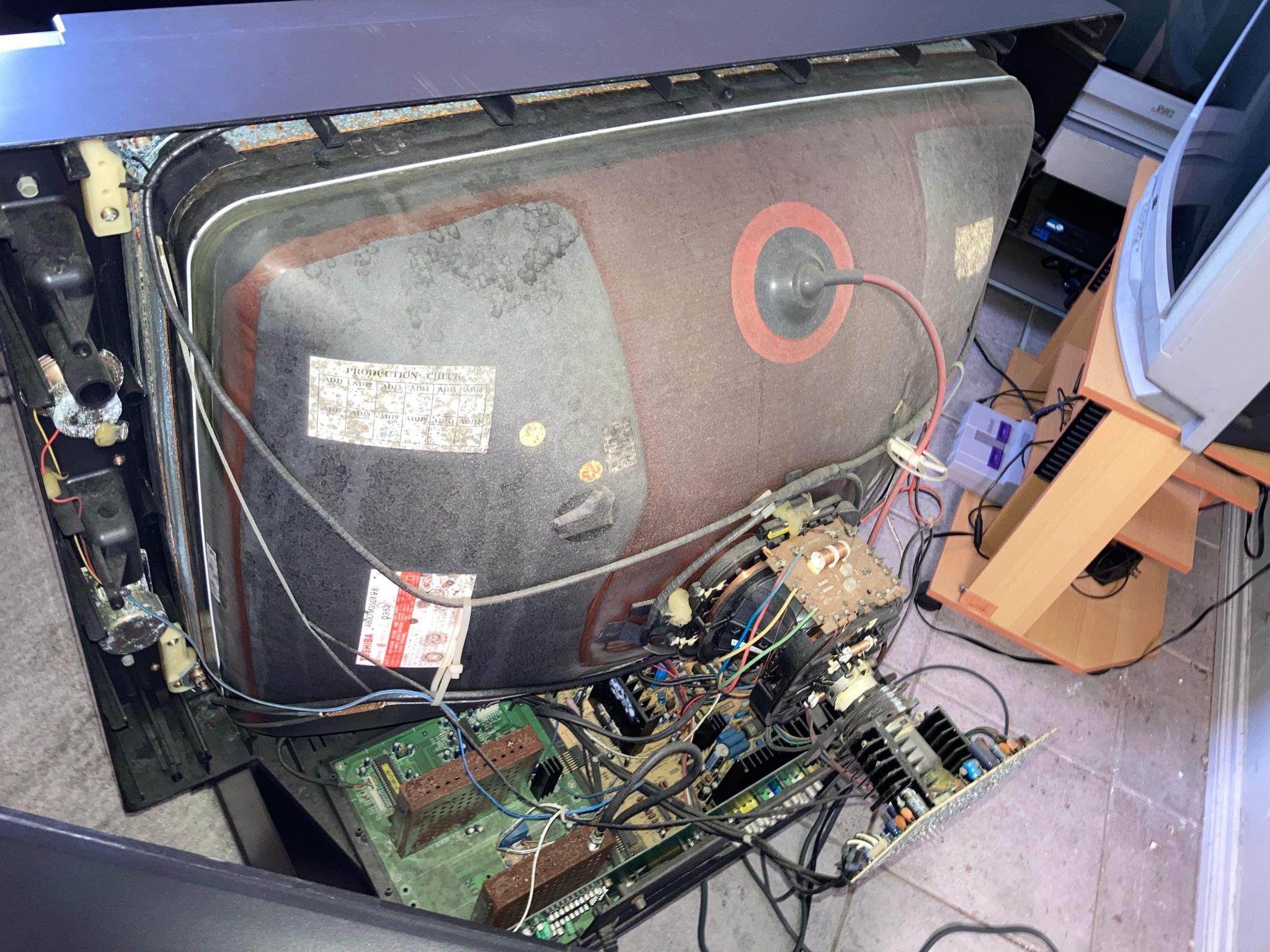

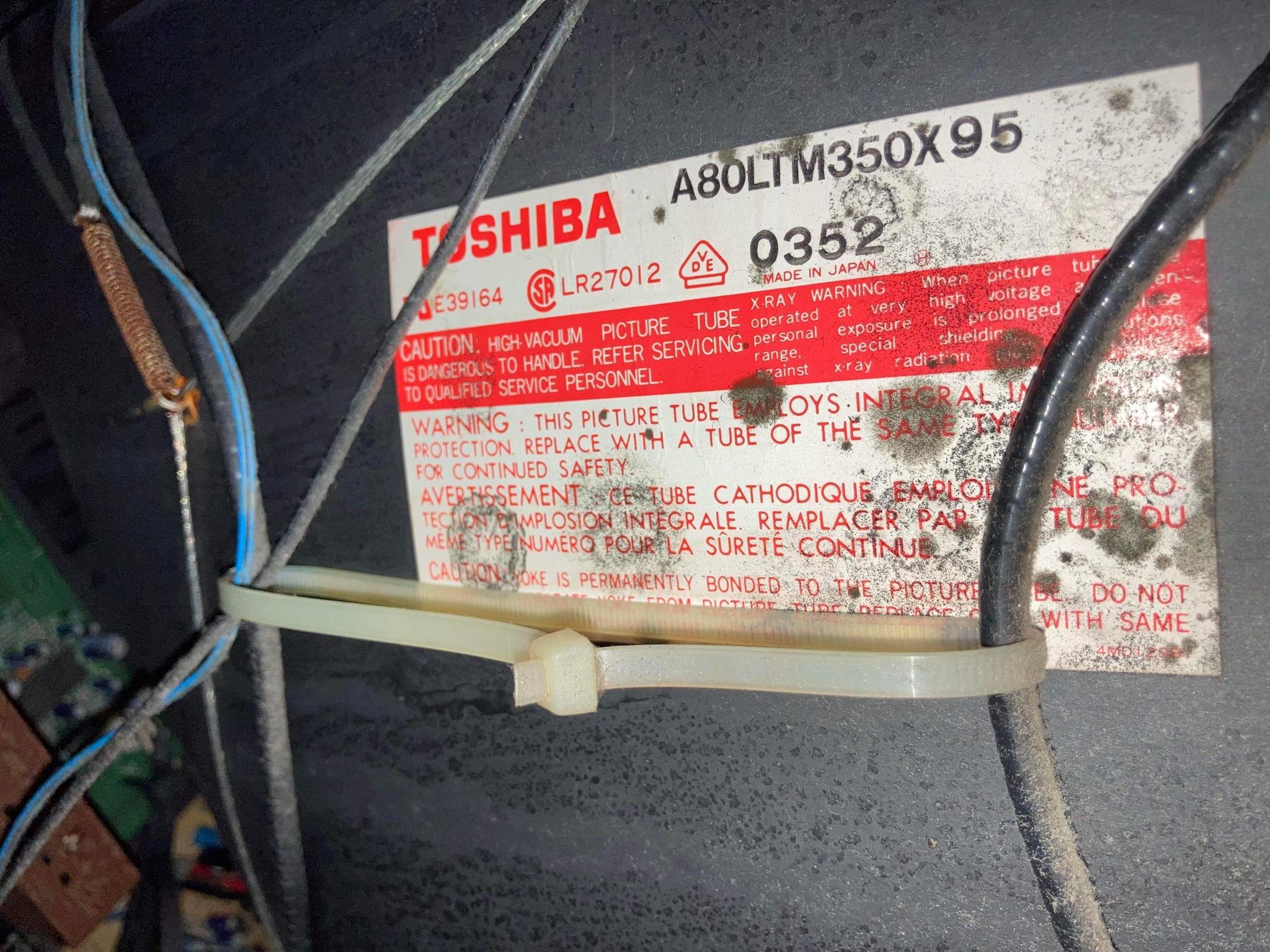

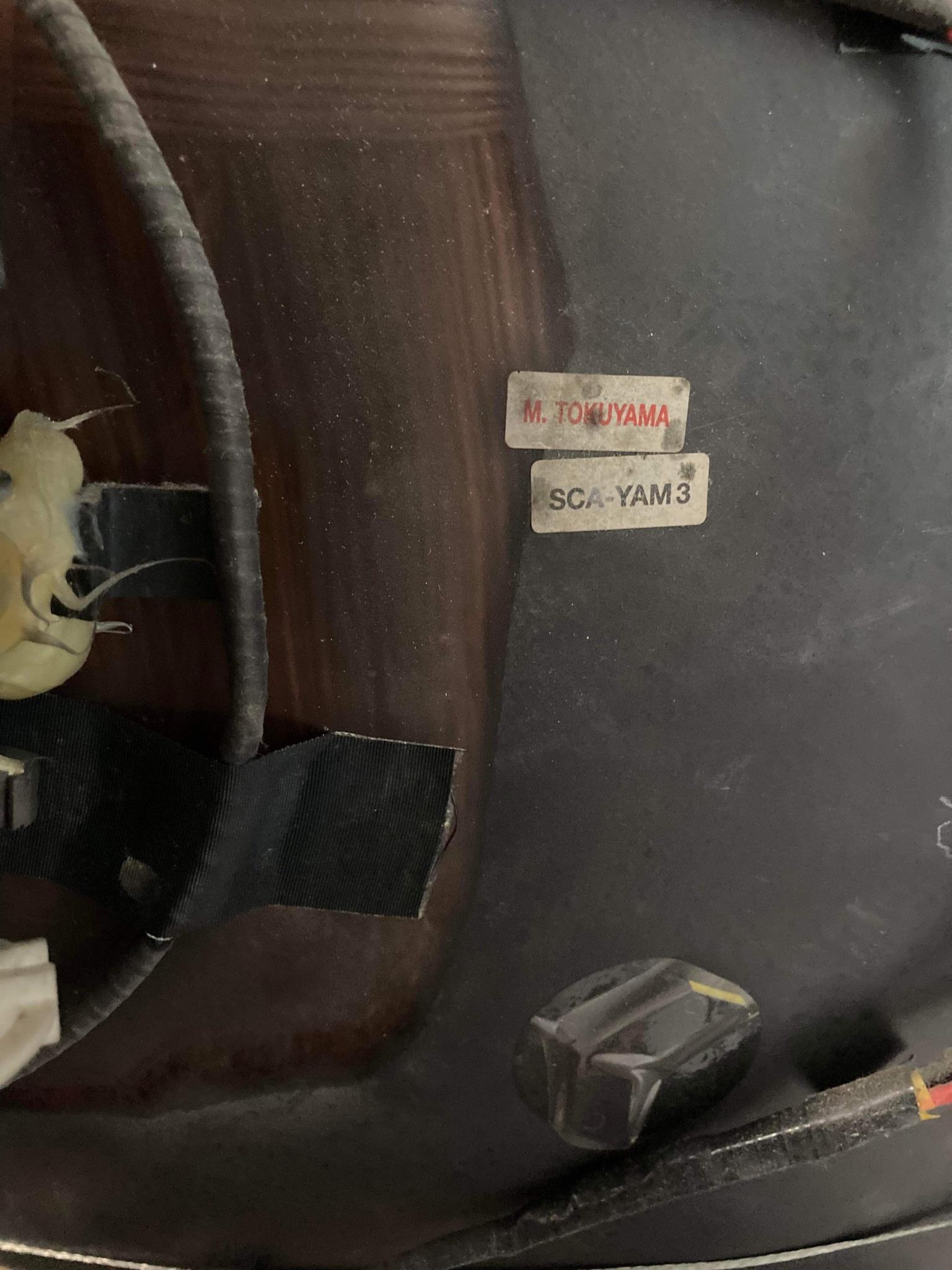

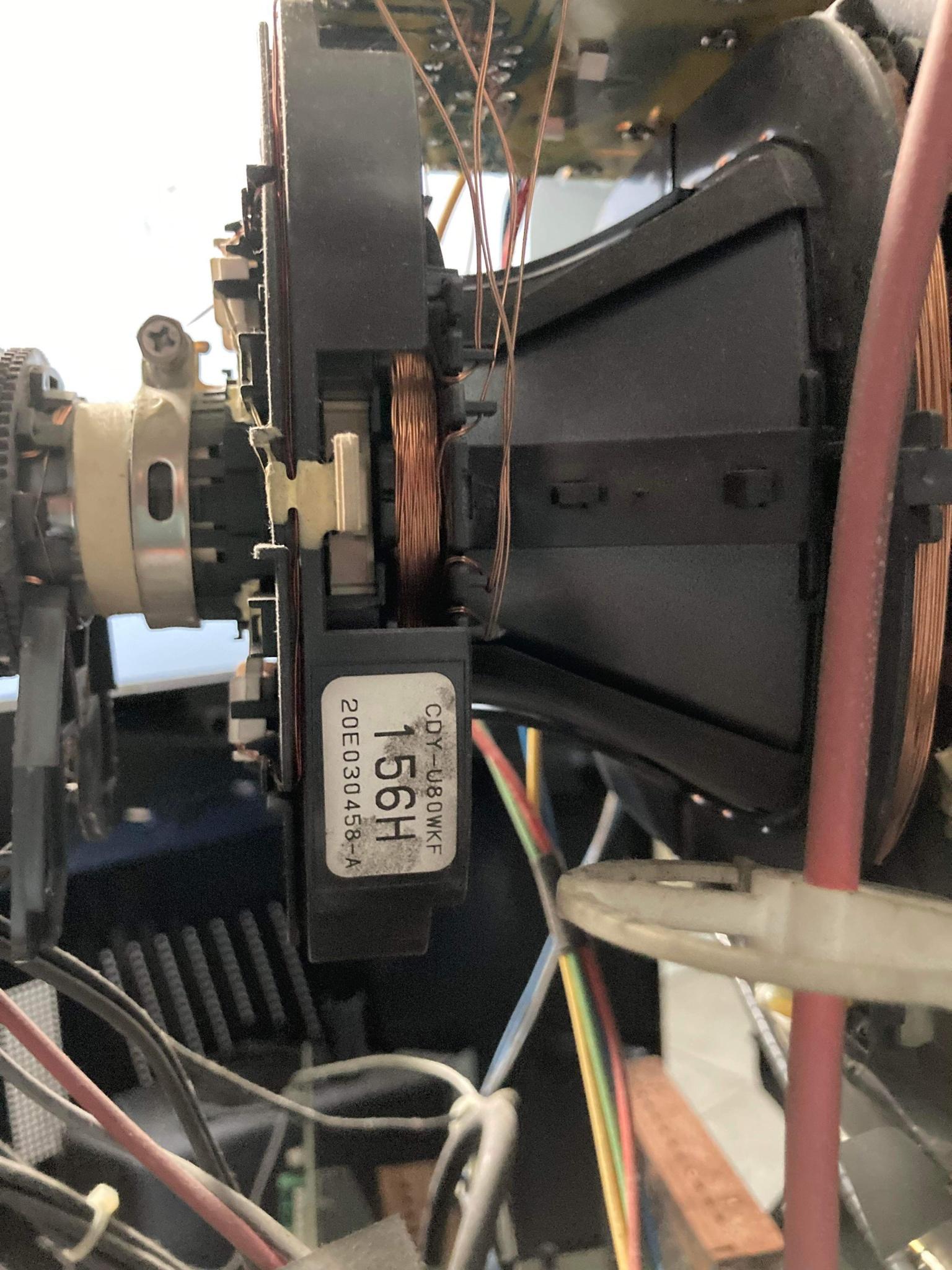

Uses a Toshiba Microfilter tube.

Toshiba Microfilter Technology

This CRT uses Microfilter, a technology innovation by Toshiba that aimed to optimize both brightness and contrast without darkening the glass with tint.

Conventionally, most tubes have a dark tint layer in the glass to reduce the amount of light reflection or absorption of the glass, thereby increasing contrast performance - a trade that costs an average 30% loss of overall brightness in all ambient light conditions (including near-darkness). In comparison, clear glass on a tube has the advantage of maximum brightness emission - but at a huge loss of contrast in normal ambient light conditions due to increased reflection. Typically you'll only find clear glass on professional broadcast monitors (aka BVM) that are intended to be used in near-darkness where ambient light is not an concern.

Microfilter aimed to be the best of both worlds by achieving the necessary amount of ambient light filtering at a per-phosphor (micro) level without sacrificing brightness, while still providing the vivid contrast you could typically only expect from a dark-tinted lower-brightness tube. On a Microfilter tube, the glass itself remains clear for maximum light transmission, while still taking a darkened grey-purple appearance from a combination of both the AR coatings and Microfilter over the phosphors.

You can learn more about Microfilter in our full article.
