Summary

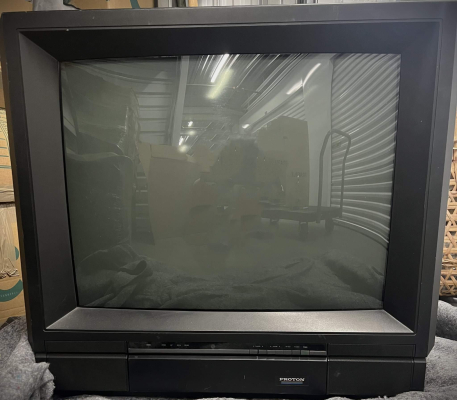

High-end 31" CRT TV by Proton. Has RF, composite, and s-video inputs as well as amped audio outputs. Manufactured in Taiwan in 1989.
(Special thanks to Max Insano and Jay Goo for the pics!)
Manuals
(None at this time.)
Notes
This set has oodles of adjustability. Aside from the basic picture settings, this set has the following:
- NTSC 3.58 chroma trap (aka notch filter) for composite video
- Toggle between spatial and pseudo stereo
- Video noise reduction (likely a low-pass filter)
- Aphex Exciter for brightening audio mix
- A microphone jack(?)
- Purity adjustment by screen quadrant
- And a bunch of other stuff I can't figure out
Picture quality over s-video is excellent. Very clean and not overly bleedy.

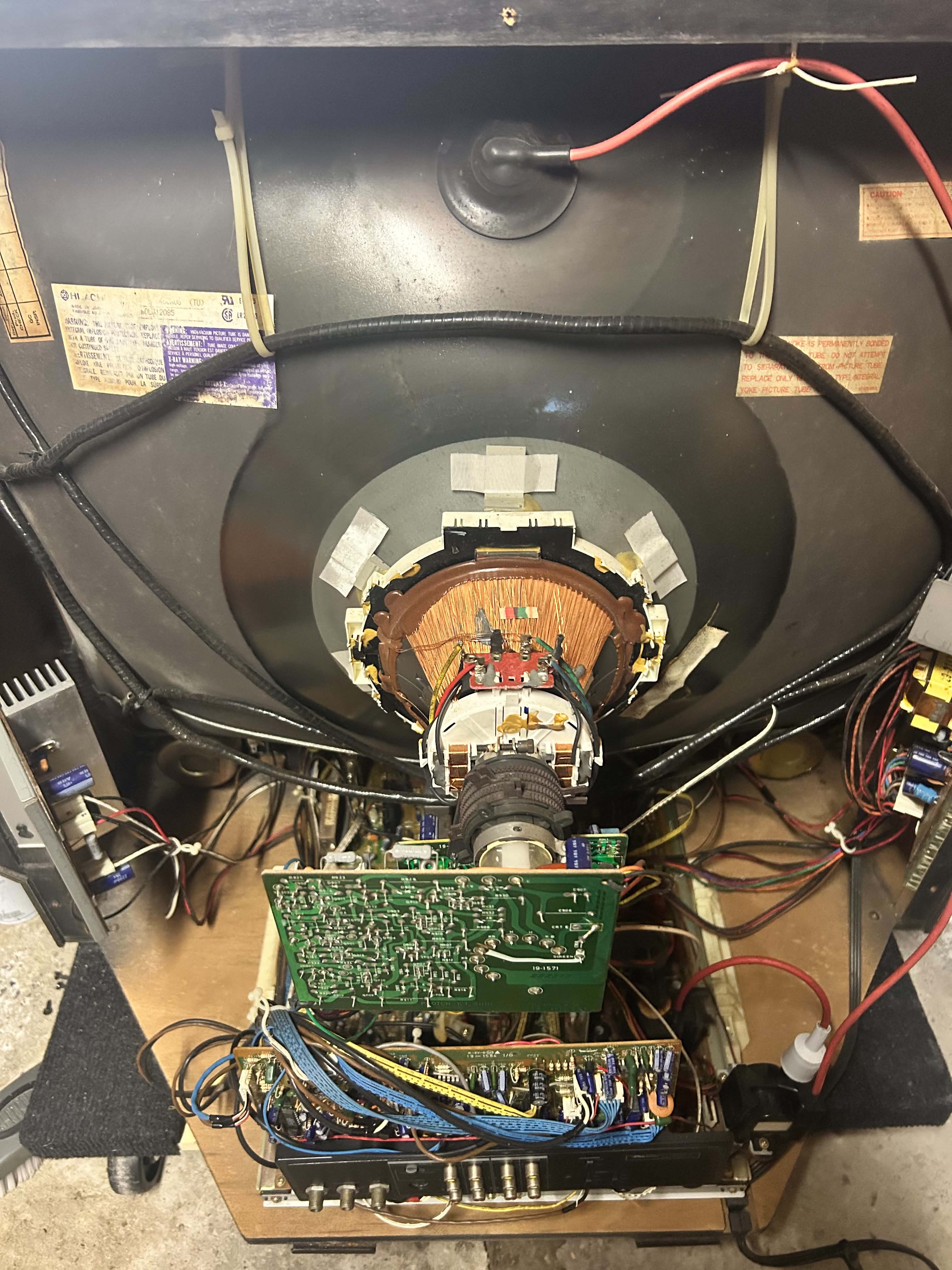

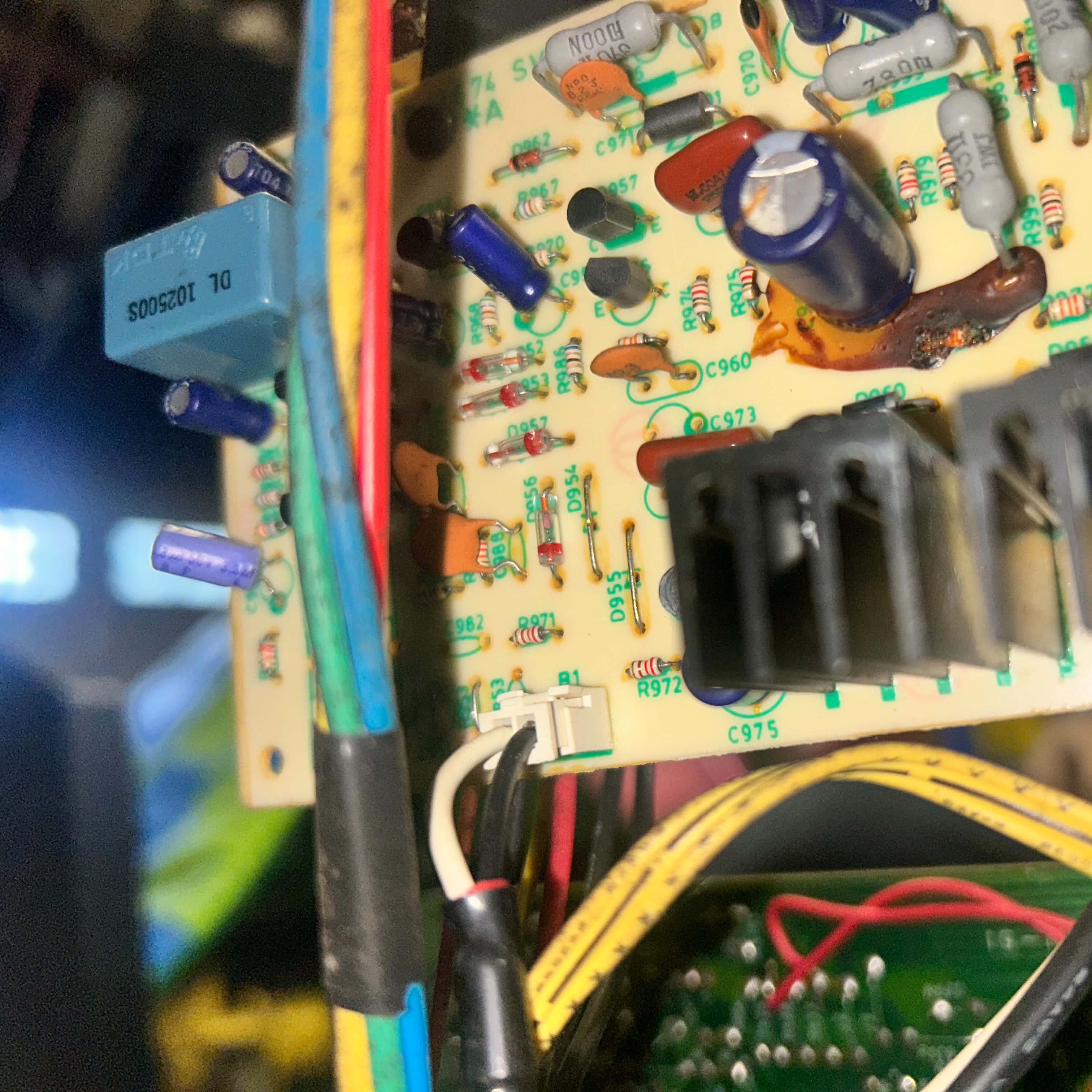

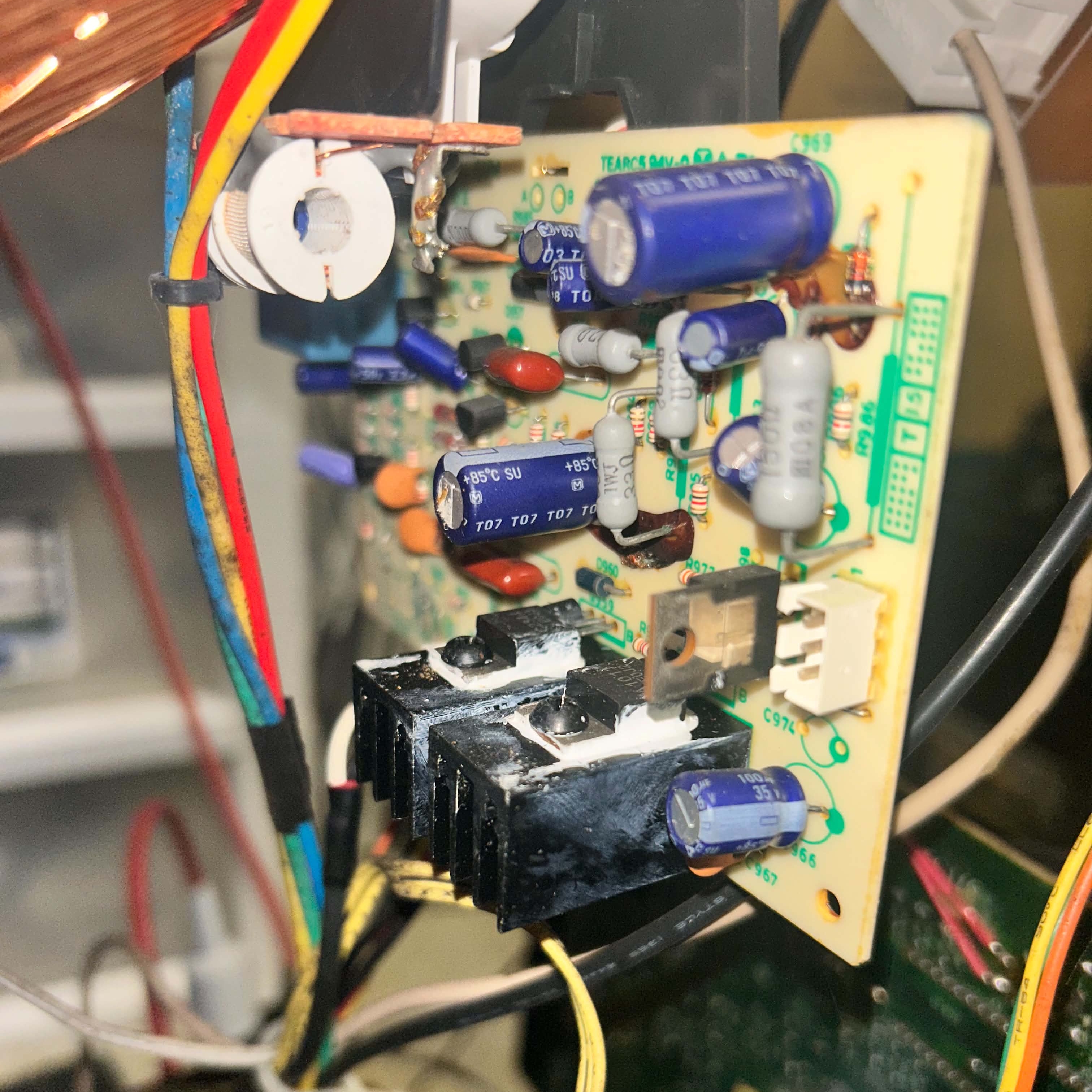

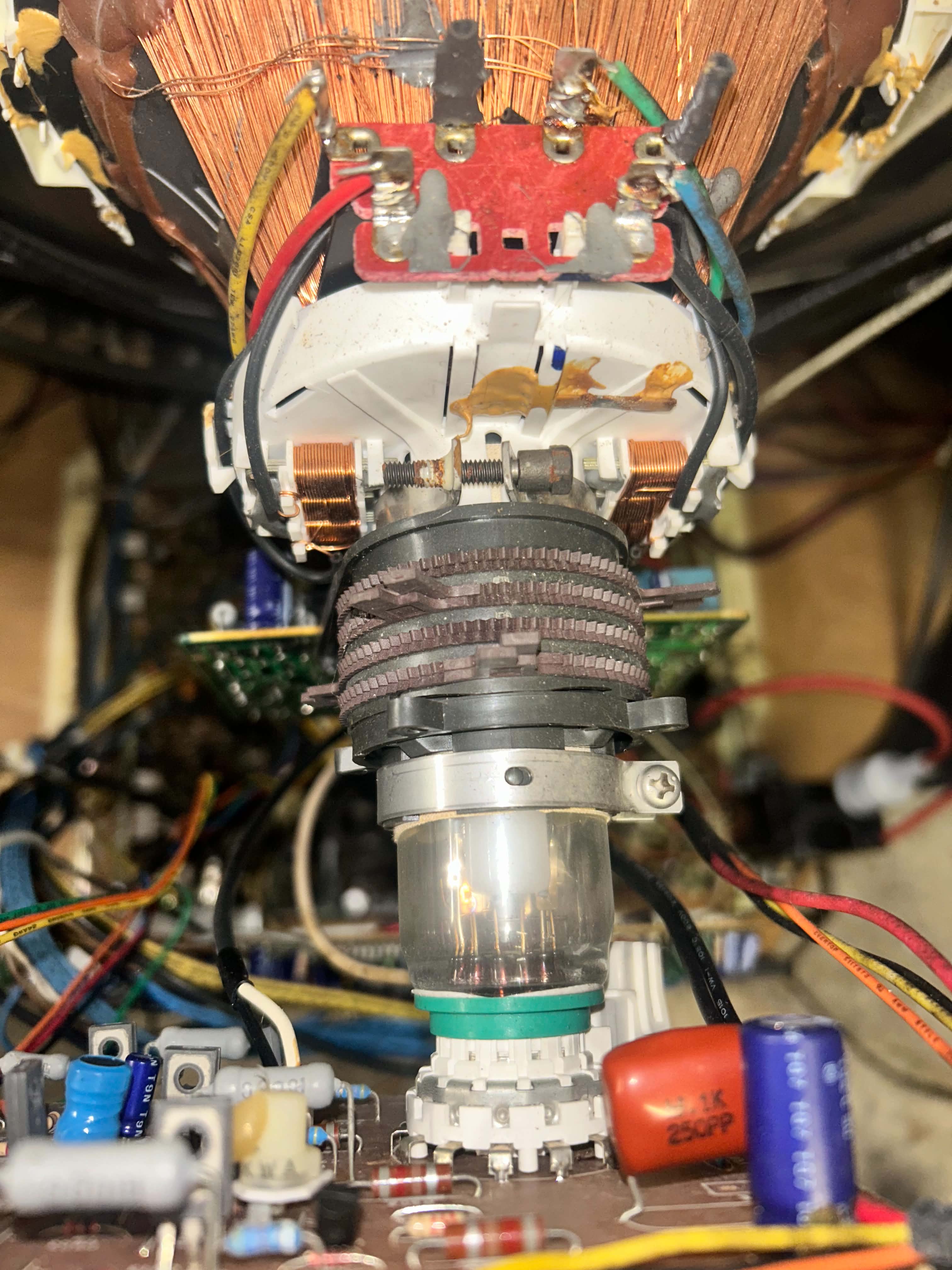

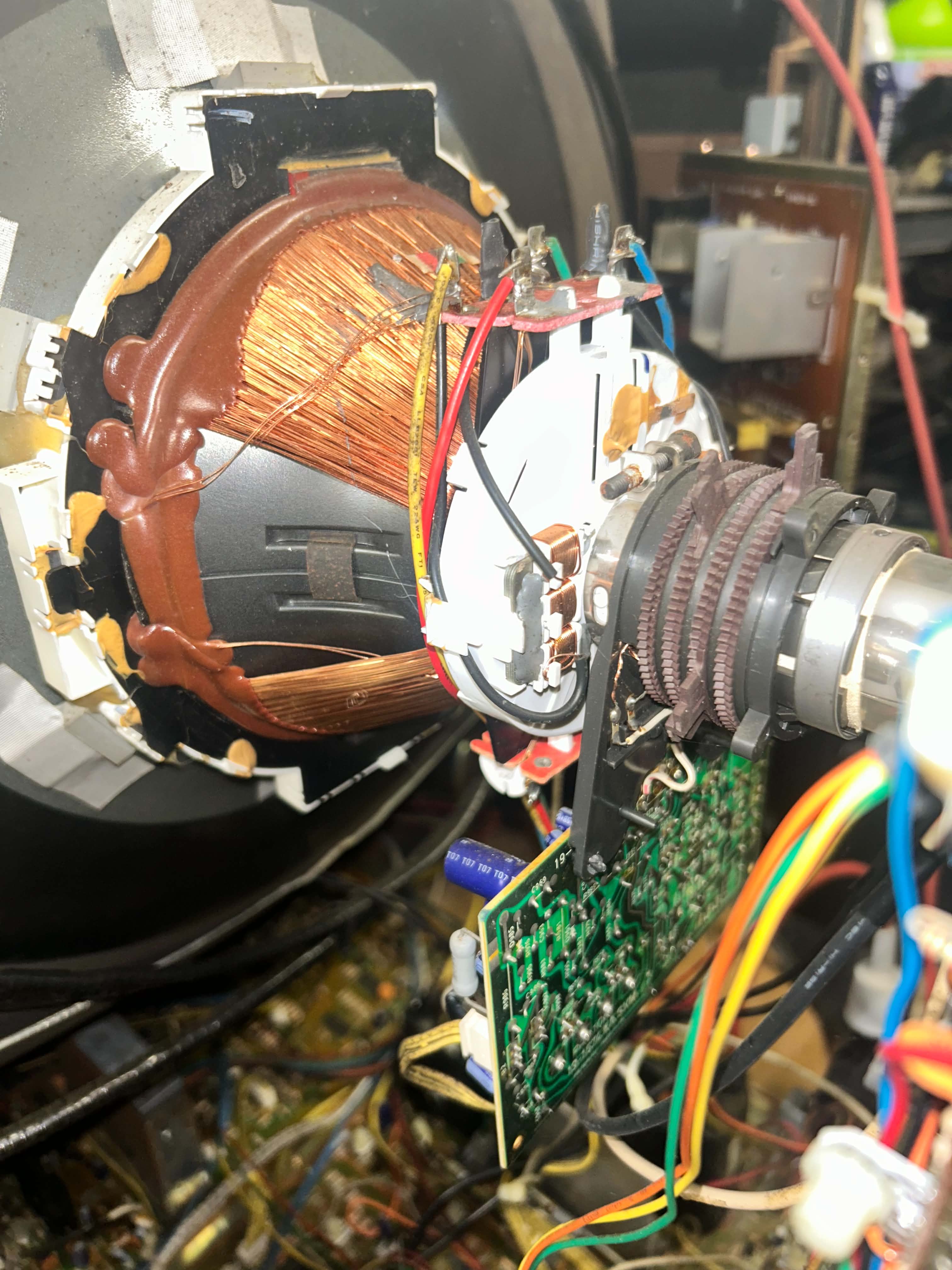

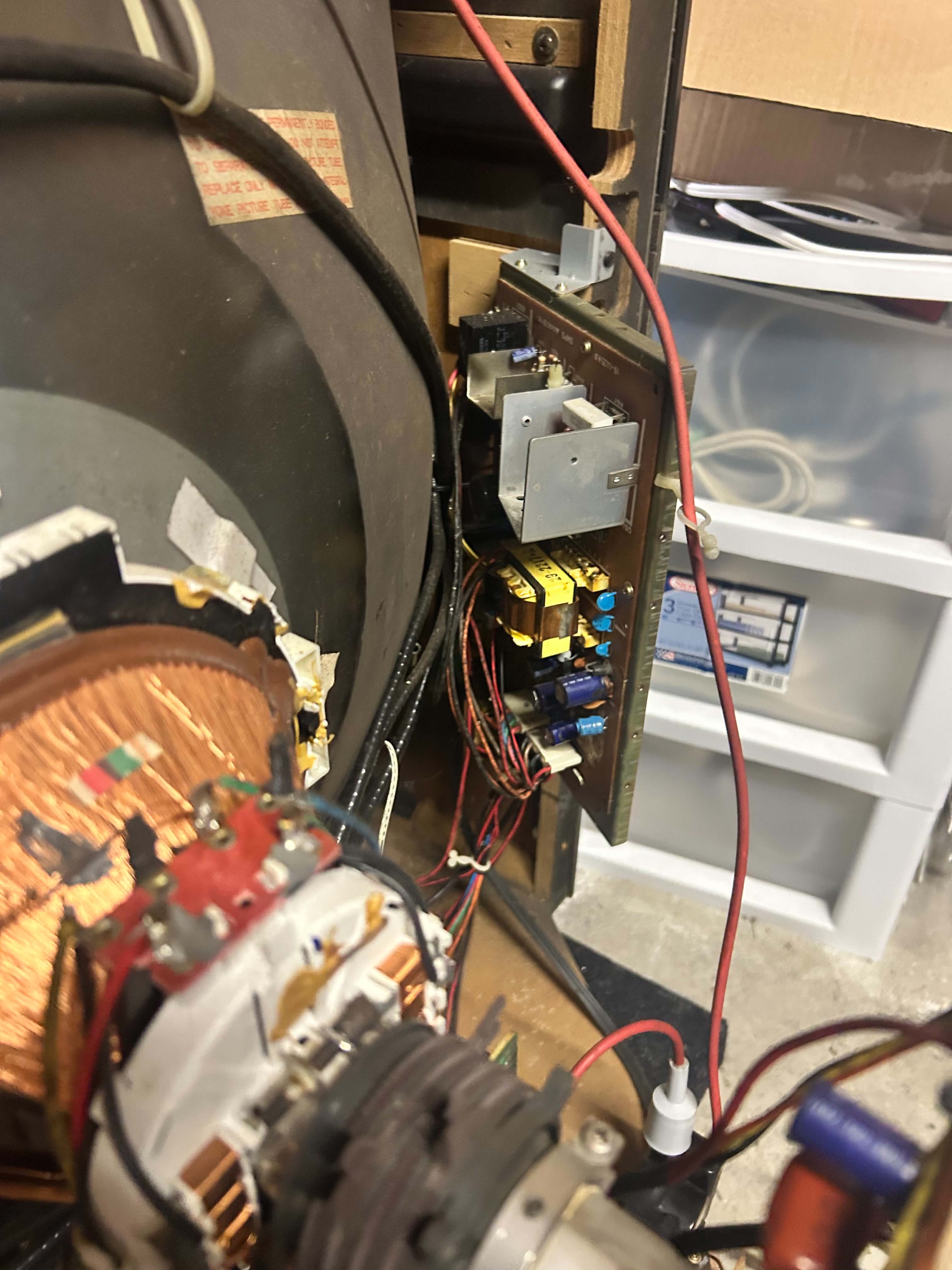

This set has VM. to disable it, unplug the jumper connecting the VM board to the neckboard:

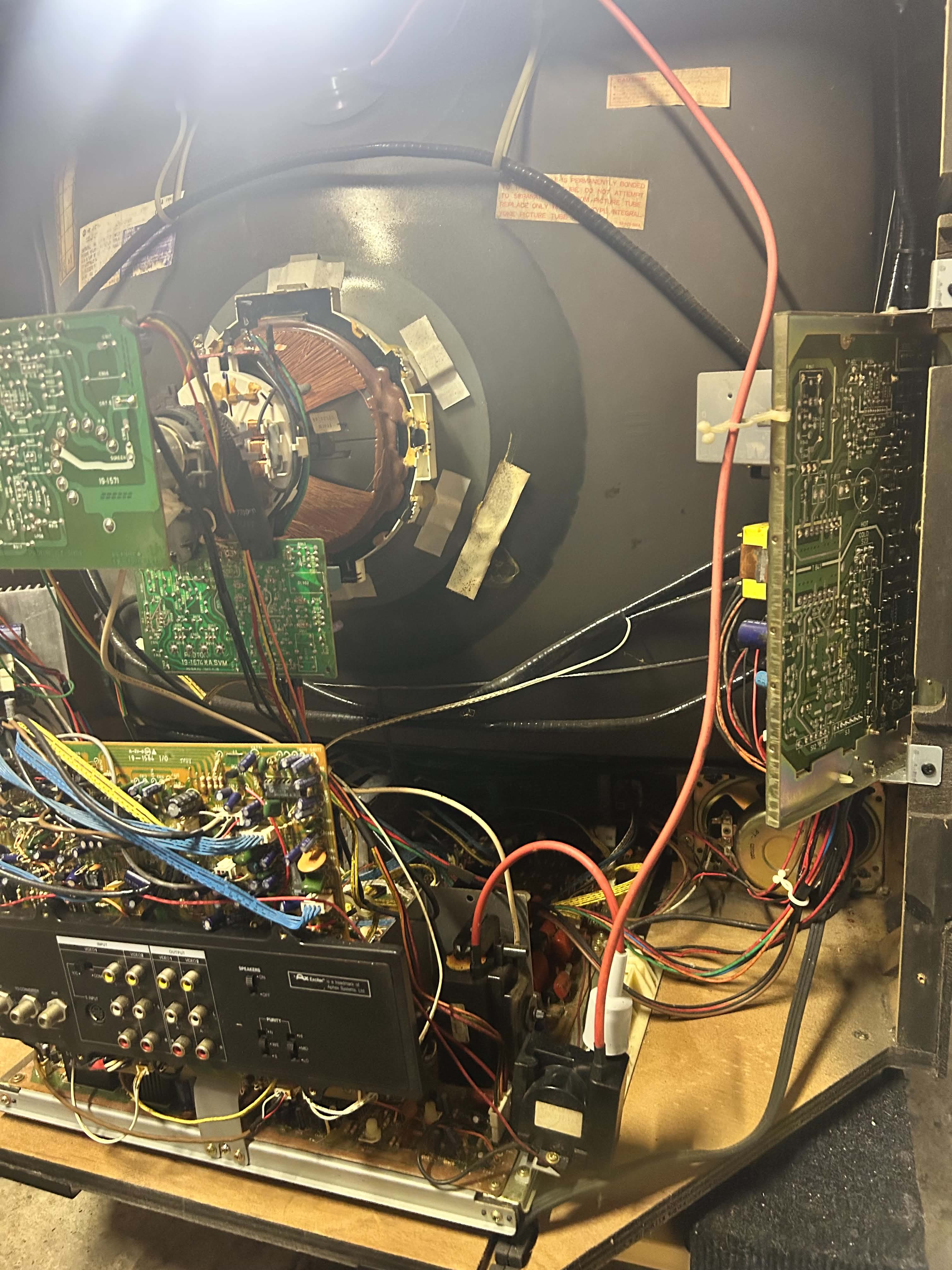

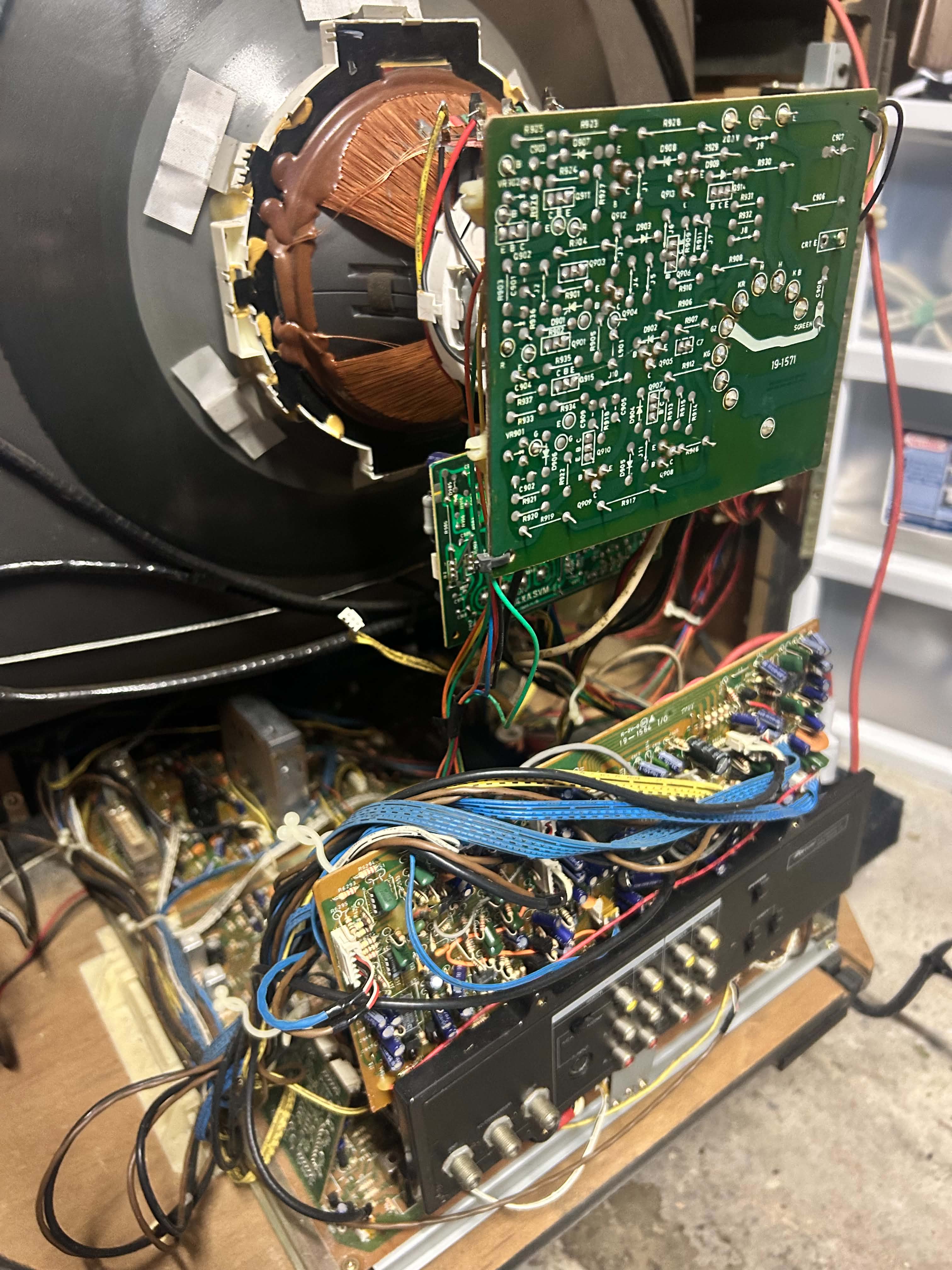

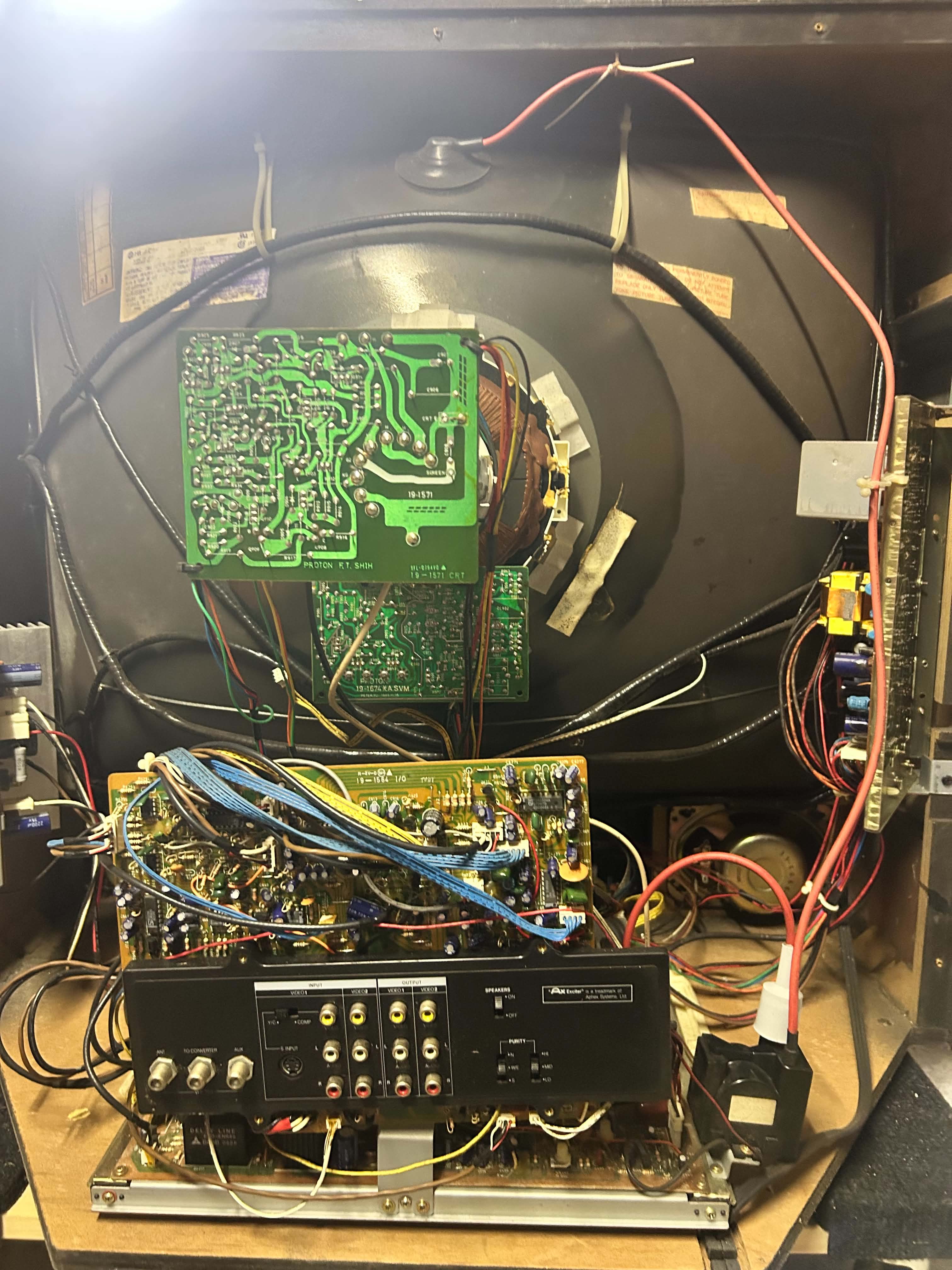

Gallery
| Specifications | |
|---|---|
| Brand: | Proton |
| Manufacturer: | Proton |
| Model: | VT-331 |
| Series: | Video Monitor |
| Viewable Size: | 31" |
| Input Signals: | Composite, S-Video |
| Native Resolutions: | 240p, 480i |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 60 Hz |
| Formats: | NTSC |
| Aspect: | 4:3 |
| Adjustments: | Internal Potentiometers, External Potentiometers |

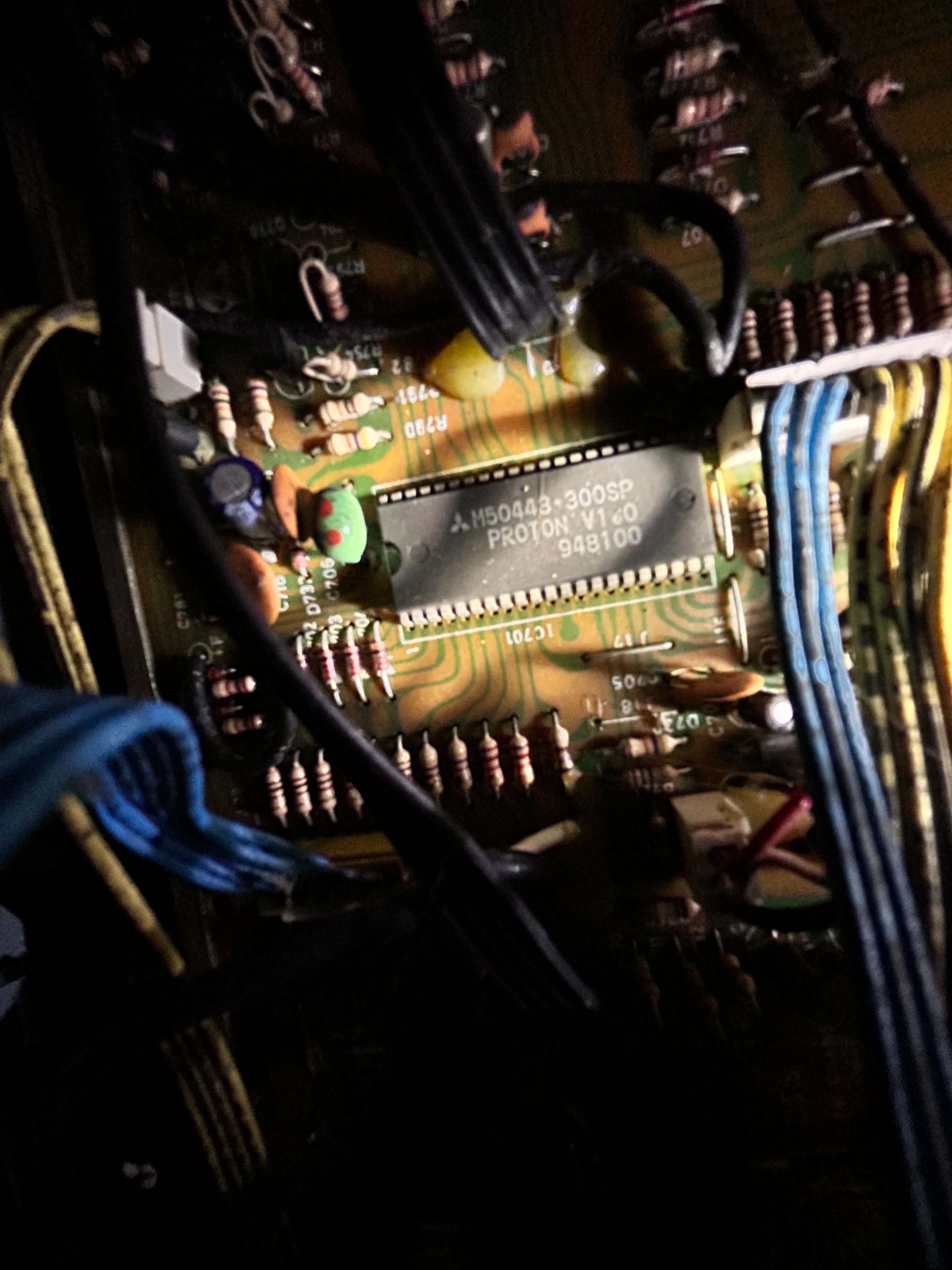

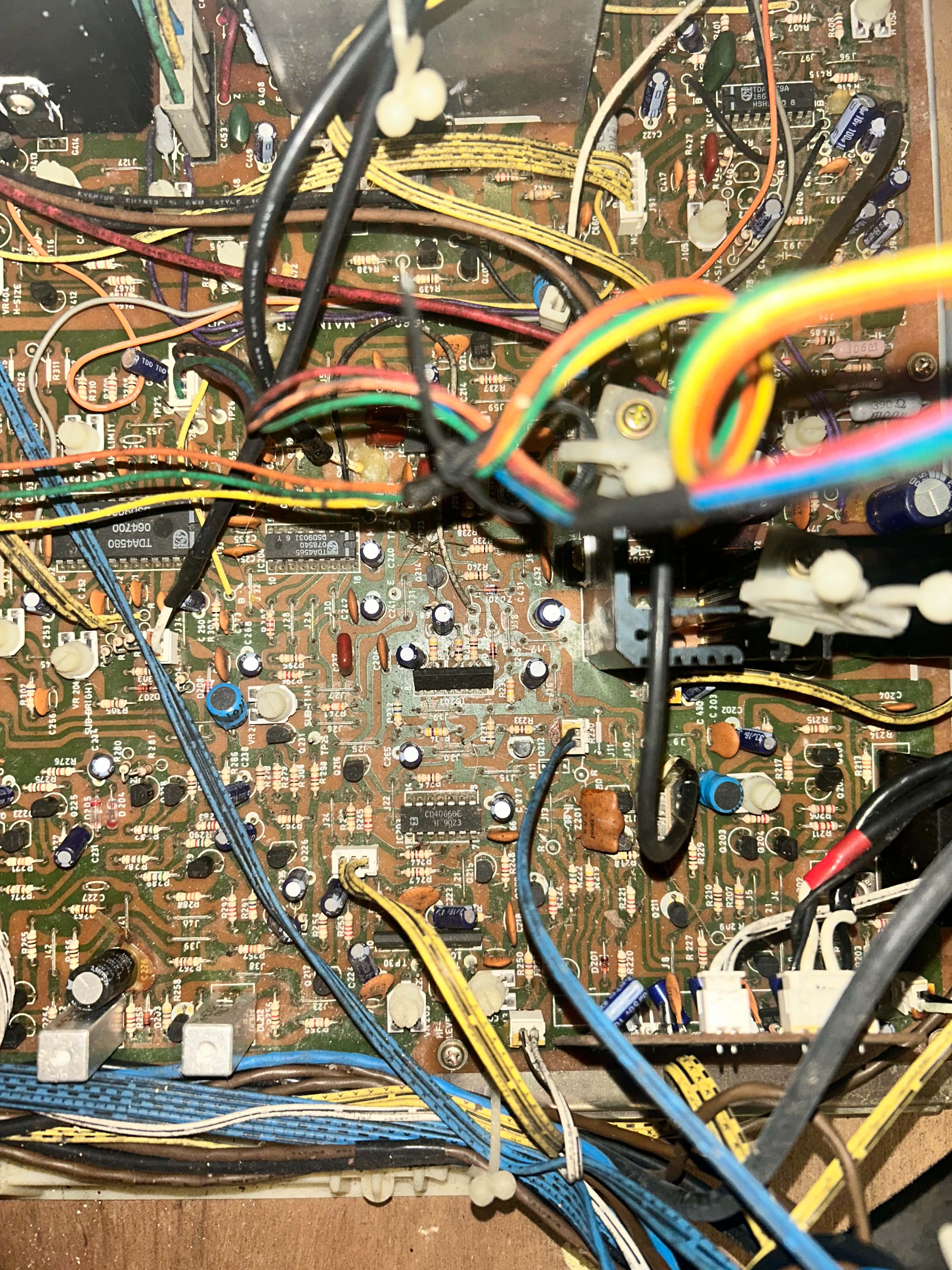

| Jungle IC: | M50443, M50443-300SP, Mitsubishi |

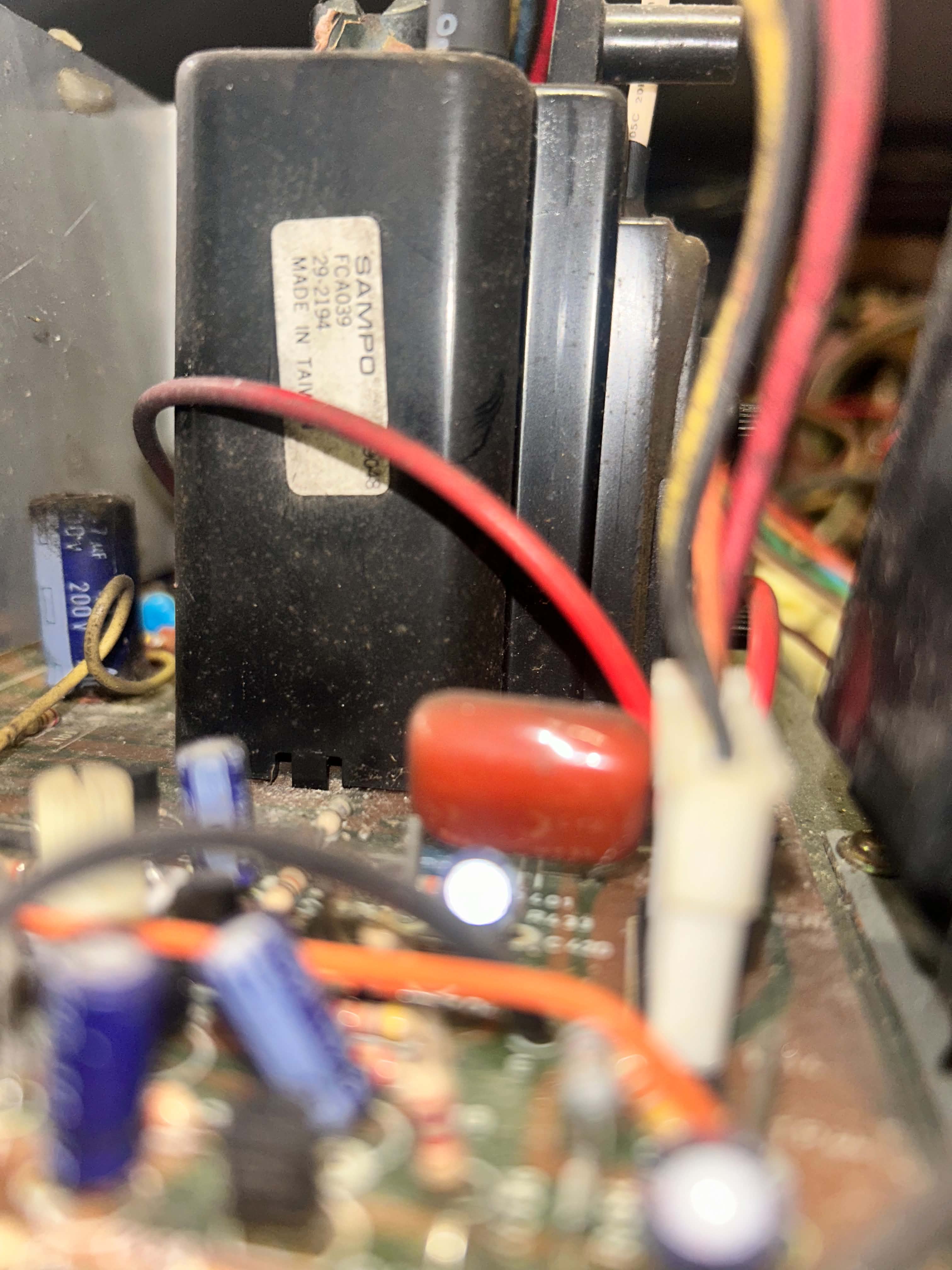

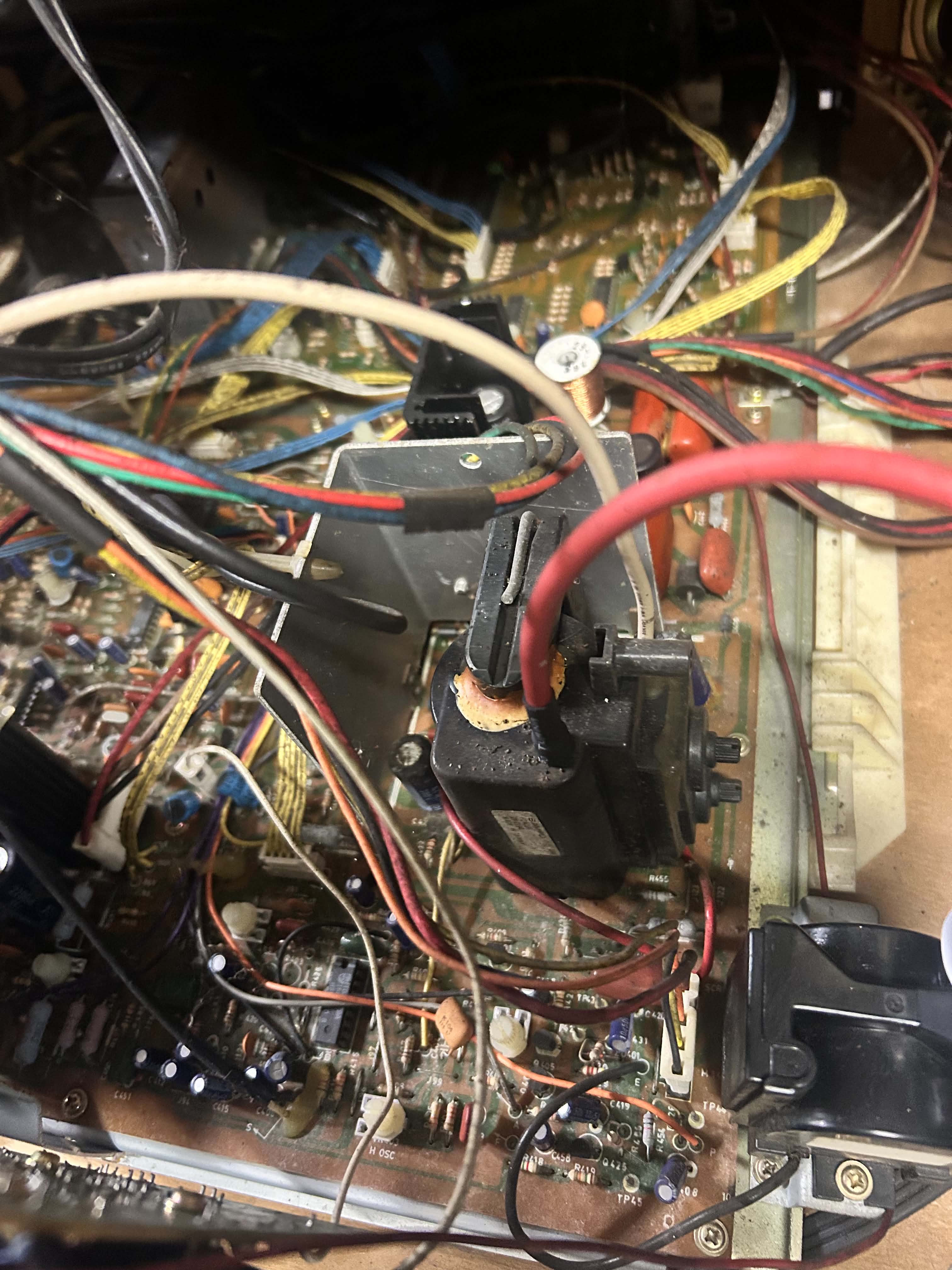

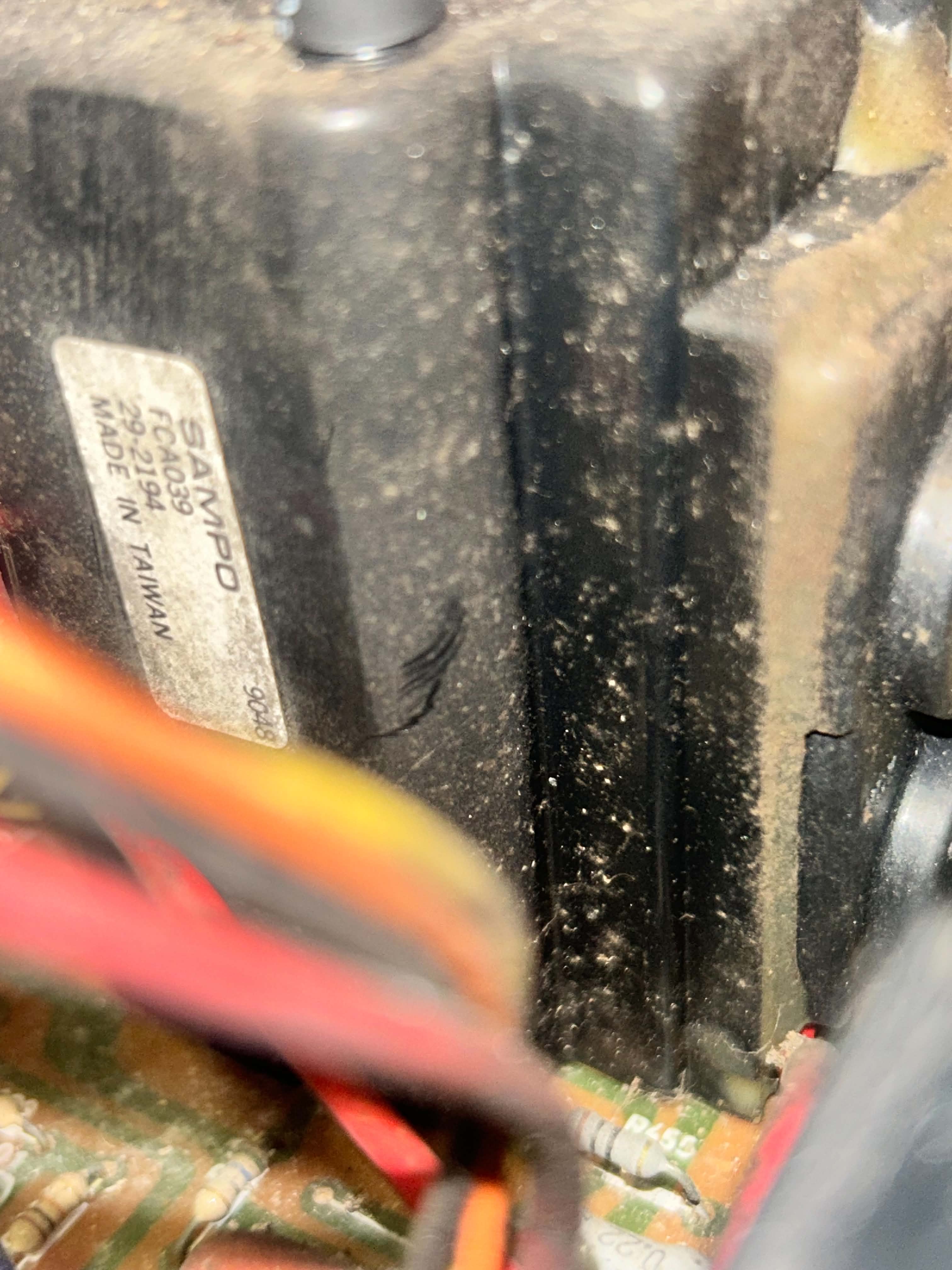

| Flyback: | Sampo, FCA039, 29-2194 |
| Focus Type: | Single |

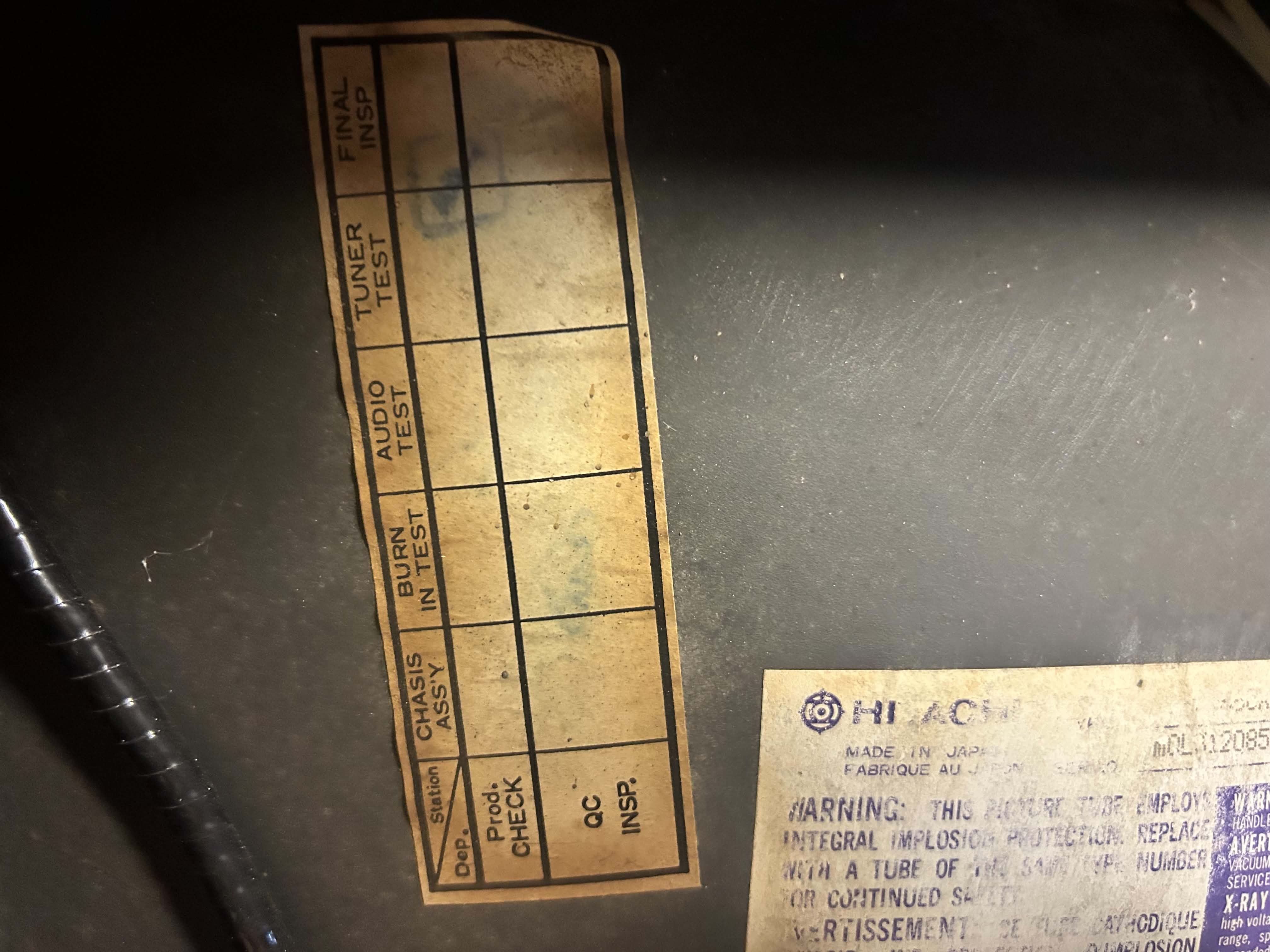

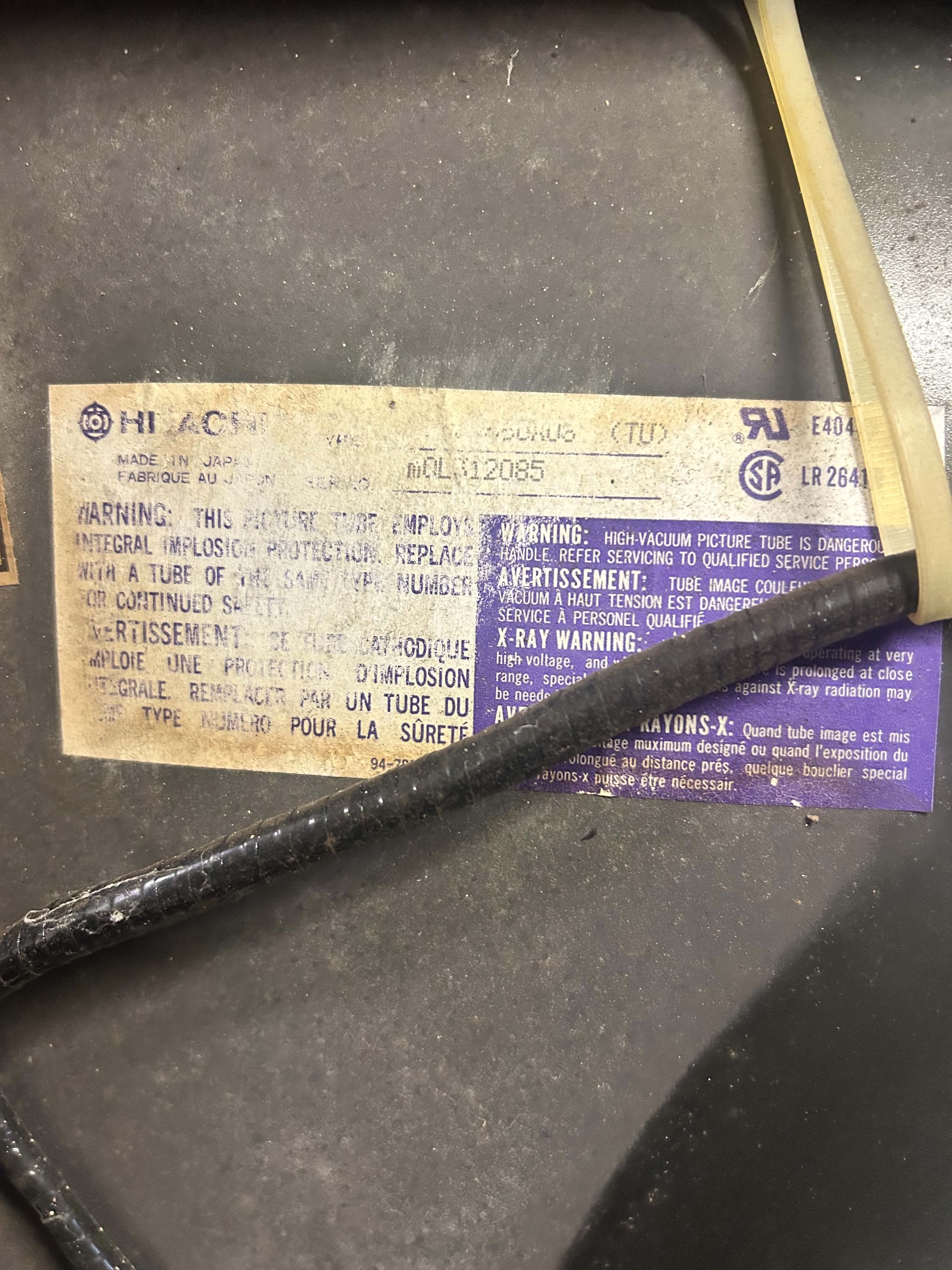

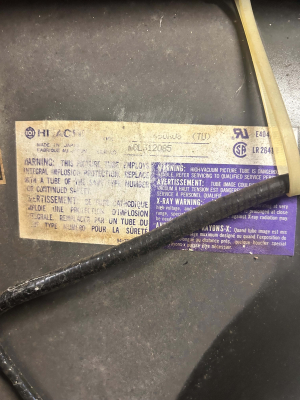

| Tube: | Hitachi , A78JVB60X , A78JVB60X06 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

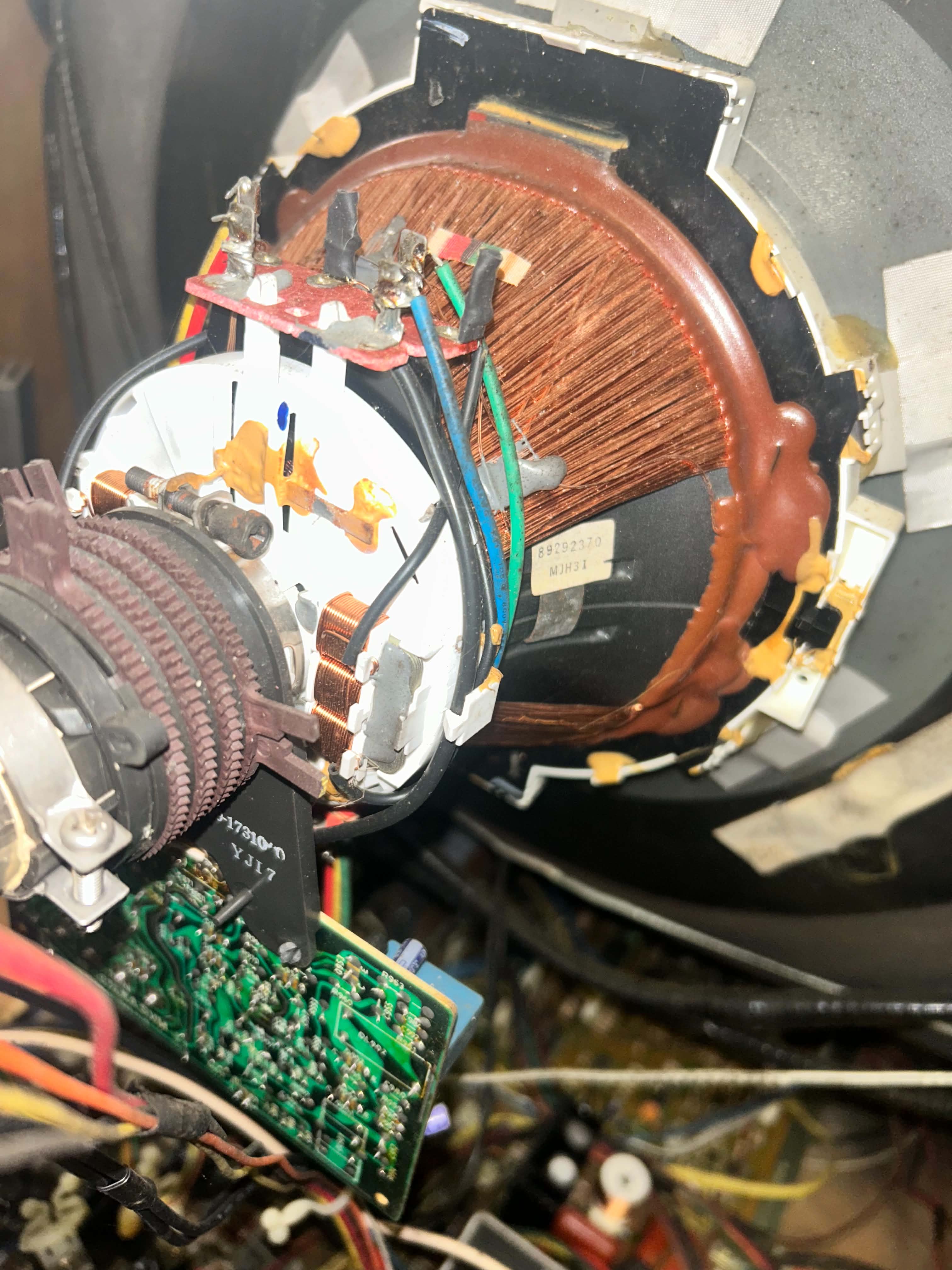

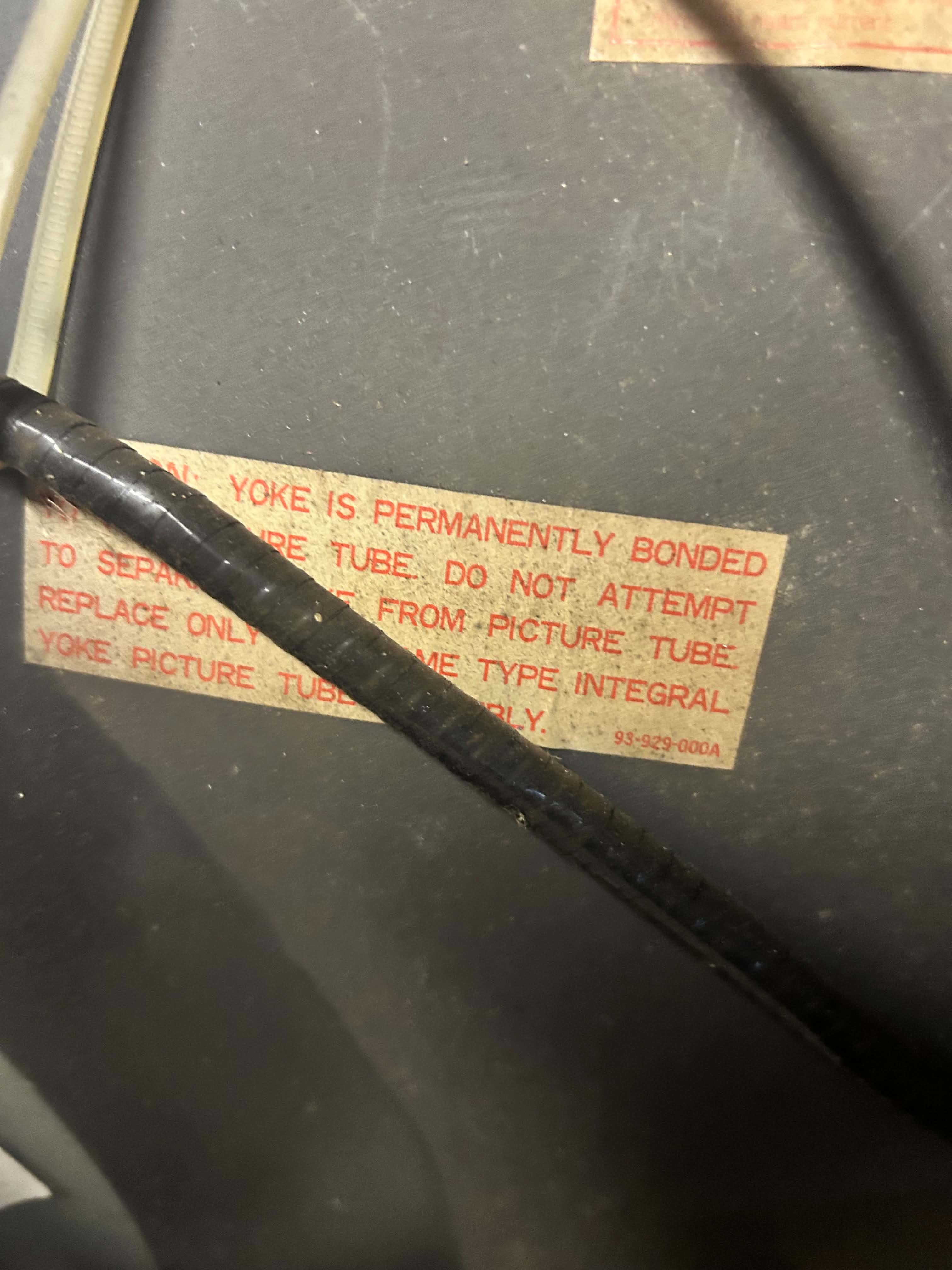

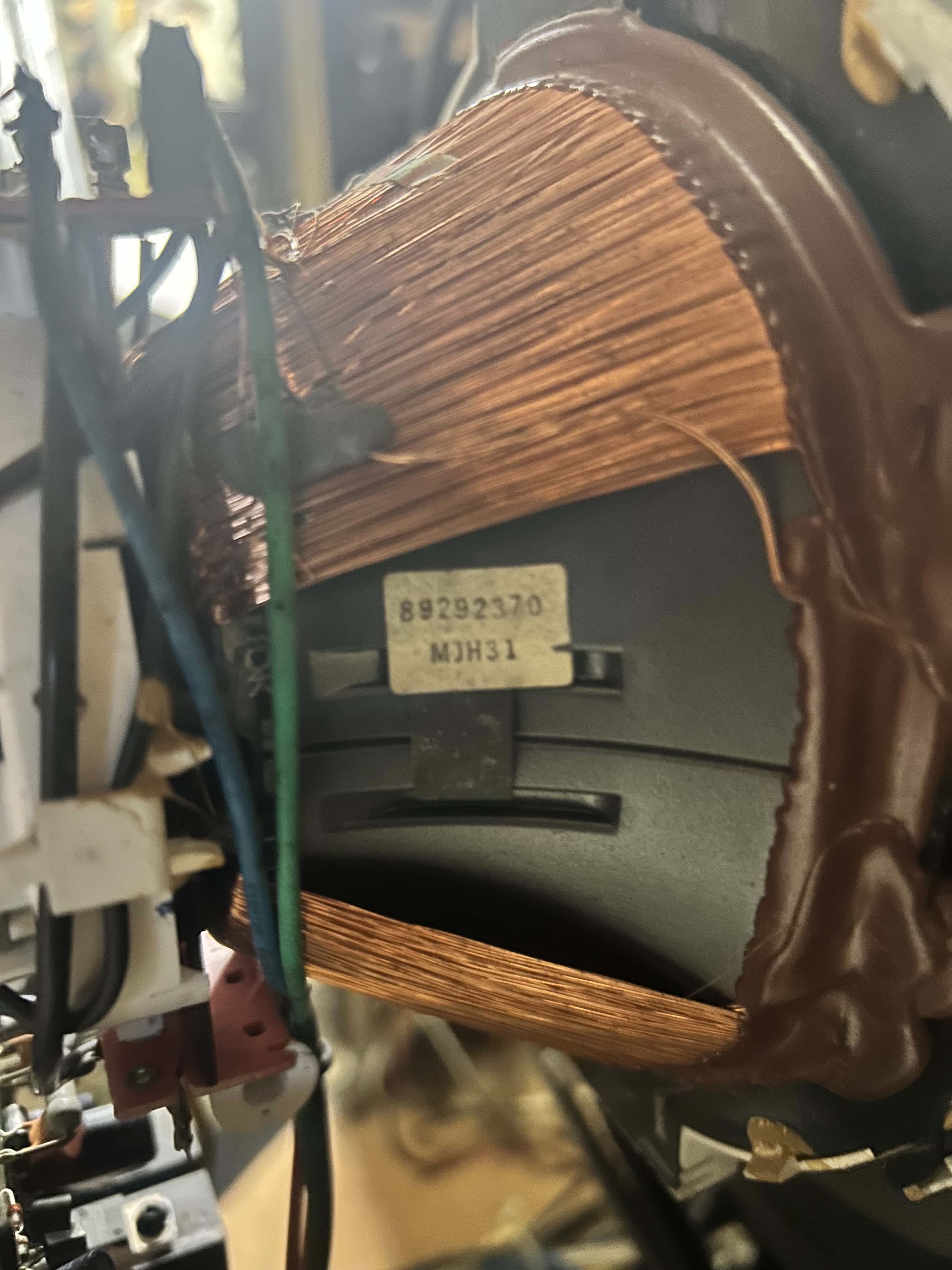

| Yoke: | 89292370 |

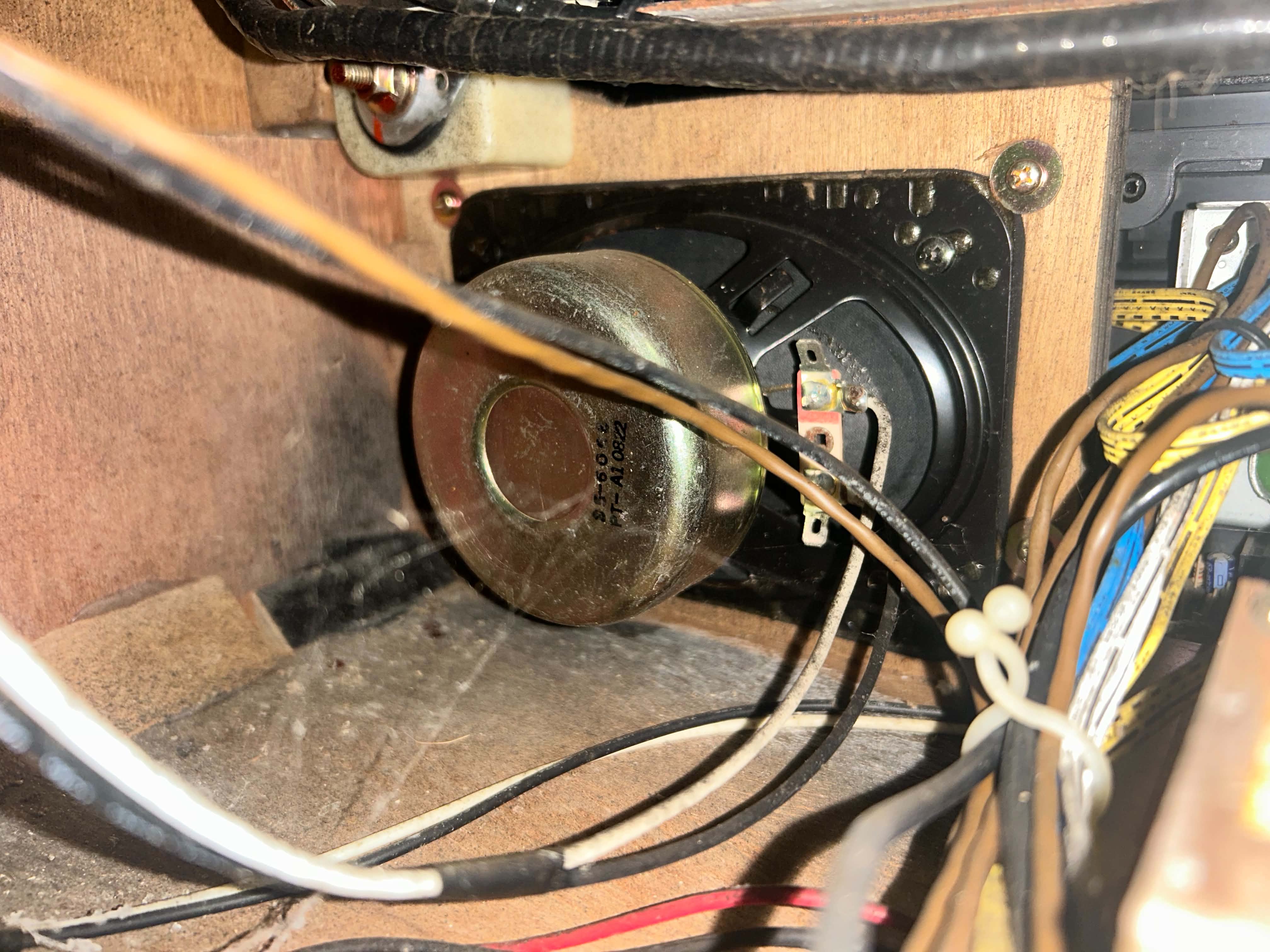

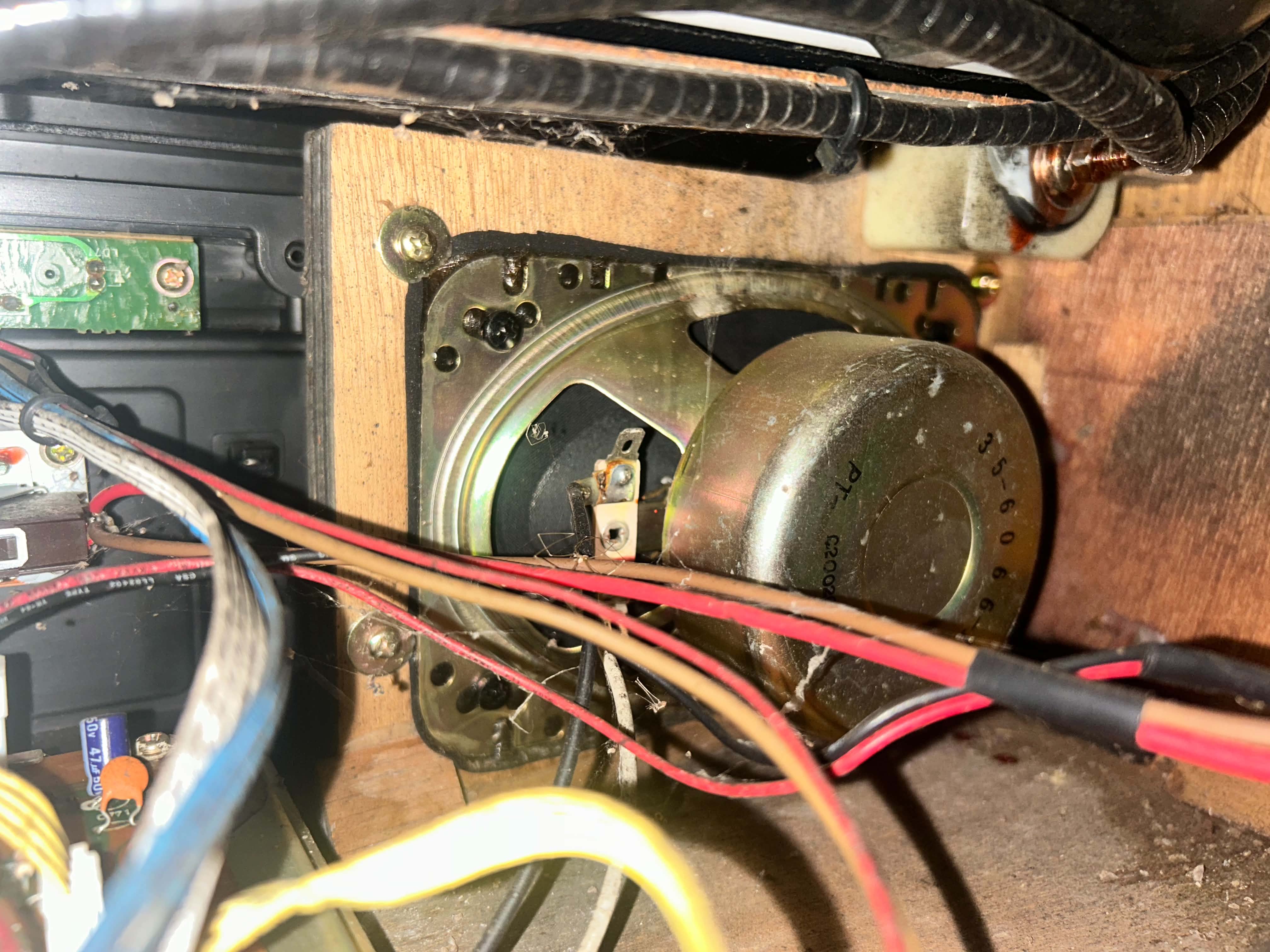

| Speakers: | Stereo |
| Remote: | V-202R |
| Chassis: | CVT-331 |
| Application: | Consumer |
| Cabinet Material: | Plastic |
| Launched: | 1989 |
| MSRP: | 2499 USD |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Tag: | Needs Owners Manual, Needs Service Manual |
