Summary

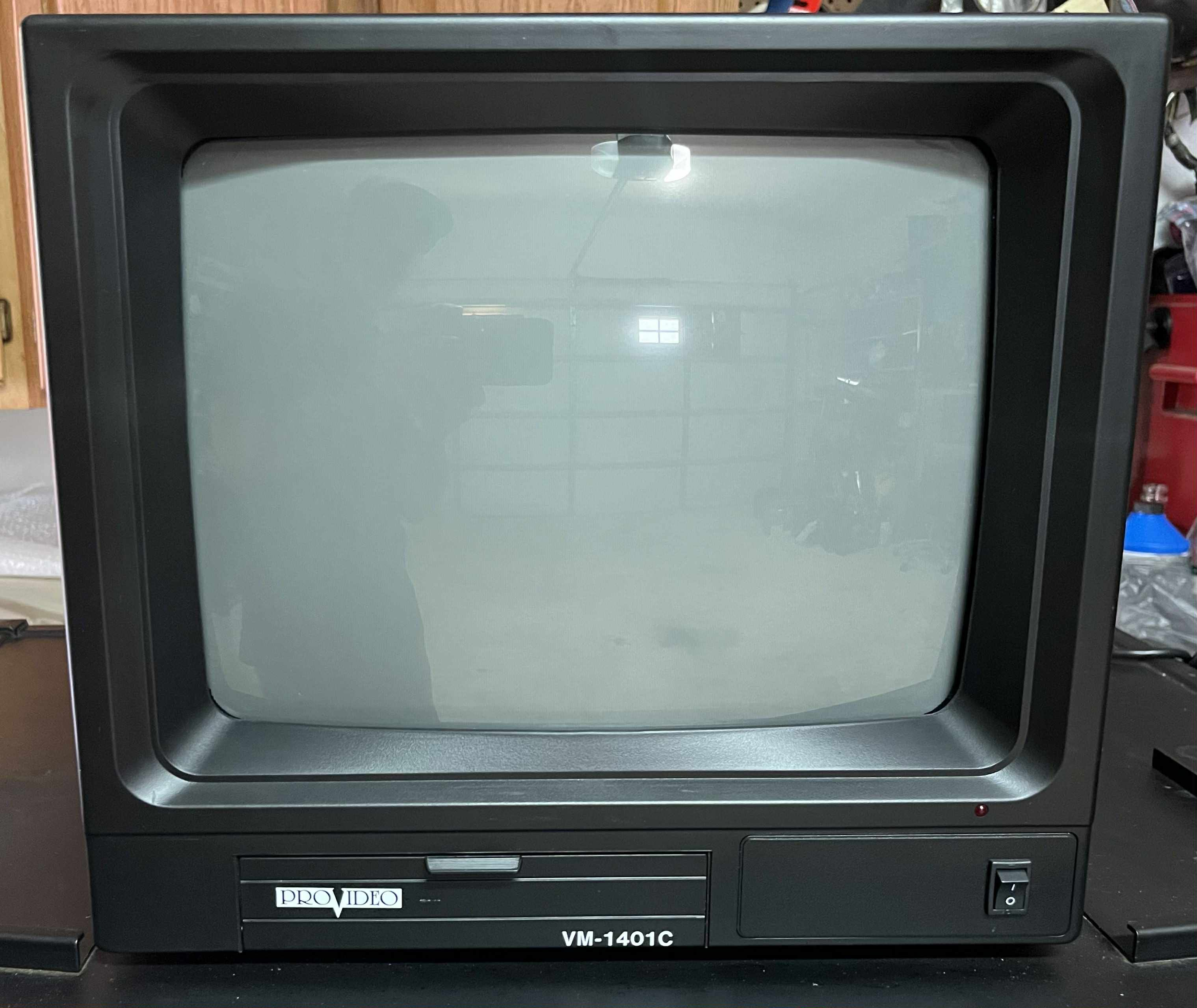

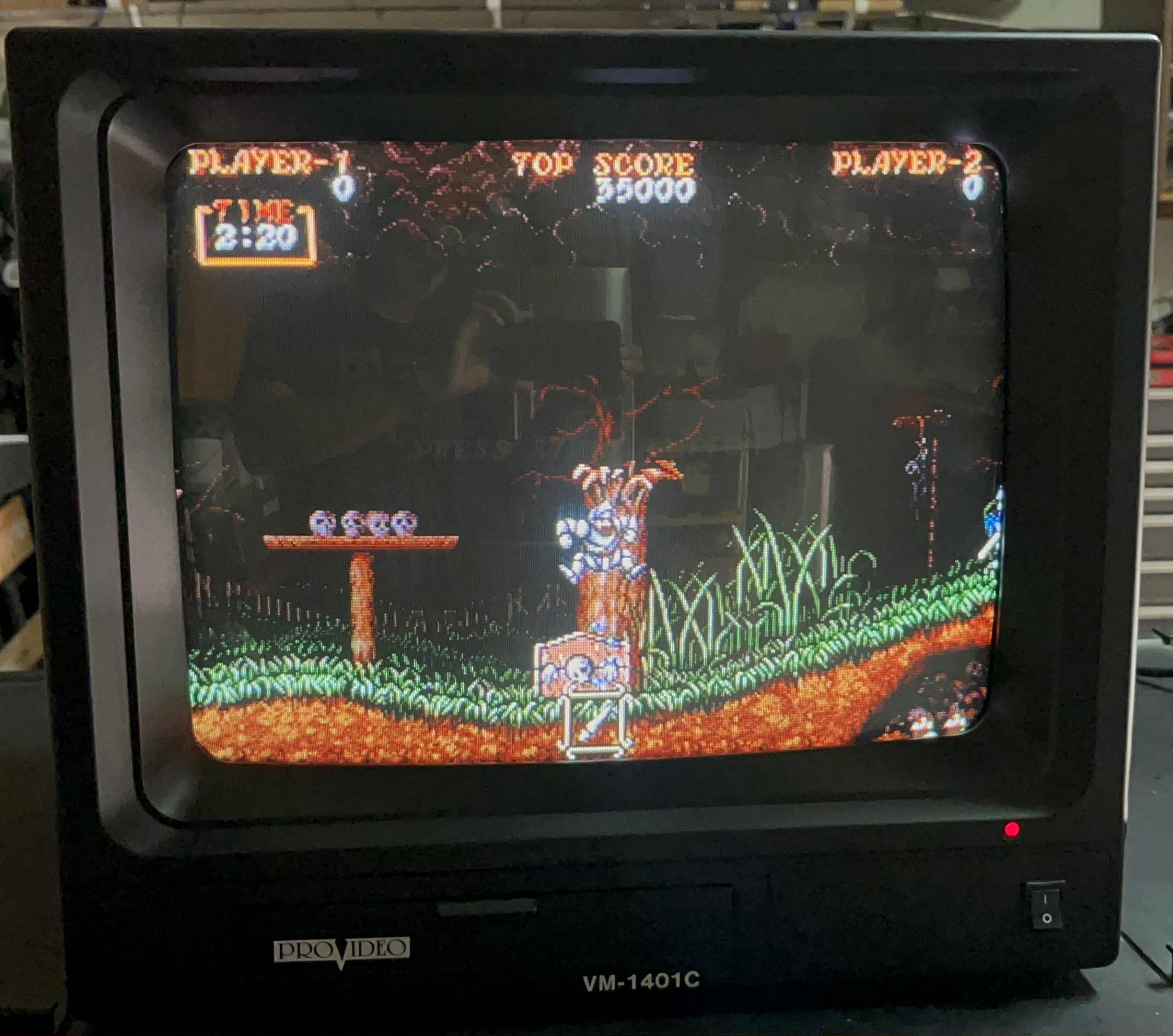

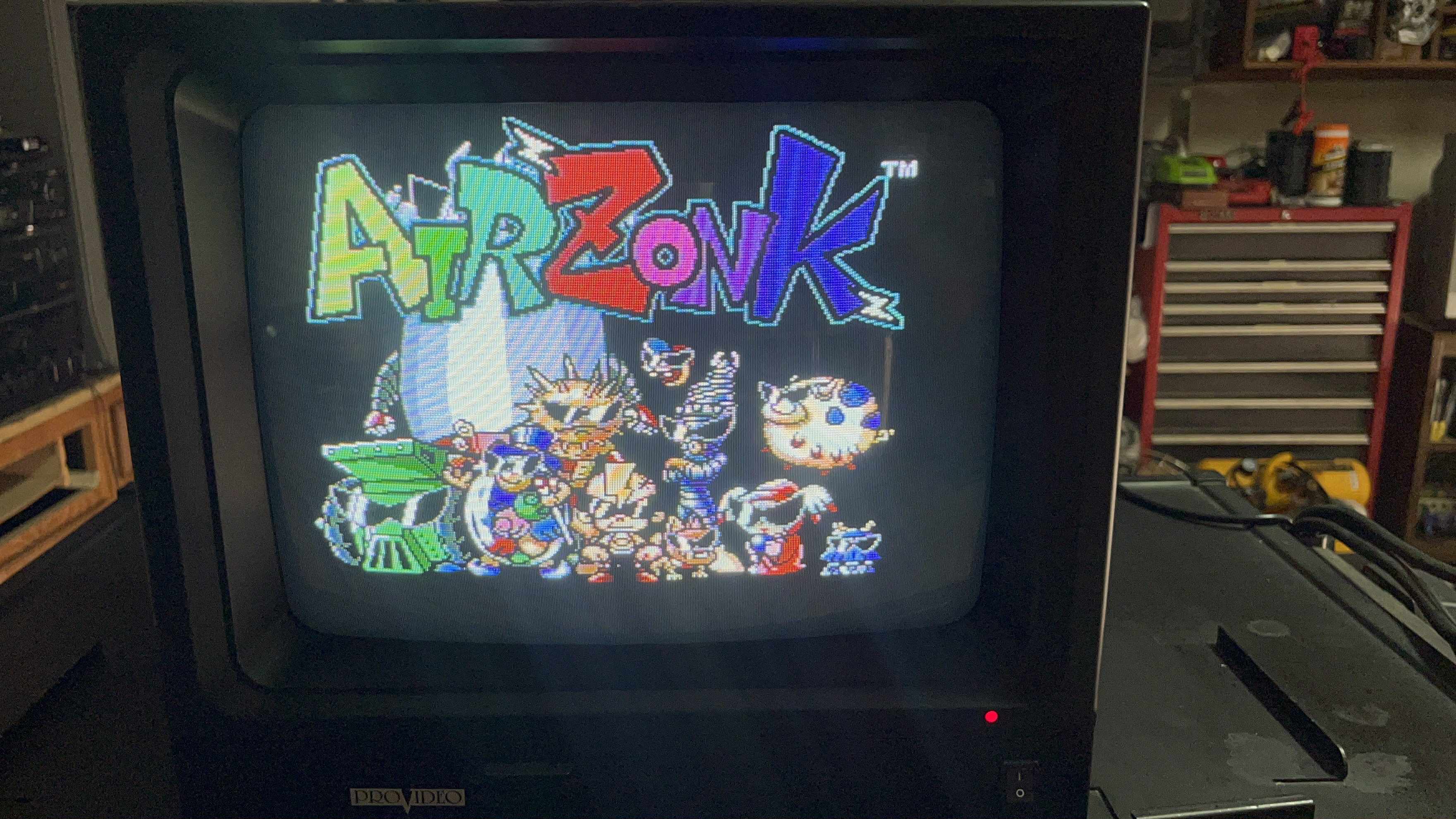

13" CCTV monitor by ProVideo. Has composite and s-video inputs and outputs with mono sound. Supports NTSC and PAL video standards. Originally manufactured in Taiwan by Li Chen Technology.
(Special thanks to Gonzo F. for the pics!)

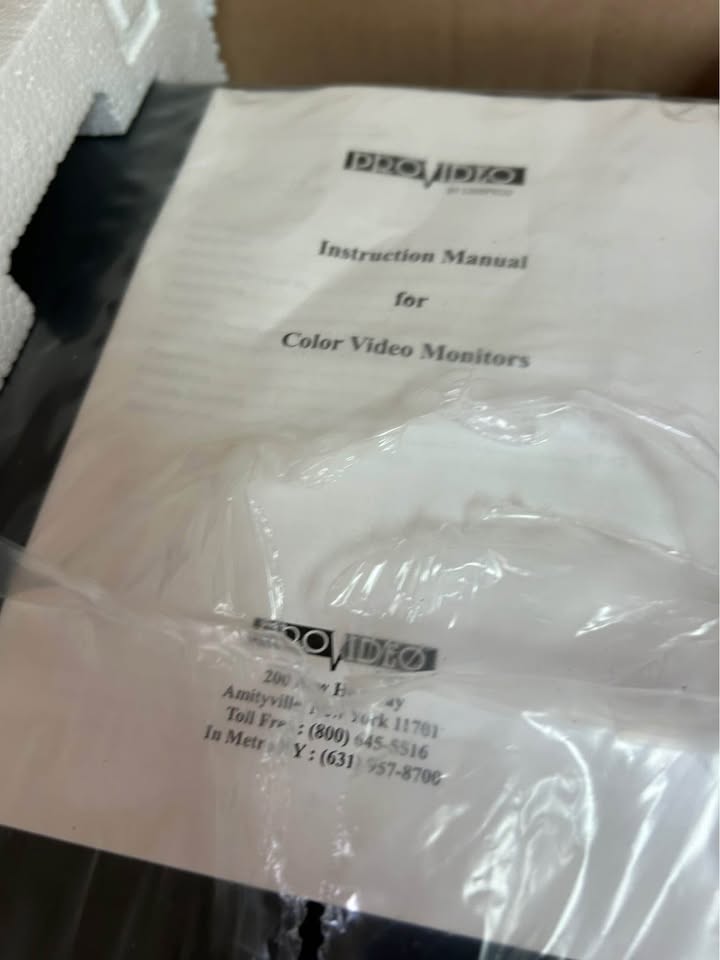

Manuals
Notes

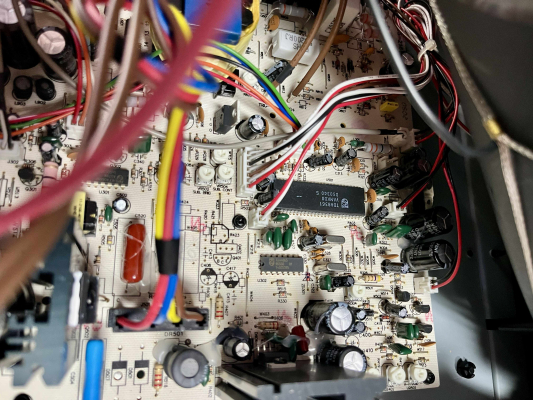

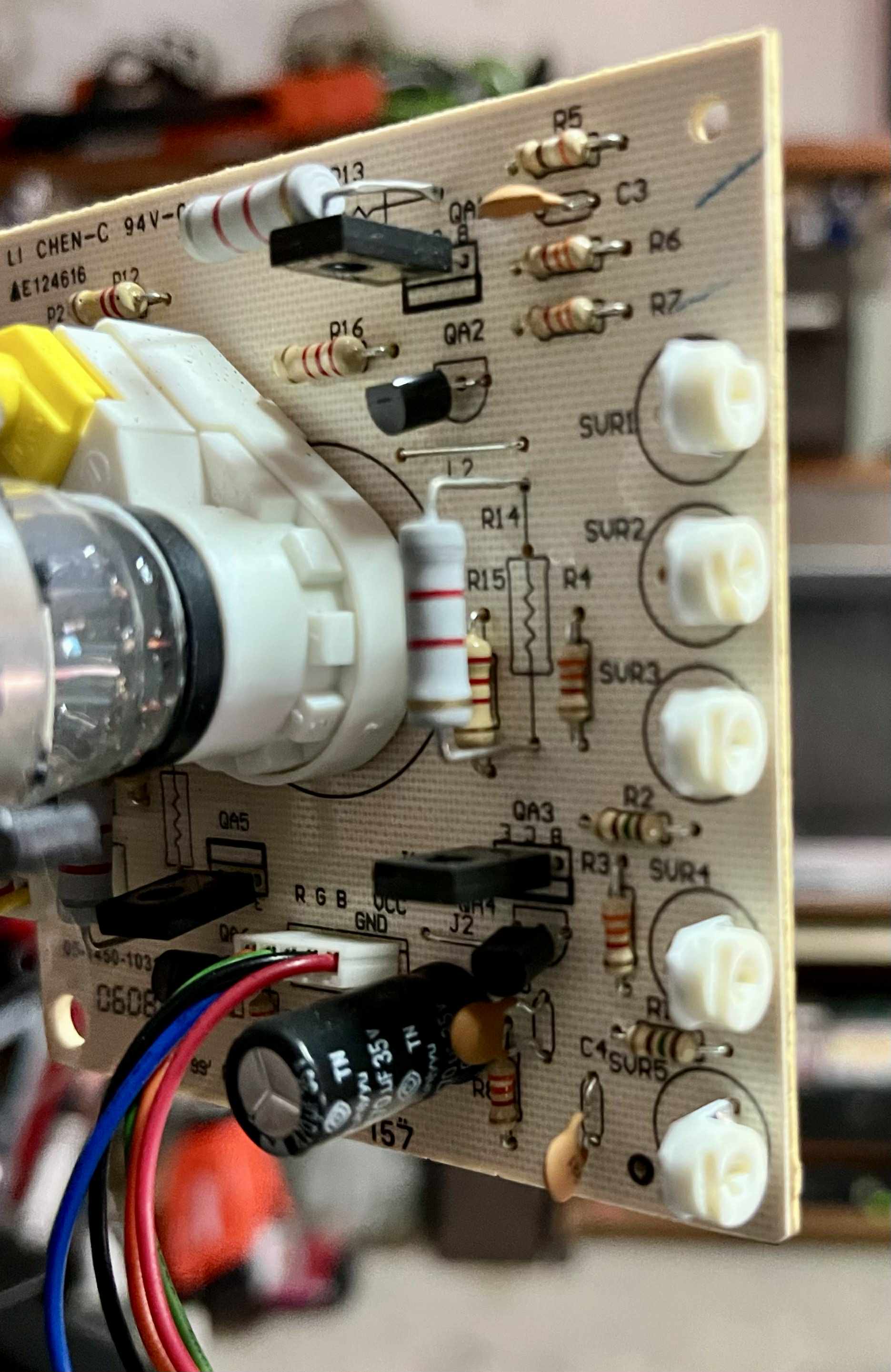

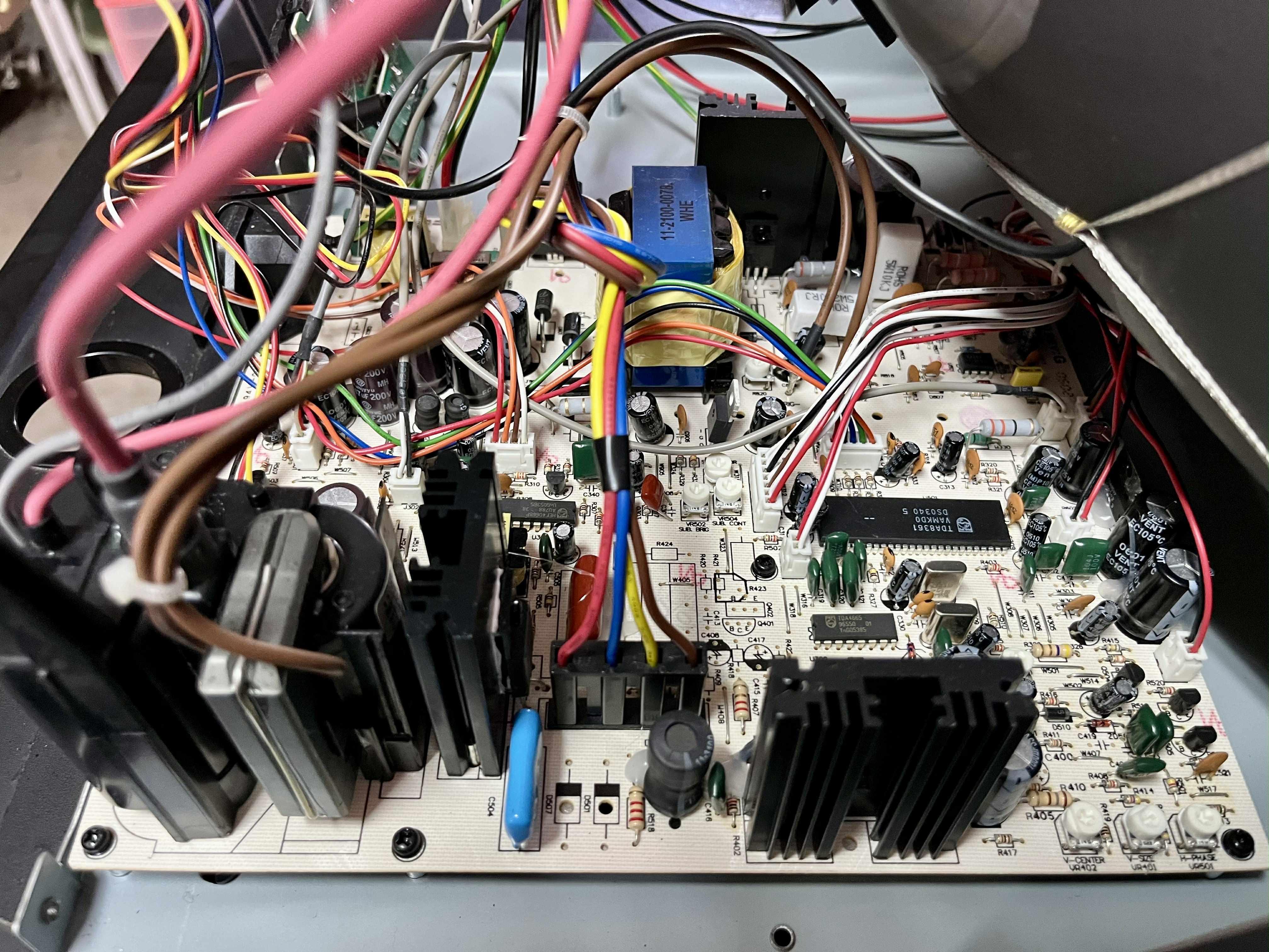

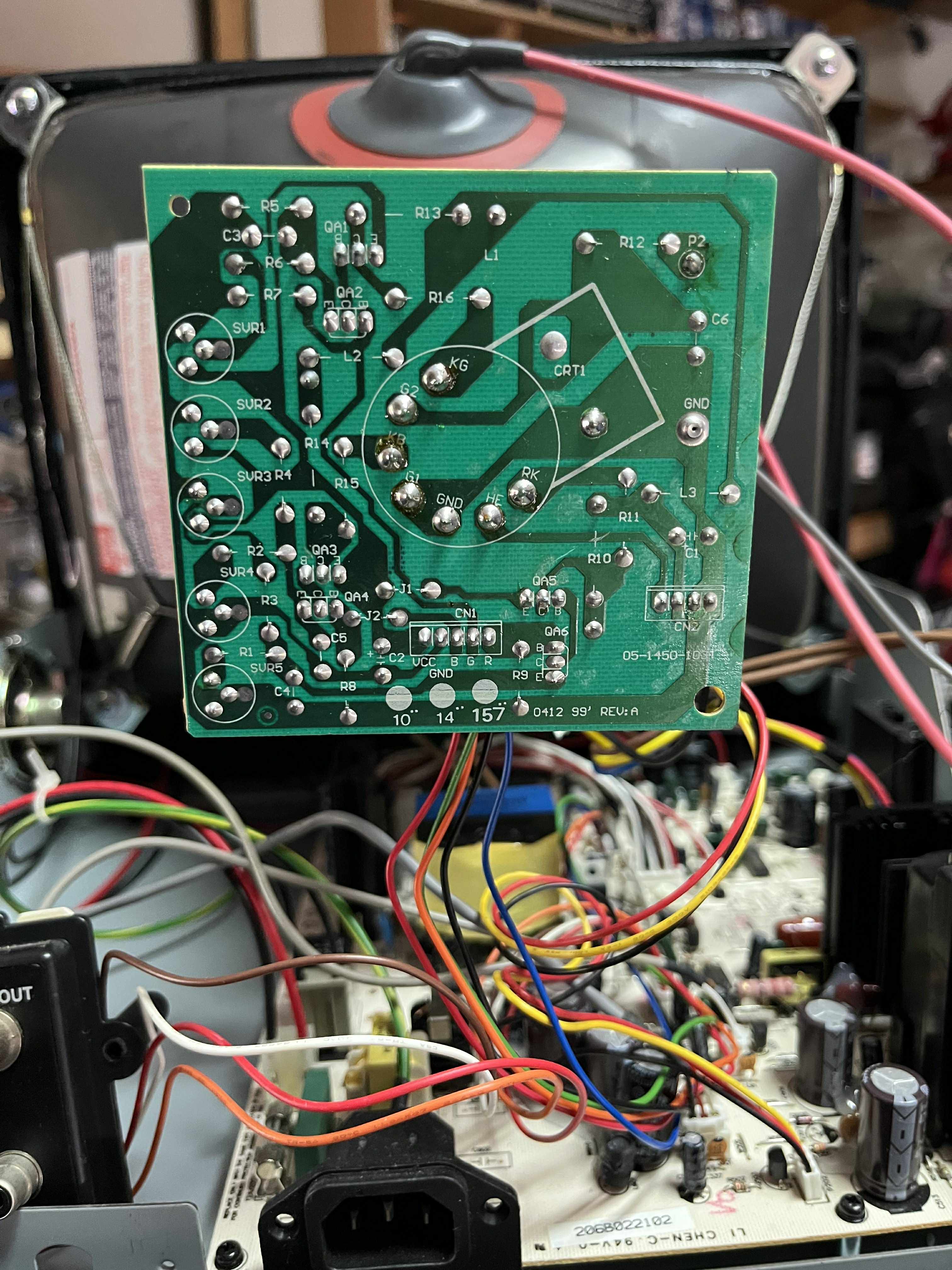

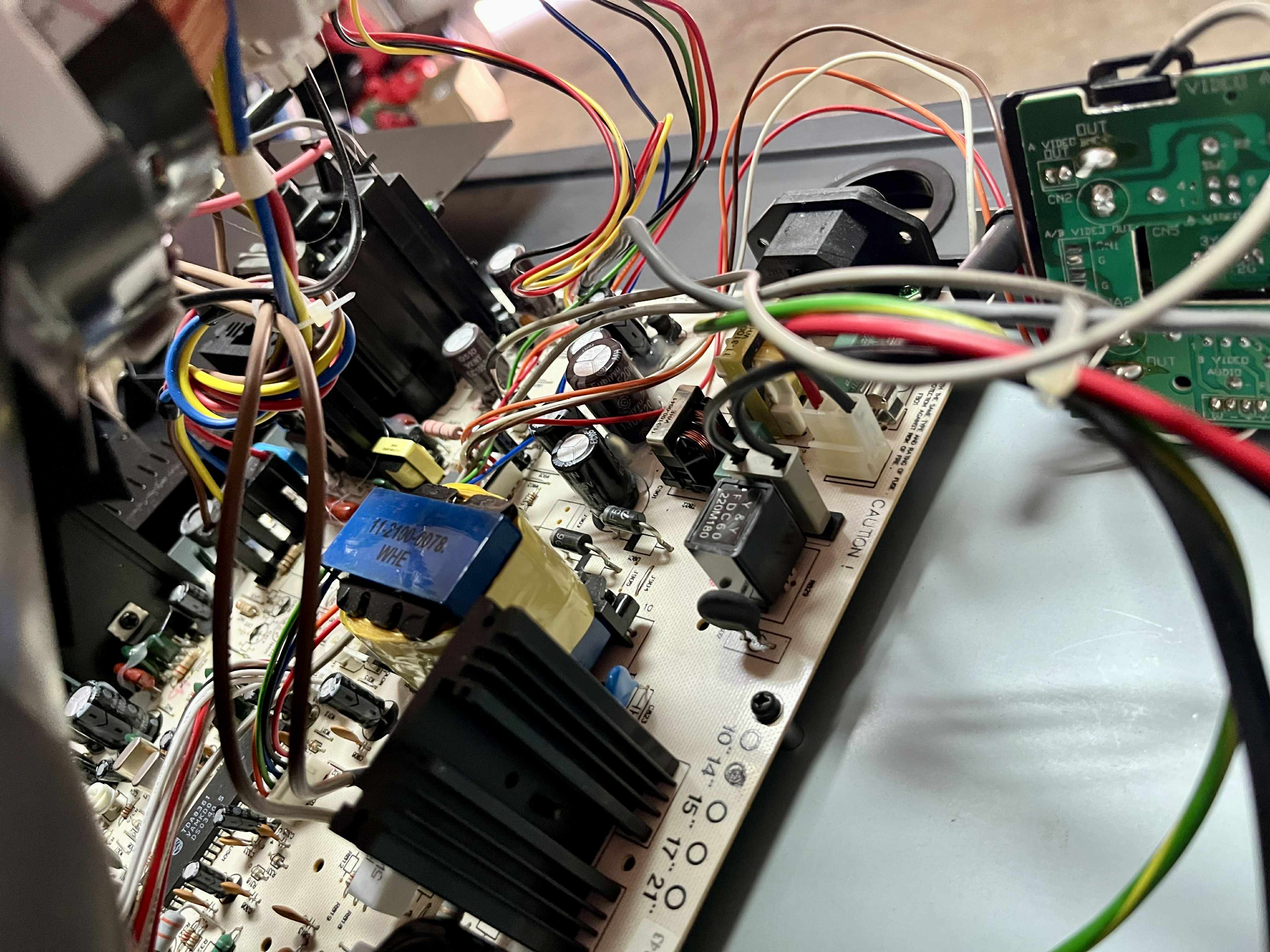

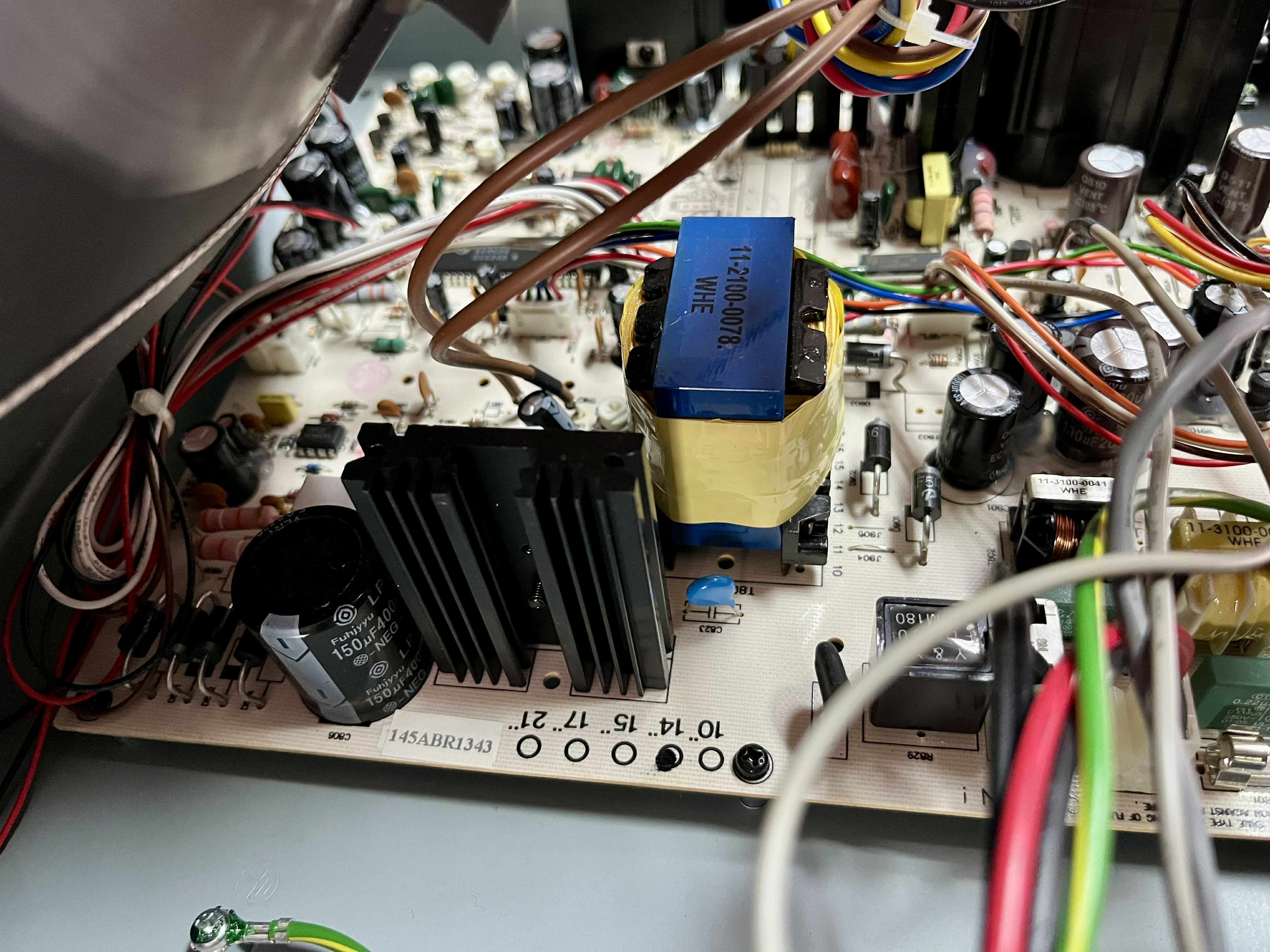

Chassis uses a universal board to accommodate multiple tube sizes. Board has potentiometers for adjusting geometry and white balance.
Gallery
| Specifications | |
|---|---|
| Brand: | ProVideo |
| Manufacturer: | Li Chen Technology |

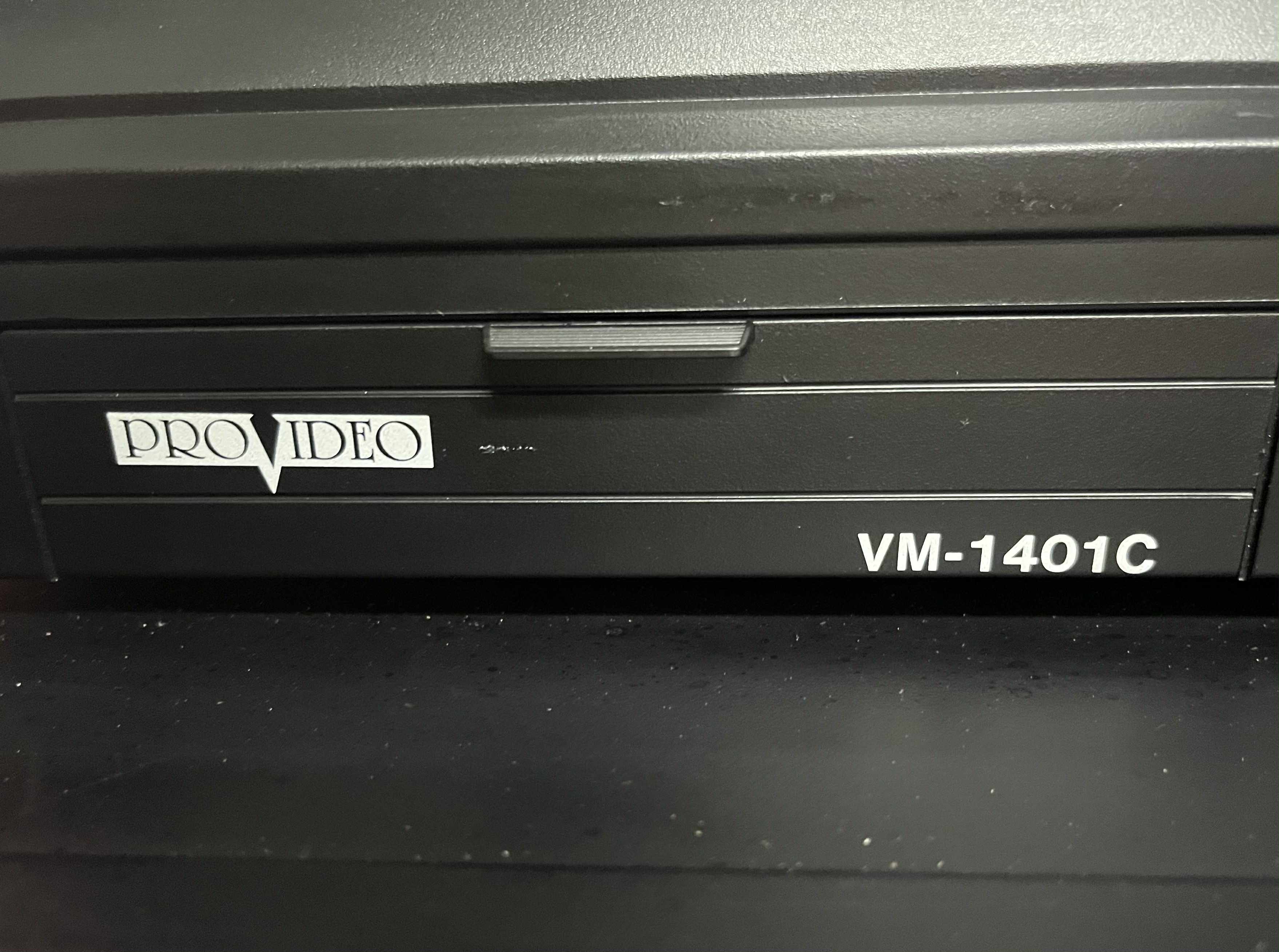

| Model: | VM-1401C |
| Series: | VM |
| Viewable Size: | 13" |

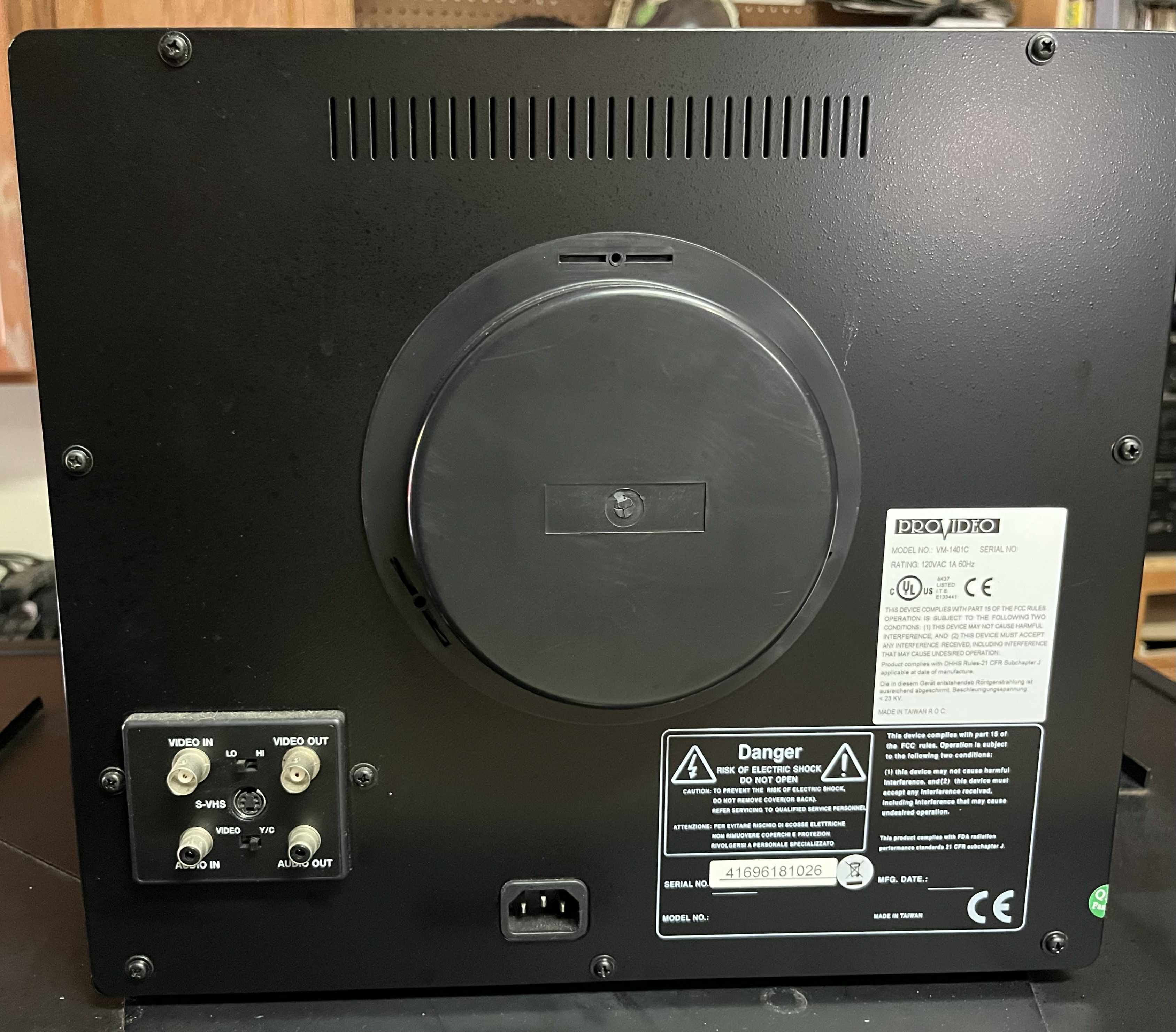

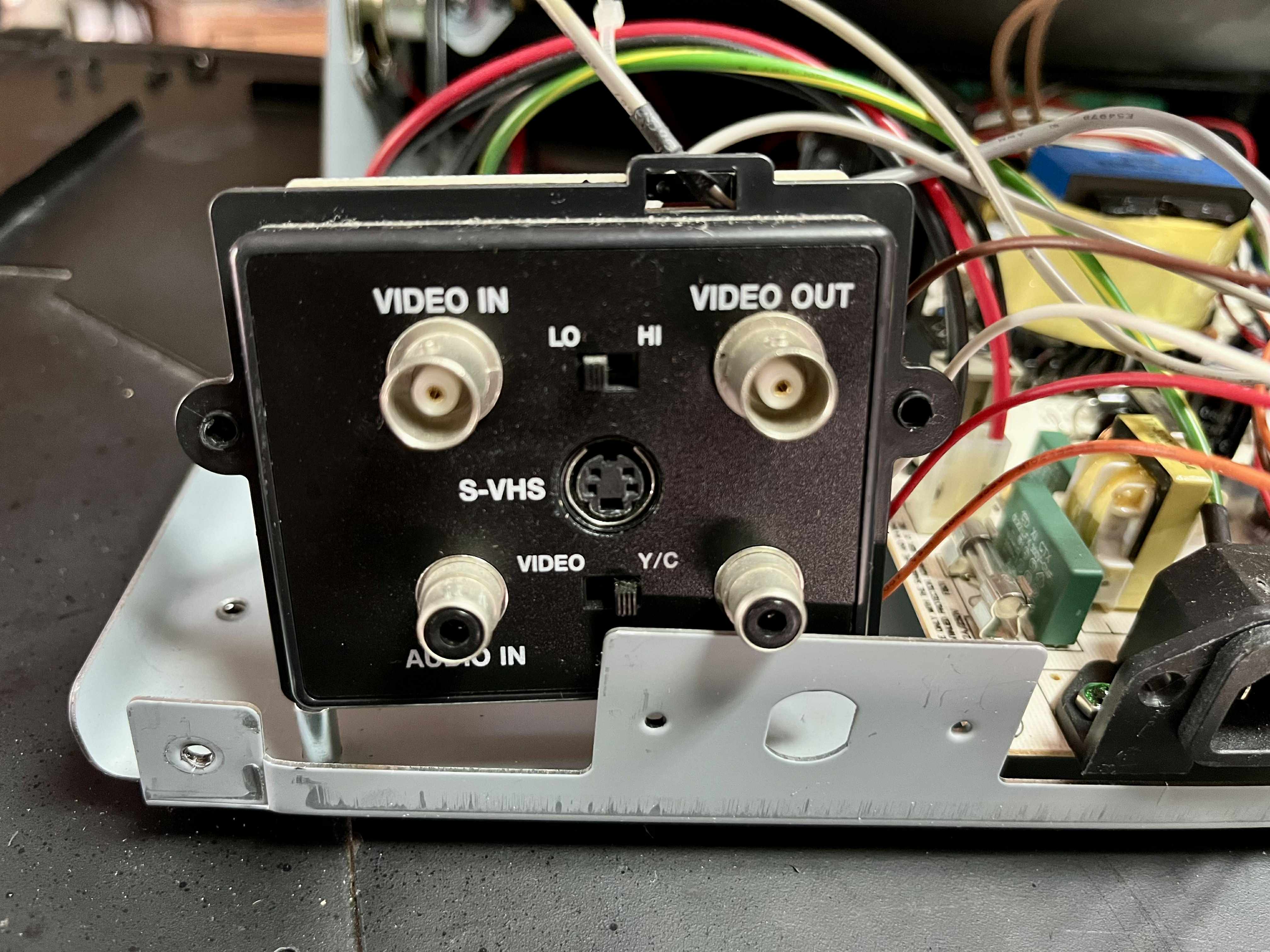

| Inputs: | Composite, S-Video, BNC |
| Native Resolutions: | 240p, 480i, 288p, 576i |
| Linecount: | 420 TVL |
| Horizontal Scan Range: | 15 kHz |
| Vertical Scan Range: | 50 Hz, 60 Hz |
| Formats: | NTSC, PAL |
| Aspect: | 4:3 |

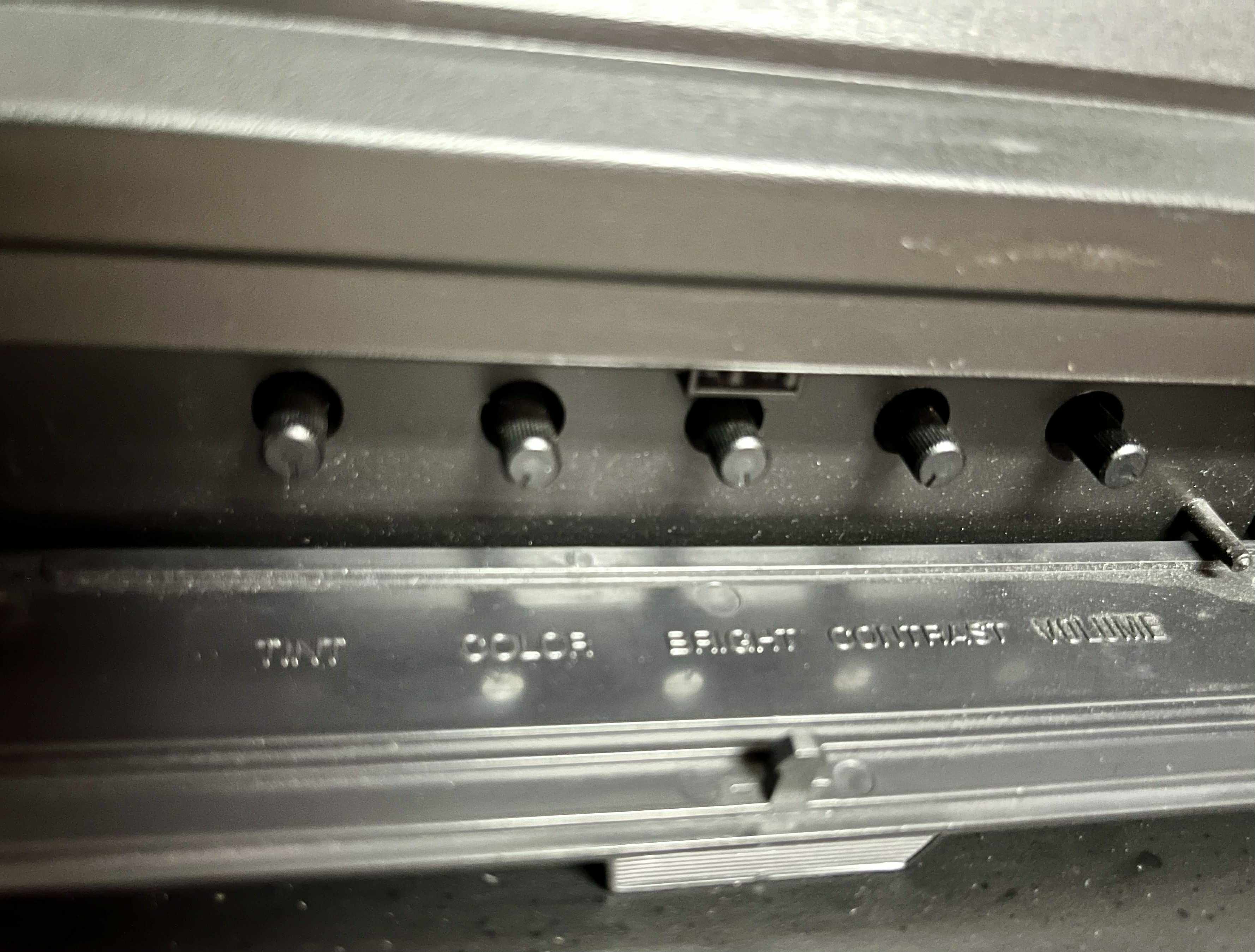

| Adjustments: | Internal Potentiometers, External Potentiometers |

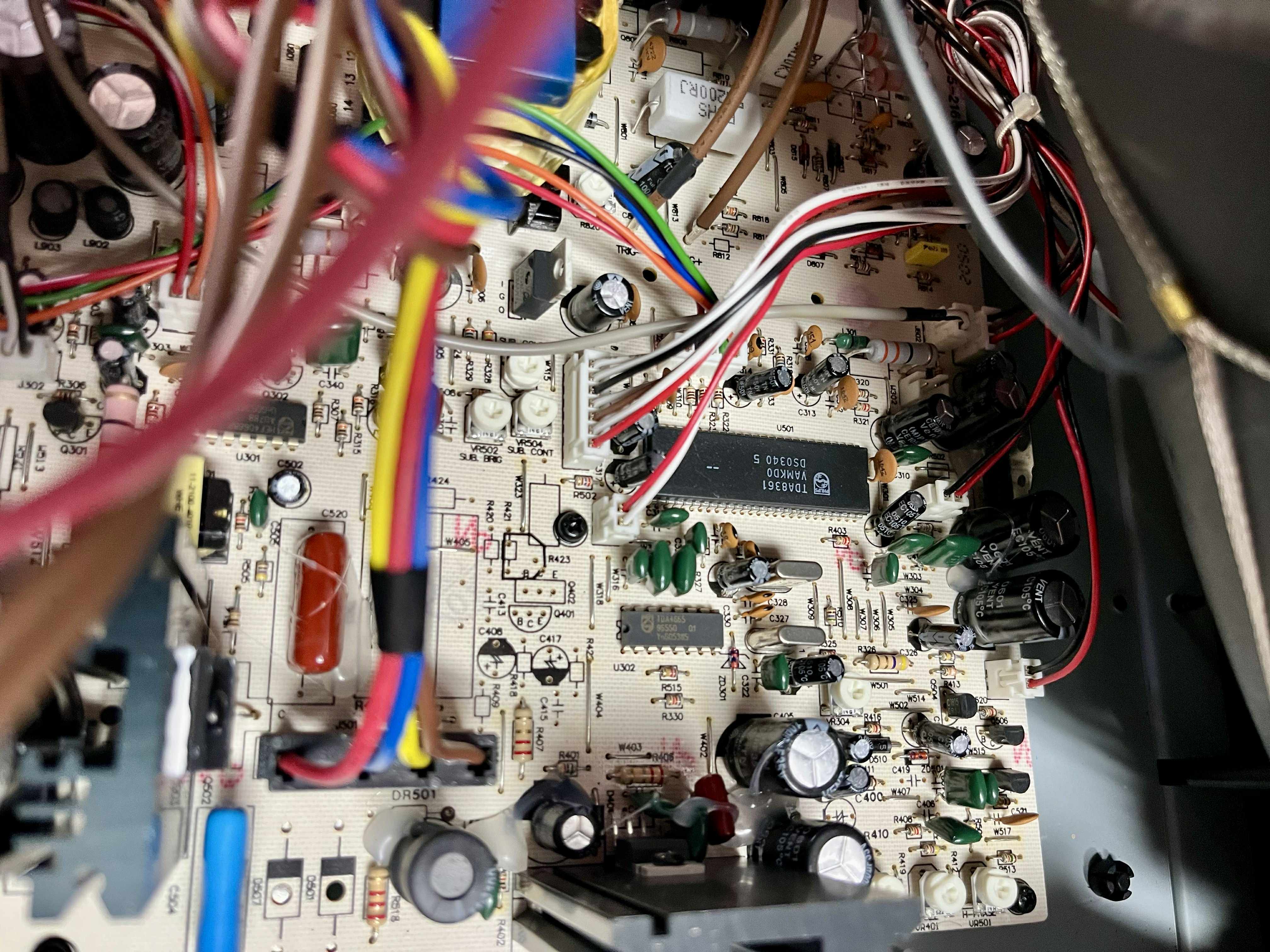

| Jungle: | Philips, TDA8361 |

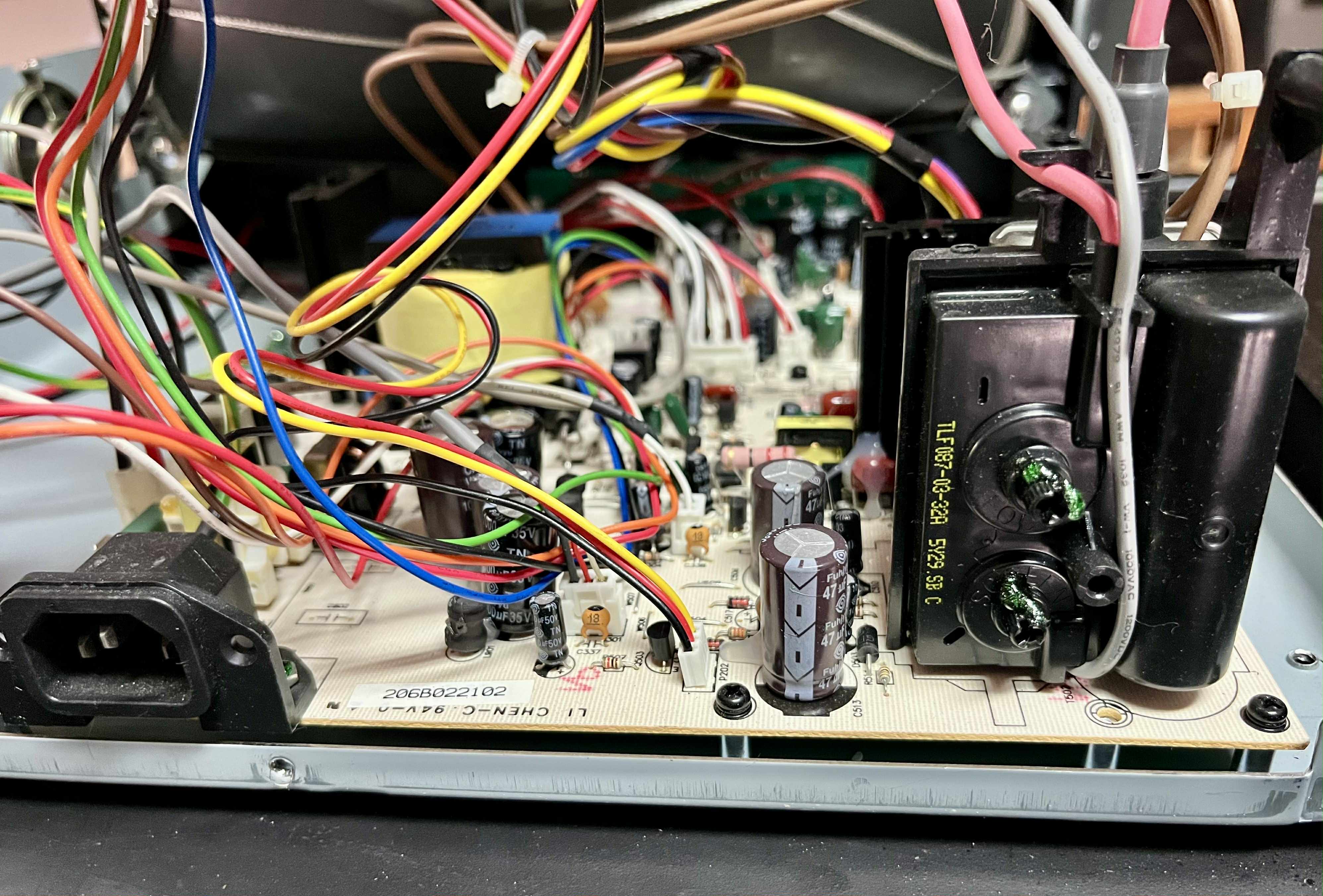

| Flyback: | TLF087-03-32A |
| Focus Type: | Single |

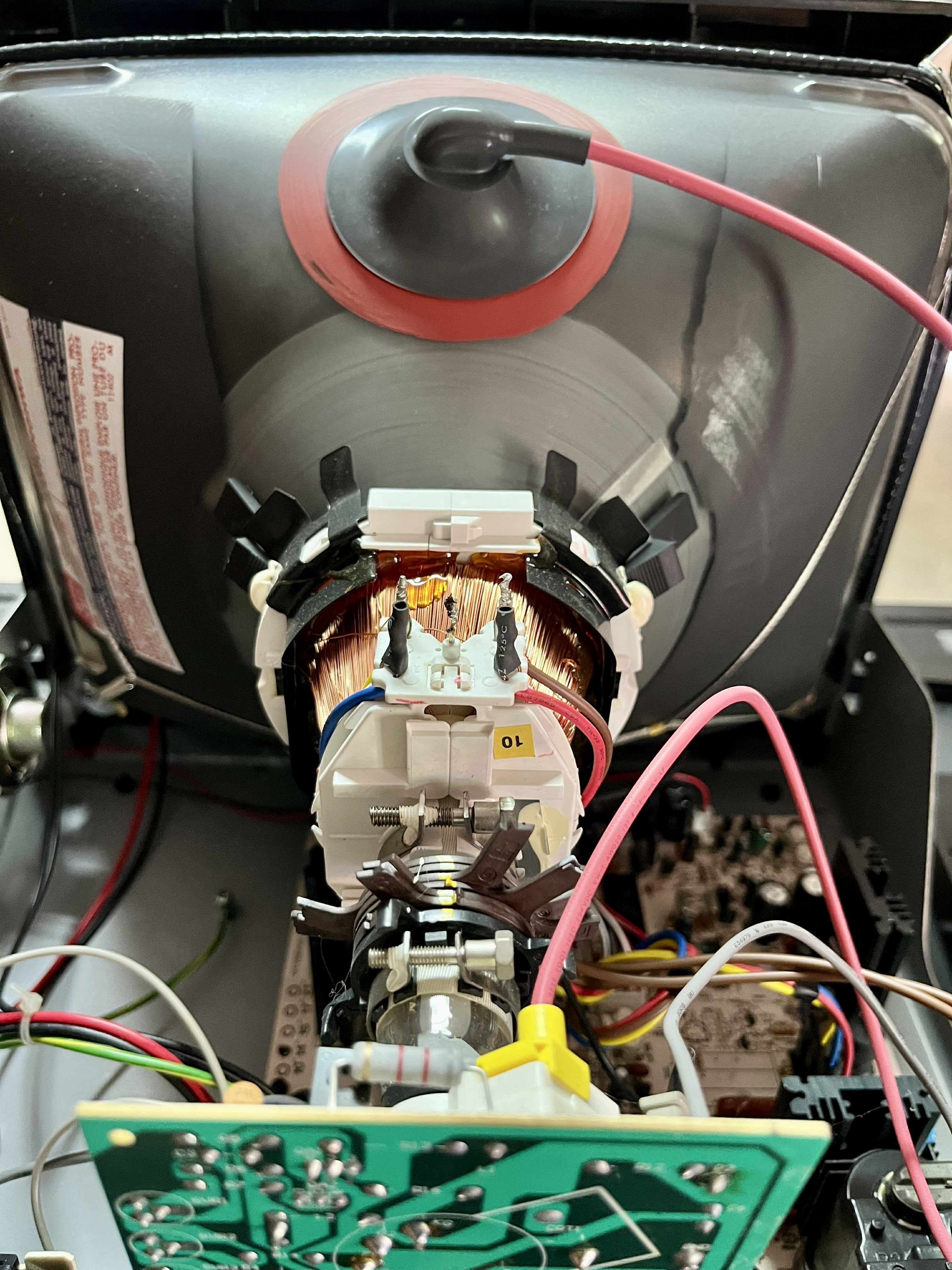

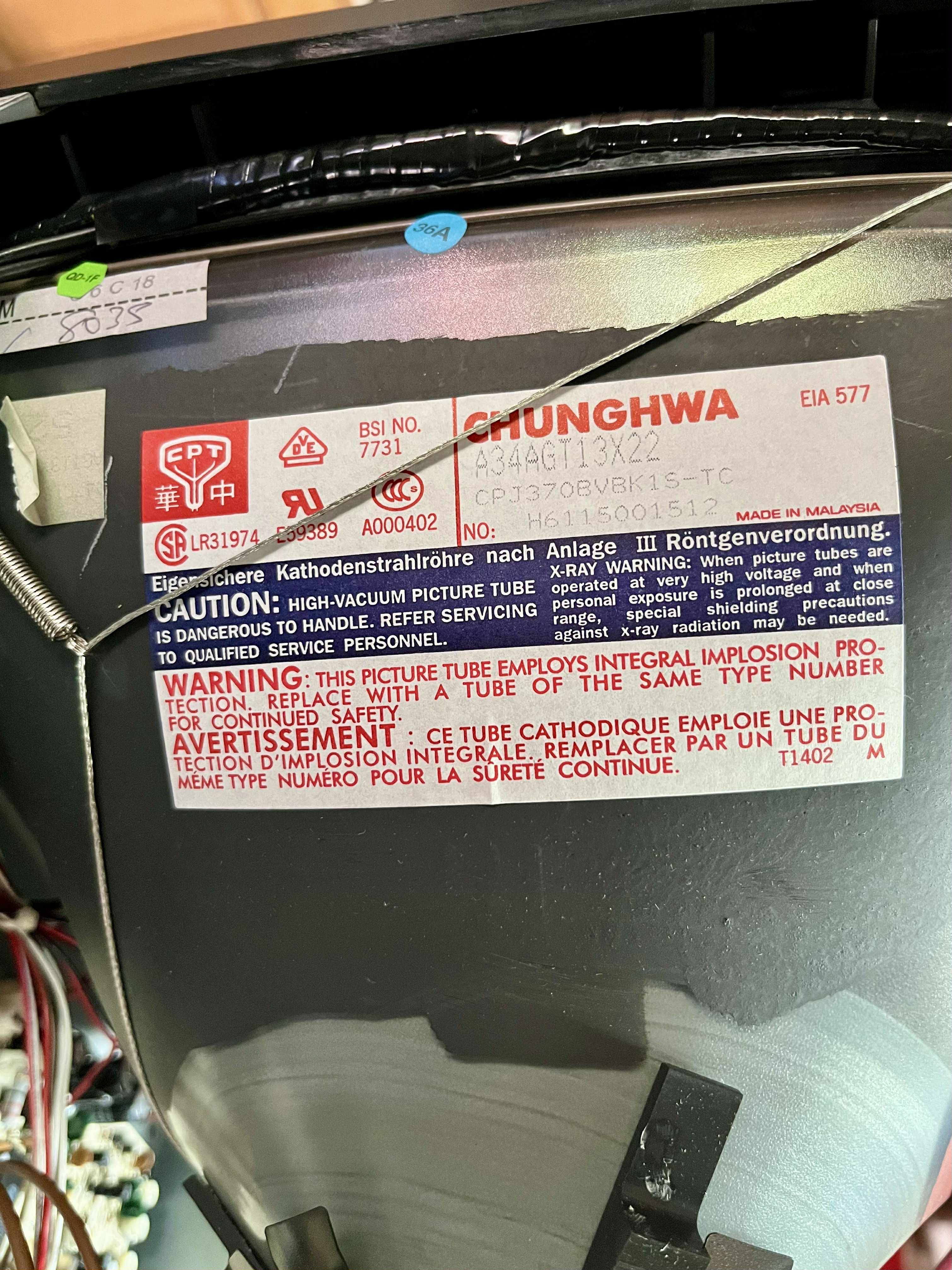

| Tube: | Chunghwa , A34AGT13X , A34AGT13X22 |
| Heater Voltage: | 6.3v |
| Mask: |
Slot
|
| Tint: | Dark |
| Removable Glare Film: | No |

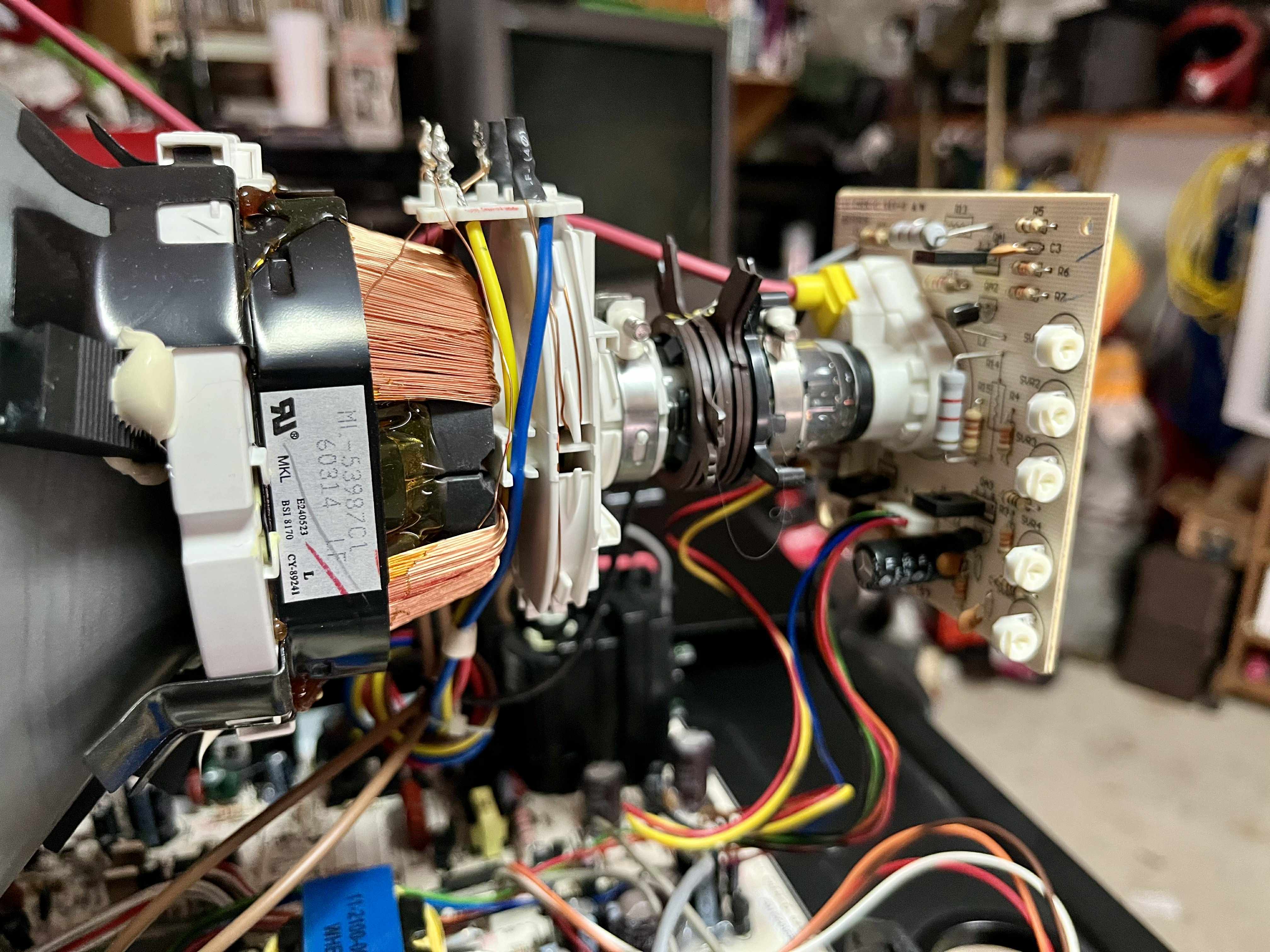

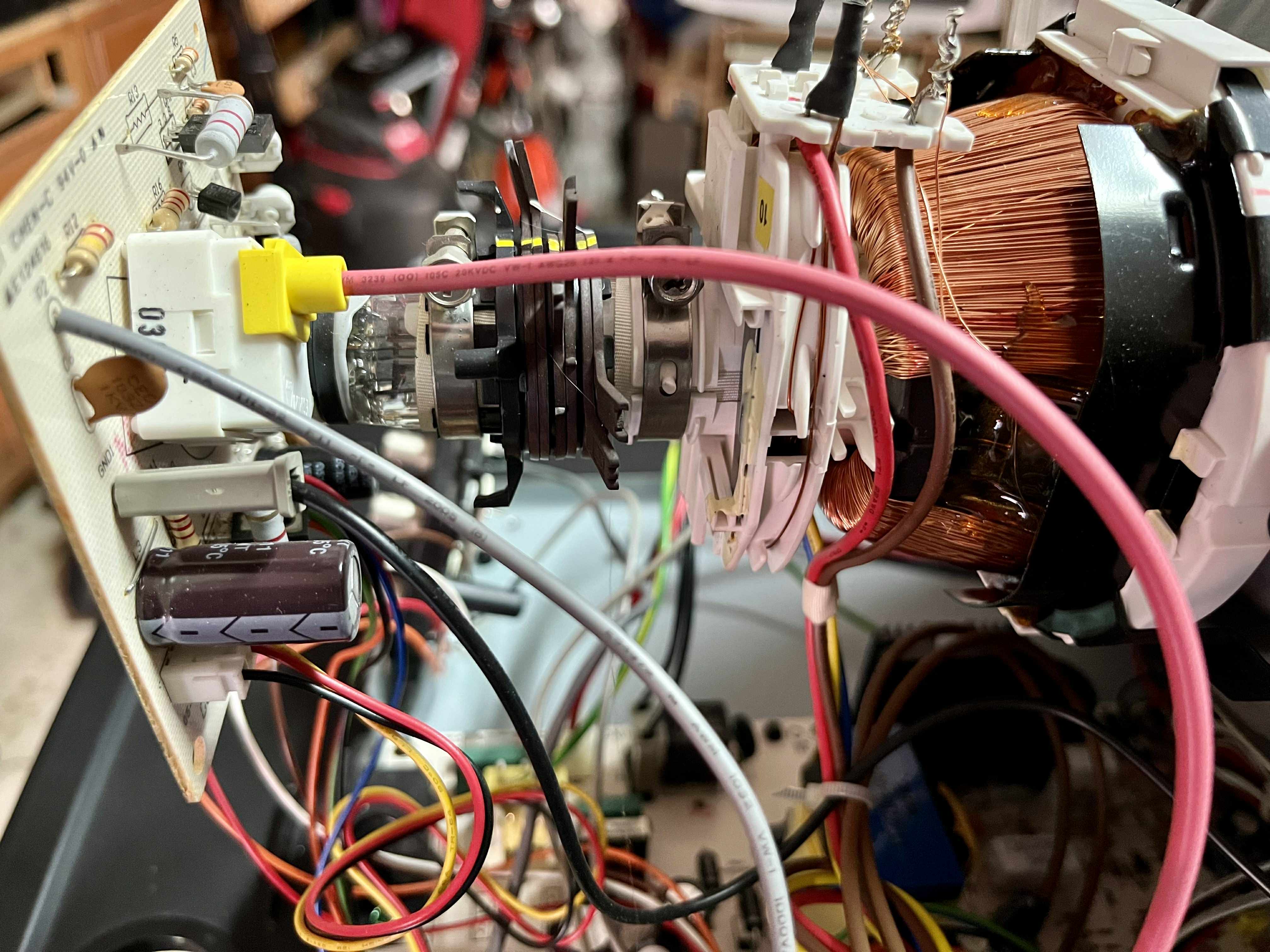

| Yoke: | ML-53987C1 |

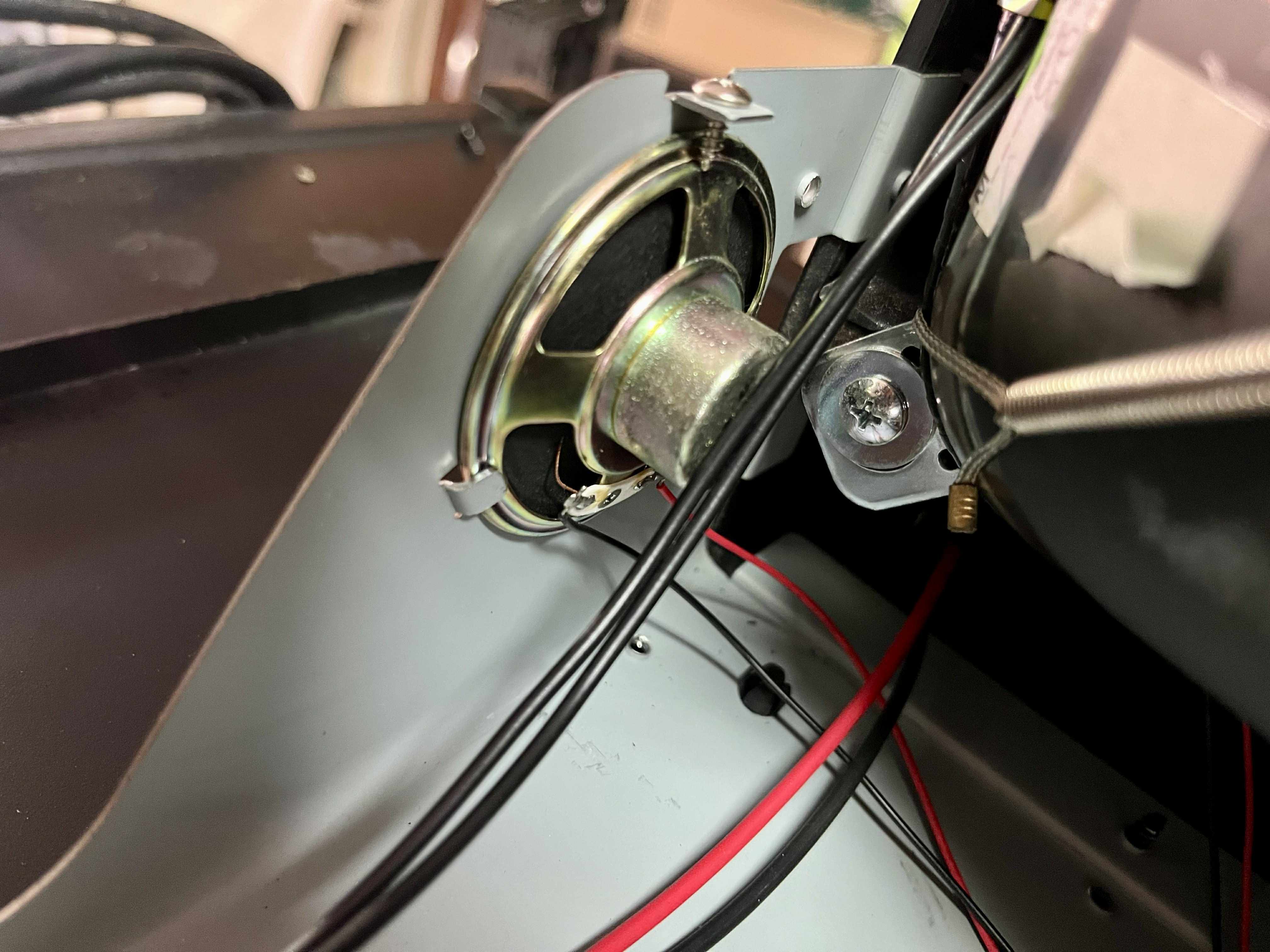

| Speakers: | Mono, 1W |
| Weight: | 20 lbs (9.1 kg) |
| Dimensions (W/H/D): |
356 x 320 x 318 mm
(14 x 12.6 x 12.5") |
| Application: | Professional |
| Cabinet Material: | Metal |
| Country of Manufacture: | Taiwan |
| Market: | North America |
| Power Standard: | 120v |
| Mounting: | Table Surface (Standard) |
| Degaussing: | Automatic on Power-on |
| Tag: | Needs Owners Manual, Needs Service Manual |
